Programmable Constant Current LED Driver, 20W, 200-730mA, 0-10V Dimming, 120-277V
In stock
About this item
About this item
- Output Voltage: 10-56V DC
- Dimming: 0-10V down to 1%
- Input Voltage: 120-277V
- Enclosure: Bare module
- Protection: Over-voltage, over-current, short circuit, over-temperature
We process payments securely and do not store credit card information.
Description
Description

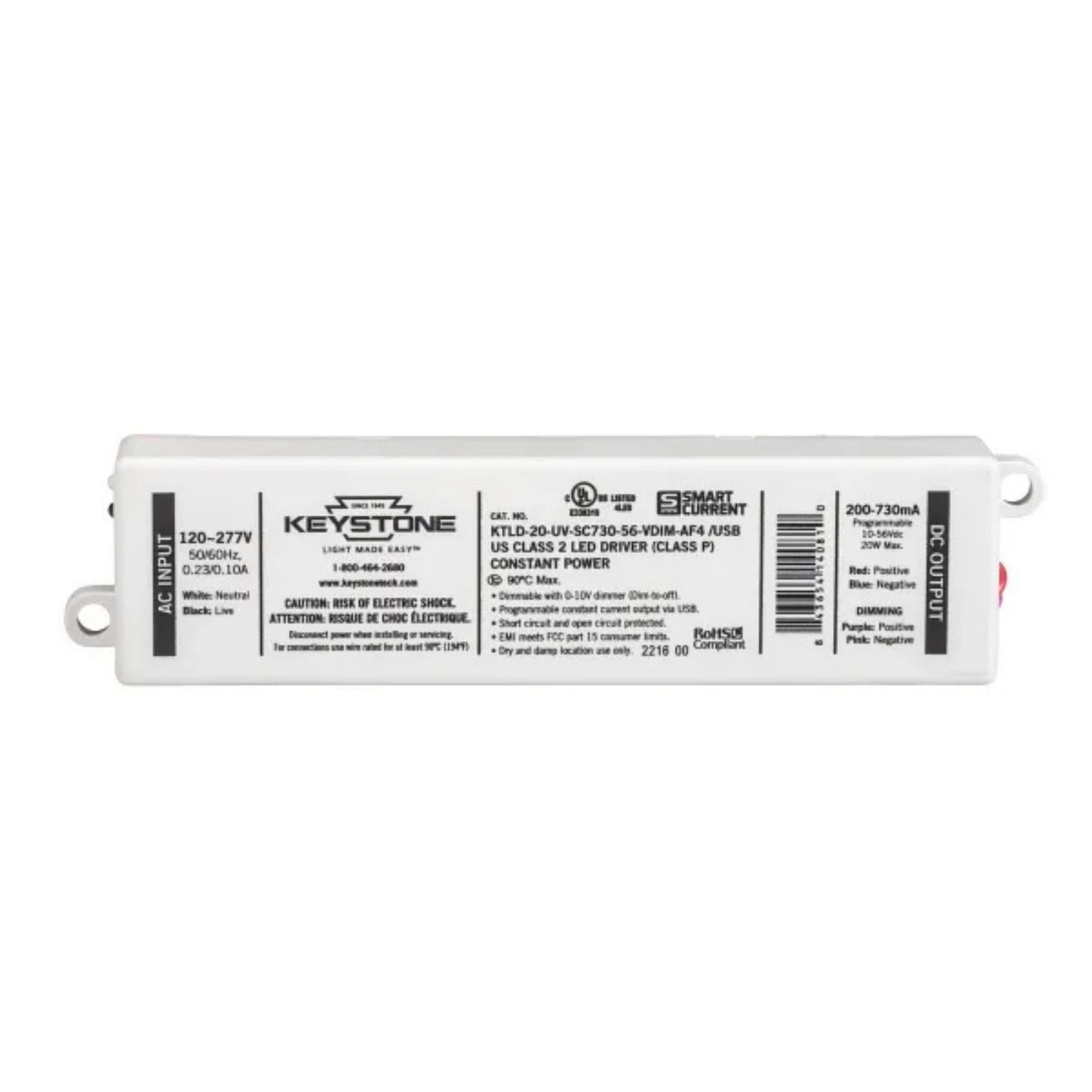

Keystone Technologies 20W Driver — 10-56V DC
The Keystone Technologies KTLD-20-UV-SC730-56-VDIM-AF4-USB is a 20W LED Driver with an input voltage range of 120-277V and an output voltage of 10-56V DC. This Constant Current driver supports 0-10V dimming down to 1% and is designed for indoor use. It features a bare module enclosure.
Key Features
- Power: 20W
- Input Voltage: 120-277V
- Output Voltage: 10-56V DC
- Output Current: 200-730mA
- Dimming: 0-10V

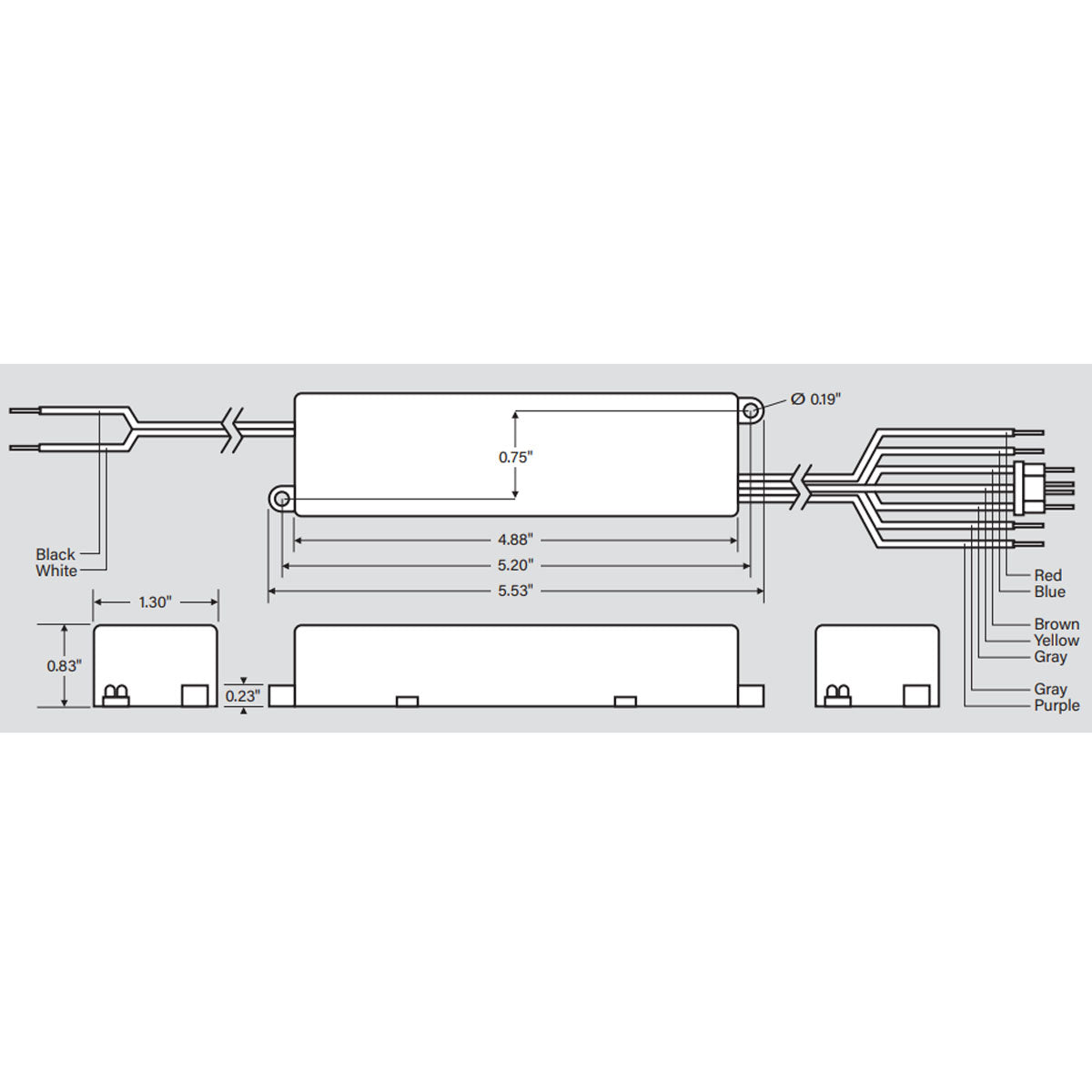

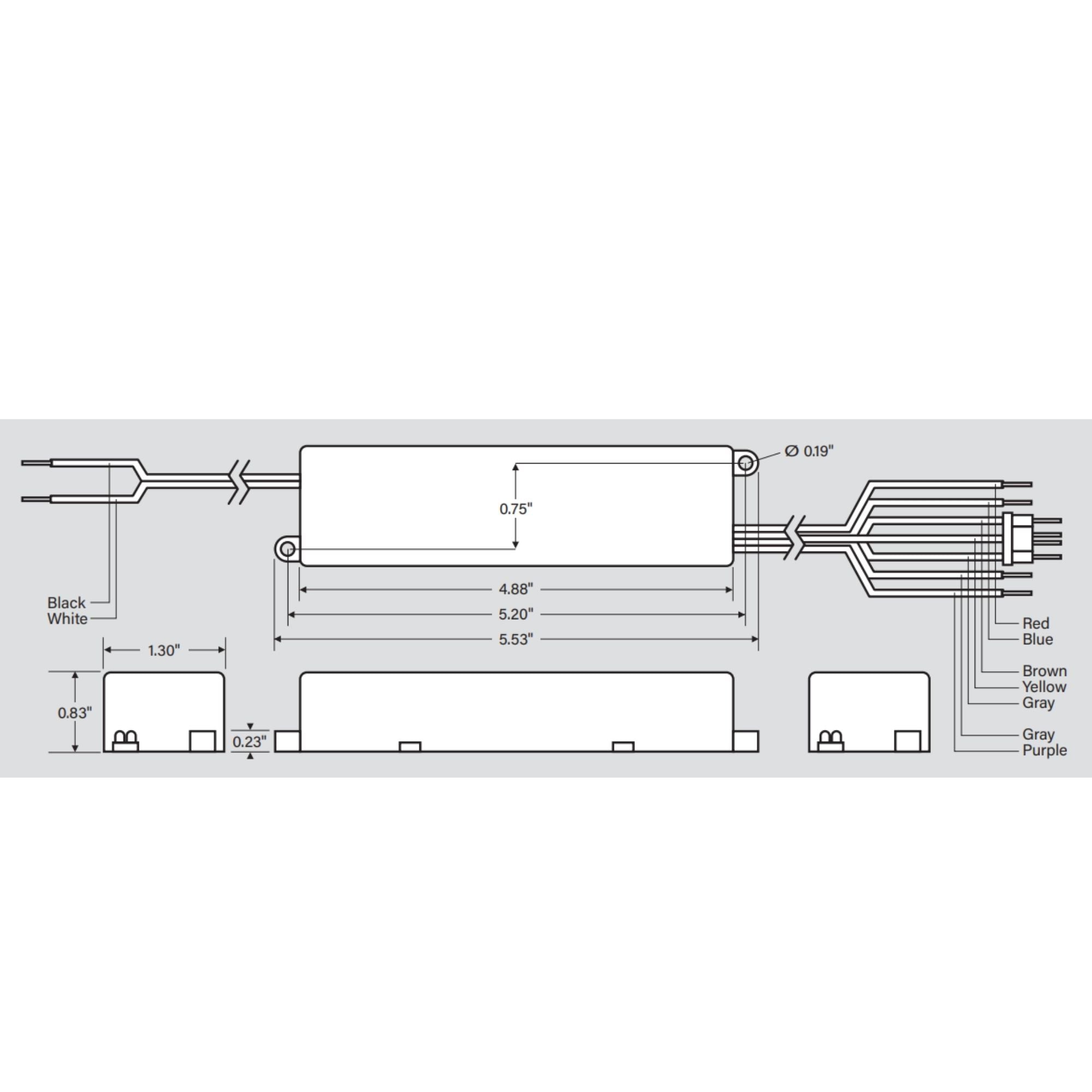

- Dimensions: 5.53 in. L x 1.30 in. W x 0.83 in. H
- Enclosure Type: Bare module
- Class 2: Yes
- Certifications: UL, CE, FCC
Physical Design & Installation

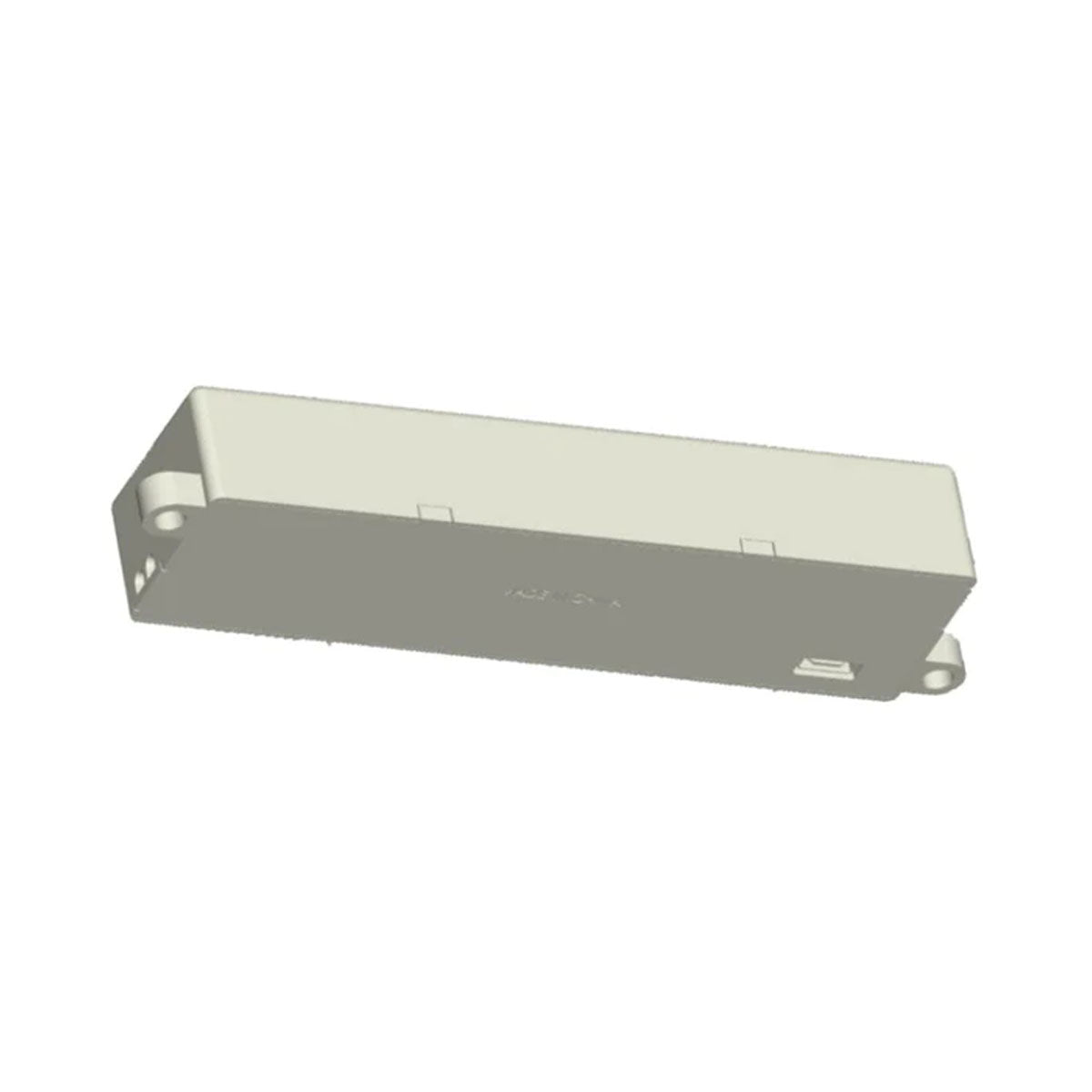

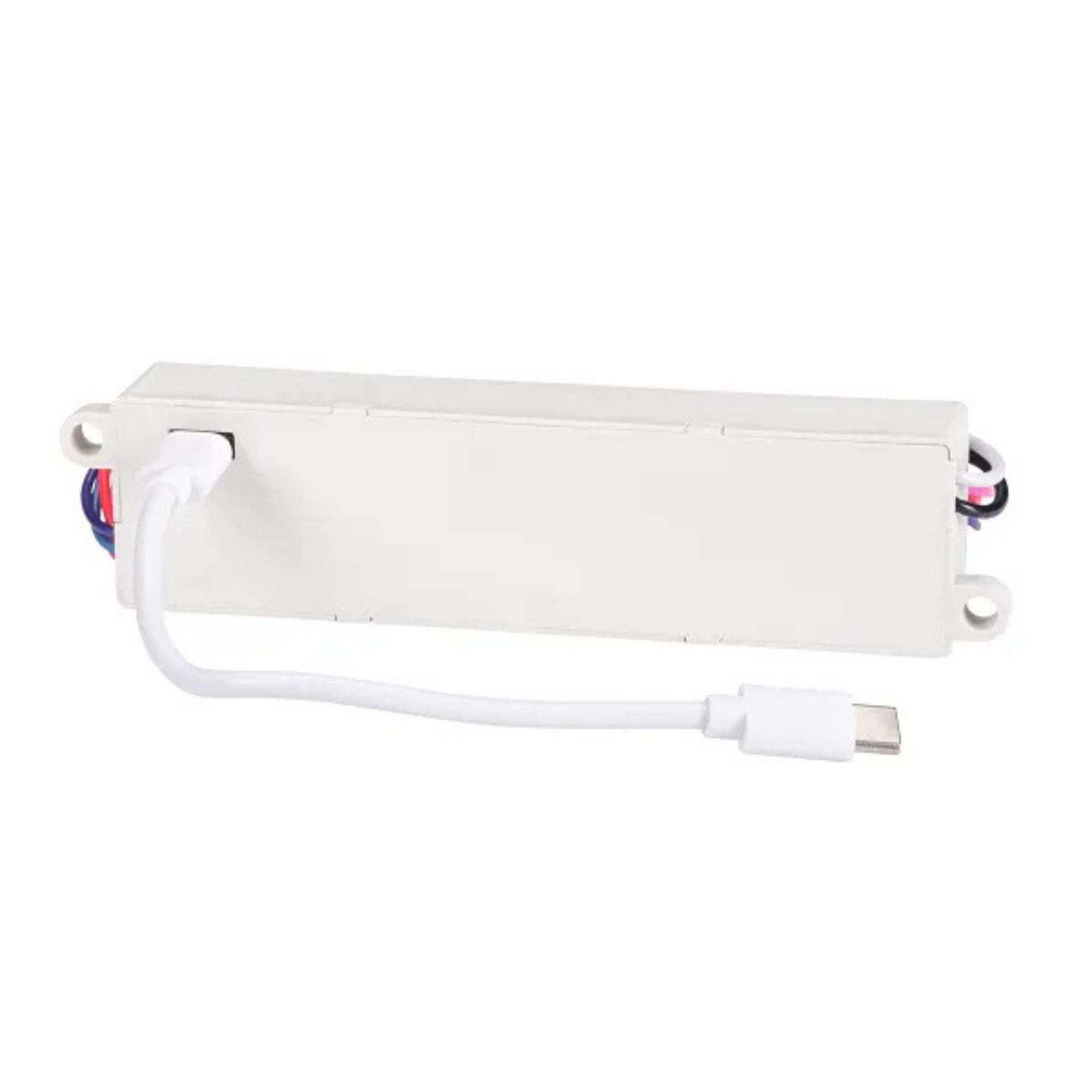

The driver features a compact design with a bare module enclosure, making it suitable for integration into various lighting fixtures.
Dimming & Controls
Compatible with 0-10V dimming systems, this driver allows for precise control of lighting levels, with a minimum dimming level as low as 1%.
Performance & Build
Equipped with over-voltage, over-current, short circuit, and over-temperature protection, this driver ensures reliable performance and longevity.
Typical Applications
- Commercial lighting
- Office lighting
- Retail lighting
- Architectural lighting
