15 Watts LED Driver, Selectable Current 260-350mA, 0-10V Dimming, 120-277V
Available in stock (42)
About this item
About this item
- Output Voltage: 20-42V DC
- Dimming: 0-10V
- Input Voltage: 120-277V
- Enclosure: Bare module
- Protection: Over Voltage, Over Current, Short Circuit
We process payments securely and do not store credit card information.
Description
Description

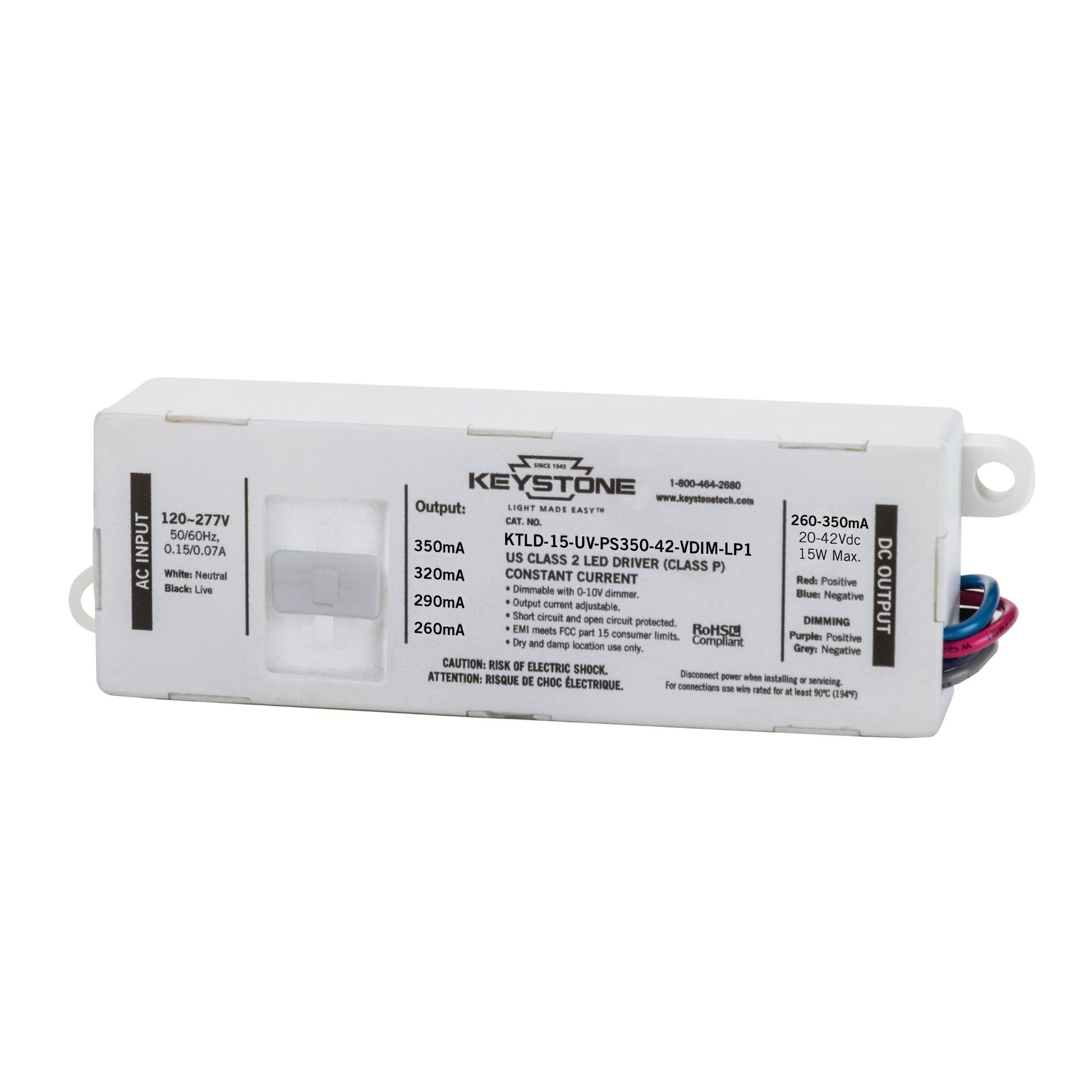

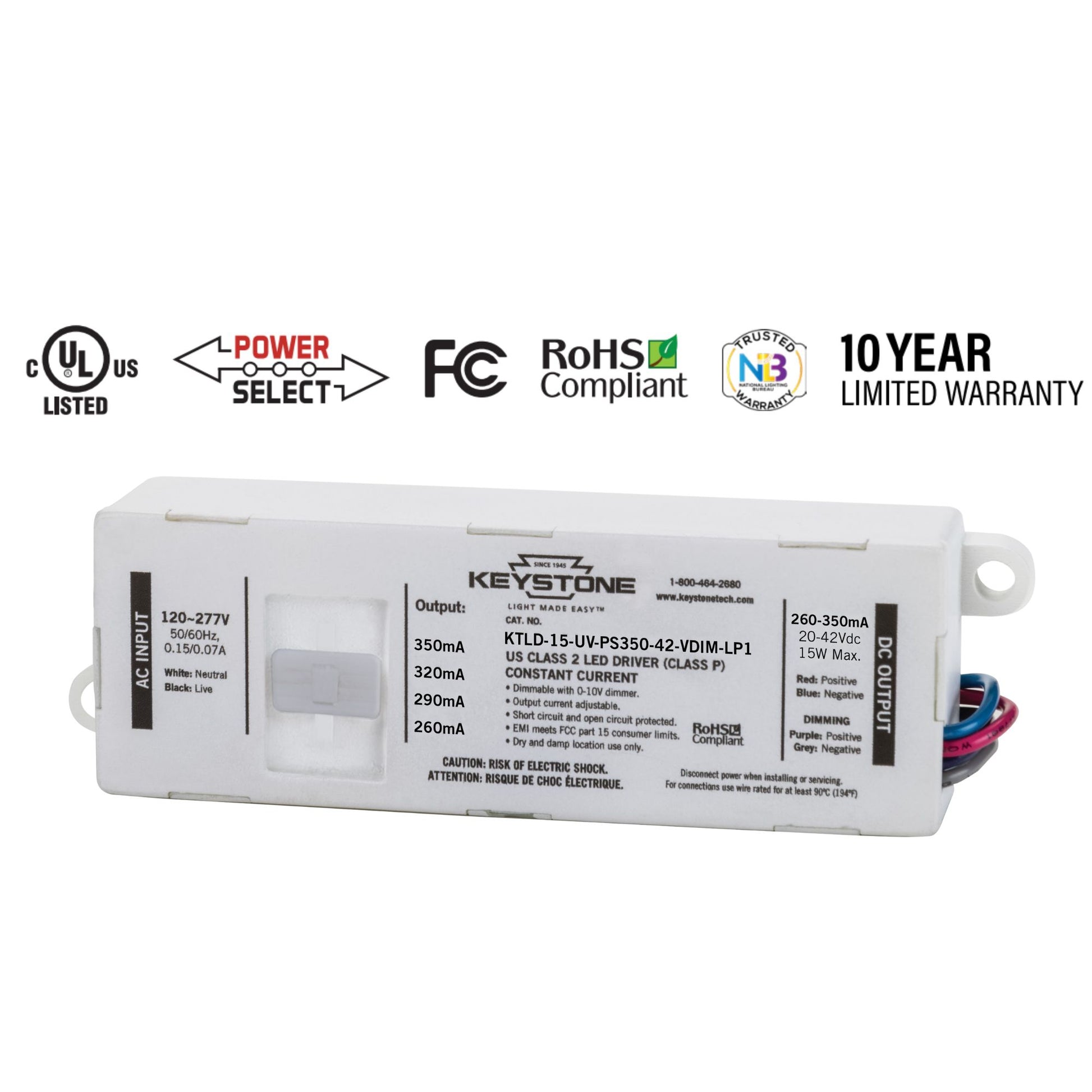

Keystone Technologies 15W Driver — 42V DC
The Keystone Technologies KTLD-15-UV-PS350-42-VDIM-LP1 is a 15W constant current LED driver with an input voltage range of 120-277V and an output voltage of 20-42V DC. This driver supports 0-10V dimming and is designed for indoor use. It does not include an integrated junction box, making it a versatile choice for various installations.
Key Features
- Total Power: 15W
- Input Voltage: 120-277V
- Output Voltage: 20-42V DC
- Output Current: 260, 290, 320, or 350mA
- Dimming: 0-10V
- Dimensions: 4.5 in. L x 1.34 in. W x 0.94 in. H
- Enclosure Type: Bare module
- Class 2: Yes
- Certifications: UL/cUL, CE, FCC
Physical Design & Installation

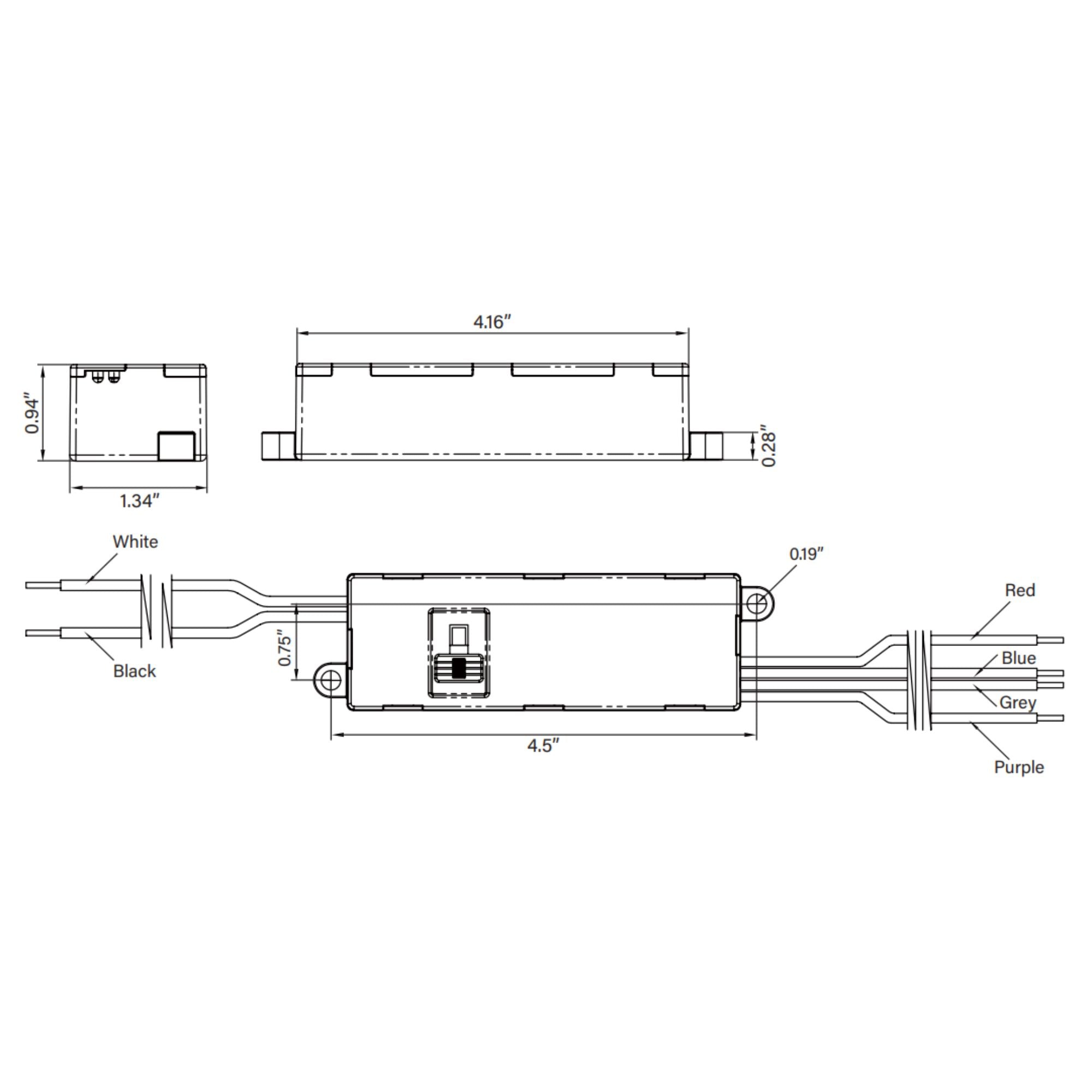

The driver features a compact design with dimensions of 4.5 in. L x 1.34 in. W x 0.94 in. H, suitable for installations where space is limited. It does not include an integrated junction box.
Dimming & Controls
Compatible with 0-10V dimming systems, this driver allows for smooth dimming down to approximately 10%. It operates within an input voltage range of 120-277V.
Performance & Build
Equipped with over-voltage, over-current, and short-circuit protection, this driver ensures reliable performance. It is UL/cUL listed and meets Class 2 standards.
Typical Applications
- Commercial lighting
- Residential lighting
- Architectural lighting
- Retail lighting
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What dimming protocol does the KTLD-15-UV-PS350-42-VDIM-LP1 support?
What dimming protocol does the KTLD-15-UV-PS350-42-VDIM-LP1 support?
Does the KTLD-15-UV-PS350-42-VDIM-LP1 include an integrated junction box?
Does the KTLD-15-UV-PS350-42-VDIM-LP1 include an integrated junction box?
What is the input voltage range for the KTLD-15-UV-PS350-42-VDIM-LP1?
What is the input voltage range for the KTLD-15-UV-PS350-42-VDIM-LP1?
What protection features are included in the KTLD-15-UV-PS350-42-VDIM-LP1?
What protection features are included in the KTLD-15-UV-PS350-42-VDIM-LP1?
Is the KTLD-15-UV-PS350-42-VDIM-LP1 rated for outdoor use?
Is the KTLD-15-UV-PS350-42-VDIM-LP1 rated for outdoor use?
