Keystone Technologies 15W Driver — 30-54V DC

The KTLD-15-UV-PS300-54-VDIM-LP1 is a 15W LED driver from Keystone Technologies designed for constant current applications. It operates with an input voltage range of 120-277V and provides an output voltage of 30-54V DC. This driver supports 0-10V dimming and is classified as a Class 2 device, ensuring safe operation. Its compact design allows for versatile installation in various lighting setups.

Key Features

• Total Power: 15W
• Input Voltage: 120-277V
• Output Voltage: 30-54V DC
• Output Current: 200, 230, 270, or 300mA
• Dimming: 0-10V

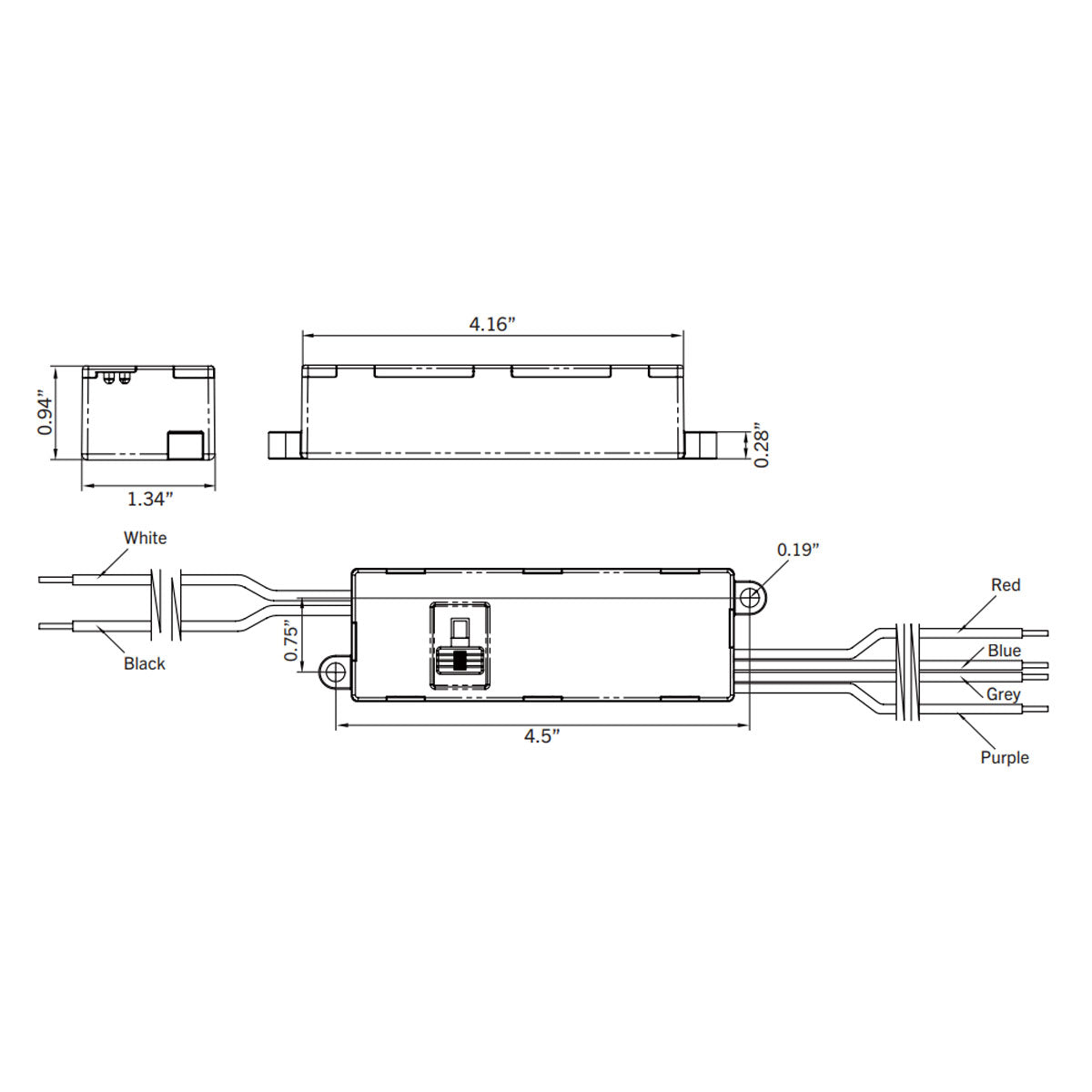

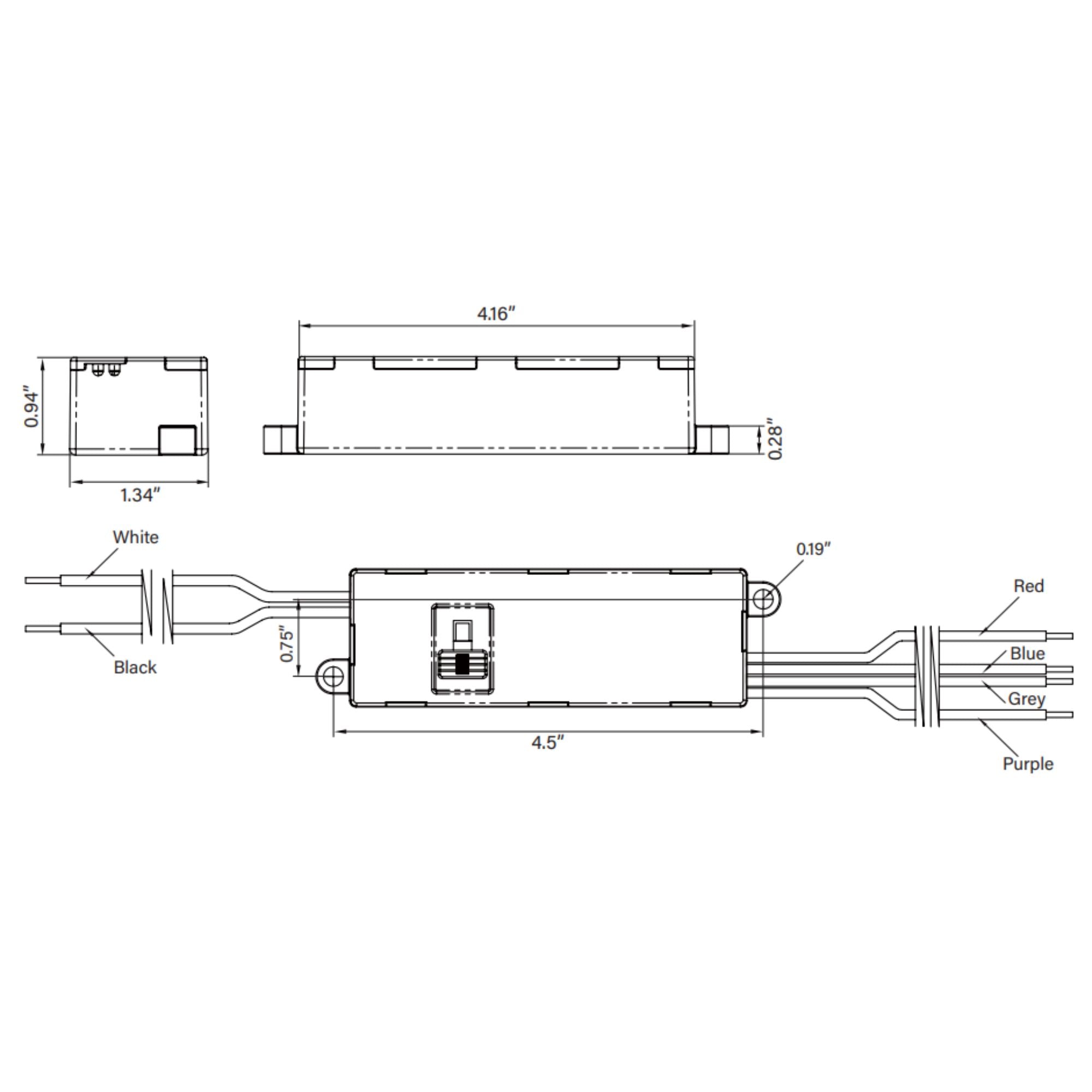

• Dimensions: 4.5 in. L x 1.34 in. W x 0.94 in. H
• Enclosure Type: Compact design
• Class 2: Yes
• Certifications: UL/cUL, CE

Physical Design & Installation

The driver features a compact enclosure, facilitating easy integration into various lighting systems. It does not include an integrated junction box.

Dimming & Controls

Compatible with 0-10V dimming systems, this driver allows for smooth dimming down to approximately 10%. It supports multiple output currents, providing flexibility in lighting design.

Performance & Build

Equipped with over-voltage, over-current, and short circuit protection, the driver ensures reliable performance. It complies with Class 2 standards and holds UL/cUL and CE certifications.

Typical Applications

• Commercial lighting
• Residential lighting
• Architectural lighting
• Retail lighting
