Programmable Constant Current LED Driver, 12W, 120-500mA, 0-10V Dimming, 120-277V
In stock
About this item
About this item
- Output Voltage: 10-56V DC
- Dimming: 0-10V
- Input Voltage: 120-277V
- Enclosure: Bare module
- Protection: Over Voltage, Over Current, Short Circuit
We process payments securely and do not store credit card information.
Description
Description

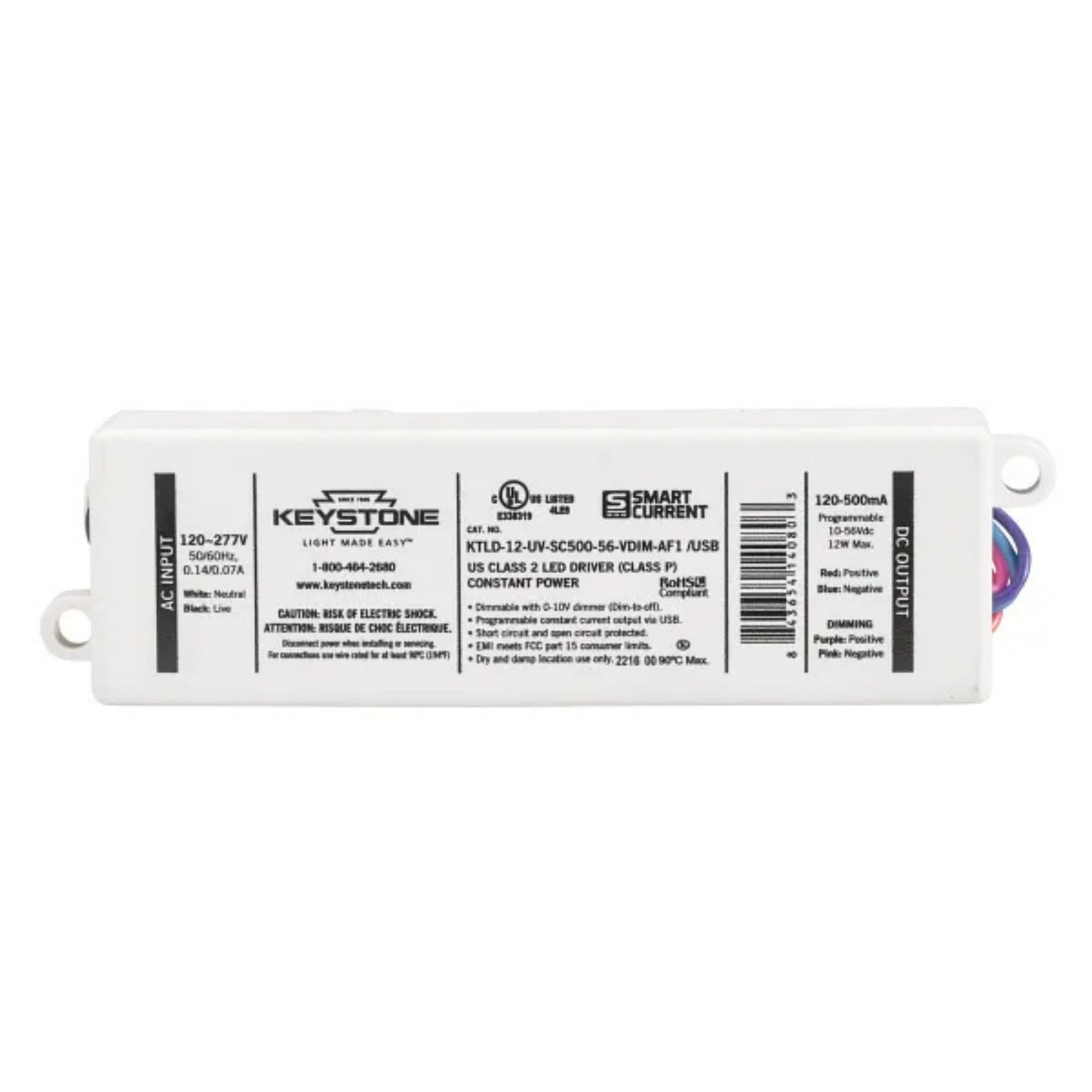

Keystone Technologies 12W Driver — 10-56V DC
The Keystone Technologies KTLD-12-UV-SC500-56-VDIM-AF1-USB is a 12W LED Driver with an input voltage of 120-277V and an output voltage range of 10-56V DC. This Constant Current driver features 0-10V dimming capabilities and is designed for indoor use. It does not include an integrated junction box, making it a bare module suitable for various installations.
Key Features
- Power: 12W
- Input Voltage: 120-277V
- Output Voltage: 10-56V DC
- Dimming: 0-10V
- Minimum Load: Not specified

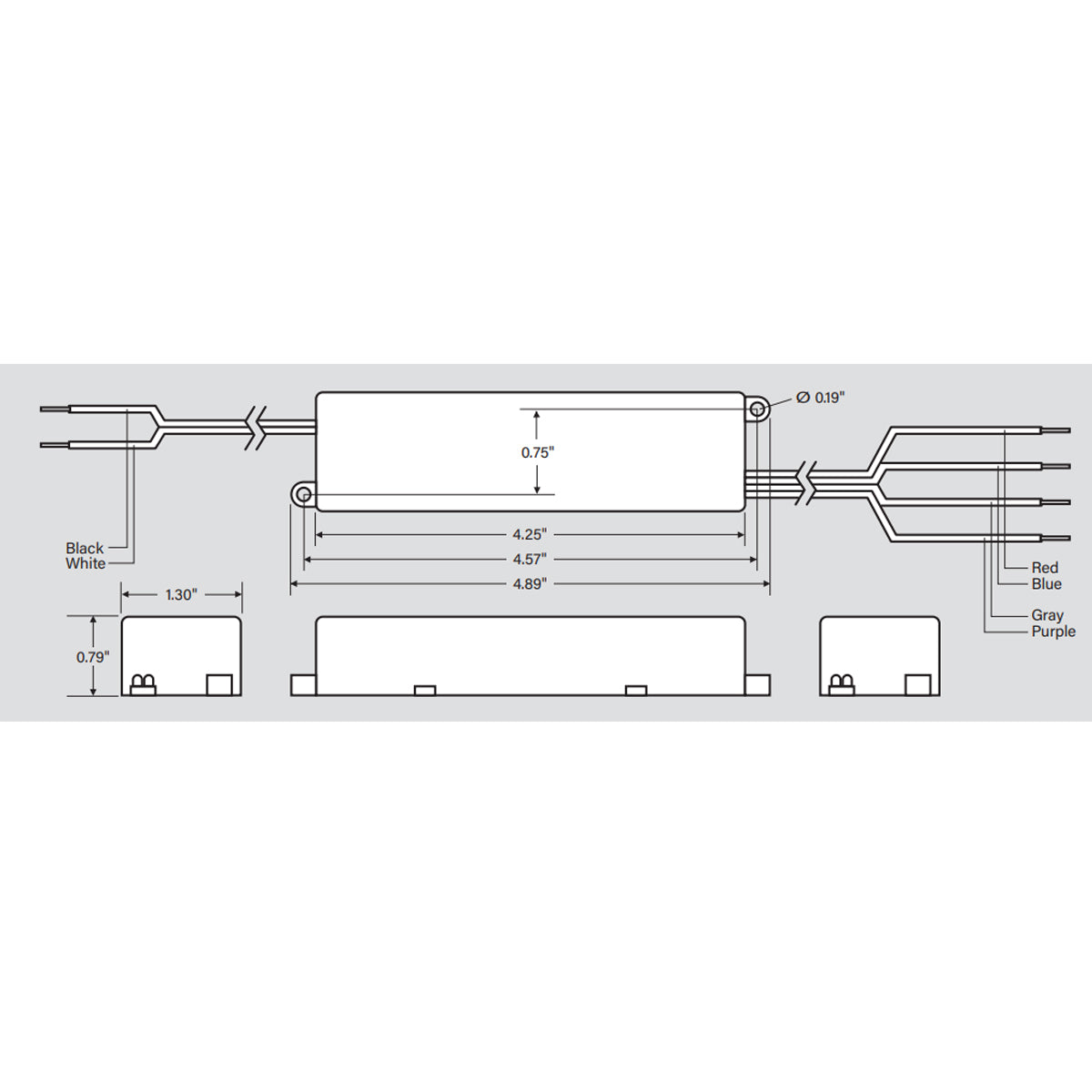

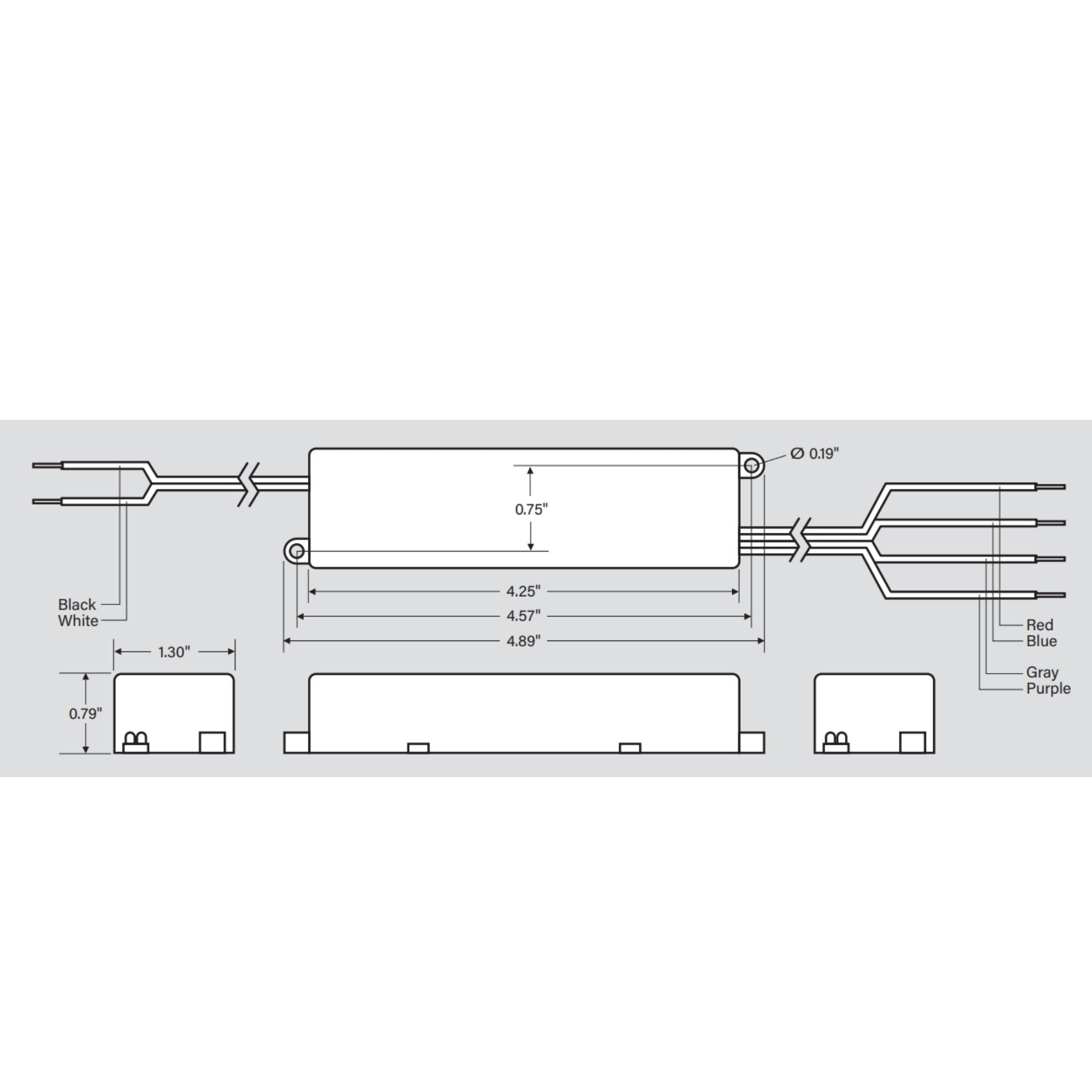

- Dimensions: 4.89 in. L x 1.30 in. W x 0.79 in. H
- Enclosure Type: Bare module
- IP Rating: Not specified
- Class 2: Yes

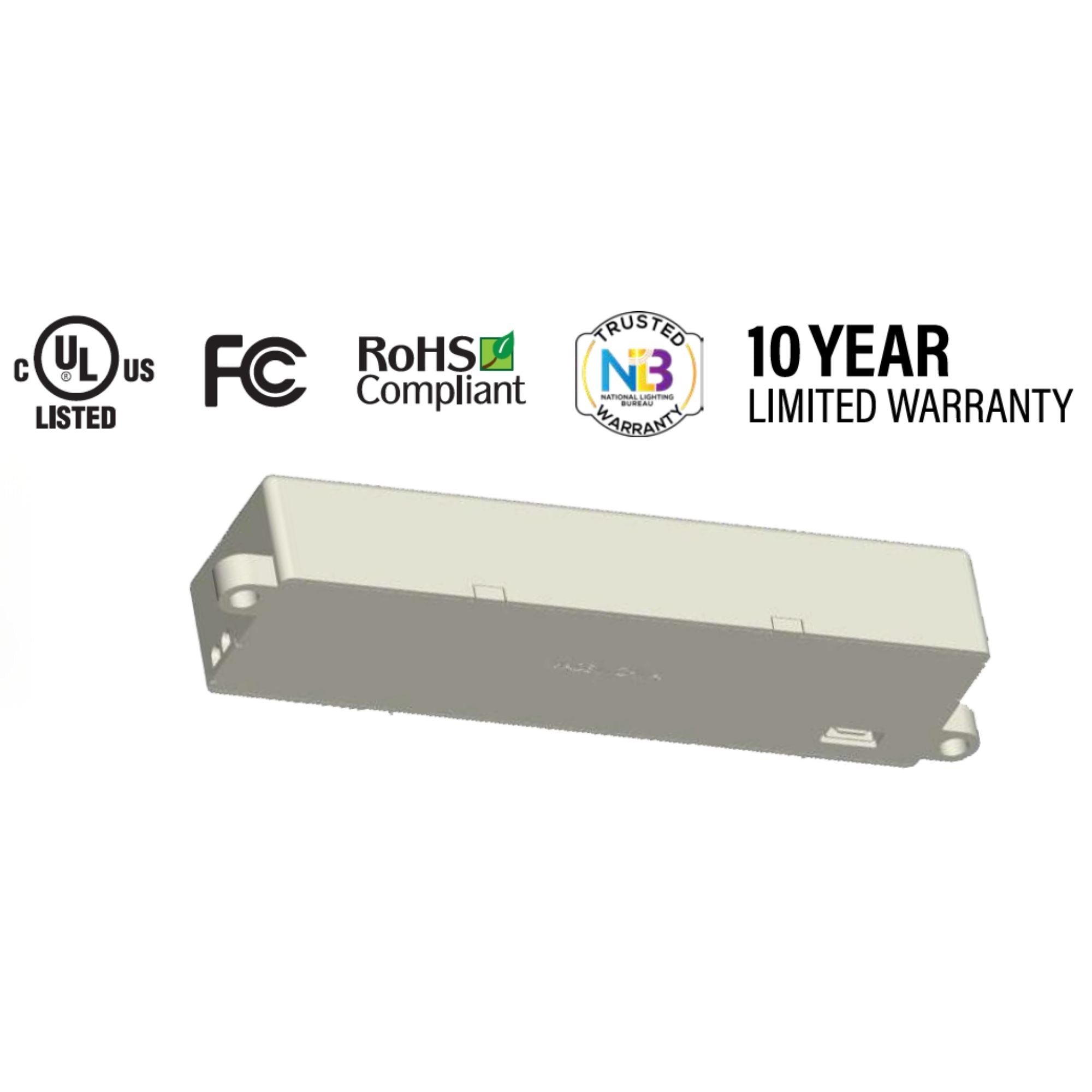

- Certifications: UL, FCC
Physical Design & Installation

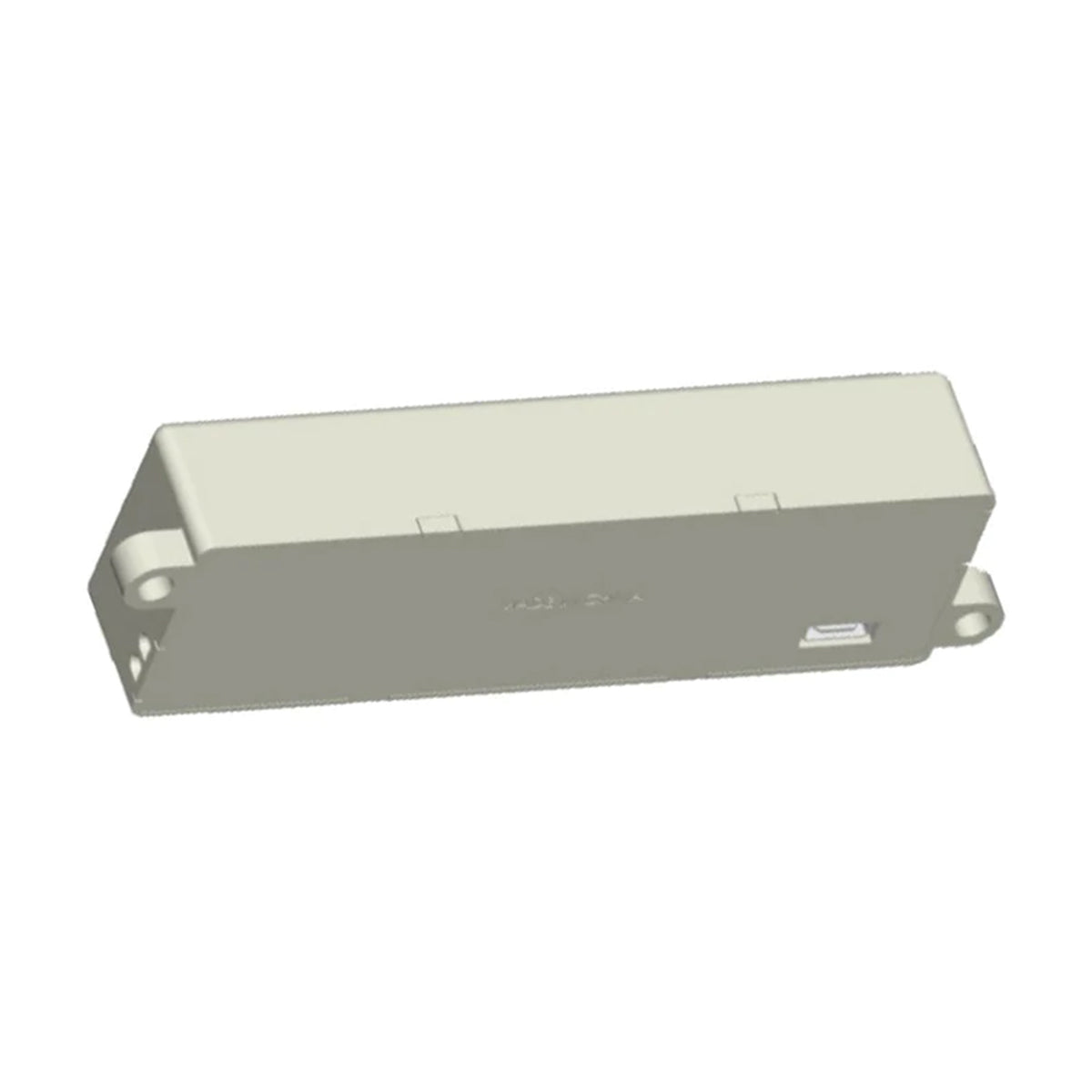

The driver is encased in a durable material and does not include an integrated junction box. It is designed for easy installation in various lighting setups.
Dimming & Controls

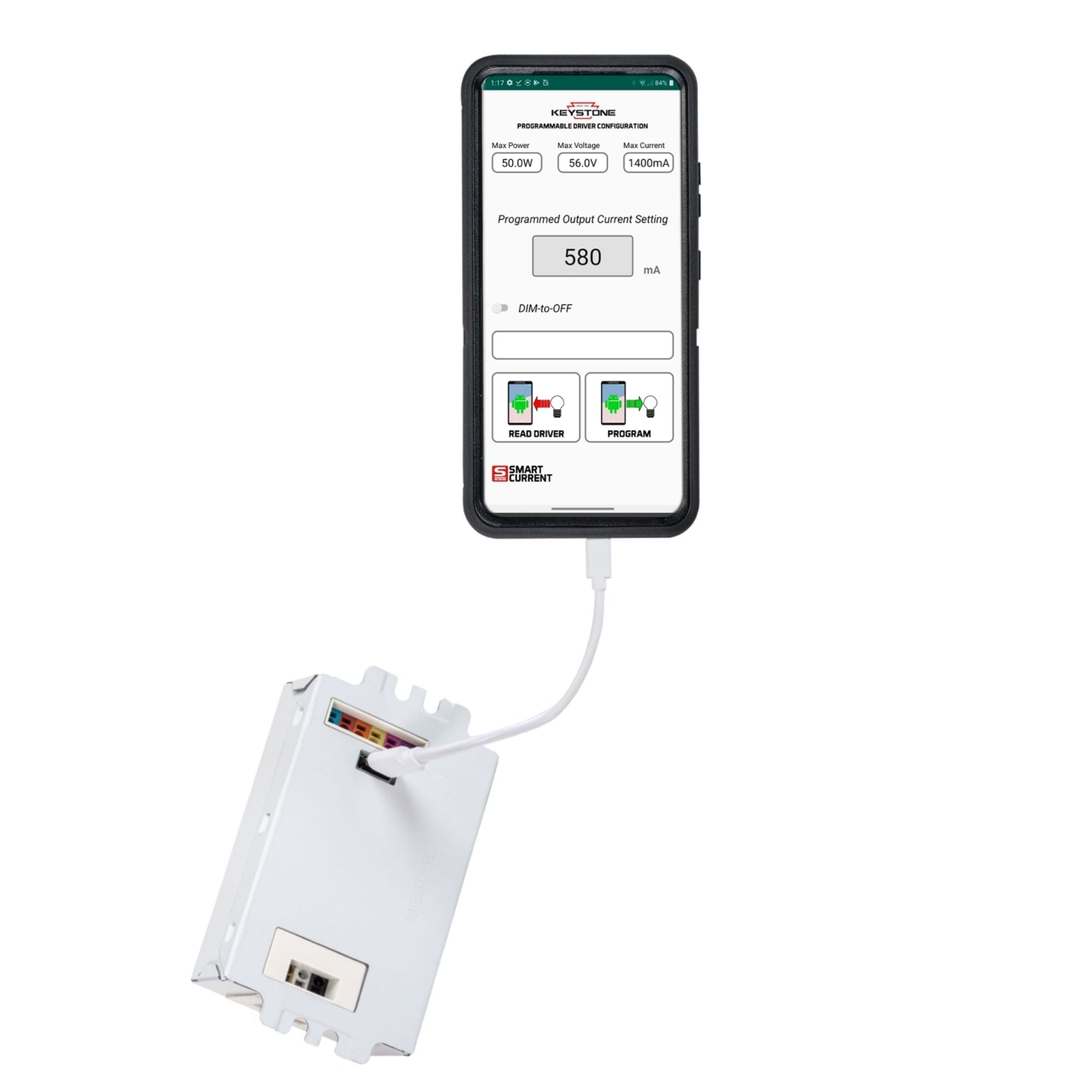

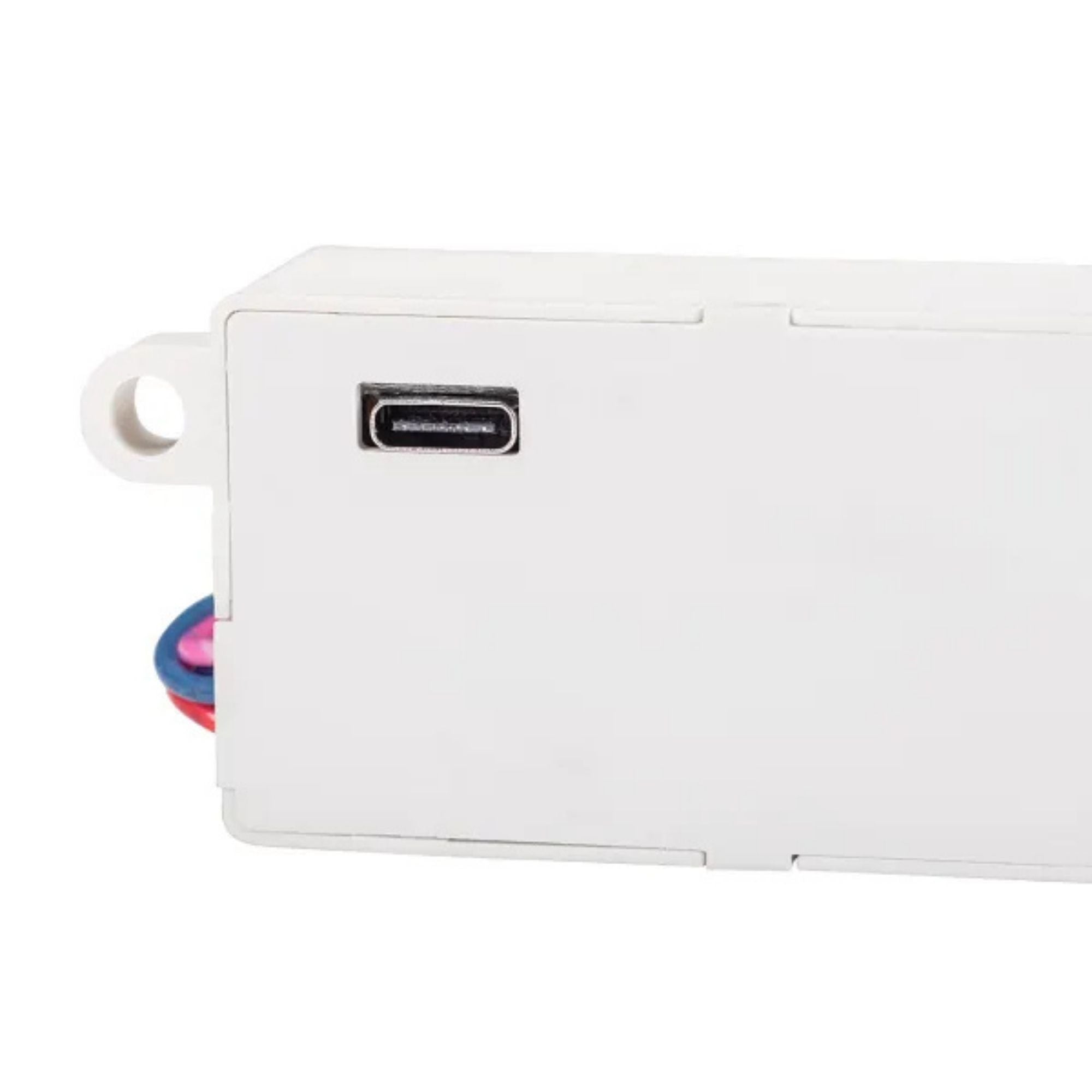

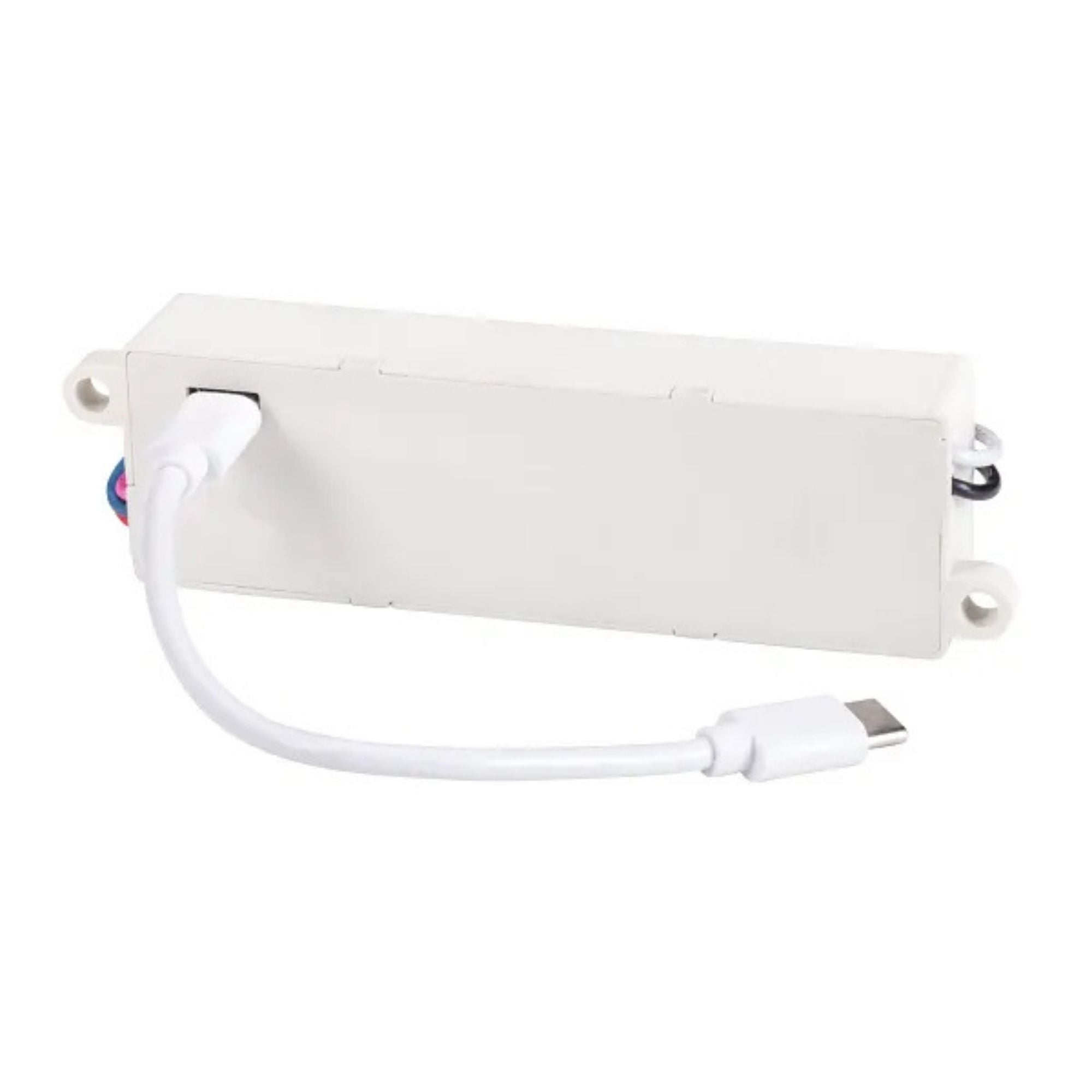

This driver supports 0-10V dimming, allowing for smooth dimming down to 1% at maximum output current. It is programmable via a USB-C port and an Android device using the Keystone app.
Performance & Build
Equipped with over-voltage, over-current, and short circuit protection, this driver ensures reliable performance. It is compliant with UL Class 2 standards and FCC regulations.
Typical Applications
- Commercial lighting
- Office lighting
- Retail lighting
- Residential lighting
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What dimming protocol does the KTLD-12-UV-SC500-56-VDIM-AF1-USB support?
What dimming protocol does the KTLD-12-UV-SC500-56-VDIM-AF1-USB support?
Does the KTLD-12-UV-SC500-56-VDIM-AF1-USB include an integrated junction box?
Does the KTLD-12-UV-SC500-56-VDIM-AF1-USB include an integrated junction box?
What is the input voltage range for the KTLD-12-UV-SC500-56-VDIM-AF1-USB?
What is the input voltage range for the KTLD-12-UV-SC500-56-VDIM-AF1-USB?
Is there a minimum load requirement for dimming?
Is there a minimum load requirement for dimming?
What is the IP rating of the KTLD-12-UV-SC500-56-VDIM-AF1-USB?
What is the IP rating of the KTLD-12-UV-SC500-56-VDIM-AF1-USB?
