Keystone KTLD-100-UV-24V 96W 24VDC Constant Voltage LED Driver - 120-277V Input
Hurry up, only 2 items left in stock.
About this item
About this item
- Output Voltage: 24V DC for consistent power delivery
- Dimming: Non-dimmable for stable operation
- Input Voltage: Universal 120-277V for flexible installation
- Enclosure: Metal case for durability
- Protection: Over voltage, over current, short circuit, and over temperature
We process payments securely and do not store credit card information.
Description
Description

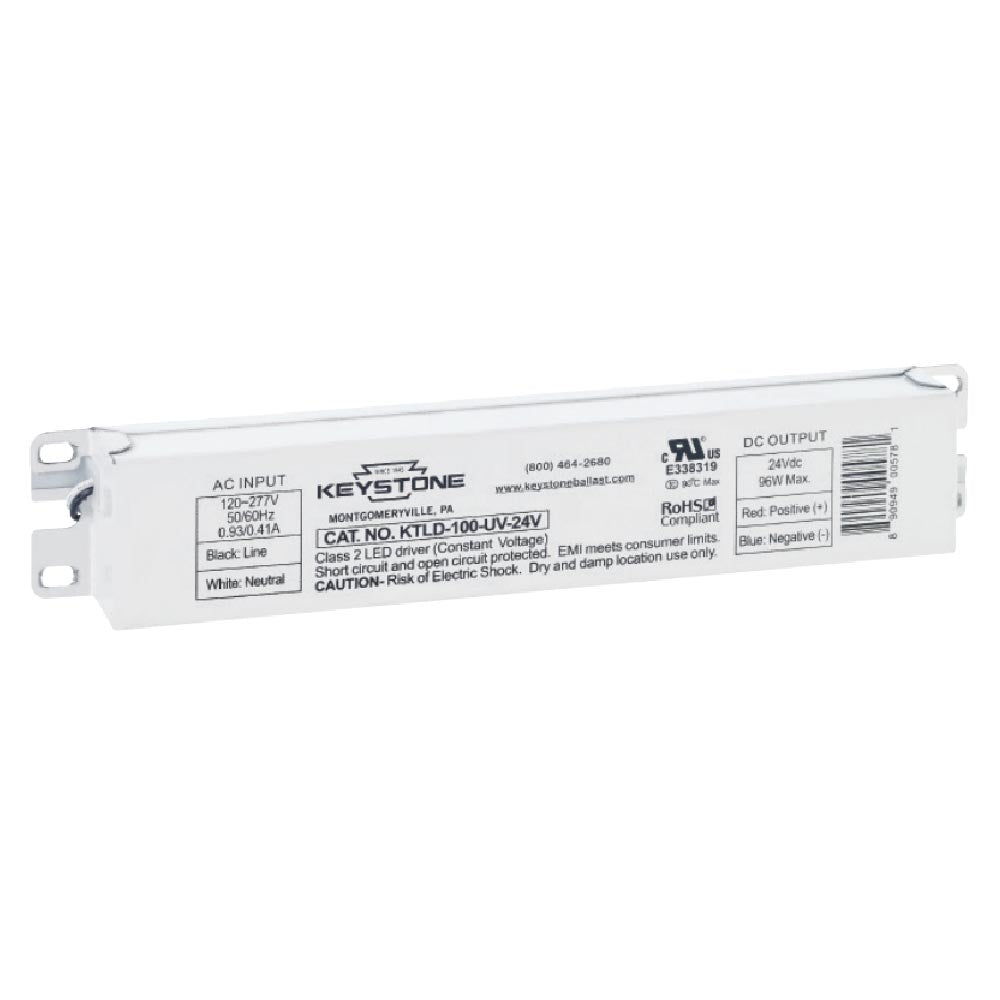

Keystone Technologies 100W Driver — 24V DC
The KTLD-100-UV-24V is a 100-watt LED Driver designed for 24V DC output applications. It operates with a universal input voltage of 120-277V and provides a constant voltage output, making it ideal for various lighting installations. This driver is non-dimmable and features a robust metal enclosure. It is Class 2 rated and suitable for damp locations.
Key Features
- Power: 100W
- Input Voltage: 120-277V
- Output Voltage: 24V DC
- Dimming: Non-dimmable

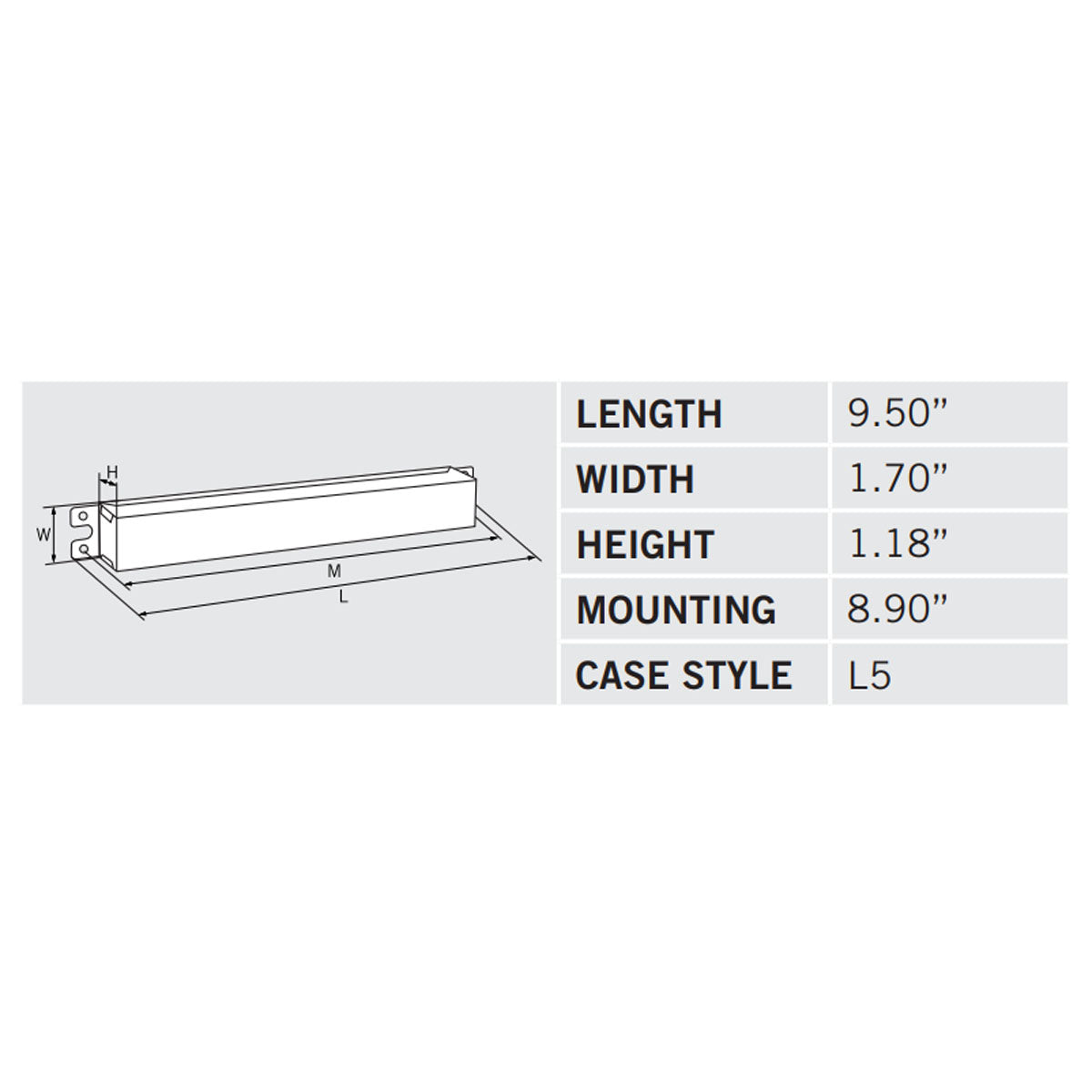

- Dimensions: 9.50 in. L x 1.70 in. W x 1.18 in. H
- Enclosure Type: Metal
- IP Rating: IP20
- Class 2: Yes
- Certifications: UL, cUL, FCC
Physical Design & Installation
The driver features a standard form factor with a durable metal case, ensuring longevity and reliability in various environments. It does not include an integrated junction box.
Dimming & Controls
This driver is non-dimmable, providing a constant voltage output for stable lighting applications. It does not require a minimum load for operation.
Performance & Build
Equipped with over voltage, over current, short circuit, and over temperature protections, this driver ensures safe and reliable performance. It is Class 2 compliant and IP20 rated for dry and damp locations.
Typical Applications
- Commercial lighting
- Residential lighting
- Architectural lighting
- Signage
