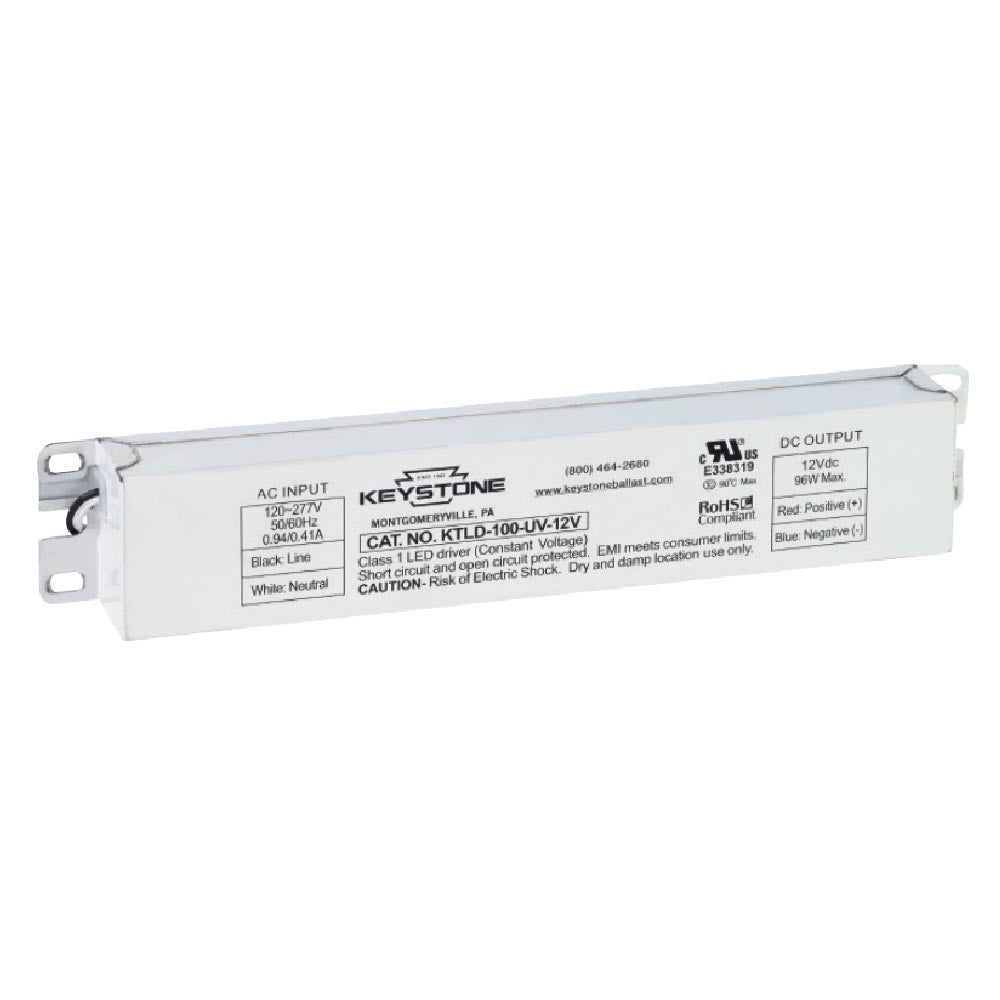

Keystone KTLD-100-UV-12V 96W 12VDC Constant Voltage LED Driver - 120-277V Input
Keystone KTLD-100-UV-12V 96W 12VDC Constant Voltage LED Driver - 120-277V Input
Available in stock (7)
Highlights
Highlights
- Input Voltage: 120-277VAC
- Over Current and Short Circuit Protection
- IP20 design for dry and damp location
- FCC and RoHS Compliant
- Class 1, cULus Listed
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Overview
Overview
Premium Universal Voltage LED Driver for Professional Installations
The Keystone Technologies KTLD-100-UV-12V is a professional-grade 96-watt constant voltage LED driver engineered for reliability across a wide range of applications. This Class 2 power supply delivers consistent 12VDC output with universal 120-277VAC input compatibility.
Key Features
- 96W Power Output - Delivers up to 8A at 12VDC for high-performance LED installations
- Input Voltage - 120-277VAC input compatibility for flexible installation across different electrical systems
- Class 2 Safety Rating - Simplified installation with reduced wiring requirements
- Comprehensive Protection - Built-in overcurrent, short circuit, and over-temperature safeguards
- High Efficiency - 88% typical efficiency at 277V reduces energy costs and heat generation

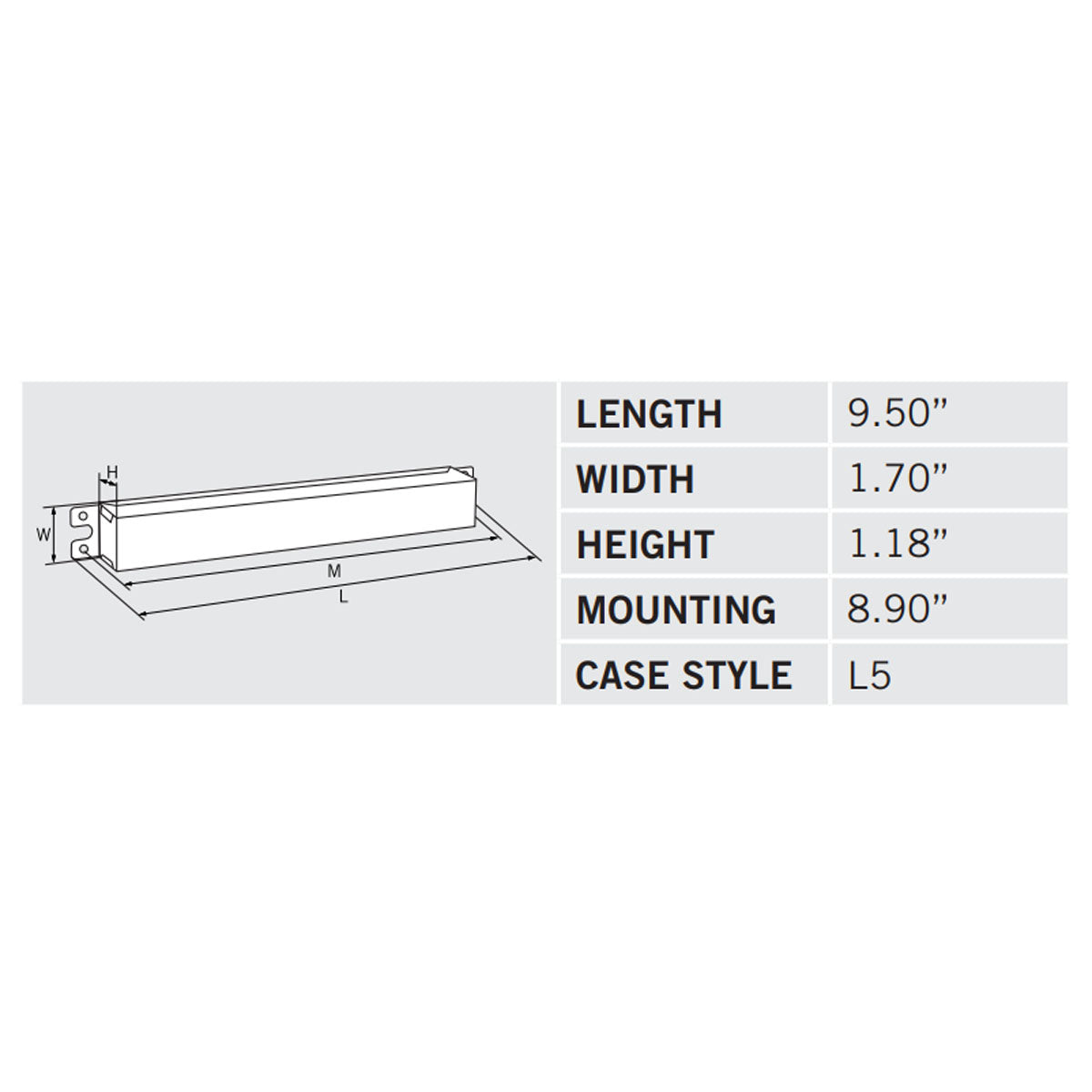

- Compact Design - Space-saving 9.49" × 1.69" × 1.18" footprint
- Damp Location Rated - IP20 design suitable for dry and damp locations
Technical Specifications
- Input Voltage: 120-277VAC, 50/60Hz (Universal Voltage)
- Output: 12VDC, 8A (96W)
- Efficiency: 88% typical at 277V
- Power Factor: >0.9
- Operating Temperature: -40°C to +60°C (-40°F to +140°F)
- Dimming: Non-dimmable
- Protection: IP20 rated for dry and damp locations
- Dimensions: 9.49" × 1.69" × 1.18"
- Certifications: UL Class 2, cULus Listed, FCC Part 15 Class B
- Warranty: 10-Year Limited Warranty
Ideal Applications
Perfect for architectural accent lighting, under-cabinet lighting, cove lighting, LED strip installations, signage, and any application requiring reliable constant voltage power in dry or damp indoor environments.
Why Choose Keystone Technologies?
Keystone Technologies is a trusted leader in LED power solutions, delivering commercial-grade components backed by comprehensive warranties and technical support. This driver represents the pinnacle of reliability for professional lighting installations.
- Input Voltage: 120-277VAC
- Over Current and Short Circuit Protection
- IP20 design for dry and damp location
- FCC and RoHS Compliant
- Class 1, cULus Listed
