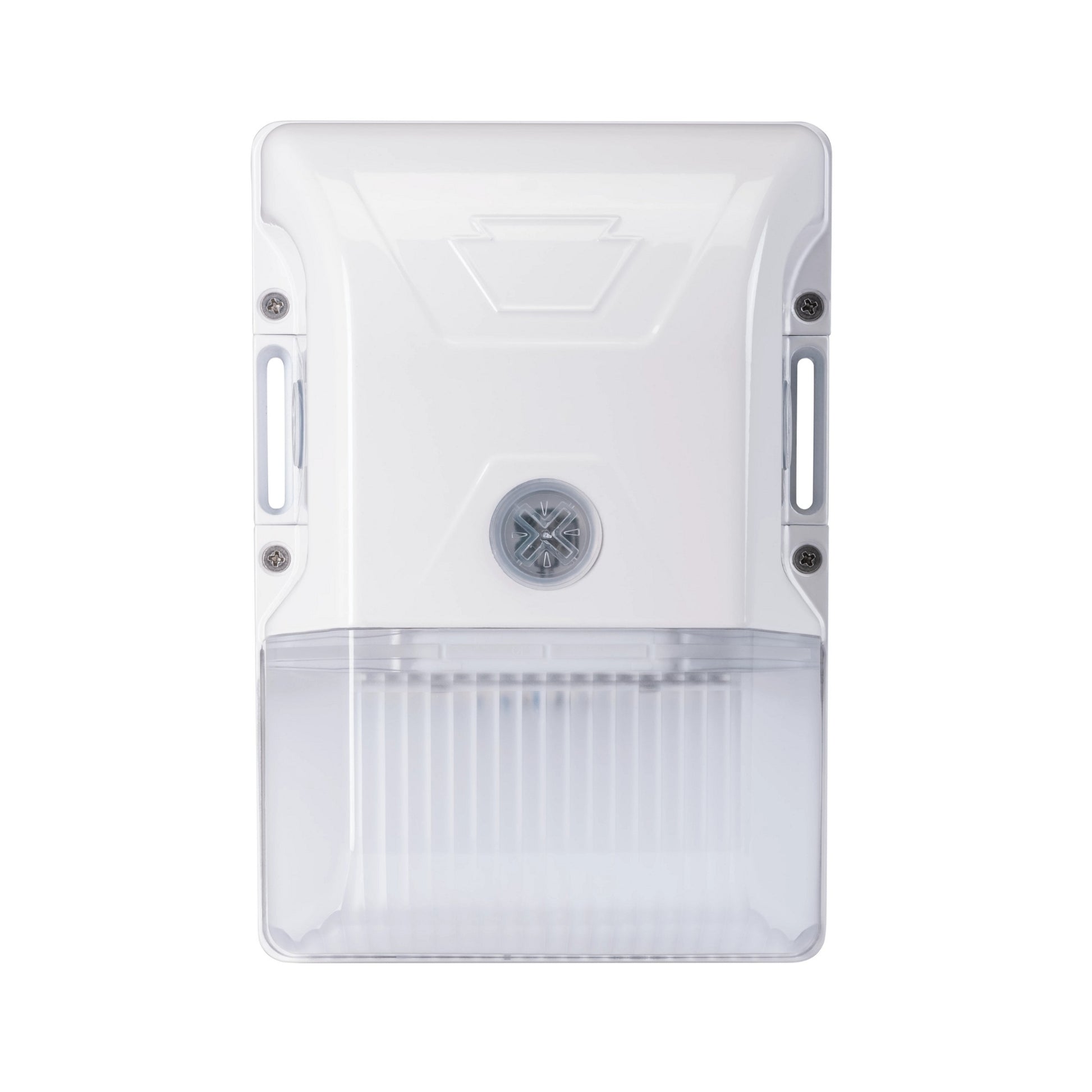

Keystone Small Non-Cutoff LED Wall Pack 2,700 Lumens 20W Selectable 30K/40K/50K 120-277V Photocell White KT-WPLED20-S1-8CSB-VDIM-W
In stock
About this item
About this item
- Color Select Technology: Simplifies inventory and maximizes on-site flexibility with a field-adjustable color temperature switch (3000K/4000K/5000K).
- Small Low-Profile Design: Features a compact, ADA-compliant housing (less than 4" deep) that can be mounted virtually anywhere while providing a uniform vertical and horizontal light distribution.
- High Efficiency: Delivers up to 2,700 lumens at 20W (up to 135 LPW), providing a direct, energy-saving replacement for traditional 50W–70W Metal Halide fixtures.

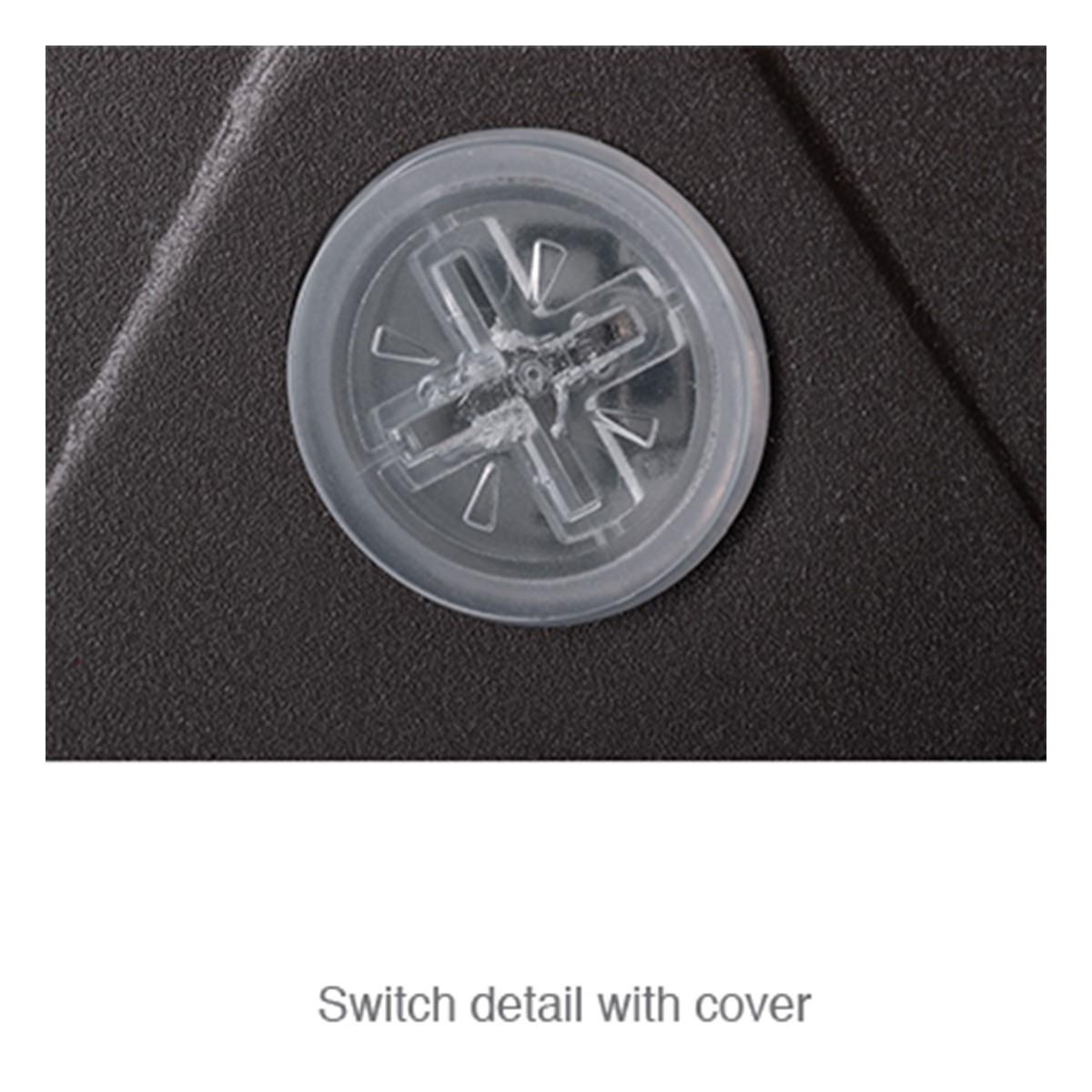

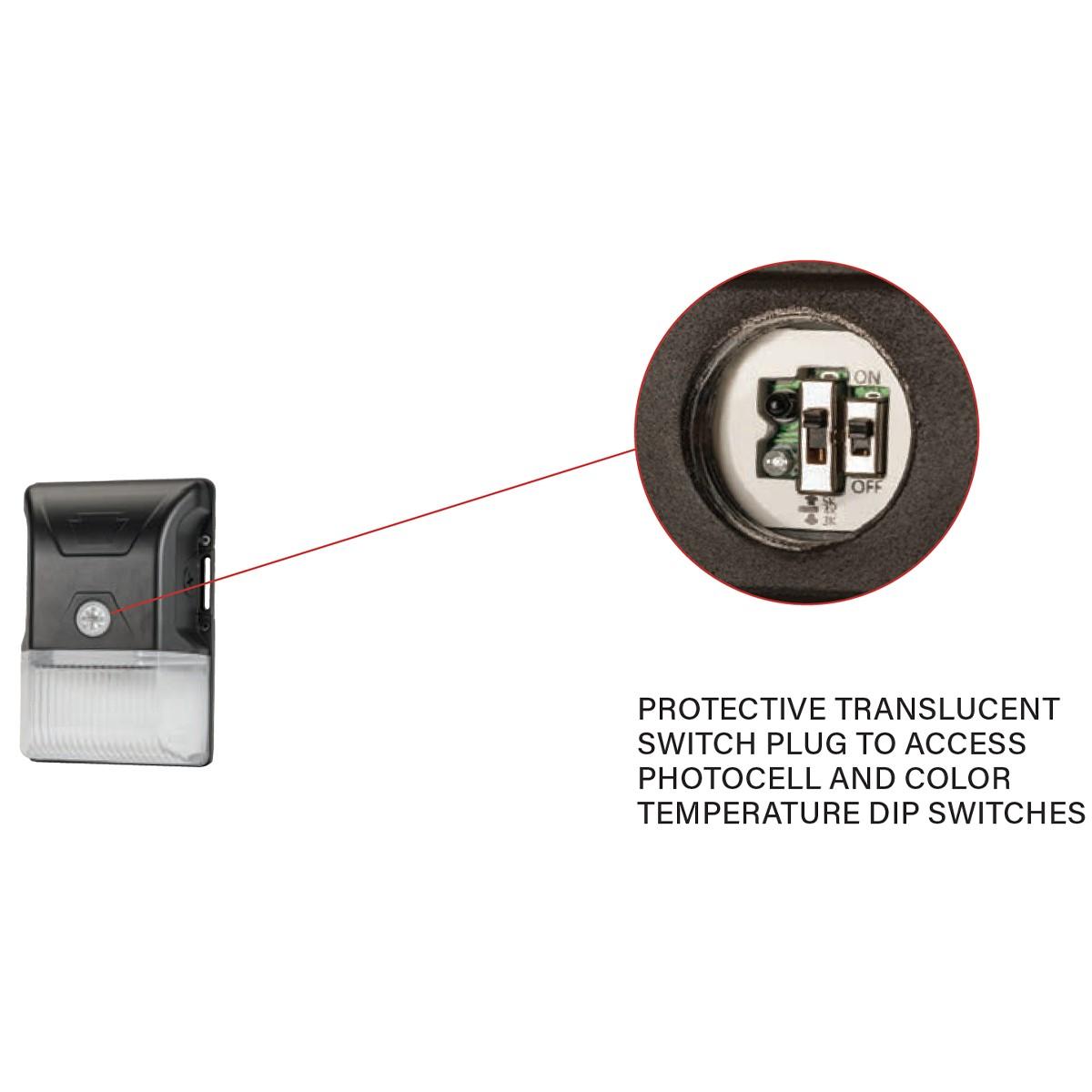

- Integrated Photocell: Comes equipped with a built-in dusk-to-dawn photocell behind a translucent plug for automated energy savings (can be easily enabled or disabled via dip switch).
- Rugged Durability: Constructed from heavy-duty die-cast aluminum with an impact-resistant, anti-yellowing polycarbonate lens and an IP65 Wet Location rating.
We process payments securely and do not store credit card information.
Description
Description
Keystone Small Non-Cutoff LED Wall Pack — 20W, Color Selectable, 120–277V, White
The Keystone KT-WPLED20-S1-8CSB-VDIM-W is a highly versatile and compact small non-cutoff LED wall pack delivering up to 2,700 lumens. Engineered for general safety and security illumination, this low-profile fixture features Keystone's Color Select technology, allowing installers to easily choose between 3000K, 4000K, or 5000K color temperatures on-site. Operating on a 120–277V driver, it includes an integrated dusk-to-dawn photocell for hands-free lighting automation. With its rugged die-cast aluminum housing finished in a crisp white, impact-resistant polycarbonate lens, and IP65 Wet Location rating, it is the ideal choice for illuminating building perimeters, tight entryways, pathways, and stairwells where a traditional bulky wall pack won't fit or a clean aesthetic is required.
Key Features
- Wattage: 20W
- Selectable CCT: 3000K / 4000K / 5000K
- Delivered Lumens: 2,340 to 2,700 lumens
- Efficacy: Up to 135 Lumens Per Watt (LPW)
- Voltage: 120–277V universal input
- Dimming: 0–10V dimming standard (dimmable to 10%)
- Controls: Integrated dusk-to-dawn photocell included (switchable on/off)
- Distribution: Non-Cutoff (General outward and downward distribution)
- CRI: >80
- Environmental Ratings: IP65 rated for Wet Locations

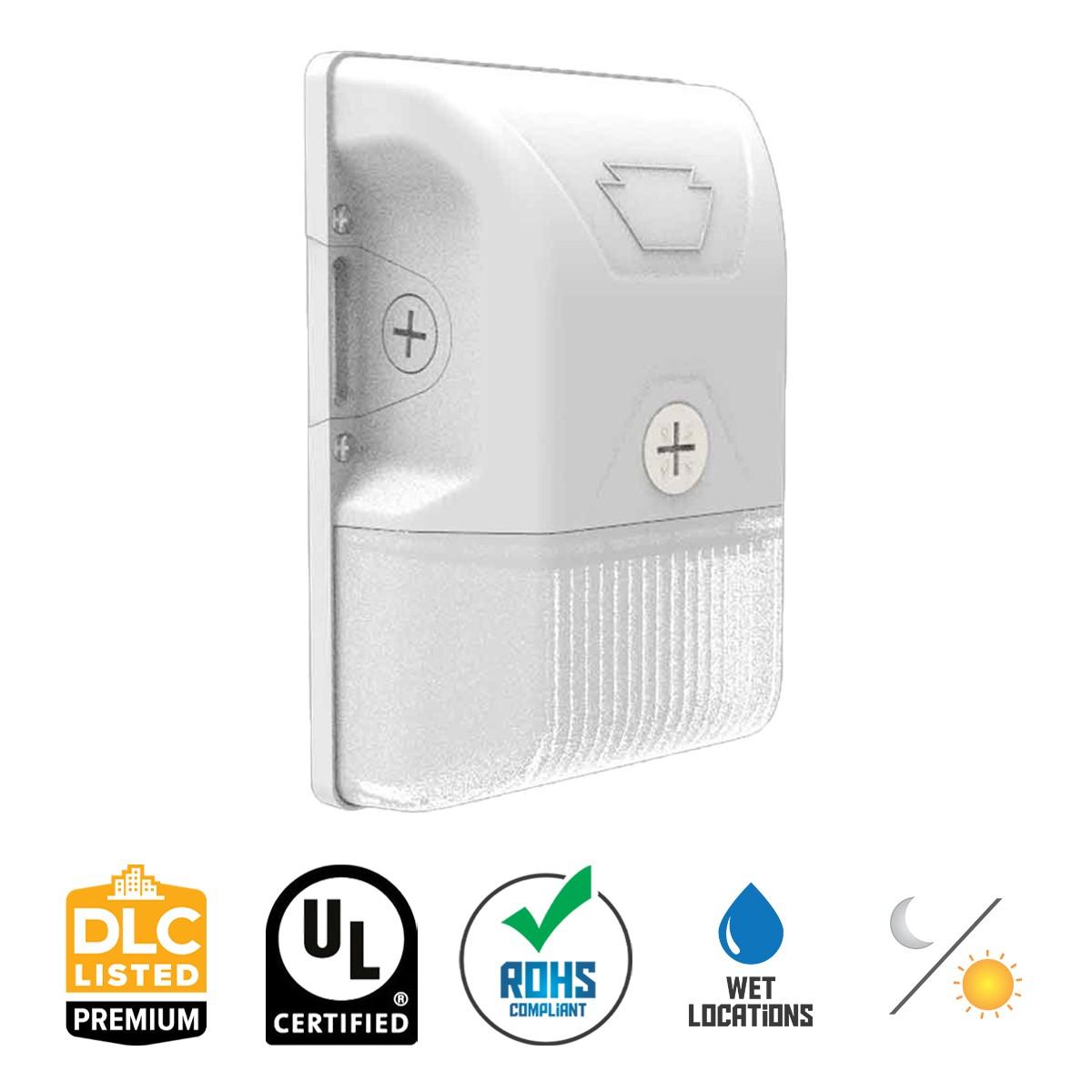

- Certifications: cULus Listed, DLC Premium, RoHS Compliant, ADA Compliant
- Estimated Life: >100,000 hours (L70)

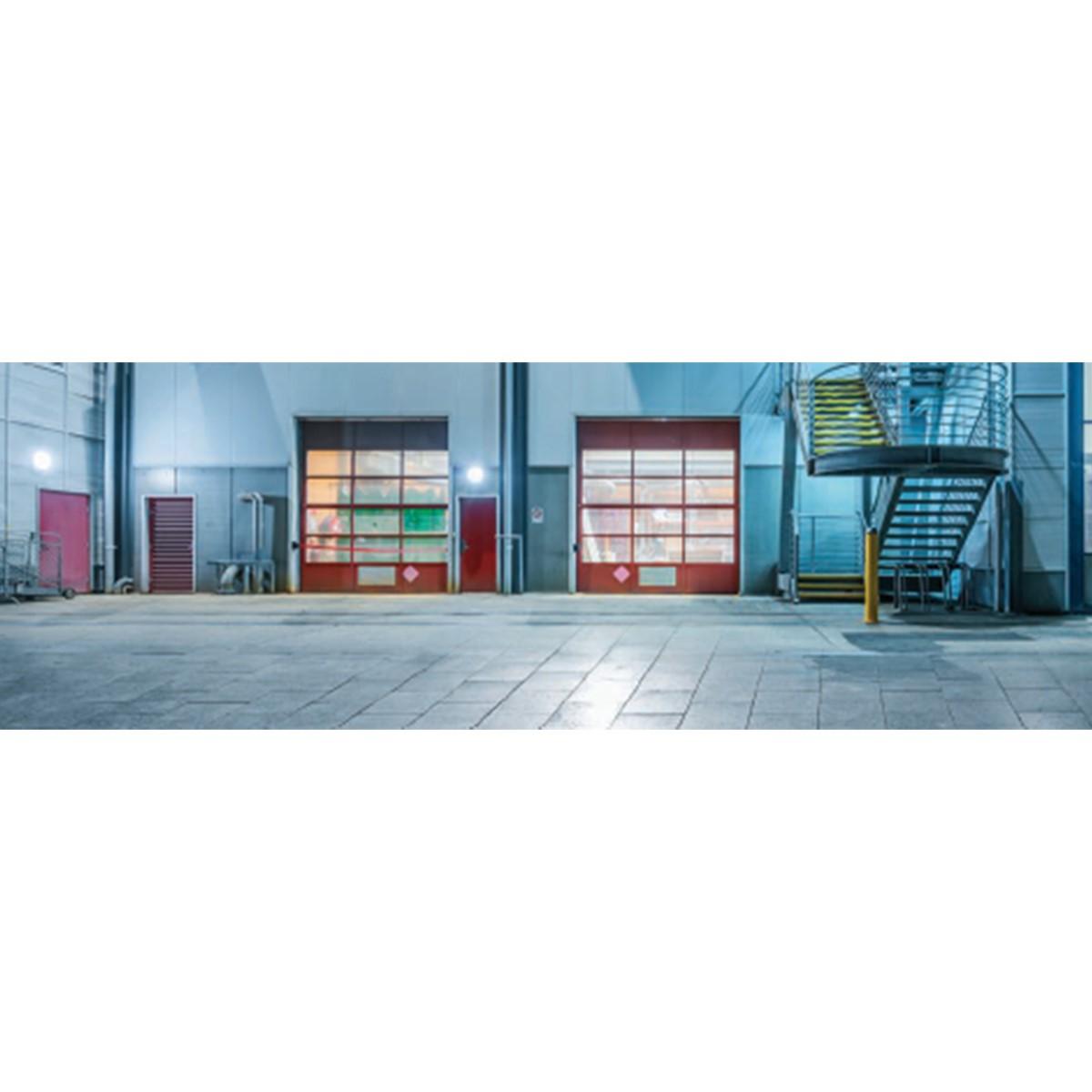

Typical Applications
- Tight building perimeters and architectural facades
- Walkways, small entryways, and man doors
- Outdoor stairwells and security lighting
- Low mounting height applications requiring reduced glare
Performance & Light Output

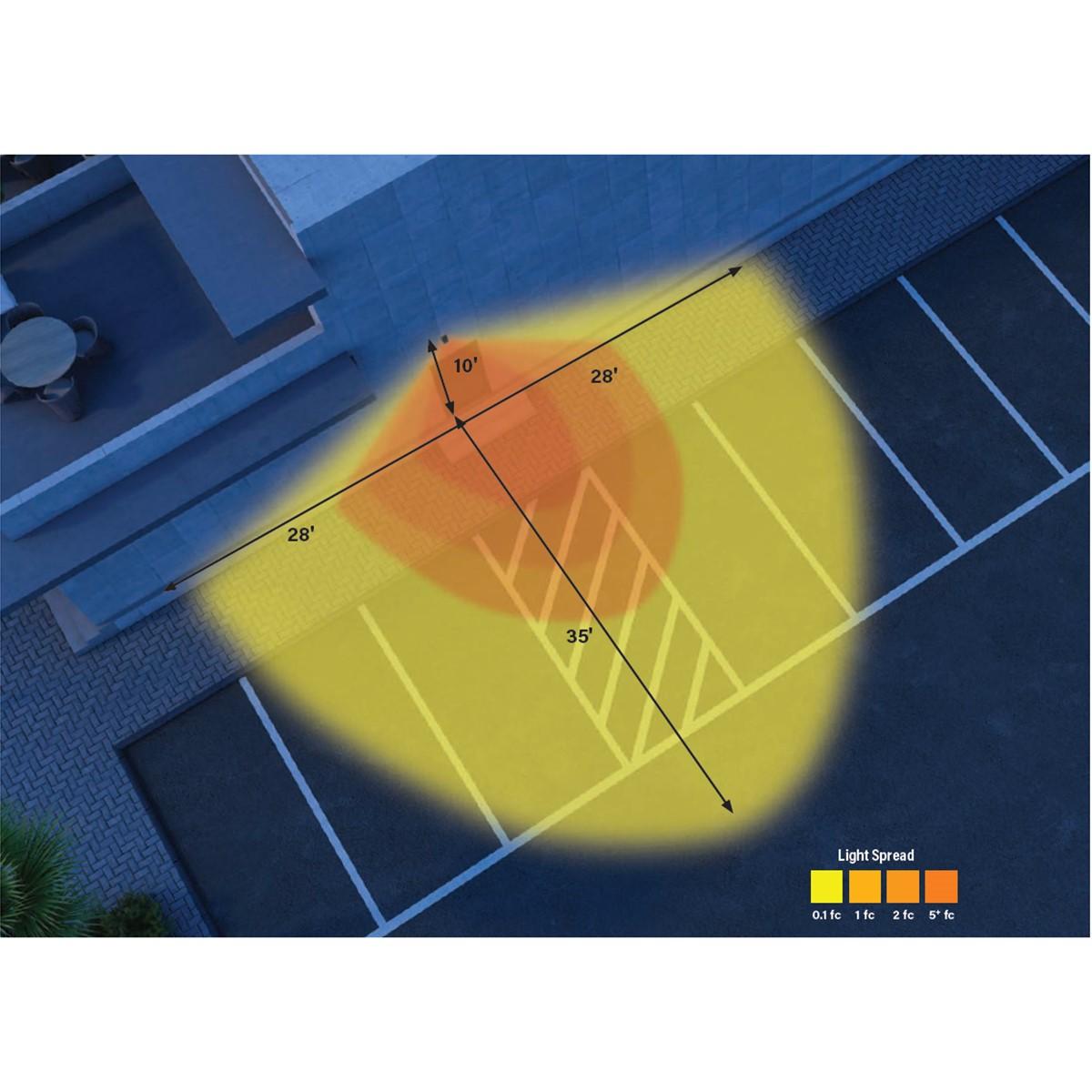

The KT-WPLED20-S1-8CSB-VDIM-W provides bright, reliable illumination ranging from 2,340 to 2,700 lumens depending on the selected color temperature. Its highly diffused polycarbonate lens casts a wide, uniform pattern while minimizing harsh glare at lower mounting heights. With an efficacy reaching 135 LPW and a 100,000-hour rated lifespan, this fixture drastically reduces energy consumption and maintenance cycles compared to legacy 70W HID systems.
Electrical & Controls

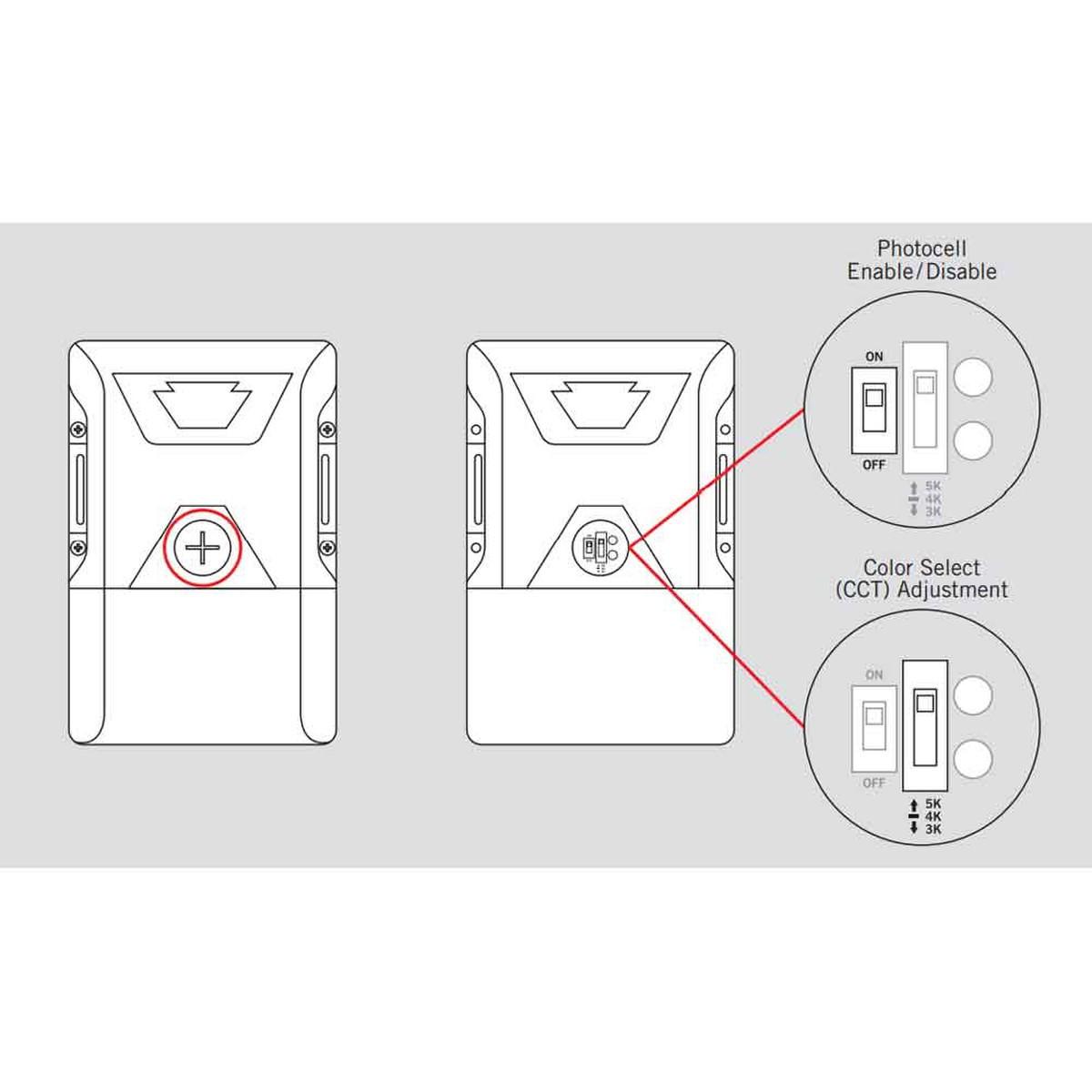

This fixture operates on a constant current 120–277V AC driver. It supports standard 0–10V dimming down to 10% for integration with advanced lighting controls. The integrated photocell ensures the light only operates when needed, providing reliable dusk-to-dawn automation, but can easily be disabled via a dip switch if external timers or sensors are used.
Construction & Durability

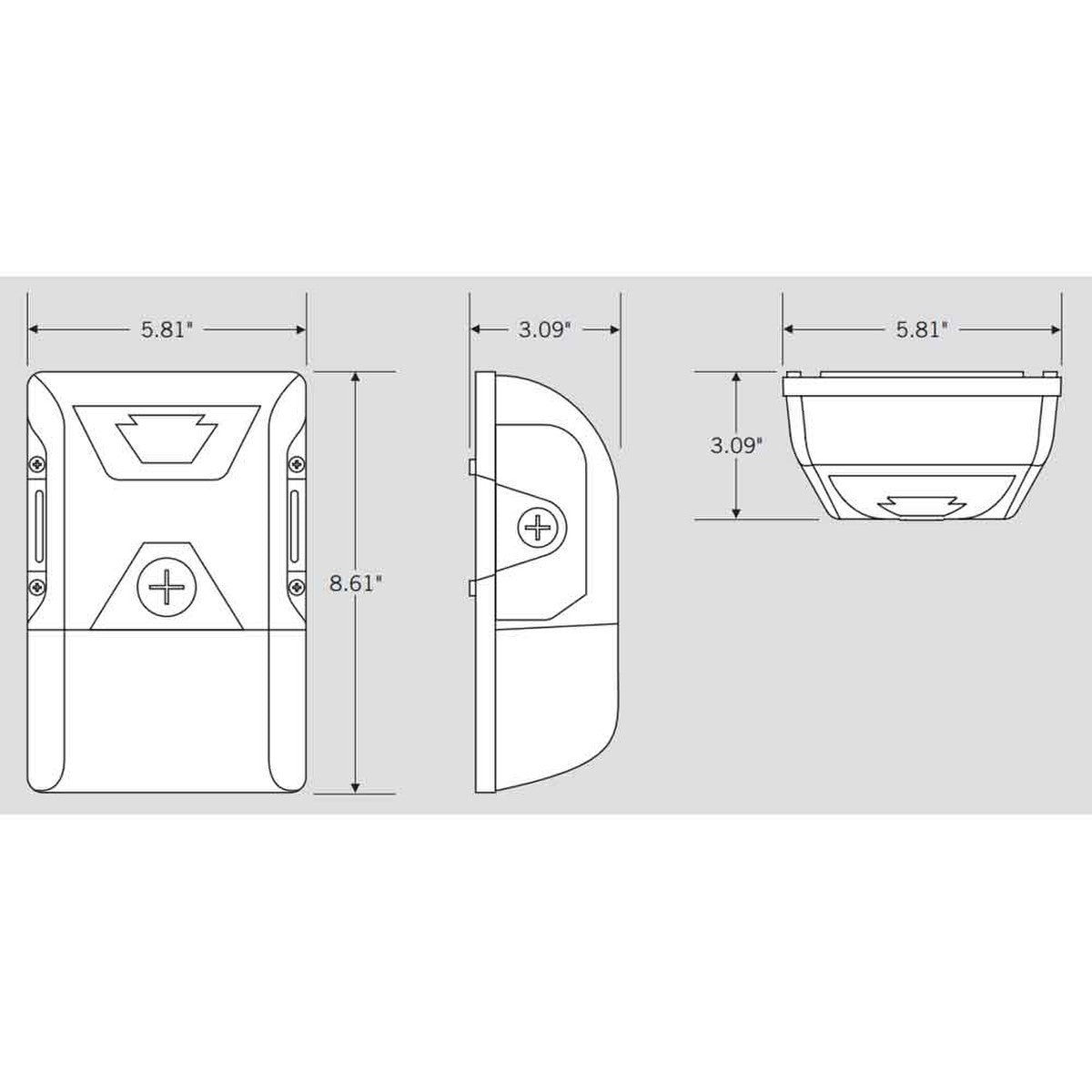

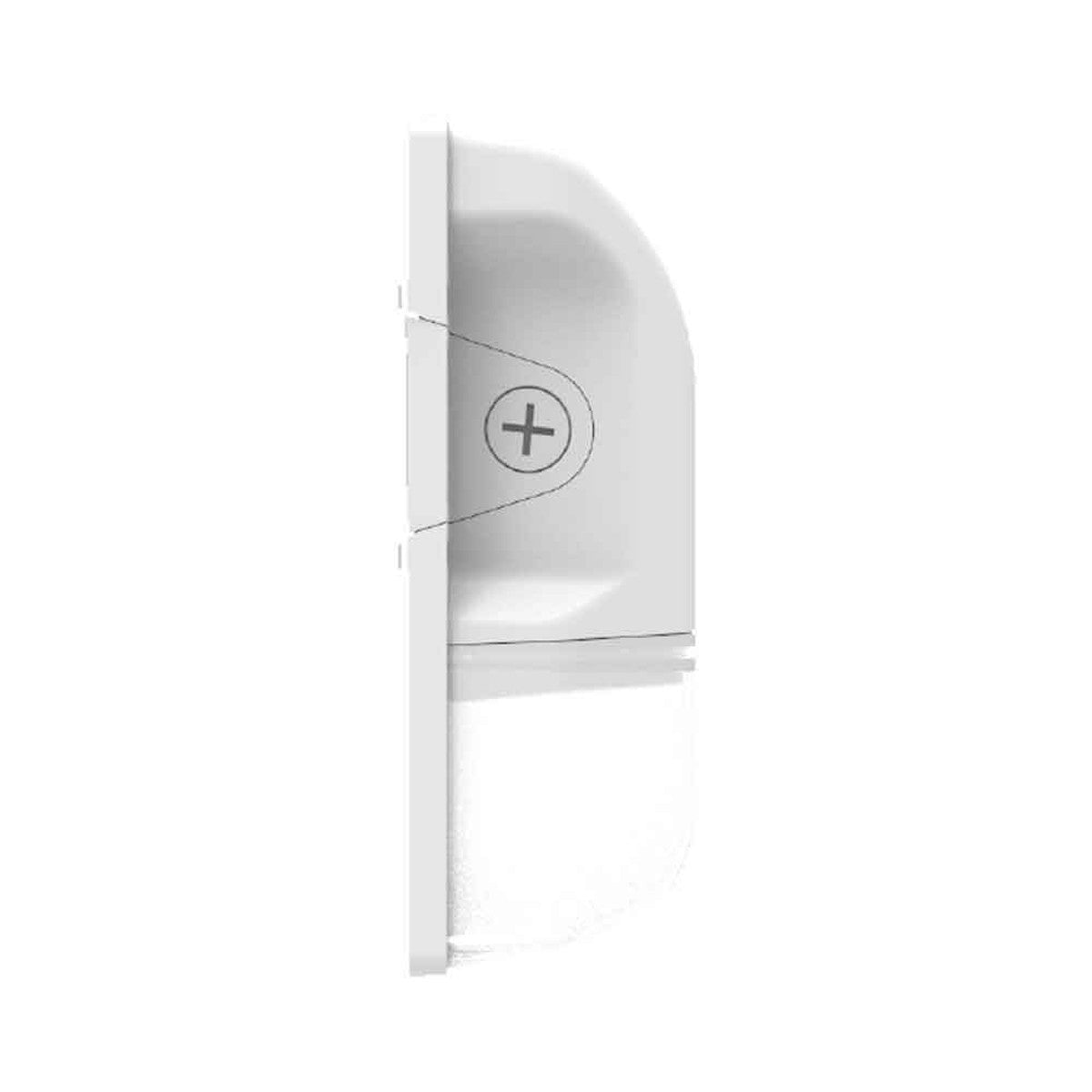

Engineered for outdoor reliability and modern aesthetics, the fixture features a precision die-cast aluminum housing finished in a resilient white powder coat. Its low-profile design (less than 4 inches deep) makes it fully ADA compliant. The fixture is impact-rated (IK07) and fully IP65 rated, protecting it against dust and water ingress in extreme temperature fluctuations from -40°F to 113°F (-40°C to 45°C).
What's Included
- Keystone Small Non-Cutoff LED Wall Pack (White)
- Integrated Photocell
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Yes, it comes equipped with a built-in dusk-to-dawn photocell. It also features a switch that allows you to easily enable or disable the photocell function depending on your control preferences.
Yes, it comes equipped with a built-in dusk-to-dawn photocell. It also features a switch that allows you to easily enable or disable the photocell function depending on your control preferences.
Can this fixture be mounted in tight spaces?
Can this fixture be mounted in tight spaces?
Absolutely. This "Series 1" (Small) wall pack features a highly compact, low-profile design that is less than 4 inches deep, making it ADA compliant and perfect for tight entryways or low mounting heights.
Absolutely. This "Series 1" (Small) wall pack features a highly compact, low-profile design that is less than 4 inches deep, making it ADA compliant and perfect for tight entryways or low mounting heights.
What input voltage does this handle?
What input voltage does this handle?
This fixture is equipped with a universal driver that can handle any voltage from standard 120V up to 277V AC, making it ideal for standard commercial and residential applications.
This fixture is equipped with a universal driver that can handle any voltage from standard 120V up to 277V AC, making it ideal for standard commercial and residential applications.
