Keystone Small Non-Cutoff LED Wall Pack 2,700 Lumens 20W Selectable 30K/40K/50K 120-277V Photocell Bronze KT-WPLED20-S1-8CSB-VDIM

Keystone Small Non-Cutoff LED Wall Pack — 20W, Color Selectable, 120–277V, Bronze

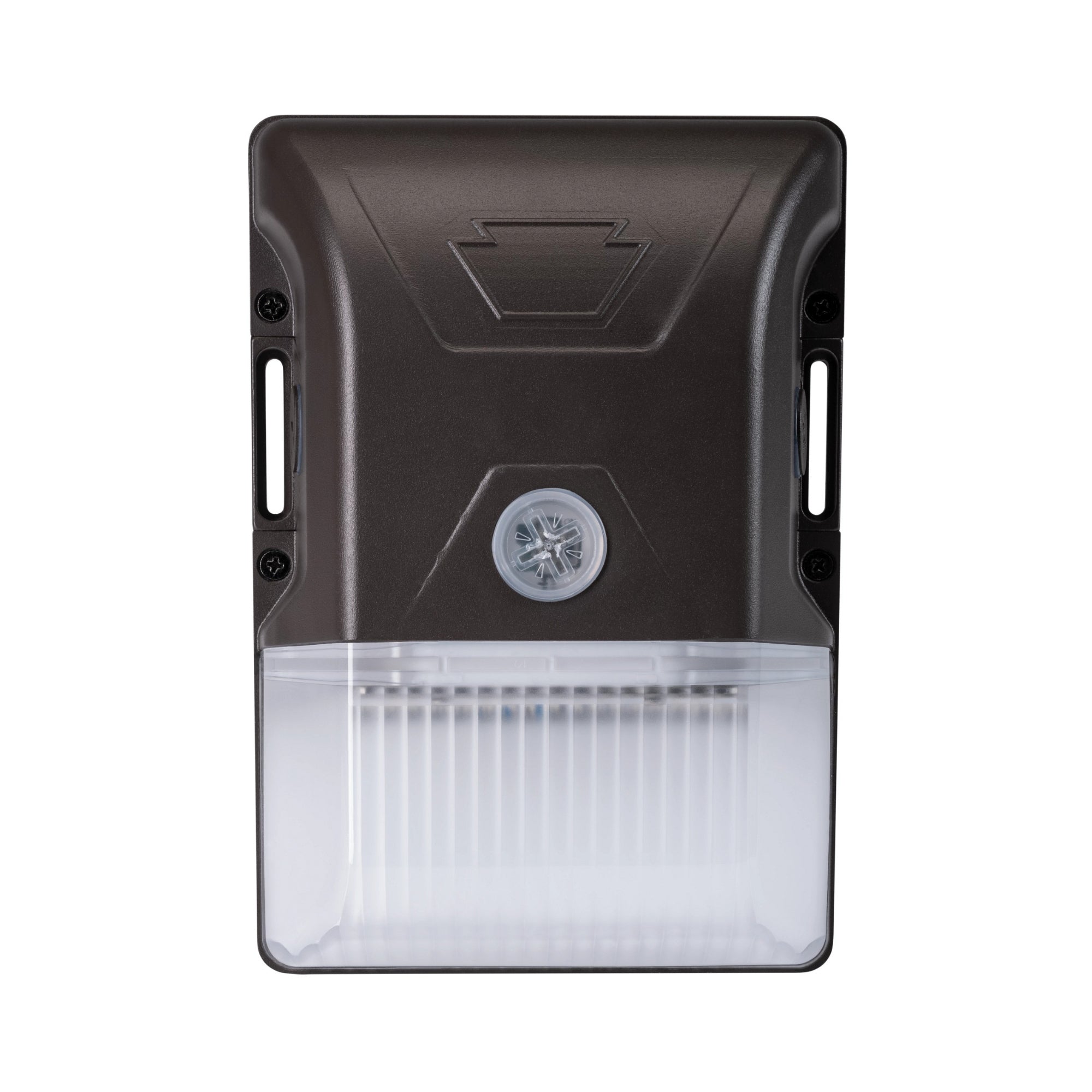

The Keystone KT-WPLED20-S1-8CSB-VDIM is a highly versatile and compact small non-cutoff LED wall pack delivering up to 2,700 lumens. Engineered for general safety and security illumination, this low-profile fixture features Keystone's Color Select technology, allowing installers to easily choose between 3000K, 4000K, or 5000K color temperatures on-site. Operating on a 120–277V driver, it includes an integrated dusk-to-dawn photocell for hands-free lighting automation. With its rugged die-cast aluminum housing, impact-resistant polycarbonate lens, and IP65 Wet Location rating, it is the ideal choice for illuminating building perimeters, tight entryways, pathways, and stairwells where a traditional bulky wall pack won't fit.

Key Features

• Wattage: 20W
• Selectable CCT: 3000K / 4000K / 5000K
• Delivered Lumens: 2,340 to 2,700 lumens
• Efficacy: Up to 135 Lumens Per Watt (LPW)
• Voltage: 120–277V universal input
• Dimming: 0–10V dimming standard (dimmable to 10%)
• Controls: Integrated dusk-to-dawn photocell included (switchable on/off)
• Distribution: Non-Cutoff (General outward and downward distribution)
• CRI: >80
• Environmental Ratings: IP65 rated for Wet Locations

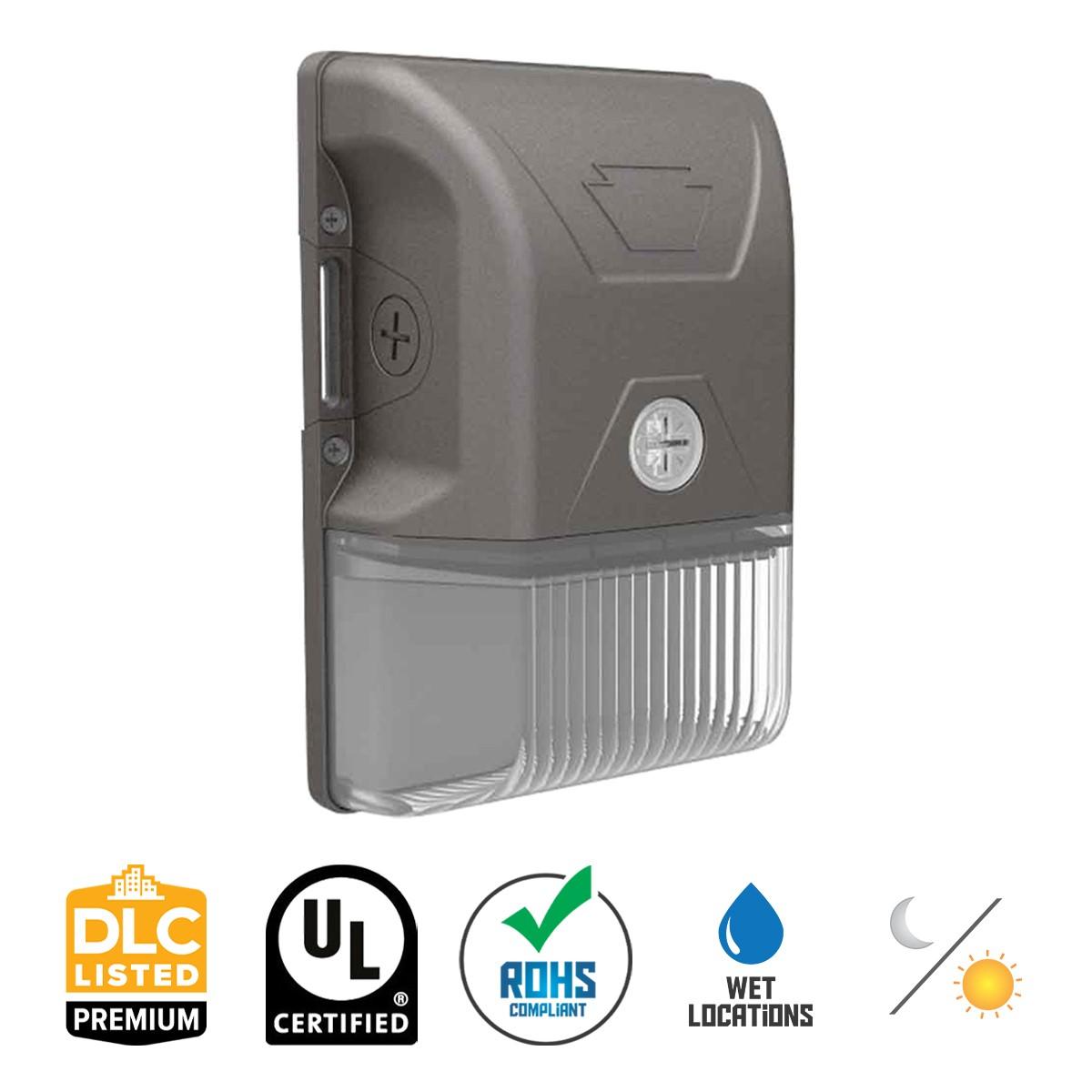

• Certifications: cULus Listed, DLC Premium, RoHS Compliant, ADA Compliant
• Estimated Life: >100,000 hours (L70)

Typical Applications

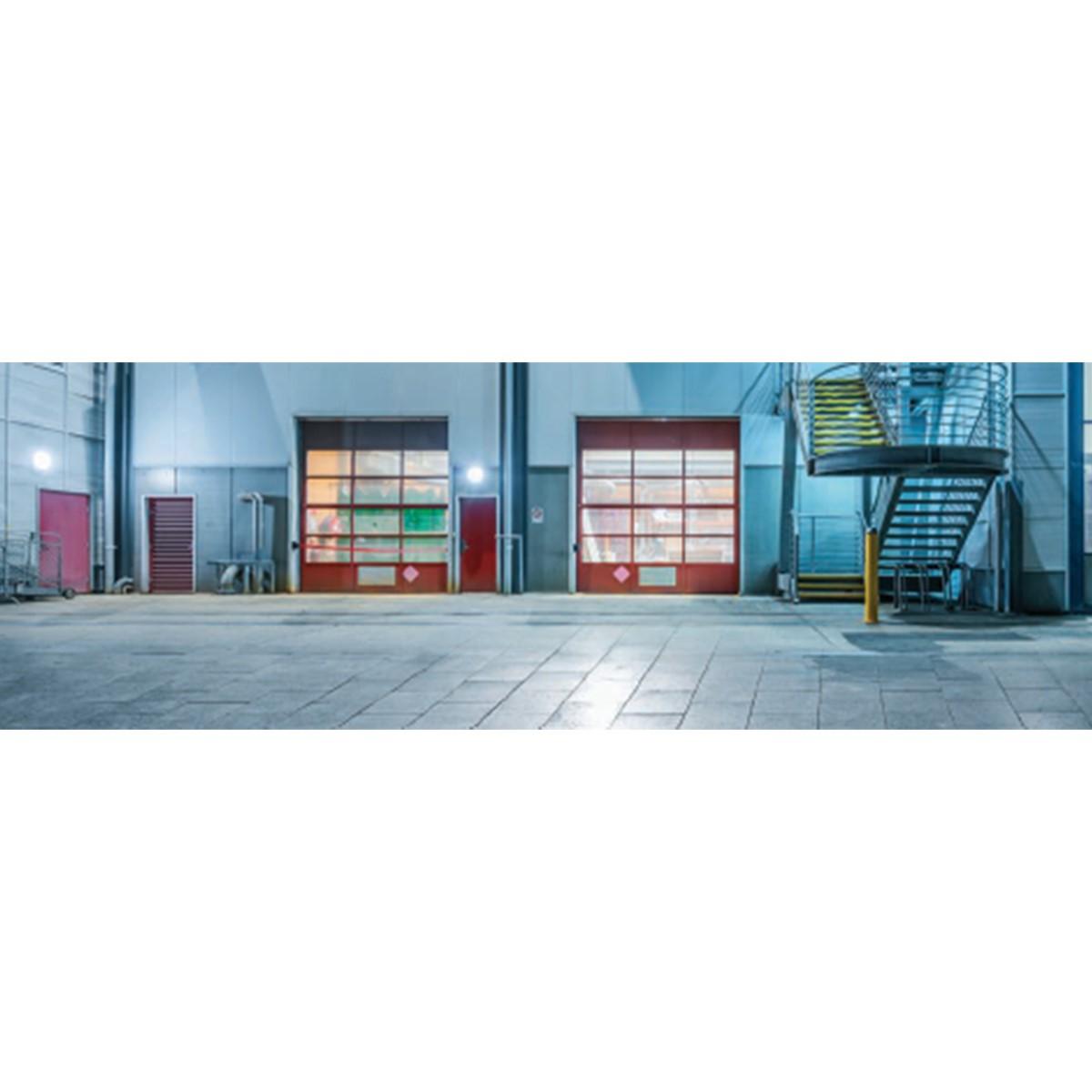

• Tight building perimeters and architectural facades
• Walkways, small entryways, and man doors
• Outdoor stairwells and security lighting
• Low mounting height applications requiring reduced glare

Performance & Light Output

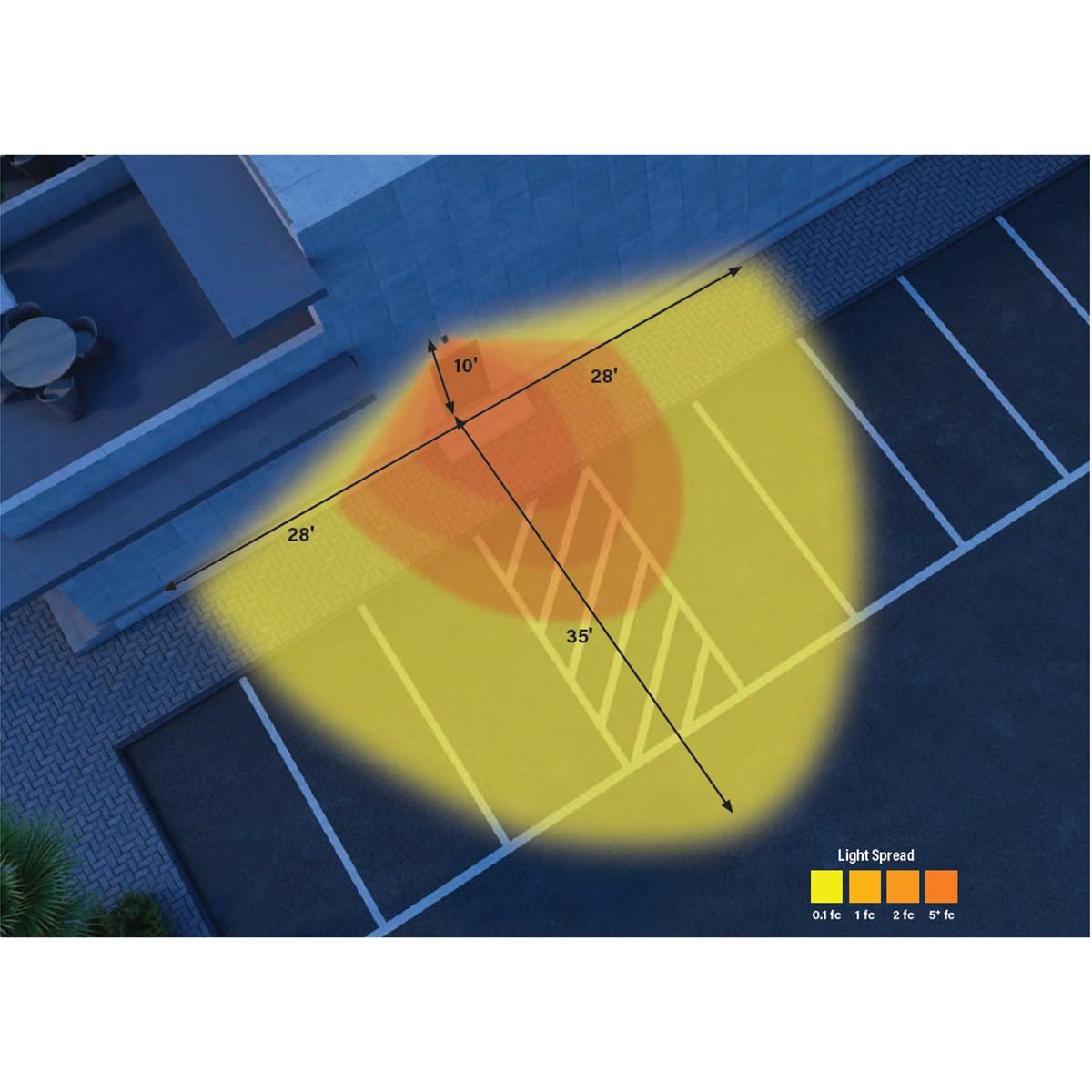

The KT-WPLED20-S1-8CSB-VDIM provides bright, reliable illumination ranging from 2,340 to 2,700 lumens depending on the selected color temperature. Its highly diffused polycarbonate lens casts a wide, uniform pattern while minimizing harsh glare at lower mounting heights. With an efficacy reaching 135 LPW and a 100,000-hour rated lifespan, this fixture drastically reduces energy consumption and maintenance cycles compared to legacy 70W HID systems.

Electrical & Controls

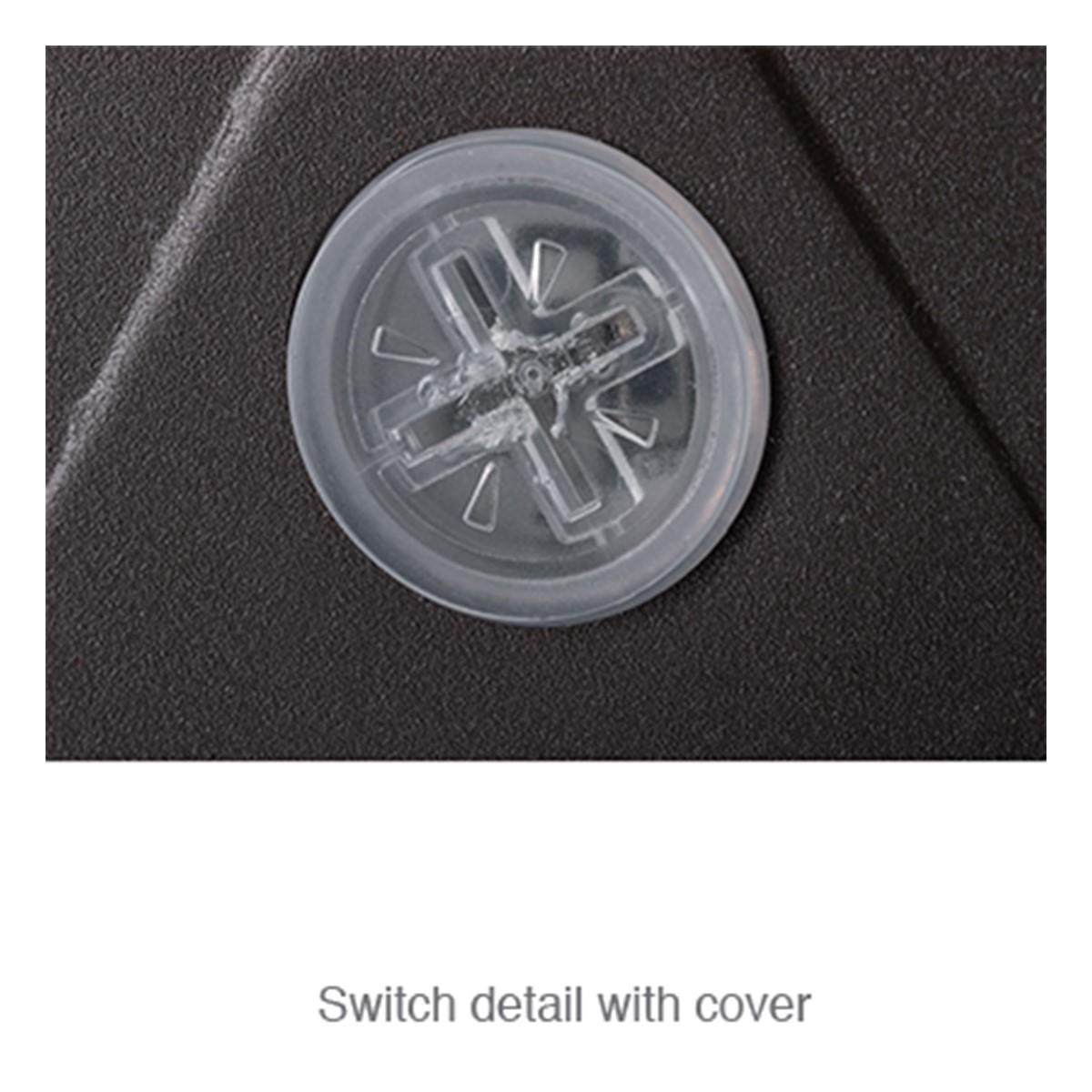

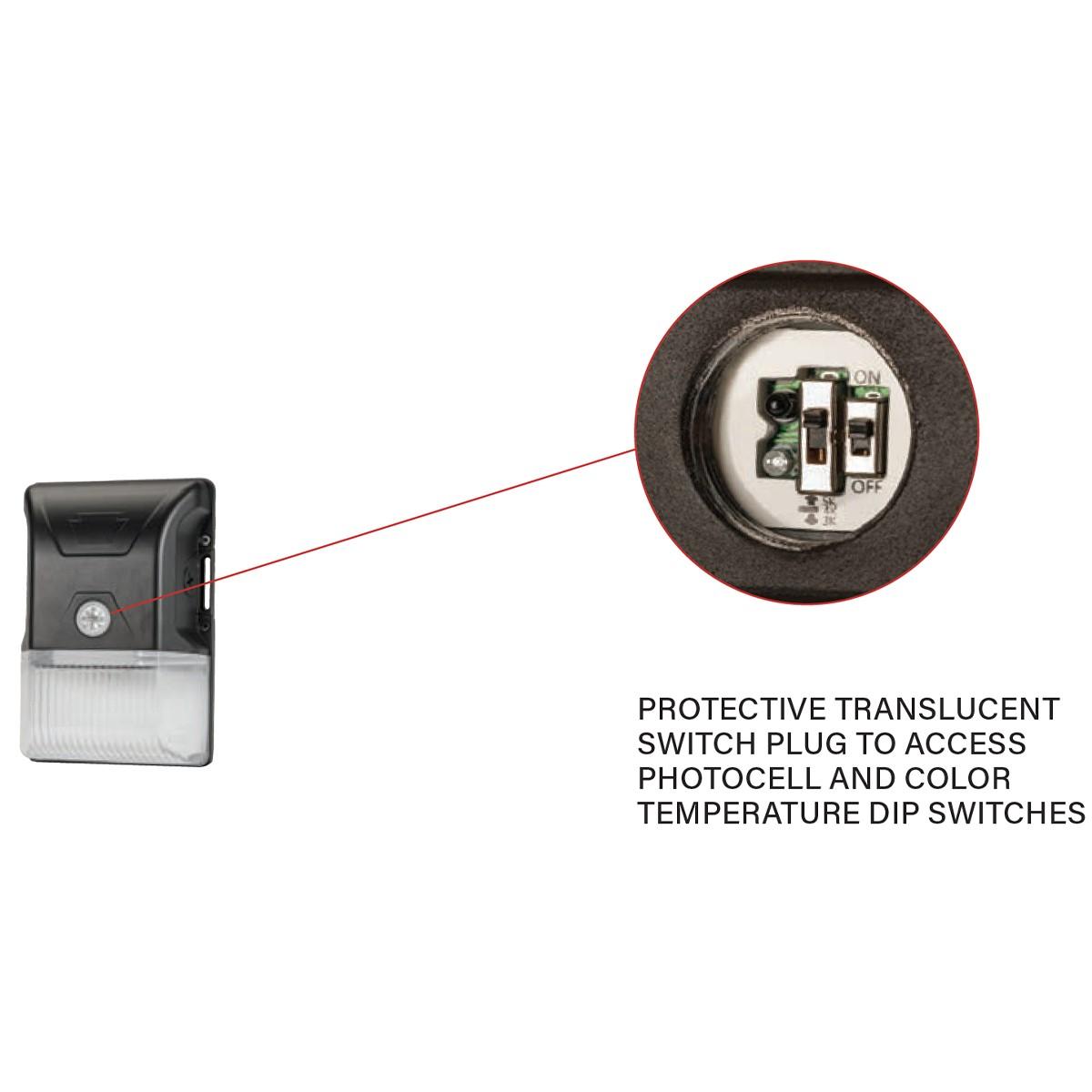

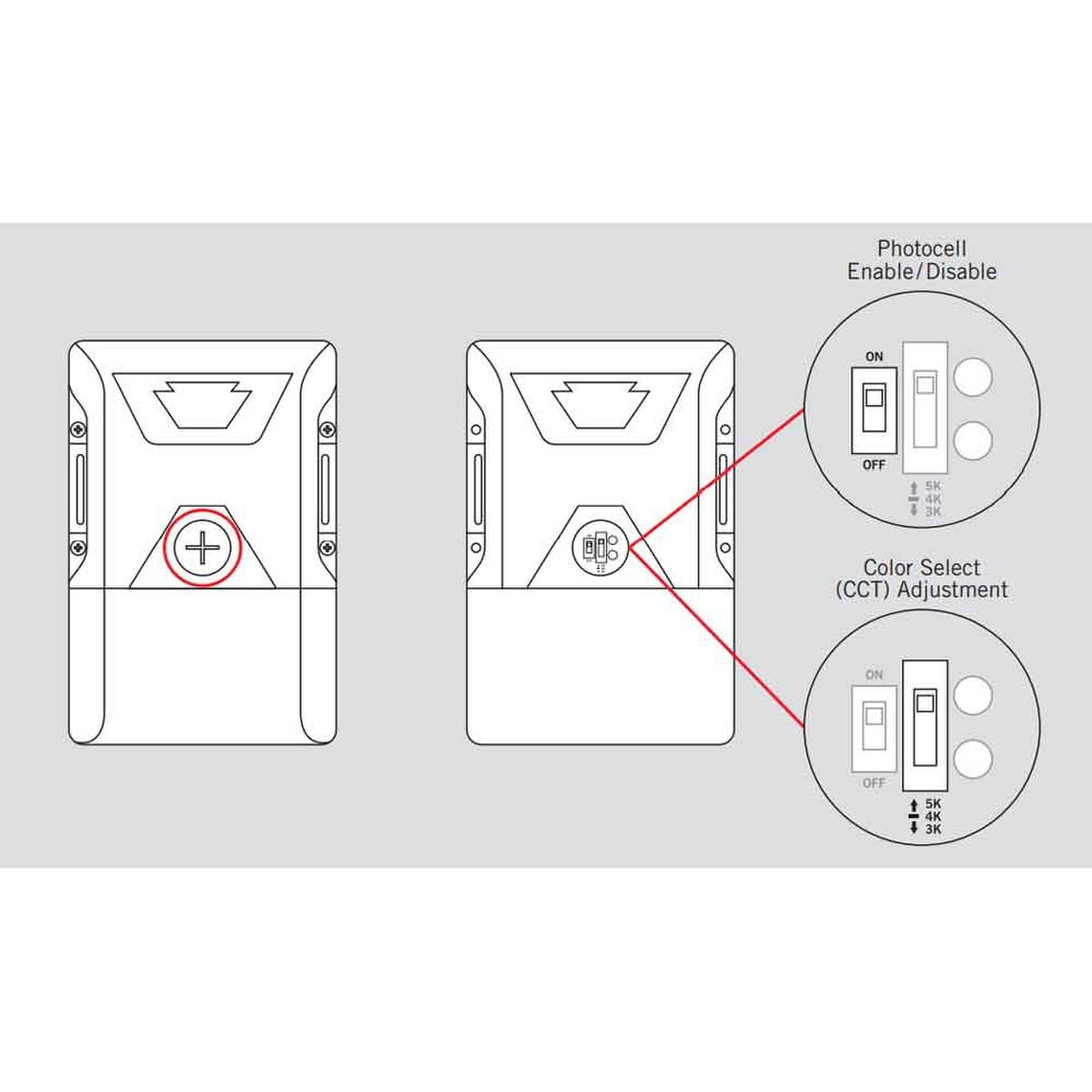

This fixture operates on a constant current 120–277V AC driver. It supports standard 0–10V dimming down to 10% for integration with advanced lighting controls. The integrated photocell ensures the light only operates when needed, providing reliable dusk-to-dawn automation, but can easily be disabled via a dip switch if external timers or sensors are used.

Construction & Durability

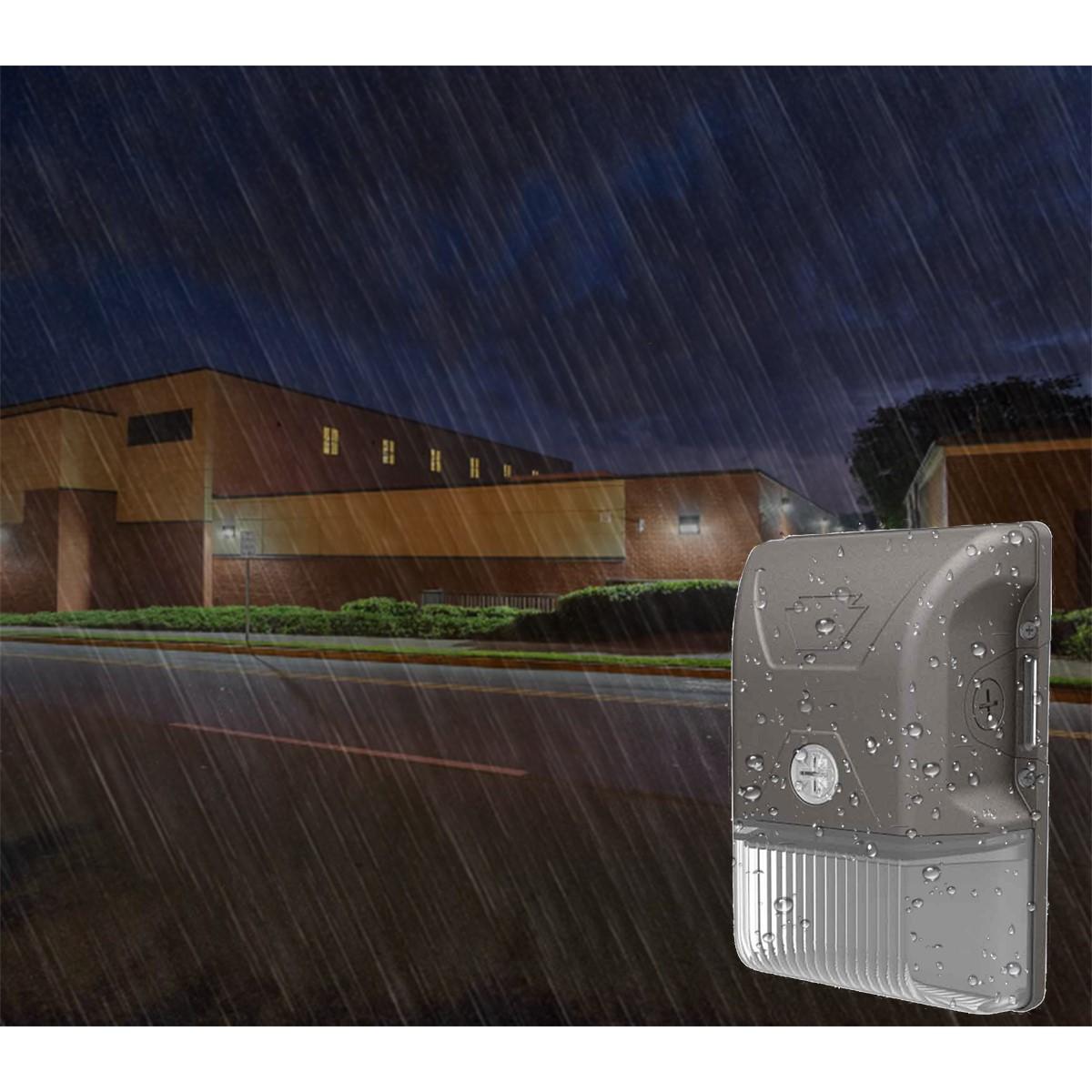

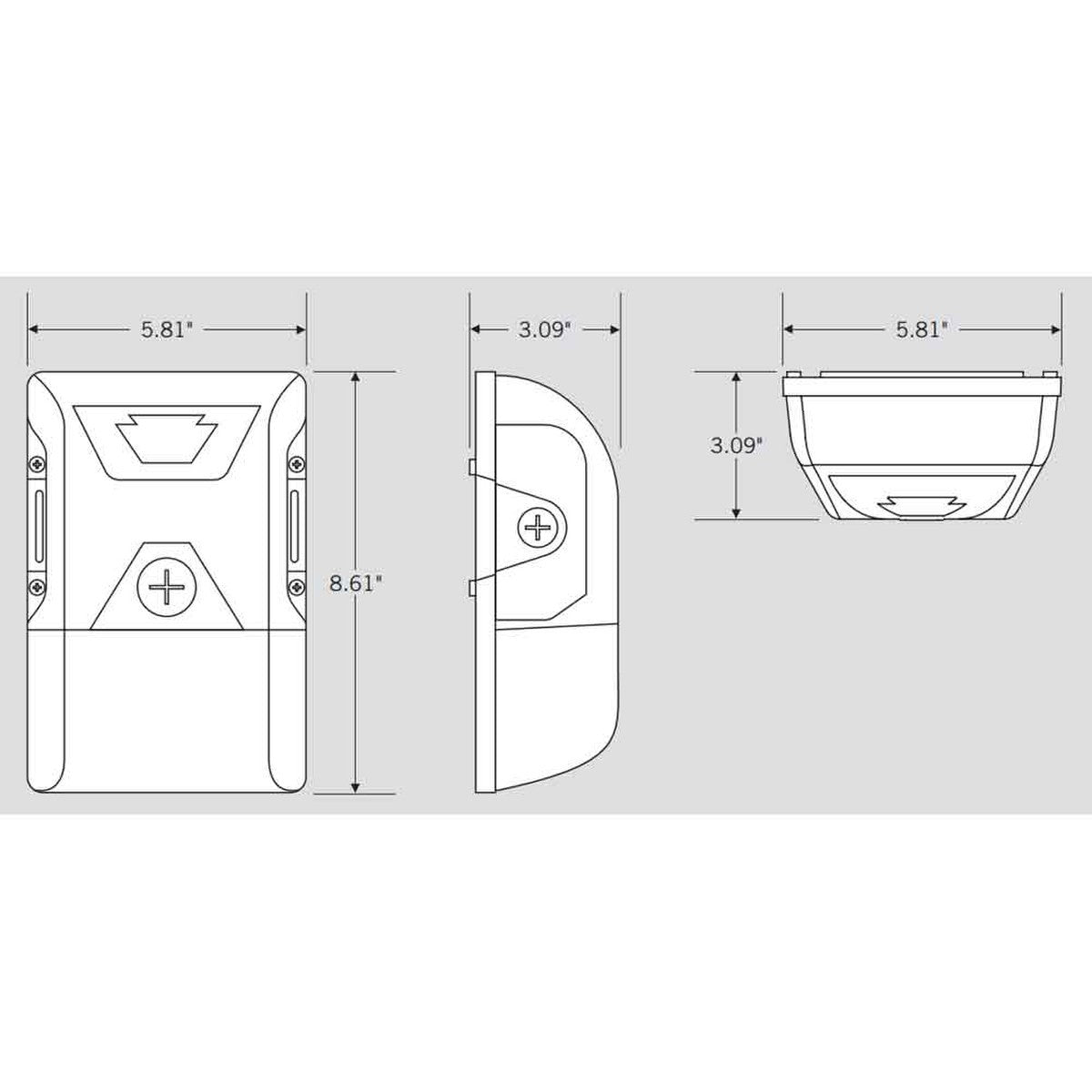

Engineered for outdoor reliability and modern aesthetics, the fixture features a precision die-cast aluminum housing finished in a resilient bronze powder coat. Its low-profile design (less than 4 inches deep) makes it fully ADA compliant. The fixture is impact-rated (IK07) and fully IP65 rated, protecting it against dust and water ingress in extreme temperature fluctuations from -40°F to 113°F (-40°C to 45°C).

What's Included

• Keystone Small Non-Cutoff LED Wall Pack (Bronze)
• Integrated Photocell
