Keystone Traditional Slim LED Wall Pack 17,640 Lumens 80/100/120W Selectable 30K/40K/50K 120-277V Photocell Bronze KT-WPLED120PS-L4-8CSB-VDIM
Available in stock (101)
About this item
About this item

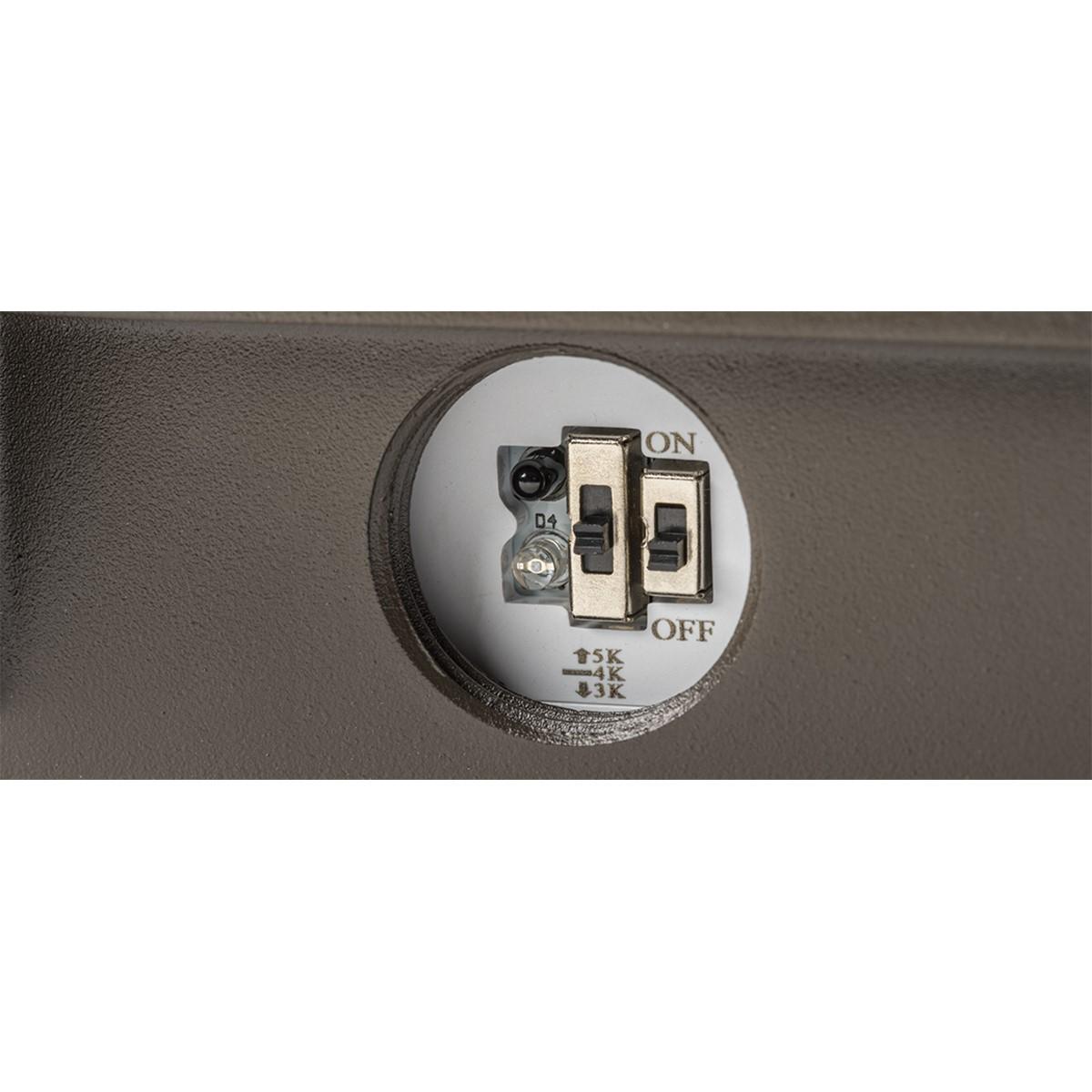

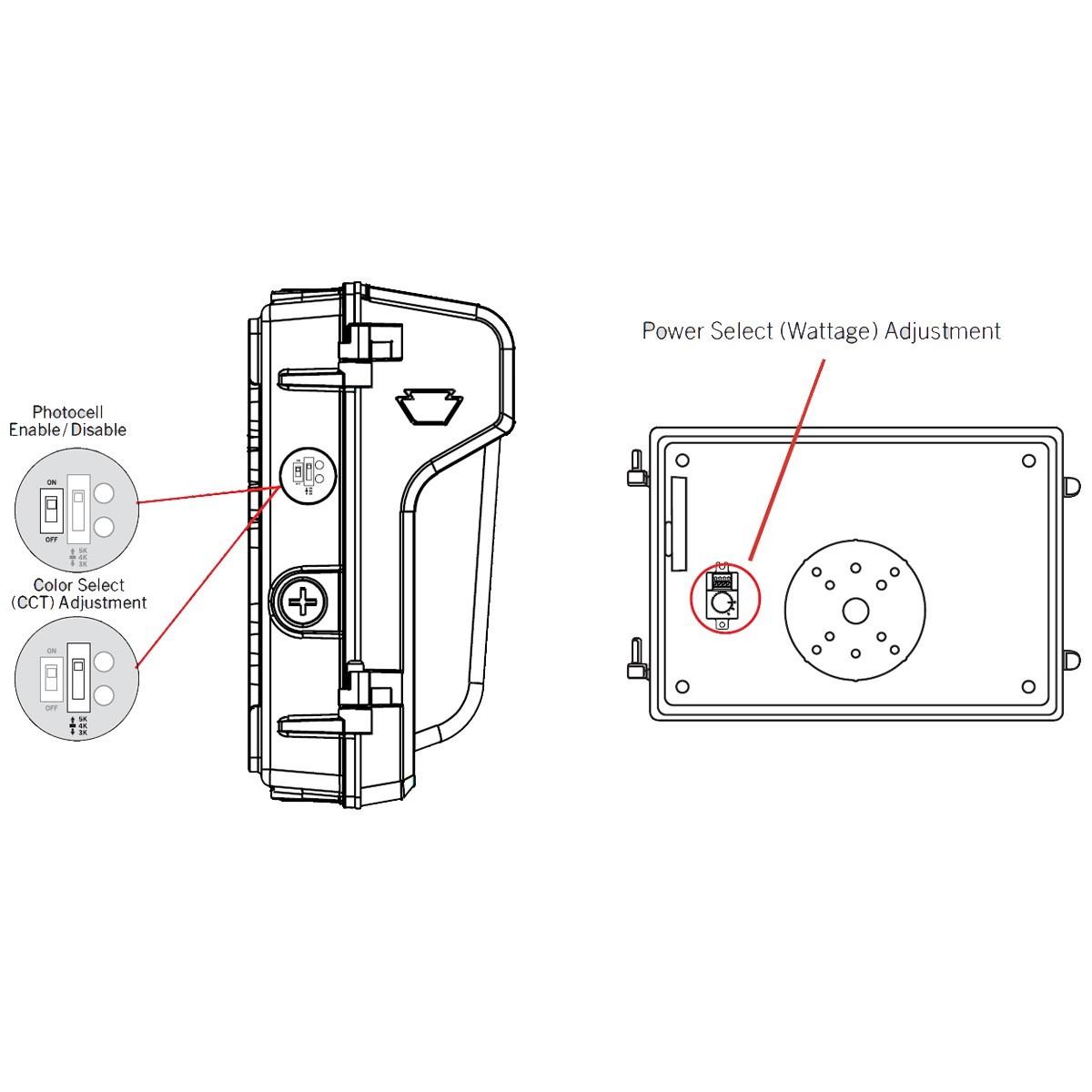

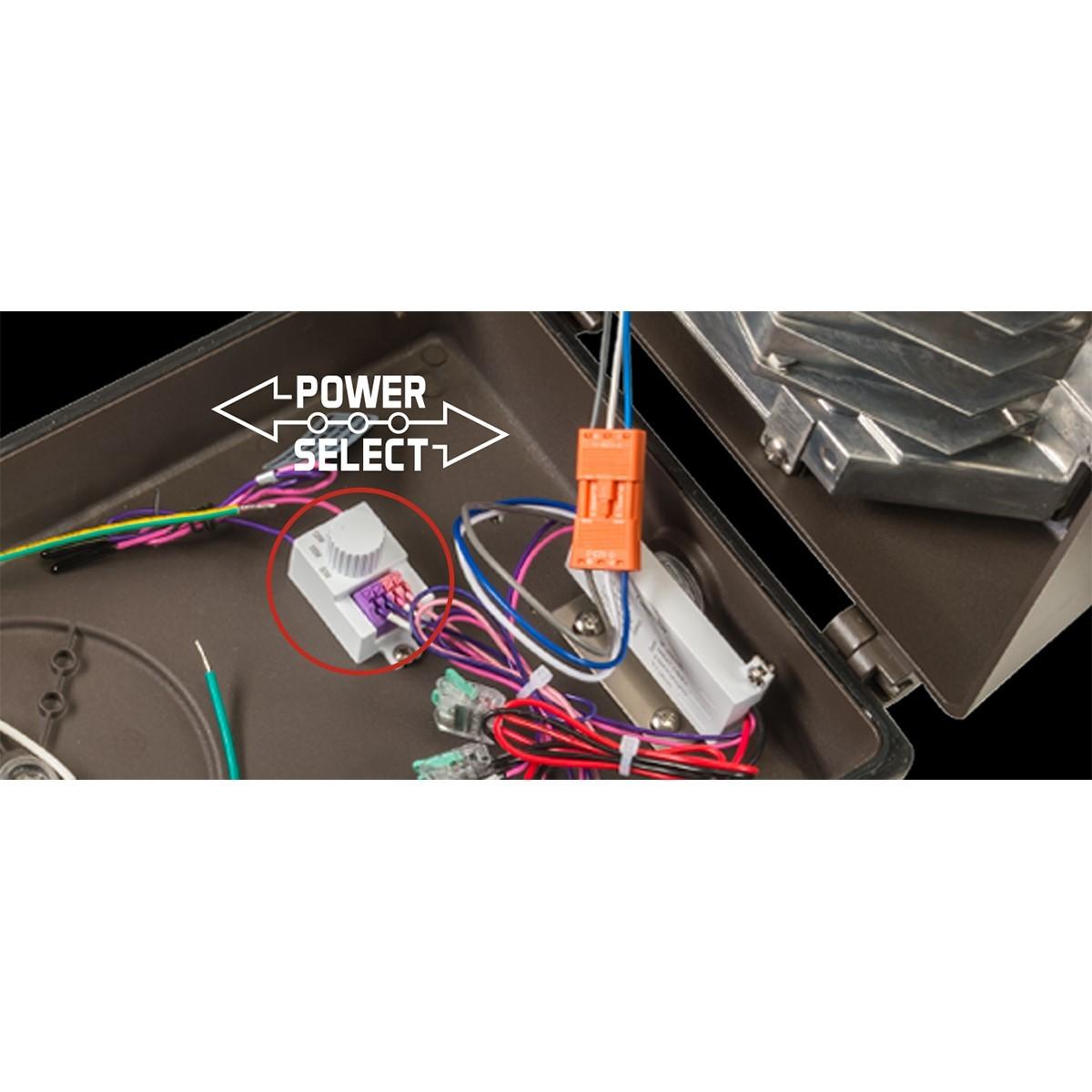

- Power & Color Select Technology: Simplifies inventory and maximizes on-site flexibility with field-adjustable wattage (80W/100W/120W) and selectable color temperature (3000K/4000K/5000K) via accessible dip switches.

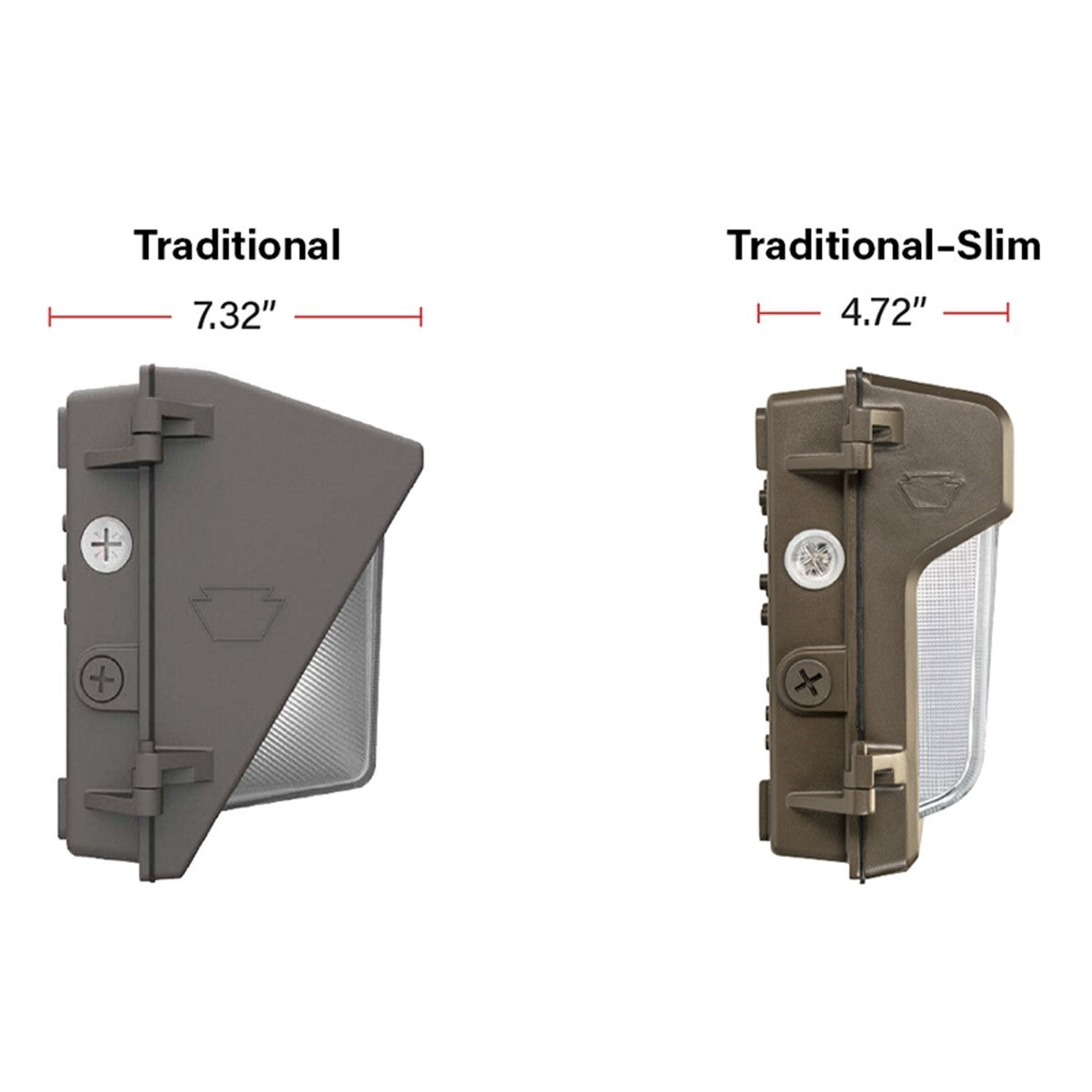

- Large Traditional Footprint, Slim Profile: Designed to perfectly cover the footprint (paint rings) of large legacy HID wall packs while boasting a modern design that is 35% shallower in depth.
- Massive Output & High Efficiency: Delivers up to a staggering 17,640 lumens with an excellent efficacy of up to 147 LPW, providing a direct, energy-saving replacement for traditional 400W Metal Halide fixtures.
- Integrated Photocell: Comes equipped with a built-in dusk-to-dawn photocell located behind a translucent threaded plug, easily enabled or disabled for automated energy savings.
- Premium Glass Lens: Constructed with a high-impact, borosilicate glass lens that diffuses the light source uniformly and is guaranteed never to yellow or discolor over time.
We process payments securely and do not store credit card information.
Description
Description

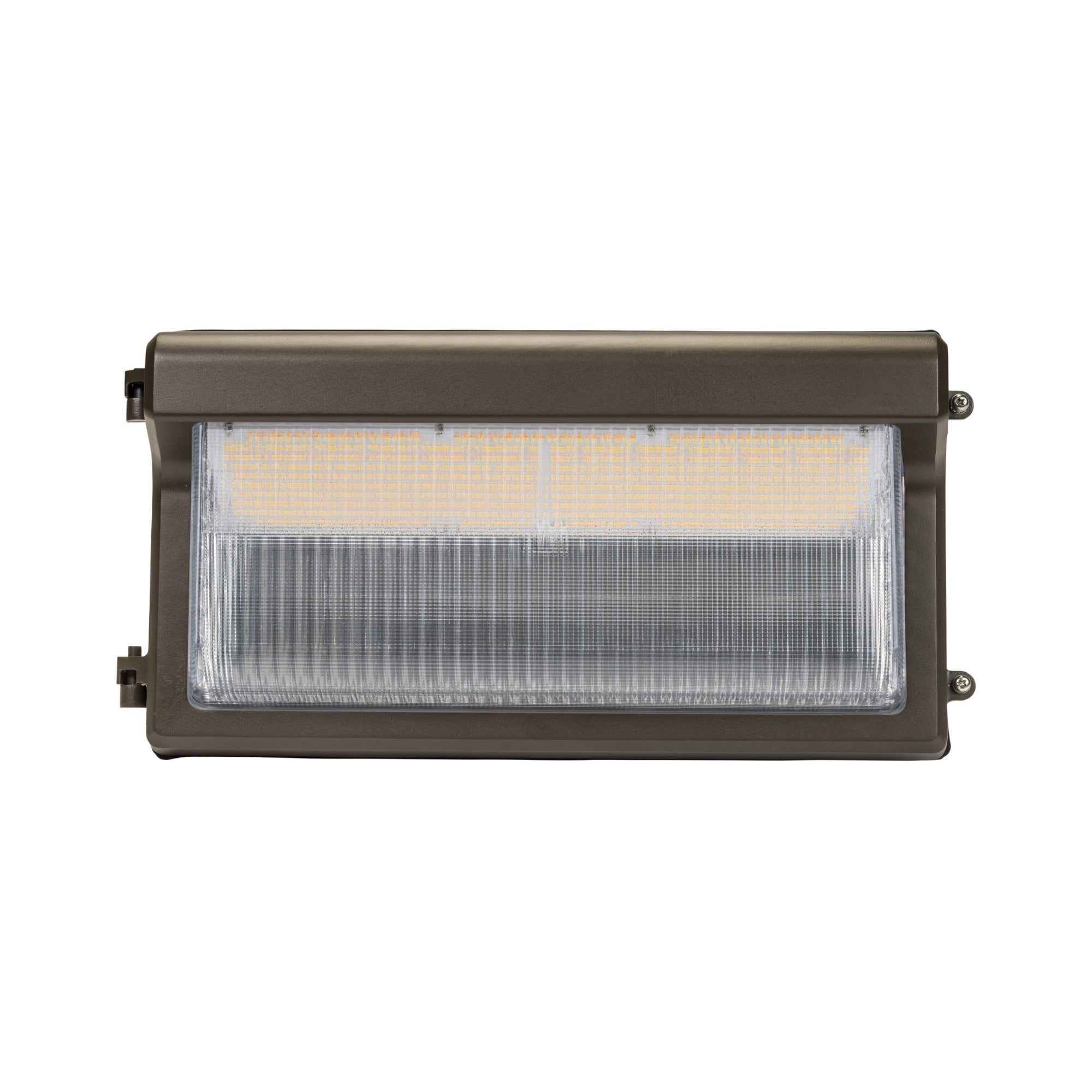

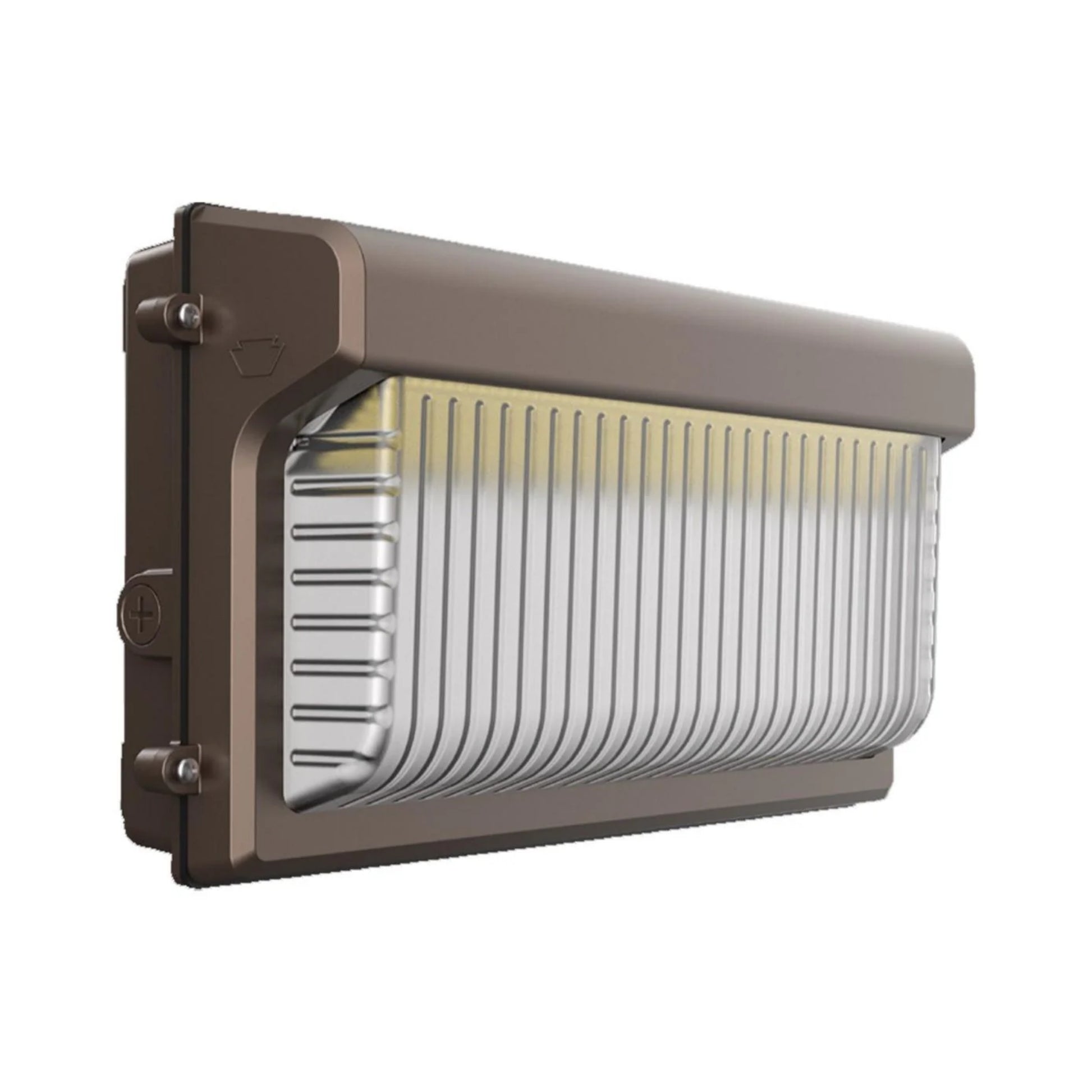

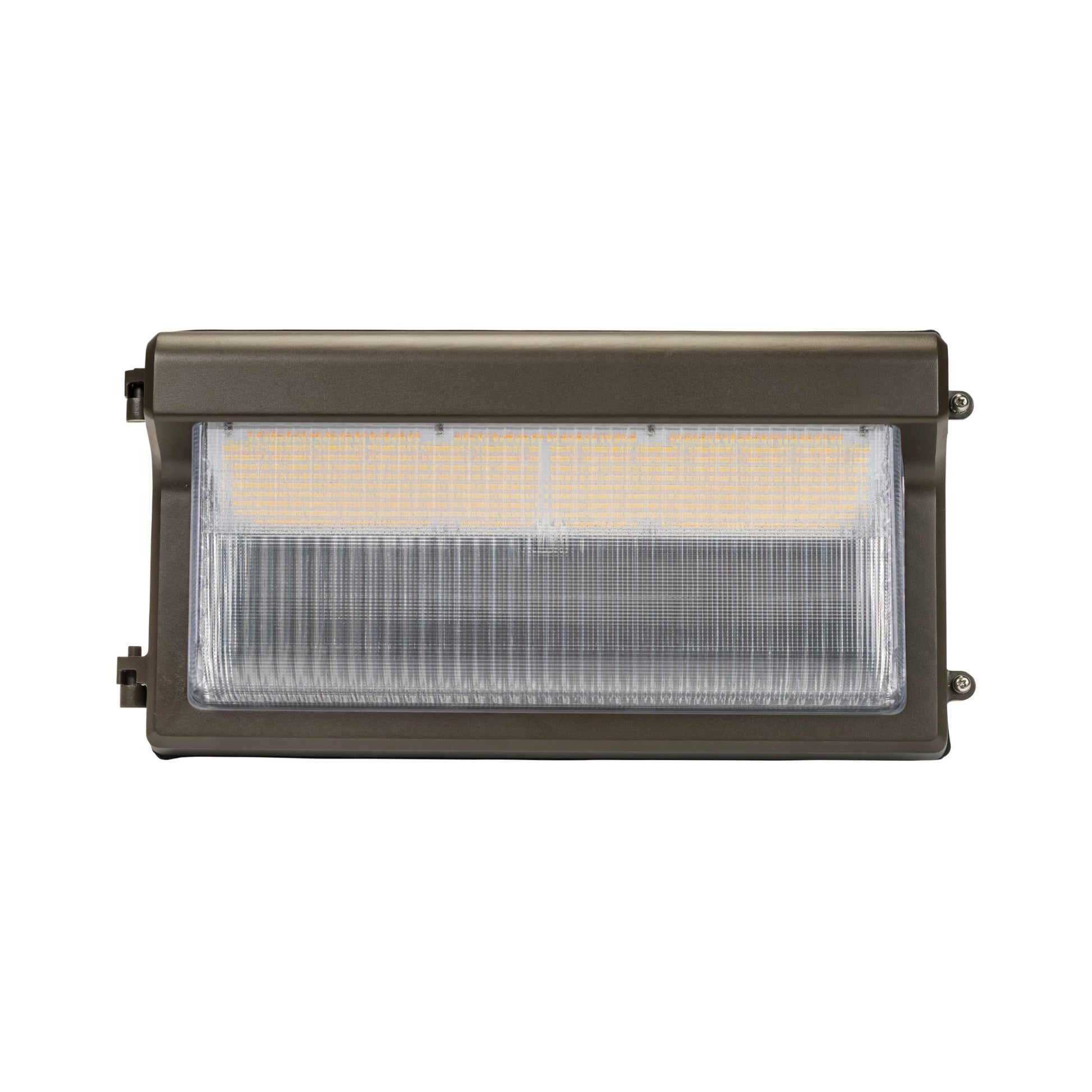

The Keystone KT-WPLED120PS-L4-8CSB-VDIM is a highly adaptable, specification-grade large traditional-slim LED wall pack delivering up to 17,640 lumens. Engineered to make LED upgrades effortless, this fixture matches the exact footprint of standard legacy large wall packs—eliminating the need to repaint or patch walls—while offering a modern, 35% slimmer profile. Installers can easily customize the light output by toggling between 80W, 100W, or 120W of power and 3000K, 4000K, or 5000K color temperatures on-site. Operating on a universal 120–277V driver, it includes an integrated dusk-to-dawn photocell for automated security lighting. With its rugged die-cast aluminum housing, borosilicate glass lens, and IP65 Wet Location rating, it is the premier choice for illuminating massive building perimeters, wide entryways, and expansive industrial loading docks.
Key Features
- Wattage: 80W / 100W / 120W Selectable
- Selectable CCT: 3000K / 4000K / 5000K
- Delivered Lumens: 11,280 to 17,640 lumens
- Efficacy: Up to 147 Lumens Per Watt (LPW)
- Voltage: 120–277V universal input
- Dimming: 0–10V dimming standard
- Controls: Integrated dusk-to-dawn photocell included (switchable on/off)
- Lens: High-impact borosilicate glass
- CRI: >80
- Environmental Ratings: IP65 rated for Wet Locations
- Certifications: cULus Listed, DLC Premium, RoHS Compliant, FCC
- Estimated Life: >100,000 hours (L70)
Typical Applications
- Large commercial, industrial, and educational building perimeters
- Expansive walkways, high-security lighting, and man doors
- Heavy-duty loading docks and vast outdoor corridors
- One-for-one replacements of legacy 400W HID wall packs
Performance & Light Output
The KT-WPLED120PS-L4-8CSB-VDIM provides brilliant, outward-throwing illumination ranging from 11,280 to 17,640 lumens depending on the selected settings. The high-quality borosilicate glass lens casts a wide, uniform pattern to maximize visibility across large perimeters. With an efficacy reaching 147 LPW and a 100,000-hour rated lifespan, this fixture drastically reduces energy consumption and maintenance cycles compared to massive legacy 400W HID systems.
Electrical & Controls

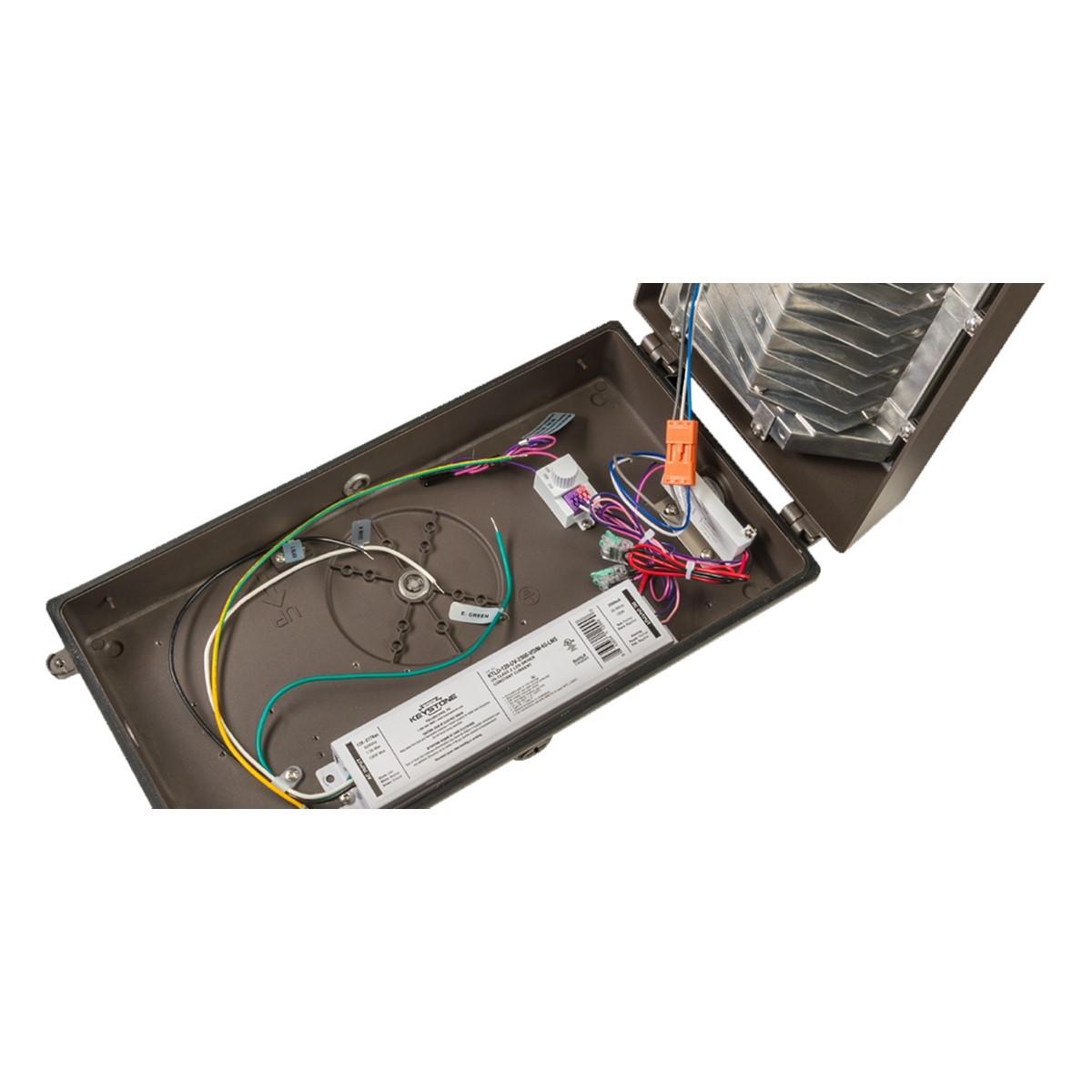

This fixture operates on a constant current 120–277V AC driver and supports standard 0–10V dimming for integration with advanced lighting controls. The integrated photocell ensures the light only operates when needed, providing reliable dusk-to-dawn automation, but can easily be disabled via a dip switch if the unit is connected to external timers or centralized building systems.
Construction & Durability
Engineered to withstand the elements, the fixture features a heavy-duty die-cast aluminum housing finished in a resilient bronze powder coat. It includes five 1/2-inch threaded conduit hubs for flexible surface-mount wiring (one on the back, one on all four sides). The fixture is impact-rated (IK06) and fully IP65 rated, protecting it against dust and wind-driven rain in extreme temperatures ranging from -40°F to 122°F (-40°C to 50°C).
What's Included
- Keystone Large Traditional-Slim LED Wall Pack (Bronze)
- Integrated Photocell
Specifications
Specifications

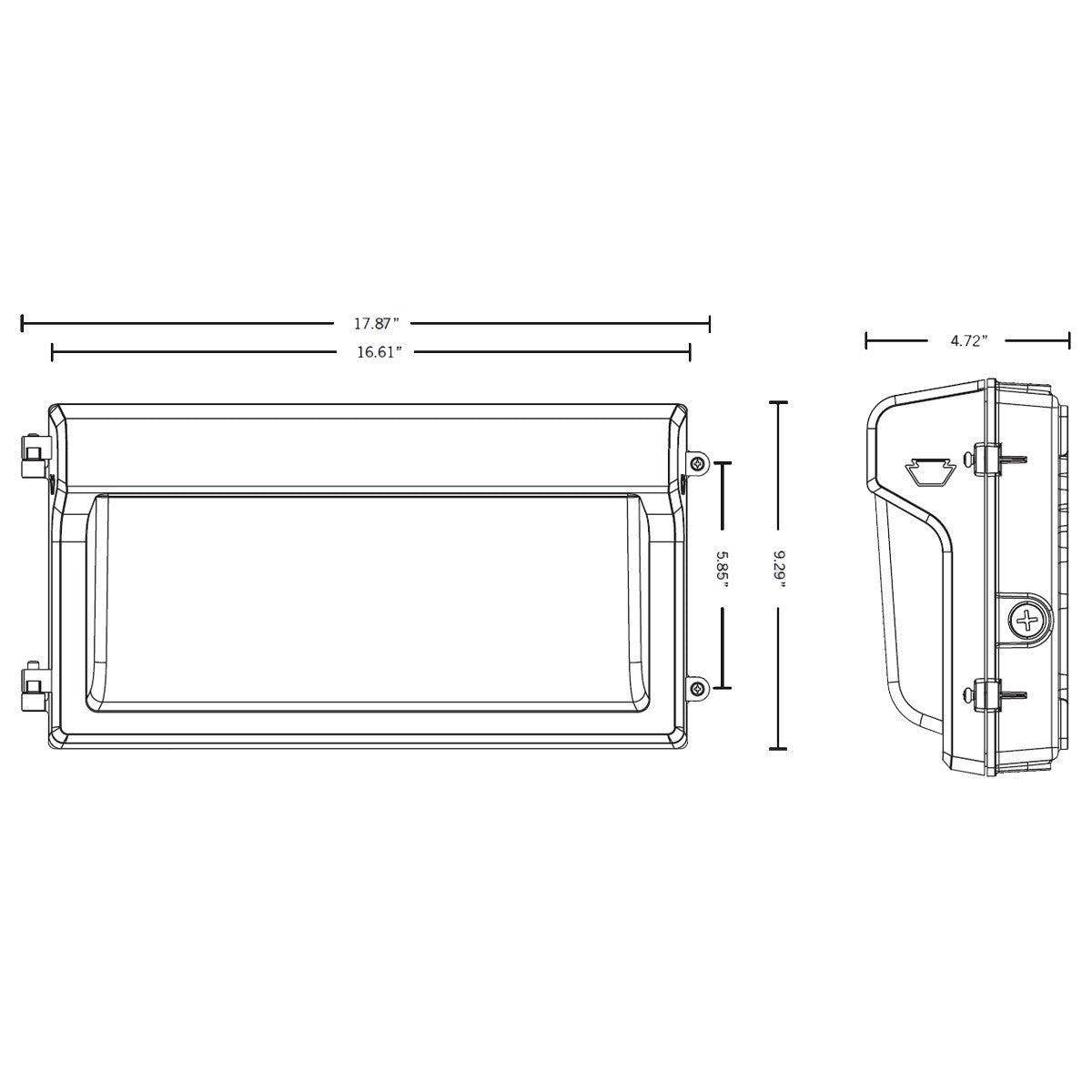

Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
It combines the best of both worlds: the back housing is sized to completely cover the "paint ring" or footprint left by old large HID wall packs, but the depth is 35% shallower, giving the building a much sleeker, modernized appearance.
It combines the best of both worlds: the back housing is sized to completely cover the "paint ring" or footprint left by old large HID wall packs, but the depth is 35% shallower, giving the building a much sleeker, modernized appearance.
Does this wall pack include a photocell?
Does this wall pack include a photocell?
Yes, it comes equipped with a built-in dusk-to-dawn photocell located behind a translucent threaded plug. A dip switch allows you to easily enable or disable the photocell function.
Yes, it comes equipped with a built-in dusk-to-dawn photocell located behind a translucent threaded plug. A dip switch allows you to easily enable or disable the photocell function.
Will the glass lens yellow over time?
Will the glass lens yellow over time?
No. The fixture features a high-impact borosilicate glass lens that is inherently UV-resistant and will not yellow, cloud, or degrade over the life of the fixture like traditional polycarbonate lenses can.
No. The fixture features a high-impact borosilicate glass lens that is inherently UV-resistant and will not yellow, cloud, or degrade over the life of the fixture like traditional polycarbonate lenses can.
