Keystone 2ft LED Vapor Tight Fixture 3,300 Lumens 15/20/25W Selectable 35K/40K/50K 120–277V White KT-VTLED25PS-2A-8CSA-VDIM
Keystone 2ft LED Vapor Tight Fixture 3,300 Lumens 15/20/25W Selectable 35K/40K/50K 120–277V White KT-VTLED25PS-2A-8CSA-VDIM
Available in stock (103)
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Selectable Output: Field-adjustable wattage and color temperature allow on-site configuration for multiple lumen packages.
- Universal Voltage: Operates on 120–277V input for compatibility with standard commercial electrical systems.
- Rugged Protection: IP66 and NEMA 4X construction protects against moisture, dust, and corrosion.
- Dimming Control: Integrated 0–10V dimming supports common commercial lighting control systems.
- Wet Location Design: Built for washdown, industrial, and NSF splash zone environments.
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description
Keystone KT-VTLED25PS-2A-8CSA-VDIM 2ft LED Vapor Tight Fixture — Power & Color Selectable
The Keystone KT-VTLED25PS-2A-8CSA-VDIM is a 2-foot LED vapor tight fixture engineered for wet and washdown environments. It delivers up to 3,300 lumens with field-selectable wattage of 15W / 20W / 25W and selectable color temperature of 3500K / 4000K / 5000K. Operating on a universal 120–277V input, this fixture features IP66 ingress protection and a NEMA 4X rated enclosure for corrosion-resistant performance in industrial and commercial applications.
Key Features

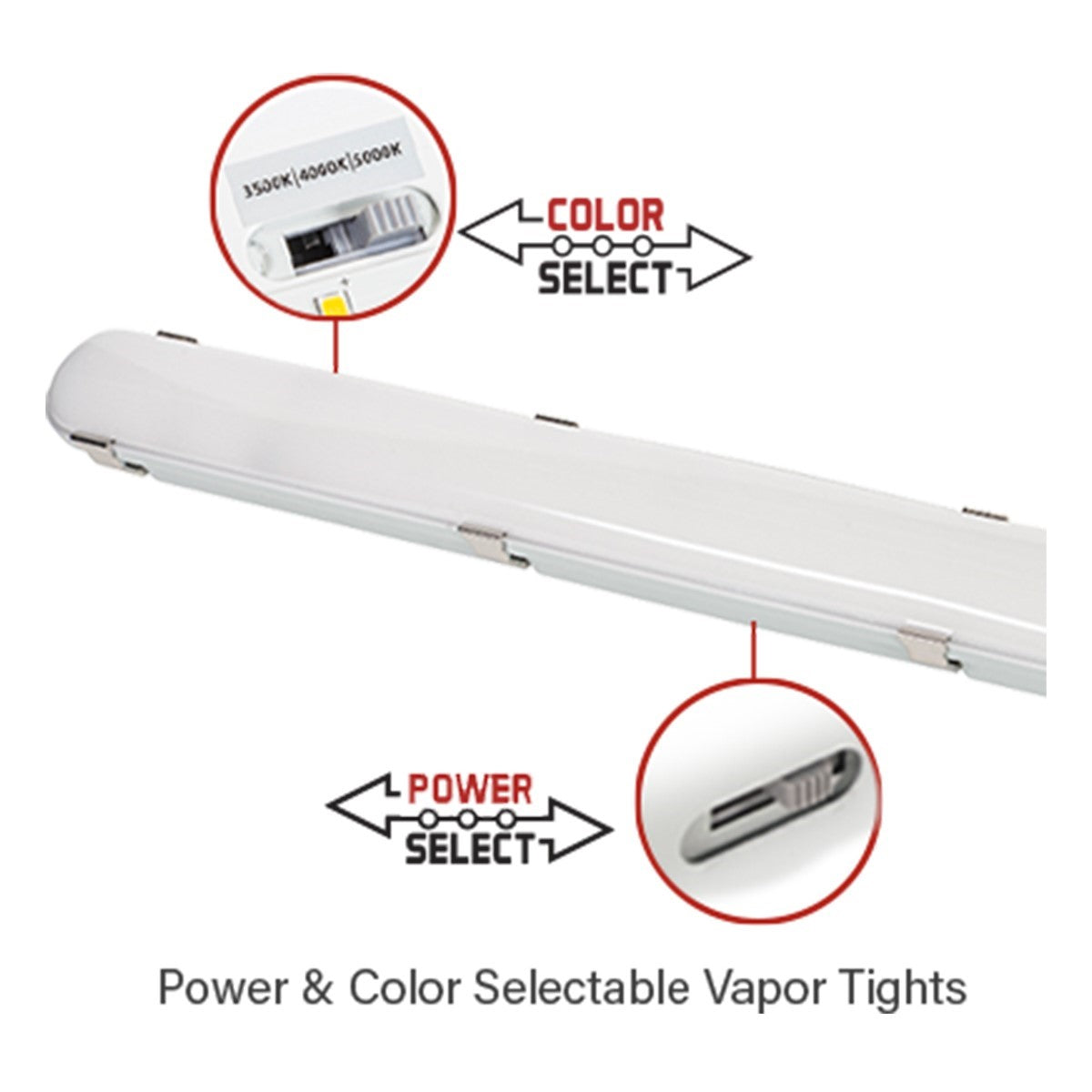

- Selectable Wattage: 15W / 20W / 25W field-adjustable output
- Selectable CCT: 3500K / 4000K / 5000K switchable color temperature
- Maximum Output: Up to 3,300 lumens
- Voltage: 120–277V universal driver
- Dimming: 0–10V dimming to 10%
- Environmental Rating: IP66 and NEMA 4X
- Wet Location Listed: Suitable for damp and wet areas
- NSF Rated: Certified for splash zone food service environments
- Impact Protection: IK10 impact-resistant construction
- Operating Temperature: -40°C to 50°C ambient
Typical Applications
- Food processing facilities
- Commercial kitchens
- Cold storage rooms
- Parking garages
- Industrial washdown areas
- Agricultural buildings
- Utility corridors
Performance & Light Output
Delivered lumen output ranges from approximately 2,000 to 3,300 lumens depending on wattage selection. The fixture provides consistent illumination with over 80 CRI and is designed for long service life with L70 performance exceeding 100,000 hours under standard operating conditions.
Electrical & Controls
The fixture operates on 120–277V, 50/60Hz power. Integrated 0–10V dimming allows compatibility with standard commercial dimming systems. The driver maintains high power factor performance and supports optional sensor and emergency backup configurations when specified.
Construction & Durability
Constructed with a sealed housing and impact-resistant polycarbonate lens, the fixture provides IP66 protection against dust and water intrusion. The NEMA 4X enclosure resists corrosion in demanding environments. Designed for use in dry, damp, and wet locations with NSF splash zone compliance for food-related areas.
Installation & Mounting

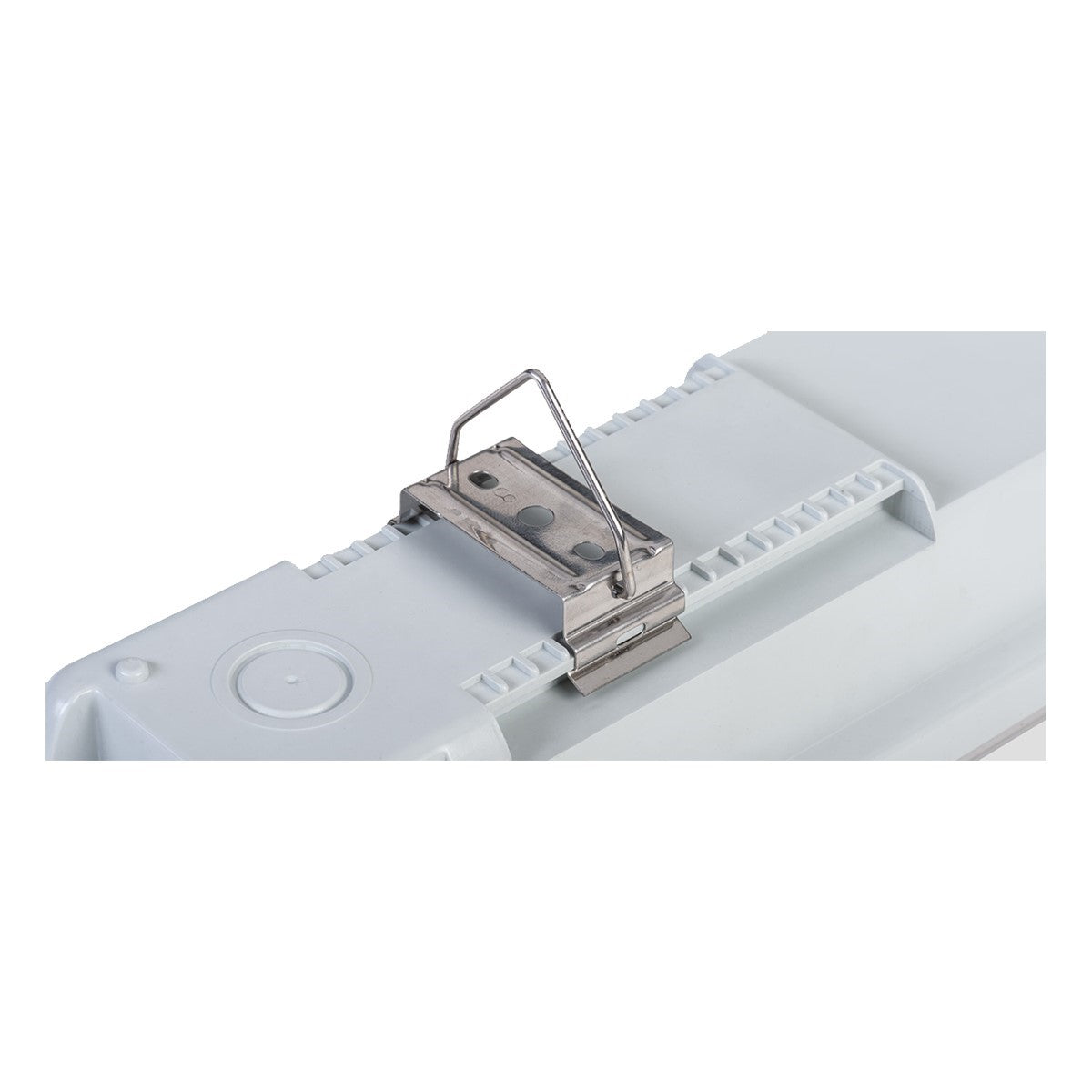

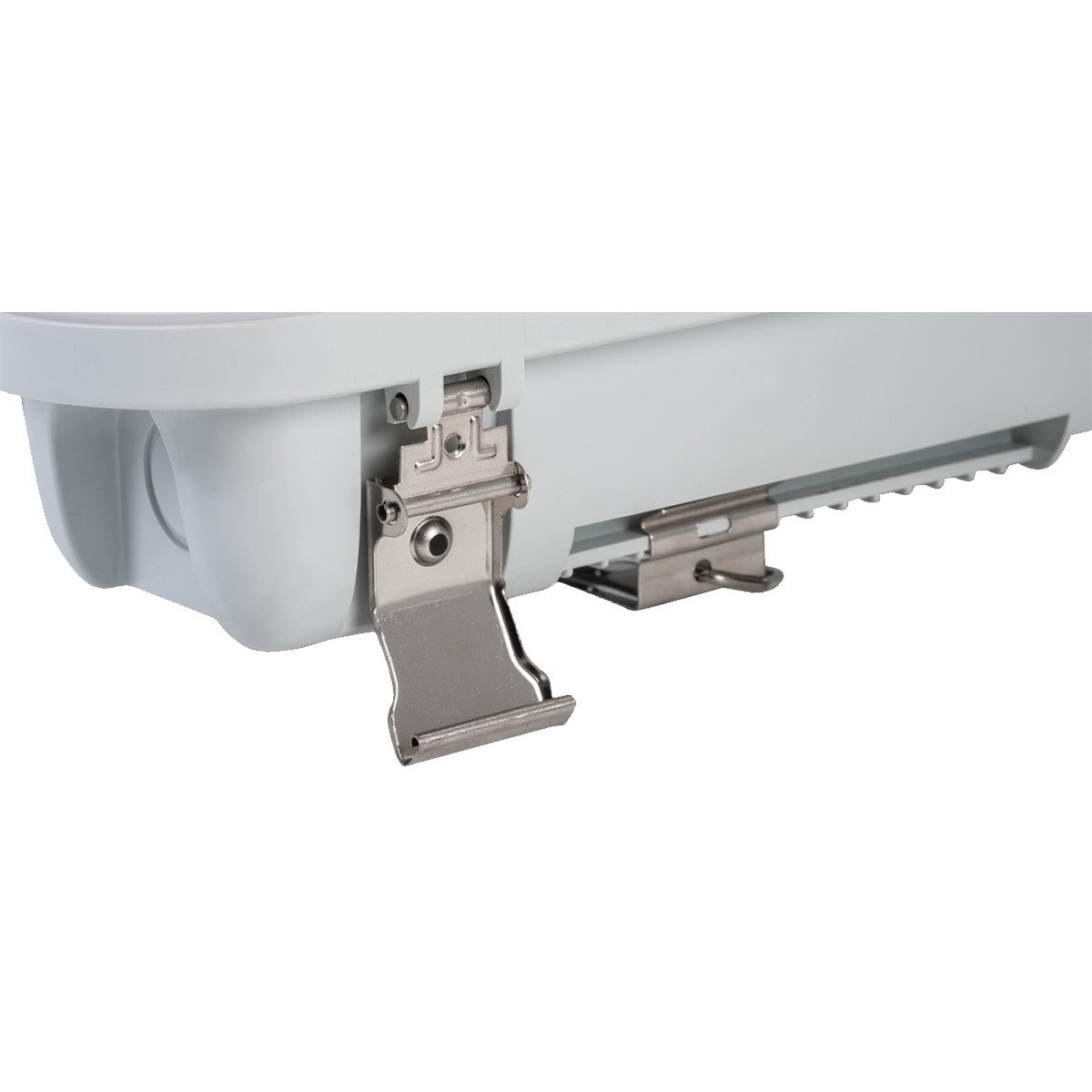

Includes stainless steel surface mounting brackets for direct ceiling or wall installation. Conduit entry points are provided for sealed wiring. Compatible with suspended chain mounting using included V-hooks where applicable.
Included
- Surface mounting brackets
- Mounting hardware
- Cord grip and hole plug
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
Is this Keystone vapor tight fixture rated for washdown environments?
Is this Keystone vapor tight fixture rated for washdown environments?
What voltage systems is this fixture compatible with?
What voltage systems is this fixture compatible with?
How are wattage and color temperature adjusted?
How are wattage and color temperature adjusted?
Is this fixture approved for food service areas?
Is this fixture approved for food service areas?
What mounting hardware is included?
What mounting hardware is included?
