Keystone XFit Stairwell Series 4' Strip Light 5500 Lumens 45W Selectable CCT 120-277V White
Available in stock (52)
About this item
About this item
- Lumen Output: Provides up to 5,500 lumens for optimal illumination in stairwells and corridors.
- Wattage: Features Keystone Power Select technology allowing adjustment between 45W, 35W, and 30W.
- Color Temperature: Selectable CCT options of 3500K, 4000K, and 5000K for versatile lighting environments.
- Dimming Capability: Equipped with 0-10V dimming, allowing smooth dimming down to 10%.
- Durability: Constructed with a post-painted steel body and PMMA lens for enhanced durability.
We process payments securely and do not store credit card information.
Description
Description

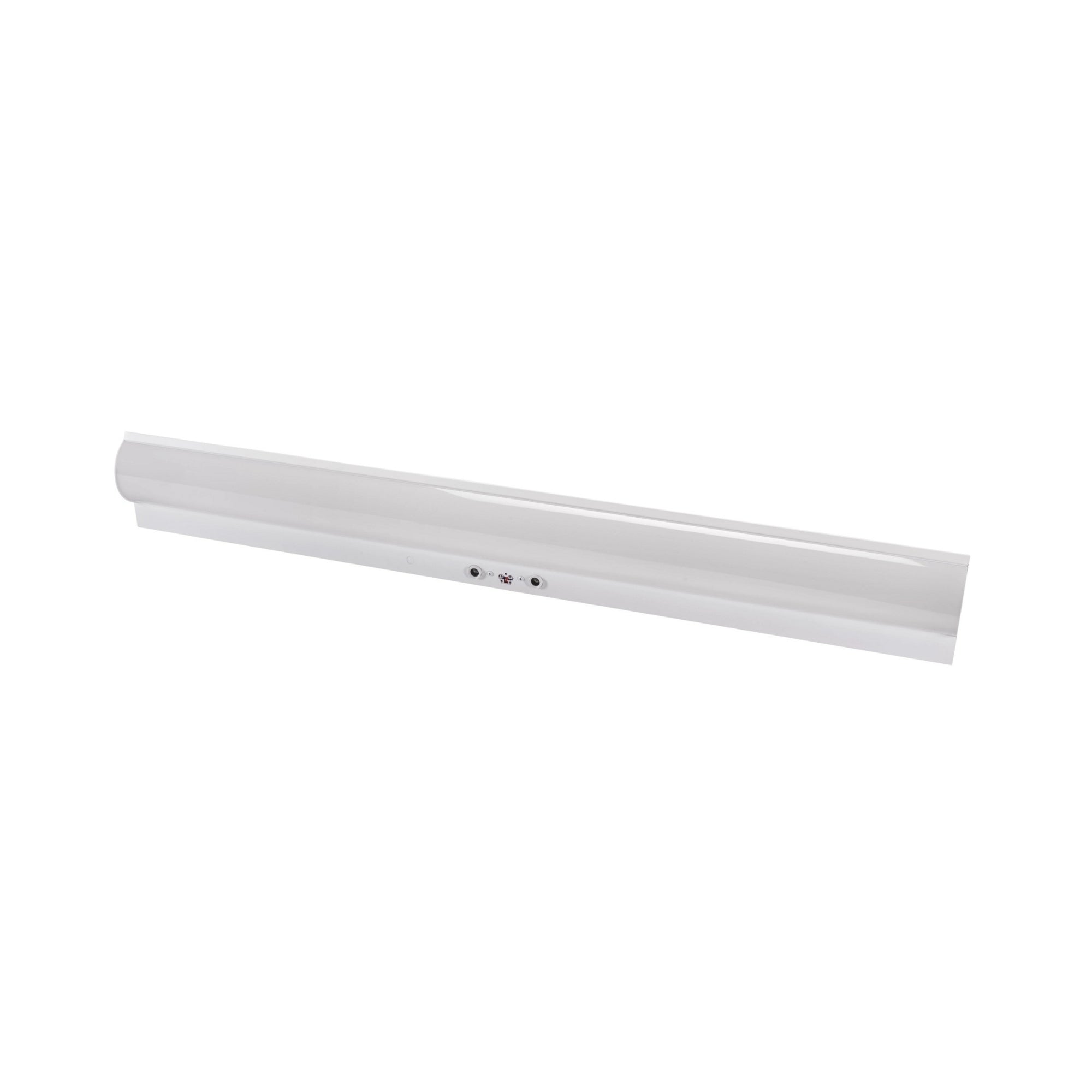

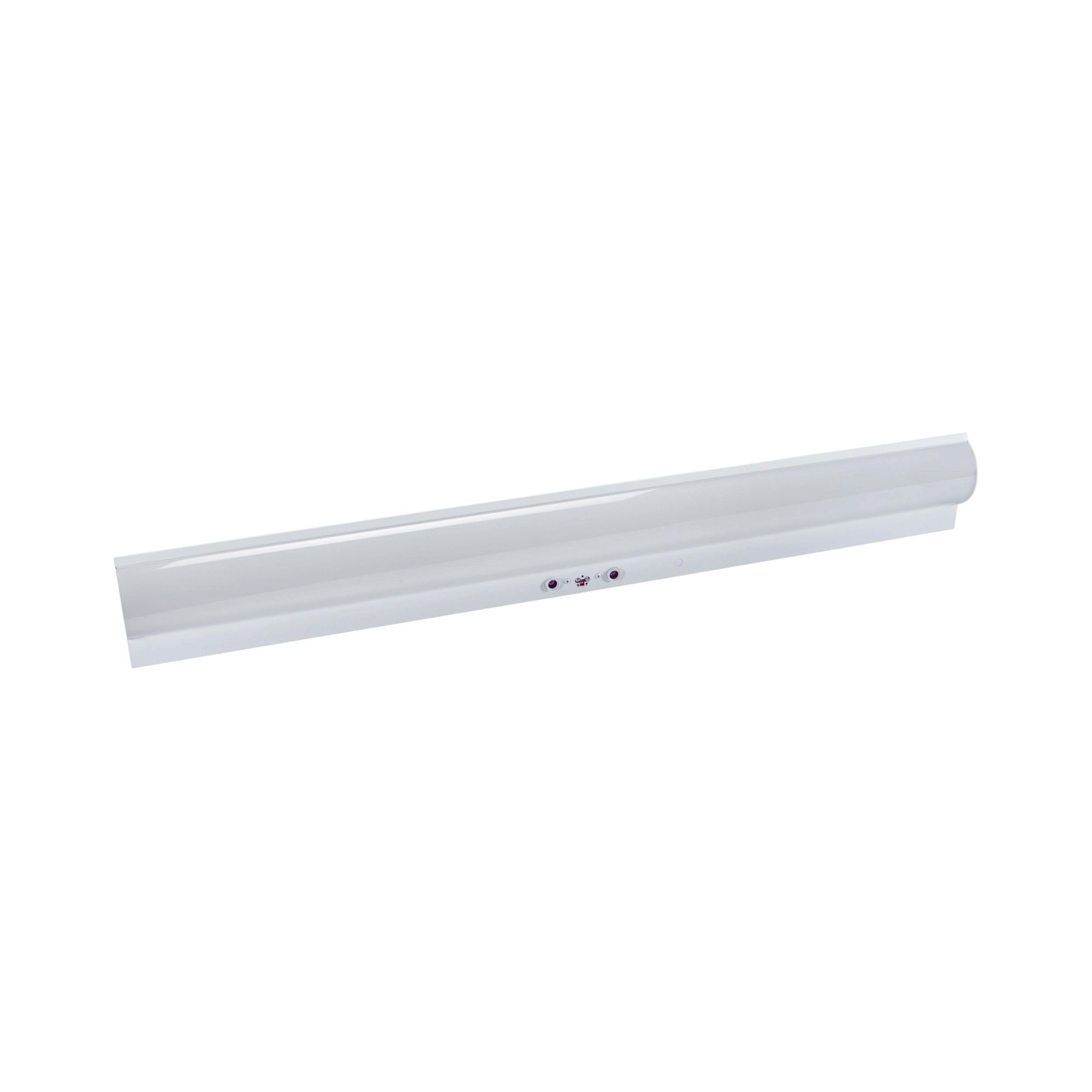

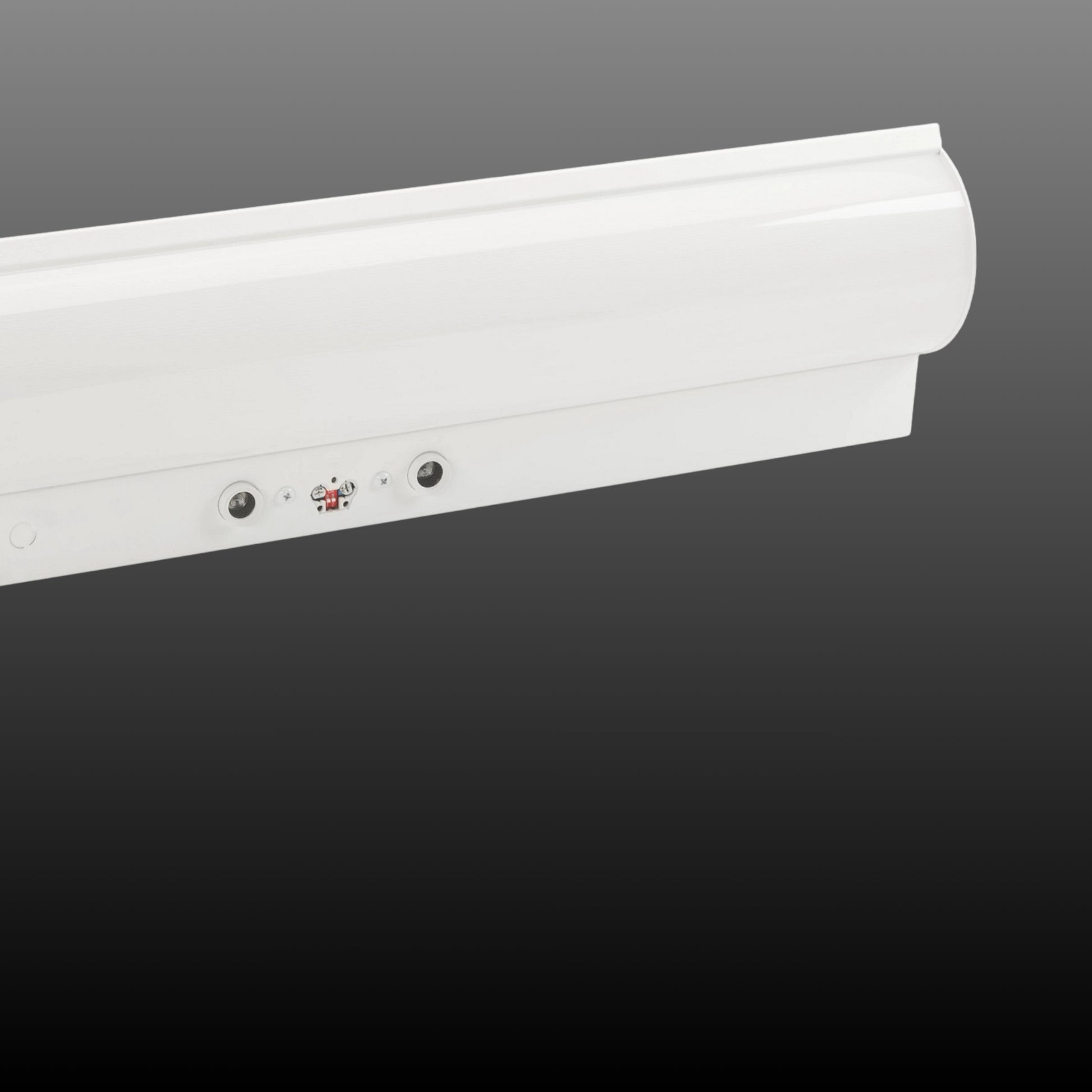

Keystone XFit Stairwell Series Strip Light — 45W Selectable Configuration
The Keystone KT-SWLED45PS-4A-8CSA-VDIM-P is a versatile strip light fixture offering 45W power with selectable 3500K, 4000K, and 5000K color temperatures. It delivers up to 5,500 lumens and operates on a 120-277V input, making it suitable for various commercial applications, particularly in stairwells and corridors.
Key Features
- Power Select Technology: Adjusts power between 45W, 35W, and 30W to customize lumen output.
- Color Select Technology: Offers selectable CCT options of 3500K, 4000K, and 5000K.
- Dimming: Features 0-10V dimming capability, dimmable to 10% for energy savings.
- Construction: Made with a post-painted steel body and PMMA lens for durability.
- Sensor Integration: Includes an ultrasonic dimming occupancy sensor for efficient operation.
- UL Listed: Suitable for damp locations, ensuring reliable performance in various environments.
- Operating Temperature: Functions effectively in temperatures ranging from -20ºC to 50ºC.
- Emergency Compatibility: Compatible with Keystone SmartSafe emergency LED drivers.
- Long Lifespan: LED lifetime rated at L70 >100,000 hours at 25°C ambient temperature.
- Power Factor: Greater than 0.95, ensuring efficient energy use.
Typical Applications
- Stairwells
- Corridors
- Hallways
- Commercial Buildings
- Retail Spaces
Performance & Light Output
This fixture provides up to 5,500 lumens with an efficacy of up to 121 lm/W and a CRI greater than 80, ensuring high-quality light output. The smooth, diffused lens offers an even light distribution.
Electrical & Controls
Operates on a wide voltage range of 120-277V with a 0-10V dimming driver. It supports dim-to-off functionality and is compatible with optional emergency LED drivers.
Construction & Durability
Constructed with a robust post-painted steel body and a PMMA lens, this fixture is UL Listed for damp locations and operates in temperatures from -20ºC to 50ºC.
Installation & Mounting

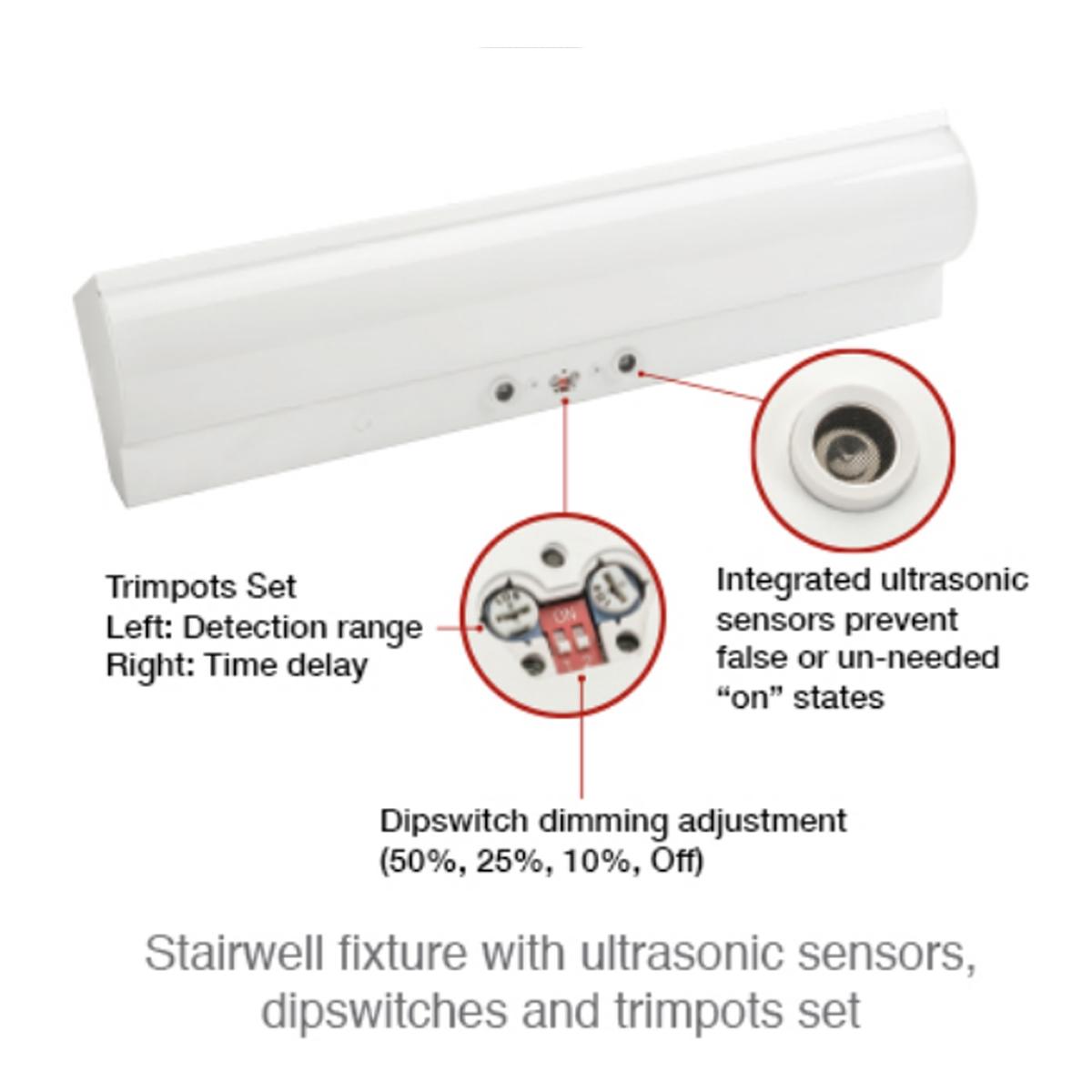

Designed for wall or ceiling mounting at heights of 8-12 feet, this fixture includes an integrated ultrasonic occupancy sensor for enhanced functionality.
What's Included
- Keystone XFit Stairwell Series Strip Light
- Integrated Ultrasonic Occupancy Sensor
Specifications
Specifications

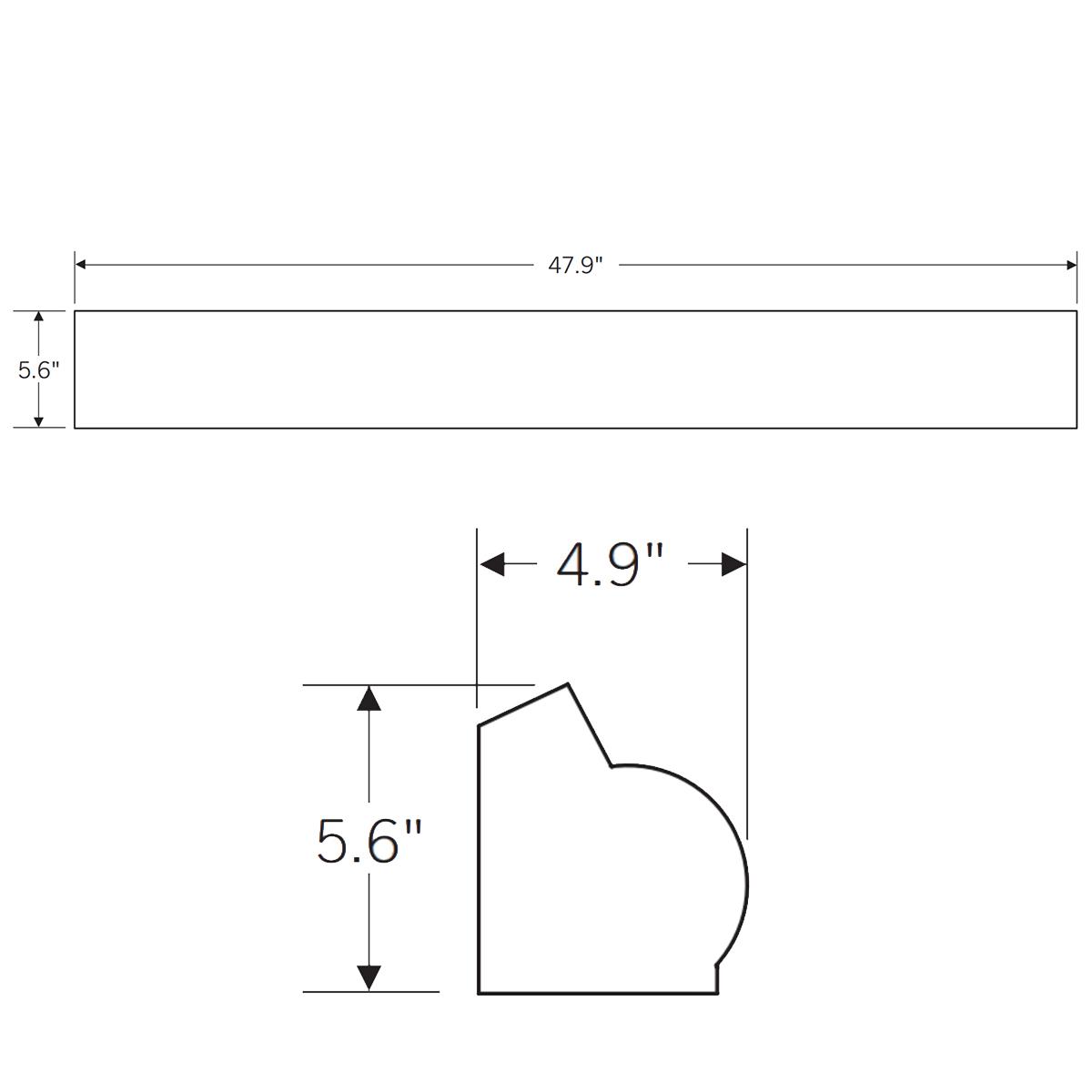

Dimensions
