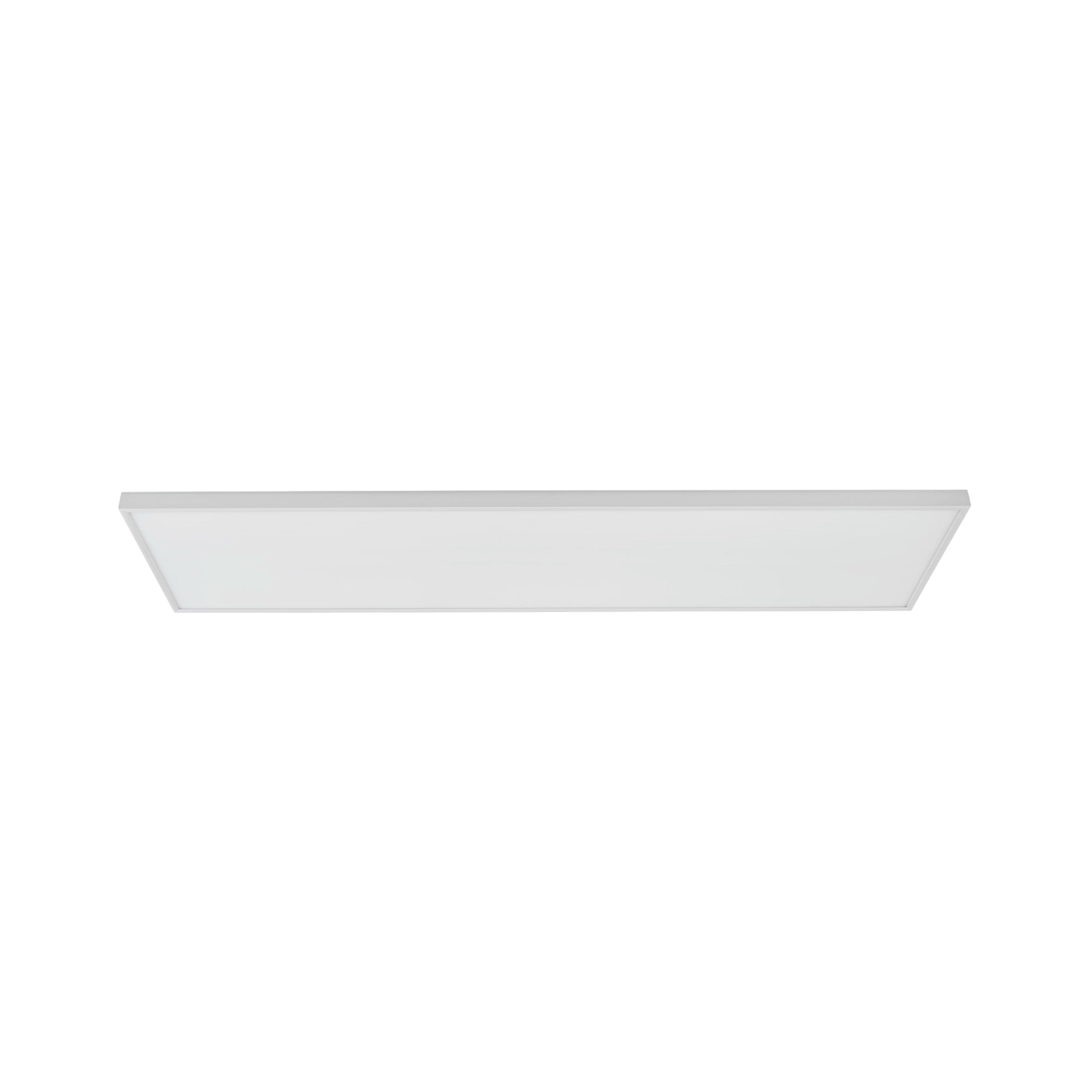

Keystone KT-SMLED44PS-14D-9CSF-CDIM 1x4 LED Surface Mount Panel, 44W, 4150lm, Selectable CCT, 120-277V, White
Keystone KT-SMLED44PS-14D-9CSF-CDIM 1x4 LED Surface Mount Panel, 44W, 4150lm, Selectable CCT, 120-277V, White
Available in stock (80)
About this item
About this item
- Linear 1'x4' Design: Elongated form factor delivers 4,150 lumens, perfect for corridors, gallery spaces, and task-oriented work areas.
- Field Adjustable: Features both Power Select (33W/44W) and 5-CCT Color Select (27K to 50K) for total customization.
- Smooth Diffusion: Engineered with a diffused lens to minimize glare and reduce harsh shadows in commercial office settings.
- Universal Voltage: Operates on 120-277V circuits and is T24/JA8 2022 compliant for high-efficacy project requirements.
- Fast Retrofitting: Integrated hardware and a 114° beam angle provide uniform, wide-spread illumination with simplified mounting.
We process payments securely and do not store credit card information.
Description
Description

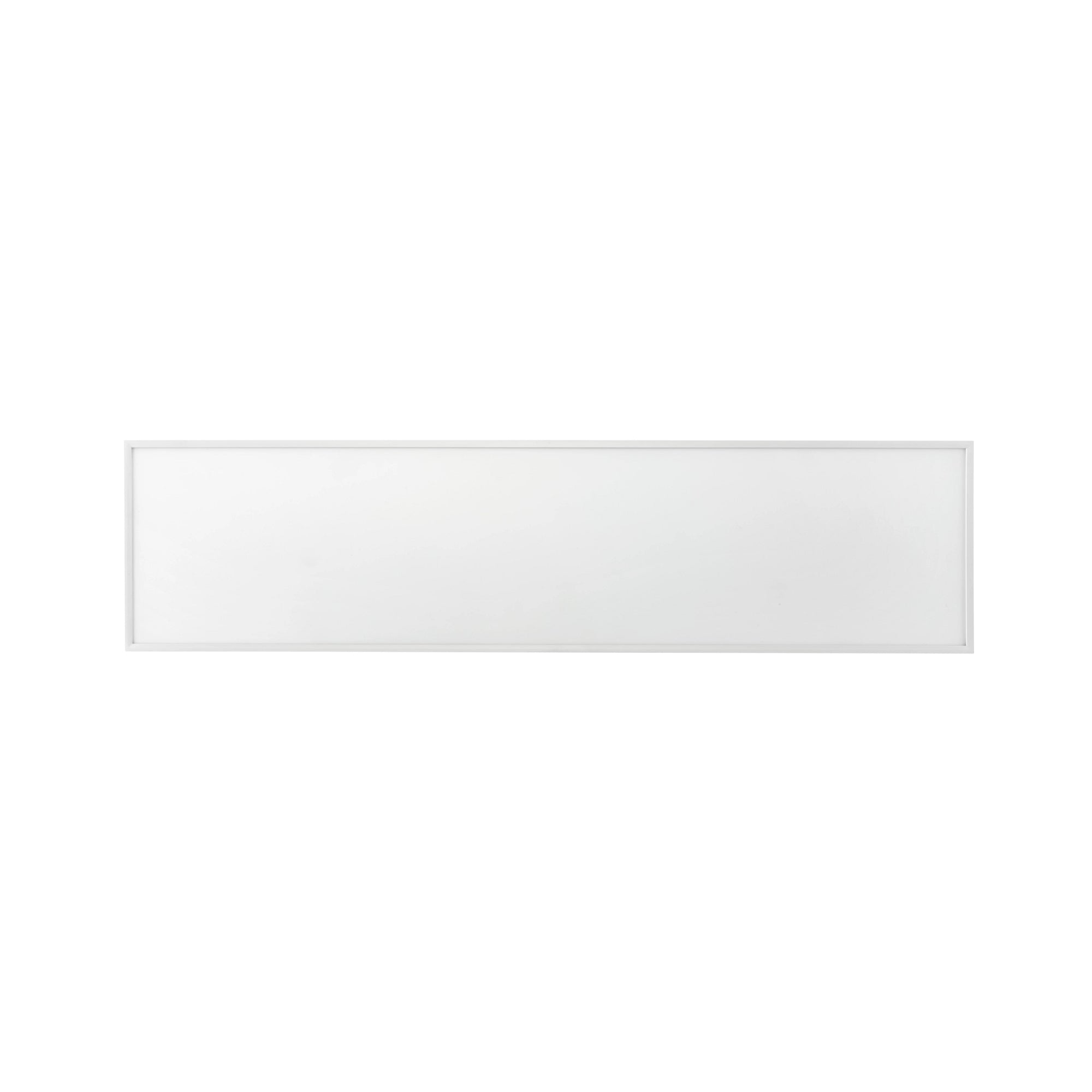

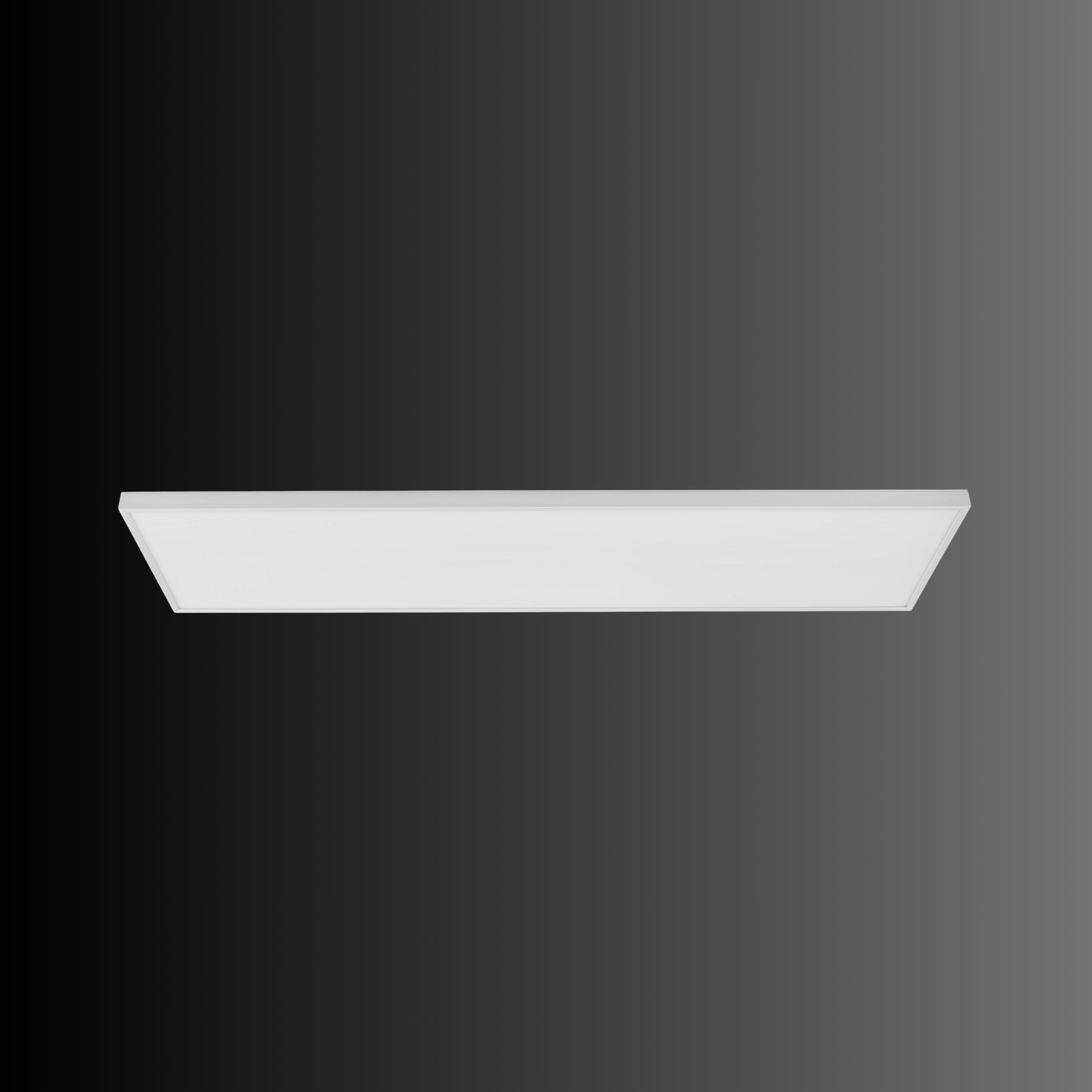

Keystone KT-SMLED44PS-14D-9CSF-CDIM 1x4 LED Surface Mount Panel Light
The Keystone KT-SMLED44PS-14D-9CSF-CDIM flush mount light is a 1 ft x 4 ft LED surface mount panel fixture with field-selectable color temperature, selectable wattage, and commercial-grade construction. Featuring Keystone Power Select technology and Color Select technology, this fixture offers smooth, uniform tri-mode dimming (0-10V/TRIAC/ELV) and a slim, integrated design that mounts directly to j-box. Delivering up to 4150 lumens with selectable wattage (44W), 5-CCT selectable options (2700K/3000K/3500K/4000K/5000K), 90+ CRI for excellent color rendering, and universal 120-277V input voltage, this ETL Listed fixture provides exceptional energy efficiency and high-quality illumination. The compact 1x4 profile and surface mount installation with slide-lock mounting plate make it ideal for hallways, bedrooms, closets, offices, laundry rooms, and other residential or commercial spaces. With a 50,000-hour lifespan, T24/JA8 2022 compliance, and damp rated construction, this fixture delivers long-term reliability and value.
Keystone KT-SMLED44PS-14D-9CSF-CDIM Features
- Bright Output: Up to 4150 lumens using only 44W for exceptional energy efficiency (up to 94 lm/W)
- Keystone Power Select Technology: Selectable wattage for customizable light output

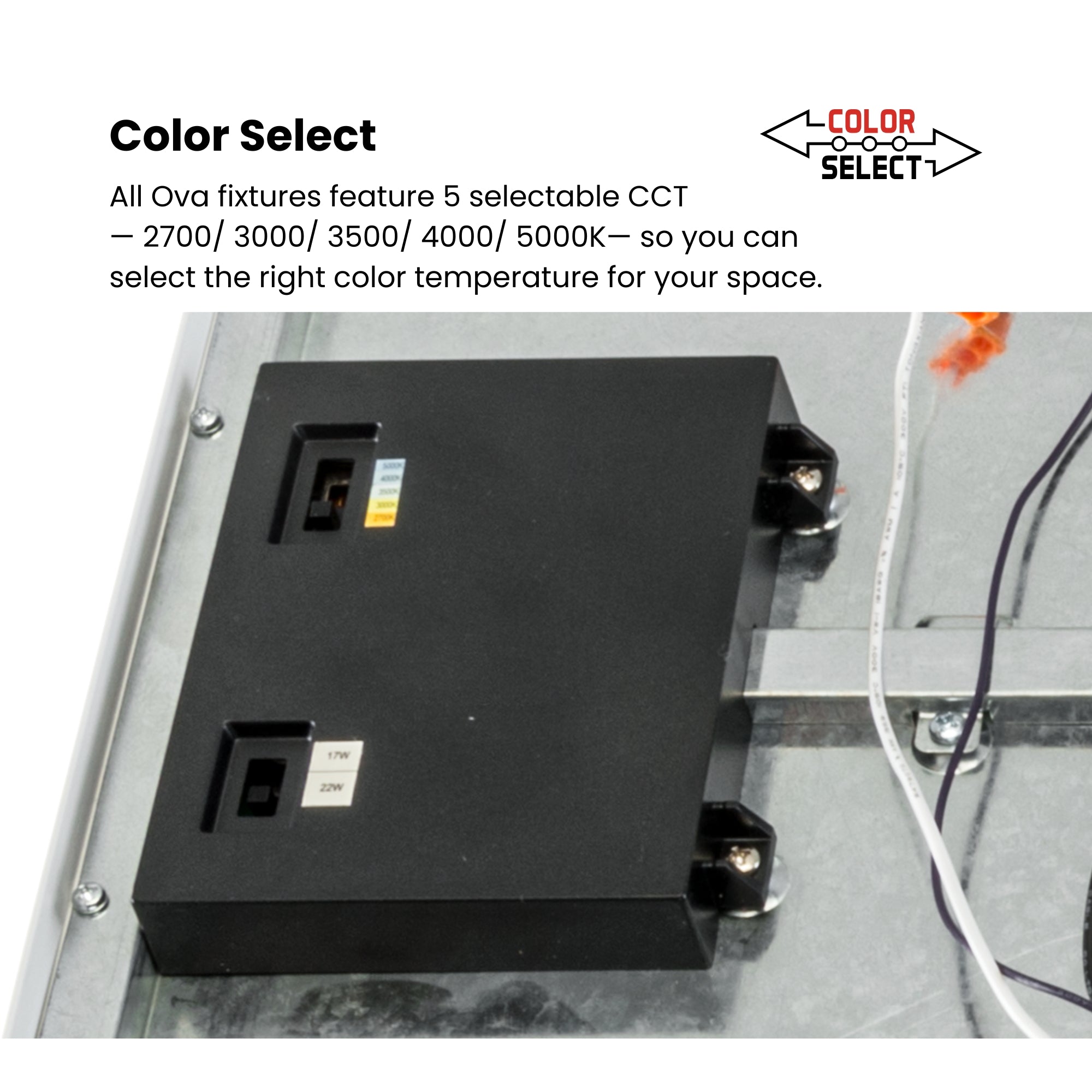

- Keystone Color Select Technology: Field-adjustable 2700K/3000K/3500K/4000K/5000K color temperature
- High CRI 90+: Excellent color rendering for true-to-life, vibrant illumination
- Universal Voltage: 120-277V input for flexible installation in residential and commercial applications

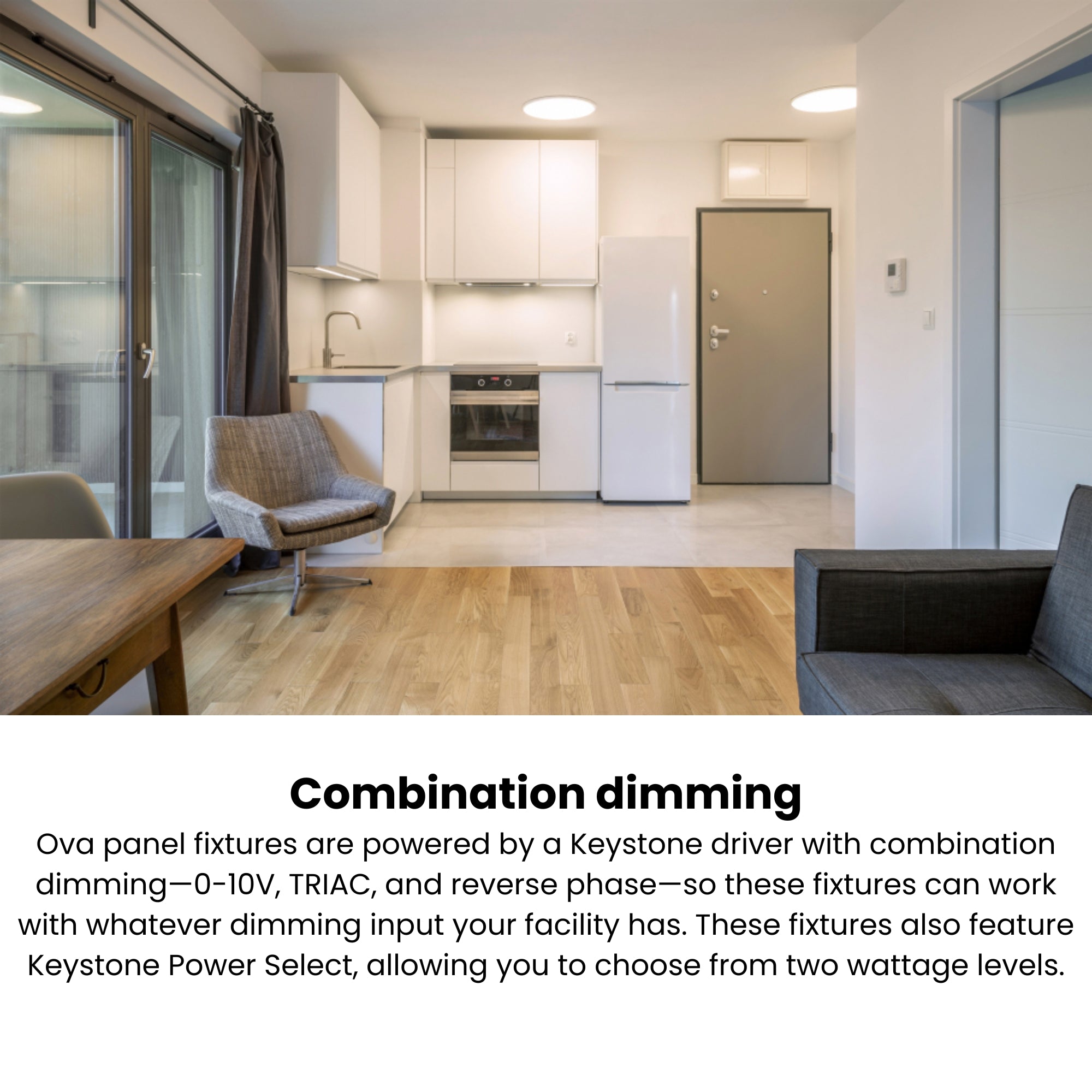

- Smooth, Uniform Tri-Mode Dimming: Compatible with 0-10V/TRIAC/ELV dimming systems, dimmable to 10%
- Slim, Integrated Design: Mounts directly to j-box for clean installation
- Slide-Lock Mounting Plate: Features slide-lock mounting plate for simple installation
- Compact 1x4 Size: 1' x 4' profile perfect for hallways, corridors, and elongated spaces
- Diffused Lens: Provides visual comfort and reduced glare
- ETL Listed: Safety certified for reliable performance
- T24/JA8 2022 Compliant: Meets California energy efficiency standards
- Long Lifespan: 50,000-hour LED lifespan
- Damp Rated: Suitable for use in damp locations
- Power Factor > 0.9: High power factor for efficient operation
- FCC Compliant: Complies with Part 15 of FCC
- RoHS Compliant: Environmentally responsible components
Keystone LED Surface Mount Panel Applications
- Hallways and corridors
- Bedrooms and closets
- Laundry rooms and utility spaces
- Home offices and study areas
- Commercial offices and workspaces
- Retail back-of-house areas
- Healthcare facilities and medical offices
- Educational facilities and classrooms
- Hospitality and multifamily common areas
Installation & Surface Mount Design Benefits

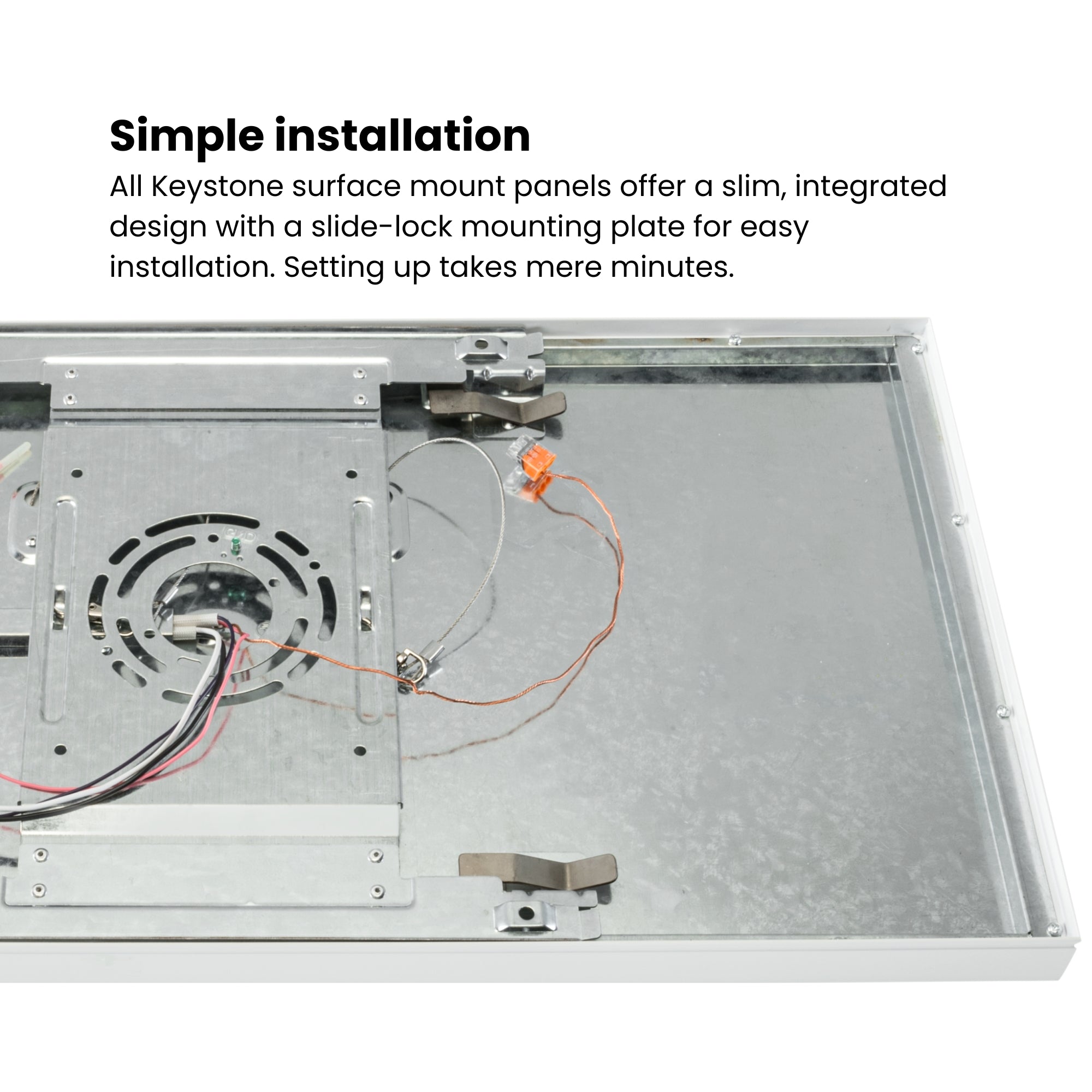

The Keystone KT-SMLED44PS-14D-9CSF-CDIM features surface mount installation with a slide-lock mounting plate for simple installation. Installation is straightforward: turn off power at the circuit breaker, attach the mounting plate to the junction box, select your desired wattage and CCT, make wire connections between fixture and junction box with wire connectors, then secure the fixture to the mounting plate using the slide-lock mechanism. The slim 1x4 design fits standard ceiling layouts while the diffused lens ensures uniform, smooth illumination with visual comfort and reduced glare. Compatible with 0-10V/TRIAC/ELV dimmers for ambiance control.
Why Choose Keystone LED Surface Mount Panel Lights
Keystone's LED Surface Mount Panel series combines efficient lighting with commercial-grade construction and versatile installation. With up to 4150 lumens of bright output, 90+ CRI for excellent color rendering, selectable color temperature and wattage, universal voltage, tri-mode dimming capability, ETL listing, T24/JA8 2022 compliance, and 50,000-hour lifespan, this fixture delivers long-term performance and value across residential and commercial applications. Ideal for residential, hospitality, retail, office, and other retrofit and new construction applications.
Why Buy From Us: As an authorized Keystone dealer, we guarantee 100% genuine products with full manufacturer warranty and expert customer support.
Specifications
Specifications

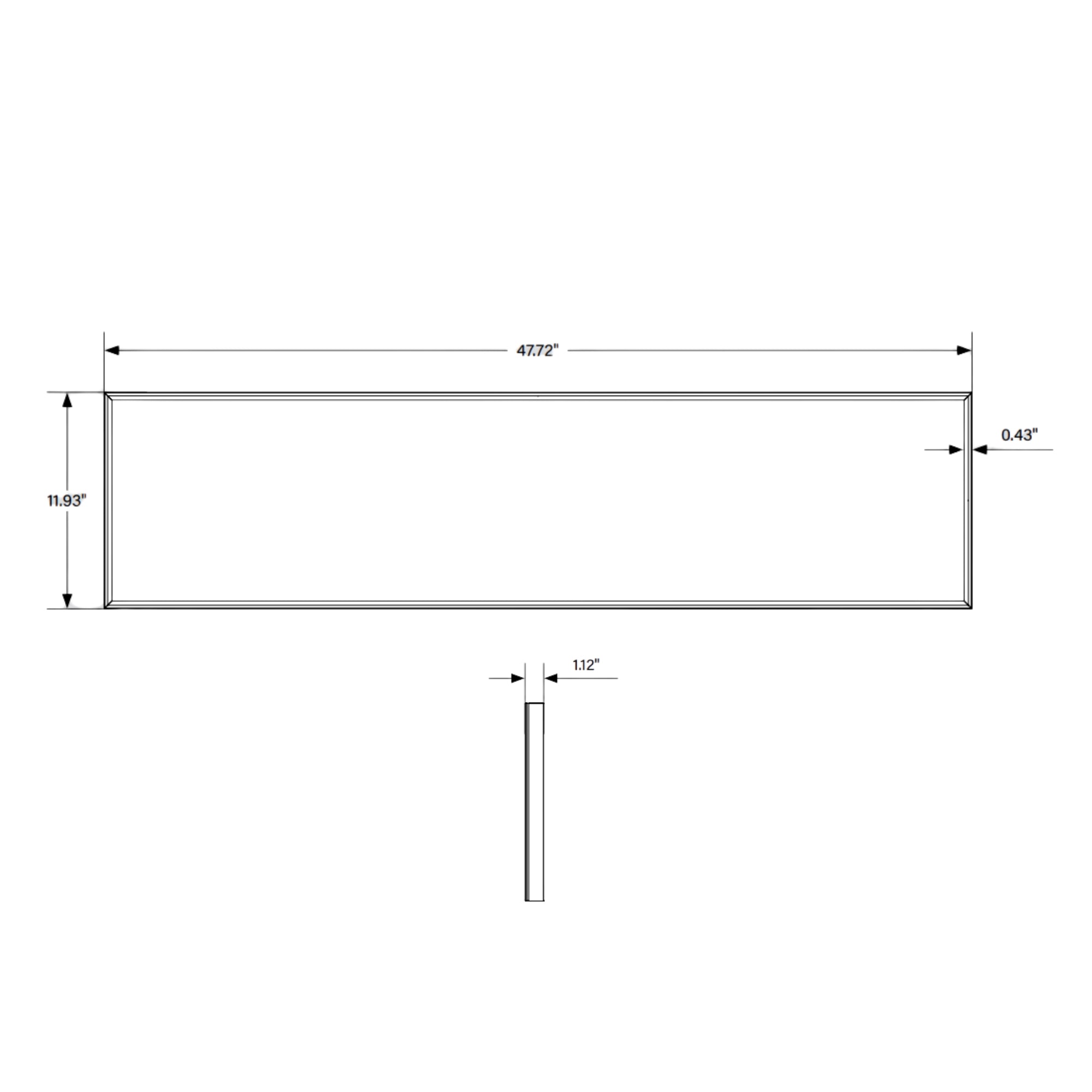

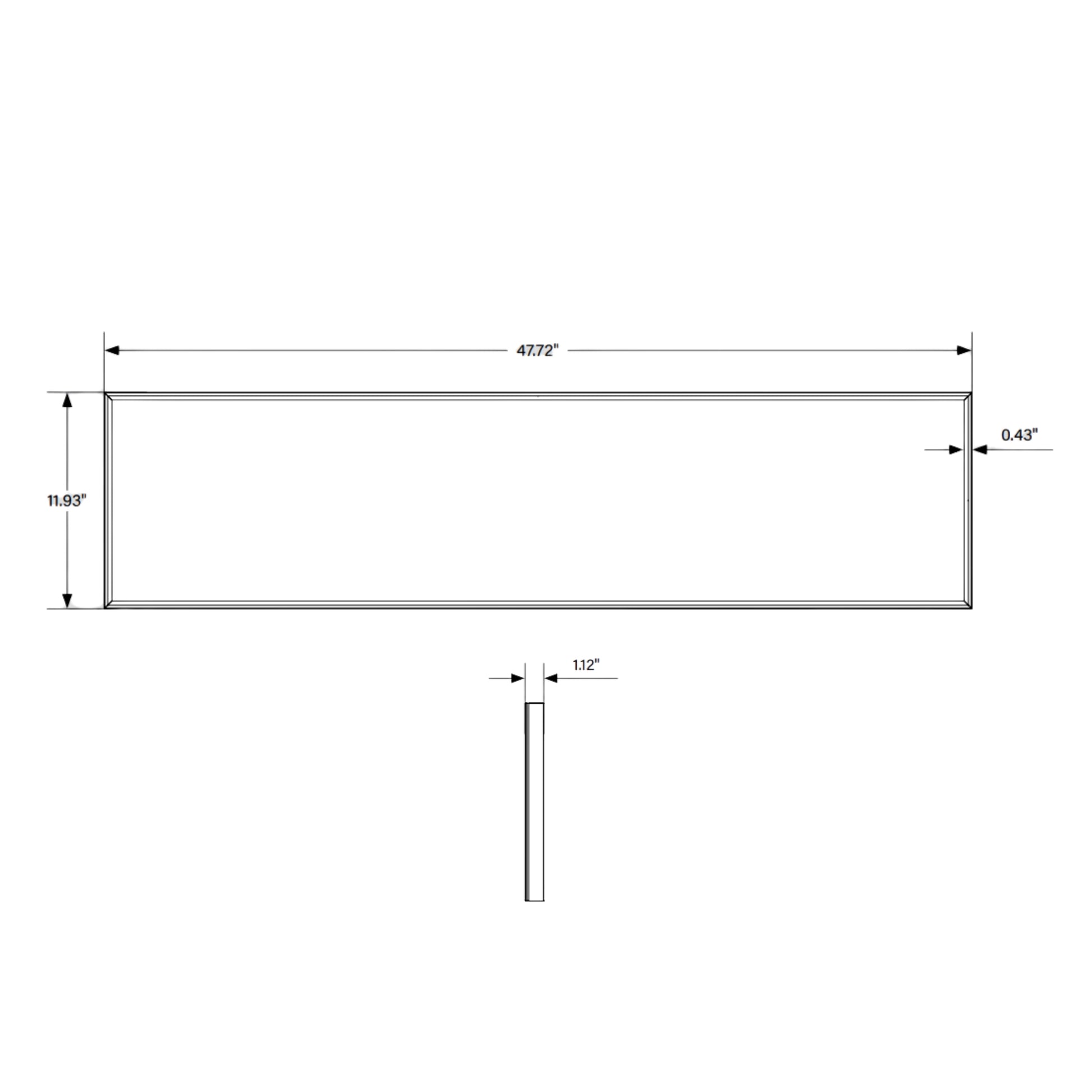

Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the best type of light for a low ceiling?
What is the best type of light for a low ceiling?
A flush mount ceiling light is the best and most popular choice for low ceilings (typically 8 feet or less). Because they mount directly to the ceiling surface, they maximize vertical space, prevent anyone from bumping their head, and make the room feel more open.
How do I choose the right size flush mount light for my room?
How do I choose the right size flush mount light for my room?
A common guideline is the "Length + Width" rule. Add your room's length and width in feet, then treat that number as the ideal diameter in inches. For example, for a 10-foot by 12-foot bedroom, you would add 10 + 12 = 22. This means a flush mount light around 22 inches in diameter will look proportional. For long hallways, consider using multiple smaller flush mounts.
What is an integrated LED flush mount light?
What is an integrated LED flush mount light?
An integrated LED flush mount light has the LED light source built directly into the fixture. You do not use separate light bulbs. The primary benefit is a very long lifespan (often 25,000-50,000 hours) and high energy efficiency. They are a "set it and forget it" solution that won't require new bulbs for many years.
Can I put a flush mount ceiling light in a bathroom?
Can I put a flush mount ceiling light in a bathroom?
Yes, but you must choose a fixture that is rated for its specific location. A flush mount light labeled as "damp-rated" is suitable for most bathrooms with a shower or tub (as long as there is ventilation). If the light will be inside the shower, it must be "wet-rated."
How are flush mounts different from semi-flush mounts?
How are flush mounts different from semi-flush mounts?
A flush mount light sits directly against the ceiling with no gap. A semi-flush mount light hangs just below the ceiling (usually 4-8 inches), creating a small gap. This gap allows light to shine upwards and bounce off the ceiling, creating a softer, multi-directional glow.
