Keystone Sport Light Flood Light 750W 105000 Lumens 5000K 480V 3Hx3V Yoke Mount
In stock
About this item
About this item
- Lumens: Delivers an impressive 105,000 lumens for high-intensity lighting applications.
- Wattage: Operates at 750 watts, ideal for replacing traditional HID fixtures.
- Beam Angle: Features a 30° beam angle for focused light distribution.
- Voltage: Compatible with 480V input, suitable for high-voltage applications.
- Durability: Constructed with heavy-duty die-cast aluminum housing and IP65 rated for wet locations.
We process payments securely and do not store credit card information.
Description
Description

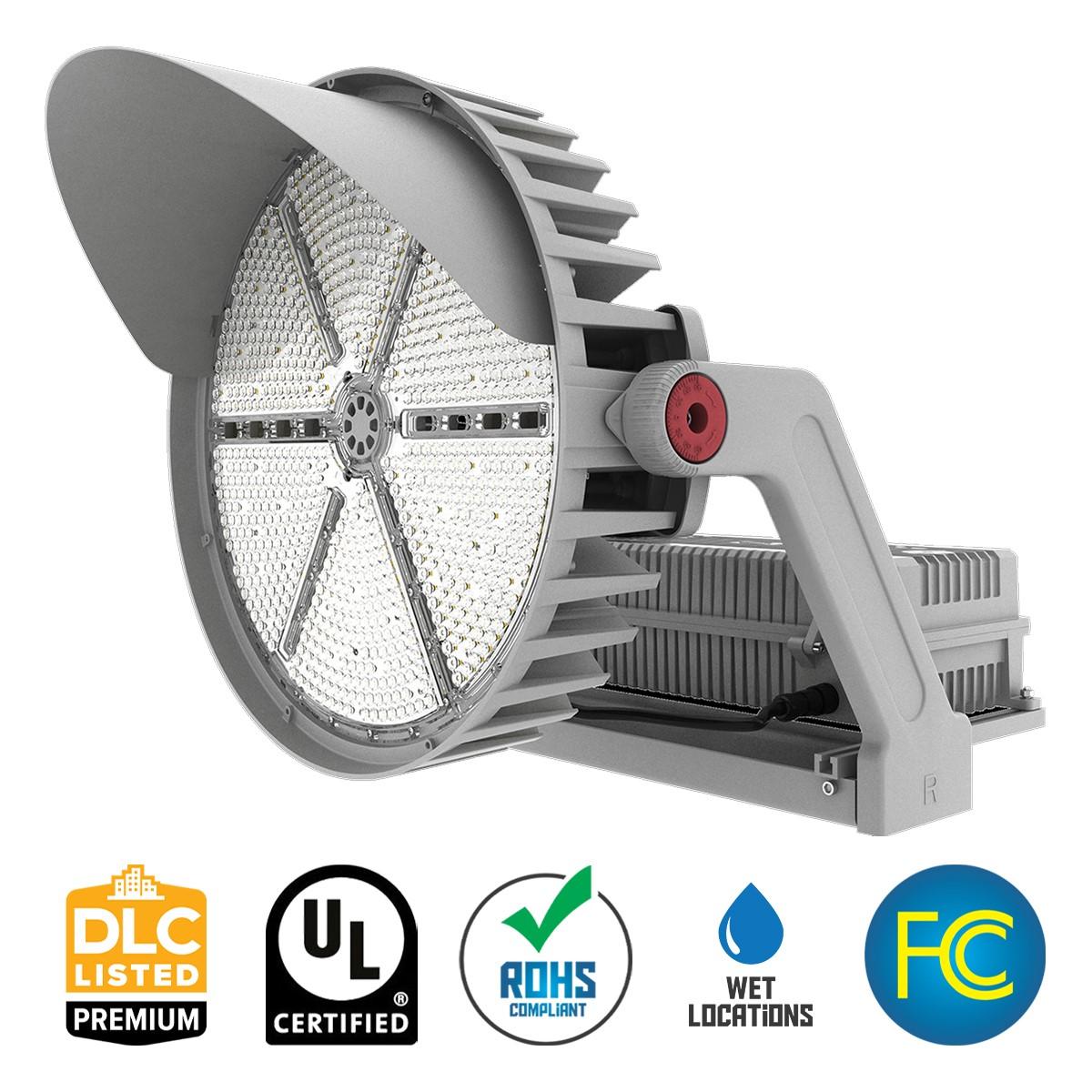

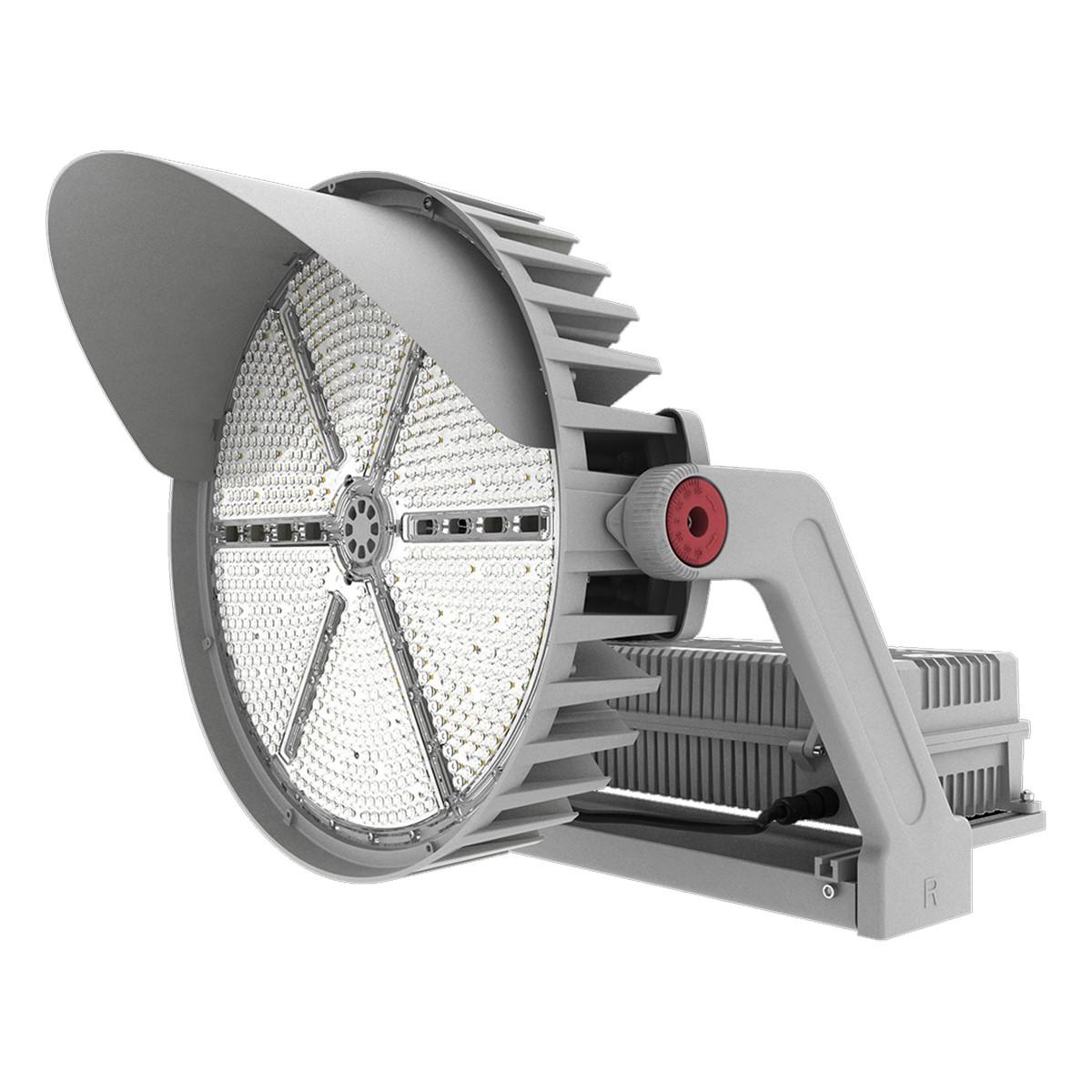

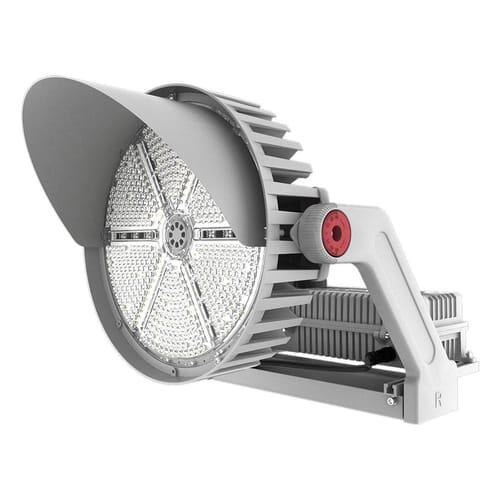

Keystone Sport Light Flood Series Flood Light — 750W Configuration
The Keystone KT-SLFLED750HV-M1-30-YM-750-VDIM is a robust flood light delivering 105,000 lumens at 750 watts with a 30° beam angle. It operates on 480V input, making it suitable for high-voltage applications. This fixture is IP65 rated for wet locations, ensuring durability in challenging environments.
Key Features
- Optics: Precision-crafted optics ensure uniform lighting distribution.
- Surge Protection: Equipped with a 20kV line-to-ground surge protection for enhanced reliability.
- Dimming: Supports 0-10V dimming for adjustable light levels.

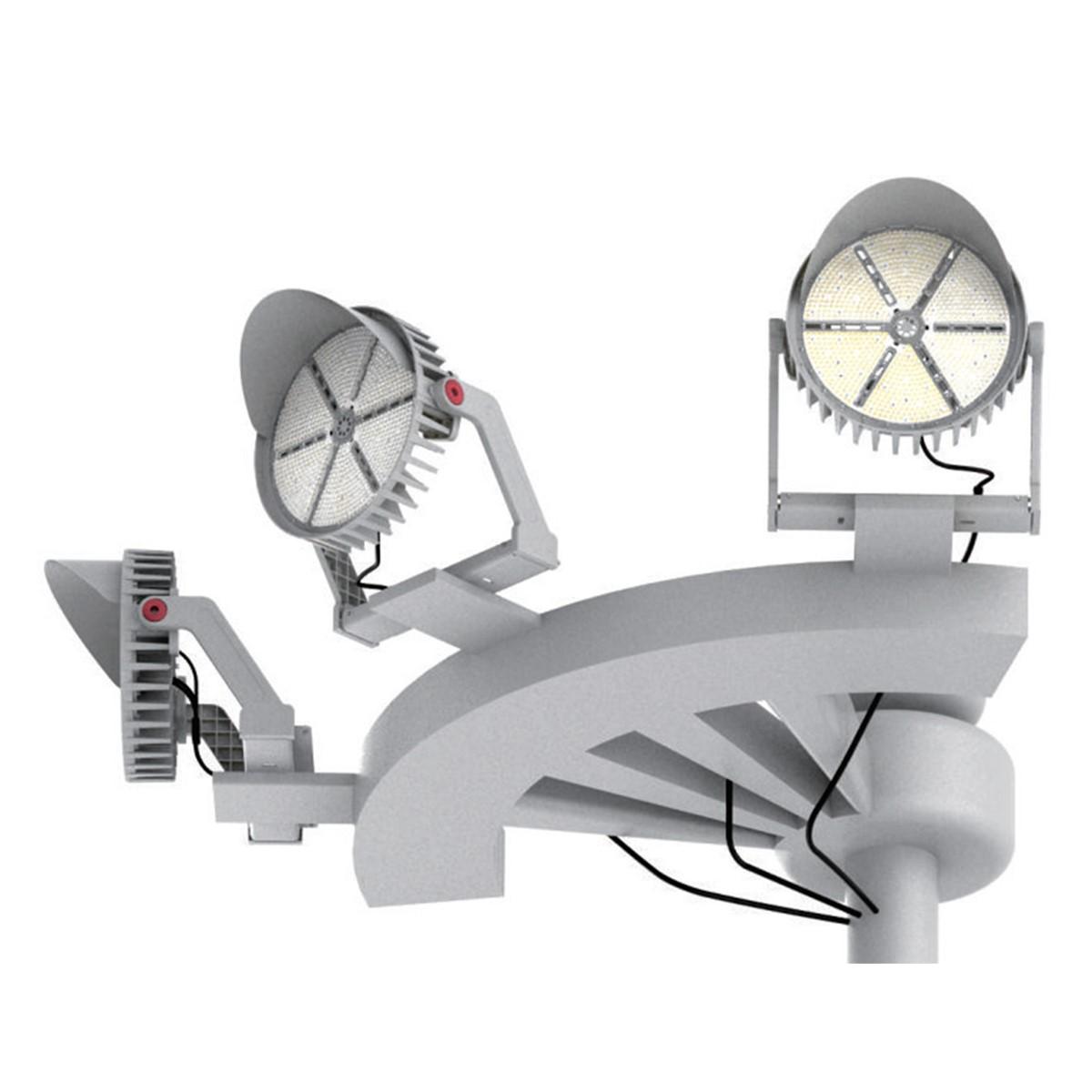

- Mounting: Comes with a pre-installed yoke mount bracket; optional slipfitter and knuckle mounts available.
- Construction: Heavy-duty die-cast aluminum housing with a modern gray finish.
- Temperature Range: Operates in ambient temperatures from -40°C to 50°C.
- Lifetime: LED chip lifetime rated at L70 > 100,000 hours.
- Compliance: Meets FCC Part 15, Part B, Class A standards.
- Warranty: Backed by a 10-year warranty for peace of mind.
Typical Applications
- Municipal parks and baseball fields
- High school football stadiums
- Driving ranges
- Rodeos
- Ski resorts
Performance & Light Output
This flood light provides a high efficacy of 140 lm/W, ensuring efficient light output with a CRI greater than 70. The optics are designed for optimal light distribution with minimal glare.
Electrical & Controls
Designed for 480V input, this fixture includes a Keystone 0-10V dimming LED driver with built-in surge protection. It supports optional controls such as Synapse NEMA Type 7-Pin controllers.
Construction & Durability
The fixture's housing is made from heavy-duty die-cast aluminum, finished in gray, and is IP65 rated for wet locations, ensuring long-lasting performance in outdoor environments.
Installation & Mounting
Features a pre-installed yoke mount bracket for easy installation. Optional mounting accessories such as slipfitter and knuckle mounts are available for purchase separately.
What's Included
- Glare shield
- Shorting cap
- Integrated NEMA/ANSI C136.41 7-pin twist lock receptacle
Specifications
Specifications

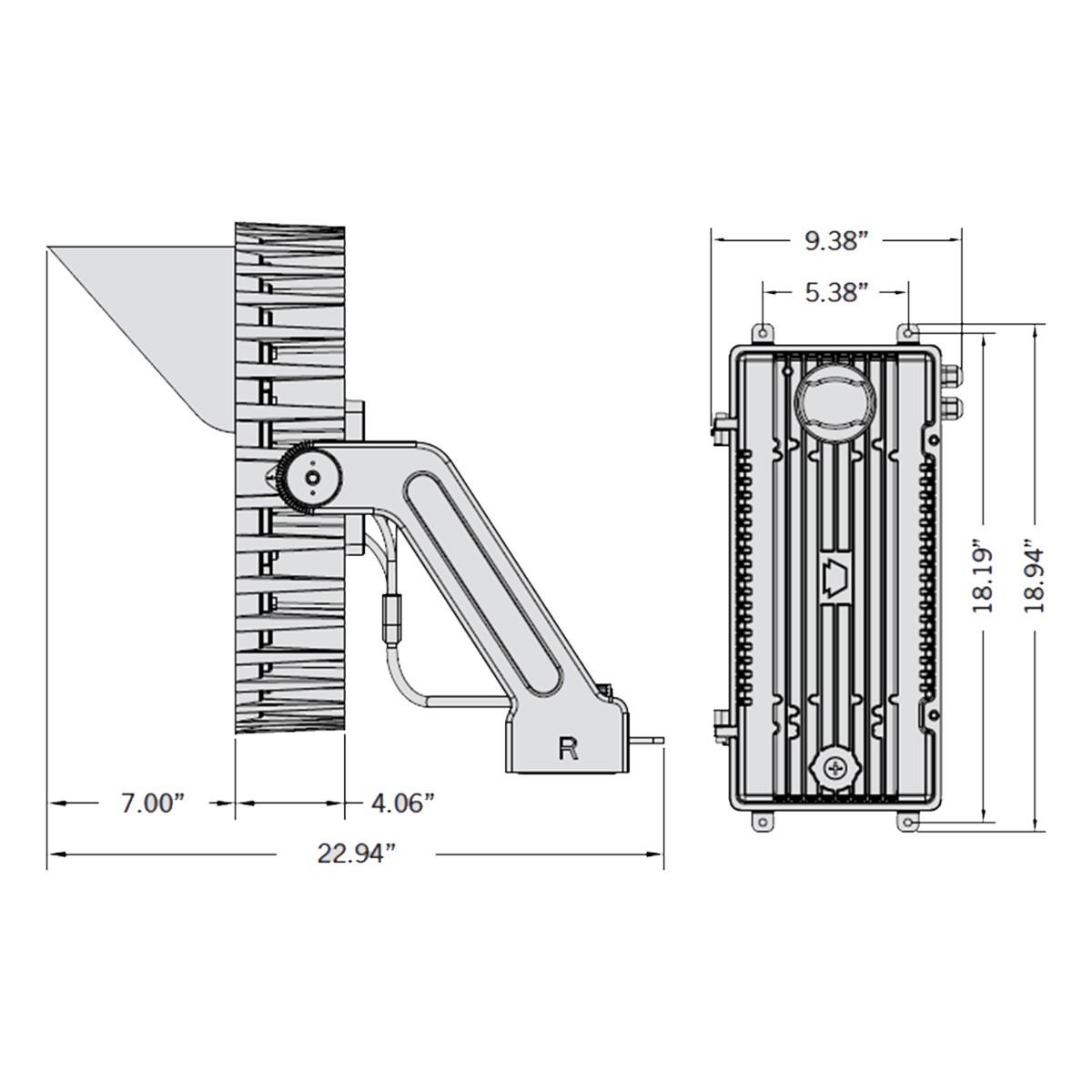

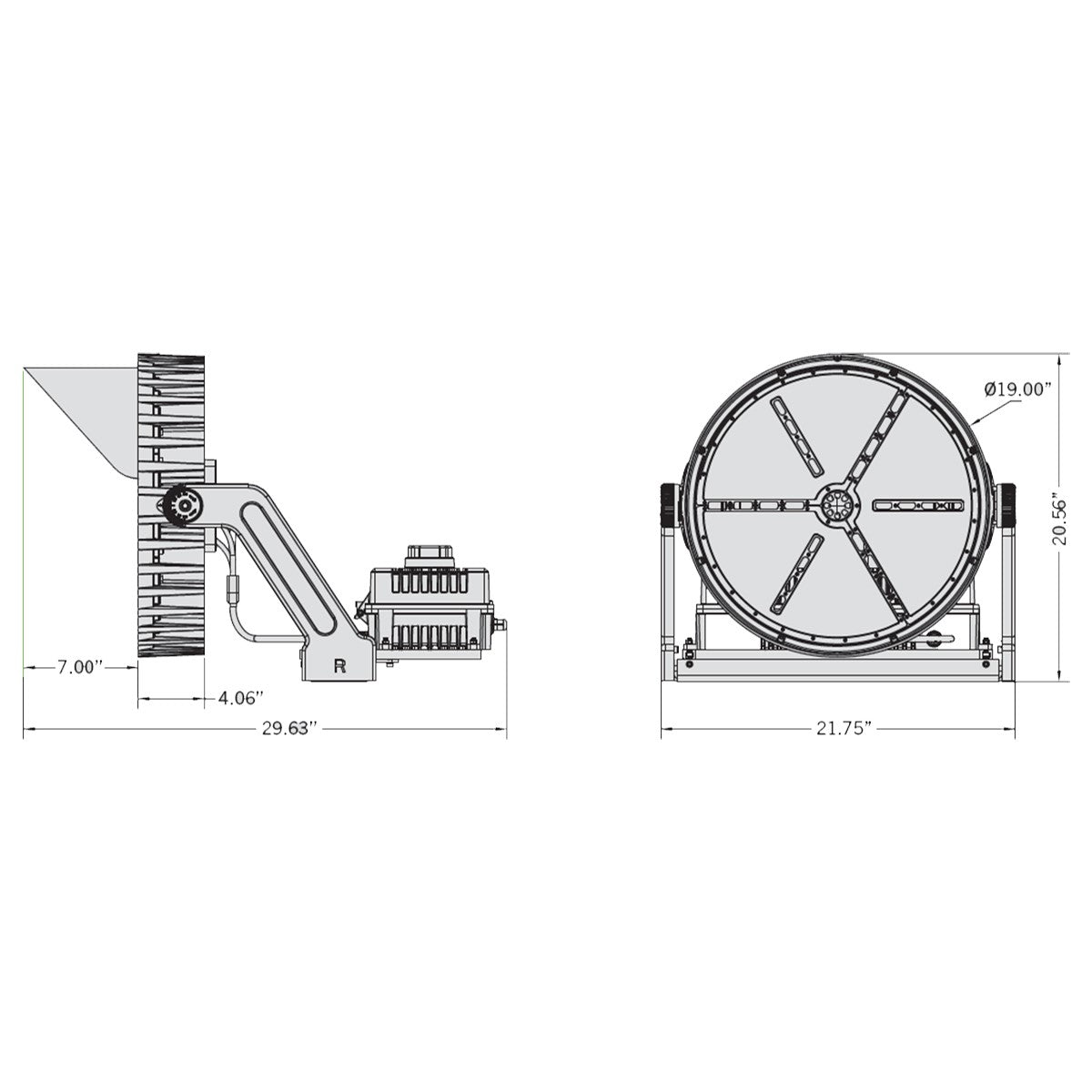

Dimensions
