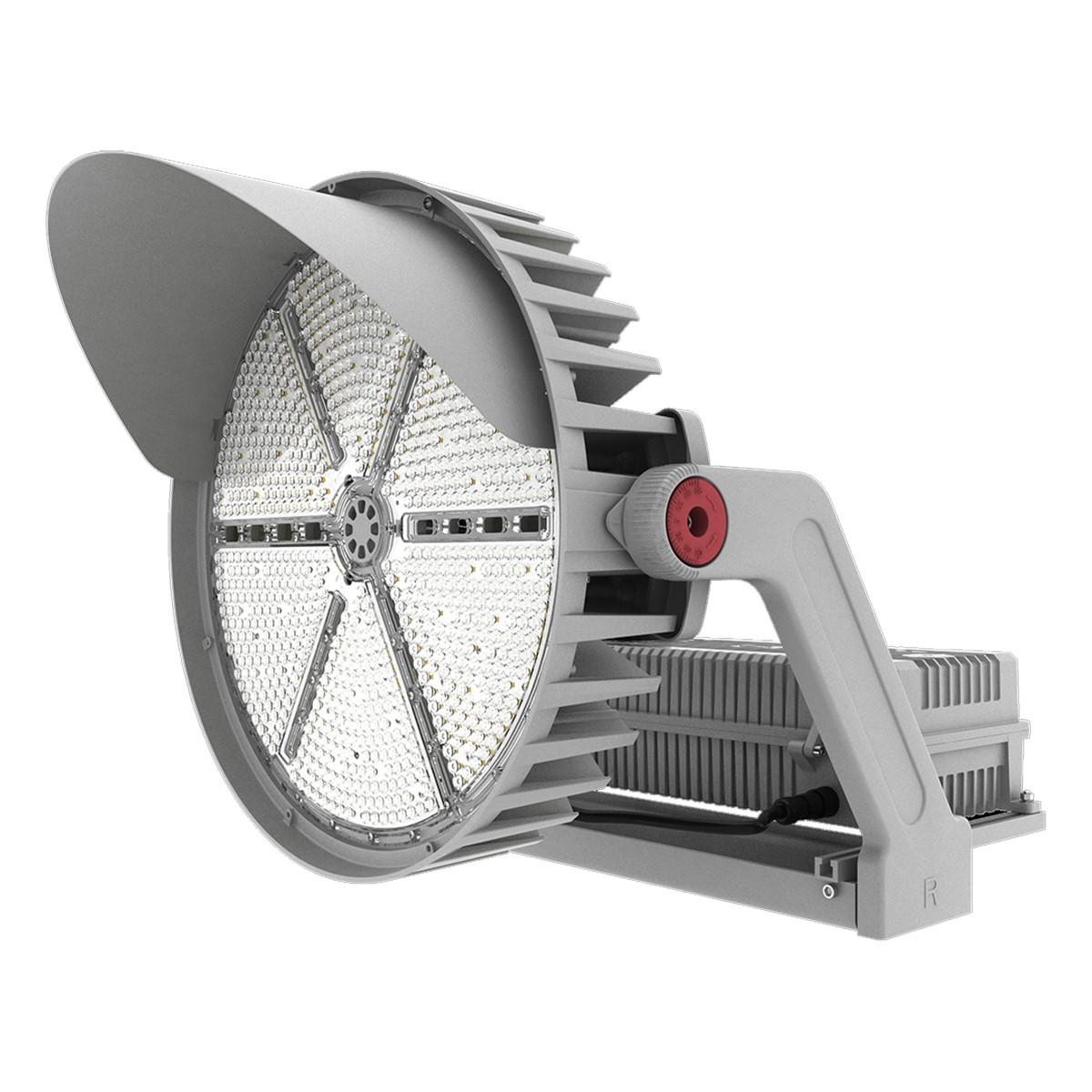

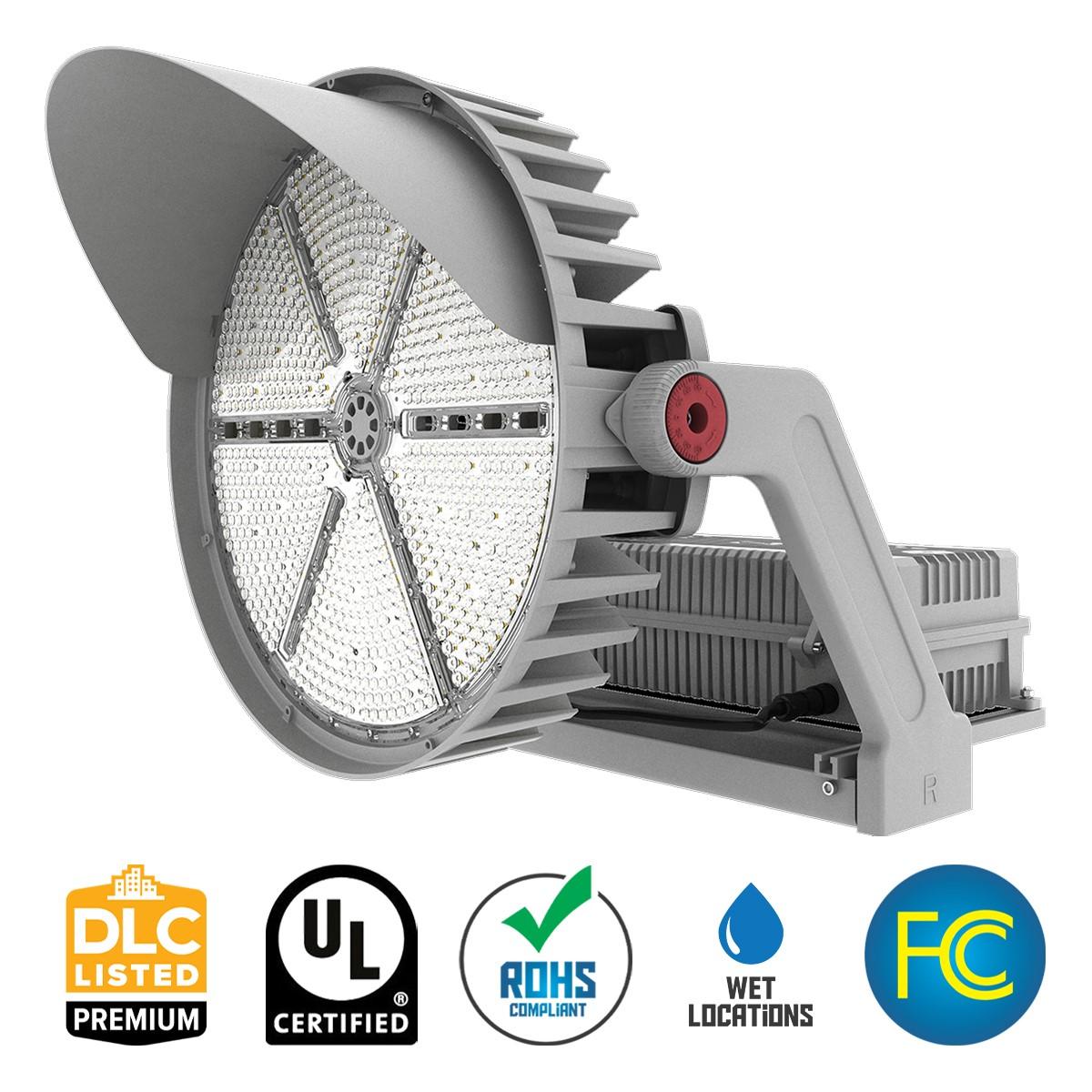

Keystone Sport Light Flood Series Flood Light — 750W Configuration

The Keystone KT-SLFLED750-M1-30-YM-750-VDIM is a robust flood light designed for high-output applications, delivering 105,000 lumens at 750 watts. It operates within a 120-277V range and features a 30° beam angle, making it suitable for sports fields and large outdoor venues. This fixture is IP65 rated, ensuring durability in wet locations.

Key Features

• Durable Construction: Heavy-duty die-cast aluminum housing with a gray finish for longevity and aesthetics.
• Optical Precision: Precision-crafted optics for uniform lighting distribution.
• Integrated Controls: Comes with a NEMA/ANSI C136.41 7-pin twist lock receptacle for advanced control options.
• Dimming Capability: Equipped with a 0-10V dimming driver for adjustable light output.
• Surge Protection: Built-in 20kV line-to-ground surge protection for enhanced reliability.
• Long Lifespan: LED chip lifetime rated at L70 > 100,000 hours at 25°C ambient temperature.
• Wide Temperature Range: Operates efficiently from ?40°C to 50°C.
• Mounting Flexibility: Pre-installed yoke mount bracket with optional slipfitter and knuckle mounts available.

Typical Applications

• Municipal parks
• Baseball fields
• High school football stadiums
• Driving ranges
• Ski resorts

Performance & Light Output

This fixture provides a high efficacy of 140 lm/W, with a CRI greater than 70, ensuring bright and accurate color rendering. The optics are designed for a 30° beam angle, optimizing light distribution for targeted areas.

Electrical & Controls

Operates on a wide voltage range of 120-277V, featuring a Keystone 0-10V dimming LED driver. It includes a NEMA 7-pin receptacle for advanced control options and is protected by a 20kV surge protector.

Construction & Durability

The fixture is constructed from heavy-duty die-cast aluminum with a gray finish, ensuring durability and a modern aesthetic. It is UL certified for wet locations and IP65 rated, providing robust protection against environmental factors.

Installation & Mounting

Comes with a pre-installed yoke mount bracket for easy installation. Optional slipfitter and knuckle mounts are available for purchase separately, offering additional mounting flexibility.

What's Included

• Glare shield
• Shorting cap
• Yoke mount bracket
