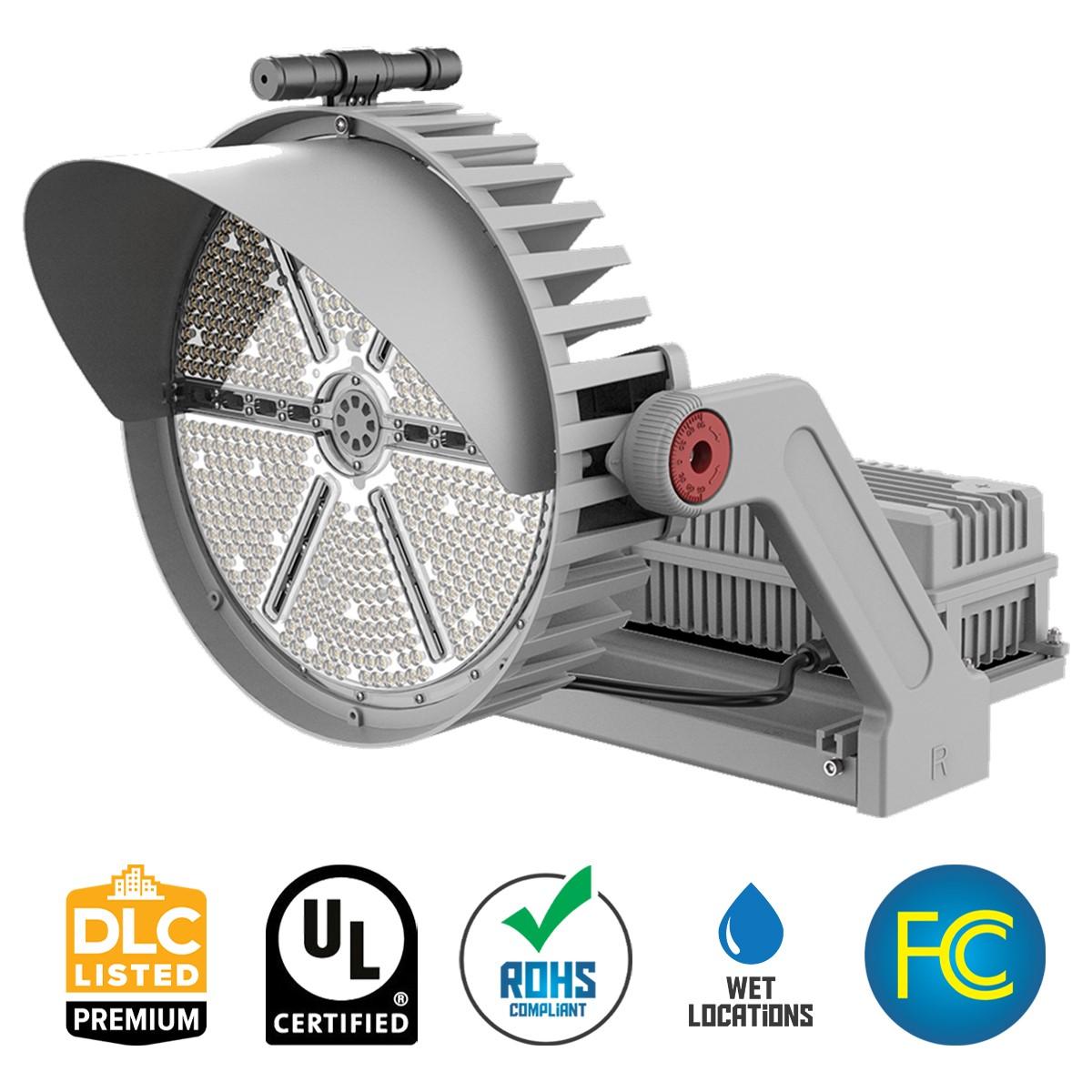

Keystone Sport Light Flood Series Flood Light — 500W Configuration

The Keystone KT-SLFLED500HV-S1-30-YM-750-VDIM is a high-performance flood light designed for demanding outdoor applications. This 500W fixture delivers 70,000 lumens with a 5000K color temperature, operating on 480V input. It features a 30° beam angle and is IP65 rated for outdoor environments.

Key Features

• Durable Construction: Heavy-duty die-cast aluminum housing with a gray finish ensures longevity and a modern aesthetic.
• Precision Optics: Engineered optics provide uniform lighting with multiple beam angle options.
• Glare Shield: Includes a glare shield for site-specific requirements.

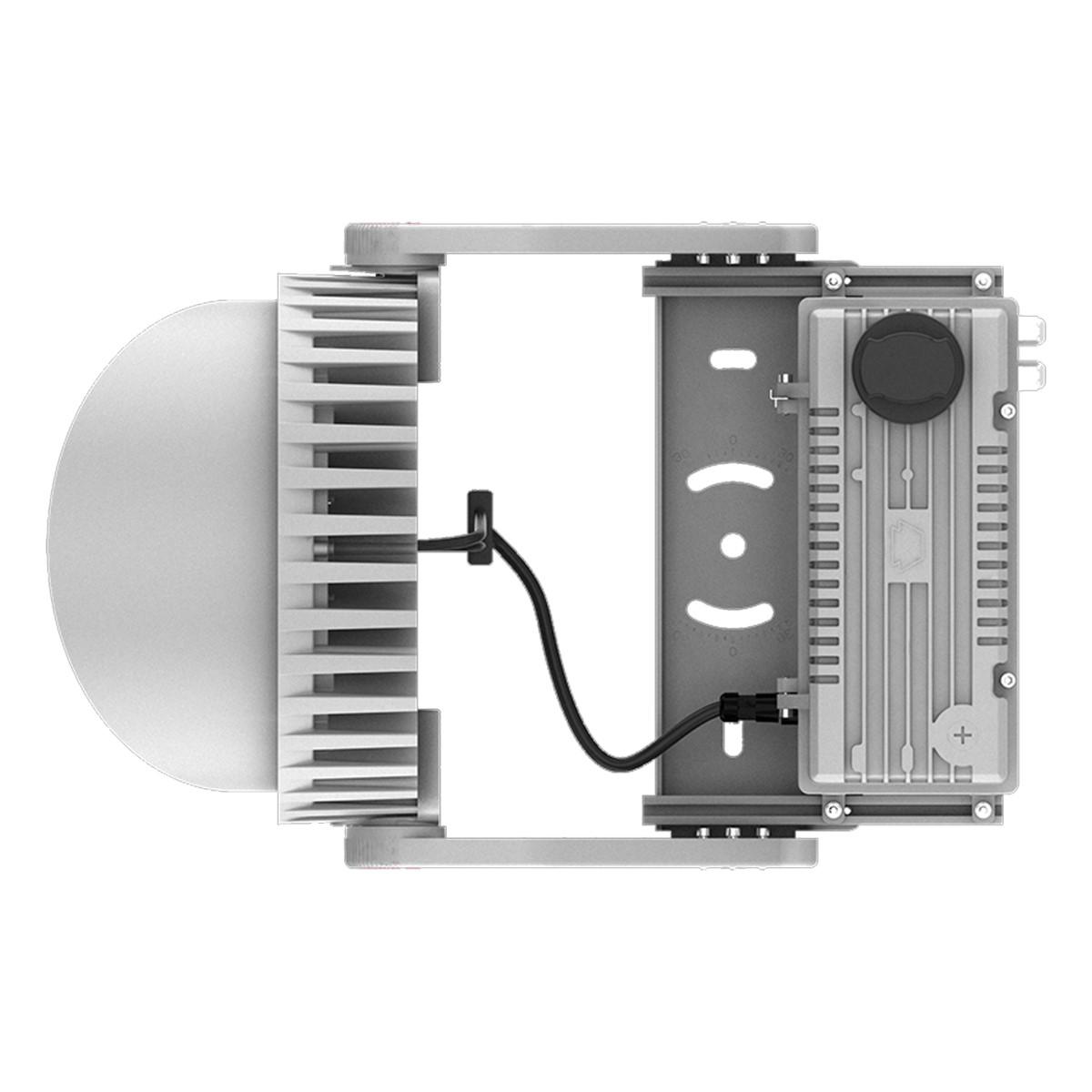

• Mounting Flexibility: Pre-installed yoke mount bracket with optional slipfitter and knuckle mounts available.
• Dimming Capability: Equipped with 0-10V dimming for adjustable light output.
• Surge Protection: Built-in 20kV line-to-ground surge protection for enhanced reliability.
• Long Lifespan: LED chip lifetime rated at L70 > 100,000 hours at 25°C ambient temperature.
• Compliance: UL certified for wet locations and meets FCC Part 15 standards.

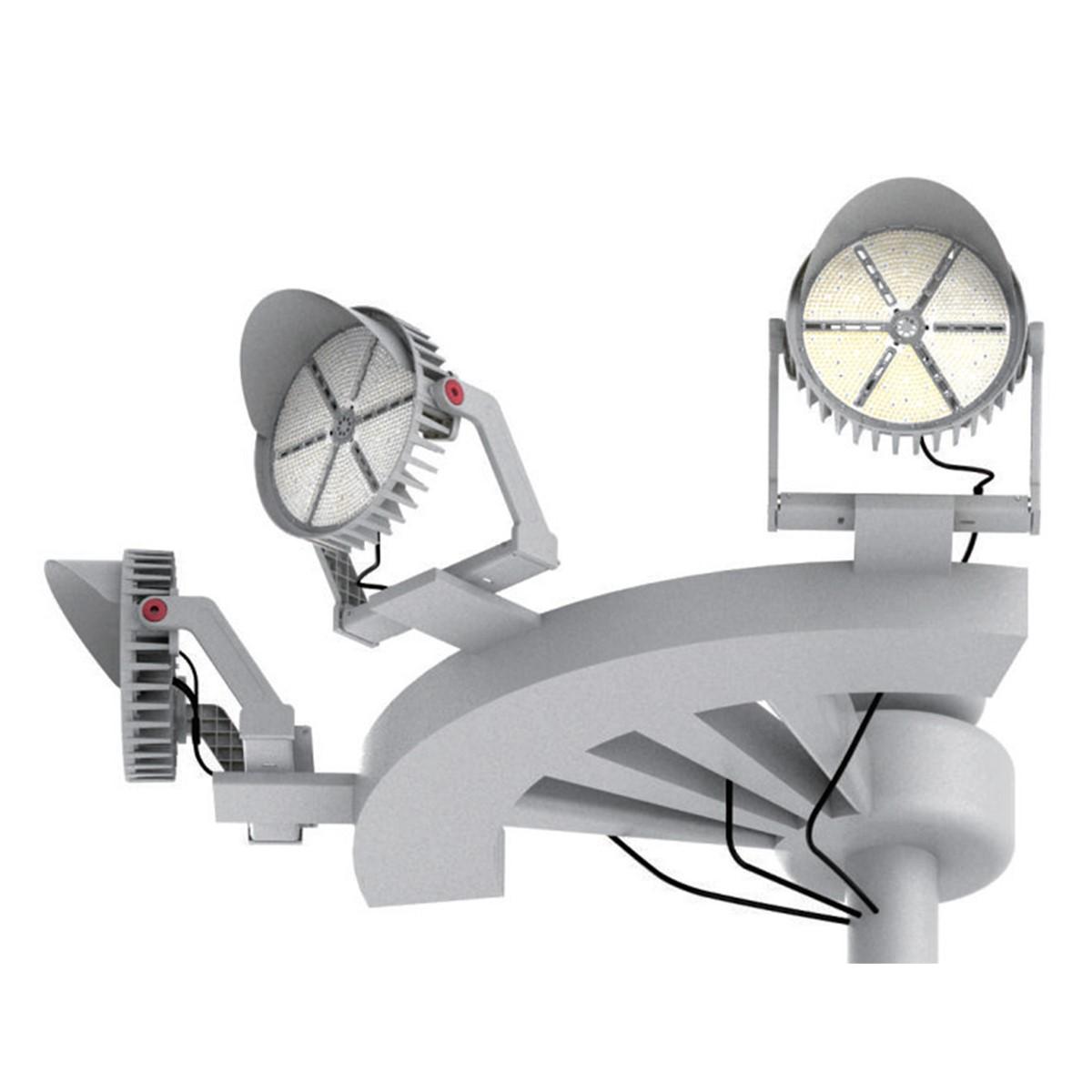

Typical Applications

• Municipal parks
• Baseball fields
• High school football stadiums
• Driving ranges
• Rodeos
• Ski resorts

Performance & Light Output

This flood light offers a luminous efficacy of 140 lm/W with a CRI greater than 70, ensuring high-quality light output. The optics are designed for optimal light distribution, making it suitable for large outdoor areas.

Electrical & Controls

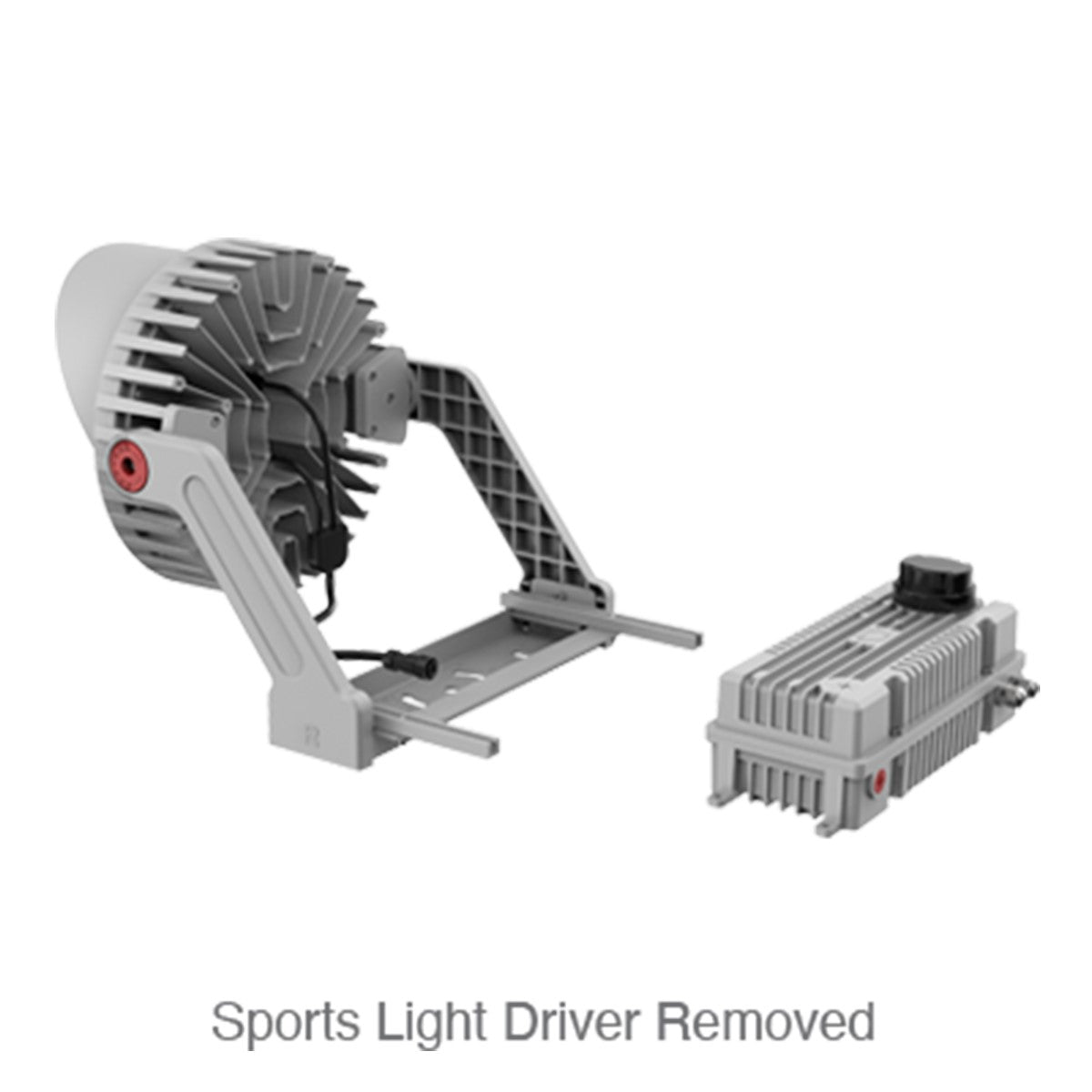

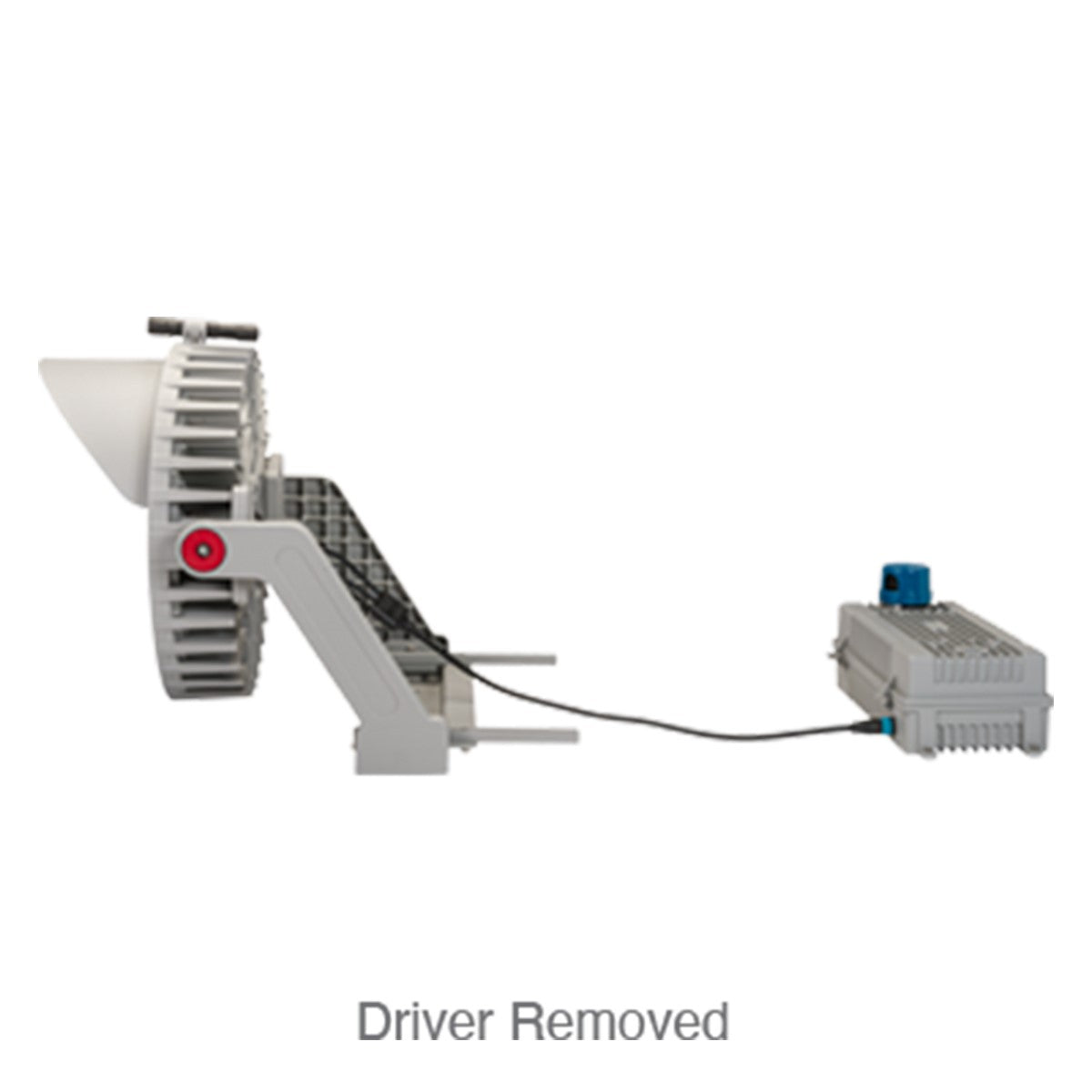

Operates on a 480V system with a Keystone 0-10V dimming LED driver. It includes surge protection and supports optional controls like Synapse NEMA Type 7-Pin controllers.

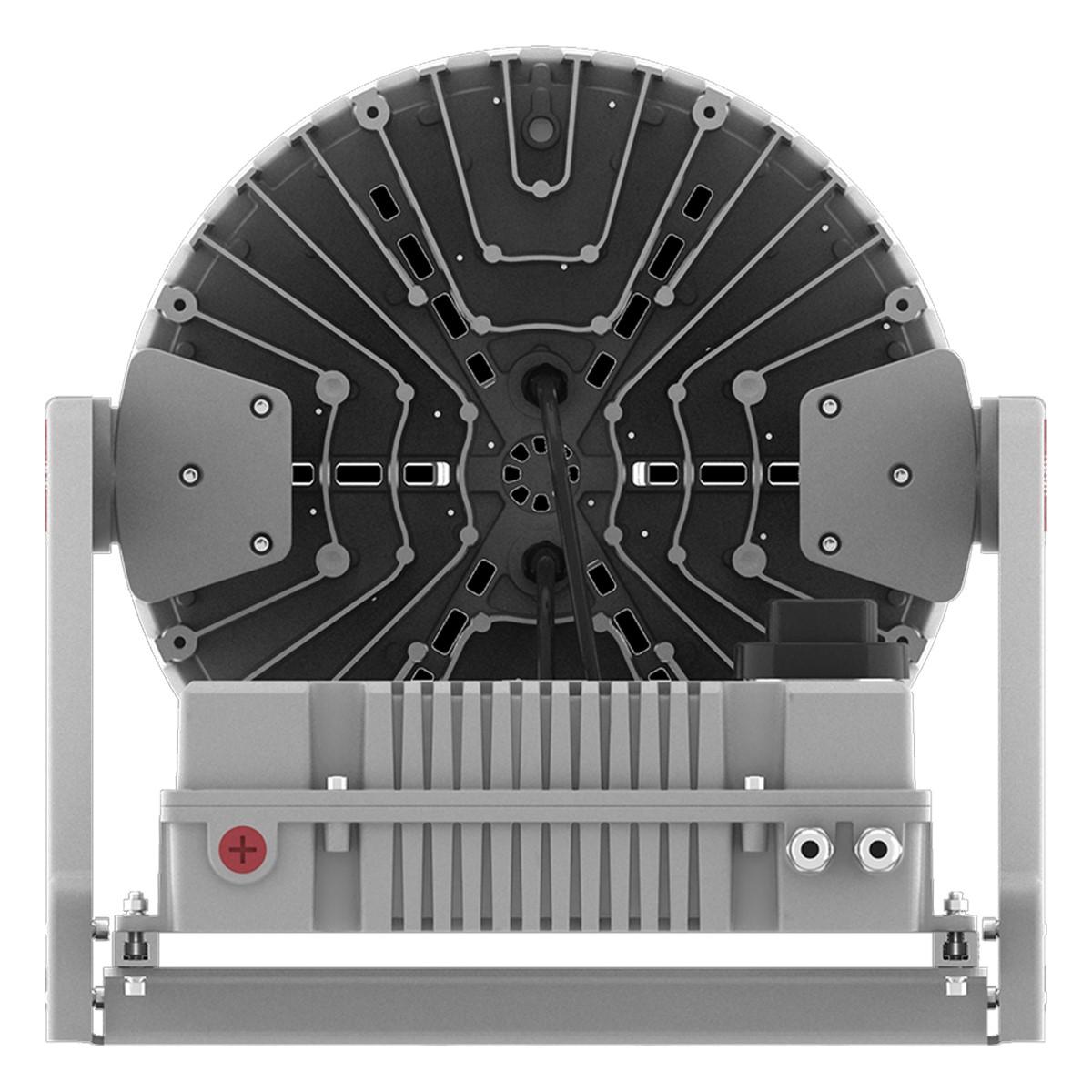

Construction & Durability

The fixture is constructed from heavy-duty die-cast aluminum with an IP65 rating, making it suitable for harsh outdoor conditions. It operates in temperatures ranging from -40°C to 50°C.

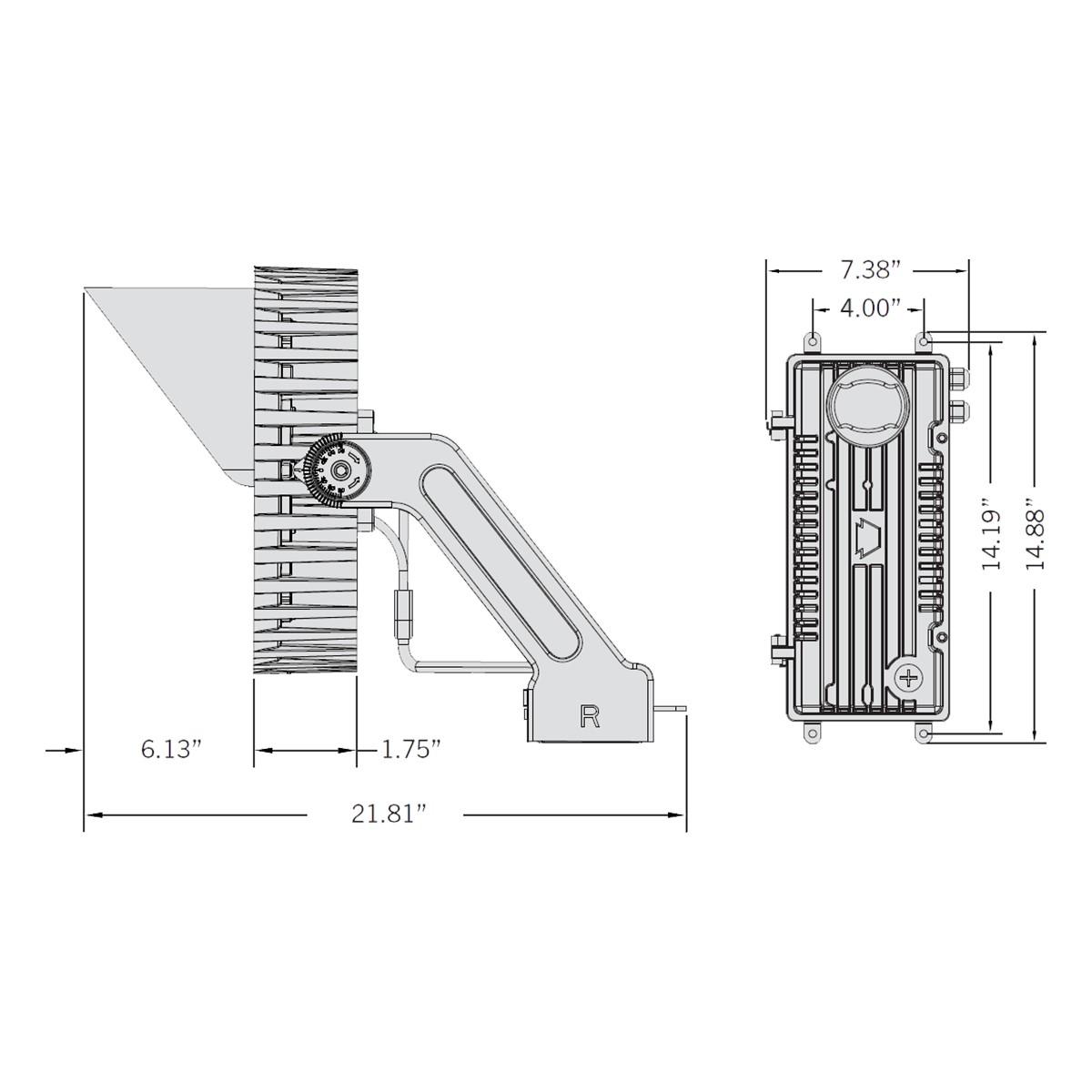

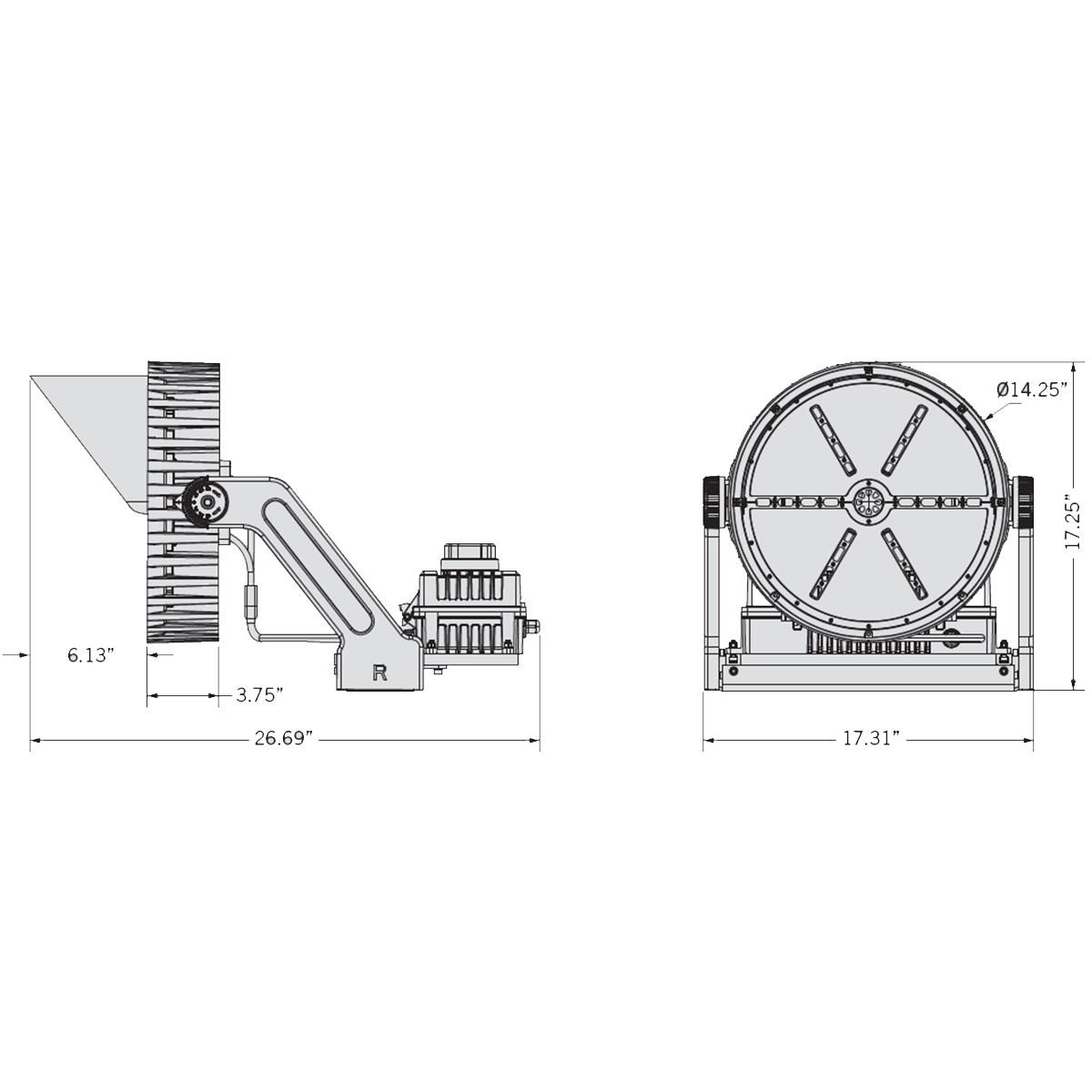

Installation & Mounting

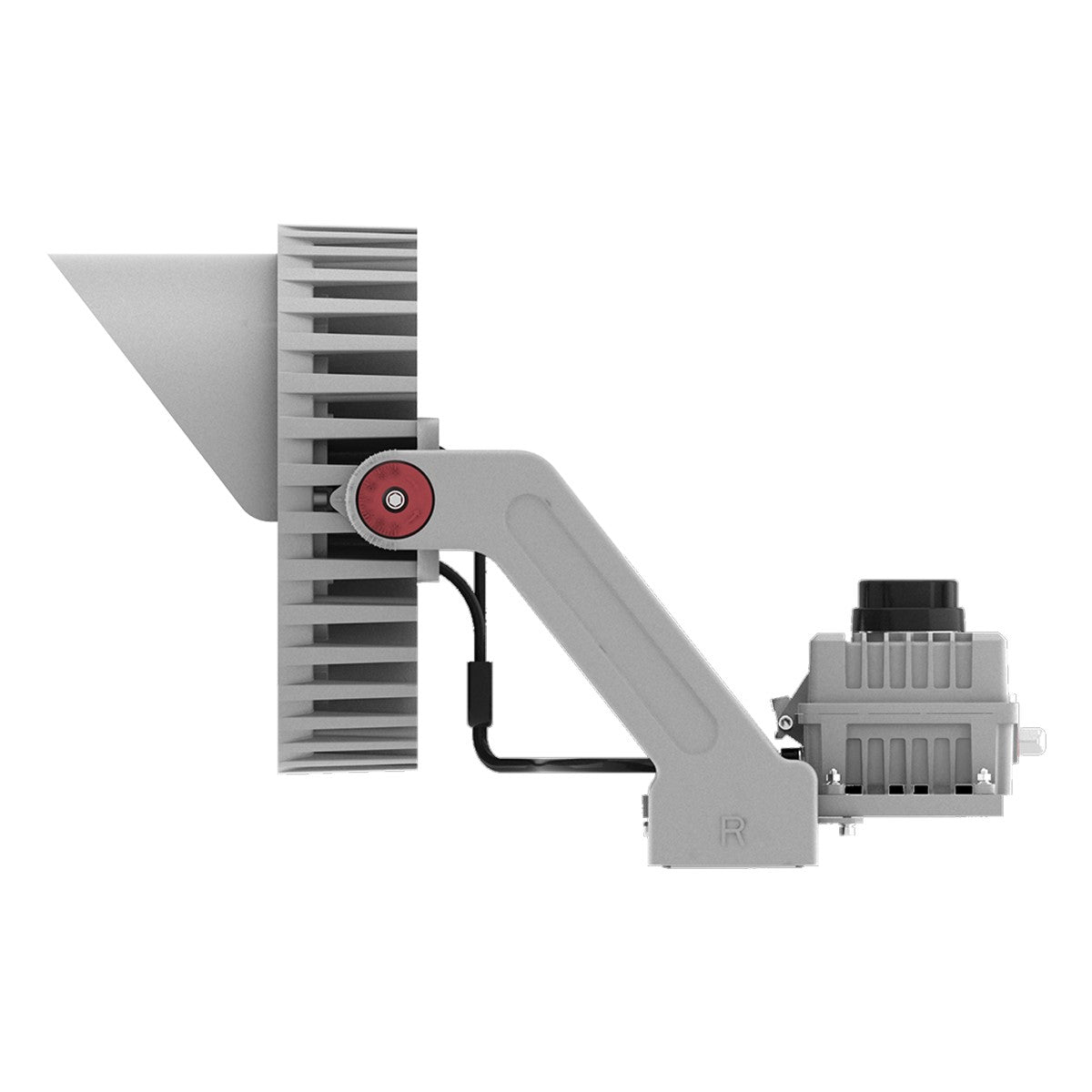

Comes with a pre-installed yoke mount bracket. Optional mounting accessories such as slipfitter and knuckle mounts are available for purchase separately.

What's Included

• Flood light fixture
• Glare shield
• Shorting cap
• NEMA/ANSI C136.41 7-pin twist lock receptacle
