Keystone Sport Light Flood Light 500W 70000 Lumens 5000K 120-277V 3Hx3V Yoke Mount
In stock
About this item
About this item
- Lumens: Delivers an impressive 70,000 lumens for high-intensity lighting applications.
- Wattage: Operates at 500 watts, suitable for replacing high-intensity discharge lamps.
- Voltage: Compatible with 120-277V input, ensuring versatile installation options.
- Beam Angle: Features a 30-degree beam angle for focused illumination.
- Environmental Rating: IP65 rated for protection against dust and water ingress.
We process payments securely and do not store credit card information.
Description
Description

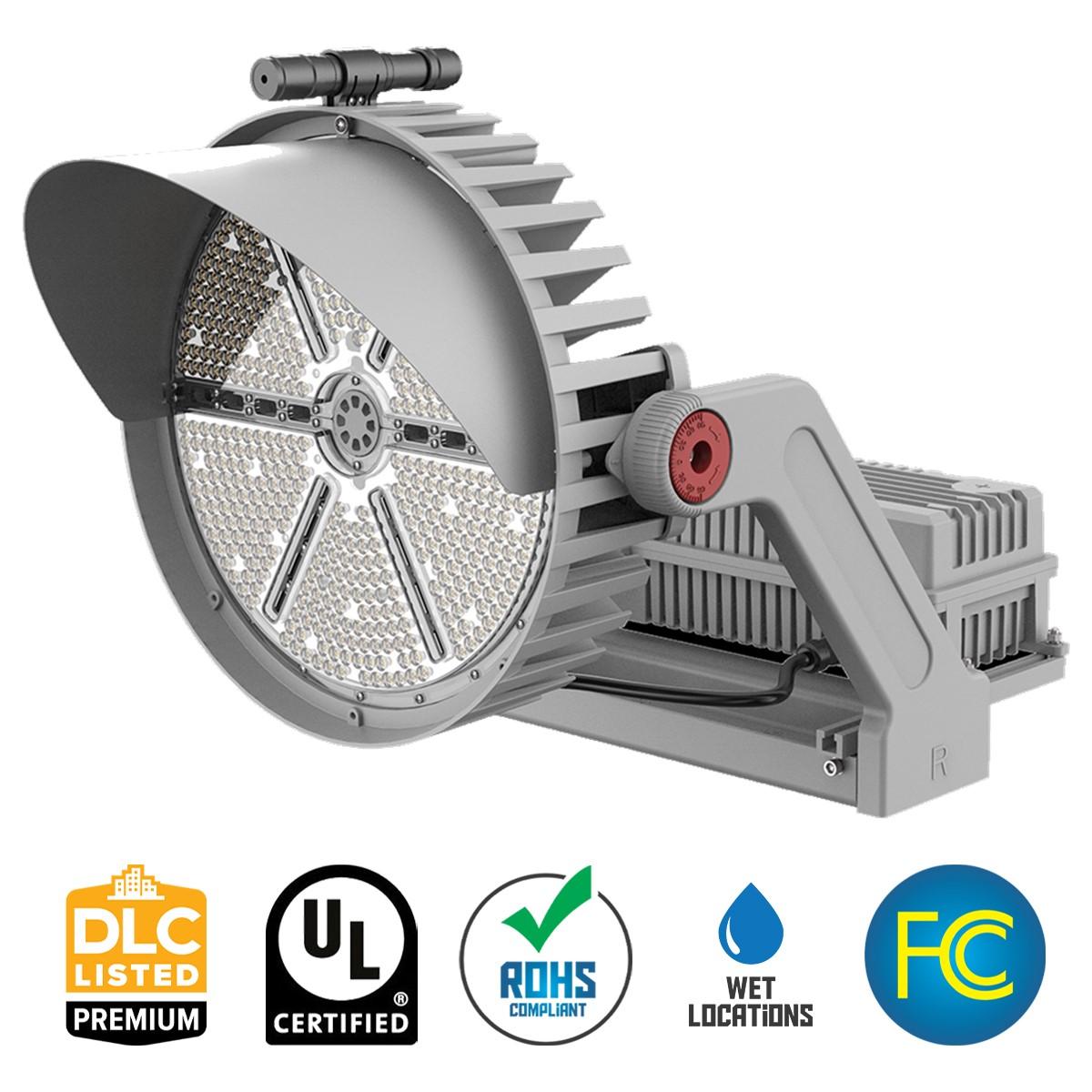

Keystone Sport Light Flood Series Flood Light — 500W Configuration
The Keystone KT-SLFLED500-S1-30-YM-750-VDIM is a robust flood light designed for demanding outdoor environments. This 500-watt fixture delivers 70,000 lumens with a color temperature of 5000K, making it ideal for sports fields and large outdoor areas. It operates on a 120-277V input and is IP65 rated for wet locations.
Key Features
- Durable Housing: Constructed with heavy-duty die-cast aluminum in a gray finish for longevity and aesthetic appeal.
- Optical Precision: Equipped with precision-crafted optics for uniform lighting distribution.
- Glare Shield: Includes a glare shield for site-specific lighting control.
- Mounting Flexibility: Comes with a pre-installed yoke mount bracket; slipfitter and knuckle mounts are available separately.
- Surge Protection: Integrated 20kV line-to-ground surge protection for enhanced reliability.
- Dimming Capability: Supports 0-10V dimming for adjustable light output.
- Long Lifespan: LED chip lifetime rated at L70 > 100,000 hours.
- Compliance: Meets FCC Part 15, Part B, Class A standards for emissions.

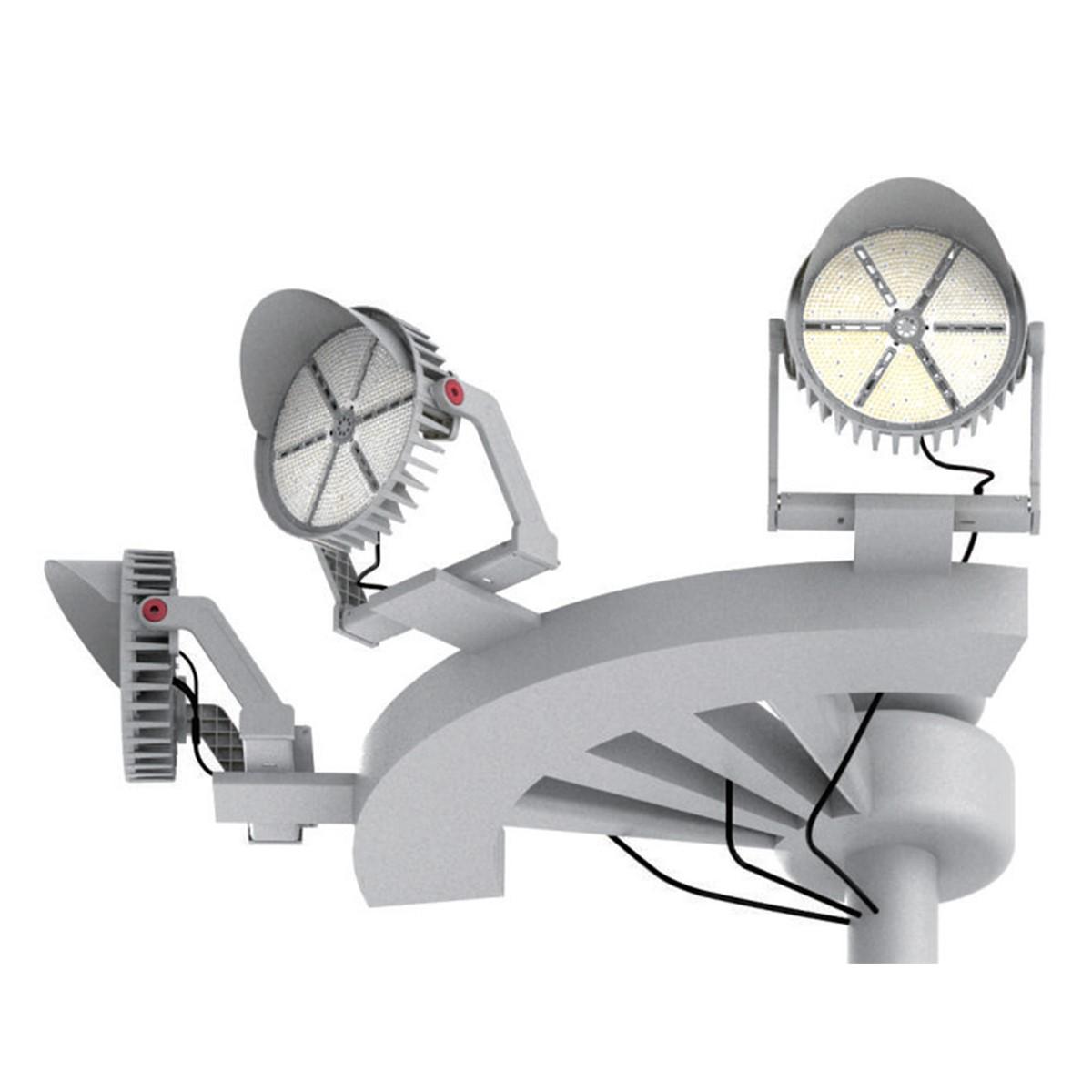

Typical Applications
- Municipal parks
- Baseball fields
- High school football stadiums
- Driving ranges
- Ski resorts
Performance & Light Output
This flood light achieves an efficacy of 140 lm/W, providing high-quality illumination with a CRI greater than 70. The optics are designed for a 30-degree beam angle, ensuring focused light distribution.
Electrical & Controls
Operates on a wide voltage range of 120-277V and includes a Keystone 0-10V dimming LED driver. The fixture is equipped with a NEMA/ANSI C136.41 7-pin twist lock receptacle for additional control options.
Construction & Durability
The fixture's robust construction includes an IP65 rating, ensuring protection against dust and water ingress. It is UL certified for wet locations and can operate in temperatures ranging from -40°F to 122°F.

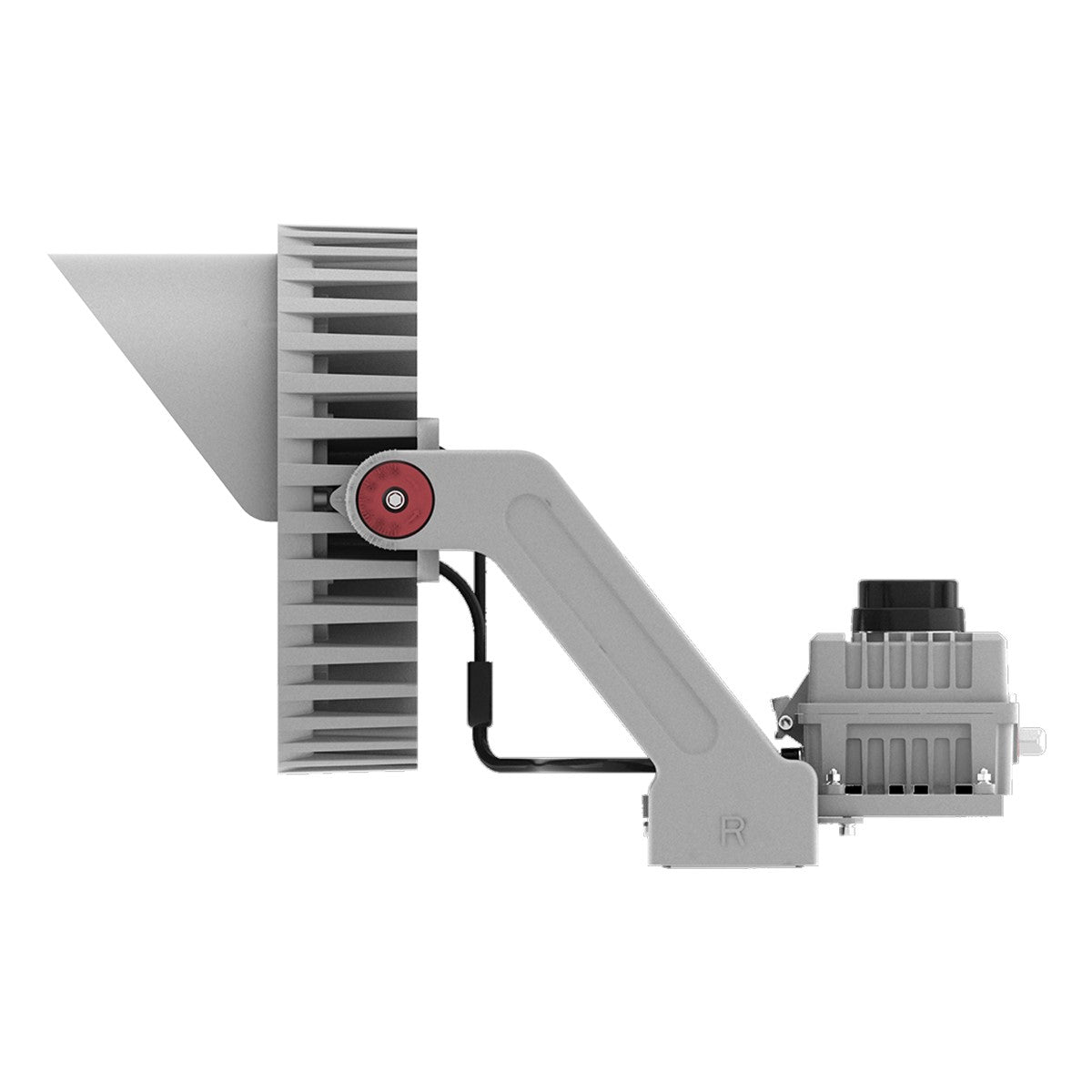

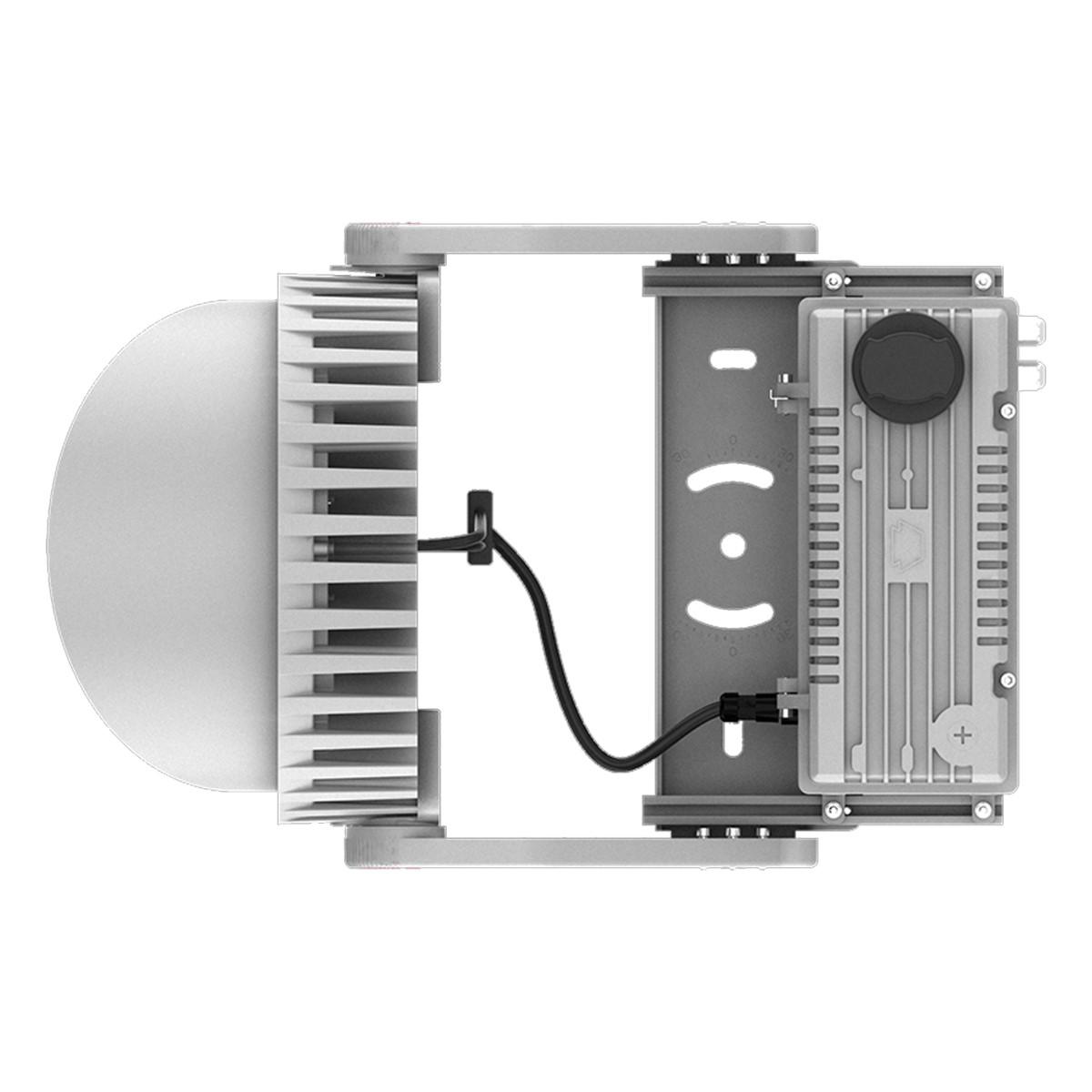

Installation & Mounting
Installation is simplified with a pre-installed yoke mount bracket. Optional mounting accessories such as slipfitter and knuckle mounts are available for purchase separately.
What's Included
- Glare shield
- Shorting cap
- Yoke mount bracket
Specifications
Specifications

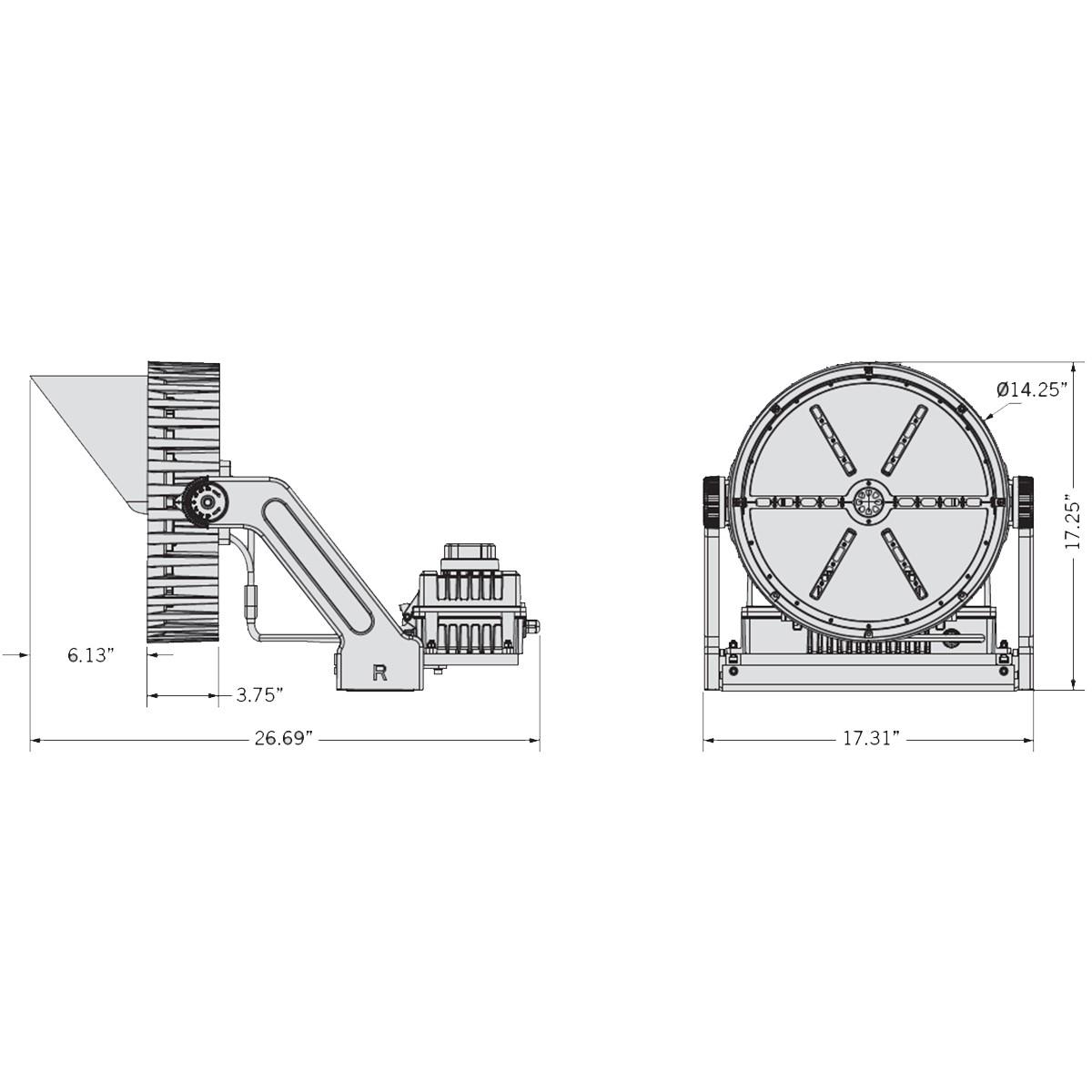

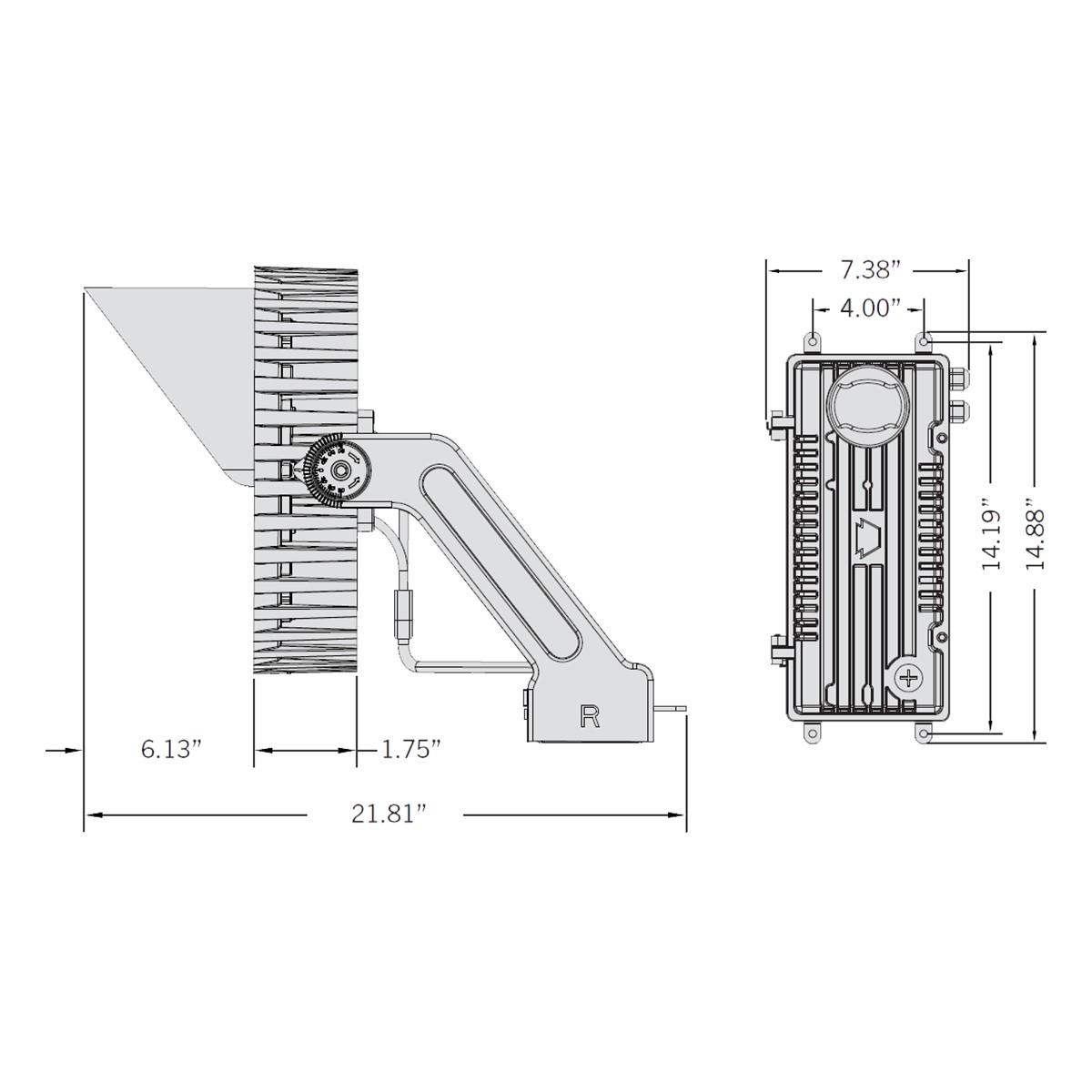

Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the wattage of the Keystone KT-SLFLED500-S1-30-YM-750-VDIM?
What is the wattage of the Keystone KT-SLFLED500-S1-30-YM-750-VDIM?
Is the Keystone KT-SLFLED500-S1-30-YM-750-VDIM dimmable?
Is the Keystone KT-SLFLED500-S1-30-YM-750-VDIM dimmable?
What is the beam angle of this flood light?
What is the beam angle of this flood light?
What is the environmental rating of the Keystone KT-SLFLED500-S1-30-YM-750-VDIM?
What is the environmental rating of the Keystone KT-SLFLED500-S1-30-YM-750-VDIM?
What mounting options are available for this flood light?
What mounting options are available for this flood light?
