Description

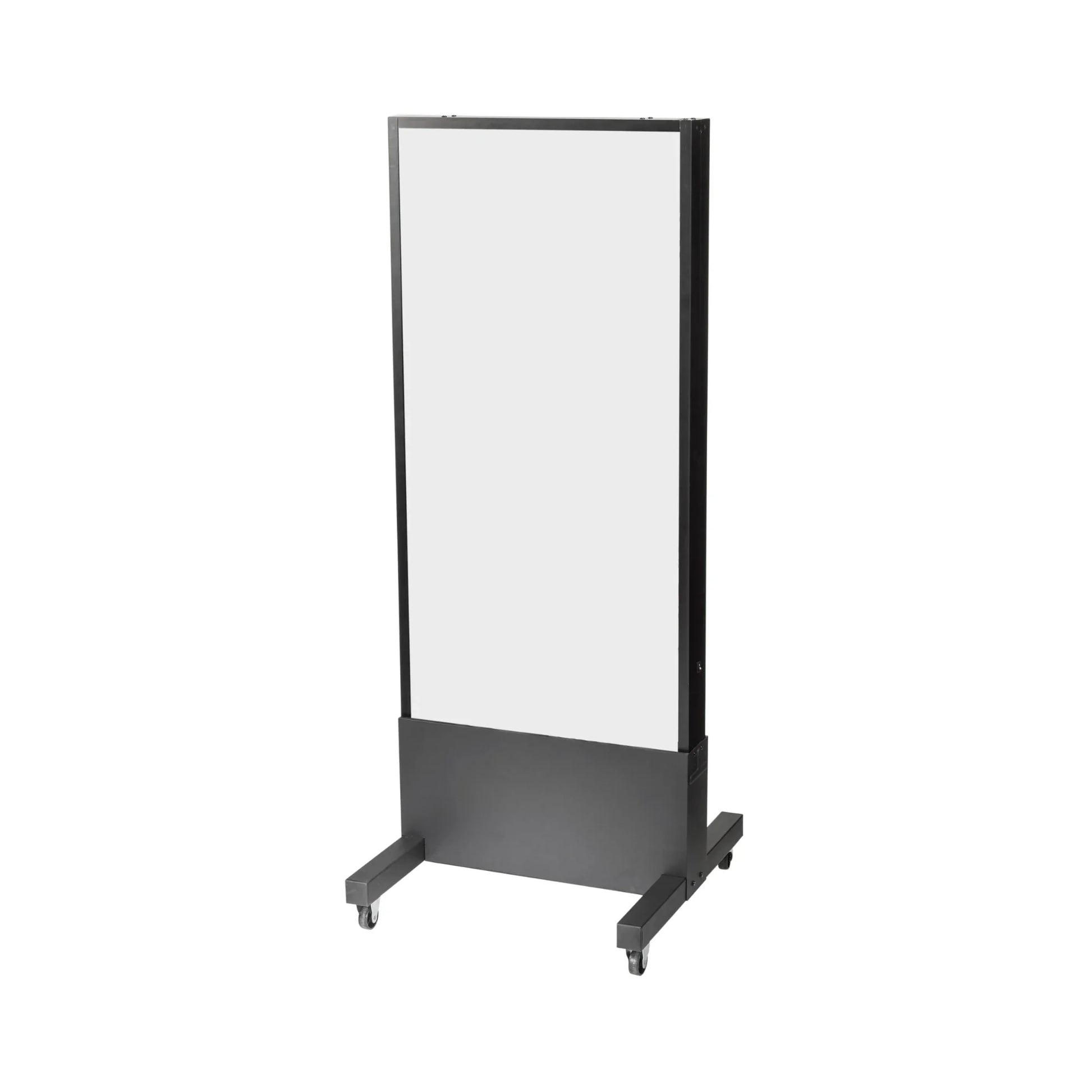

Keystone KT-SCLED100-24A-DS-865-B Portable LED Sign Cabinet

The Keystone KT-SCLED100-24A-DS-865-B delivers professional-grade double-sided LED illumination in a portable, pre-fabricated cabinet designed for tradeshows, retail displays, hospitality venues, and entertainment facilities.

Key Features

  • Double-Sided LED Display: High-quality aluminum construction with matte black finish provides superior fit and finish for professional presentations
  • Pre-Installed Lighting System: All lighting components are pre-installed and pre-wired, offering highly diffused 6500K backlit illumination for crisp, vibrant graphics
  • Plug-and-Play Operation: 120V input with 6' NEMA 5-15 plug and convenient on/off rocker switch for instant control

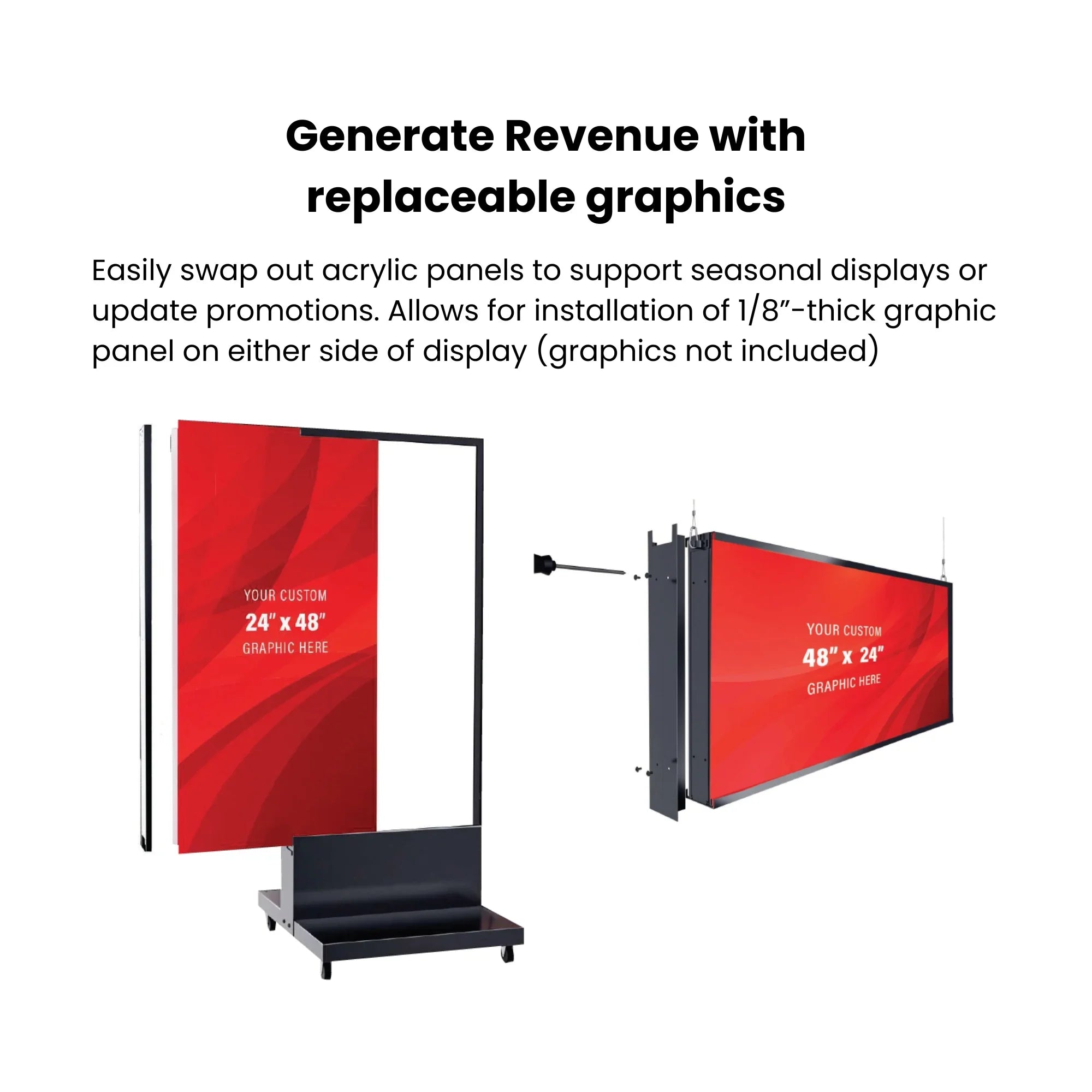

  • Removable Graphics Panels: Side panels accommodate 1/8" thick graphics on either side for quick, tool-free graphic changes

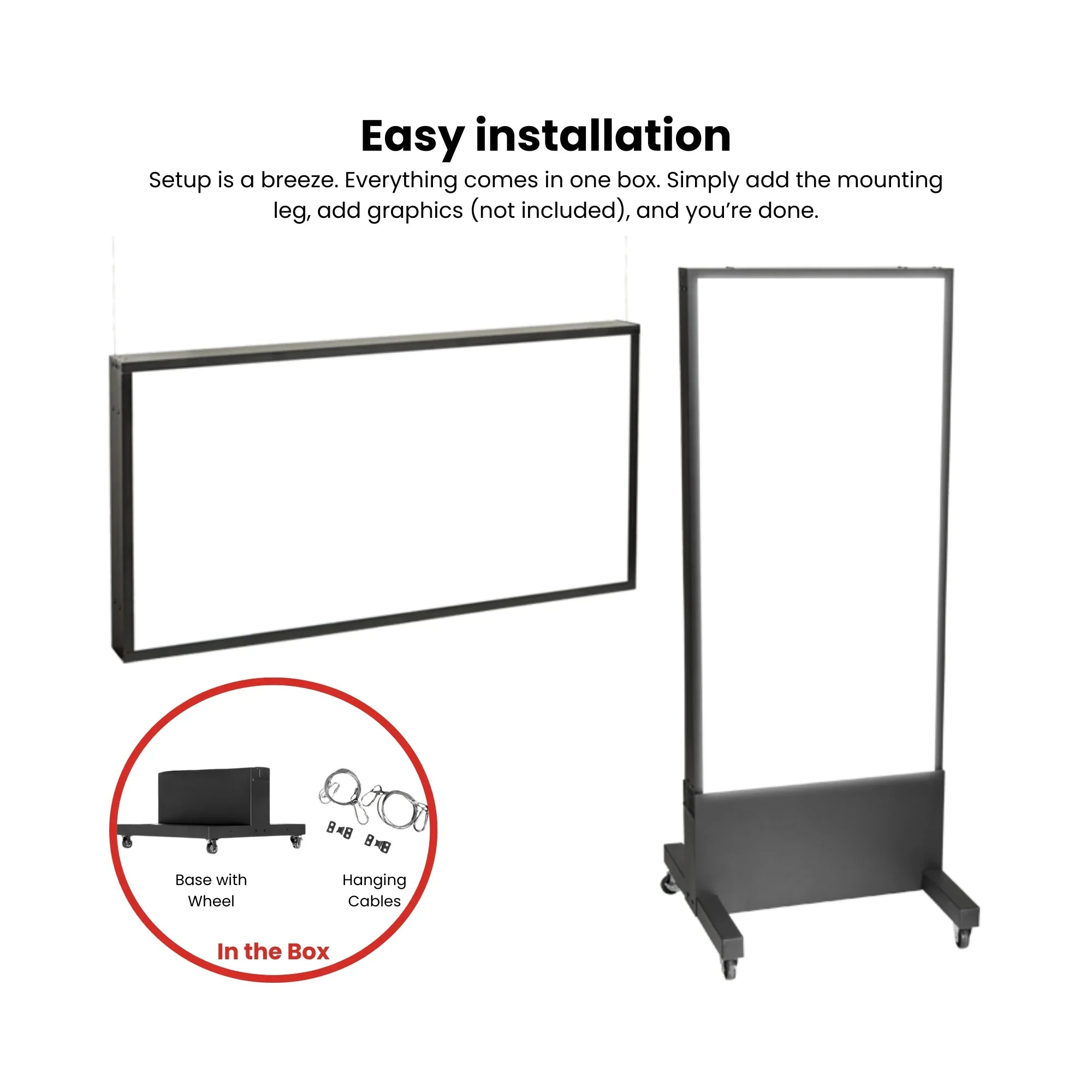

  • Compact Packaging: Everything ships in one box for easy transportation and delivery—simply add mounting legs and insert graphics
  • UL Listed Components: Powered by Keystone LED drivers with UL Listed lighting components for safety and reliability
  • Precision Optical Design: Individual LED lenses deliver optimal light diffusion and consistent surface illumination with no yellowing over the product lifetime
  • Wide Operating Range: Functions reliably in ambient temperatures from -20°C/-4°F to 40°C/104°F

Available Configurations

This model features 21.5" x 45.5" illuminated dimensions per side, delivering 11,000 lumens total (5,500 per side) with 100W power consumption (50W per side).

Applications

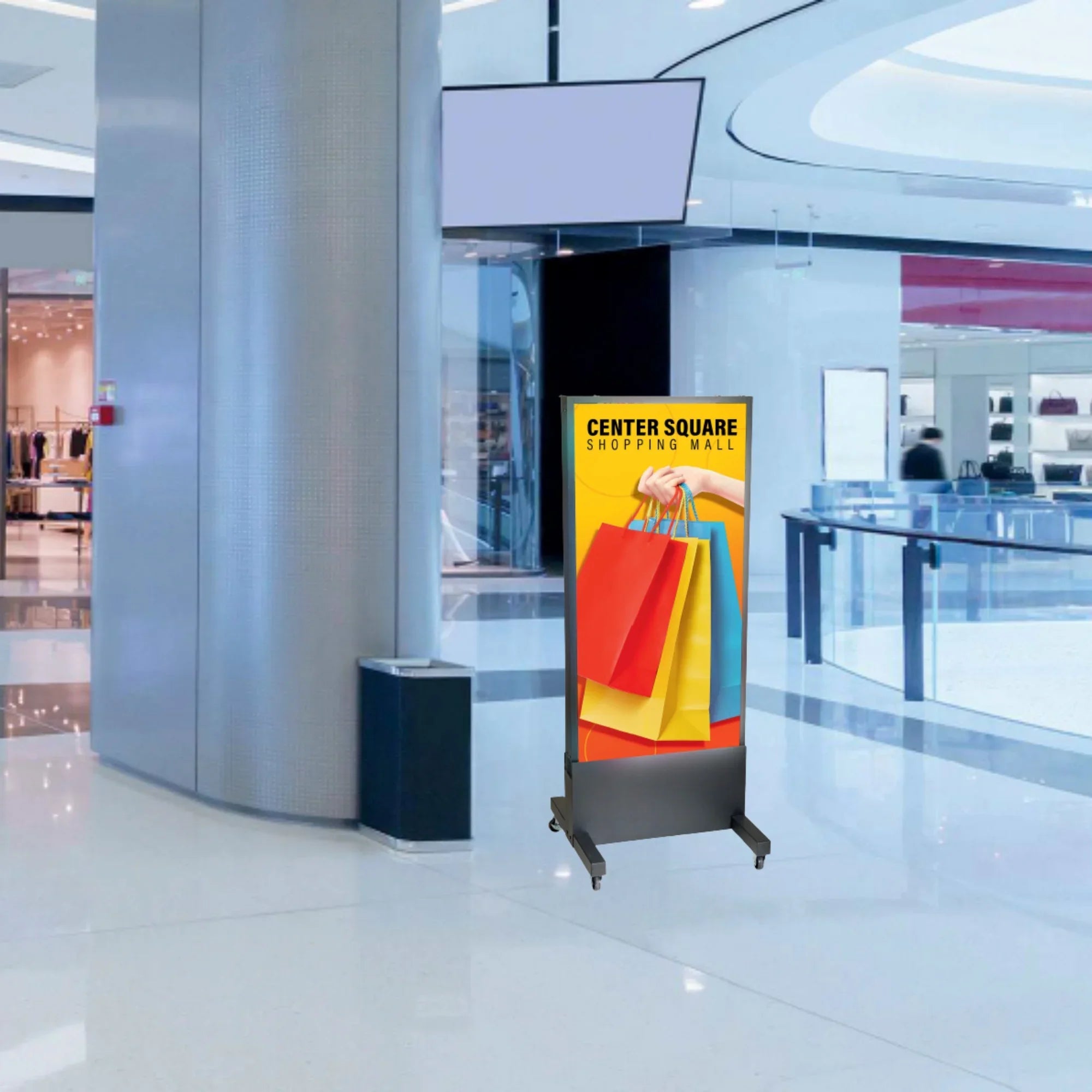

Perfect for permanent or temporary indoor signage needs including tradeshows, retail point-of-purchase displays, hospitality wayfinding, entertainment venue promotions, and any application requiring portable, professional double-sided illuminated graphics.

10-year limited warranty. RoHS compliant. Meets FCC Part 15, Part B, Class A standards for conducted and radiated emissions. For indoor use only.

Specifications

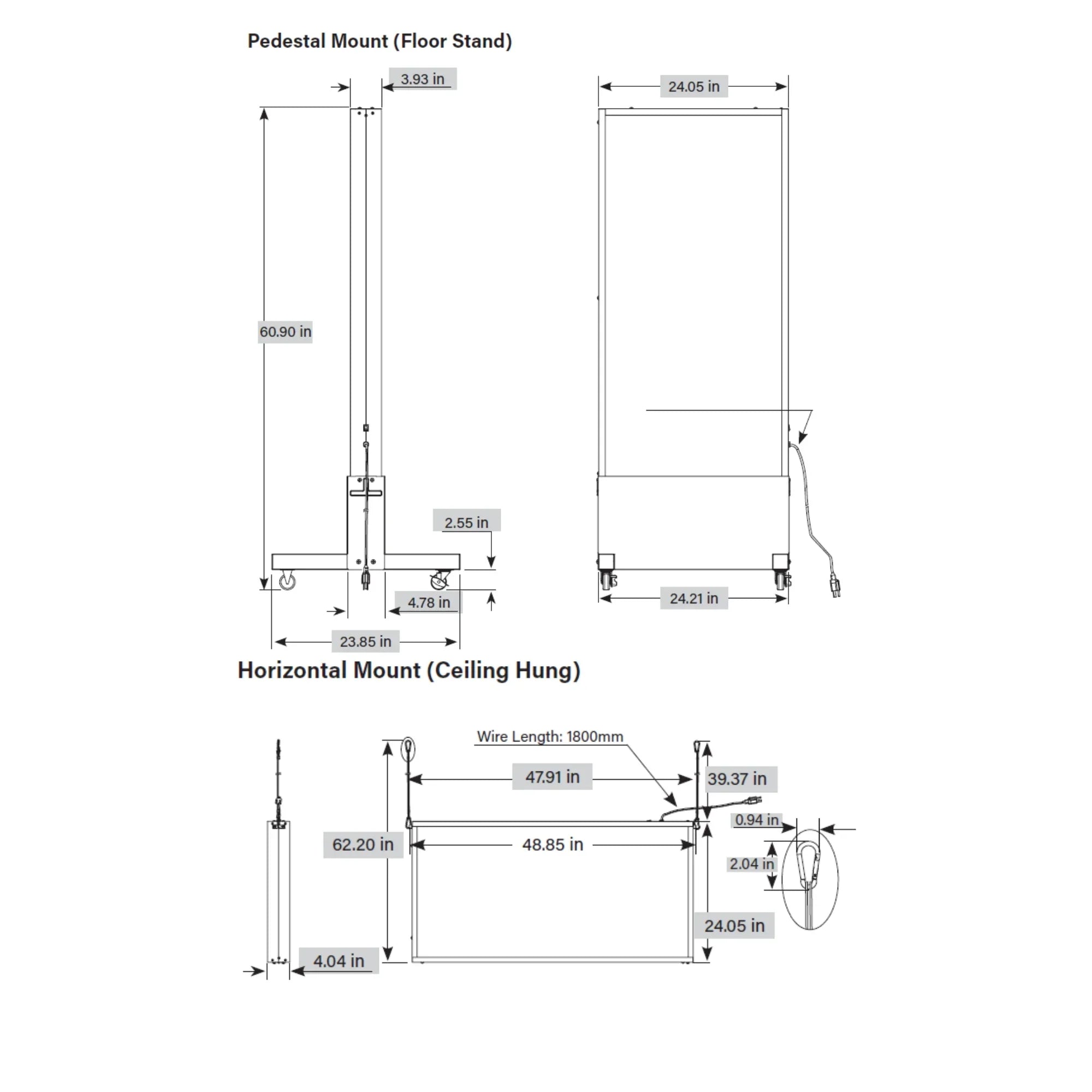

Dimensions

Length/Depth
24.05 in
Width/Diameter
47.91 in
Height
3.93 in
Weight
42 lb

Style & Materials

Material
Aluminum
Mounting Type
Free Standing, Hanging

Characteristics & Features

Lamp Color
6500K
Color Rendering
80 CRI
Delivered Lumens
11000

Electrical Information

Voltage
120V
Total Wattage
100W

Item Details

MPN
KT-SCLED100-24A-DS-865-B
Brand
Keystone Technologies
Catalog Number
UUV-98
Family
Sign Champ LED Kiosk
UPC
843654152653

Warranty & Certifications

Product Warranty
10 Years
Lamp Life
50,000 Hours
Product Rating
Damp Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

What is the difference between Lumens and Watts?

Watts measure the amount of electrical energy a fixture consumes, while lumens measure the actual brightness (the amount of visible light produced). In the LED era, wattage is no longer a reliable indicator of brightness. When replacing old fixtures or comparing new ones, always look at the lumen output to determine how bright the light will be.

What is Color Rendering Index (CRI) and why does it matter?

CRI is a scale from 0 to 100 that measures how accurately a light source reveals the true colors of objects compared to natural sunlight. A higher CRI (90+) ensures colors look vibrant and accurate, which is critical for retail displays, kitchen countertops, and bathroom vanities. A lower CRI (under 80) can make colors look washed out or dull, regardless of the color temperature.

How do I know if my light fixture is dimmable?

For traditional incandescent fixtures, dimmability depended purely on the bulb. For modern LED lighting, dimmability depends on the internal LED driver or the specific LED bulb used. A fixture is only dimmable if its driver is explicitly rated for it. Furthermore, the fixture must be paired with a compatible dimmer switch (such as a standard TRIAC/Phase-cut dimmer or a 0-10V commercial dimmer) to prevent flickering and buzzing.

What does "Integrated LED" mean compared to a standard fixture?

An integrated LED fixture has the LED diodes and driver built directly into the housing, meaning there are no traditional bulbs to screw in or replace. This allows for sleeker, lower-profile designs and better heat dissipation. However, if an integrated fixture fails after its warranty period, you typically have to replace the entire unit or the internal driver, rather than just swapping out a bulb.

What does the "L70" lifespan rating mean on LED fixtures?

Unlike traditional bulbs that simply burn out and go dark, LEDs gradually lose their brightness over time (lumen depreciation). The L70 rating indicates the number of operating hours it takes for the LED fixture to degrade to 70% of its original brightness. For example, a fixture rated for "50,000 hours L70" will still work after 50,000 hours, but it will be noticeably dimmer than when it was first installed.
