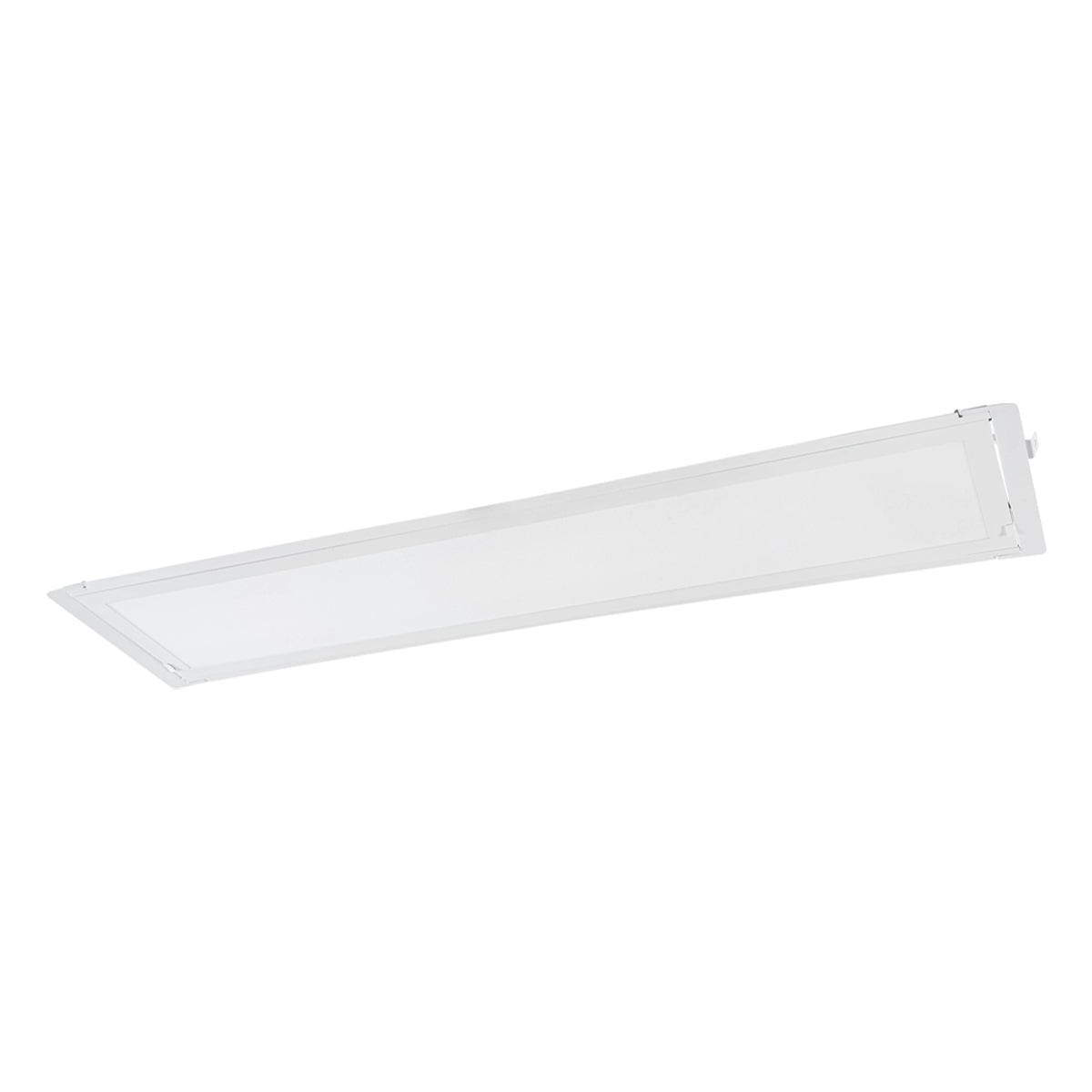

Keystone KT-RKIT35PS-14PD FutureFit Color & Power Select 1x4 LED Panel Doorframe Retrofit Kit — 35W/30W/20W Selectable — 3500K/4000K/5000K — White

The Keystone KT-RKIT35PS-14PD-8CSA-VDIM/G2 is a commercial 1x4 FutureFit LED Panel Doorframe Retrofit Kit engineered to deliver up to 3,850 lumens with Power Select field-adjustable 35W/30W/20W power settings and Color Select switchable 3500K/4000K/5000K color temperatures. Operating on universal 120–277V electrical systems with 0–10V continuous dimming, this Generation 2 retrofit assembly upgrades existing 1x4 fluorescent recessed troffers with over 50% energy savings without modifying the existing ceiling fixture mounting. Built with a cULus Classified damp location rating, it is qualified for commercial utility rebates under DLC Listed standards and features precision optical lenses over each individual LED for uniform surface illumination with zero risk of yellowing over the product lifetime.

Key Features

  • Selectable Wattage (Power Select): 35W / 30W / 20W — field-adjustable via onboard switch (factory preset to highest output)
  • Wattage Equivalency: Upgrades existing 1x4 fluorescent recessed troffers for over 50% energy savings
  • Maximum Lumen Output: 3,850 lm at 35W (4000K / 5000K)
  • Peak Efficacy: 113 lm/W for high-efficiency commercial operation
  • CRI: >80 color rendering across all settings
  • Selectable CCT (Color Select): 3500K / 4000K / 5000K — field-adjustable via onboard switch (factory preset to 5000K) following ANSI C78.377-2017 color uniformity guidelines
  • Lens & Optics: Precision optical lenses over each individual LED provide optimal diffusion, consistent surface illumination, and no risk of yellowing over the product lifetime
  • Dimming: 0–10V dimming LED driver standard
  • Voltage: Universal 120–277V AC input
  • Location Rating: cULus Classified as suitable for indoor damp locations
  • Operating Temperature: -4°F (-20°C) to 104°F (40°C) ambient range
  • Certifications: DLC Listed, cULus Classified, NLB Trusted Warranty Program
  • Rated Life: LED chip lifetime L70 >100,000 hours at 25°C (77°F) ambient fixture temperature (50,000 hours catalog table rating)
  • Warranty: 10-year limited warranty — Keystone (NLB Trusted Warranty Program)
  • Form Factor & Design: 9-in-1 selectable 1x4 doorframe retrofit kit installs using included mounting brackets, side bars, and rotary latching clips without removing the existing troffer housing

Performance & Light Output

At 35W: 3,780 lm (3500K / 110 lm/W), 3,850 lm (4000K / 113 lm/W), 3,850 lm (5000K / 113 lm/W).

At 30W: 3,300 lm (3500K / 110 lm/W), 3,360 lm (4000K / 113 lm/W), 3,360 lm (5000K / 113 lm/W).

At 20W: 2,200 lm (3500K / 110 lm/W), 2,260 lm (4000K / 113 lm/W), 2,260 lm (5000K / 113 lm/W).

CRI >80 across all configurations (preset to highest lumen output / 5000K). Rated LED chip lifetime L70 >100,000 hours at 25°C (77°F) ambient fixture temperature (50,000 hours catalog table rating).

Smart & Control Features

The KT-RKIT35PS-14PD-8CSA-VDIM/G2 is powered by a Keystone 0–10V dimming LED driver with dedicated DIM+ and DIM- control leads for smooth continuous dimming when connected to compatible commercial 0–10V wall dimmers or building automation controls.

Electrical

Powered by a Keystone 0–10V dimming LED driver operating on universal 120–277V AC input with a Power Factor >0.90. Connects directly to the reserved line (L), neutral (N), and ground wires inside the existing recessed troffer housing.

Emergency Battery Backup Compatibility: Compatible with Keystone SmartSafe LED emergency backup drivers (sold separately) for standby egress illumination during power outages.

Construction

Housing & Build: Generation 2 1x4 LED panel doorframe assembly engineered to fit inside existing recessed fluorescent troffer bodies using two mounting brackets, two side bars, and rotary securing clips.

Location & Environmental Rating: cULus Classified for indoor damp location commercial environments.

Operating Temperature: Operating ambient temperature range of -4°F (-20°C) to 104°F (40°C).

Lens & Optics: Engineered with precise optical lenses over each individual LED to deliver optimal light diffusion and consistent surface illumination with no risk of yellowing over the product lifetime.

Finish: Clean white commercial doorframe finish.

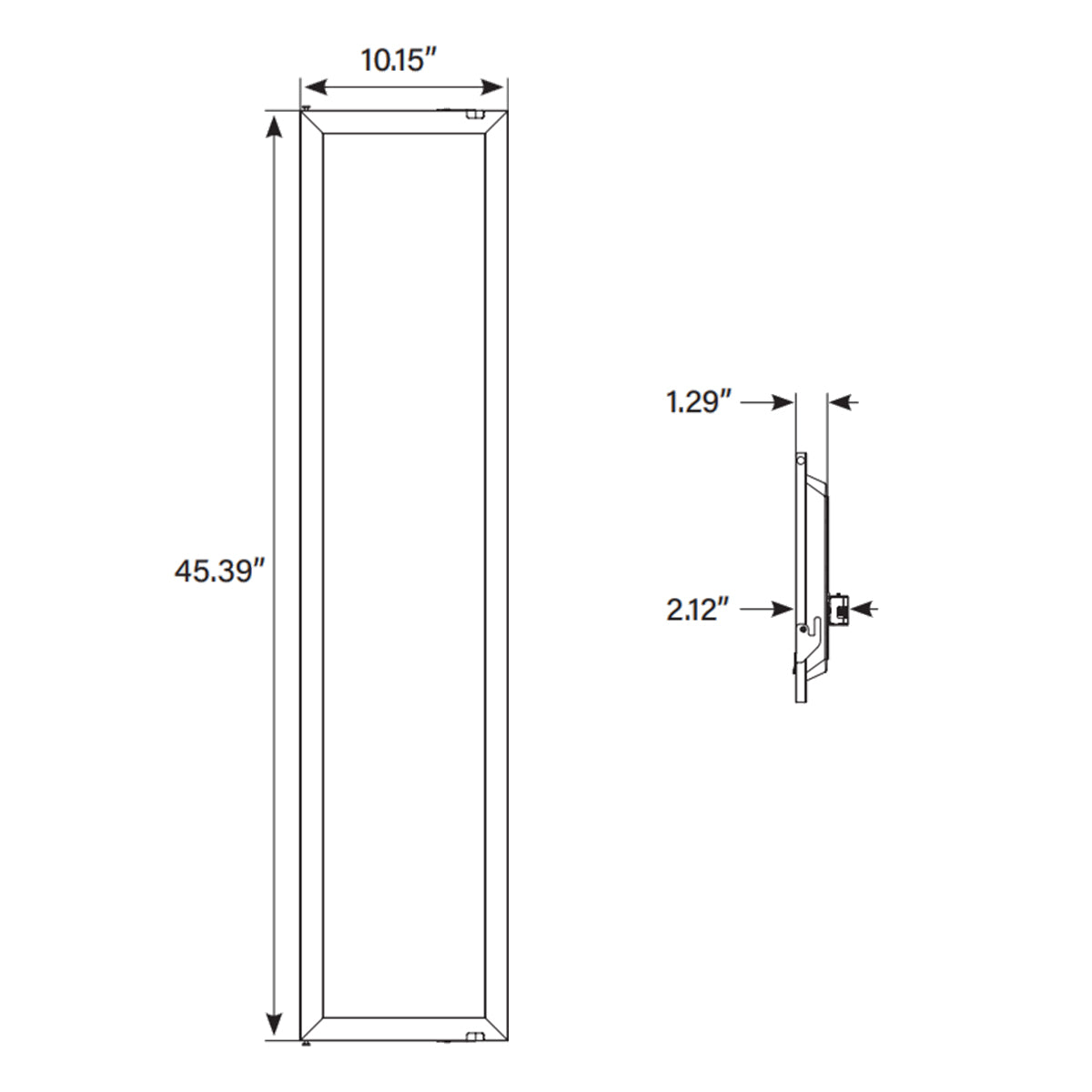

Dimensions & Weight: 45.39" L × 10.15" W × 1.29" H (2.12" overall depth with driver). Fixture weight: 8.0 lbs.

Installation & Mounting

Standard Retrofit Installation: Upgrades existing 1x4 recessed fluorescent troffers from below the ceiling without modifying existing T-grid fixture mounting. After removing the legacy fluorescent tubes, ballast, and sockets (while retaining the original troffer housing in place), installers insert the two included mounting brackets and two side bars between the housing and T-grid, secure them with the included self-tapping screws, slide the panel rotary screws into the bracket chutes, wire the driver, and rotate the clips to latch the doorframe closed.

Compatible Accessories & Packaging Options (Sold Separately):

  • Emergency Battery Backups: Compatible with Keystone SmartSafe LED emergency drivers — sold separately
  • 2-Pack Ordering Option: Also available in a 2-pack carton configuration under catalog number KT-RKIT35PS-14PD-8CSA-VDIM/G2/2pk — ordered separately

Certifications & Rebates

  • DLC Listed: Qualifies for commercial utility rebate incentives across regional energy programs. To confirm rebate eligibility with your local utility provider, visit designlights.org and search DLC Product ID S-5P5H4D.
  • cULus Classified: Certified for indoor damp locations and troffer retrofit applications (UPC: 843654162386, Easy Code: GJU-97).
  • ANSI C78.377-2017: Correlated Color Temperature (CCT) uniformity meets ANSI C78.377-2017 solid-state lighting guidelines.
  • NLB Trusted: Backed by Keystone's 10-year limited warranty and verified under the National Lighting Bureau (NLB) Trusted Warranty Program.

Typical Applications

  • Commercial Office Troffer Retrofits — Upgrades existing 1x4 fluorescent troffers from below the ceiling without disturbing the drop-ceiling T-grid or plenum.
  • Schools, Universities & Classrooms — Individual optical lenses over each LED prevent lens yellowing across a >100,000-hour L70 LED chip lifetime.
  • Healthcare & Administrative Corridors — 9-in-1 Power Select (35W/30W/20W) and Color Select (3500K/4000K/5000K) switches let contractors standardize on a single SKU.
  • Retail & Commercial Showrooms — Consistent surface diffusion and >80 CRI output eliminate fluorescent tube striation and dark spots.
  • Municipal & Institutional Buildings — Over 50% energy savings, DLC rebate eligibility, and a 10-year NLB Trusted warranty lower total cost of ownership.

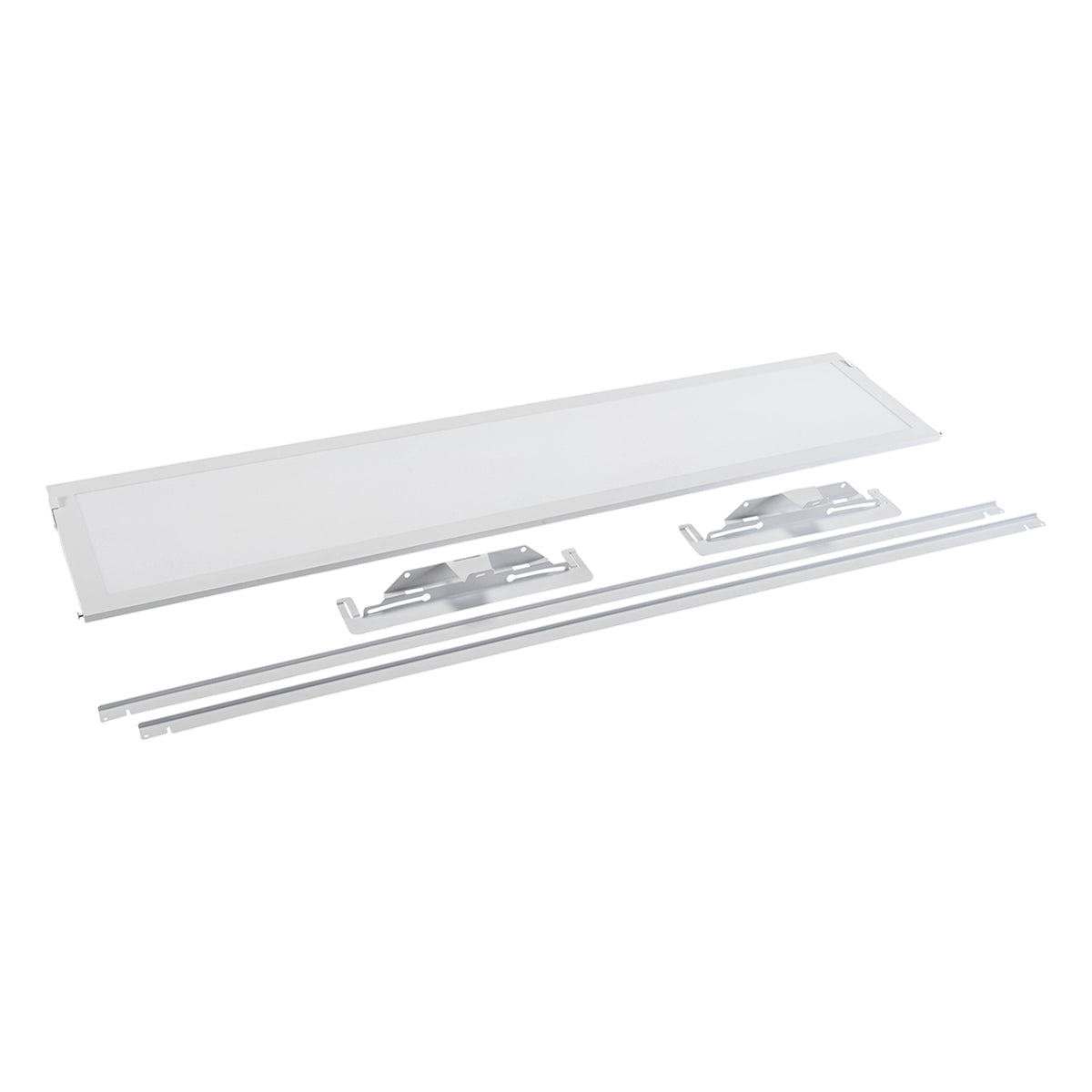

What's Included

  • Keystone KT-RKIT35PS-14PD-8CSA-VDIM/G2 1x4 LED Panel Doorframe Retrofit Kit (LED Module with Integrated Driver and LED Array) — White (1 Piece)
  • Two (2) Mounting Brackets and Two (2) Mounting Side Bars
  • Miscellaneous Mounting Hardware (including 4 pcs M4.6×13 self-tapping screws) and Luminaire Marking Labels
  • Installation instructions

Specifications

Dimensions

Length/Depth
45.39 in
Width/Diameter
10.15 in
Height
2.12 in
Weight
8 lb

Style & Materials

Material
Metal

Characteristics & Features

Lamp Source
led
Lamp Color
3500K, 4000K, 5000K, Selectable CCT
Color Rendering
80 CRI
Delivered Lumens
3850
Dimmable
Yes

Electrical Information

Voltage
120-277V
Total Wattage
35W

Item Details

MPN
KT-RKIT35PS-14PD-8CSA-VDIM /G2
Brand
Keystone Technologies
Catalog Number
GJU-97
Family
XFit Future Fit Series
UPC
843654162386

Warranty & Certifications

Product Warranty
5 Years
Lamp Life
50,000 Hours
Product Rating
Damp Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

How do you adjust the wattage, lumen output, and color temperature on the Keystone KT-RKIT35PS-14PD-8CSA-VDIM/G2?

The Keystone KT-RKIT35PS-14PD-8CSA-VDIM/G2 features onboard Power Select and Color Select switches providing nine selectable combinations in one SKU. Installers can switch between 35W (3,780–3,850 lumens), 30W (3,300–3,360 lumens), and 20W (2,200–2,260 lumens) (up to 113 lm/W efficacy) and choose 3500K, 4000K, or 5000K white light (factory preset to 5000K highest lumen output).

Is the Keystone KT-RKIT35PS-14PD-8CSA-VDIM/G2 dimmable, and what voltage does it operate on?

Yes, the Keystone KT-RKIT35PS-14PD-8CSA-VDIM/G2 is powered by a universal 120–277V AC Keystone 0–10V dimming LED driver (Power Factor >0.90) with dedicated DIM+ and DIM- leads for smooth continuous dimming. It is also compatible with Keystone SmartSafe LED emergency battery backup drivers, which are sold separately.

Is the Keystone KT-RKIT35PS-14PD-8CSA-VDIM/G2 rated for damp locations, and what is its operating temperature range?

Yes, the Keystone KT-RKIT35PS-14PD-8CSA-VDIM/G2 is cULus Classified as suitable for indoor damp location commercial ceiling environments. It is engineered for reliable operation across an ambient fixture temperature range of -4°F (-20°C) to 104°F (40°C) and meets ANSI C78.377-2017 color uniformity guidelines.

How is the Keystone KT-RKIT35PS-14PD-8CSA-VDIM/G2 doorframe retrofit kit installed, and what optical design does it use?

The Keystone KT-RKIT35PS-14PD-8CSA-VDIM/G2 upgrades existing 1x4 recessed fluorescent troffers without modifying existing fixture mounting, using two included mounting brackets, two side bars, and rotary latching clips. Its construction places precise optical lenses over each individual LED for consistent surface illumination with no risk of yellowing over the product lifetime.

What is the rated lifespan, warranty, and DLC rebate status of the Keystone KT-RKIT35PS-14PD-8CSA-VDIM/G2?

The Keystone KT-RKIT35PS-14PD-8CSA-VDIM/G2 features an L70 LED chip lifetime exceeding 100,000 hours at 25°C and is backed by Keystone's 10-year limited warranty under the NLB Trusted Warranty Program. It is DLC Listed under DLC Product ID S-5P5H4D, delivering over 50% energy savings compared to traditional fluorescent troffers.
