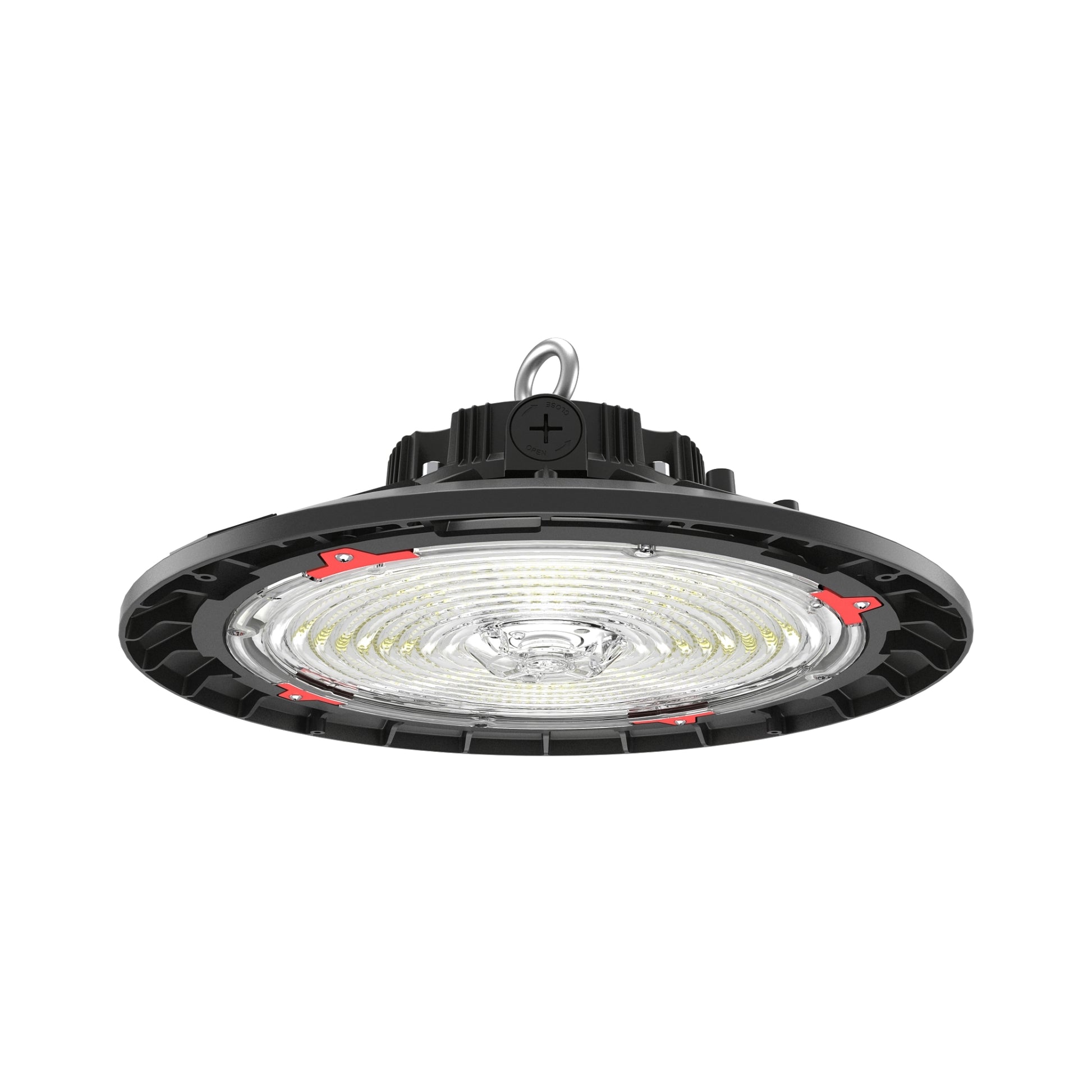

Keystone KT-RHLED240PS XFiT Color & Power Select UFO LED High Bay — 240W / 200W / 150W Selectable — Black

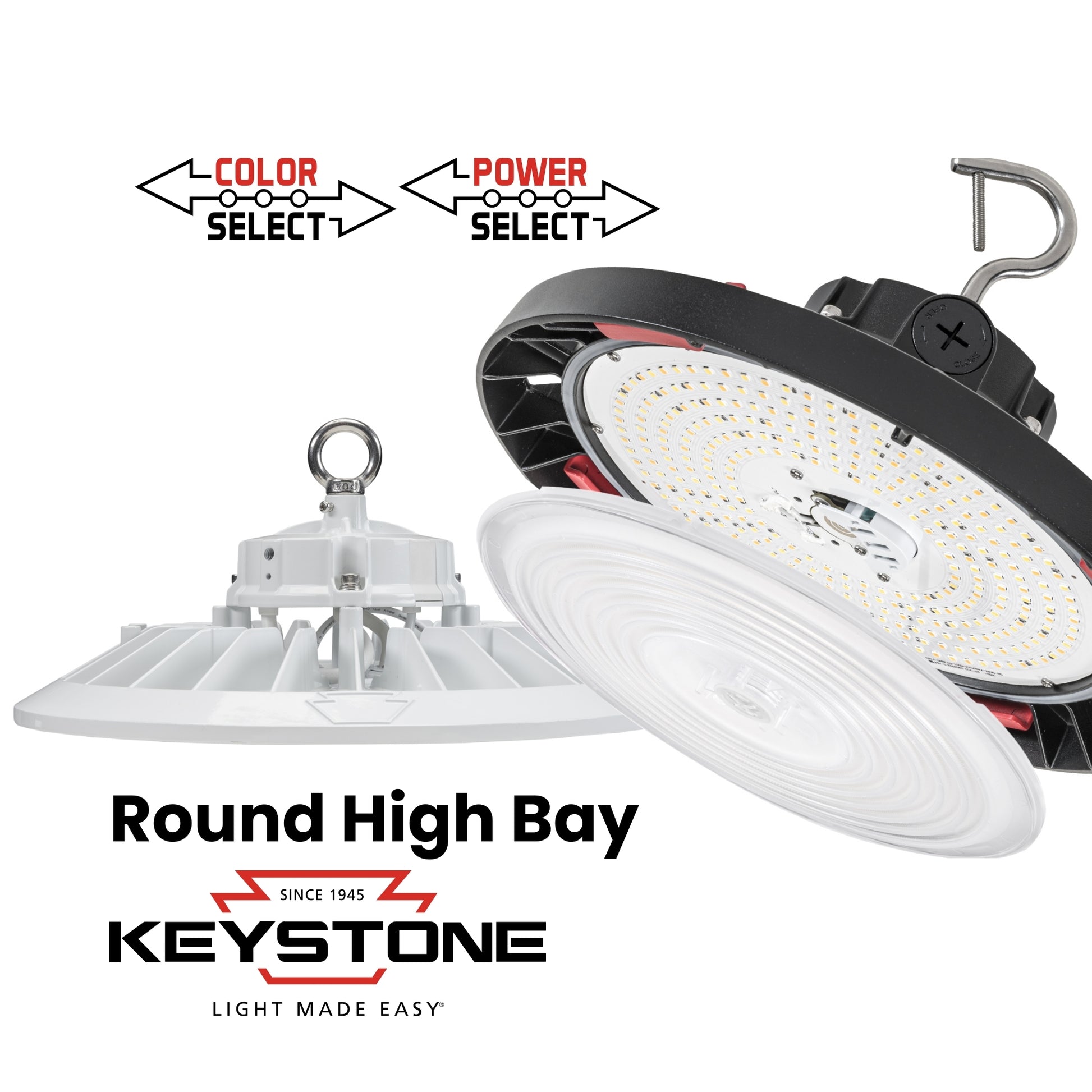

The KT-RHLED240PS-13C-8CSB-VDIM /G2 is a 13" round UFO LED high bay for high-output commercial and industrial high-bay applications. Wattage is field-selectable between 240W, 200W, and 150W via Keystone Power Select technology; color temperature is independently field-selectable between 3000K, 4000K, and 5000K via Keystone Color Select technology — no tools or rewiring required. At 240W / 4000K the fixture delivers 37,920 lm at 158 lm/W; peak efficacy reaches 172 lm/W at 150W / 4000K. Rated DLC Premium for the highest tier of utility rebate eligibility. Operates on 120–277V with integrated 0–10V dimming and is UL Listed for wet locations with IP65 ingress protection. Replaces up to 500W Metal Halide. Backed by a 10-year limited warranty from Keystone Technologies.

Key Features

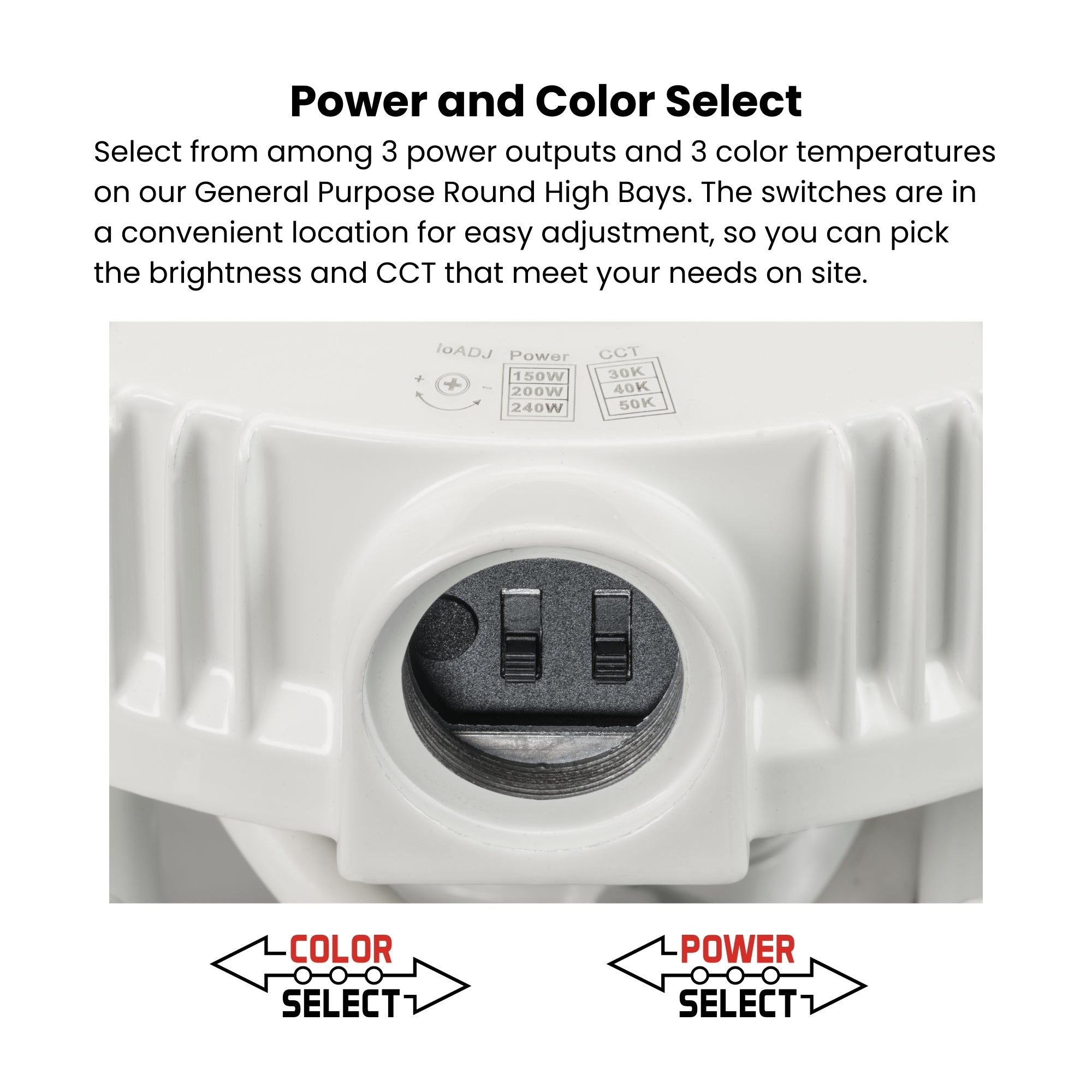

• Selectable Wattage: 240W / 200W / 150W — field-adjustable via Keystone Power Select technology; see Performance & Light Output for lumen output at each setting
• Wattage Equivalency: Replaces up to 500W Metal Halide
• Maximum Lumen Output: 37,920 lm at 240W / 4000K
• Peak Efficacy: 172 lm/W at 150W / 4000K
• CRI: >80 across all wattage and CCT configurations
• Selectable CCT: 3000K / 4000K / 5000K — field-adjustable via Keystone Color Select technology; color uniformity per ANSI C78.377-2017
• Lens & Optics: Polycarbonate ribbed lens for glare reduction and uniform light distribution; reflector accessories sold separately
• Dimming: 0–10V continuous dimming via Keystone 0–10V dimming LED driver; 6' dimming wires included
• Voltage: Universal 120–277V, 50/60Hz; constant current LED driver; built-in 6kV surge protection
• Location Rating: UL Listed for wet locations; IP65 rated for dust and water ingress

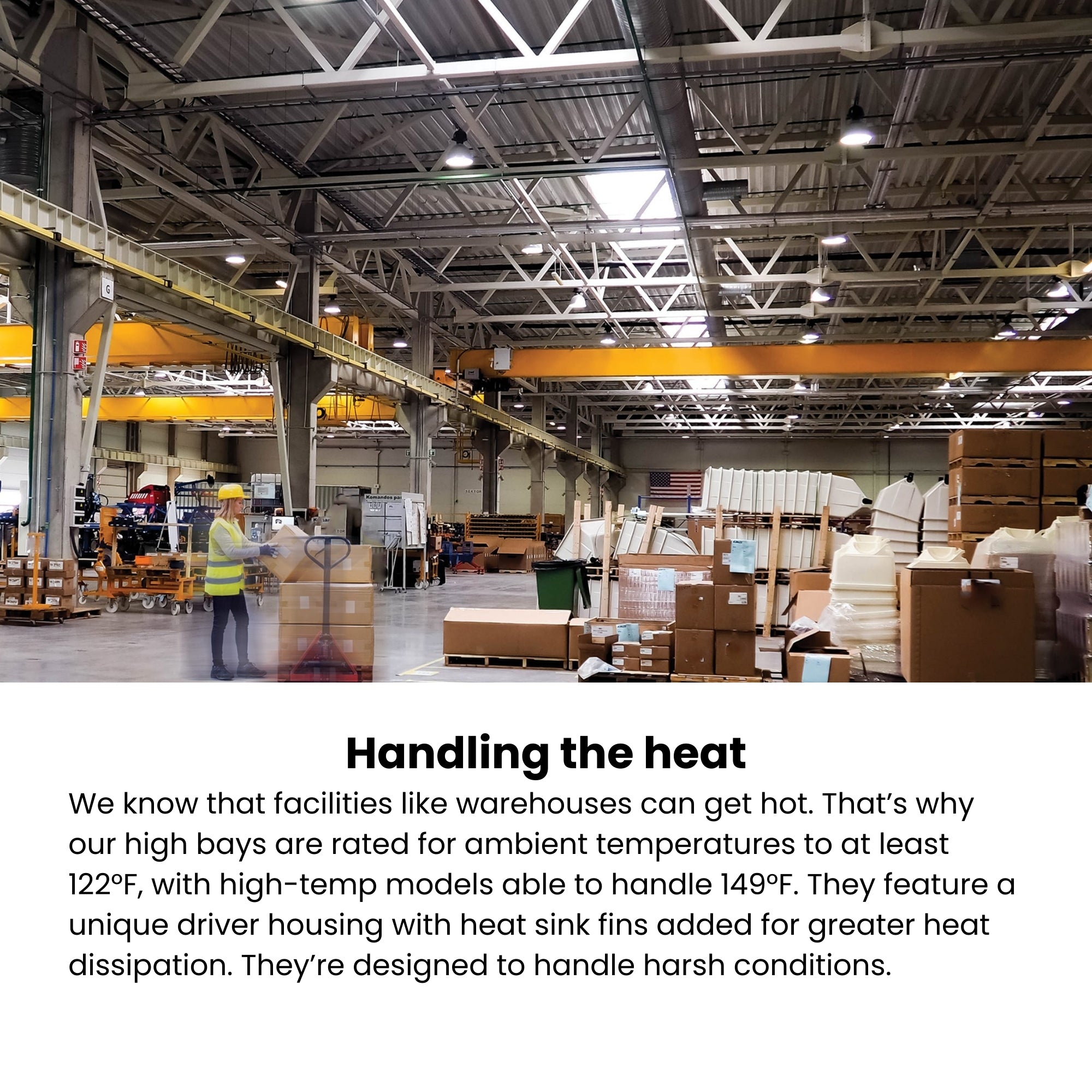

• Operating Temperature: −40°F (−40°C) minimum to 122°F (50°C) maximum ambient
• Certifications: cULus Listed, DLC Premium, TAA Compliant (/TAA suffix), N3B Trusted Manufacturer, RoHS
• Rated Life: L70 >100,000 hours @ 25°C fixture ambient; low optical flicker
• Warranty: 10-year limited — Keystone Technologies

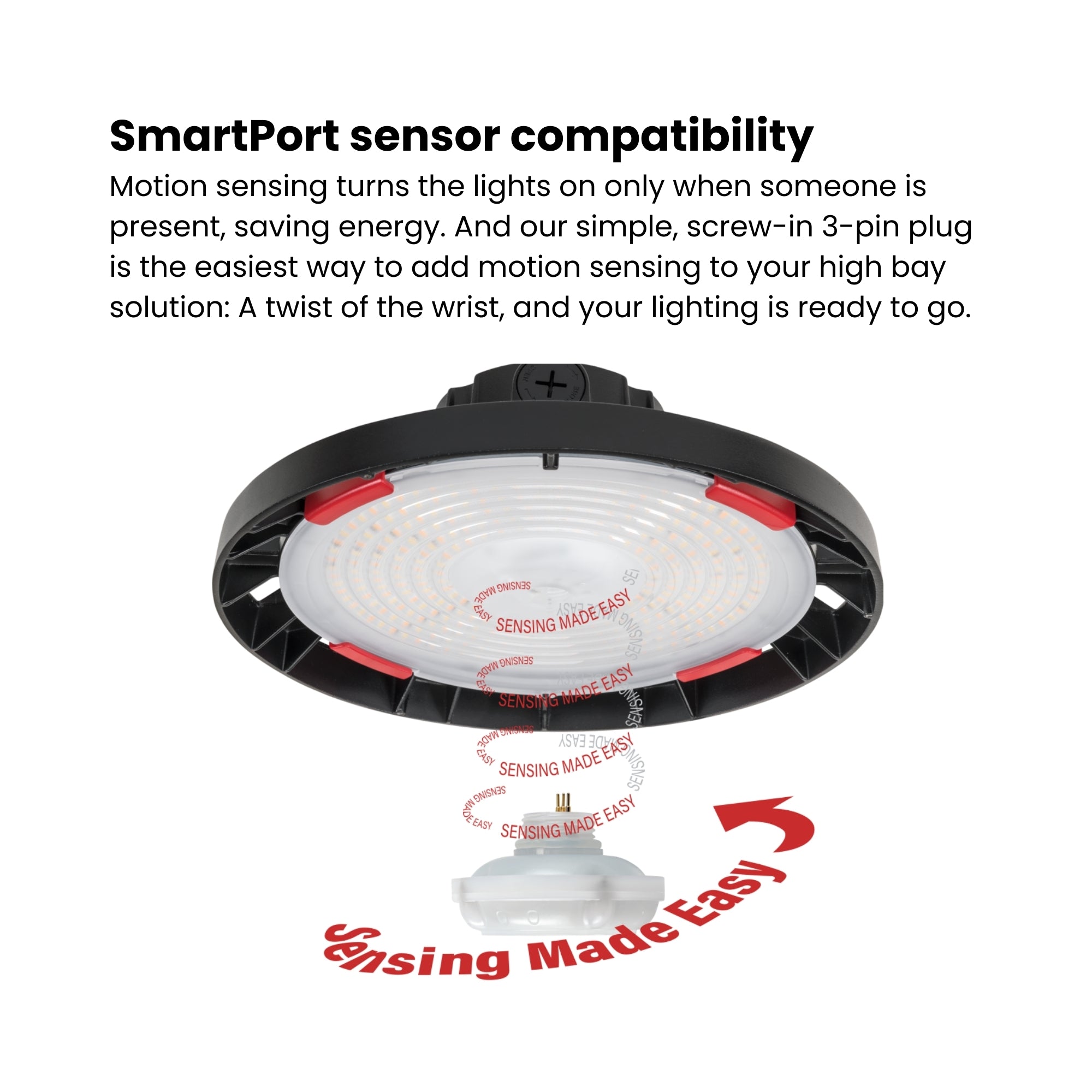

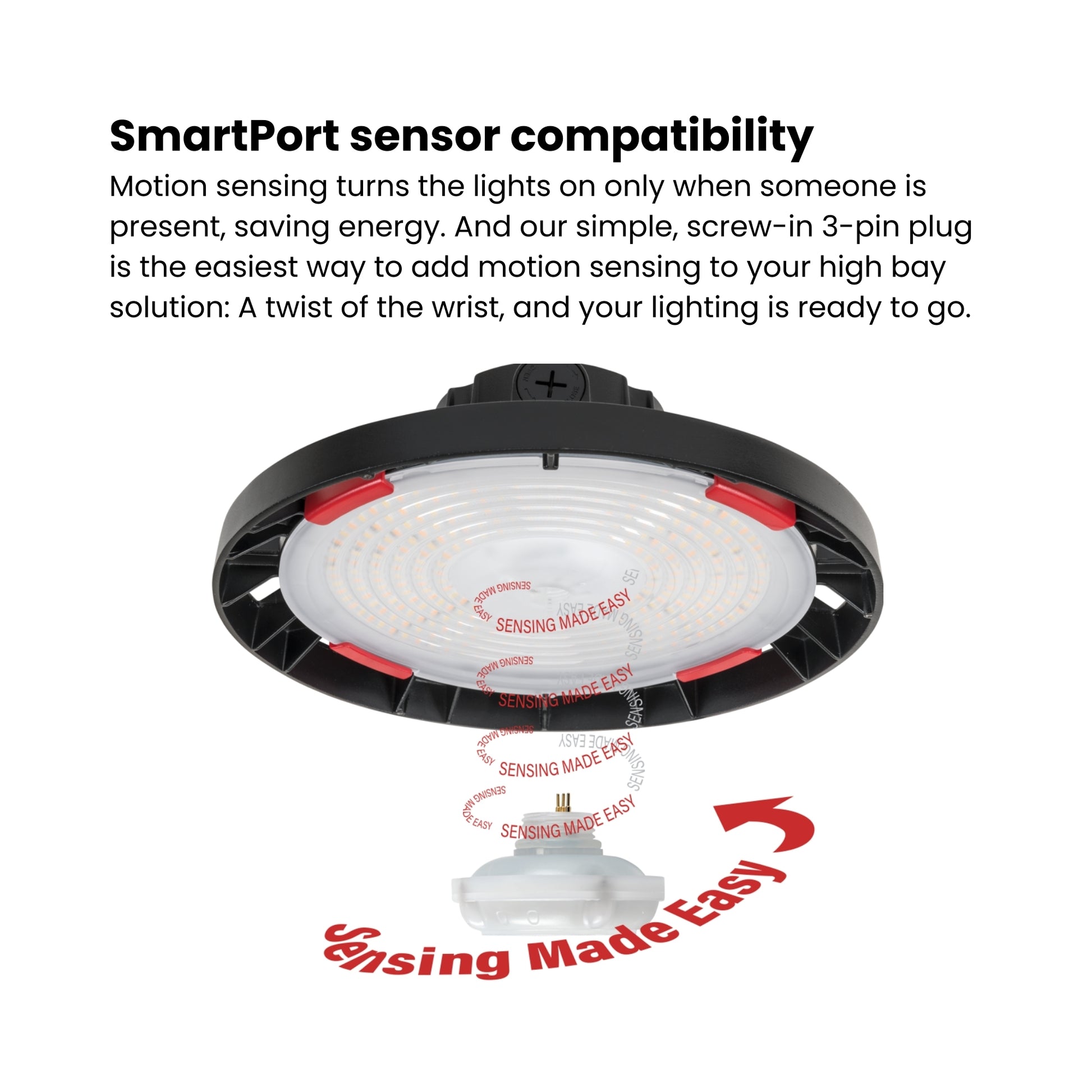

• Sensor-Ready: 1/2" knock-out (KO) receptacle — accepts Keystone screw-in PIR, microwave, and SmartLoop LLLC sensors without internal wiring

Performance & Light Output

The KT-RHLED240PS-13C delivers field-selectable output across three wattage settings and three CCT options — all combinations at 120–277V with 0–10V dimming and CRI >80. Color uniformity per ANSI C78.377-2017.

Smart & Control Features

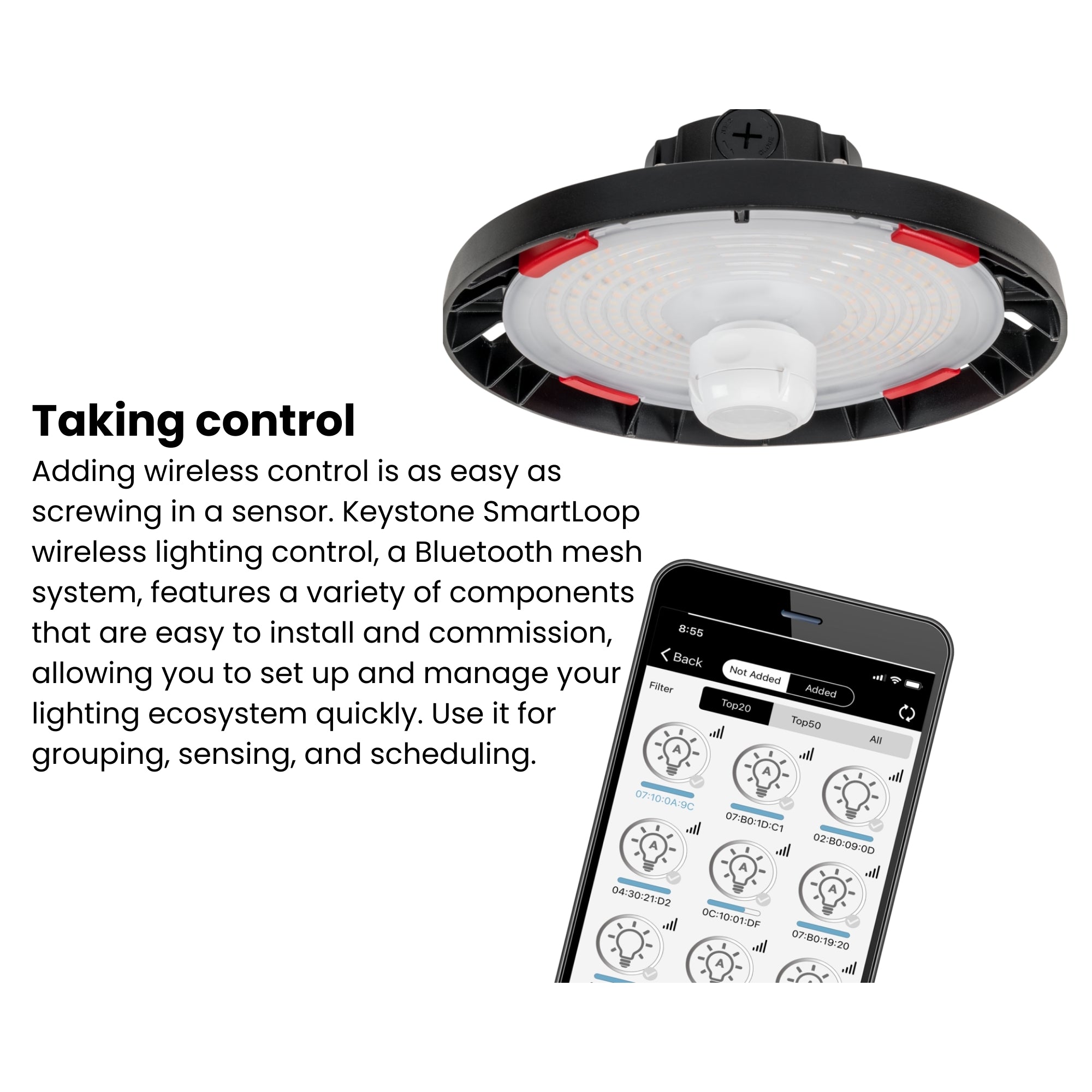

The KT-RHLED240PS-13C includes a 1/2" knock-out sensor receptacle for tool-free screw-in installation of optional occupancy and daylight sensors — no internal wiring required. Supports 0–10V continuous dimming for integration with commercial energy management systems. Compatible sensors and controllers:

• KTSL-FC3-12V-PKO-PIR (/FC3): Bluetooth mesh screw-in PIR occupancy sensor with built-in fixture controller for Keystone SmartLoop LLLC system
• KTSL-FC4-12V-PKO (/FC4): Bluetooth mesh screw-in PIR occupancy sensor with built-in fixture controller for Keystone SmartLoop LLLC system
• KTS-PIR3-12V-PKO /G2 (/PIR): Screw-in PIR multifunction sensor — preset for 10 min hold time, ∞ min standby at 50% dim, daylight detection
• KTS-MW3-12V-PKO (/MW3): Screw-in microwave multifunction sensor — preset for 10 min hold time, ∞ min standby at 50% dim, daylight disabled
• KTS-MW3-REMOTECONTROL (field-use only): Remote control for KTS-MW3-12V-PKO and KTS-PIR3-12V-PKO /G2 sensors — field adjustment of all sensor settings

Electrical

Keystone 0–10V dimming constant current LED driver. Input voltage: 120–277V, 50/60Hz. Built-in 6kV surge protection. Power Factor: >0.90. THD: <20%. Dimming: 0–10V continuous; low optical flicker. Factory-installed 6-foot input cord and 6-foot dimming wires included standard. Emergency battery backup available as factory- or field-installed option: KT-EMRG-LED-40SD-5000-CEN /SF (/EM suffix) — 40W constant wattage, approximately 5,000 lm, 120–277V input, CEC T20 compliant, single flex cable with included J-Box. Note: EM cannot be used in conjunction with screw-in sensors on these fixtures. For 480V infrastructure: field-installable step-down transformer KTAT-250-480-277 /SF (/480 suffix) — fully enclosed, single flex, 250VA or lower. Mercury-free, RoHS-compliant components.

Construction

Housing & Thermal: Powder-coated aluminum housing — aluminum body provides passive thermal management to protect internal electronics and support the rated L70 >100,000-hour lifespan in continuous-duty commercial and industrial environments.

Lens & Optics: Polycarbonate ribbed lens for glare reduction and uniform light distribution. Aluminum dome reflector and clear polycarbonate reflector accessories available separately (see Installation & Mounting).

Finish: Black powder-coat finish.

Environmental & Safety: IP65 rated — completely dust-tight and sealed against low-pressure water jets. UL Listed for wet locations. Built-in 6kV surge protection. Operating range: −40°F (−40°C) to 122°F (50°C). Low optical flicker. Mercury-free, RoHS-compliant.

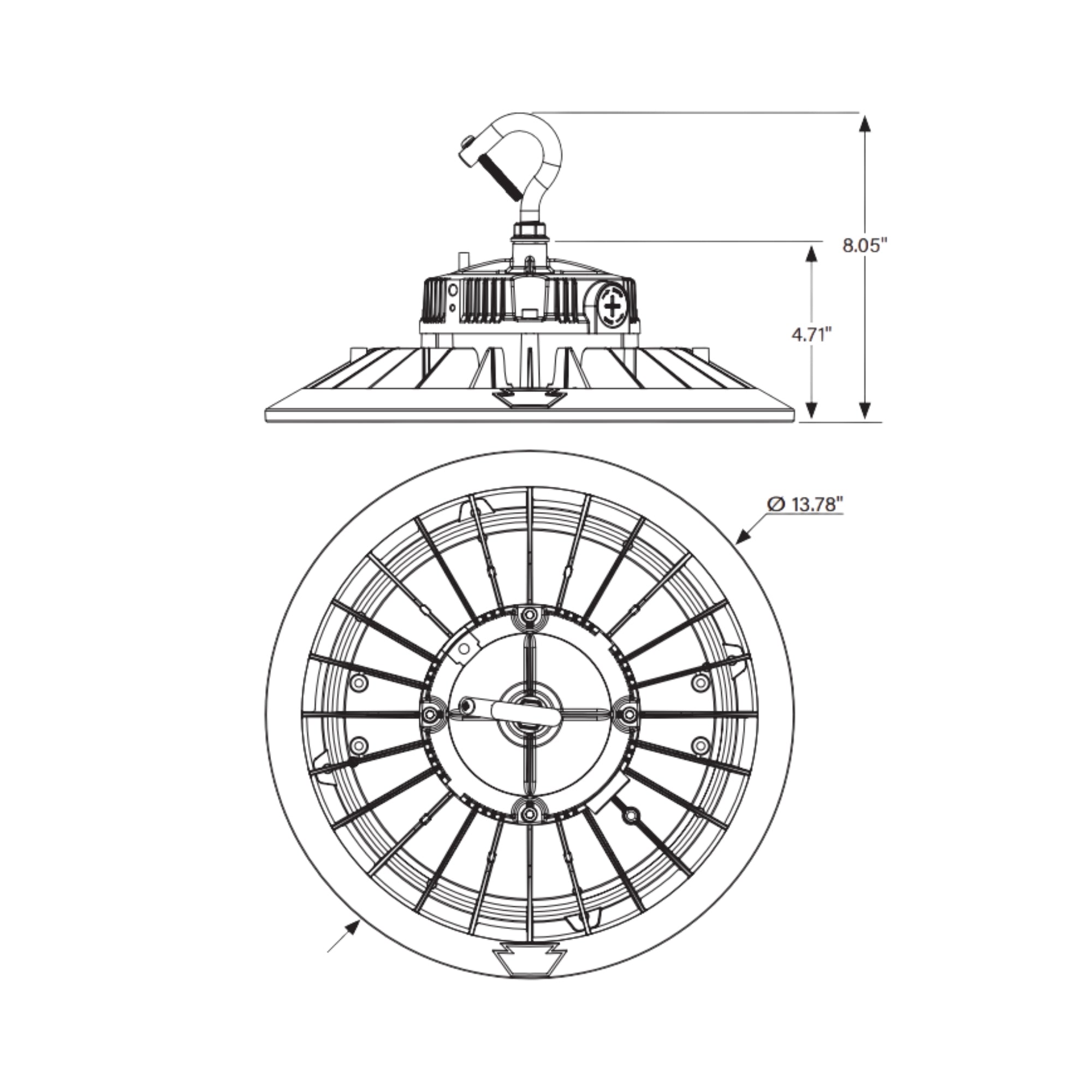

Dimensions & Weight: 13.78" dia × 8.05" H (J-Hook adds 4.71" H). Weight: 8.0 lbs.

Installation & Mounting

Standard Hardware: J-Hook mounting accessory included standard for suspended hook installation.

Mounting Options: Surface mount kit and J-Box pole pendant mount available via accessory kits (sold separately). Step-down transformer available for 480V facility applications (/480 suffix, sold separately).

Wiring: Factory-installed 6-foot input cord and 6-foot dimming wires included standard. Optional twist-lock cord sets: KT-P-L515P — 125V NEMA L5-15P; KT-P-L615P — 250V NEMA L6-15P; KT-P-L715P — 277V NEMA L7-15P.

Recommended Mounting Heights: 150W — 25 to 35 ft; 200W — 35 to 45 ft; 240W — 45 to 60 ft. For lower-ceiling applications (20–40 ft), see KT-RHLED150PS or KT-RHLED200PS.

Accessories (Sold Separately):

• Aluminum Dome Reflector (240W body): KT-RHLED-AR90-3-KIT /G2 — includes mounting hardware
• Clear Polycarbonate Reflector (240W body): KT-RHLED-CL90-3-KIT /G2 — includes mounting hardware; not compatible with screw-in PIR sensors
• Wire Guard (240W body): KT-RHLED-WG-3-KIT /G2 — includes mounting hardware
• Surface Mount Kit (240W body, Black): KT-RHLED-SM-3-KIT /G2 — includes mounting hardware
• Surface Mount Kit (240W body, White): KT-RHLED-SM-3-KIT-W /G2 — includes mounting hardware
• J-Box Pole Pendant Mount (Black): KT-RHLED-JBOX-PM /G2 — optimized for pole pendant and step-down transformer applications
• J-Box Pole Pendant Mount (White): KT-RHLED-JBOX-PM-W /G2
• Step-Down Transformer (/480 suffix): KTAT-250-480-277 /SF — fully enclosed, single flex, 250VA or lower, for 480V infrastructure
• Emergency Battery Backup (/EM suffix): KT-EMRG-LED-40SD-5000-CEN /SF — 40W, ~5,000 lm, 120–277V, CEC T20 compliant; includes J-Box
• Sensors: KTSL-FC3-12V-PKO-PIR · KTSL-FC4-12V-PKO · KTS-PIR3-12V-PKO /G2 · KTS-MW3-12V-PKO

Certifications & Rebates

• cULus Listed — wet locations
• DLC Premium — qualifies for the highest tier of utility rebate programs. Visit designlights.org and search DLC Product ID S-Y5ZT80 to verify rebate eligibility with your utility provider.
• TAA Compliant — available as /TAA suffix variant; eligible for U.S. government and GSA procurement
• N3B Trusted Manufacturer
• RoHS Compliant
• IP65 Rated

Typical Applications

• Very high-ceiling warehouses and distribution centers at 45–60 ft — 240W delivers 37,920 lm for wide-aisle, uniform high-bay coverage replacing 500W MH
• Heavy industrial and manufacturing plants — CRI >80 and selectable CCT support task-accurate color rendering across production floors
• Aircraft hangars and maintenance facilities — IP65 rated, −40°C cold-start, and wide wattage range for large variable-use environments
• Indoor sports arenas and large gymnasiums — wet location rated and CRI >80 for high-bay sport facility environments
• Cold storage and refrigerated warehouses — rated to −40°F (−40°C) for dependable cold-start performance
• Big-box retail and large-format commercial interiors — 13" form factor at 240W maximum output for large floor-plate retail environments

What's Included

• Keystone KT-RHLED240PS-13C-8CSB-VDIM /G2 XFiT Round UFO LED High Bay — Black
• J-Hook mounting accessory
• 6-foot input cord
• 6-foot dimming wires
