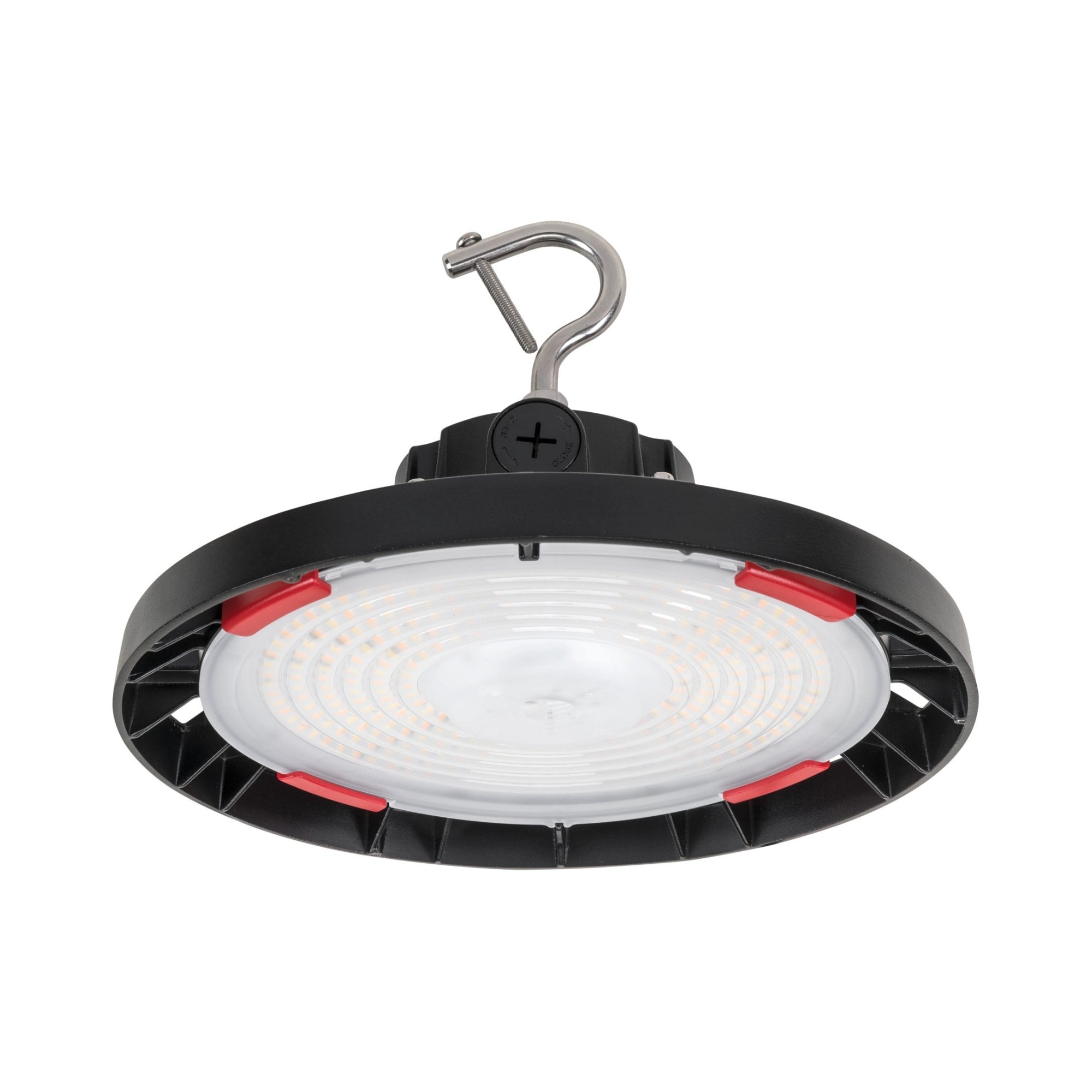

Keystone XFit OpticSwap UFO LED High Bay — 150W Selectable Configuration

The Keystone KT-RHLED150PS-12CD-OSD-8CSB-VDIM-P is a commercial-grade UFO LED high bay engineered for demanding industrial environments. Operating at a selectable 80W, 100W, or 150W to produce up to 23,850 lumens, this luminaire runs on a universal 120-277V input. Designed for application flexibility, it features Keystone's OpticSwap interchangeable lens technology and field-adjustable color temperatures to meet precise lighting compliance in warehouses, manufacturing plants, and large commercial spaces.

Key Features

• Selectable Wattage: Field-adjustable between 80W, 100W, and 150W.
• Selectable CCT: Toggle between 3000K, 4000K, and 5000K color temperatures.
• Lumen Output: Scales from 12,320 up to 23,850 lumens depending on selected settings.
• Input Voltage: Universal 120-277V 50/60Hz operation.
• OpticSwap Lenses: Includes interchangeable 90° standard and 120° wide-angle lenses.
• Dimming Protocol: Standard 0-10V continuous dimming.
• Efficacy: Ultra-high efficiency rating up to 159 lm/W.
• Environmental Ratings: IP65 rated for wet locations.
• Surge Protection: Built-in 6kV line-to-line surge protection.
• Lifespan: 100,000-hour L70 rated LED life.

Typical Applications

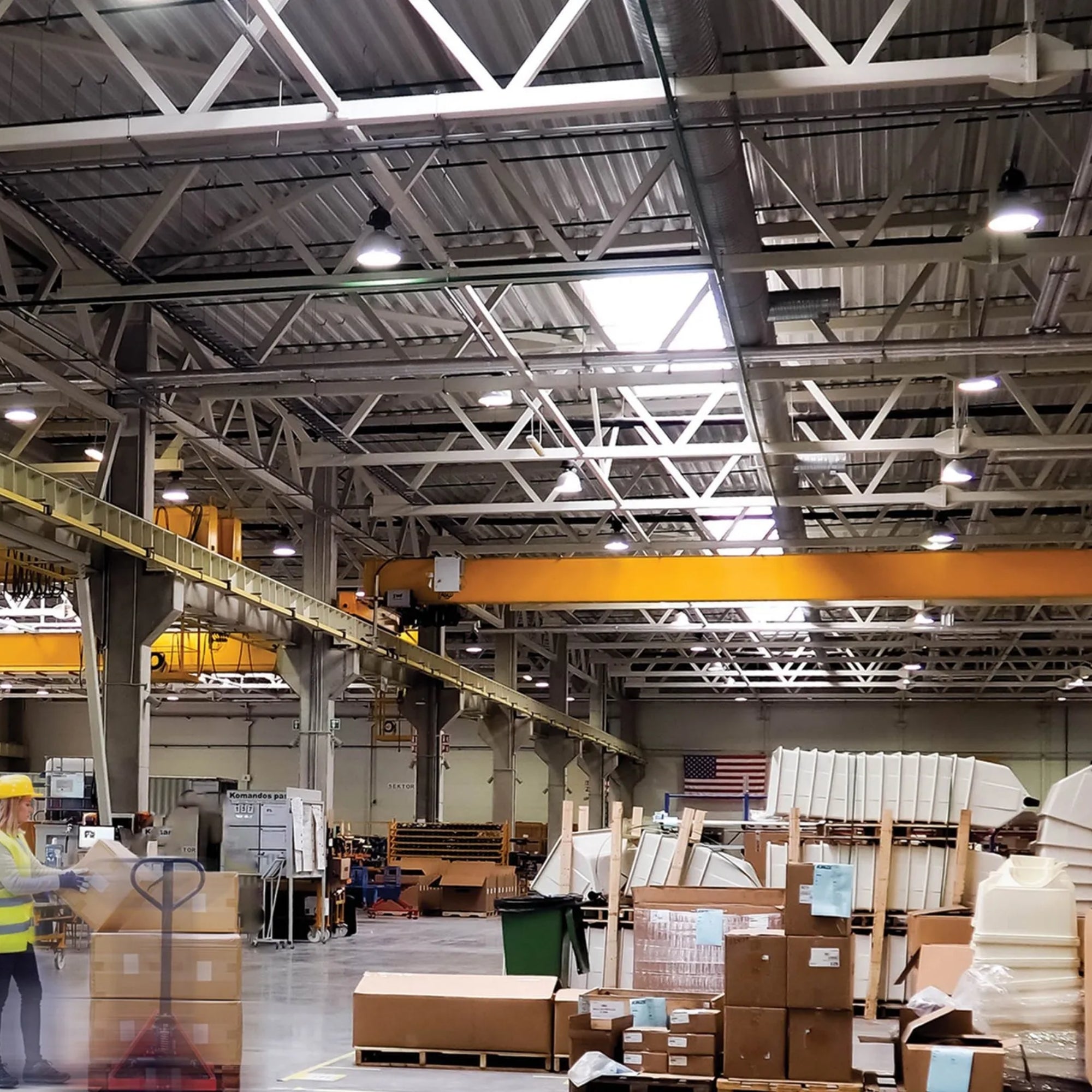

• High-ceiling warehouses and distribution centers.
• Large-scale manufacturing facilities and assembly lines.
• Indoor commercial recreation areas and gymnasiums.
• Retail stockrooms and bulk merchandise floors.
• Aviation hangars and industrial maintenance shops.

Performance & Light Output

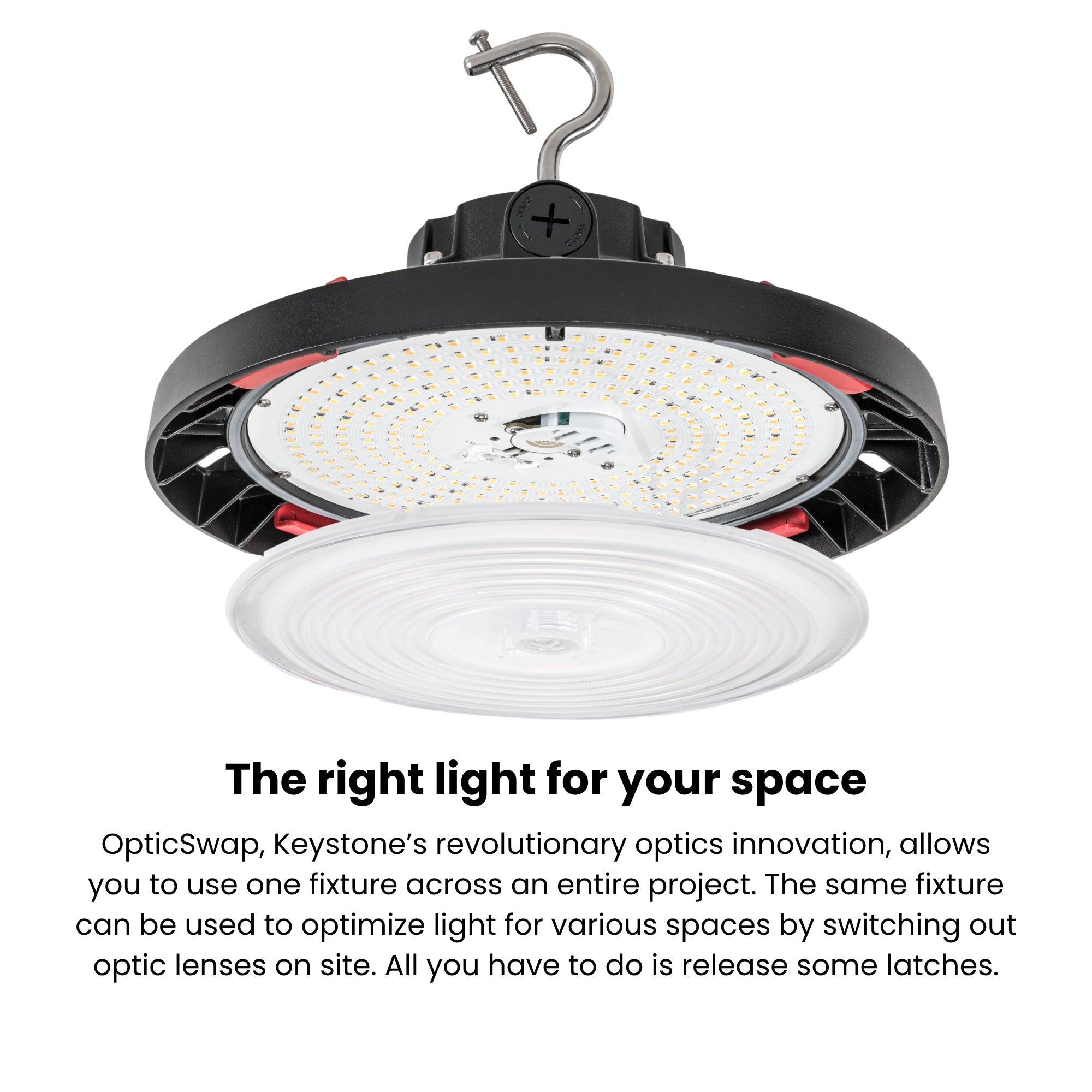

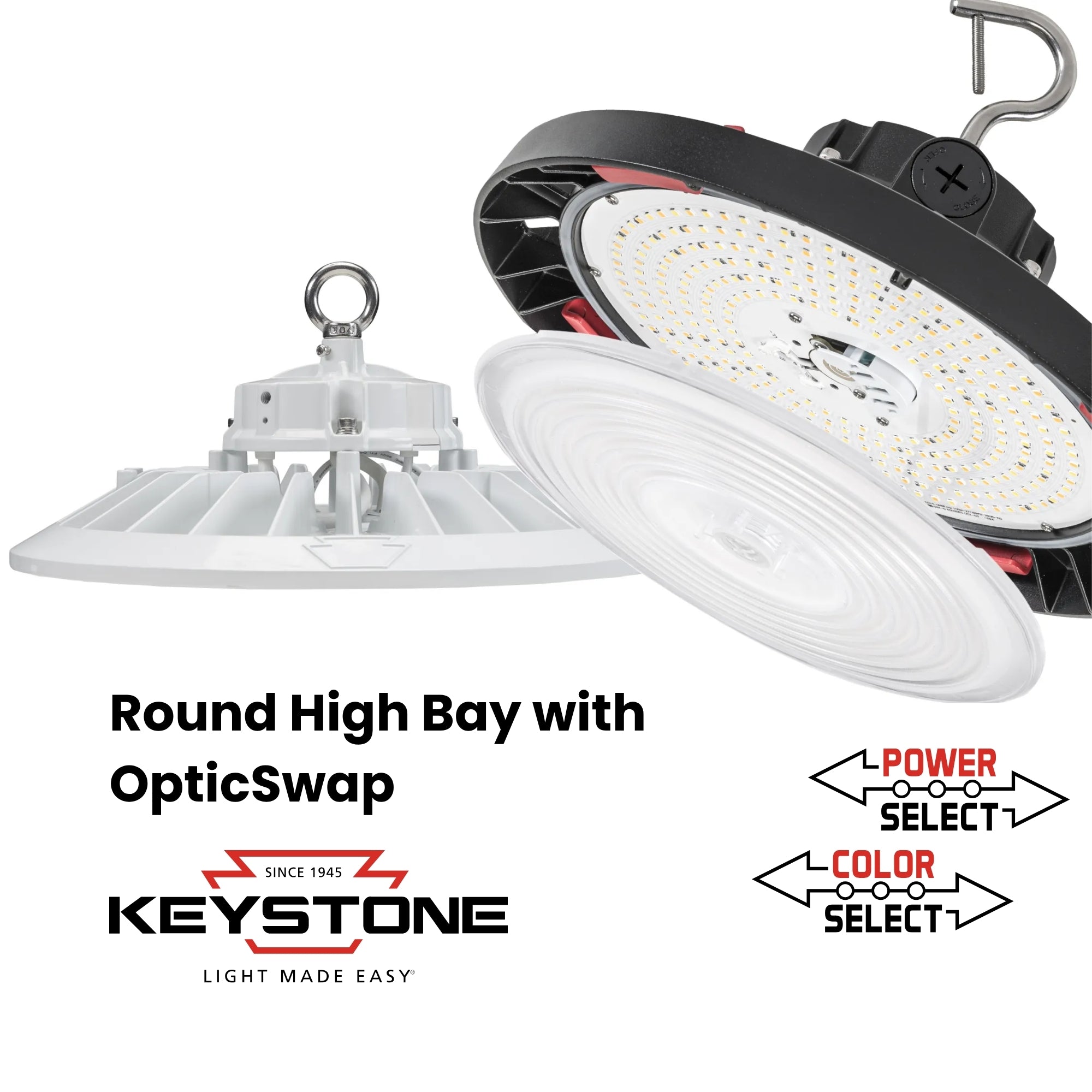

Engineered for maximum adaptability, this high bay delivers up to 23,850 lumens with a stellar efficacy reaching 159 lm/W. The standout feature is the OpticSwap multi-function lens system, which allows users to easily shift between the pre-installed 90-degree standard lens for focused illumination and the included 120-degree wide-angle lens for broader coverage without needing separate fixtures. With selectable 3000K, 4000K, and 5000K color temperatures and an 80+ CRI, it ensures optimal visibility. The ribbed polycarbonate lens minimizes glare, and the high-performance LEDs guarantee long-term reliability with an L70 lifespan of 100,000 hours.

Electrical & Controls

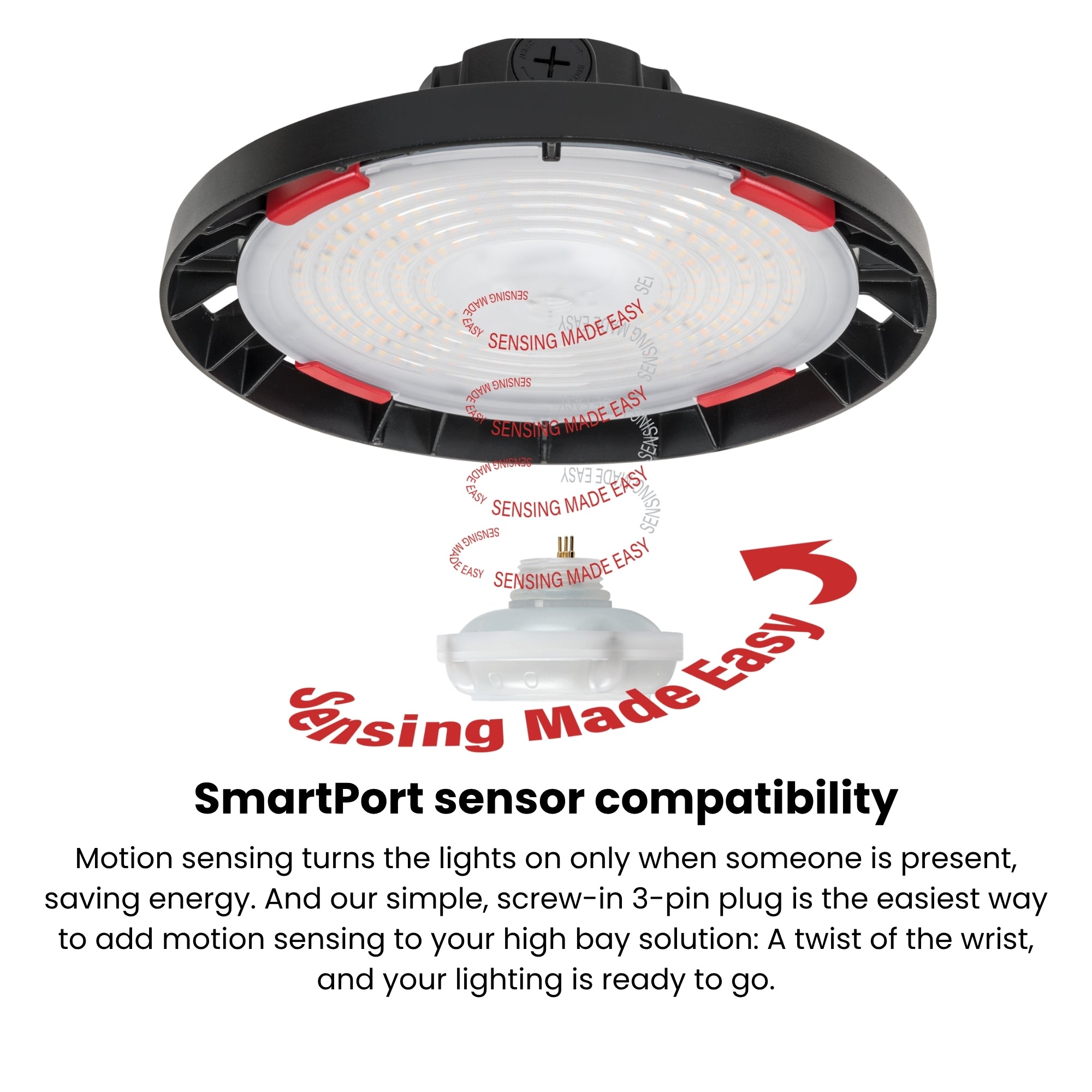

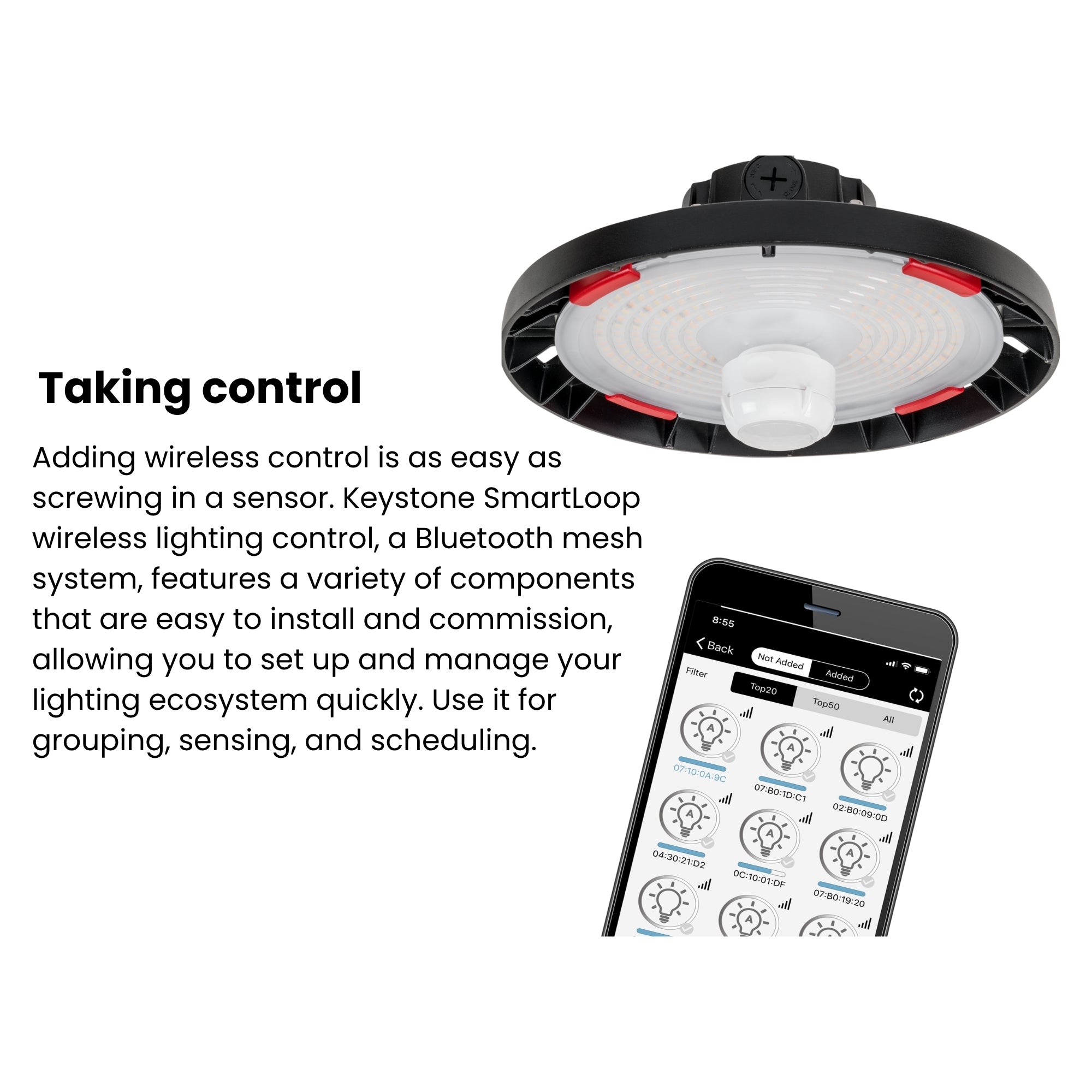

This luminaire features a universal 120-277V driver equipped with 0-10V dimming capabilities for seamless integration with commercial energy management systems. The electrical design is fortified with integrated 6kV surge protection to withstand standard industrial power fluctuations. The intelligent design includes a dedicated twist-in sensor receptacle located in the center of the fixture. Installers can quickly connect compatible Keystone SmartLoop or standard PIR motion sensors (sold separately) to automate lighting schedules and maximize energy efficiency without complex internal wiring.

Construction & Durability

Built to endure demanding commercial environments, the fixture features a robust powder-coated aluminum housing with a black finish and advanced heat transfer technology to properly manage LED thermal limits. The OpticSwap polycarbonate lenses are impact-resistant and designed for tool-free adjustments. The complete luminaire is DLC certified and carries an IP65 wet location rating, protecting the internal electronics from heavy dust ingress and ambient moisture across an operating temperature range of -40°F to 122°F (-40°C to 50°C).

Installation & Mounting

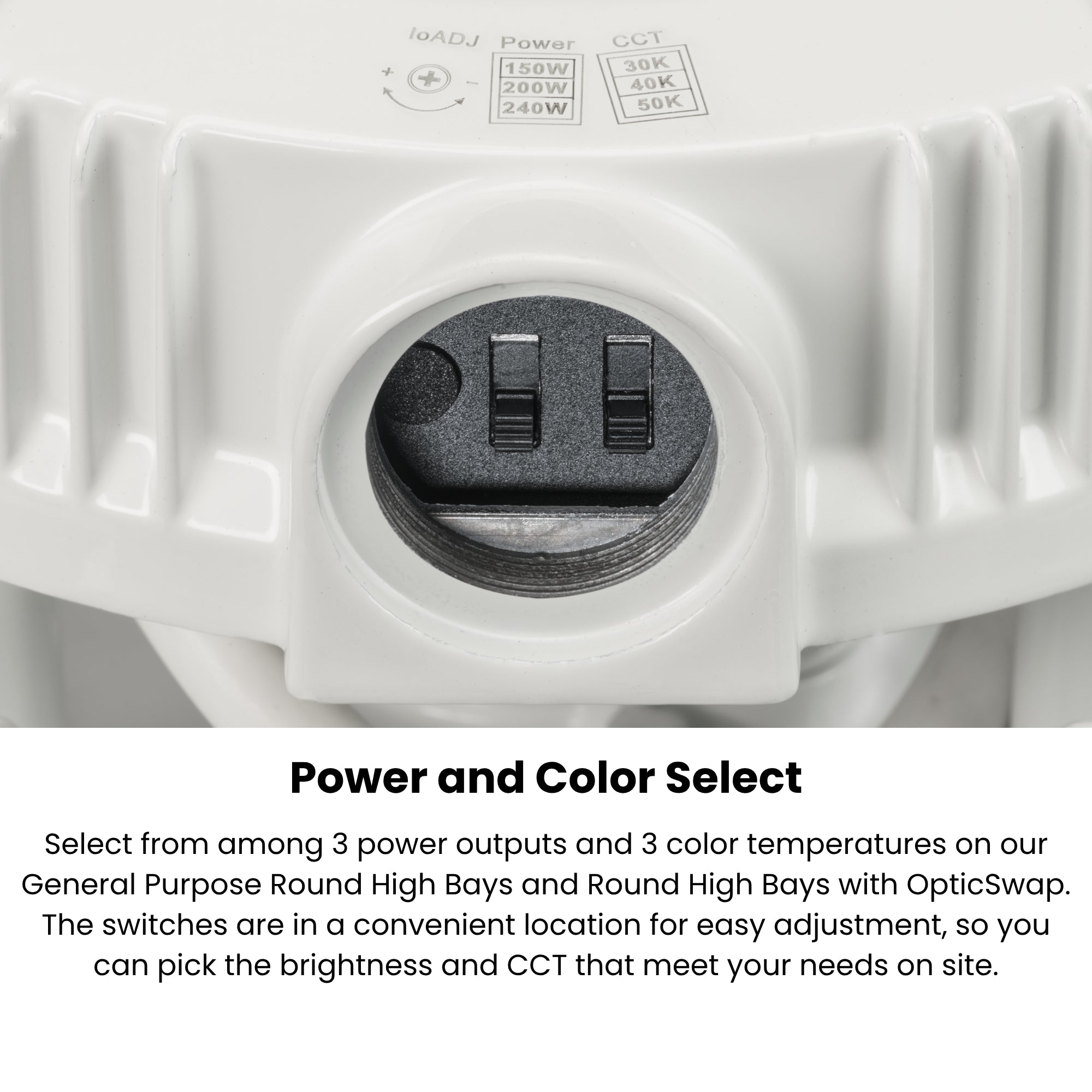

Designed for rapid deployment, this circular high bay supports standard suspended mounting suitable for a wide range of ceiling architectures. The field-adjustable wattage and CCT switches are positioned for easy access, allowing electrical contractors to quickly configure the fixture on-site. For standard hanging requirements, compatible O-bolt and J-hook mounting accessories are included alongside a pre-wired 6-foot cord for input and dimming wires. Optional surface mount kits, wire guards, and dome reflectors (sold separately) can be utilized to achieve specialized orientations.

What's Included

• Keystone XFit OpticSwap UFO LED High Bay
• 90-Degree Standard Lens (Installed)
• 120-Degree Wide-Angle Lens
• O-Bolt and J-Hook Mounting Accessories
