Keystone KT-RHLED100PS XFiT OpticSwap UFO LED High Bay — 100W / 70W / 50W Selectable — Black

The Keystone KT-RHLED100PS-12CD-OSD-8CSB-VDIM-P is a 12-inch UFO LED high bay with field-selectable wattage of 100W, 70W, and 50W and field-selectable CCT of 3000K, 4000K, and 5000K, delivering up to 15,900 lumens at a peak efficacy of 163 lm/W. It operates on universal 120–277V with integrated 0–10V dimming, carries a UL Wet Location listing and IP65 ingress protection rating, and is DLC Listed for utility rebate eligibility. Features Keystone's OpticSwap tool-free interchangeable lens system — 90° standard lens installed, 120° wide-angle lens included. Replaces up to 250W Metal Halide at the 100W setting.

Key Features

• Selectable Wattage: 100W / 70W / 50W — field-adjustable via built-in Power Select switch on the fixture body
• Selectable CCT: 3000K / 4000K / 5000K — field-adjustable via built-in Color Select switch
• Maximum Lumen Output: 15,900 lm at 100W / 4000K
• Peak Efficacy: 163 lm/W at 50W / 4000K
• CRI: >80 across all wattage and CCT configurations
• Dimming: 0–10V continuous dimming standard
• Voltage: Universal 120–277V, 50/60Hz; constant current driver
• Location Rating: UL Listed for wet locations; IP65 rated for dust and water ingress

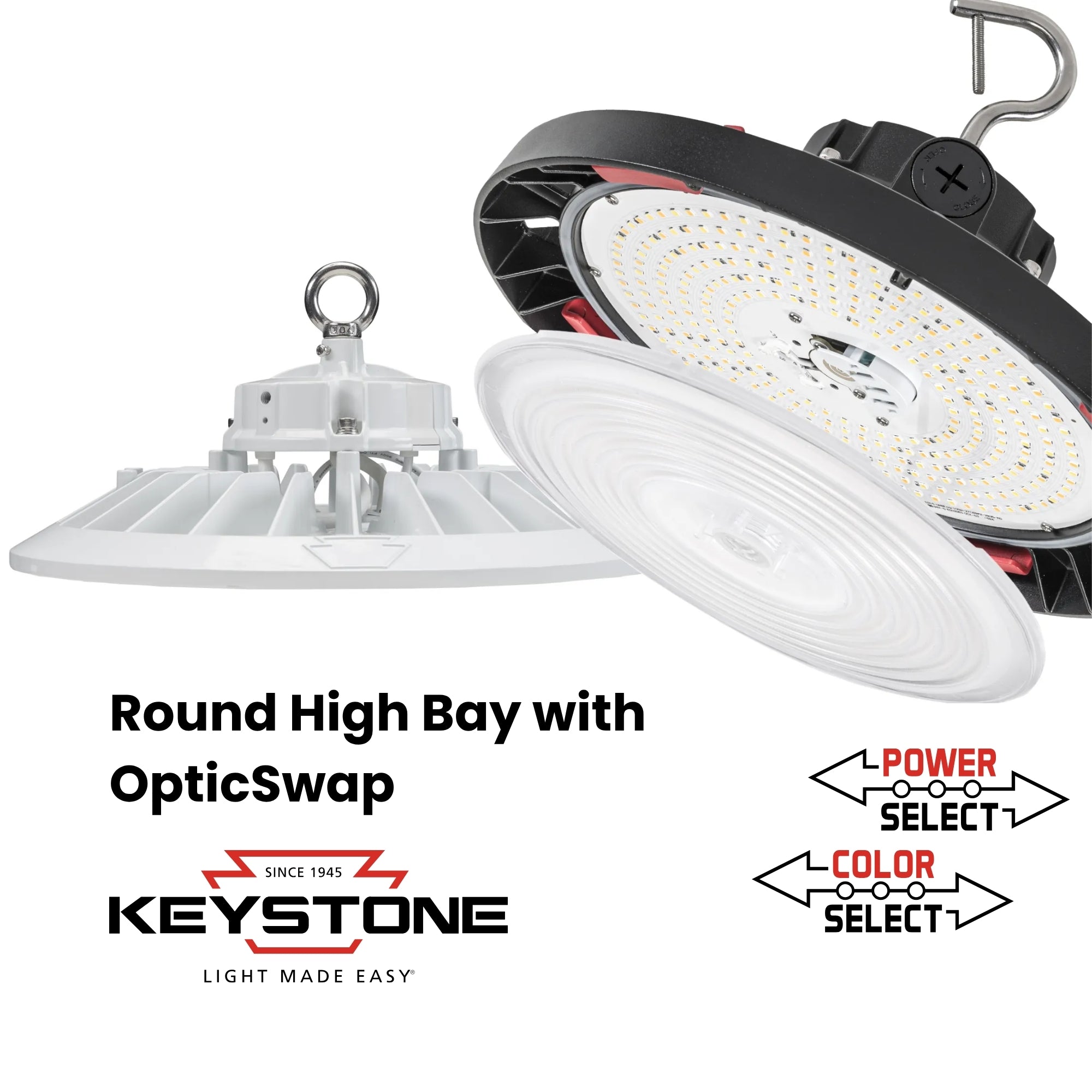

• OpticSwap Lens System: Tool-free interchangeable lenses — 90° standard (installed), 120° wide-angle (included); swap in seconds via tool-free latch

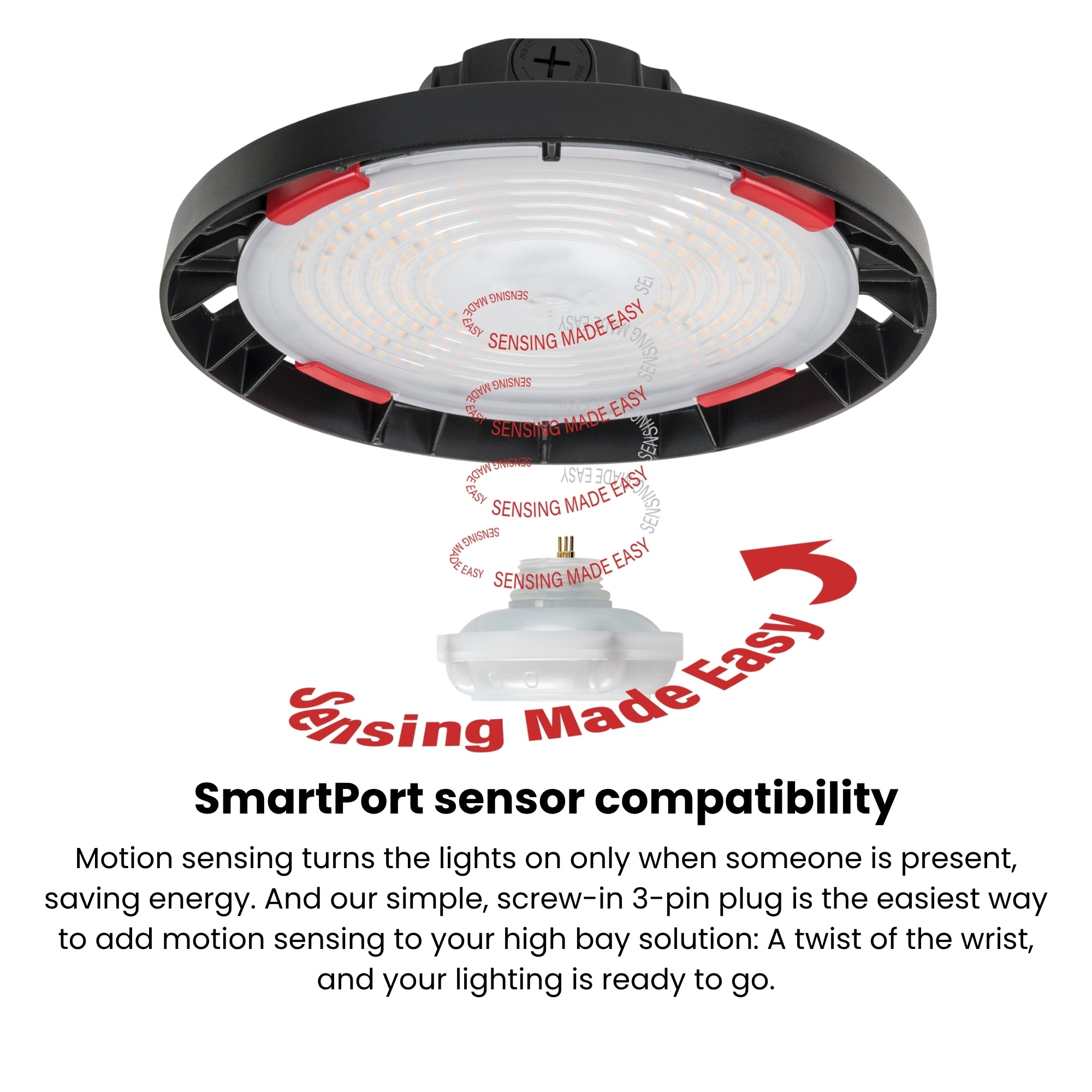

• Sensor-Ready: Built-in 1/2″ twist-in receptacle accepts Keystone SmartLoop and SmartPort sensors without internal wiring
• Maximum Ambient Temperature: 122°F (50°C)
• Certifications: UL Wet Location, DLC Listed
• Rated Life: L70 >100,000 hours @ 25°C fixture ambient
• Warranty: 10-year limited — Keystone Technologies
• Wattage Equivalency: 100W replaces up to 250W MH; 70W replaces up to 175W MH

Performance & Light Output

At 100W: 13,900 lm (3000K / 139 lm/W), 15,900 lm (4000K / 159 lm/W), 14,900 lm (5000K / 149 lm/W). At 70W: 10,220 lm (3000K / 146 lm/W), 11,270 lm (4000K / 161 lm/W), 10,920 lm (5000K / 156 lm/W). At 50W: 7,550 lm (3000K / 151 lm/W), 8,250 lm (4000K / 165 lm/W), 8,150 lm (5000K / 163 lm/W). CRI >80 across all configurations. Rated life L70 >100,000 hours @ 25°C fixture ambient per IES LM-80 / TM-21.

Lens & Optics

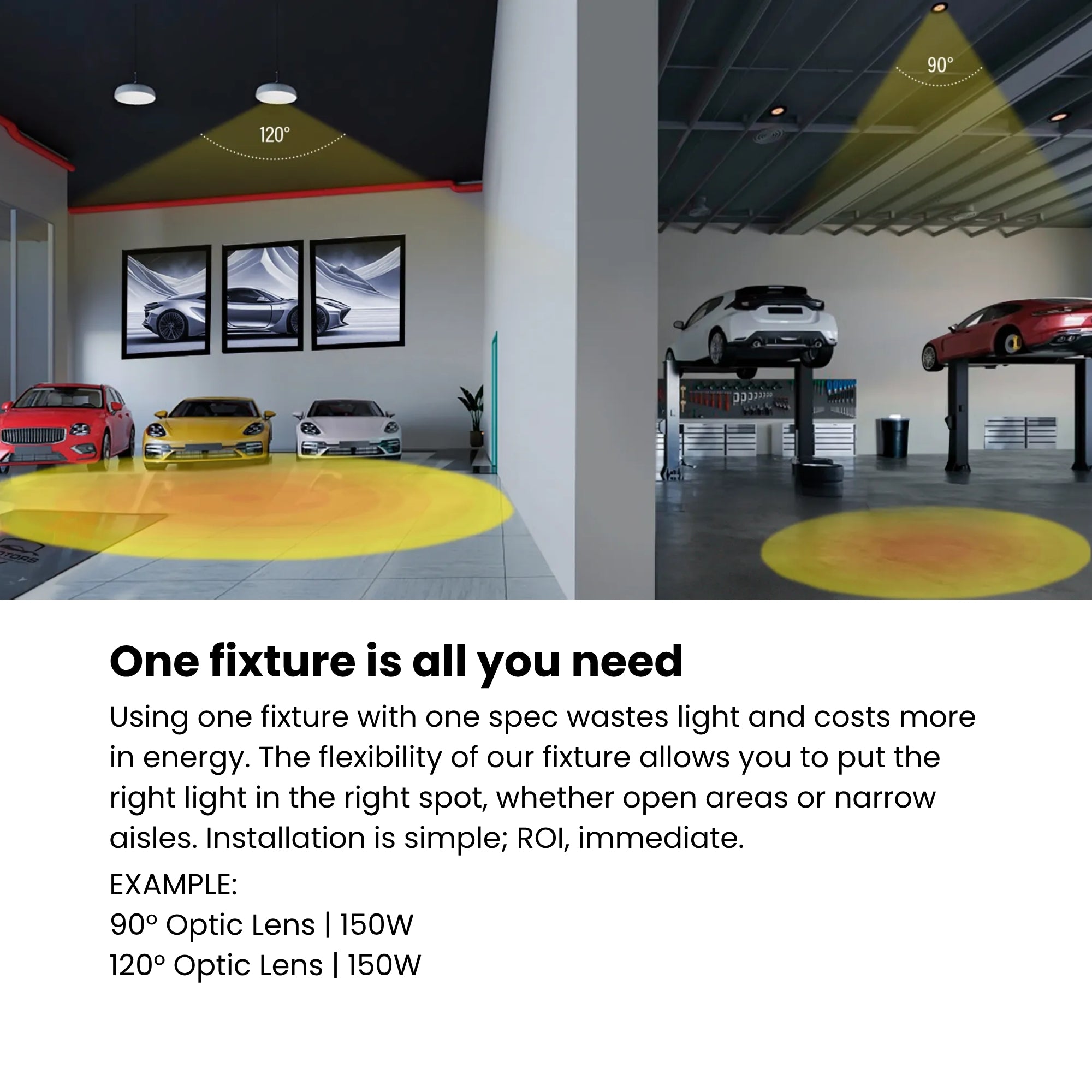

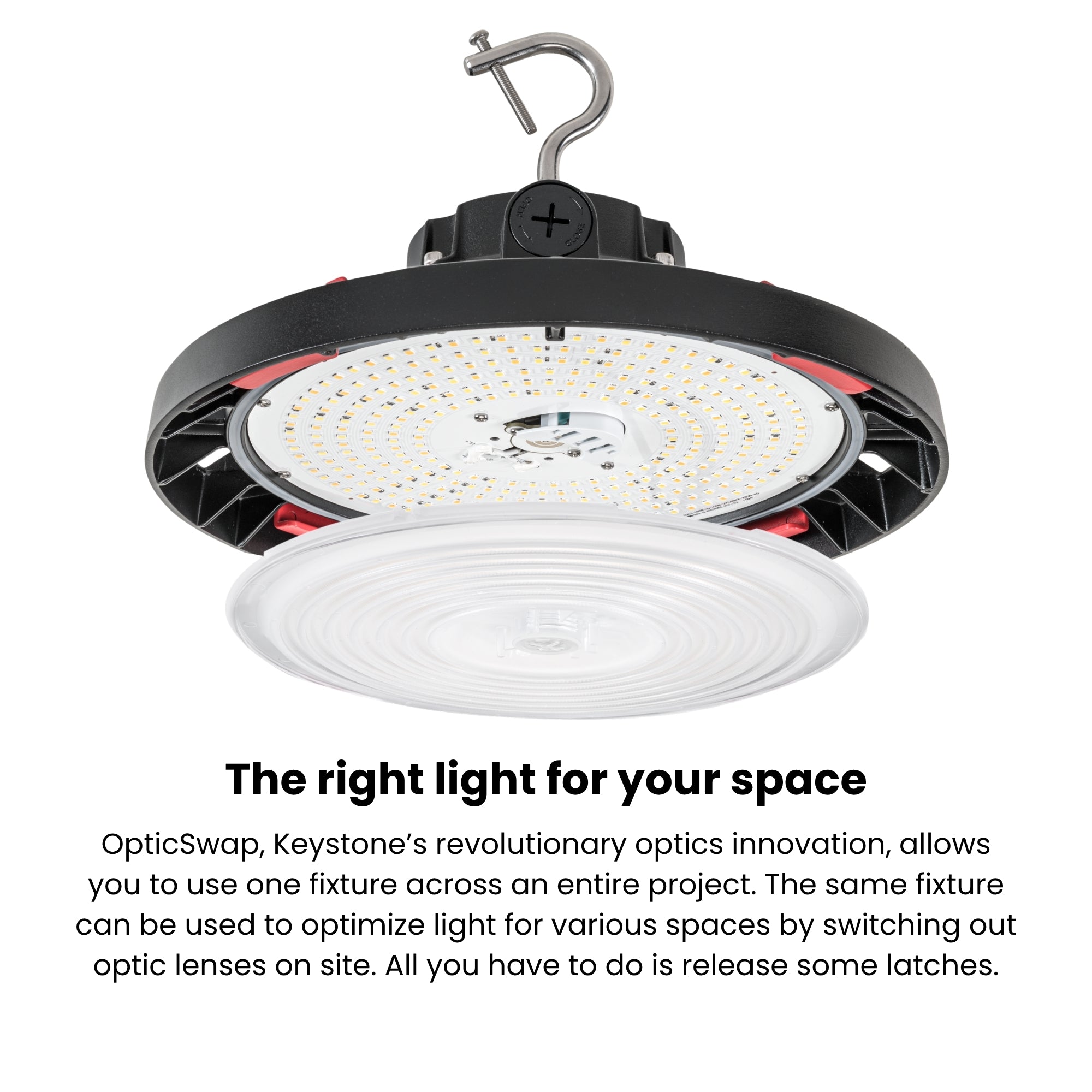

The OpticSwap tool-free latch system allows beam angle changes without tools or rewiring. The 90° standard lens (pre-installed) provides focused distribution for higher mounting heights and tighter aisle spacing. The included 120° wide-angle lens broadens horizontal spread for lower mounting heights and wider spacing layouts. To swap: release the tool-free latch, remove the installed lens, snap in the alternate lens. One SKU covers both beam distributions. Optional aluminum dome reflector available separately: KT-RHLED-AR90-1-KIT /G2 (fits 100W and 150W body).

Smart & Control Features

The fixture includes a built-in 1/2″ twist-in sensor receptacle for field installation of compatible Keystone sensors without internal wiring. Supports 0–10V continuous dimming for integration with commercial energy management systems. Compatible sensor accessories:

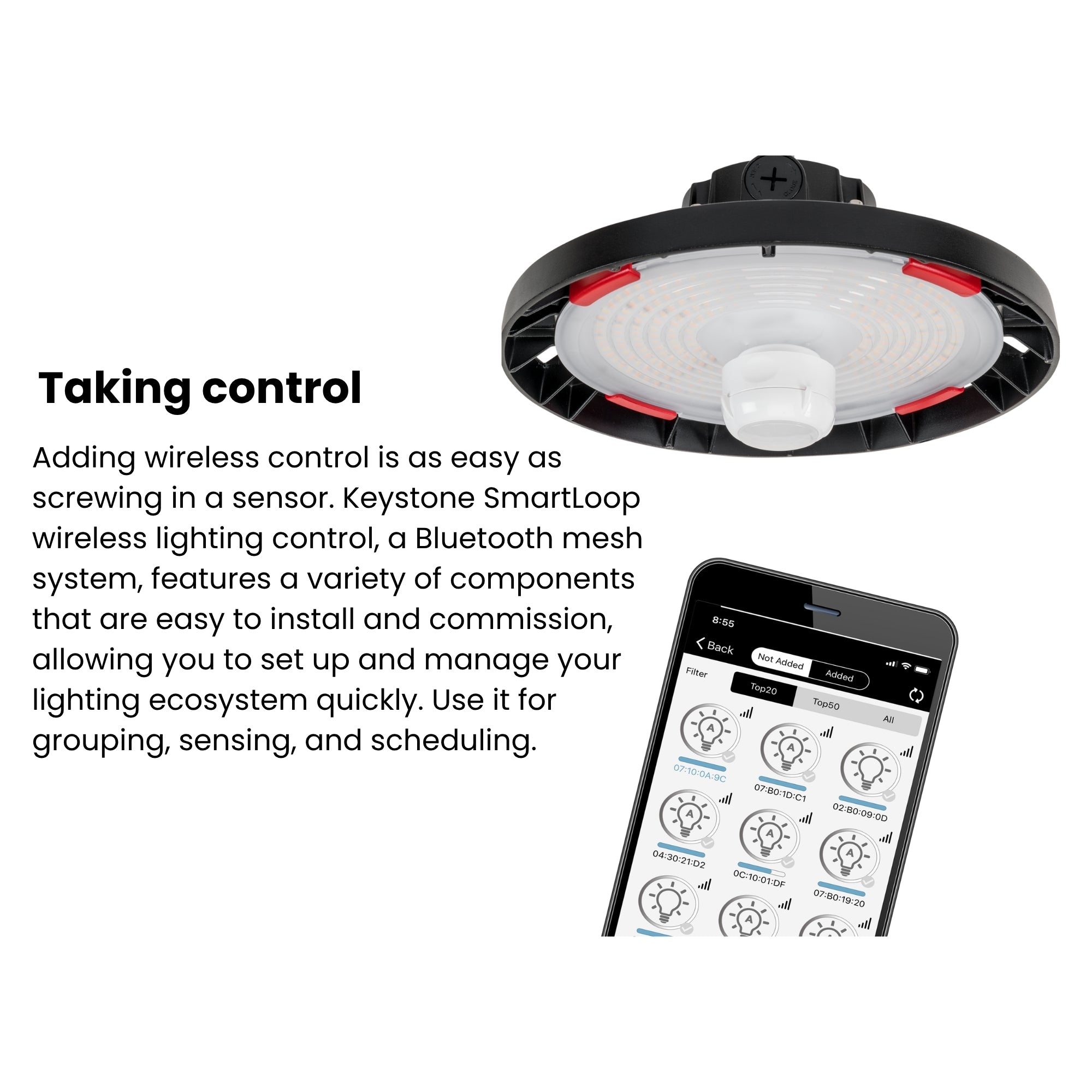

• KTSL-FC3-12V-PKO-PIR (/FC3): Smart Loop Bluetooth mesh screw-in PIR occupancy, vacancy, and daylight sensor with built-in fixture controller for SmartLoop system
• KTS-PIR3-12V-PKO /G2 (/PIR3): Smart Port screw-in PIR sensor, 12V, IP65, bi-level control with adjustable hold time, dim level, and standby time — 2nd generation
• KTS-MW3-12V-PKO (/MW3): Smart Port microwave sensor with adjustable hold time, dim level, and standby time
• KTS-MW3-REMOTECONTROL: Remote control for field adjustment of KTS-MW3 and KTS-PIR3 sensor settings (field-use only, purchased separately)

Note: emergency backup driver cannot be used in conjunction with screw-in sensors on this fixture.

Electrical

Constant current LED driver. Input: 120–277V, 50/60Hz. Dimming: 0–10V continuous. Power Factor: >0.90. THD: <20%. Surge protection: 6kV. Includes 6-foot cord for input and dimming wires. Emergency battery backup available: KT-EMRG-LED-40SD-5000-CEN /SF (40W constant wattage, approx. 5,000 lm, self-diagnostic, single flex cable with J-Box, 120–277V, CEC T20 compliant) — factory- or field-installable via /EM suffix; cannot be used with screw-in sensors. Mercury-free, RoHS-compliant components.

Construction

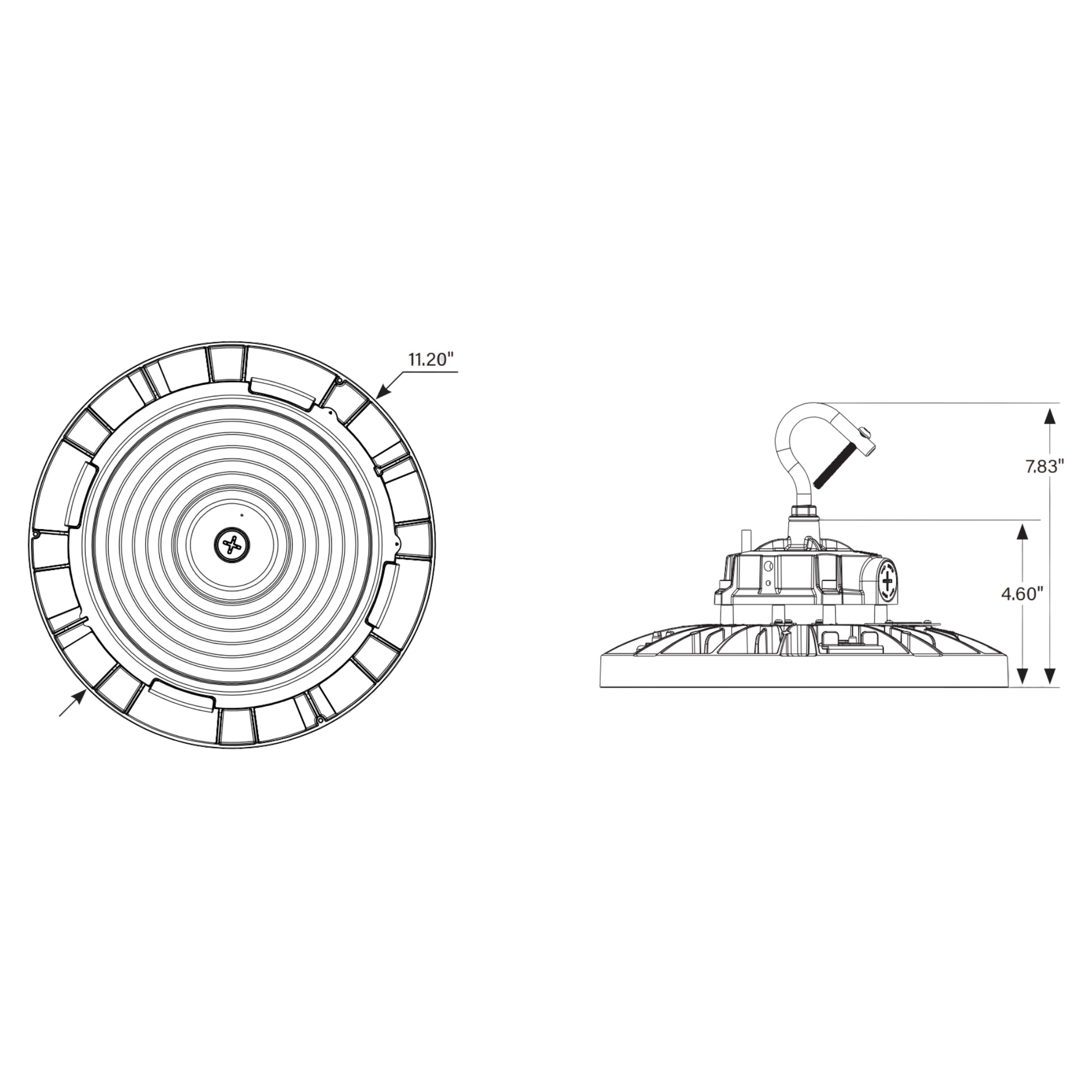

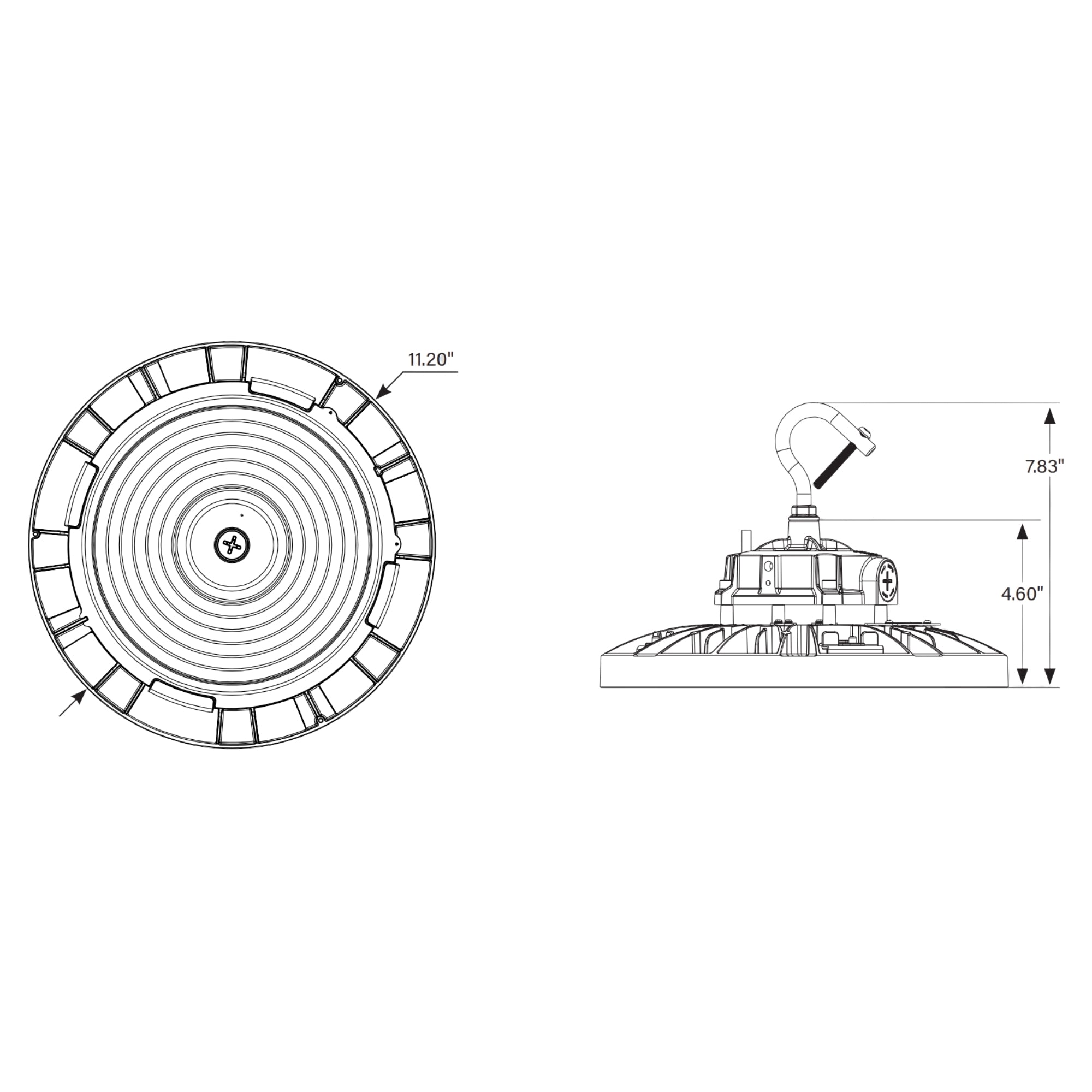

Powder-coated aluminum housing in black finish. Ribbed polycarbonate lens for glare reduction. IP65 rated for dust and water ingress. Operating temperature range: −40°C to +50°C. Built-in 6kV surge protection. Low optical flicker. Fixture diameter: 11.20″; height: 4.60″ (hook adds to overall height).

Installation & Mounting

Comes standard with J-hook mounting hardware and 6-foot input/dimming cord. Recommended ceiling heights: 100W for 20–30 ft; 70W for 15–25 ft; 50W for 12–20 ft. For higher ceiling applications, consider KT-RHLED150PS (150/100/70W) or KT-RHLED200PS (200/150/100W). Optional accessories sold separately:

• J-Box: KT-RHLED-JBOX-PM /G2 — optimized for pole pendant and step-down transformer applications
• Wire Guard: KT-RHLED-WG-1-KIT /G2 — fits 100W and 150W body; includes mounting hardware
• Surface Mount Kit: KT-RHLED-SM-1-KIT /G2 (Black) | KT-RHLED-SM-1-KIT-W /G2 (White) — fits 100W and 150W body
• Aluminum Dome Reflector: KT-RHLED-AR90-1-KIT /G2 — fits 100W and 150W body
• Clear Polycarbonate Reflector: KT-RHLED-CL90-1-KIT /G2 — fits 100W and 150W body
• Optic Lens (60°): KT-RHLED-LENS-12CD-60 — fits 100W and 150W body; Series D form factor
• Step-Down Transformer: KTAT-250-480-277 /SF — fully enclosed, single flex; for 480V facility installation (suffix /480)
• Emergency Backup: KT-EMRG-LED-40SD-5000-CEN /SF (suffix /EM) — cannot be used with screw-in sensors
• Cord Sets: KT-P-L515P (125V NEMA L5-15P) | KT-P-L615P (250V NEMA L6-15P) | KT-P-L715P (277V NEMA L7-15P)
• Sensors: KTSL-FC3-12V-PKO-PIR (/FC3) | KTS-PIR3-12V-PKO /G2 (/PIR3) | KTS-MW3-12V-PKO (/MW3)

Certifications & Rebates

UL Listed for wet locations. DLC Listed — to verify rebate eligibility with your utility provider, visit designlights.org and search model number KT-RHLED100PS-12CD-OSD-8CSB-VDIM-P. RoHS compliant. N3B Trusted Manufacturer designation.

Typical Applications

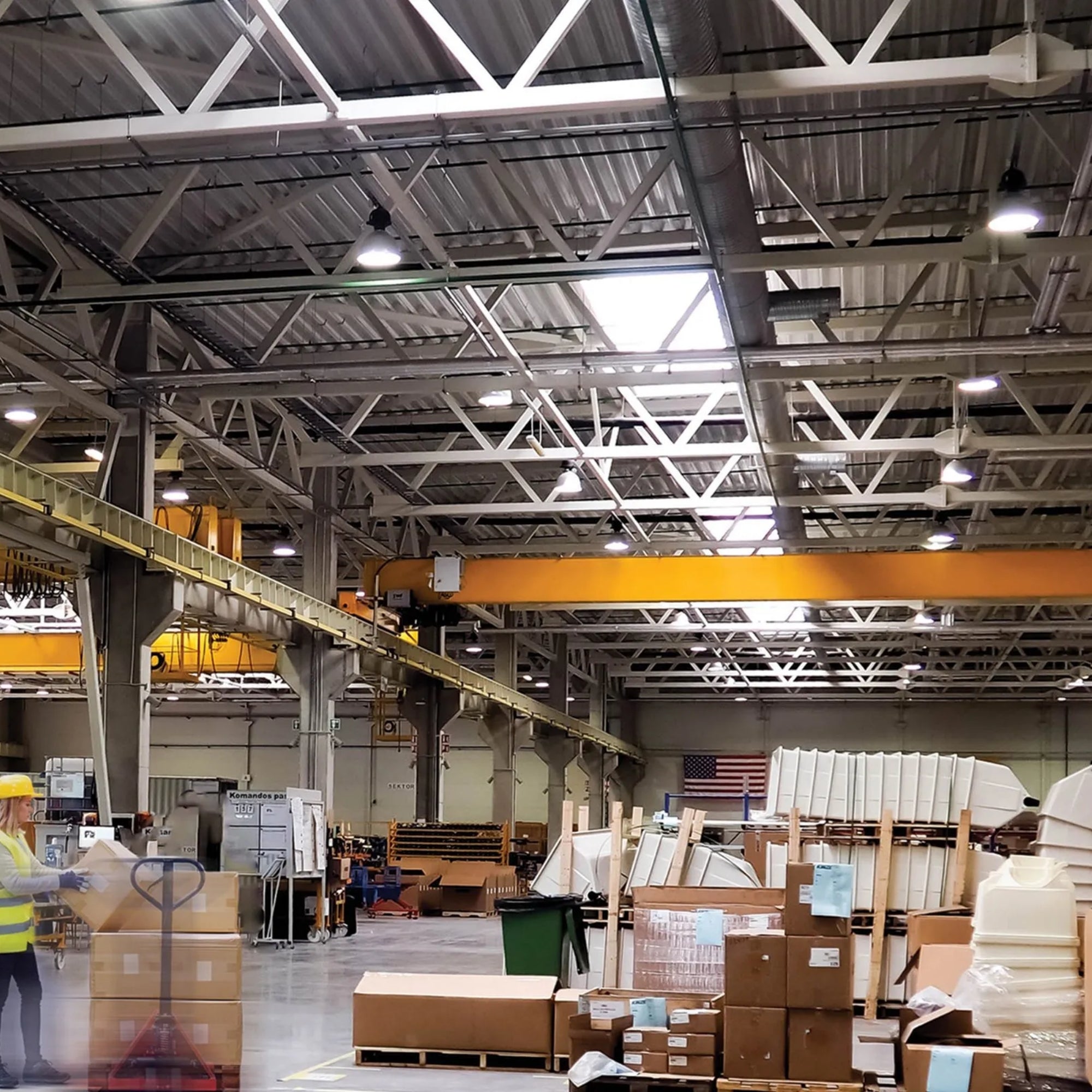

• Warehouses & Distribution Centers (20–30 ft mounting): 100W delivers 15,900 lm to illuminate high-bay racking aisles; step down to 70W for energy savings in lower-traffic zones
• Manufacturing & Assembly Facilities: Selectable CCT allows task-appropriate lighting — 5000K for precision assembly, 4000K for general floor coverage
• Gymnasiums & Recreation Centers: IP65 wet rating and wide-angle 120° lens option provide even coverage across open court areas
• Retail Warehouses & Big-Box Stores: OpticSwap lens flexibility allows one fixture SKU to serve both focused aisle lighting and broad ambient coverage
• Automotive Service Centers & Garages: UL Wet Location rating handles wash bays and service drives; 50W step-down suits lower 12–20 ft ceilings
• Cold Storage & Refrigerated Spaces: Operates reliably from −40°C start temperature — rated for freezer and cooler environments without a separate cold-rated fixture

What's Included

• 1× Keystone KT-RHLED100PS UFO LED High Bay fixture (black housing)
• J-hook mounting hardware
• 6-foot input/dimming cord
• 90° standard optic lens (pre-installed)
• 120° wide-angle optic lens (included in box)
