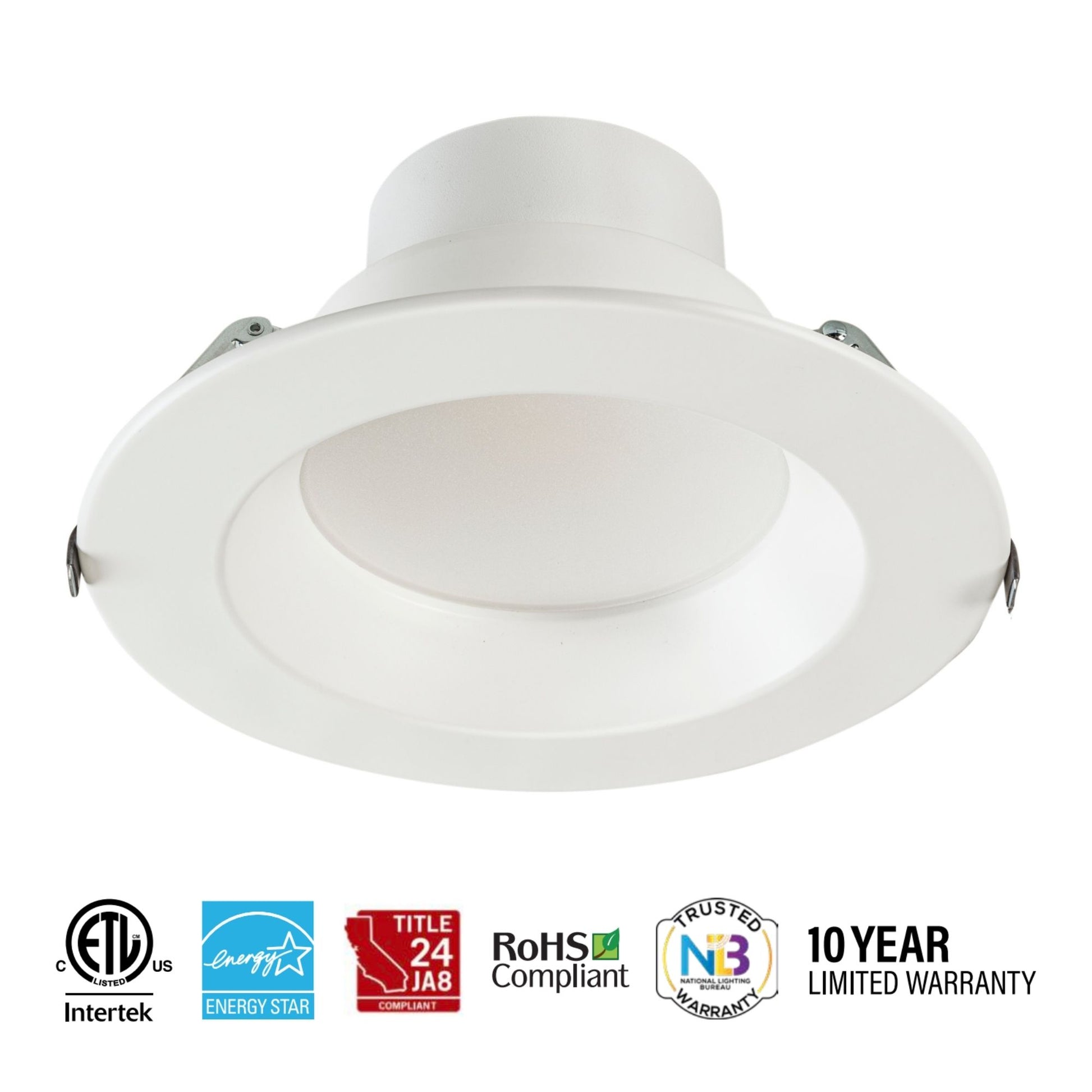

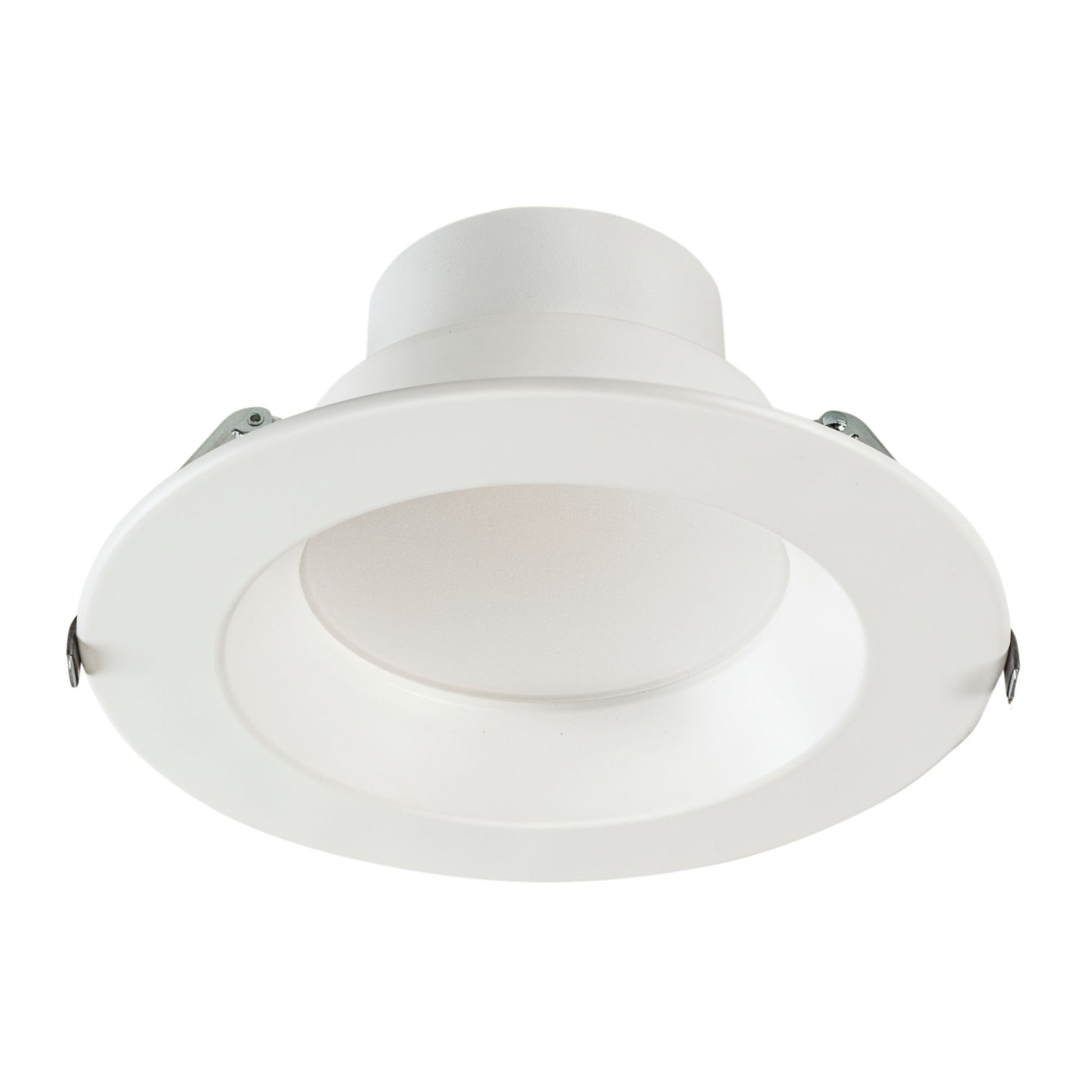

Keystone KT-RDLED38PS-10A-9CSF-CDIM 10 Inch Commercial LED Downlight — Power Select / Color Select / 20–38W / Up to 4150 lm / 5CCT / 120–277V / White

The Keystone Advanta KT-RDLED38PS-10A-9CSF-CDIM is a versatile 10-inch commercial LED downlight engineered for high-performance retail, office, hospitality, and institutional installations. Delivering up to 4,150 lumens, this fixture replaces traditional high-output fluorescent and metal halide downlights while drastically reducing energy consumption. Featuring integrated field-selectable technology, it allows installers to easily switch between multiple wattage levels and 5 distinct CCT color temperatures (2700K–5000K) directly on the fixture.

Key Features

• Selectable Wattage: Choose between 20W, 24W, 28W, 32W, and 38W to adjust power consumption and light output.
• Selectable Color Temperature: Five CCT options — 2700K, 3000K, 3500K, 4000K, and 5000K.
• High Light Output: Delivers up to 4,150 lumens at 38W, with 90+ CRI for accurate color rendering.
• Flexible Dimming: Supports 0–10V dimming at 120–277V and phase dimming at 120V, subject to compatible controls.
• Universal Voltage: Operates on 120–277V electrical systems.
• Long Service Life: L70 rated for over 80,000 hours at 25°C ambient temperature.
• Commercial-Grade Design: White housing, smooth reflector, airtight construction, Type IC rating, and wet-location suitability.
• Warranty: Backed by a 10-year limited warranty.

Performance & Electrical

• Power Select: 38W: up to 4150 lm | 32W: 3600 lm | 28W: 3200 lm | 24W: 2850 lm | 20W: 2550 lm

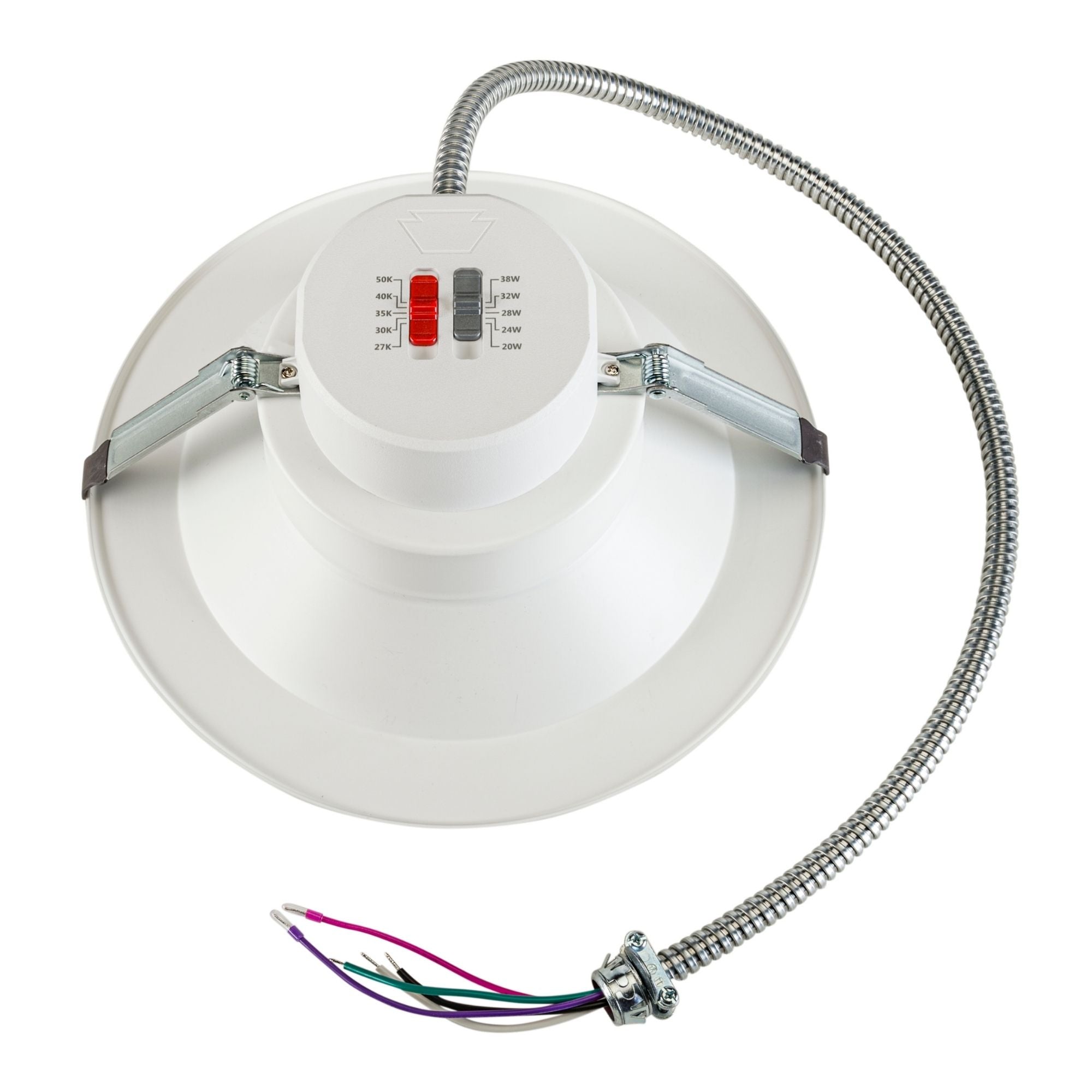

• Color Select: 2700K / 3000K / 3500K / 4000K / 5000K (Preset: 5000K)
• Input Voltage: Universal 120–277V | Dimming: 0-10V (10–100%) across 120–277V; phase dimming at 120V only
• Driver: Integral Keystone Combination dimming LED driver with whip | Power Factor >0.90 | THD <25%
• Operating Temperature: -25°C (-13°F) to +40°C (+104°F)

Construction & Design

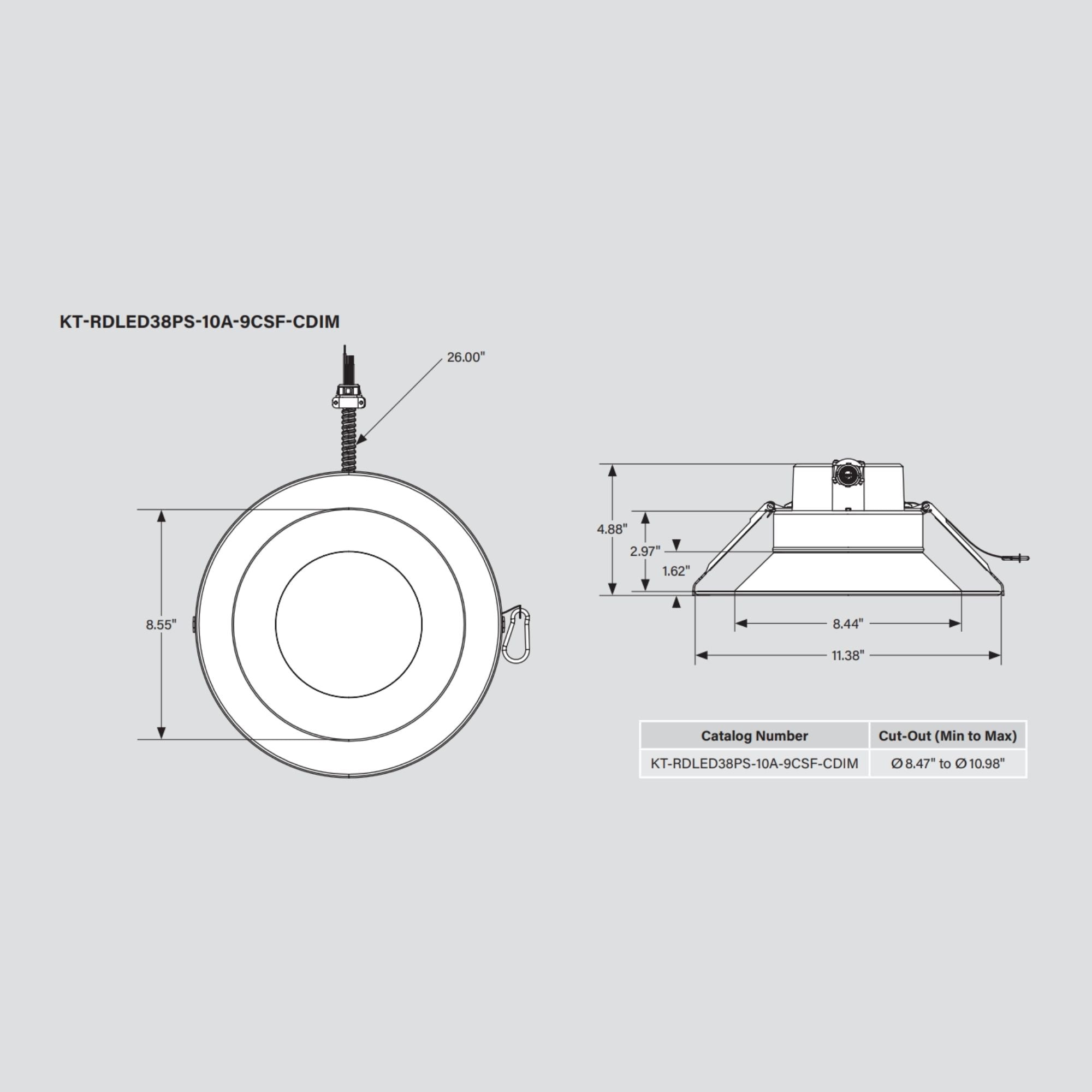

• 10 Inch round downlight with white housing and smooth reflector trim

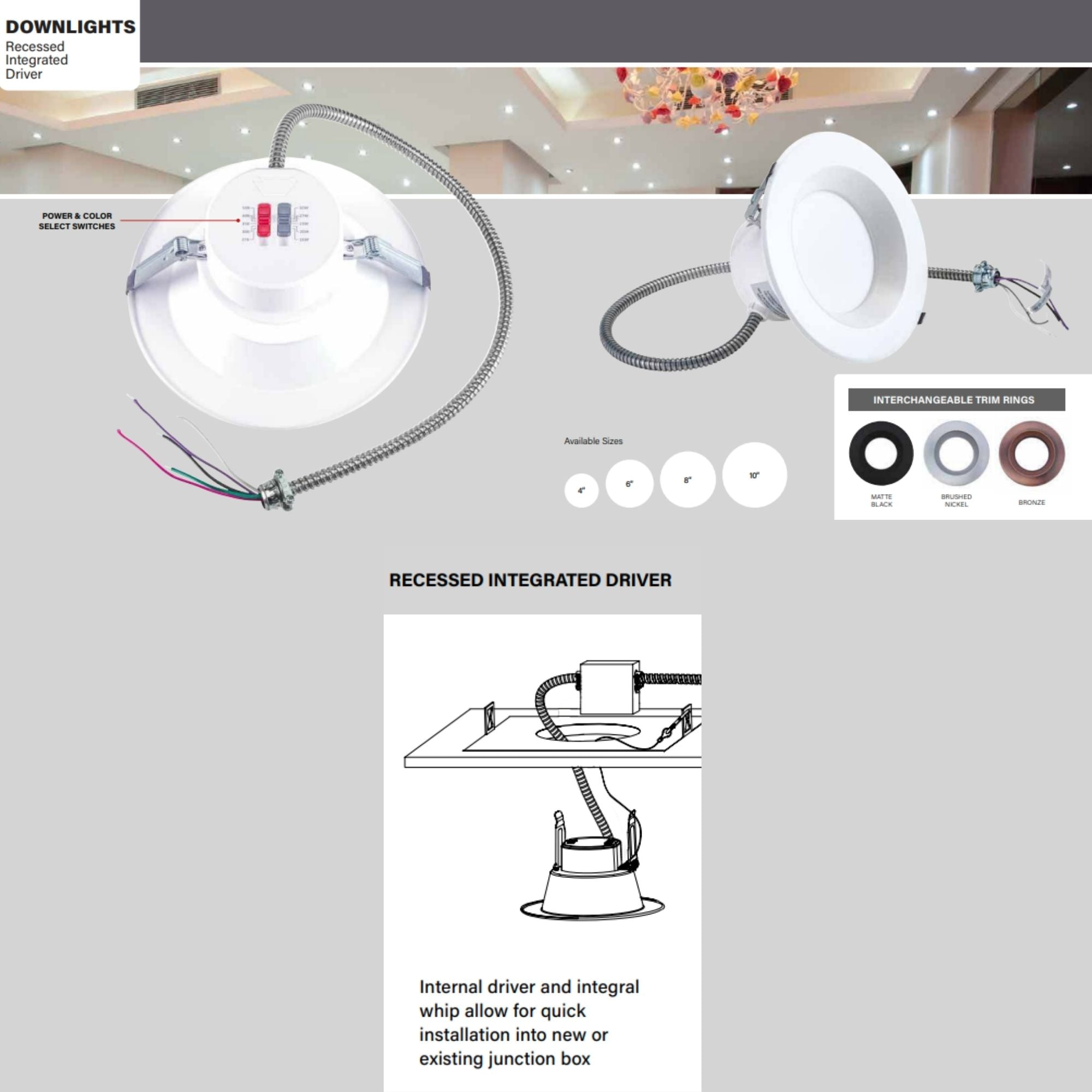

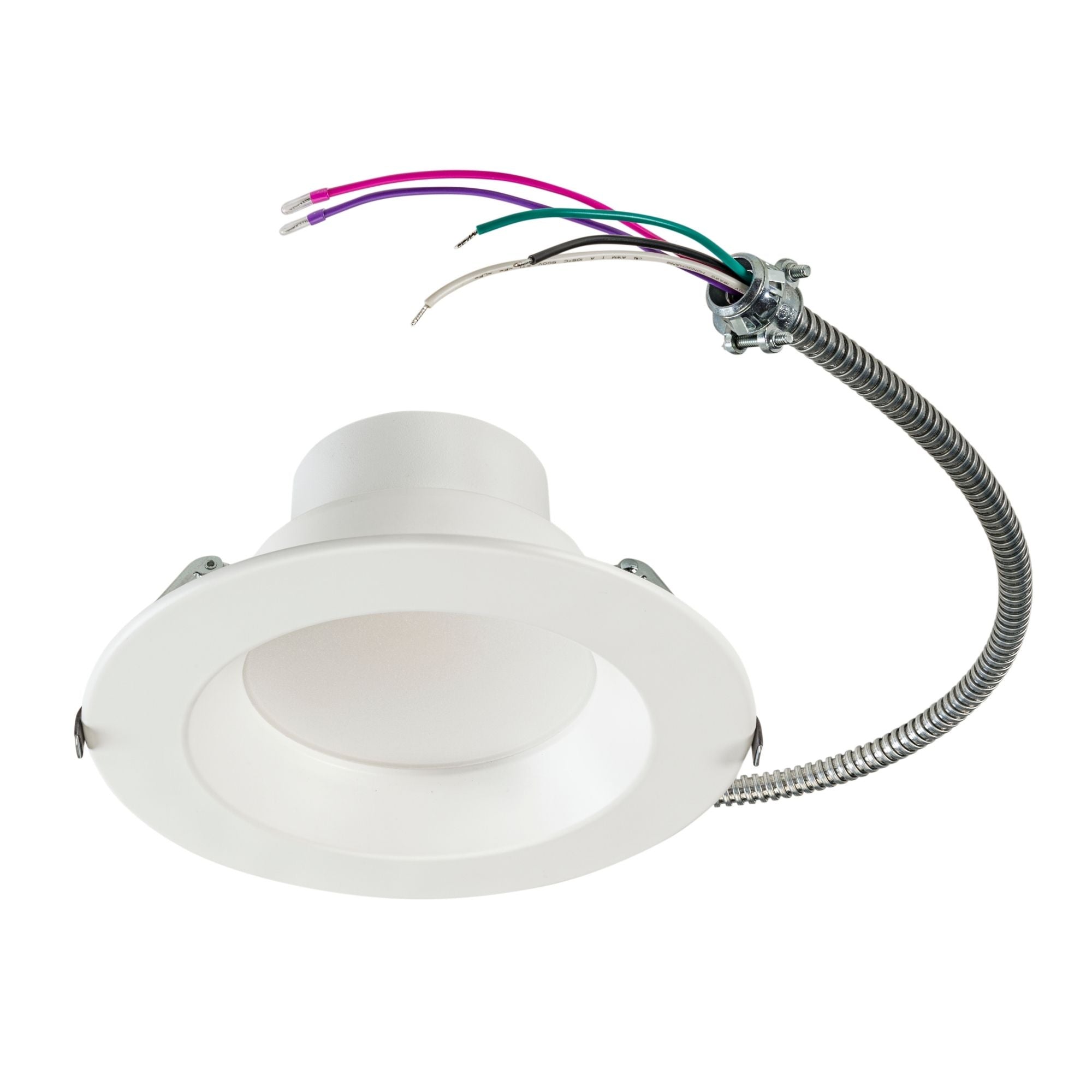

• Integral driver with whip connects directly to a junction box; fits existing CFL pin-based fixture infrastructure — no traditional multi-piece setup required
• Interchangeable trim rings available in matte black, brushed nickel, and bronze (sold separately)

Ratings & Certifications

• Wet Location Rated, Airtight, Type IC Rated for direct contact with insulation
• ETLus Listed, Energy Star, California Title 24 JA8, CEC JA10 Flicker Compliant, RoHS, FCC Part 15 Class B

Compatible Accessories (Sold Separately)

• Interchangeable trim rings for 10 Inch downlights, available in matte black, brushed nickel, and bronze
• Goof ring for 10 Inch downlights
• Junction box for recessed downlights
• New-construction plate for recessed downlights

Typical Applications

• Commercial offices, retail, hospitality, and institutional downlighting
• Residential downlighting
• New construction and remodel
• Retrofit into existing CFL pin-based fixture infrastructure
• Wet locations including bathrooms

What’s Included

• Keystone KT-RDLED38PS-10A-9CSF-CDIM 10 Inch commercial LED downlight with integral driver and integral whip
