Keystone KT-RDLED30PS-8A-9CSF-CDIM 8 Inch Commercial LED Downlight — Power Select / Color Select / 16–30W / Up to 3350 lm / 5CCT / 120–277V / White

The Keystone Advanta KT-RDLED30PS-8A-9CSF-CDIM is a versatile 8-inch commercial LED downlight engineered for high-performance retail, office, hospitality, and institutional installations. Delivering up to 3,350 lumens, this fixture replaces traditional high-output fluorescent and metal halide downlights while drastically reducing energy consumption. Featuring integrated field-selectable technology, it allows installers to easily switch between multiple wattage levels and 5 distinct CCT color temperatures (2700K–5000K) directly on the fixture.

Key Features

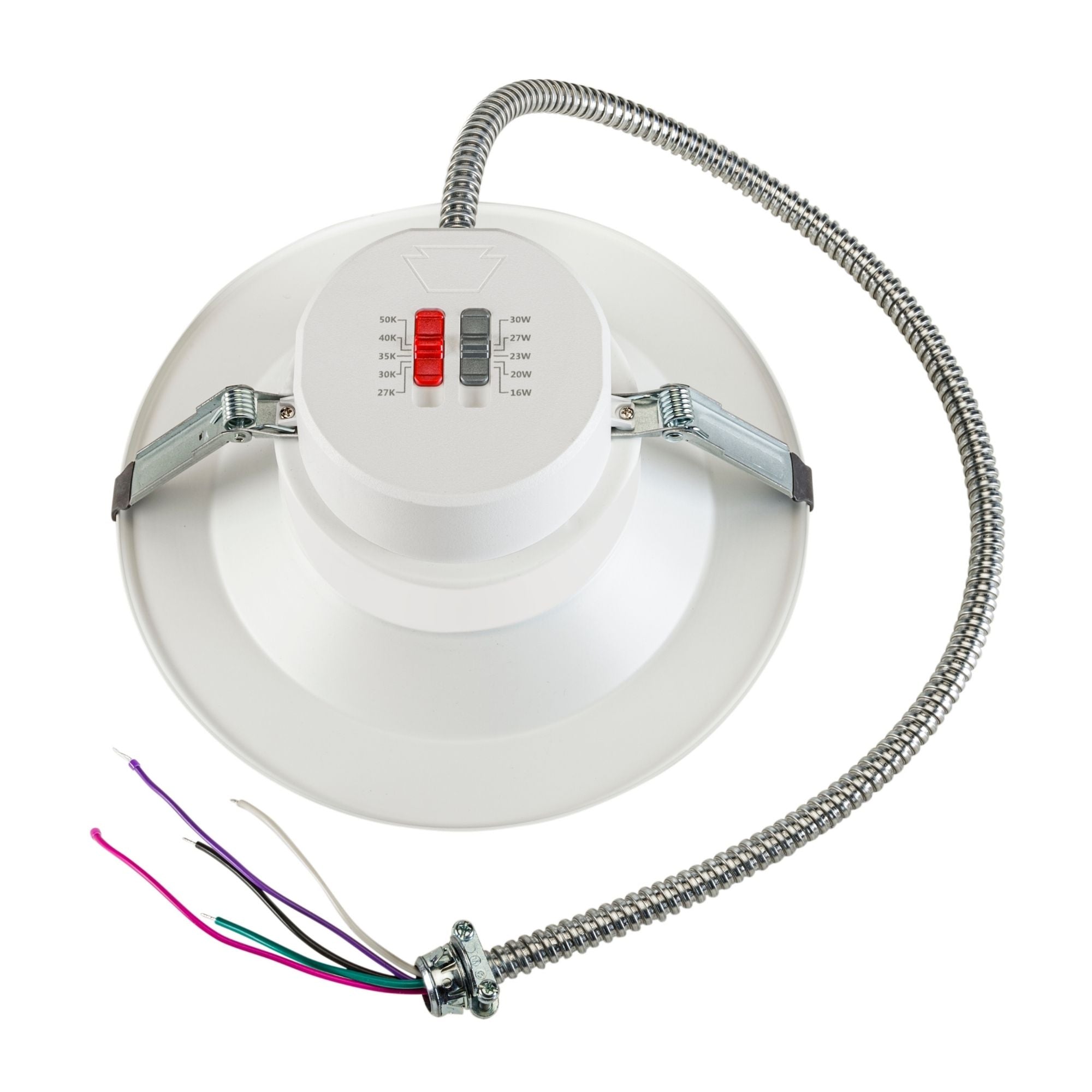

• Selectable Output: Field-selectable wattage (16W–30W) and 5-CCT color temperature (2700K–5000K).
• High Efficiency: Up to 3,350 lumens with 90+ CRI for accurate color rendering.
• Flexible Dimming: 0-10V dimming across 120-277V; phase dimming at 120V.
• Commercial Reliability: L70 rated for >80,000 hours, backed by a 10-year limited warranty.
• Power Select: 30W / 27W / 23W / 20W / 16W
• Color Select: 2700K / 3000K / 3500K / 4000K / 5000K (Preset: 5000K)
• Light Output: Up to 3,350 lm (30W @ 4000K/5000K) | CRI: 90+
• Lumen Output by Wattage: 30W: 3000–3350 lm (varies by CCT) | 27W: 2900–3200 lm | 23W: 2400–2700 lm | 20W: 2200–2450 lm | 16W: 1850–2050 lm
• Input Voltage: Universal 120–277V
• Dimming: 0-10V (10–100%) across 120–277V; Phase dimming at 120V only
• Power Quality: Power Factor >0.90 | THD <25%
• Driver: Integral Keystone Combination dimming LED driver with whip
• Nominal Size: 8 Inch
• Housing & Finish: White housing with smooth reflector (Interchangeable trim options: Matte Black, Brushed Nickel, Bronze sold separately)
• Operating Temperature: -25°C (-13°F) to +40°C (+104°F)
• Environmental Ratings: Wet Location Rated, Airtight, Type IC Rated

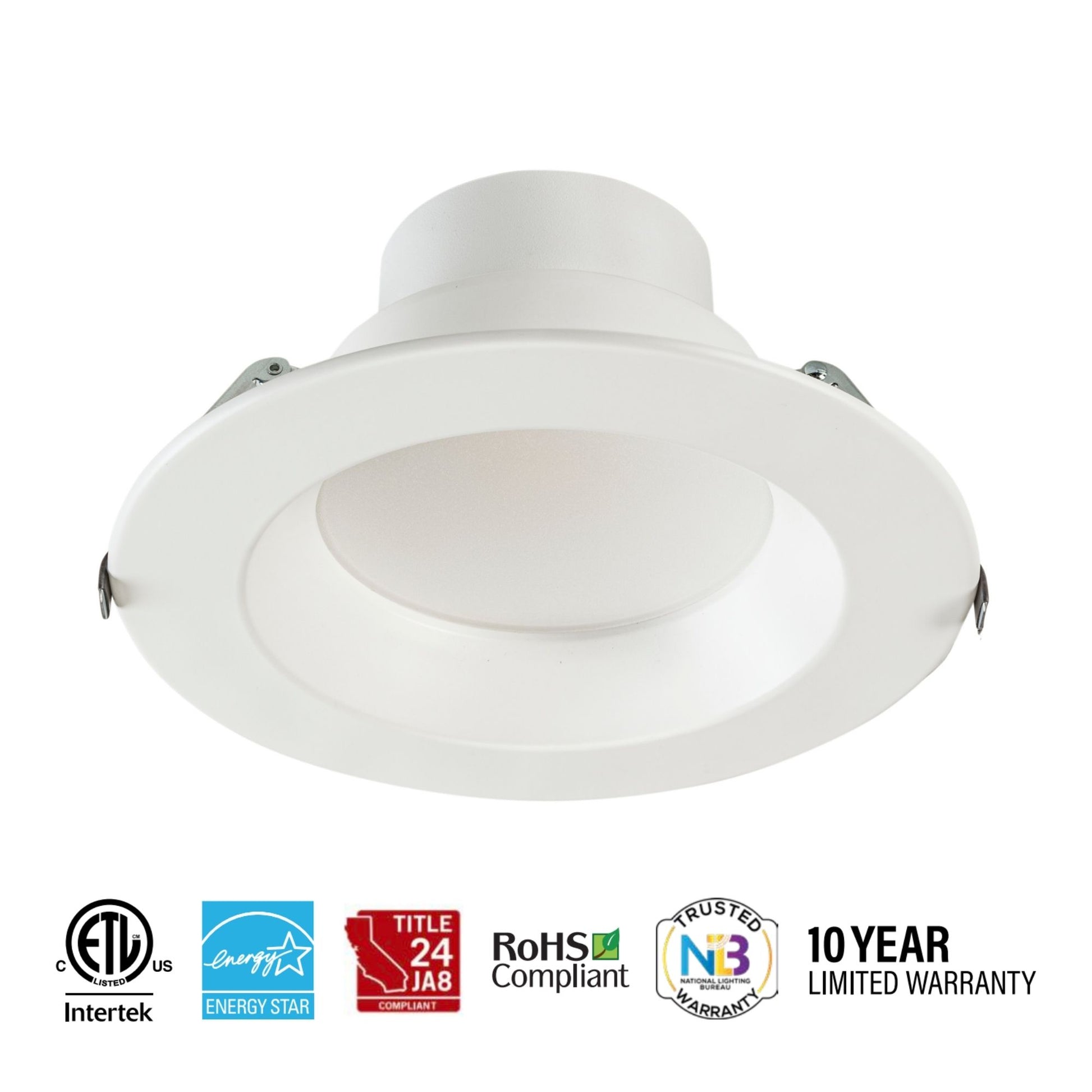

• Certifications: ETLus Listed, Energy Star, Title 24 JA8, CEC JA10 Flicker Compliant, RoHS, FCC Part 15 Class B
• Lifespan & Warranty: L70 >80,000 hours @ 25°C (77°F) | 10-Year Limited Warranty

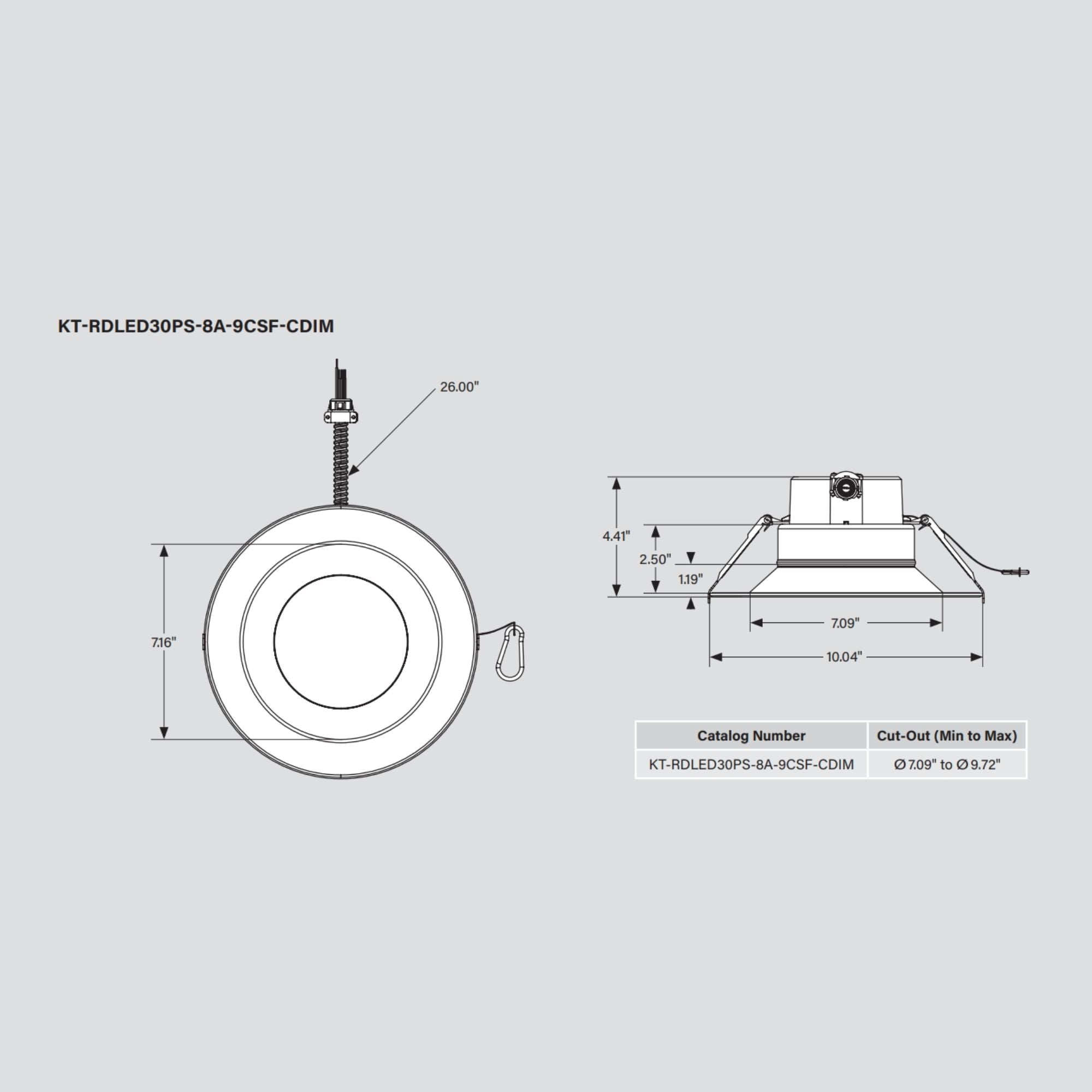

Construction & Design

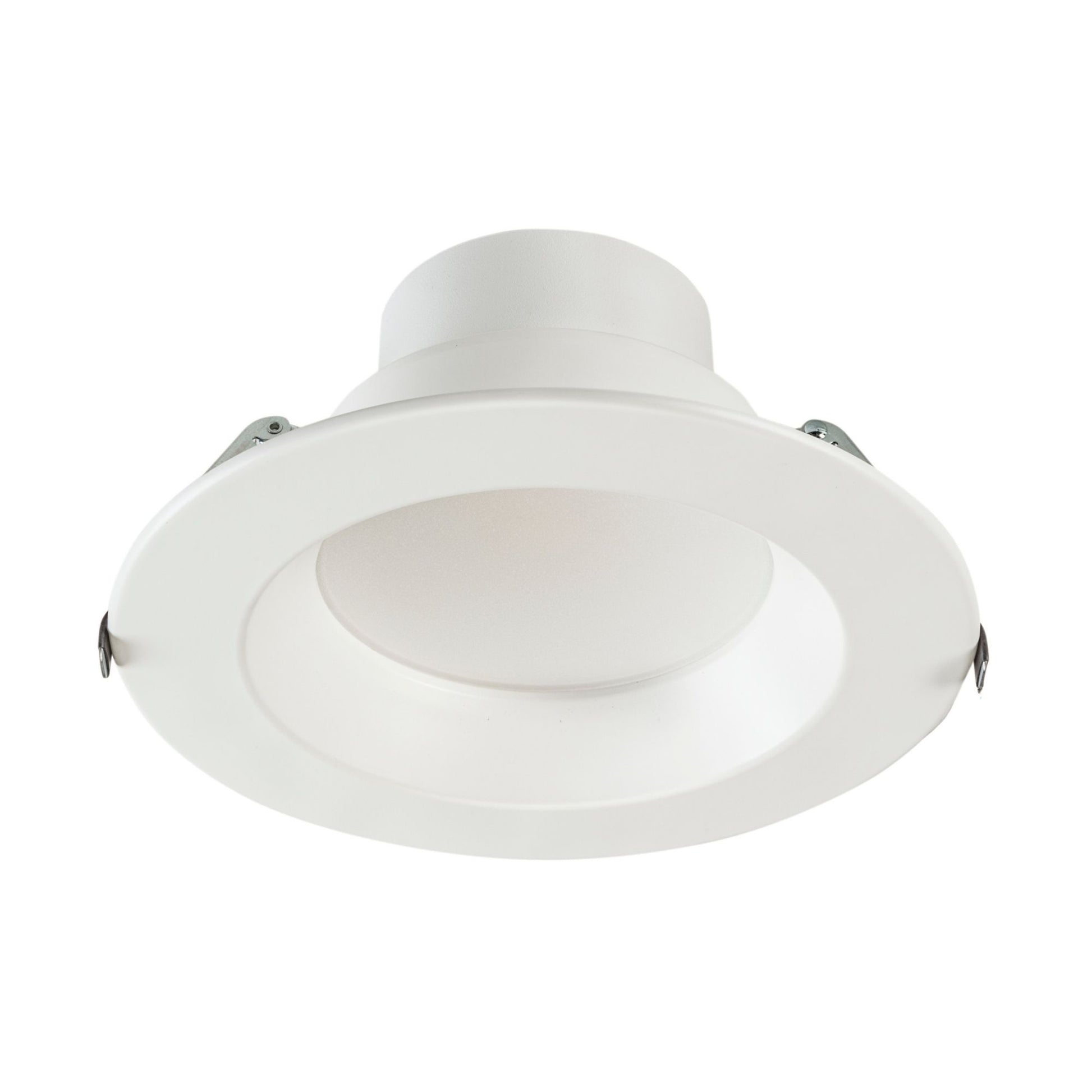

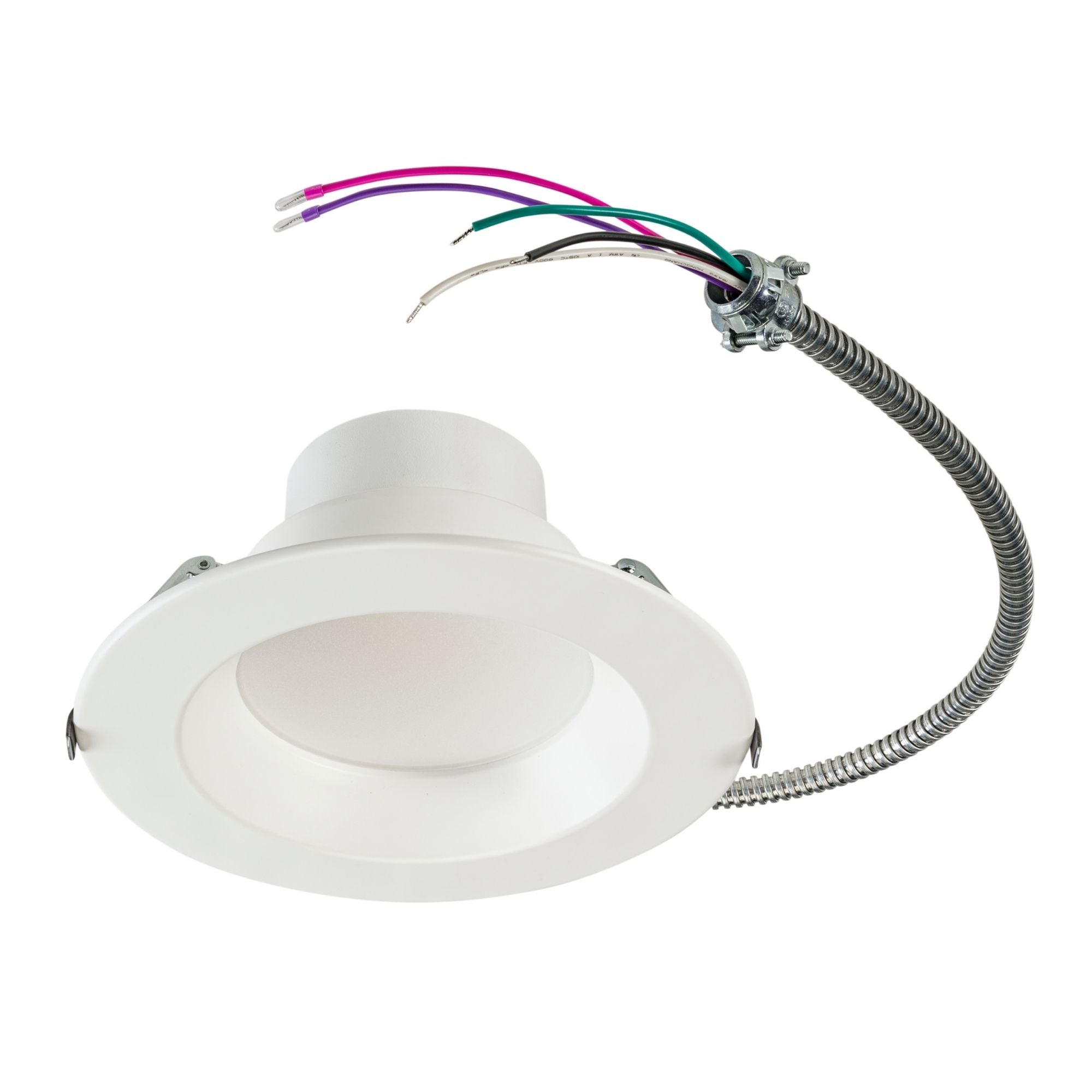

8 Inch round, white housing, smooth reflector trim. Integral driver eliminates traditional multi-piece fixture setup. Integral whip for direct junction box connection; compatible with existing CFL pin-based fixture infrastructure. Interchangeable trim rings available in matte black, brushed nickel, and bronze (sold separately). Airtight and Type IC rated. Wet location rated.

Light Output & Performance

Delivers up to 3350 lm at 30W (4000K/5000K), CRI 90+. Output scales with Power Select wattage setting. 0-10V dimmable 10–100%. L70: >80,000 hours @ 25°C ambient. CEC Compliant Flicker Rate (JA10 std.).

Electrical & Installation

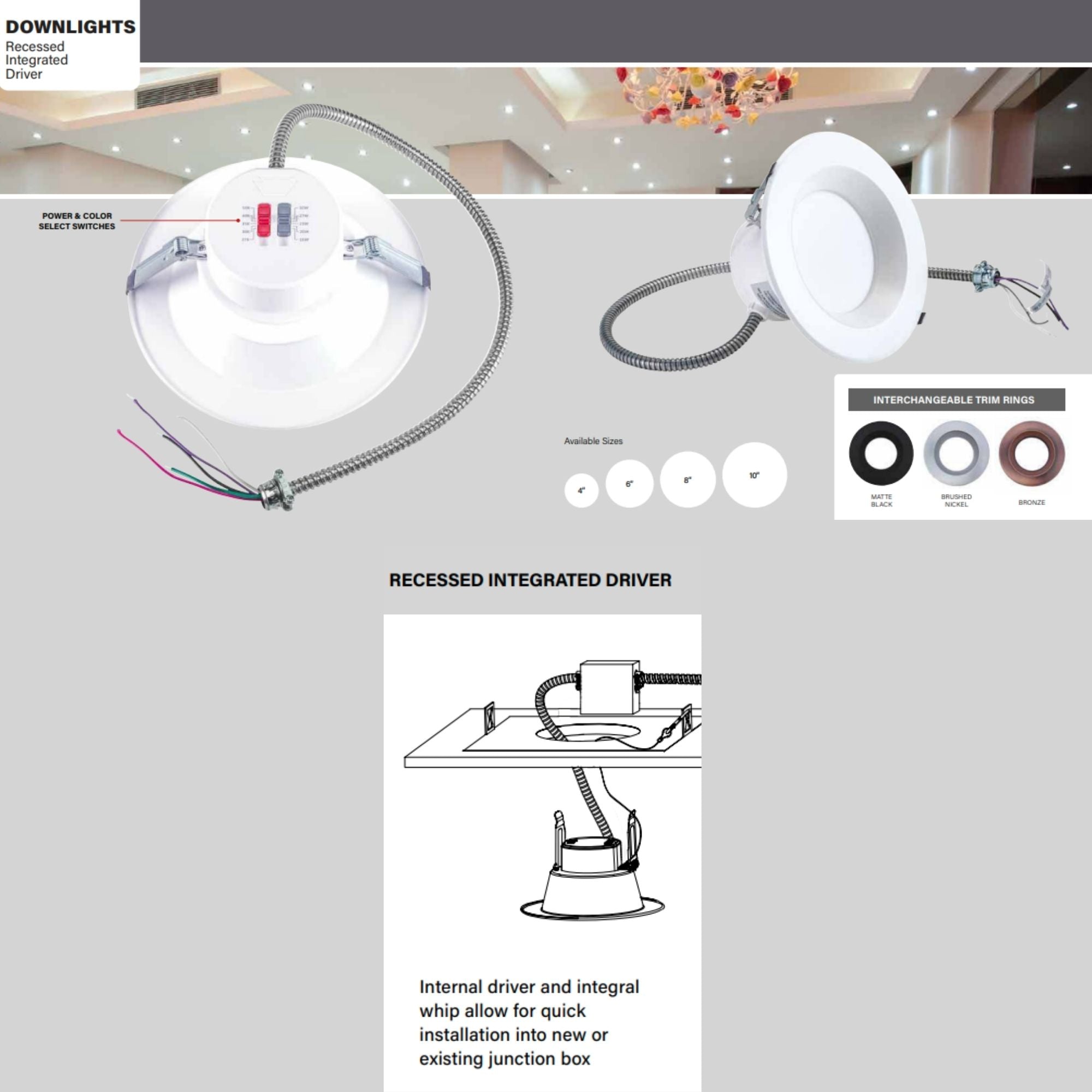

120–277V. Integral driver + whip connect directly to junction box — suitable for new construction, remodel, and retrofit into existing CFL pin-based fixtures. 0-10V dimming (120–277V) and phase dimming (120V only). PF >0.90; THD <25%; op temp: -25°C to +40°C.

Compatible Accessories (Sold Separately)

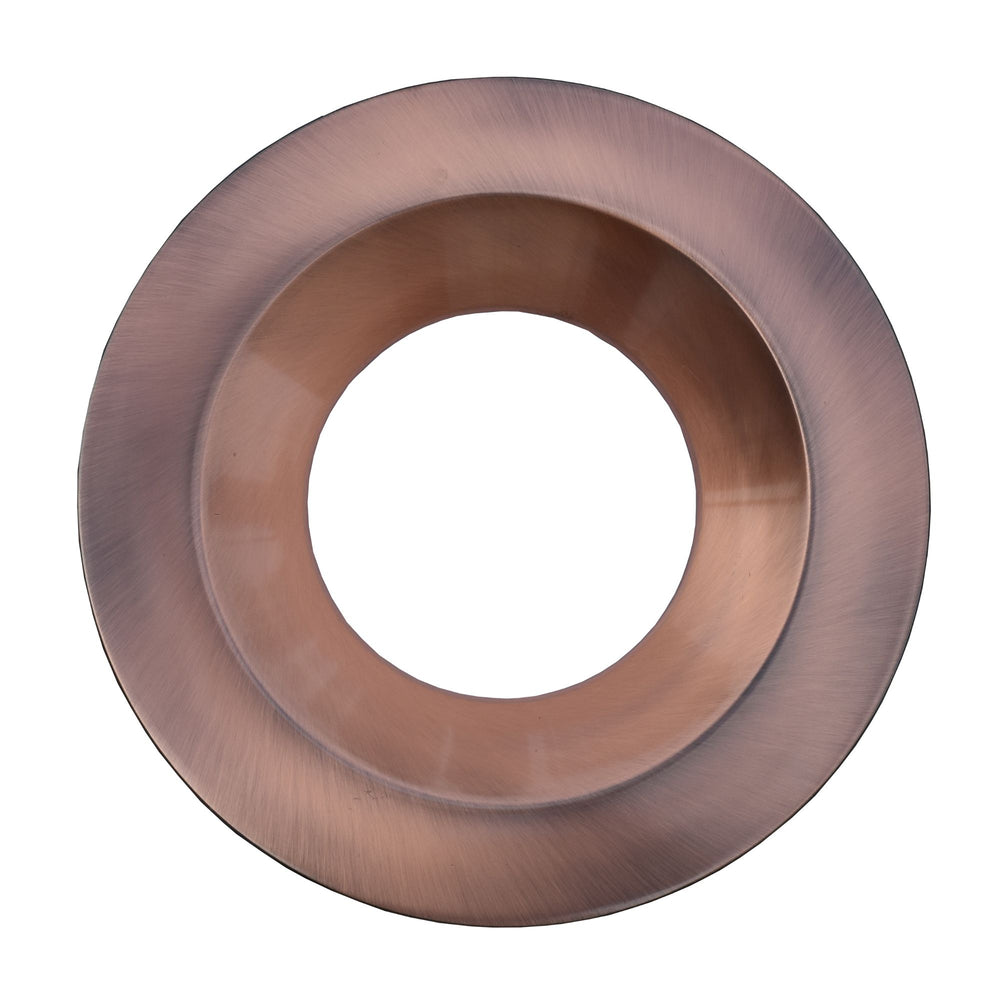

• Interchangeable trim rings for 8 Inch downlights, available in matte black, brushed nickel, and bronze

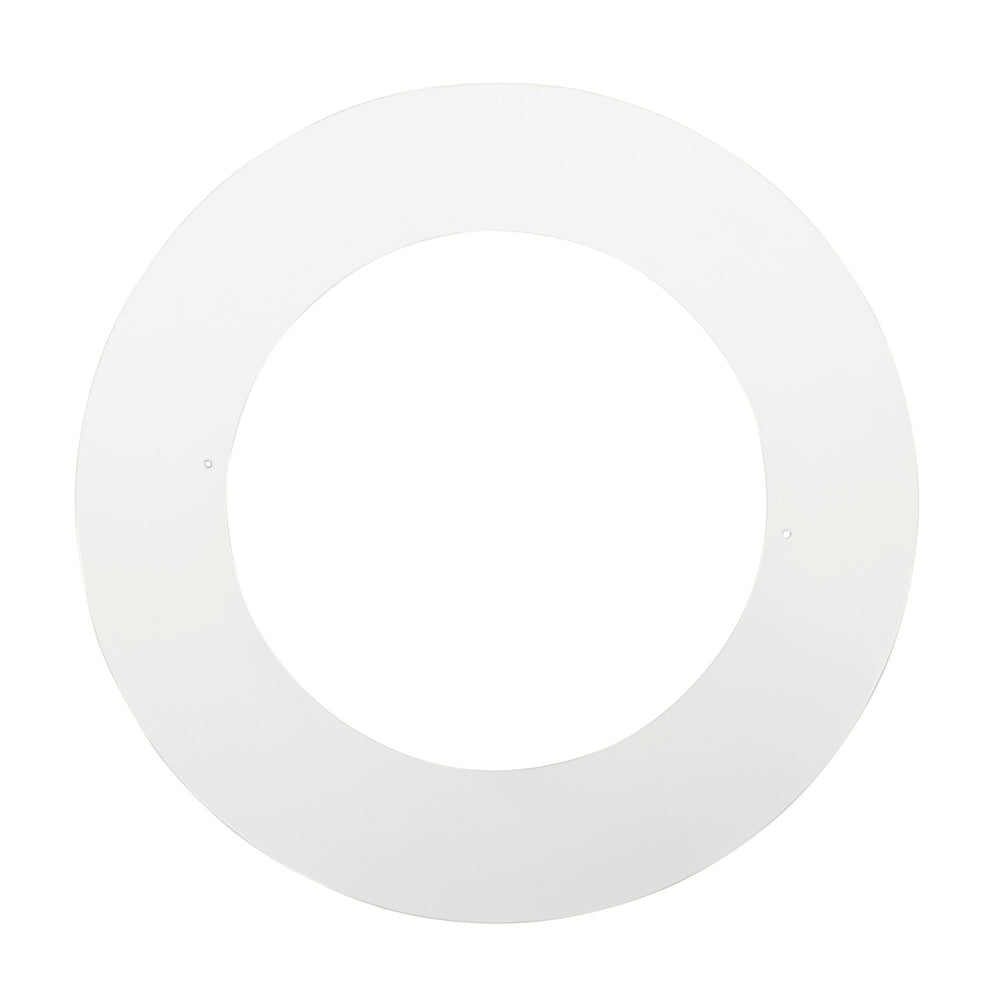

• Goof ring for 8 Inch downlights

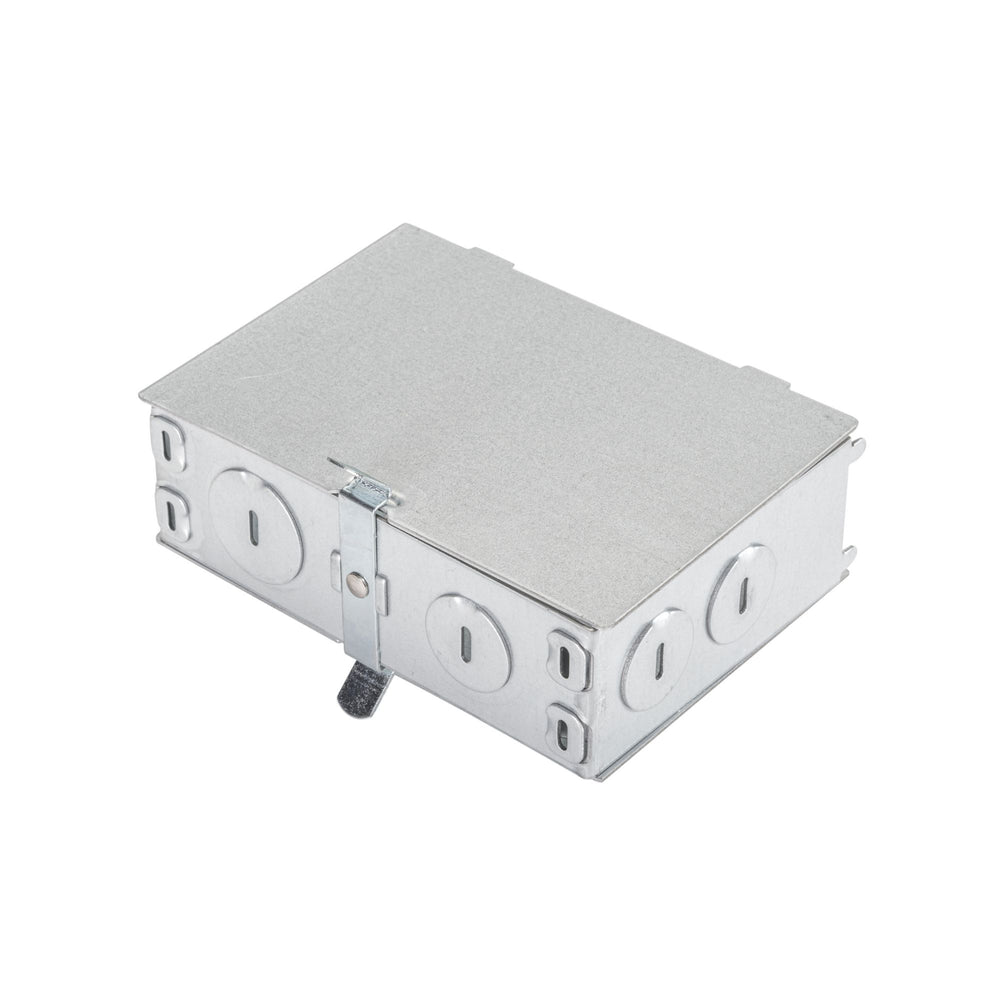

• Junction box for recessed downlights

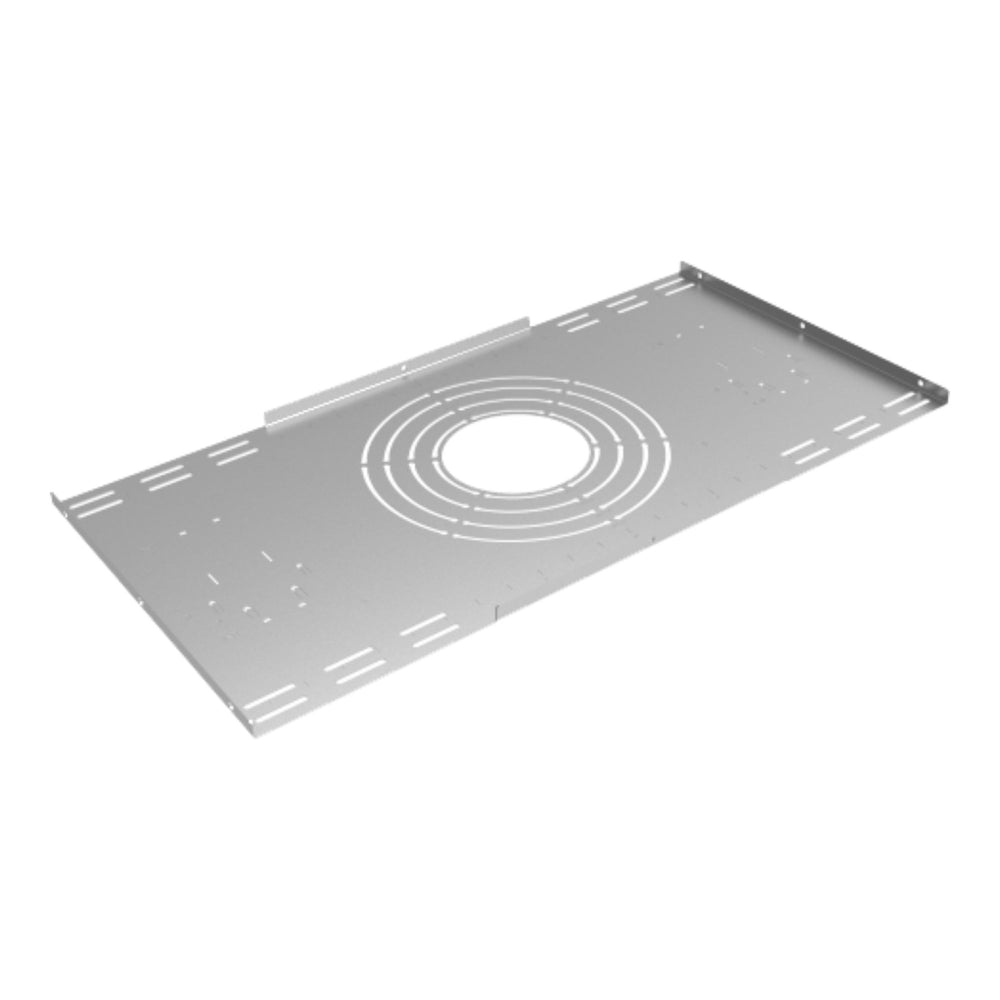

• New-construction plate for recessed downlights

Typical Applications

• Commercial offices, retail, hospitality, and institutional downlighting
• Residential downlighting
• New construction and remodel
• Retrofit into existing CFL pin-based fixture infrastructure
• Wet locations including bathrooms

What’s Included

• Keystone KT-RDLED30PS-8A-9CSF-CDIM 8 Inch commercial LED downlight with integral driver and integral whip
