Keystone KT-RDLED13PS-4A-9CSF-CDIM - 4" Commercial LED Downlight, 5.5-13W Adjustable, 600-1500 Lumens, Selectable 2700K-5000K CCT, 120-277V
Keystone KT-RDLED13PS-4A-9CSF-CDIM - 4" Commercial LED Downlight, 5.5-13W Adjustable, 600-1500 Lumens, Selectable 2700K-5000K CCT, 120-277V
Available in stock (986)
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Power Select Technology: 5 selectable wattages (13W/10W/9W/7W/5.5W) in one fixture for precise light level control
- 5-CCT Color Select: Choose from 5 color temperatures with 90 CRI for exceptional color rendering in accent applications
- Universal Dimming: Combination dimming with 0-10V, TRIAC, and ELV compatibility for smooth 10-100% dimming
- Commercial-Grade Construction: Airtight, Type IC-rated, wet location rated with deep recessed design and 80,000-hour lifespan
- Easy Installation: Compact 4" design for accent lighting, 120-277V operation, 10-year warranty, optional trim rings available
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description

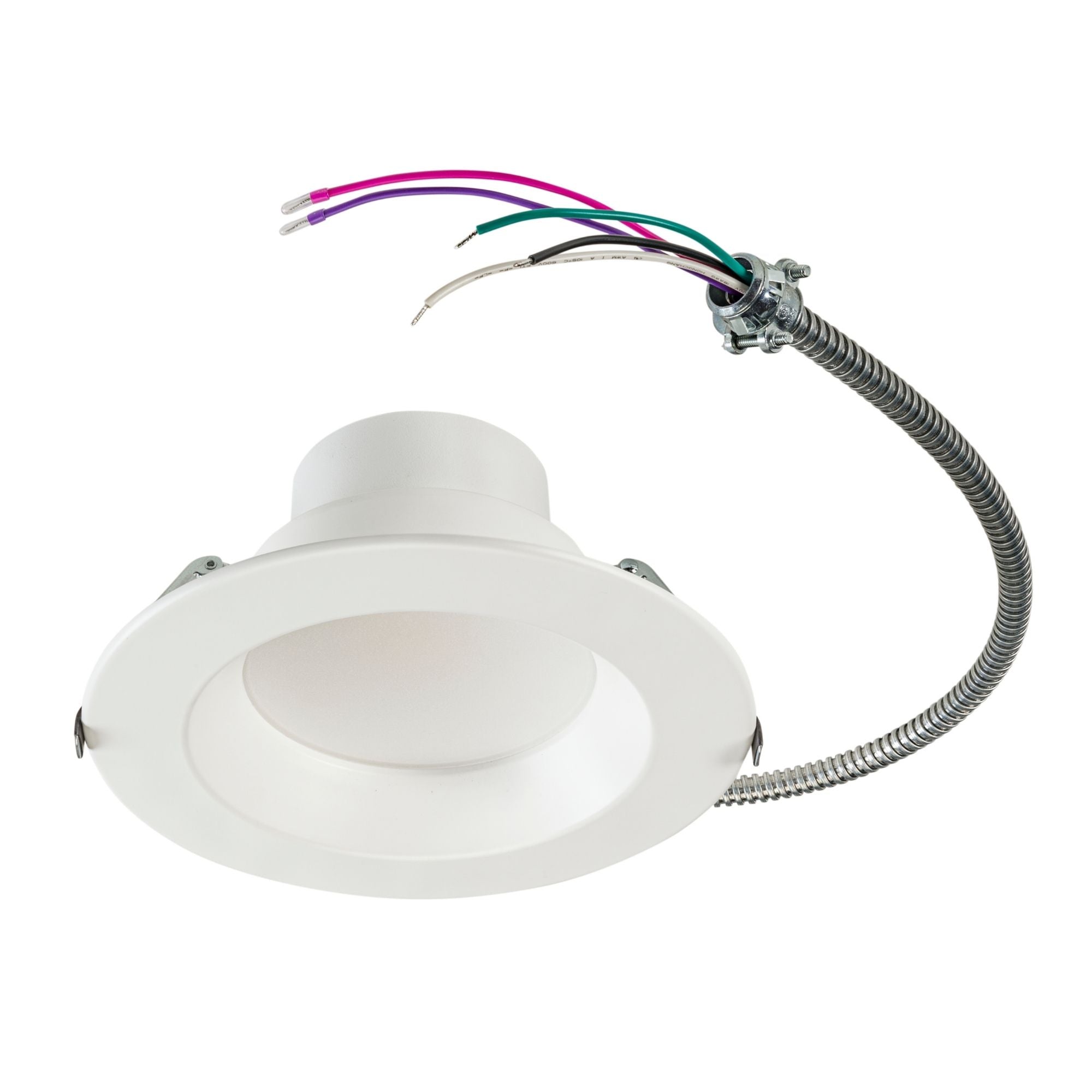

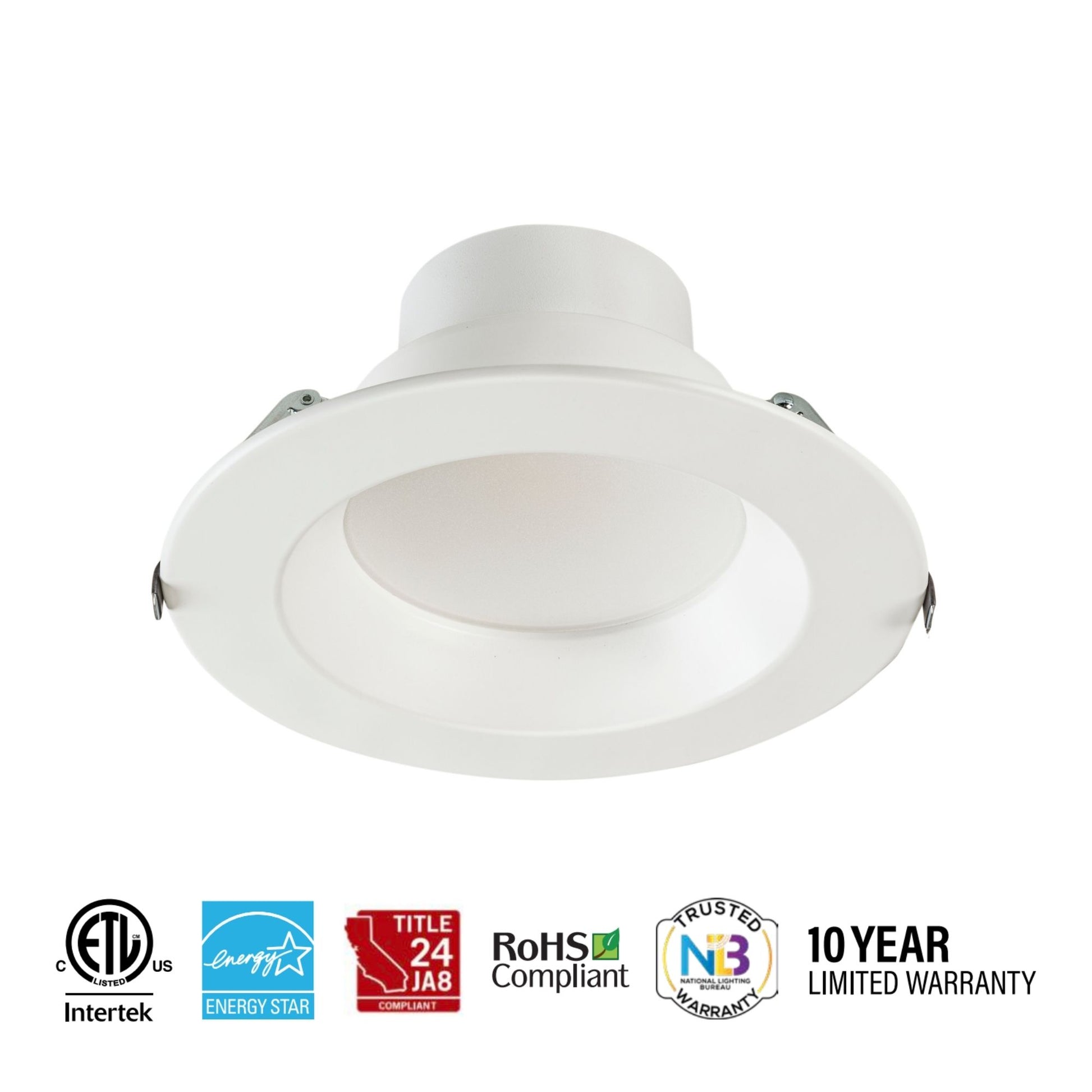

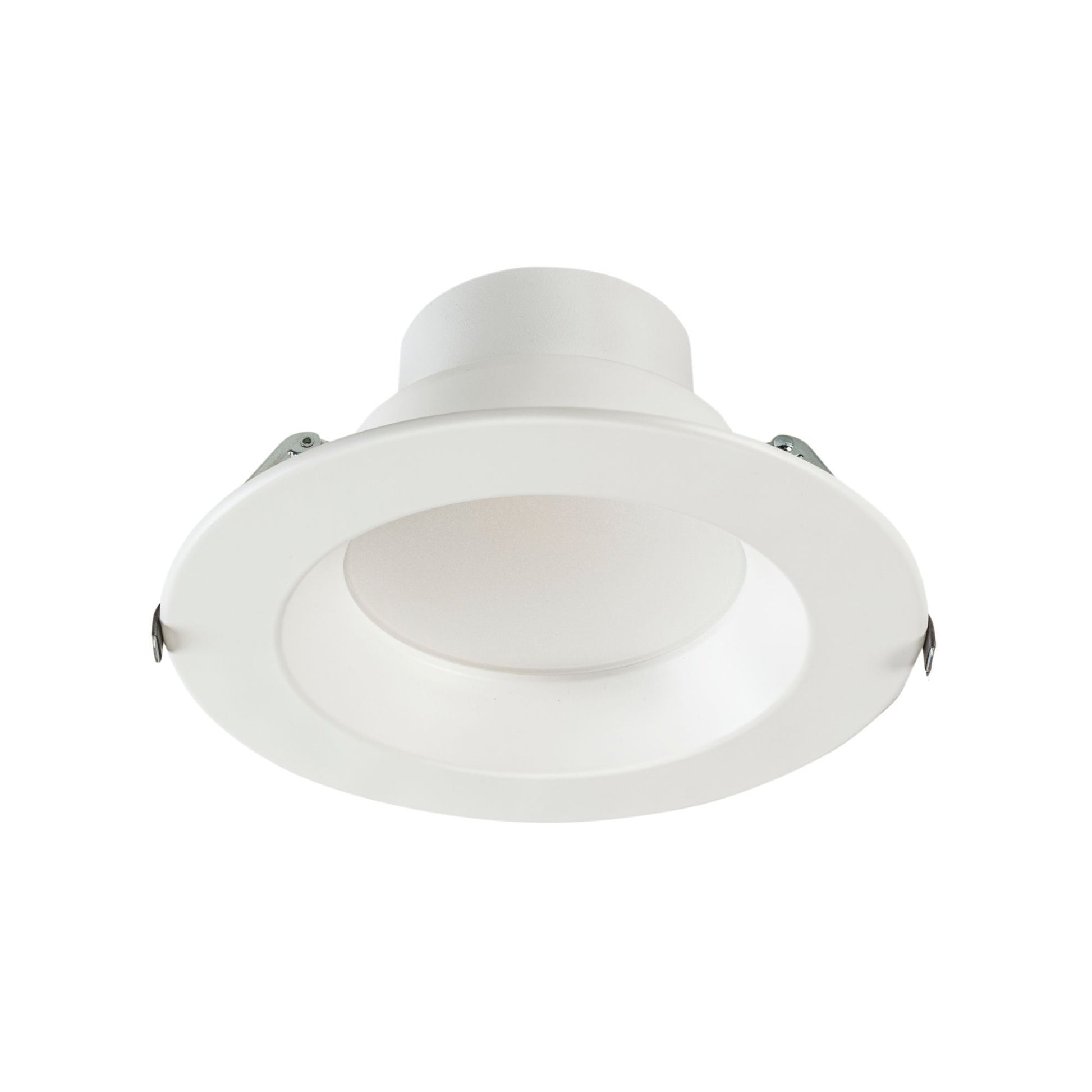

Keystone KT-RDLED13PS-4A-9CSF-CDIM 4" Commercial LED Downlight
Experience professional-grade illumination with the genuine Keystone KT-RDLED13PS-4A-9CSF-CDIM commercial LED downlight. This compact 4-inch fixture delivers an impressive 600-1500 lumens of high-quality light with field-selectable wattage (5.5W/9W/13W) and color temperature from 2700K to 5000K. Designed for demanding commercial applications with universal 120-277V voltage and triple-mode dimming capability. The specification-grade design is wet location rated, IC-rated, and Title 24 JA8-2019 compliant.
Keystone KT-RDLED13PS-4A-9CSF-CDIM Features
- Authentic Keystone Quality: Genuine Advanta series with full 5-year manufacturer warranty
- Compact 4-Inch Design: Ideal for task lighting and general illumination in commercial spaces
- Field-Adjustable Wattage: Select 5.5W, 9W, or 13W on-site without stocking multiple models
- High Output: 600-1500 lumens ideal for commercial task lighting and general illumination
- Field-Selectable Color Temperature: Choose 2700K, 3000K, 3500K, 4000K, or 5000K with built-in switch
- Universal Voltage: 120-277V driver for flexible commercial and industrial installation
- Triple-Mode Dimmable: 0-10V, TRIAC, and ELV dimming compatible for maximum control flexibility
- Wet Location Rated: IP65 rated for outdoor soffits, covered walkways, and damp environments
- IC Rated: Safe for direct contact with insulation in ceiling cavities
- Superior Color Rendering: 90+ CRI for accurate color representation in commercial settings
- Title 24 JA8-2019: California Energy Code compliant for high-efficacy commercial lighting
- Energy Star & DLC Premium: Qualified for utility rebates and energy-efficient specifications
- Long-Lasting: 50,000-hour rated life (L70) for years of maintenance-free operation
- White Finish: Clean, professional appearance for commercial installations
Keystone KT-RDLED13PS-4A-9CSF-CDIM Commercial LED Downlight Applications
- Commercial offices, conference rooms, and open workspaces
- Retail showrooms and display areas
- Hospitality lobbies, corridors, and guest rooms
- Healthcare facilities and patient care areas
- Educational institutions and classrooms
- Wet or damp locations including covered outdoor areas
- Restaurants and food service areas
- Task lighting in commercial kitchens and prep areas
Installation & What's Included

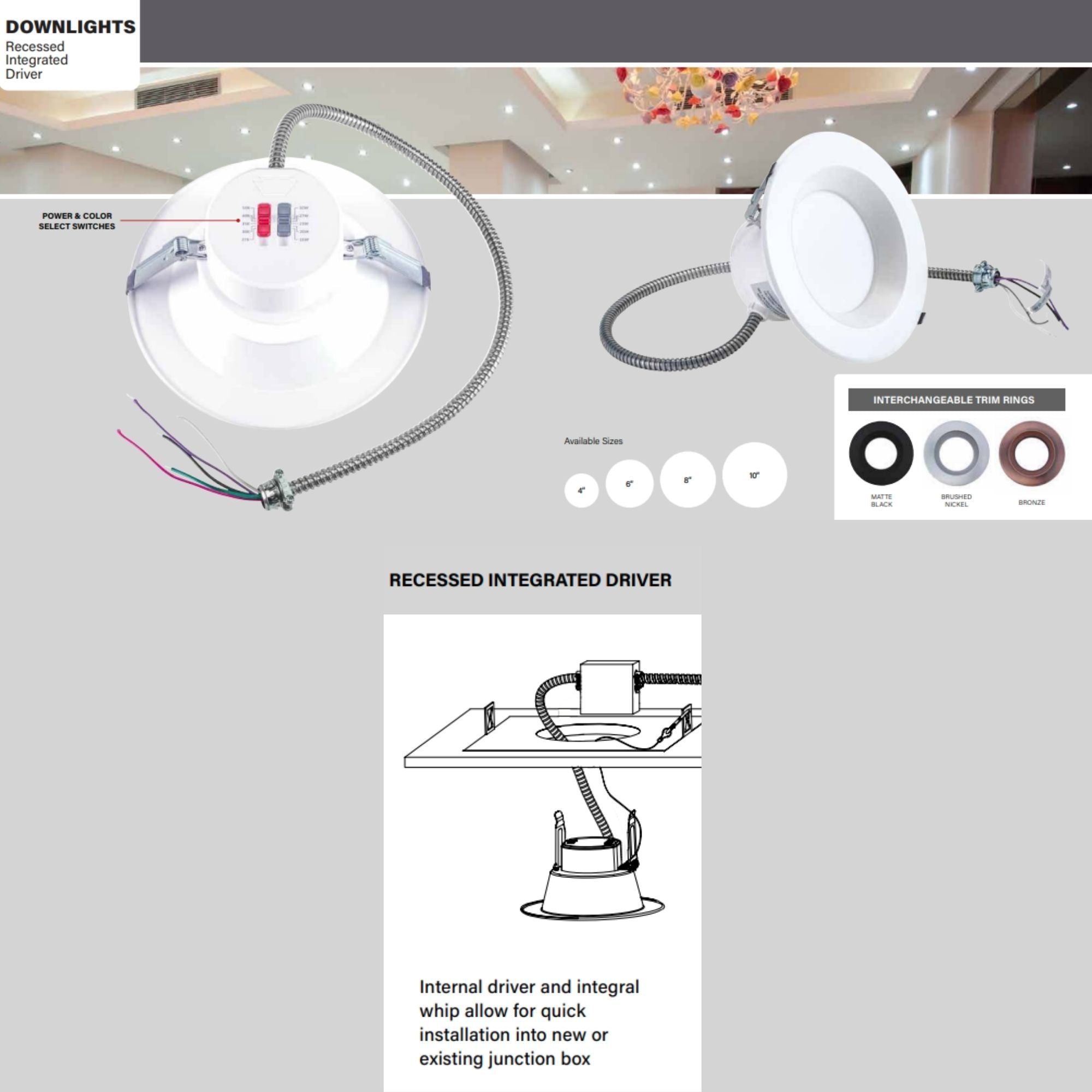

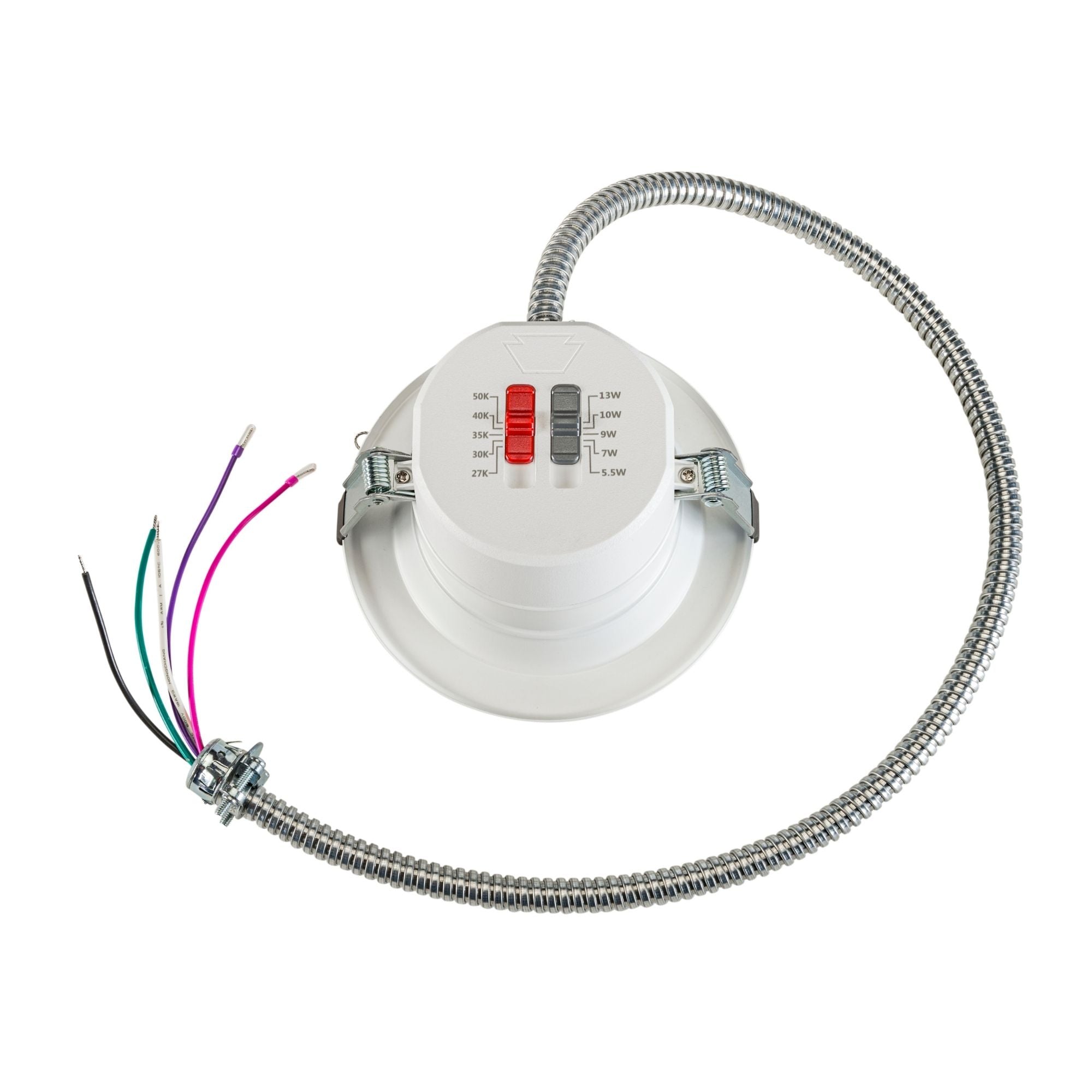

The KT-RDLED13PS-4A-9CSF-CDIM installs into standard 4-inch IC-rated new construction or remodel housings. Field-adjustable wattage and CCT switches are accessible after installation, allowing on-site tuning without removing the fixture. Simply install into compatible housing, select your desired wattage and color temperature with the built-in switches, and connect to 120-277V power. Compatible with 0-10V, TRIAC, and ELV dimming systems for flexible control integration. Wet location rating permits installation in damp or wet environments when properly sealed.
Compatible Accessories (Sold Separately)
- New-Construction Mounting Plate: Secure installation base for new construction applications
- Keystone Junction Box: Electrical connection point for safe and code-compliant installations
Why Choose Keystone Advanta Downlights
Keystone Technologies' Advanta downlight series delivers specification-grade performance for demanding commercial applications. These field-adjustable fixtures eliminate the need for multiple SKUs with on-site wattage and CCT selection for ultimate project flexibility. The family features universal voltage for commercial applications, triple-mode dimming compatibility with any control system, and wet location rating for versatile installation. With Energy Star qualification, DLC Premium listing, Title 24 JA8 compliance, 90+ CRI, and 50,000-hour rated life, Keystone Advanta downlights deliver professional-grade performance trusted by contractors, specifiers, and facility managers nationwide.
Why Buy From Us: As an authorized Keystone dealer, we guarantee 100% genuine products with full manufacturer warranty and expert customer support.
Specifications
Specifications

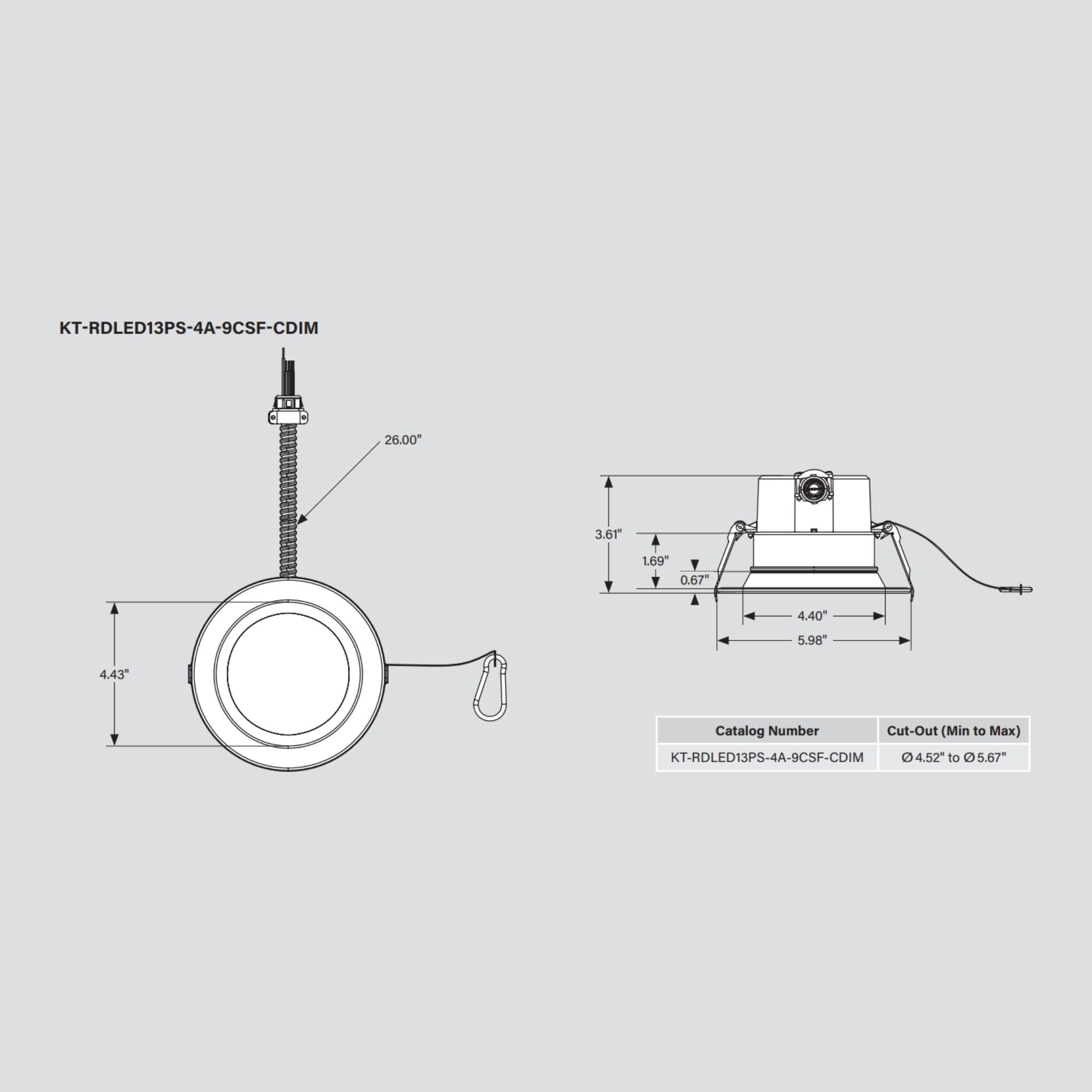

Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
What should I consider when choosing recessed lights?
What should I consider when choosing recessed lights?
When selecting recessed lights, consider the height of your ceiling and the size of your room. Smaller fixtures, like 4-inch and 5-inch models, are perfect for task lighting in kitchens, while 6-inch fixtures are commonly used for general lighting. Larger sizes, such as 8-inch and 10-inch, are ideal for creating a broad wash of light.
What is the difference between can lights and canless recessed lights?
What is the difference between can lights and canless recessed lights?
Can lights are traditional recessed fixtures with a housing can installed above the ceiling. Canless recessed lights are a newer, slimmer option that doesn't require a housing. Canless lights are typically LED, more energy-efficient, and easier to install, especially in tight spaces.
What are the benefits of LED recessed lighting?
What are the benefits of LED recessed lighting?
LED recessed lights offer significant benefits like 1) Energy efficiency: Use up to 75% less energy than incandescent bulbs; 2) Long lifespan: Can last 25,000+ hours; 3) Low heat output: Safer and doesn't affect room temperature; 4) Dimmable options: Many LED recessed lights are compatible with dimmer switches.
Can recessed lights be installed in an existing ceiling?
Can recessed lights be installed in an existing ceiling?
Yes, recessed lights can be retrofitted into existing ceilings. Canless LED options are especially suitable for retrofit projects due to their slim profile and easy installation. However, access to the area above the ceiling (attic or crawl space) may be necessary for wiring.
Are recessed lights energy-efficient?
Are recessed lights energy-efficient?
Yes, especially LED recessed lights. They consume less energy than traditional bulbs and can significantly reduce your electricity bills. Look for ENERGY STAR certified fixtures for maximum efficiency.
