Keystone XFit Microstrip Strip Light — 90W Configuration

The Keystone KT-MSLED90PS-8-8CSA-VDIM is an 8-foot LED microstrip fixture delivering up to 12,000 lumens with a selectable wattage of 90W, 75W, or 54W. It operates on 120-277V and features Keystone's Color Select technology, allowing for CCT adjustments between 3500K, 4000K, and 5000K. This fixture is UL Listed for dry and damp locations, making it suitable for various commercial and residential strip lighting applications.

Key Features

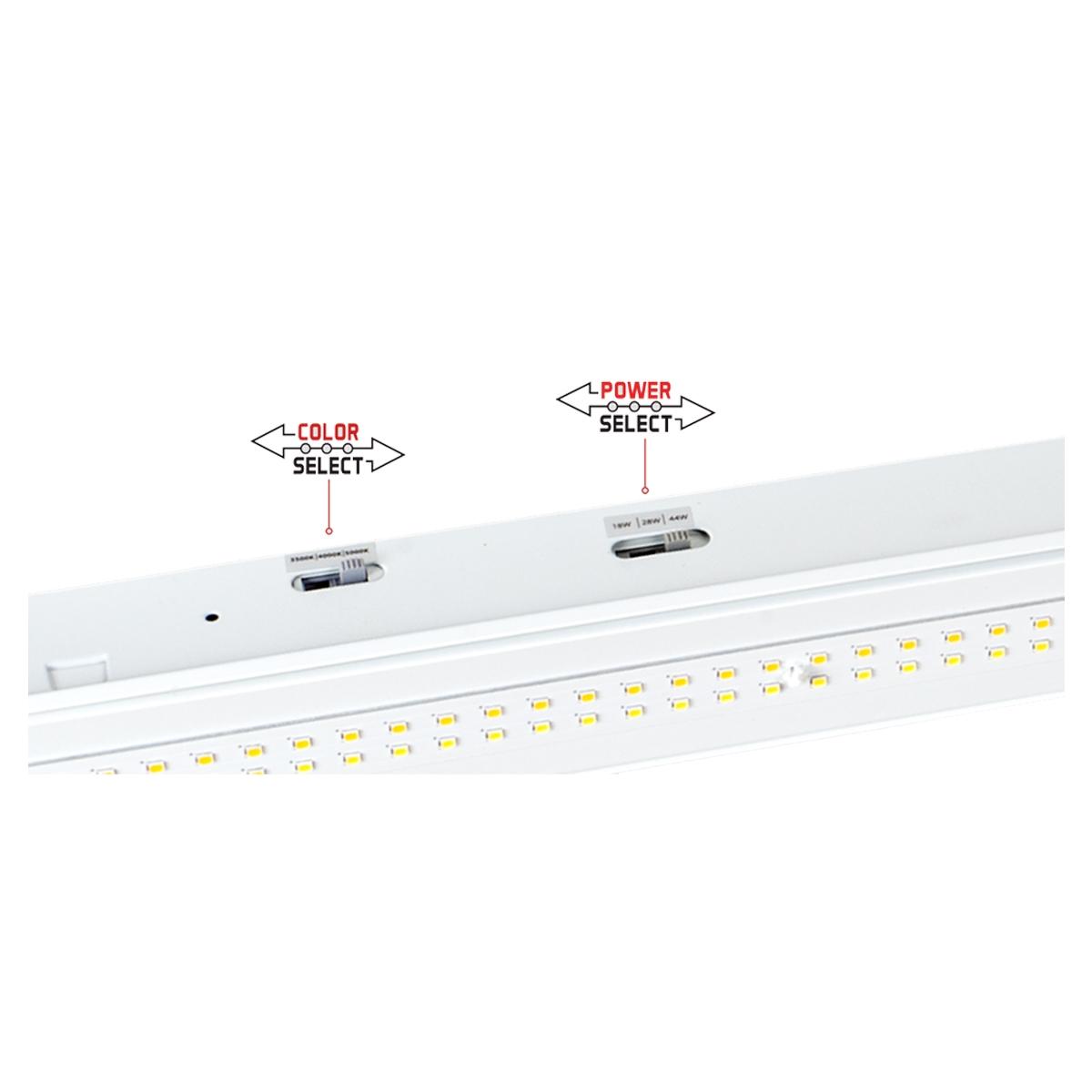

• Selectable CCT: Adjusts between 3500K, 4000K, and 5000K for versatile lighting environments.
• Power Select Technology: Offers adjustable wattage settings of 90W, 75W, and 54W for tailored energy use.
• Dimming Capability: Integrated 0-10V dimming for precise light level control.
• Construction: Built with a post-painted steel body and PMMA lens for durability.
• Emergency Compatibility: Compatible with Keystone SmartSafe emergency LED drivers.
• Sensor Compatibility: Supports Keystone occupancy sensors for enhanced control.
• Operating Temperature: Functions efficiently in temperatures from -20ºC/-4ºF to 50ºC/122ºF.
• UL Listed: Certified for use in dry and damp locations.
• High Efficacy: Achieves up to 144 lm/W depending on settings.
• Long Lifespan: Rated for 50,000 hours of operation.

Typical Applications

• Commercial strip lighting
• Retail environments
• Residential areas
• Warehouses
• Workshops

Performance & Light Output

This fixture delivers up to 12,000 lumens with an efficacy of up to 144 lm/W, ensuring bright and efficient lighting. It maintains a CRI of over 80, providing accurate color rendering.

Electrical & Controls

Designed for 120-277V input, the fixture includes a Keystone 0-10V dimming LED driver. It supports optional controls such as occupancy sensors and emergency drivers for enhanced functionality.

Construction & Durability

The fixture features a robust post-painted steel body and a PMMA lens, ensuring durability. It is UL Listed for dry and damp locations, with an operating temperature range from -20ºC to 50ºC.

Installation & Mounting

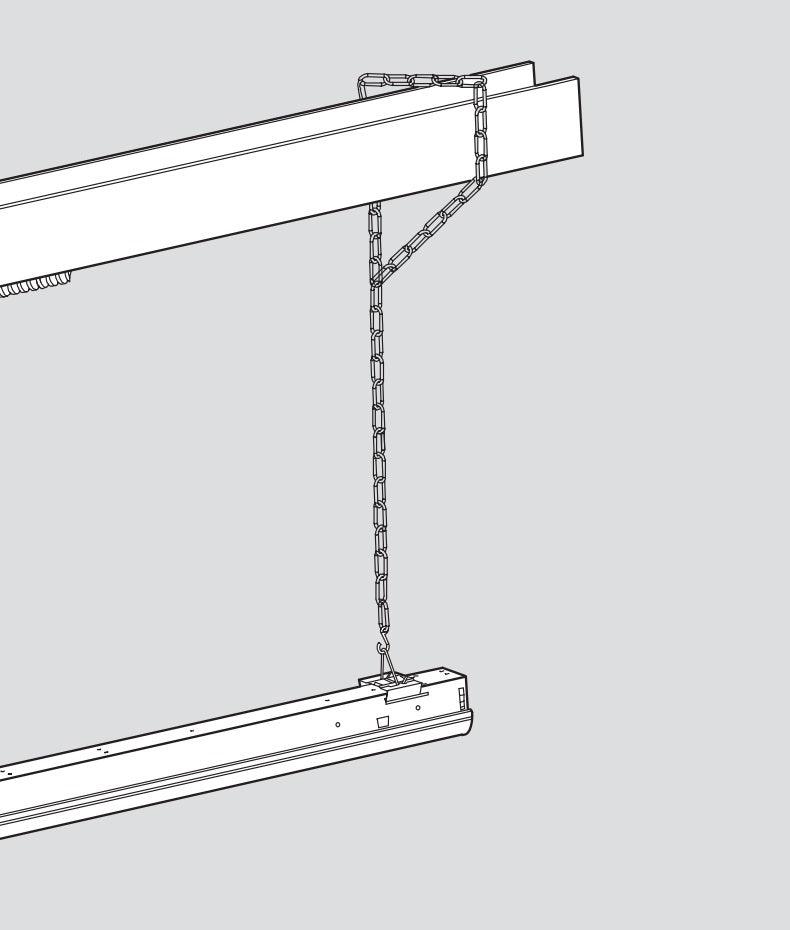

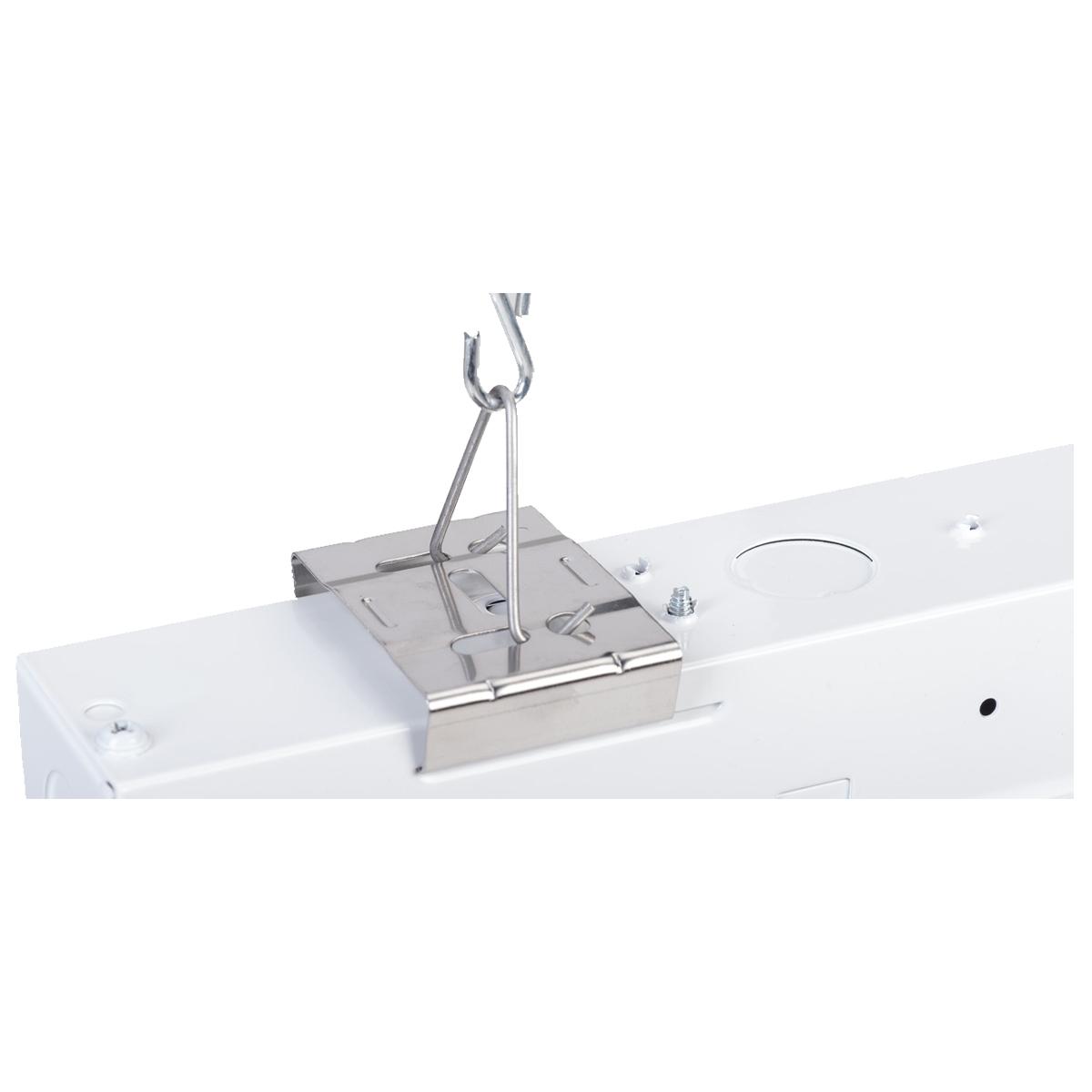

Compatible with various mounting accessories, including V-hook and chain kits, for flexible installation options. Supports both factory and field-installable accessories.

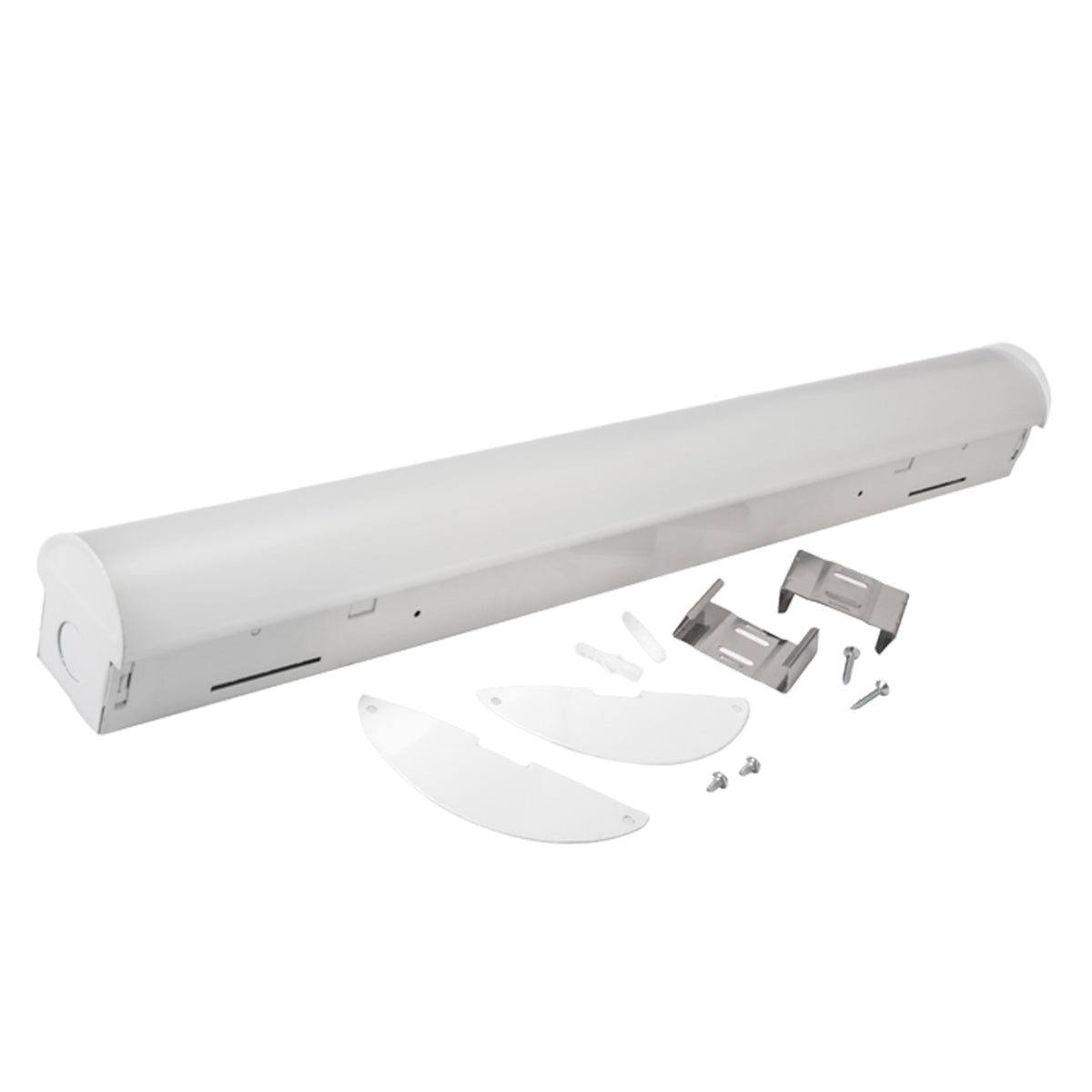

What's Included

• LED Microstrip Fixture
