Keystone 8ft Multi-Purpose Linear Fixture 8297 Lumens 64W Selectable CCT 120-277V White
Available in stock (200)
About this item
About this item
- Lumens: Delivers up to 8,297 lumens for high visibility in outdoor settings.
- Wattage: Operates at 64 watts with selectable wattage options for energy efficiency.
- Voltage: Compatible with 120-277V input for versatile installation.
- Color Temperature: Features selectable CCT from 3000K to 5000K for customizable ambiance.
- Environmental Rating: IP65 rated for protection against dust and water ingress.
We process payments securely and do not store credit card information.
Description
Description
Keystone Multi-Purpose Linear Fixture Canopy Light - 64W Configuration
The Keystone KT-MPLLED64PS-8A-8CSN is a versatile canopy light delivering 8,297 lumens at 64 watts. It operates on a 120-277V input and features selectable color temperatures ranging from 3000K to 5000K. This fixture is IP65 rated, making it suitable for outdoor environments.
Key Features
- Selectable Wattage: Offers 64W, 52W, and 36W settings for adaptable energy use.
- Selectable CCT: Adjusts between 3000K, 3500K, 4000K, and 5000K for varied lighting needs.
- High Efficacy: Achieves 125-130 lm/W for efficient light output.
- Durable Construction: Features a slim, linear design with a frosted lens for uniform light distribution.

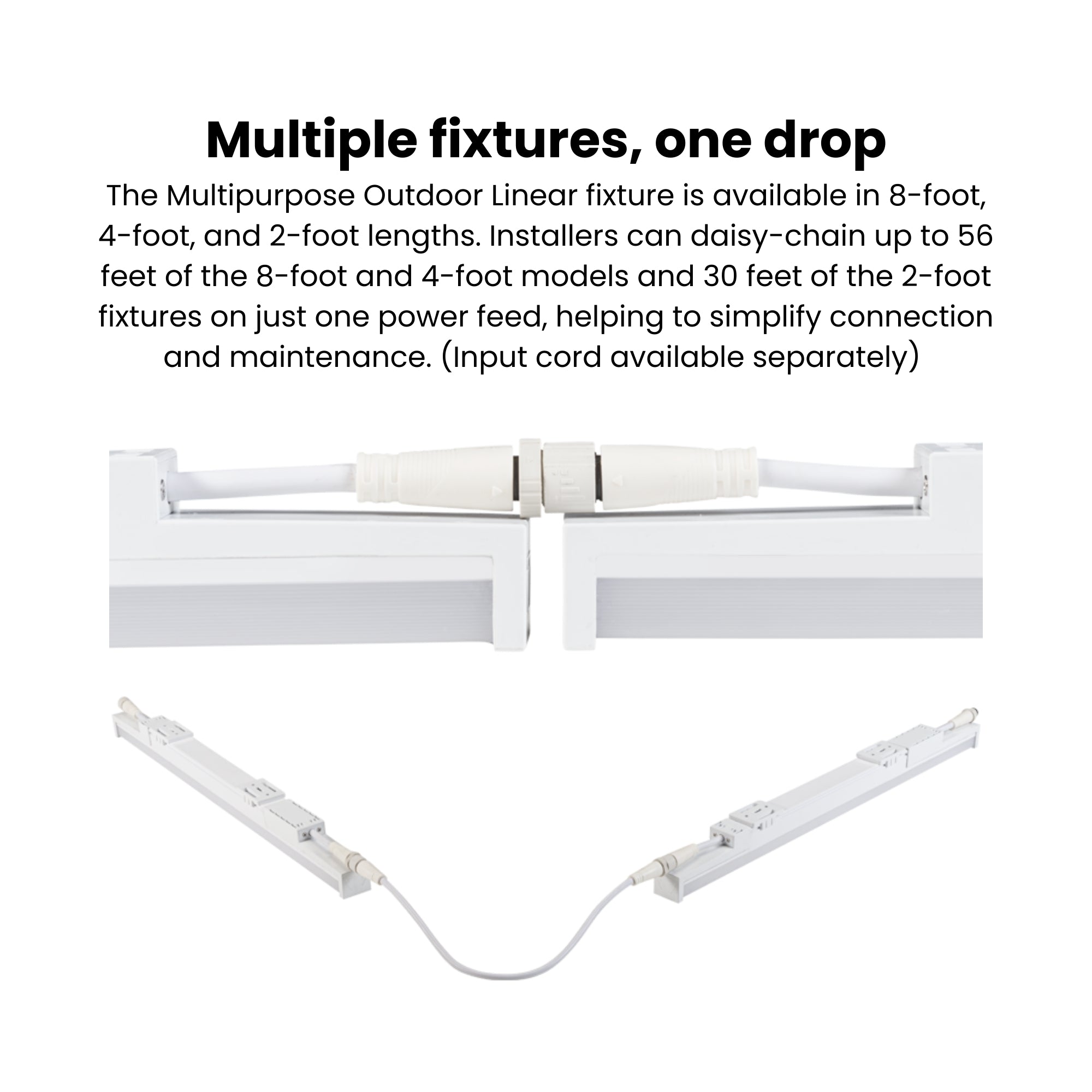

- Linkable Design: Supports daisy-chaining for extended linear runs.
- Integrated Power Supply: Eliminates the need for separate power supplies.
- UL Certified: Suitable for wet locations, ensuring reliable performance in adverse conditions.
- Long Lifespan: LED chip lifetime exceeds 100,000 hours at 25°C ambient temperature.
- Power Factor: Greater than 0.95, ensuring efficient electrical performance.
- Operating Temperature: Functions in environments from -40°C to 45°C.

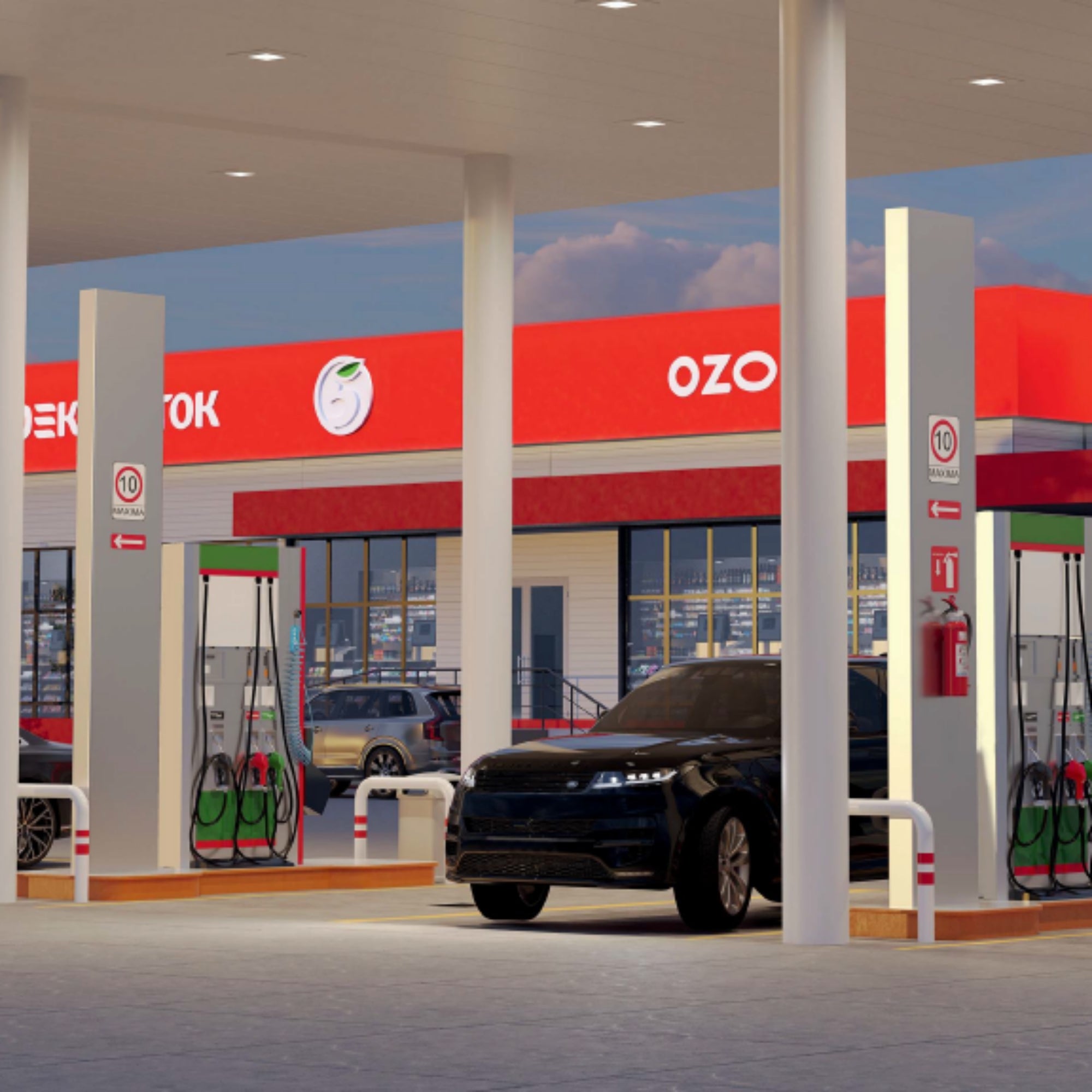

Typical Applications
- Awnings
- Canopies
- Drive-throughs
- Perimeter soffits
- General outdoor lighting
Performance & Light Output
This fixture provides a maximum of 8,297 lumens with an efficacy of 128.7 lm/W. It maintains a CRI greater than 80, ensuring accurate color rendering.
Electrical & Controls
Compatible with 120-277V systems, this fixture includes a dimmable driver and supports power select technology for adjustable wattage. It maintains a power factor greater than 0.95.

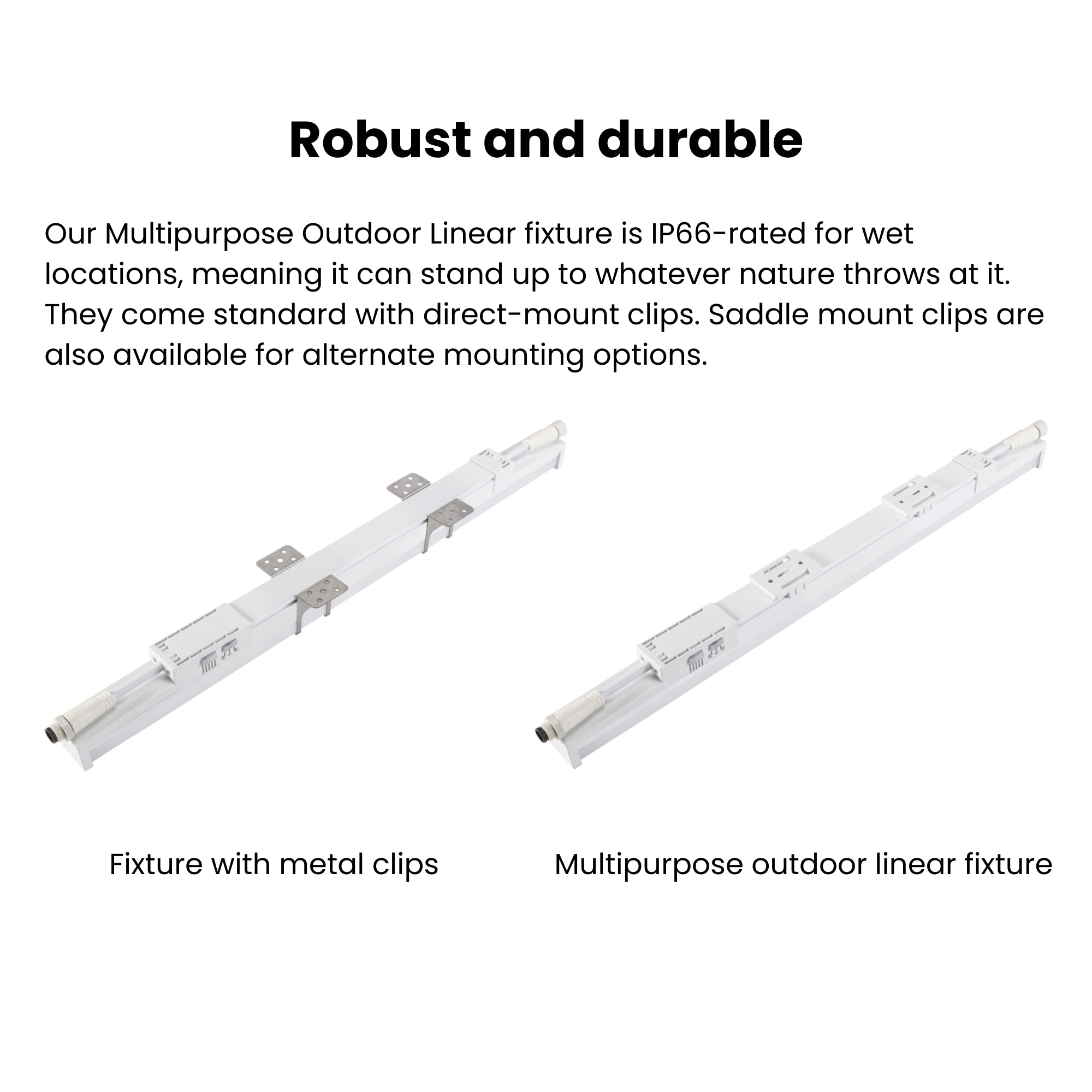

Construction & Durability
Constructed with a durable housing and frosted lens, this fixture is IP65 rated for protection against dust and water. It is UL certified for wet locations.
Installation & Mounting
Includes mounting clips for easy installation and supports daisy-chaining for extended runs. Requires a separate purchase of an input power cord leader cable.
What's Included
- Mounting clips
Specifications
Specifications

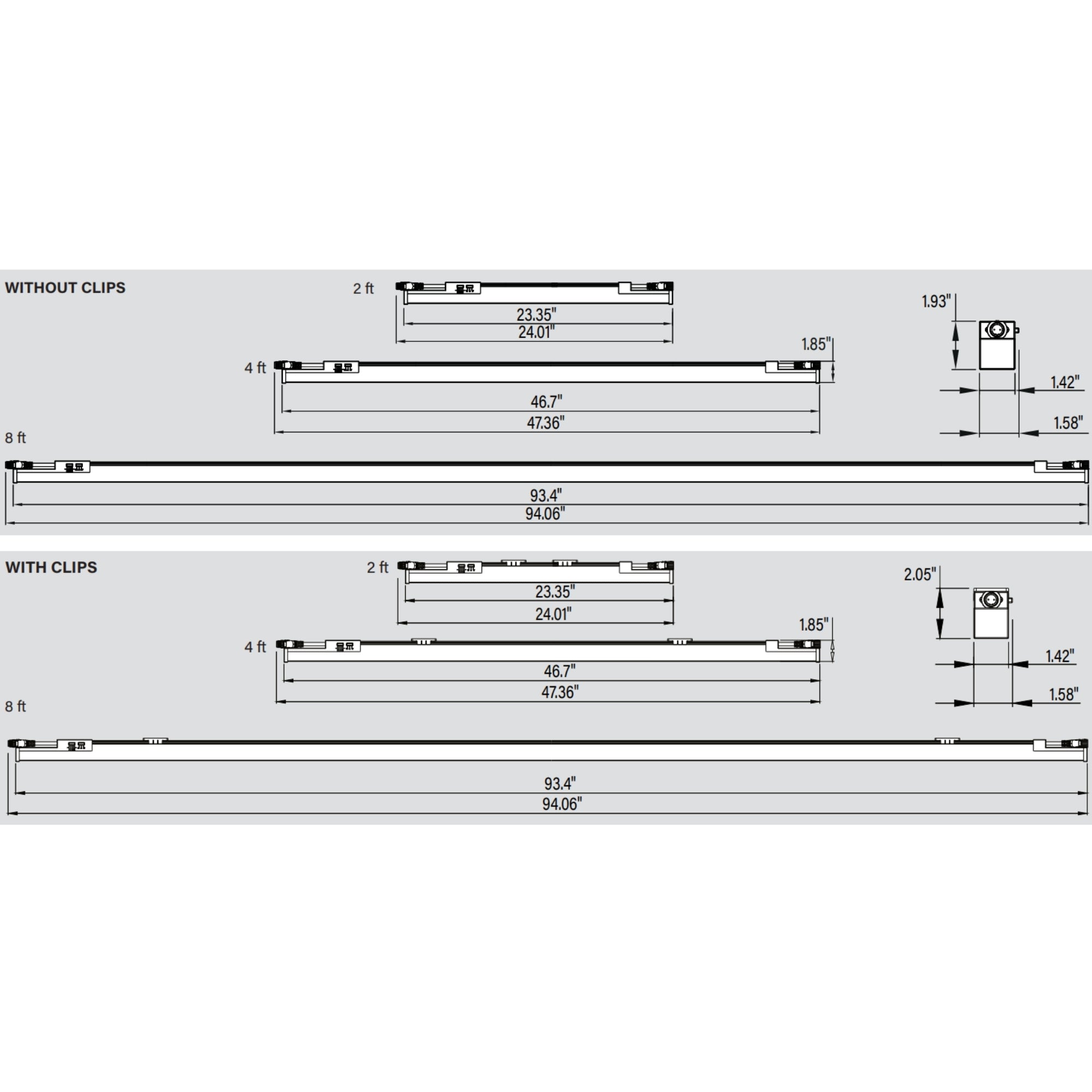

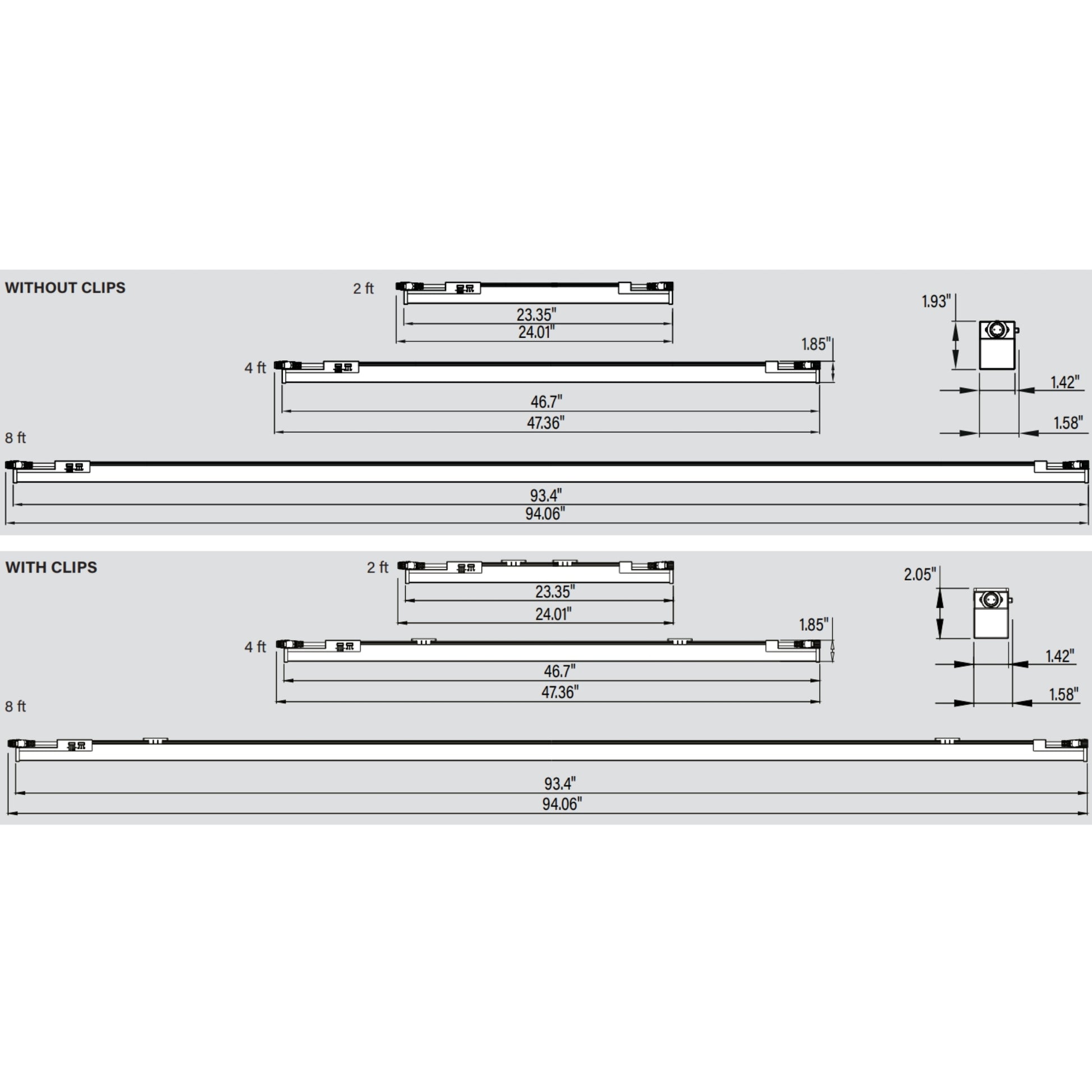

Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the lumen output of the KT-MPLLED64PS-8A-8CSN?
What is the lumen output of the KT-MPLLED64PS-8A-8CSN?
Is the KT-MPLLED64PS-8A-8CSN dimmable?
Is the KT-MPLLED64PS-8A-8CSN dimmable?
What voltage does the KT-MPLLED64PS-8A-8CSN support?
What voltage does the KT-MPLLED64PS-8A-8CSN support?
What is the environmental rating of the KT-MPLLED64PS-8A-8CSN?
What is the environmental rating of the KT-MPLLED64PS-8A-8CSN?
What are the selectable color temperatures for this fixture?
What are the selectable color temperatures for this fixture?
