2ft LED Multi-Purpose Linear Fixture, 16W, 2100 Lumens, Selectable CCT, 120-277V
2ft LED Multi-Purpose Linear Fixture, 16W, 2100 Lumens, Selectable CCT, 120-277V
Available in stock (100)
Choose your location
enter a US zip code
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description

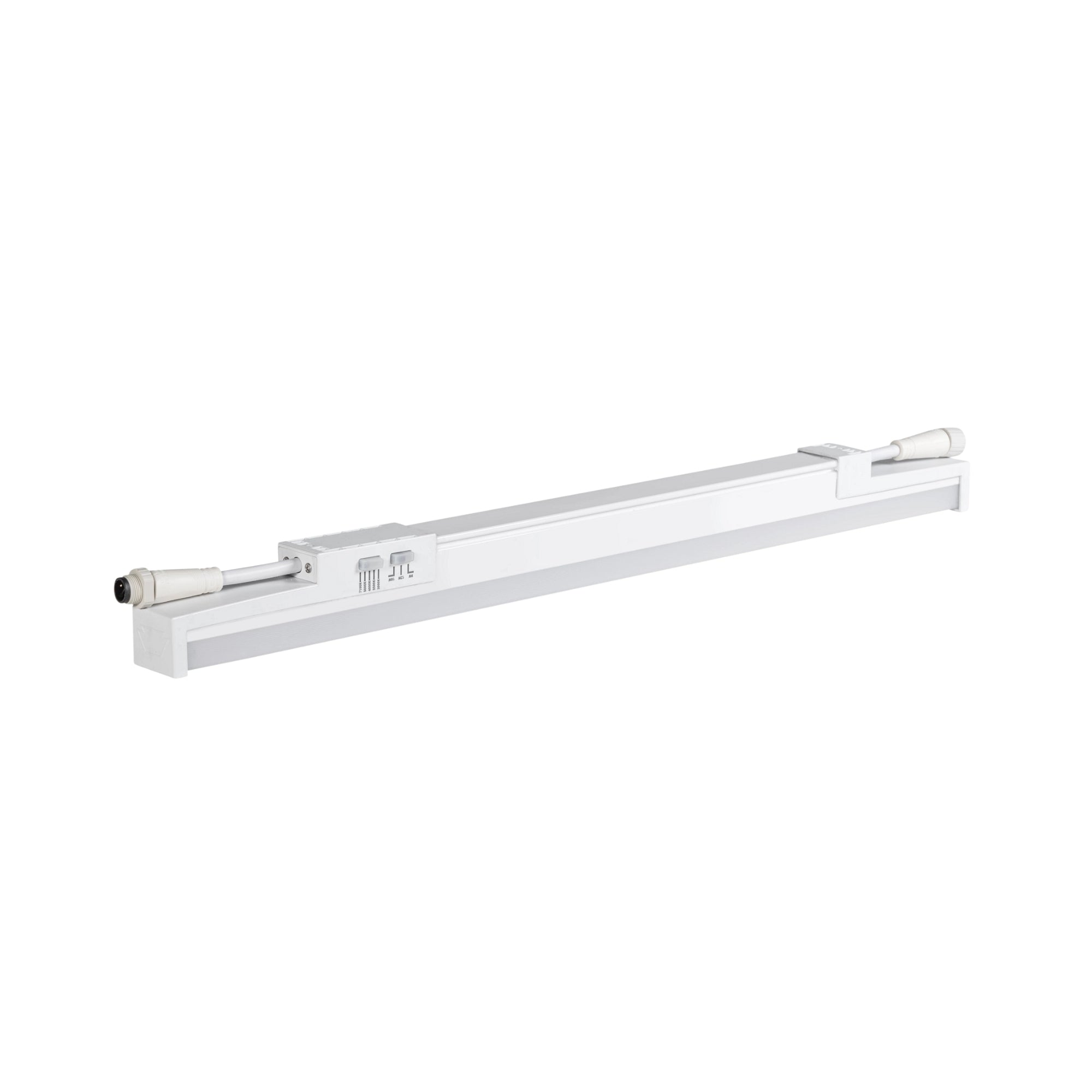

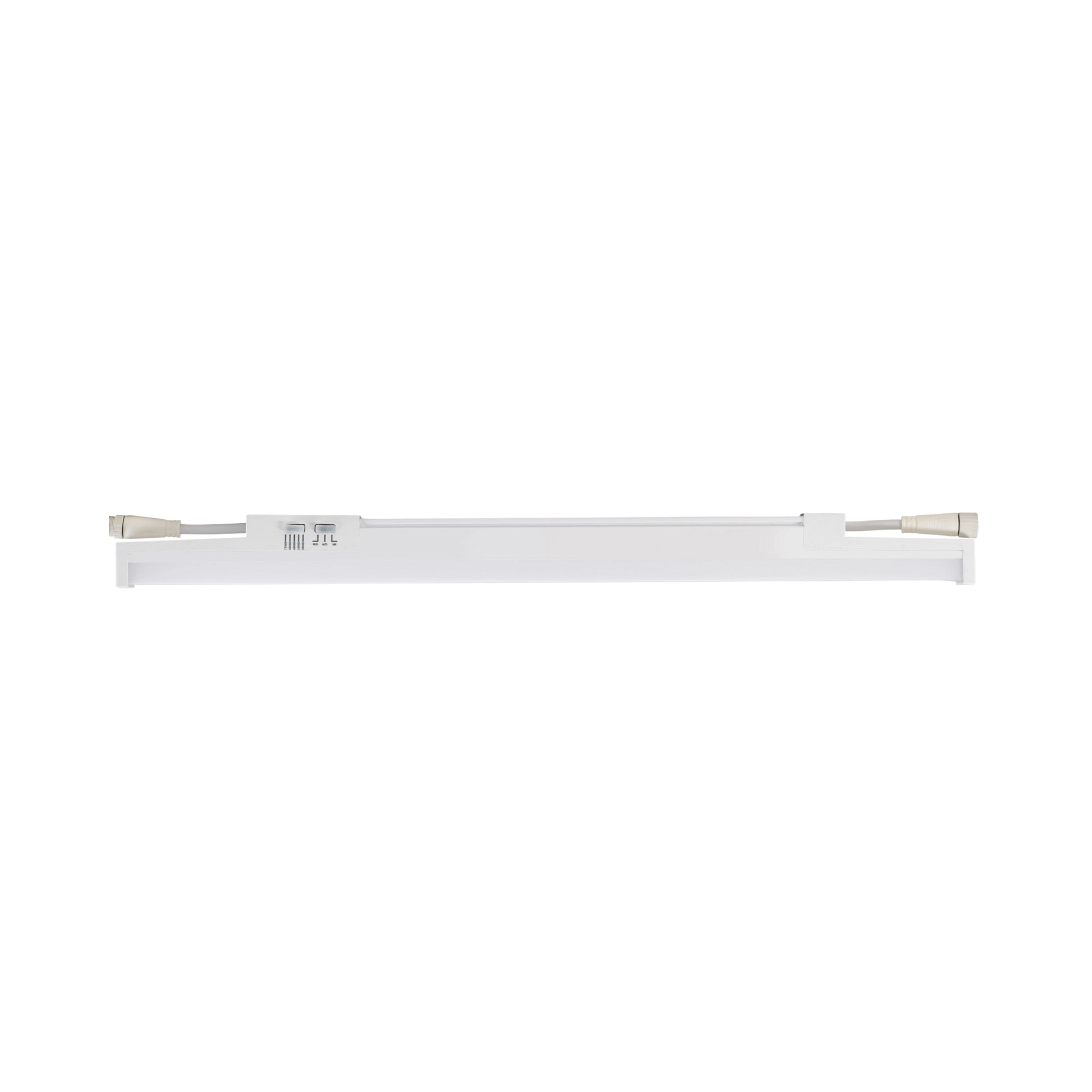

Keystone Technologies KT-MPLLED16PS-2A-8CSN is a versatile 2-foot LED linear fixture designed specifically for awnings, canopies, drive-throughs, perimeter soffits, and other multi-purpose outdoor lighting needs. This compact 16W fixture from Keystone delivers up to 2,111 lumens at 5000K, providing reliable illumination for commercial and industrial outdoor applications.
Ideal Applications
- Awning and canopy lighting for storefronts and commercial buildings
- Drive-through lane illumination for restaurants and banks
- Perimeter soffit lighting for building security and aesthetics
- Walkway and entrance lighting
- Multi-purpose outdoor commercial lighting installations
Flexible Installation & Power Options

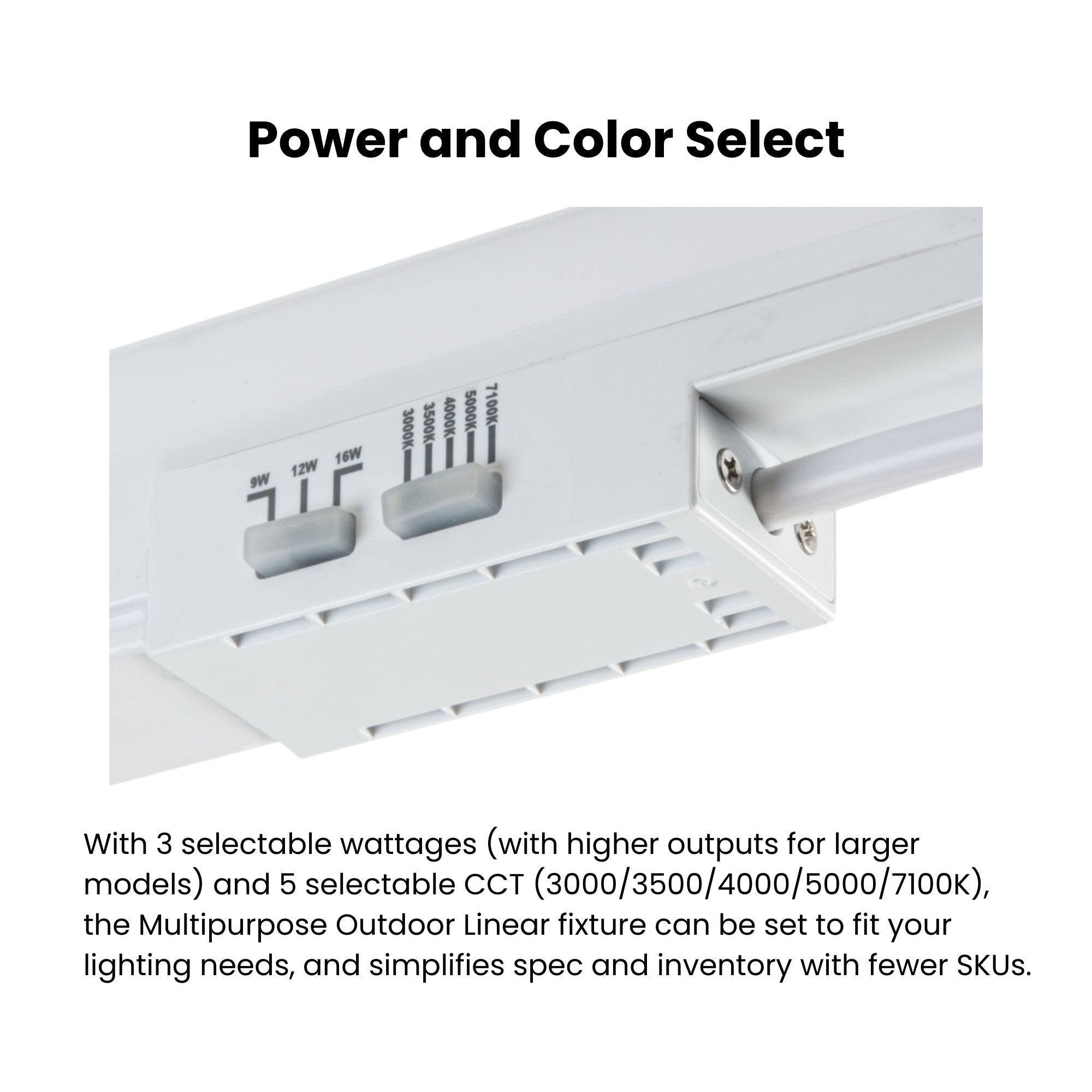

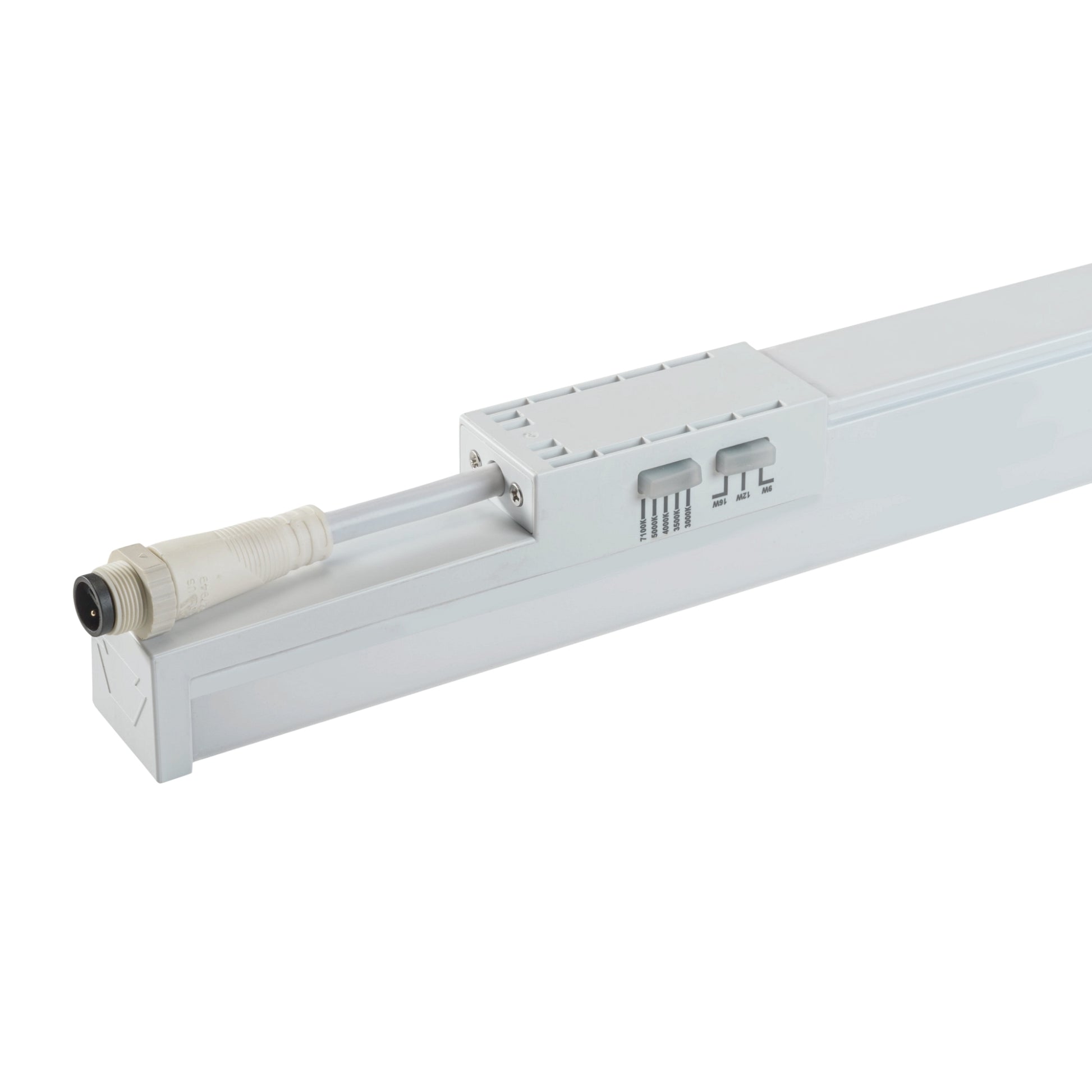

- Keystone Power Select technology offers adjustable wattage (9W, 12W, or 16W) to match your lighting requirements
- Universal 120-277V input voltage for commercial and industrial compatibility

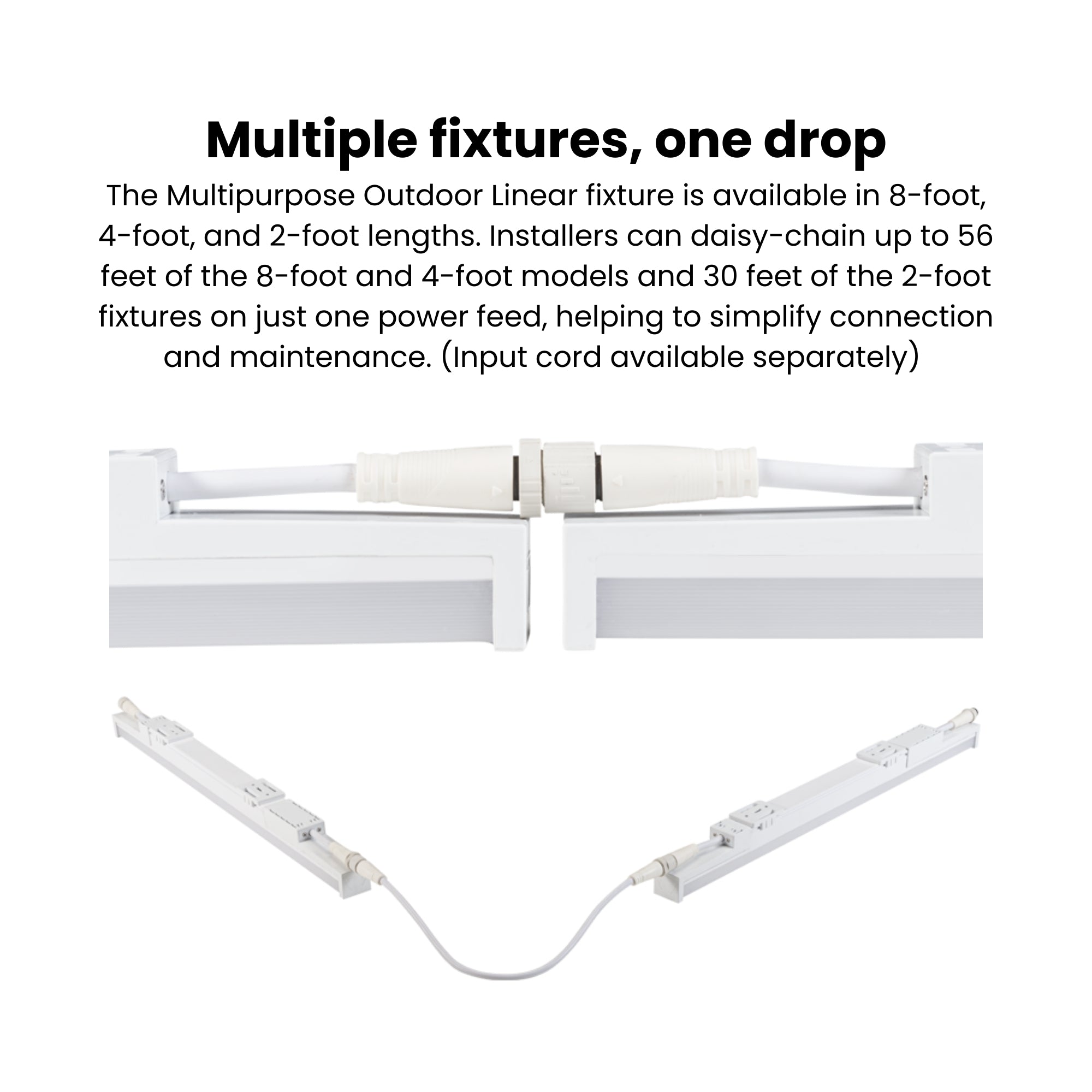

- Linkable design supports easy daisy-chaining for linear runs and corner installations
- Integrated power supply eliminates need for remote supplies
Customizable Color Temperature
- Keystone Color Select technology: choose 3000K, 3500K, 4000K, 5000K, or 7100K CCT on-site
- Frosted lens provides wide Lambertian distribution for uniform light output
- High CRI >80 ensures accurate color rendering
- Efficacy up to 131.5 lm/W for energy-efficient operation
Built for Outdoor Environments
- IP66 rated housing withstands rain, dust, and corrosion
- UL Certified for wet locations
- Operates in ambient temperatures from -40°C/-40°F to 45°C/113°F
- Slim linear profile offers sleek appearance with durable construction
- LED chip lifetime: 50,000 hours @25°C/77°F ambient
Energy Compliance & Performance
- Power Factor >0.95, THD <20% for clean electrical performance
- Meets FCC Part 15, Part B, Class A standards for conducted and radiated emissions

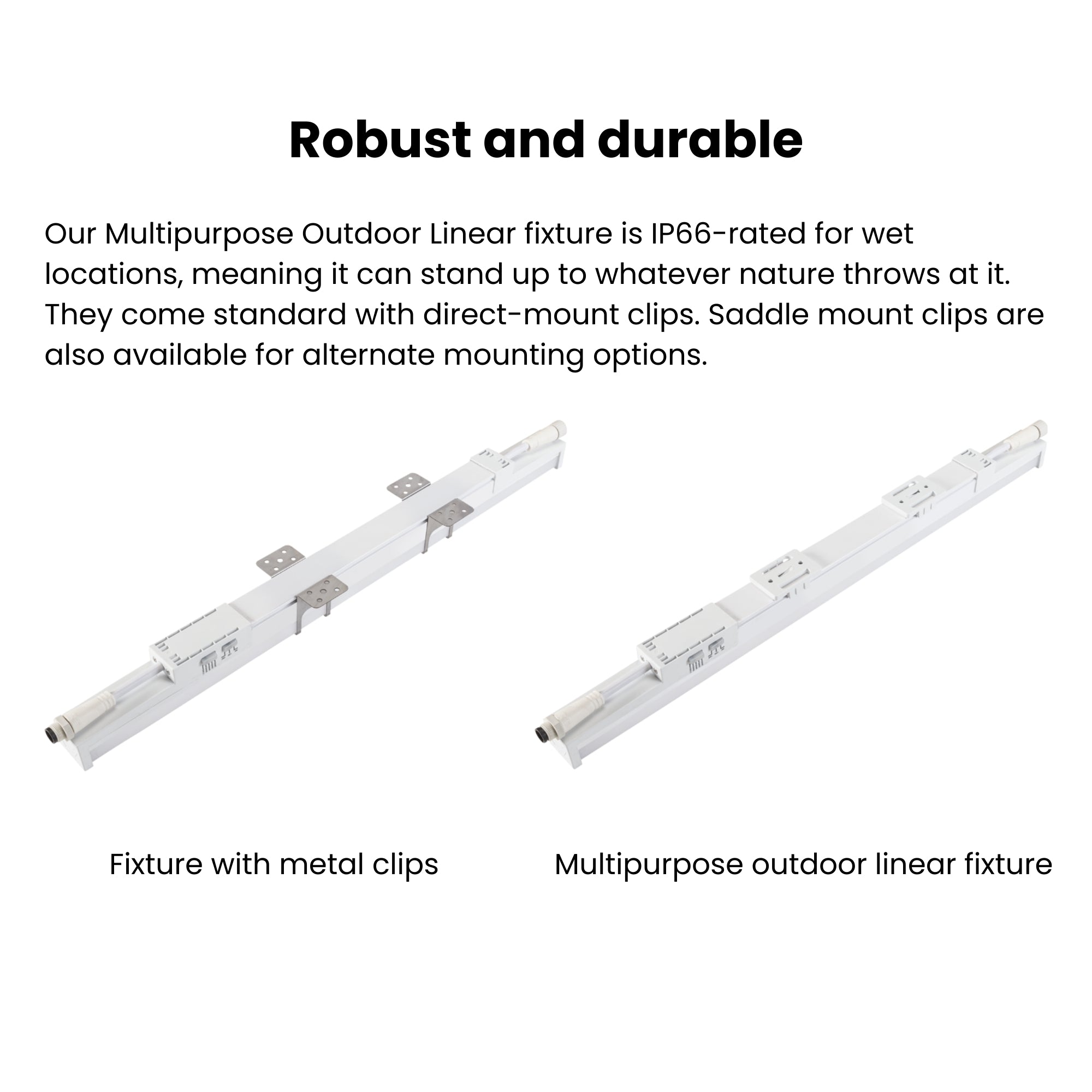

- Fast installation with included mounting clips
- 5-year warranty from Keystone Technologies
Note: All installations require purchase of at least one input power cord leader cable per power feed, sold separately (Cat No. KT-MPLLED-LC-7).
Specifications
Specifications

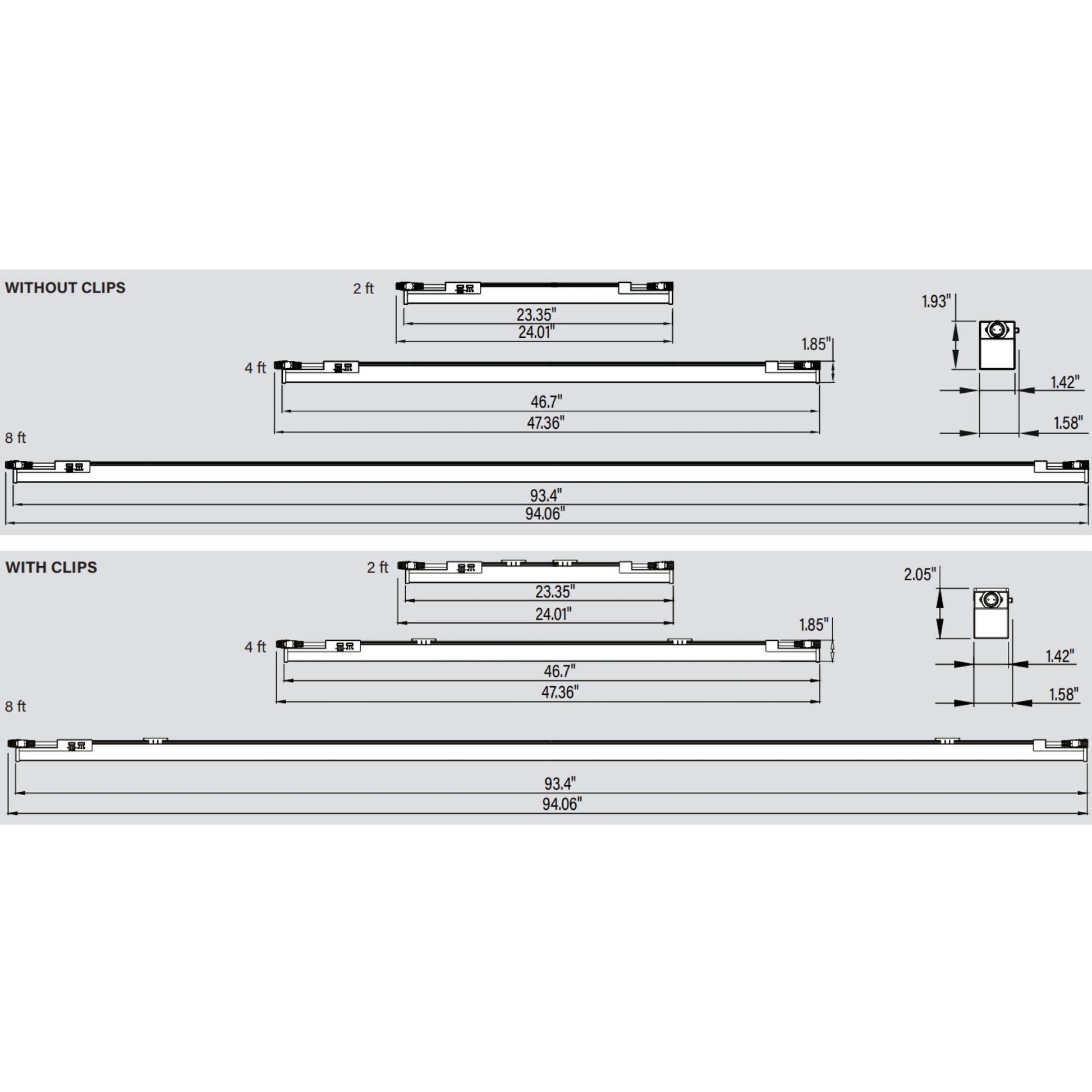

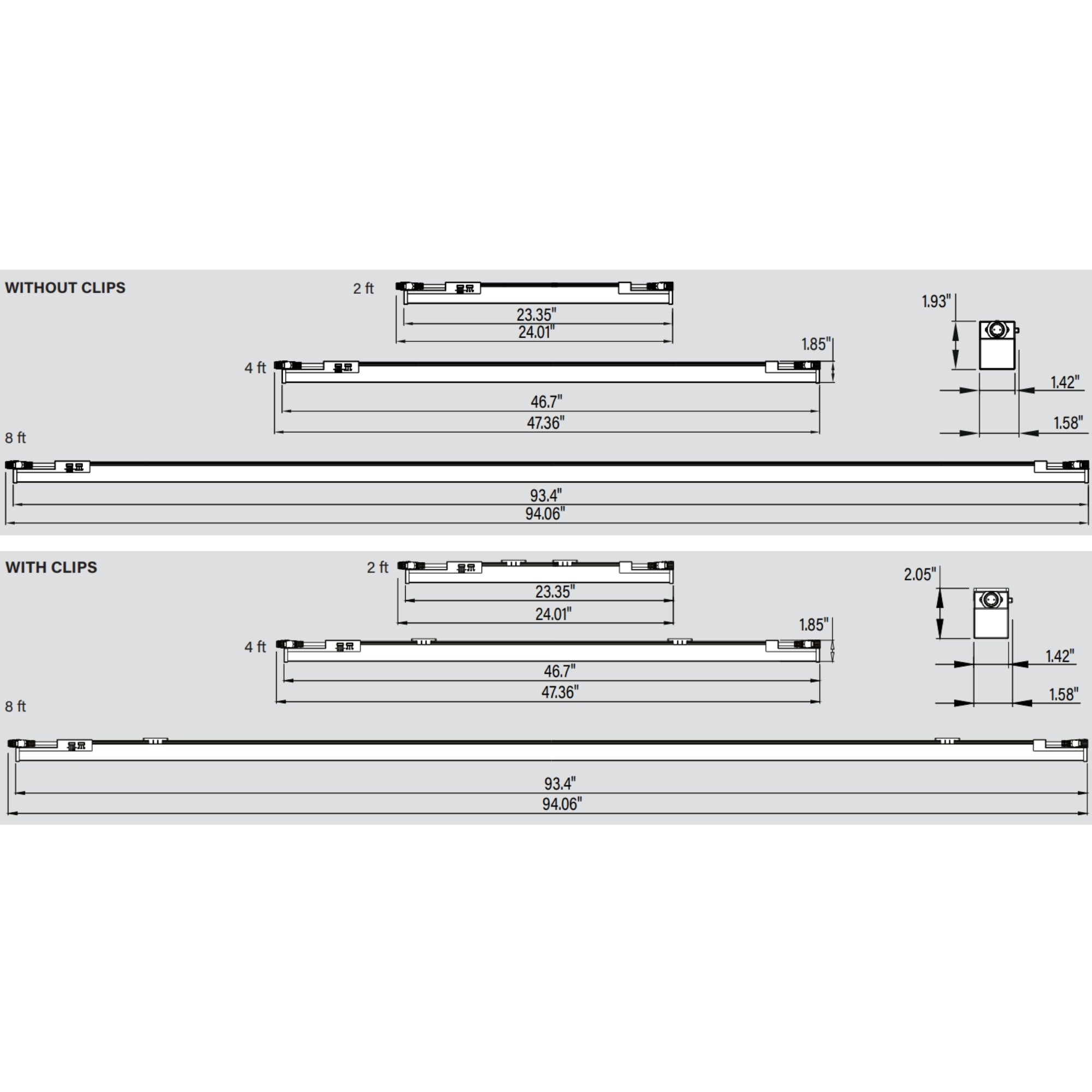

Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
What makes a canopy light different from a regular ceiling light?
What makes a canopy light different from a regular ceiling light?

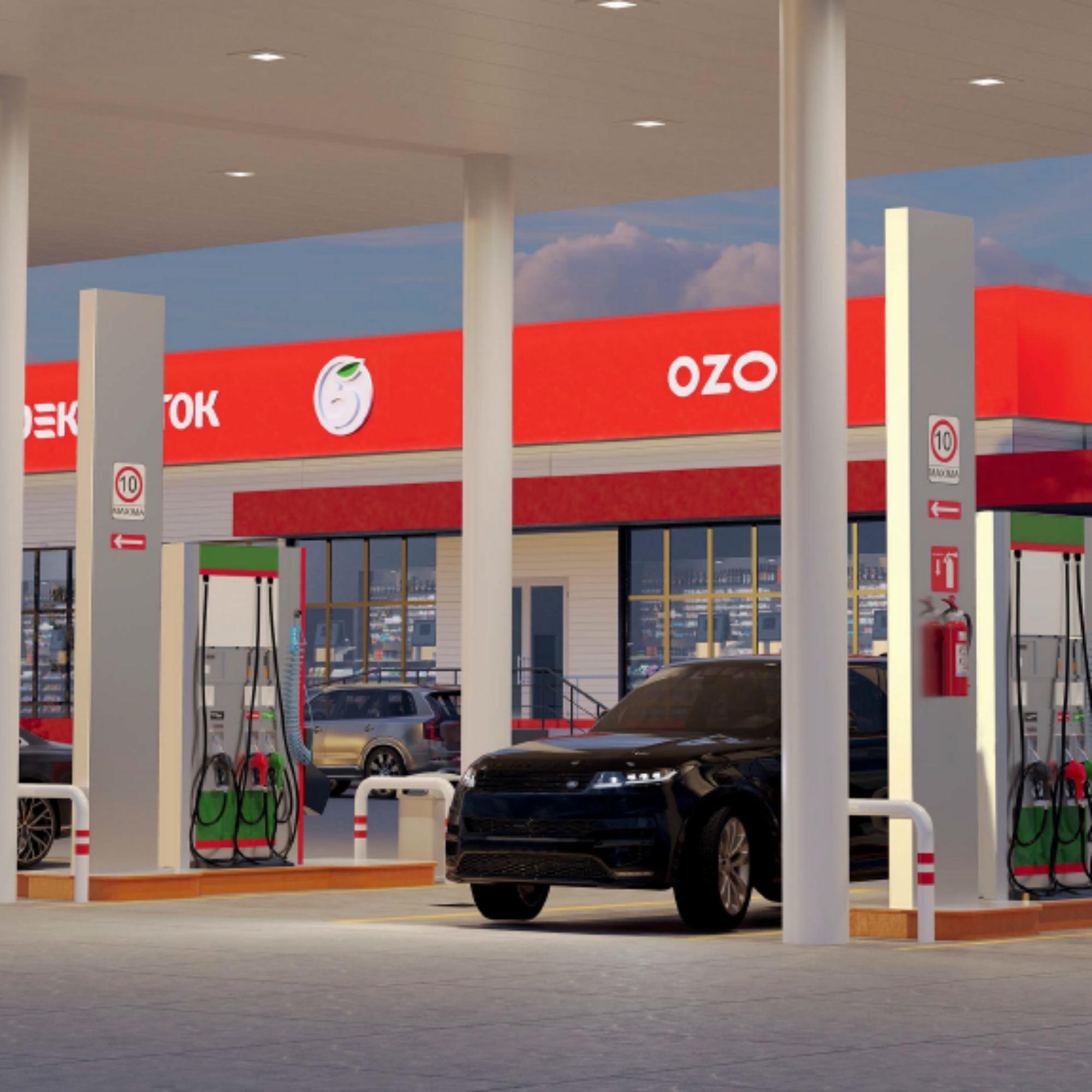

LED canopy lights are specifically engineered for outdoor or semi-outdoor use. They feature rugged, weather-resistant housings (usually IP65 rated) that seal out dust, moisture, and bugs. They are also designed with lenses that resist yellowing from UV exposure and vehicle exhaust.
Can I replace my Metal Halide canopy lights one-for-one?
Can I replace my Metal Halide canopy lights one-for-one?
Yes. A 40W to 60W LED fixture typically replaces a 150W to 175W metal halide, while a 100W to 150W LED can replace a 400W metal halide. This switch reduces energy consumption by up to 75% while improving light quality.
What is the difference between a flat lens and a drop lens?
What is the difference between a flat lens and a drop lens?
Flat Lens: Provides a sleek, low-profile look and directs light straight down (cutoff). This is often preferred for gas stations to reduce glare from a distance.
Drop Lens: The lens extends below the fixture, allowing some light to spread sideways. This is excellent for parking garage lighting as it illuminates the ceiling and walls, reducing the "cave effect" and making the space feel larger and safer.
How do I install surface mount canopy lights?
How do I install surface mount canopy lights?
Most fixtures feature a quick-mount plate. You attach the mounting plate to the junction box or ceiling surface first, wire the connections, and then slide or lock the fixture housing onto the plate. This makes installation easy for a single person.
Do these lights work with motion sensors?
Do these lights work with motion sensors?
Yes. Since parking garages and gas stations often have periods of low activity late at night, many of our fixtures are compatible with integrated bi-level motion sensors. These dim the lights (e.g., to 30%) when no motion is detected and return to 100% brightness instantly when a car or person arrives.
