Keystone Technologies High Bay LED Bulb — 80W / Selectable CCT

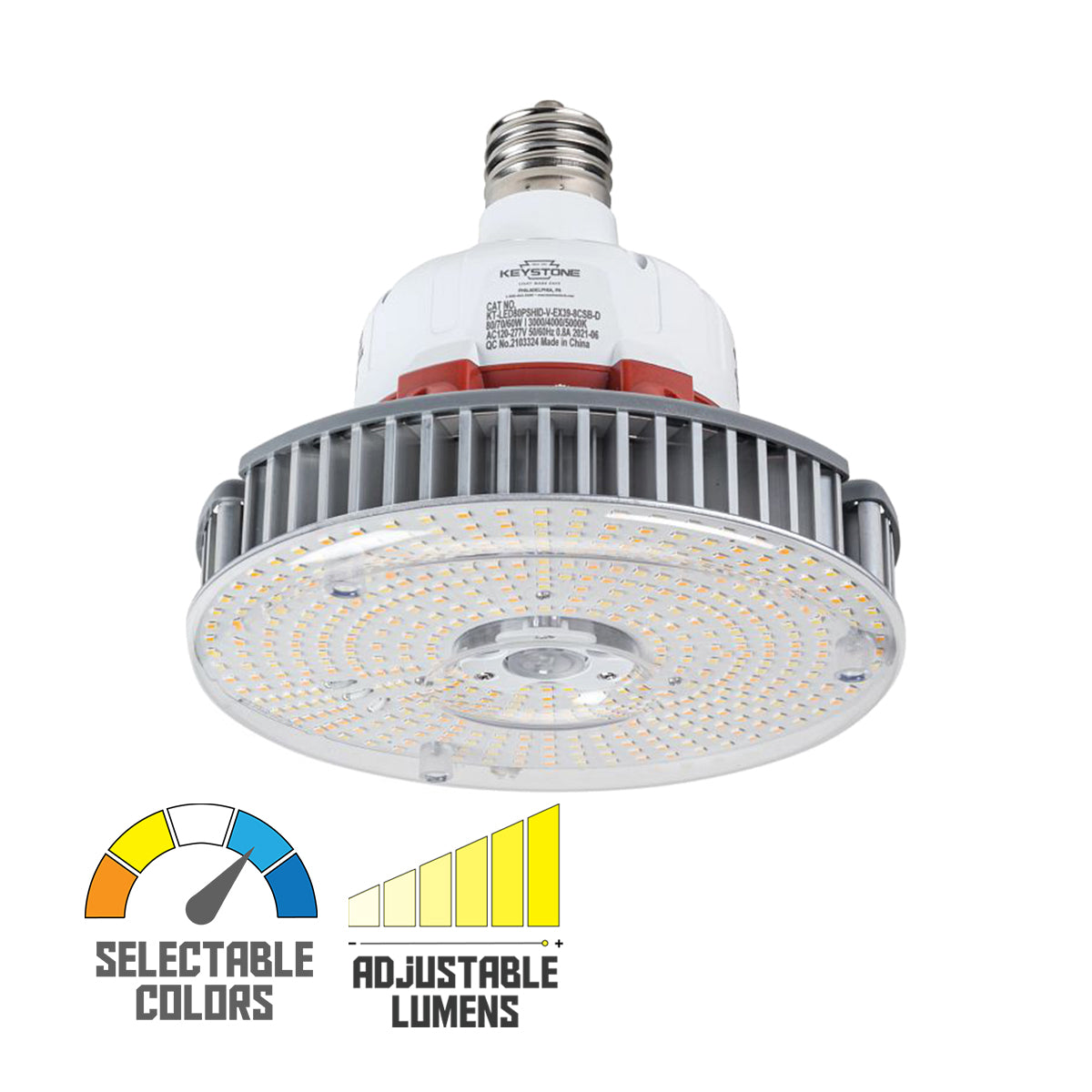

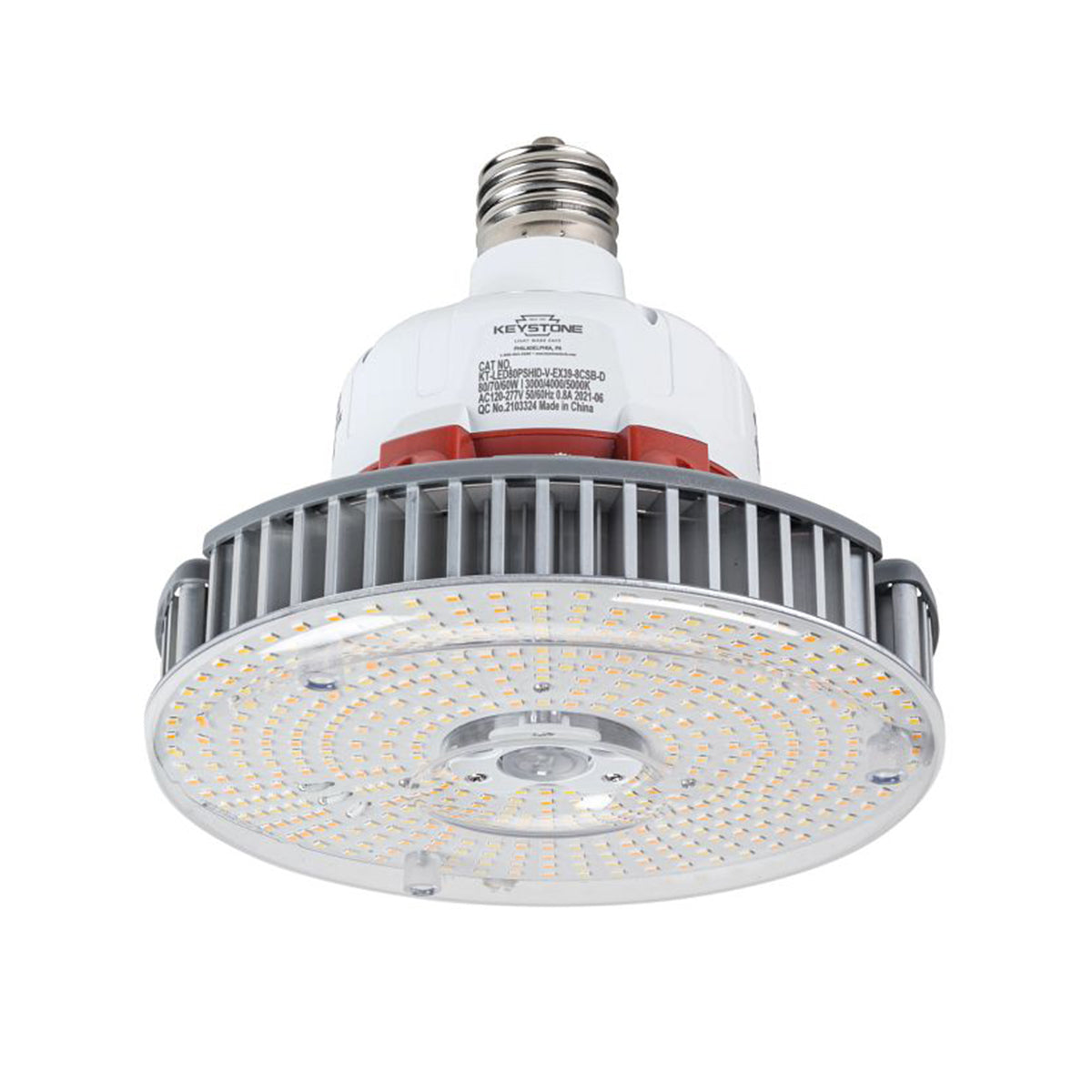

The Keystone Technologies KT-LED80PSHID-V-EX39-8CSB-D is a versatile High Bay LED bulb designed for EX39 Mogul Extended bases. This 80W bulb serves as a direct replacement for 250W metal halide lamps, offering selectable color temperatures of 3000K, 4000K, and 5000K. With its enclosed fixture rating, it is ideal for various commercial and industrial applications.

Key Features

• Base Type: EX39 Mogul Extended
• Bulb Shape: High Bay
• Wattage Equivalency: 250W MH Equal
• Enclosed Fixture Rated: Yes
• Selectable CCT: 3000K, 4000K, 5000K
• Dimming: Compatible with sensors only
• Voltage: 120-277V
• Certifications: IP64 Rated
• Surge Protection: 6kV
• Power Select: Adjustable wattage (60W, 70W, 80W)

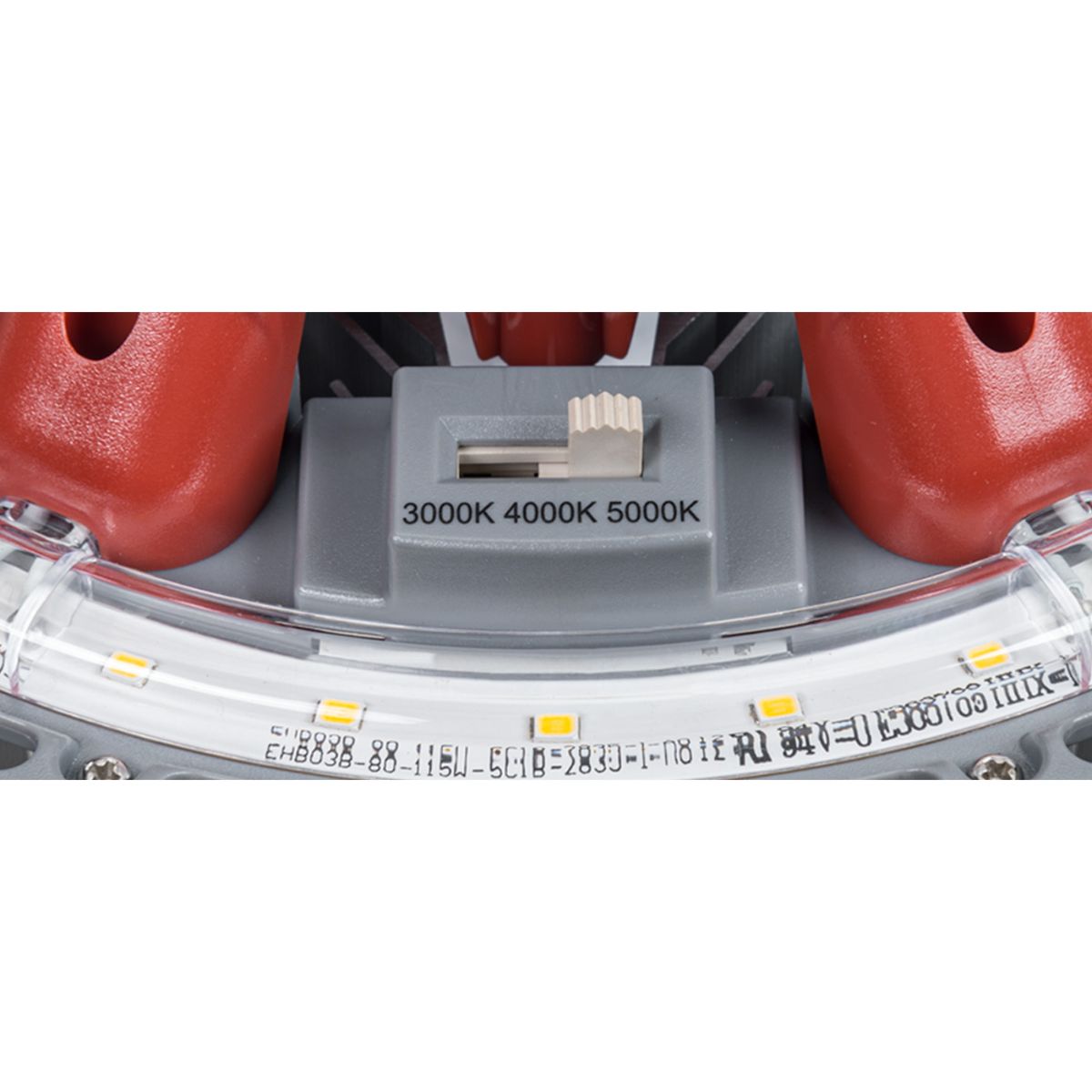

• Color Select: Adjustable CCT (3000K, 4000K, 5000K)
• Lifetime: 50,000 hours

Construction & Aesthetics

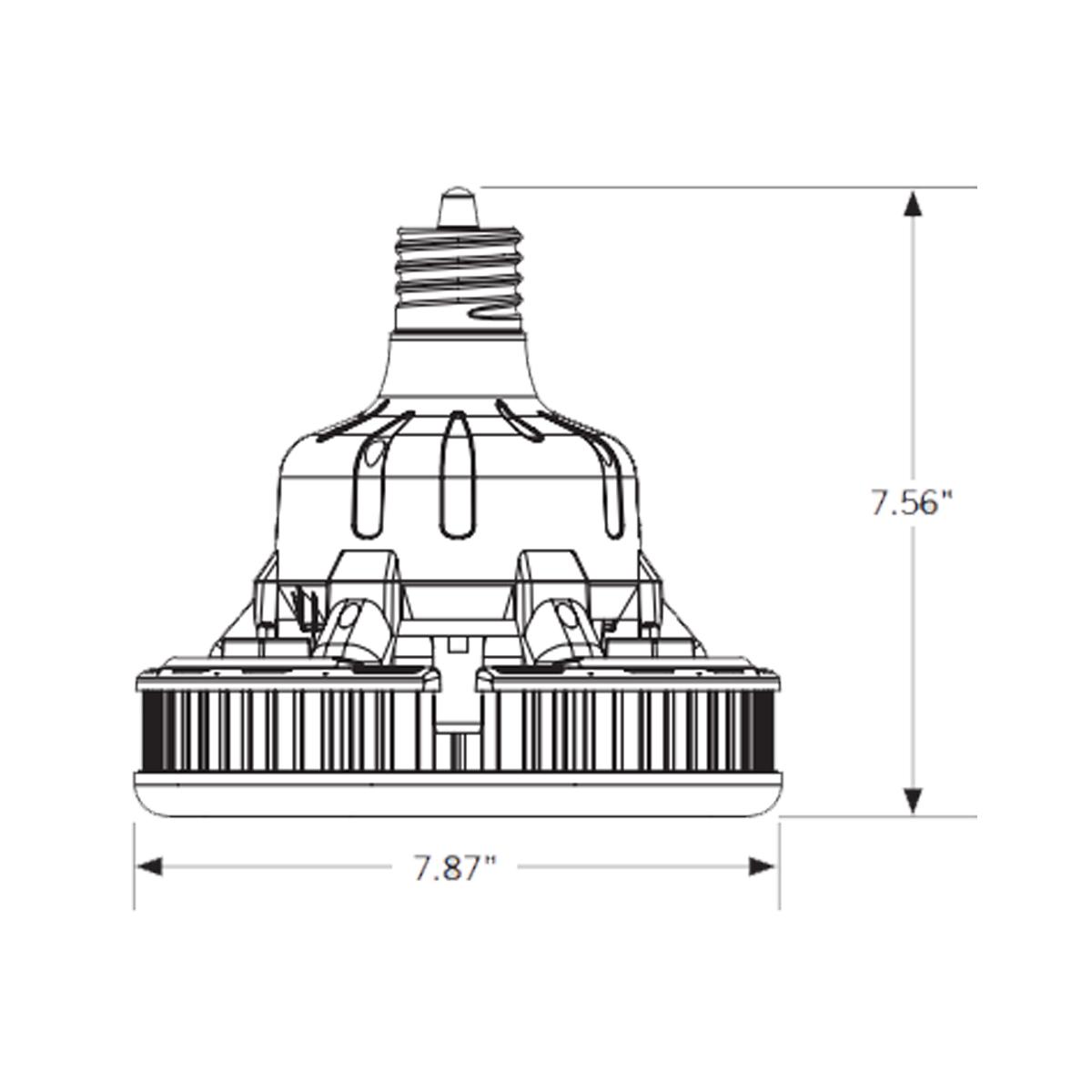

The bulb features a clear polycarbonate lens and is designed for durability and optimal light distribution. It includes a 7% uplight feature and measures 7.87 inches in length.

Electrical & Installation

Operating at 120-277V, this bulb is designed for easy installation with a screw-in base. It is not compatible with standard dimmers but can be dimmed using compatible sensors. The ballast bypass feature simplifies installation.

Light Output & Performance

With a lumen output of up to 11,704 lumens and a CRI greater than 80, this bulb ensures bright and accurate color rendering. It offers a beam angle of 114.3 degrees.

Typical Applications

• Warehouses
• Supermarkets
• Garages
• Offices
• Industrial Facilities
