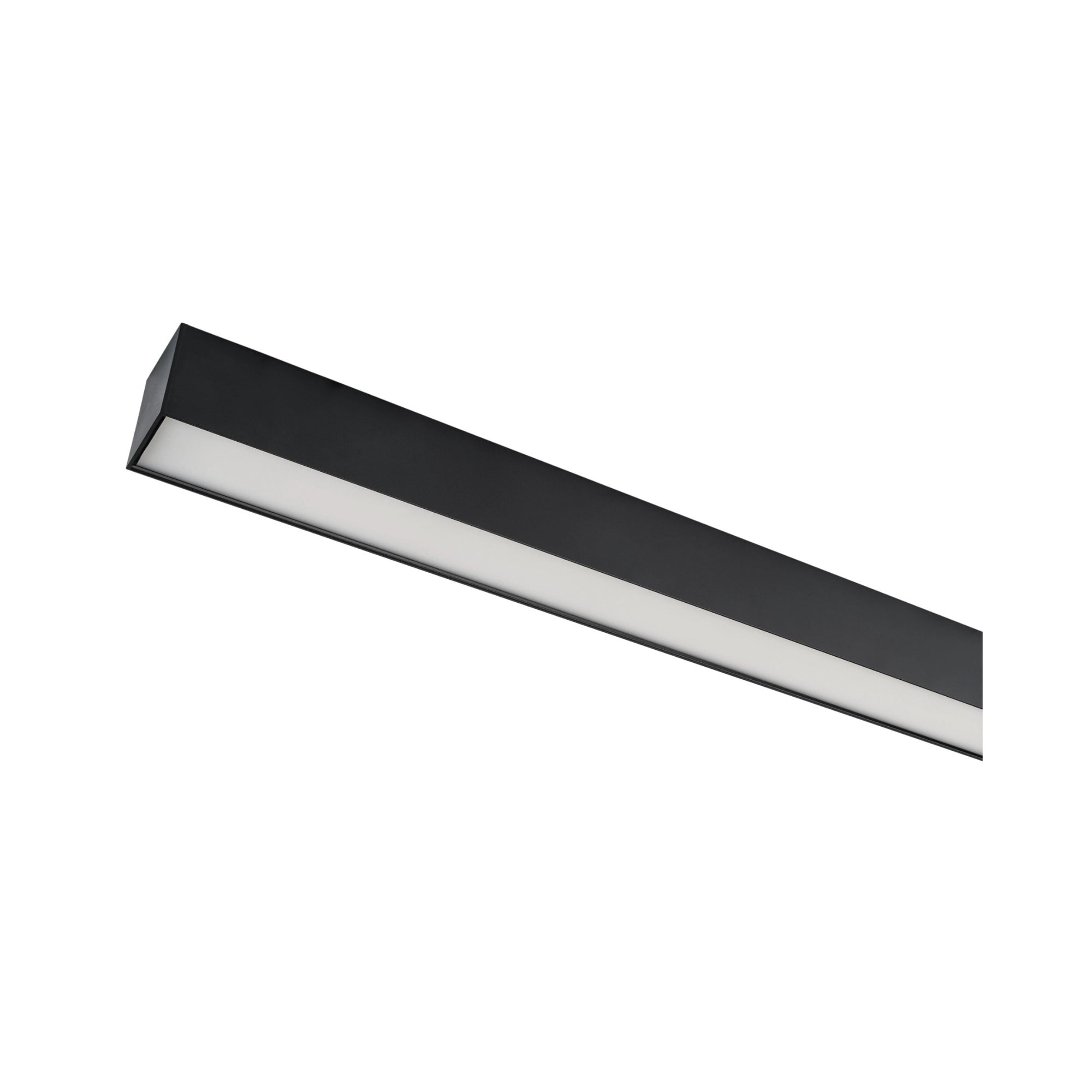

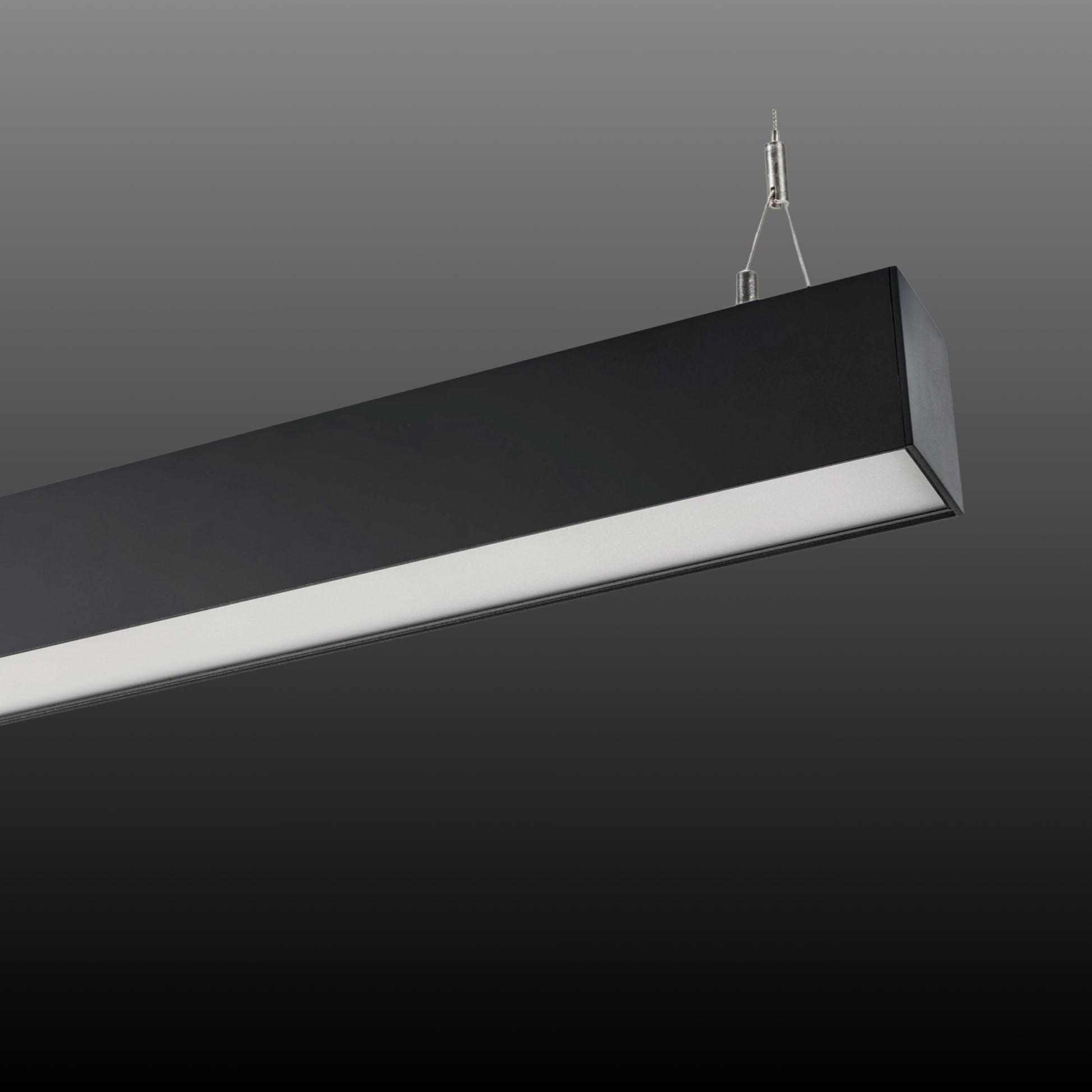

Keystone LINTA Linear Architectural Pendant Light — 80W Configuration

The Keystone KT-LALED80PS-8A-8CSF-VDIM-B is an 8-foot linear architectural pendant light designed for versatile indoor applications. This fixture delivers 10400 lumens with an 80W power draw and operates on 120-277V input. It features selectable CCT settings, making it suitable for various lighting environments. The fixture is damp rated, ensuring reliable performance in diverse settings.

Key Features

• Selectable CCT: Offers five color temperature settings (2700K to 5000K) for adaptable lighting.
• Power Selectable: Choose between 80W, 60W, and 50W for optimal energy use.
• Construction: Built with extruded aluminum housing for durability and easy installation.
• Dimming: Equipped with 0-10V dimming capability for customizable light levels.
• Linkable Design: Seamlessly connect multiple fixtures for continuous illumination.
• Optics: Features a diffused polycarbonate lens for uniform light distribution.
• Mounting Options: Compatible with various mounting kits for flexible installation.
• Emergency Ready: Compatible with Keystone SmartSafe emergency LED drivers.
• Durability: Rated for over 100,000 hours of operation at 25°C ambient temperature.
• Compliance: Meets FCC Part 15, Part B, Class A standards for emissions.

Typical Applications

• Office Spaces
• Educational Facilities
• Healthcare Environments
• Hospitality Venues
• Retail Settings

Performance & Light Output

This fixture provides a high lumen output of 10400 lumens with an efficacy of up to 130 lm/W. It maintains a CRI of over 80, ensuring accurate color rendering. The fixture is designed for a long lifespan with an L70 rating of over 100,000 hours.

Electrical & Controls

Operates on a wide voltage range of 120-277V and includes a Keystone 0-10V dimming driver with a dim-to-off feature. It also supports optional Smartloop wireless occupancy sensors for enhanced control.

Construction & Durability

The fixture is constructed with an extruded aluminum housing and a diffused polycarbonate lens, providing robust durability. It is UL certified for dry or damp locations and operates in temperatures ranging from -40°C to 50°C.

Installation & Mounting

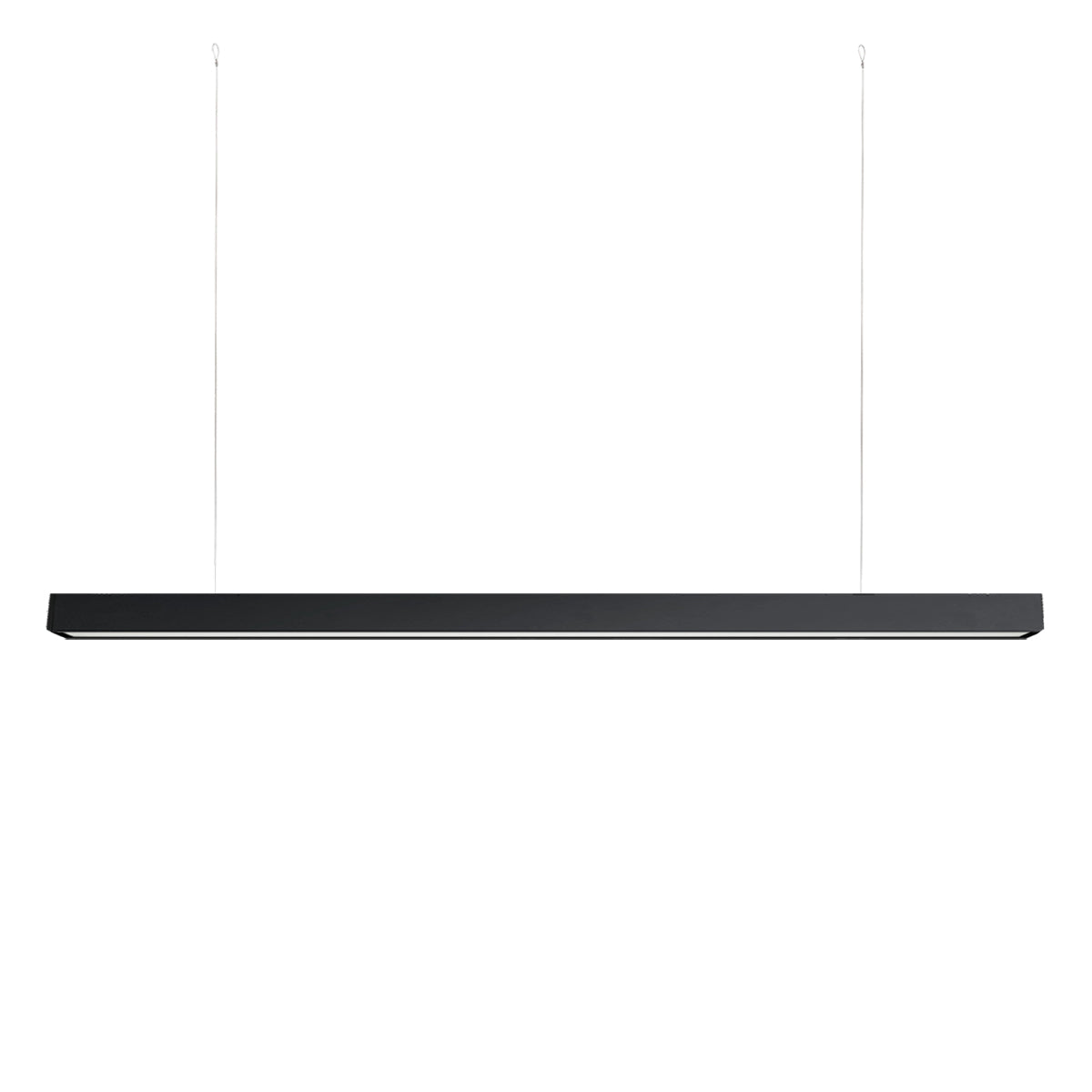

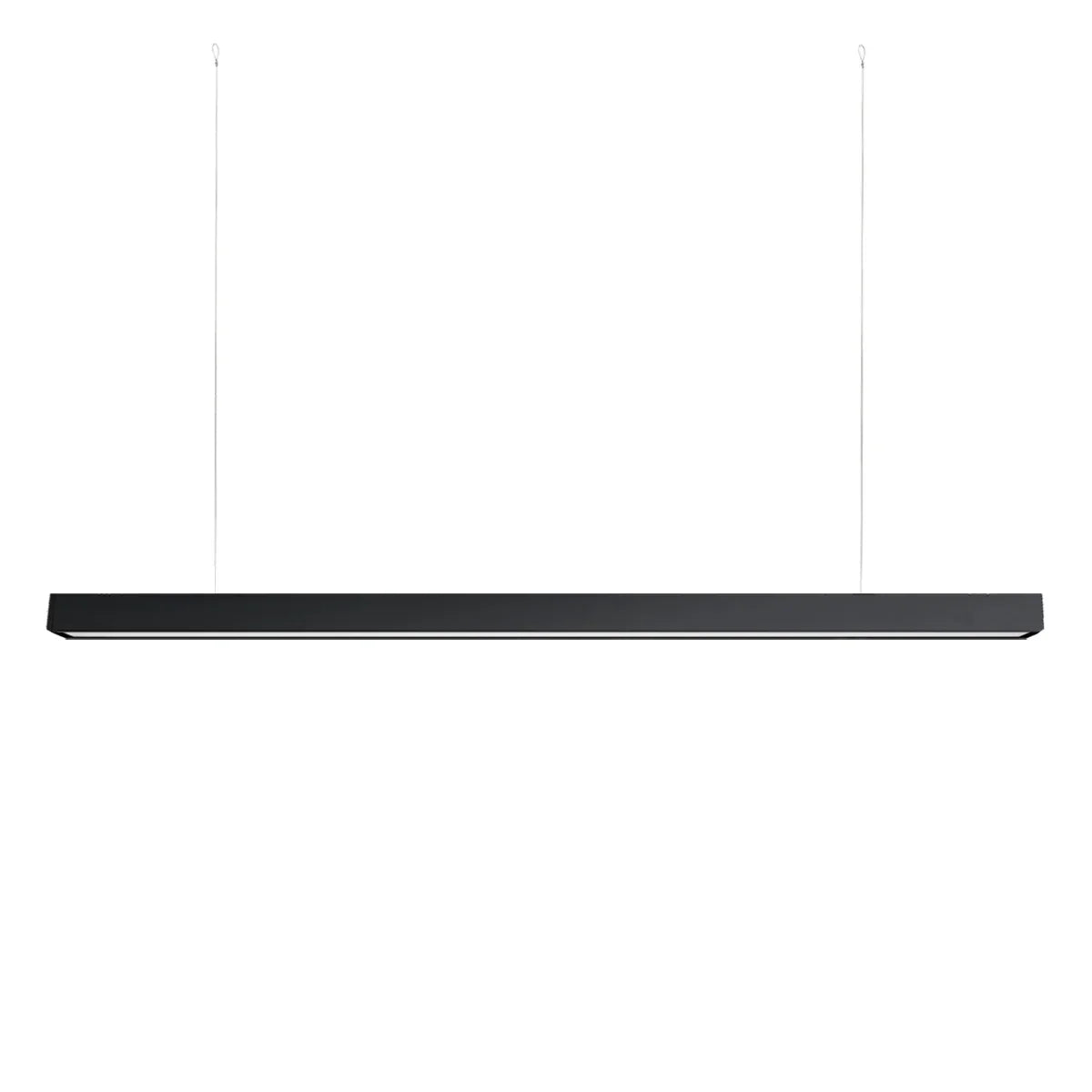

Comes with a standard 15' aircraft cable kit for suspension mounting. Additional mounting accessories are available for surface, recessed, and wall installations.

What's Included

• Fixture Body
• Standard Aircraft Cable Hanging Kit
• Fixture Linking Bracket
