Keystone LINTA 4' Linear Architectural Pendant Light 5200 Lumens 40W Selectable CCT 120-277V Black
In stock
About this item
About this item
- Lumens: Delivers 5200 lumens for bright and efficient lighting.
- Wattage: Operates at 40 watts with selectable power settings for flexibility.
- Voltage: Compatible with 120-277V input for broad installation options.
- Mounting: Includes a 15' aircraft cable kit for suspension mounting.
- Dimmable: Features 0-10V dimming for customizable light levels.
We process payments securely and do not store credit card information.
Description
Description

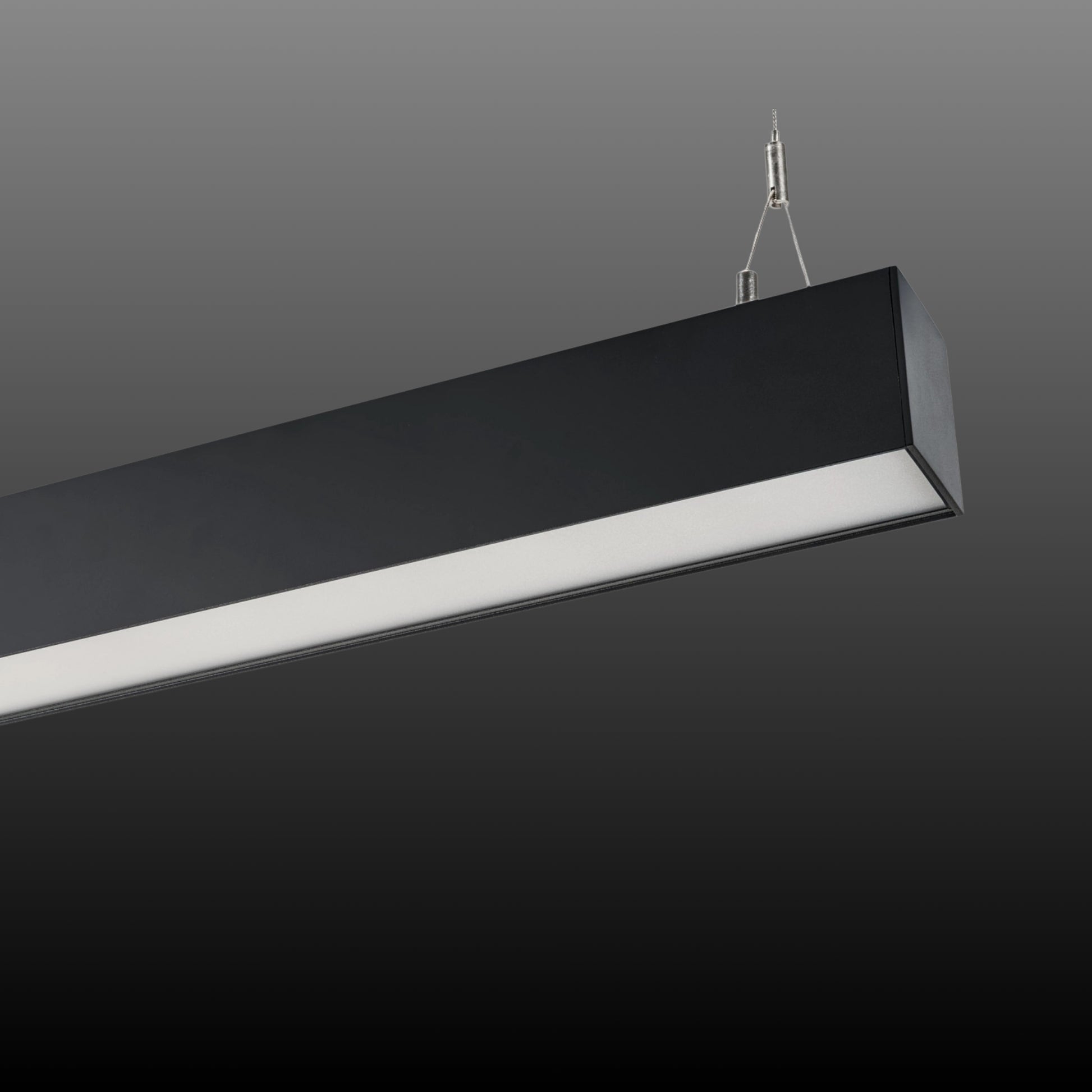

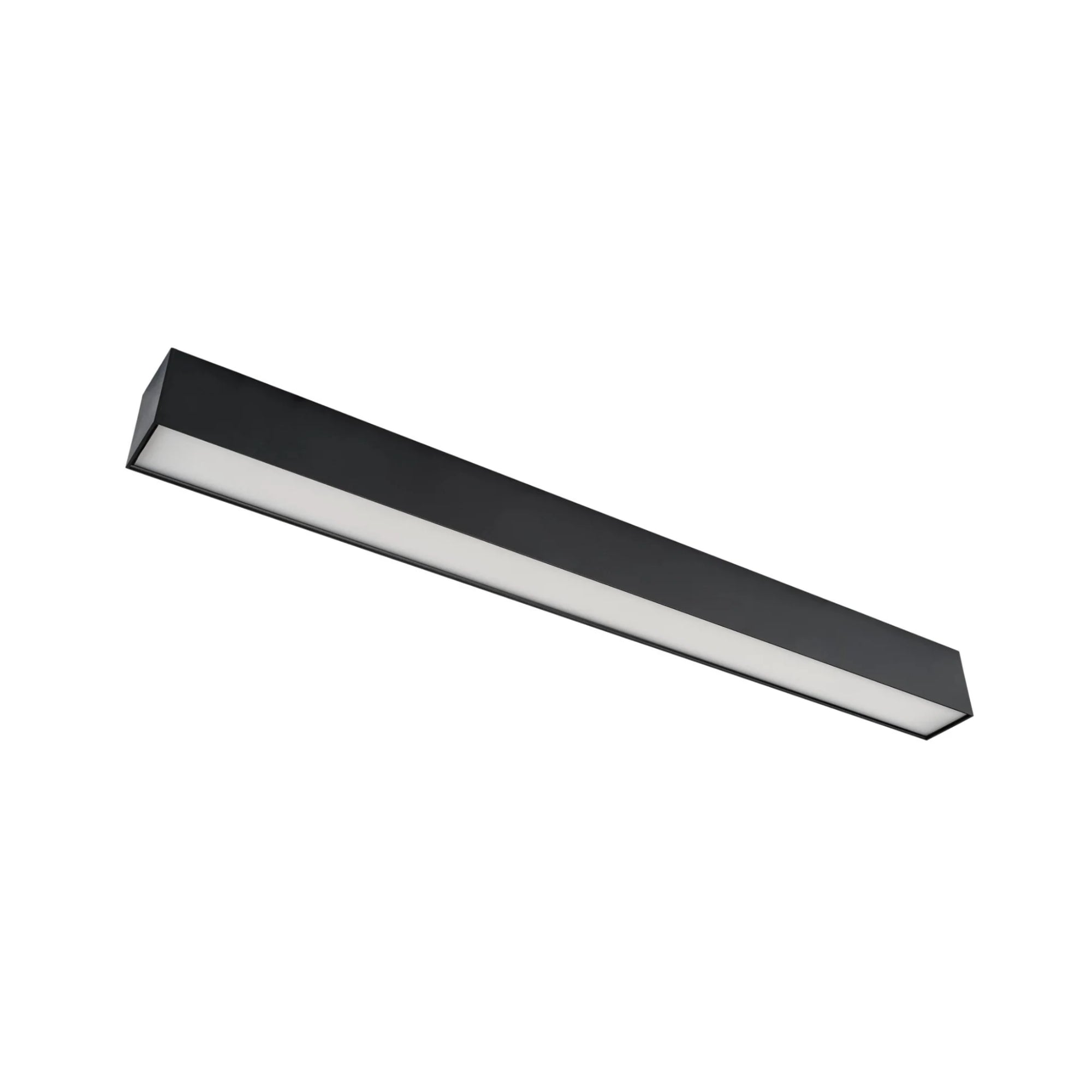

Keystone LINTA Linear Architectural Pendant Fixture — 40W Configuration
The Keystone KT-LALED40PS-4A-8CSF-VDIM-B is a linear architectural pendant light offering 40W power, 5200 lumens, and 120-277V input. This fixture is ideal for various indoor applications, providing selectable CCT options for tailored lighting environments. It is damp rated and suitable for office, education, healthcare, hospitality, and retail settings.
Key Features
- Selectable CCT: Choose from 2700K, 3000K, 3500K, 4000K, and 5000K for versatile lighting.
- Direct/Indirect Lighting: Offers modes of 100% down, 70% down/30% up, and 50% down/50% up.
- Modular Design: Easily link fixtures for continuous rows of illumination.
- Durable Construction: Features an extruded aluminum housing and polycarbonate lens.
- Energy Efficiency: Achieves up to 130 lm/W for maximum energy savings.
- Advanced Dimming: Includes 0-10V dimming with dim-to-off capability.
- Smart Controls: Compatible with SmartLoop wireless occupancy sensors.
- Emergency Ready: Supports Keystone SmartSafe emergency LED drivers.
- Long Lifespan: LED chip lifetime exceeds 100,000 hours at L70.
- Power Factor: Greater than 0.95 with THD under 20%.
Typical Applications
- Office Spaces
- Educational Facilities
- Healthcare Environments
- Hospitality Venues
- Retail Stores
Performance & Light Output
This fixture provides a luminous output of 5200 lumens with an efficacy of up to 130 lm/W. It supports various CCT settings, ensuring optimal lighting for different environments.
Electrical & Controls
Operates on a 120-277V input with a Keystone 0-10V dimming LED driver. It includes a 12V AUX power tap and supports optional SmartLoop wireless controls.
Construction & Durability
Constructed with an extruded aluminum housing and a diffused polycarbonate lens, this fixture is UL certified for dry or damp locations and operates in temperatures from -40ºC to 50ºC.
Installation & Mounting
Comes with a 15' aircraft cable kit for suspension mounting. Compatible with various mounting accessories for flexible installation options.
What's Included
- Fixture Body
- Standard Aircraft Cable Hanging Kit
- Fixture Linking Bracket
