Keystone LINTA Linear Architectural Pendant Light — 30W Configuration

The Keystone KT-LALED30PS-3A-8CSF-VDIM is a 3-foot linear architectural pendant light offering 3900 lumens at 30W. It features a selectable CCT range from 2700K to 5000K and operates on 120-277V. This fixture is ideal for office, education, healthcare, hospitality, and retail environments, providing versatile lighting solutions with its selectable power and color settings.

Key Features

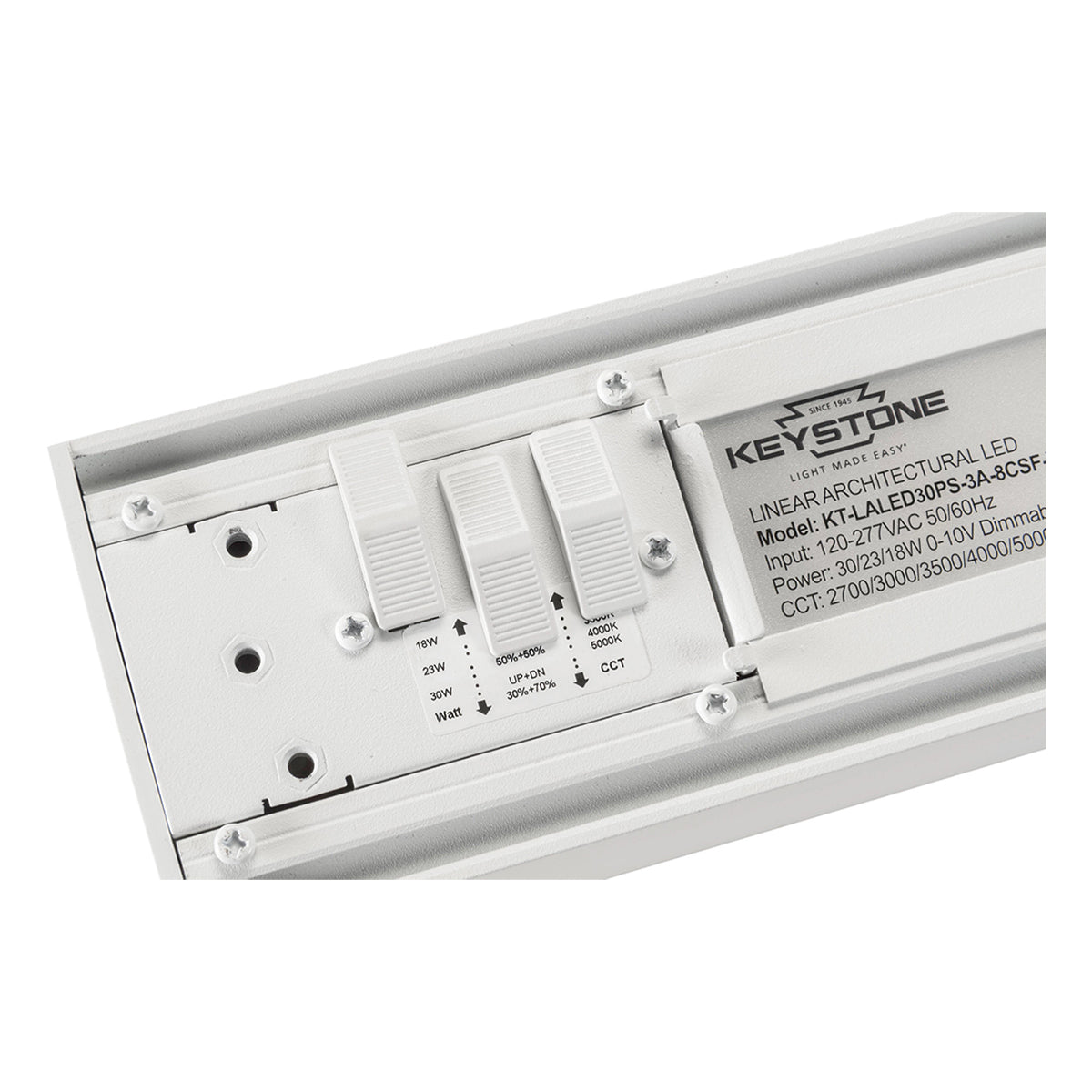

• Selectable Wattage: Choose between 30W, 23W, and 18W settings to optimize energy use.
• Color Select Technology: Offers five CCT options (2700K, 3000K, 3500K, 4000K, 5000K) for adaptable lighting.
• Direct/Indirect Lighting Modes: Configurable to 100% down, 70% down/30% up, or 50% down/50% up.
• Construction: Features an extruded aluminum housing for durability and a diffused polycarbonate lens for uniform light distribution.
• Linkable Design: Easily connect up to seven fixtures per power cord for continuous illumination.
• Dimming Driver: Equipped with a Keystone 0-10V dimming LED driver with dim-to-off and 12V AUX power tap.
• Mounting Options: Includes a 15' aircraft cable kit for flexible suspension mounting.
• Efficiency: Achieves up to 130 lm/W for maximum energy savings.
• Certifications: UL certified for dry or damp locations, ensuring reliable performance.
• Lifetime: LED chip lifetime rated at L70 >100,000 hours at 25°C ambient temperature.

Typical Applications

• Offices
• Educational Facilities
• Healthcare Environments
• Hospitality Venues
• Retail Spaces

Performance & Light Output

This fixture provides 3900 lumens with an efficacy of up to 130 lm/W. It offers a CRI greater than 80 and a lifetime of over 100,000 hours (L70) at 25°C ambient temperature.

Electrical & Controls

The KT-LALED30PS-3A-8CSF-VDIM operates on 120-277V and includes a 0-10V dimming driver with dim-to-off capability. It supports optional Smartloop wireless occupancy sensors for enhanced control.

Construction & Durability

Constructed with an extruded aluminum housing and a diffused polycarbonate lens, this fixture is designed for durability and uniform light distribution. It is UL certified for dry or damp locations.

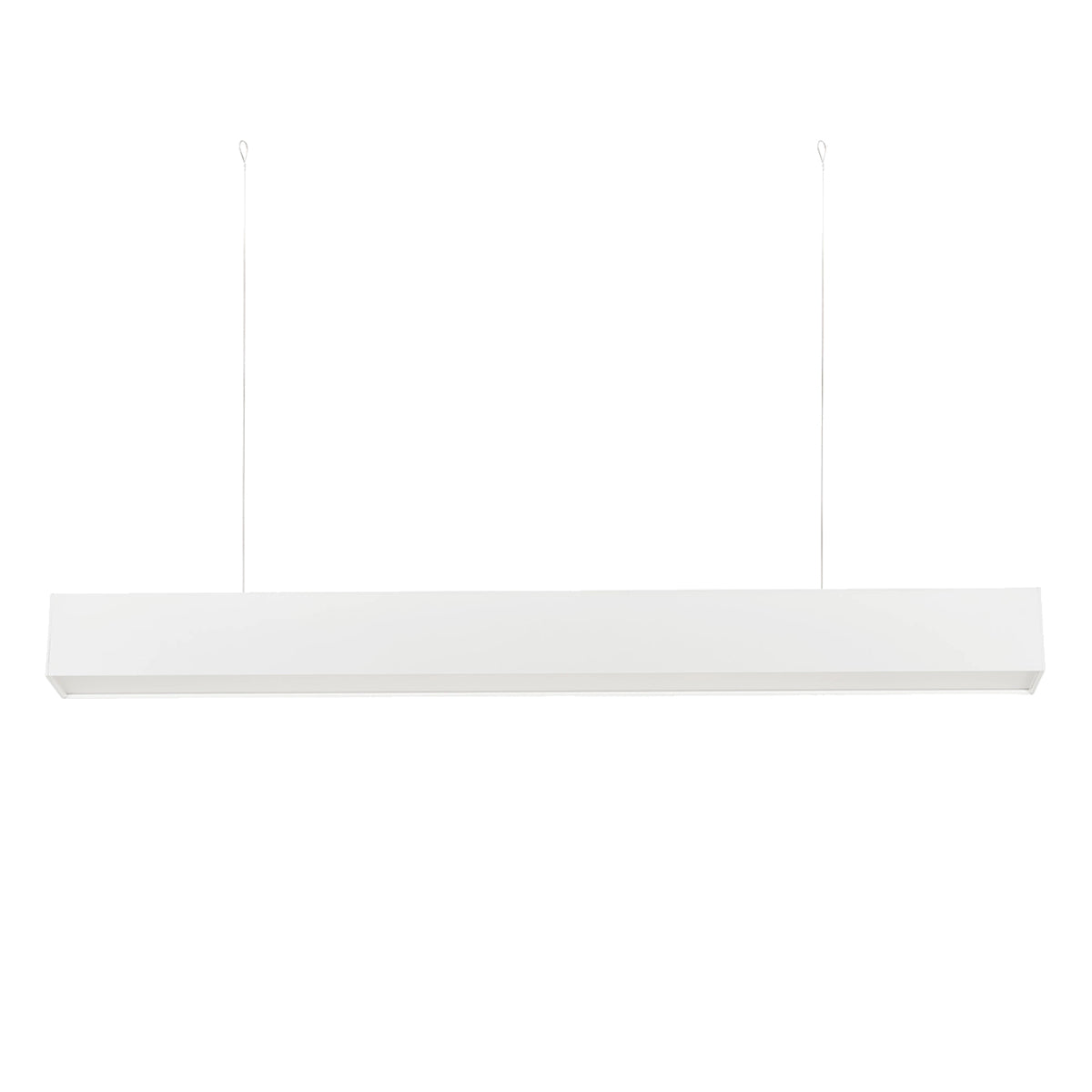

Installation & Mounting

The fixture includes a 15' aircraft cable kit for suspension mounting. It supports various mounting options, including recessed, wall, and surface mounts, with additional kits sold separately.

What's Included

• Fixture Body
• Standard Aircraft Cable Hanging Kit
• Fixture Linking Bracket
