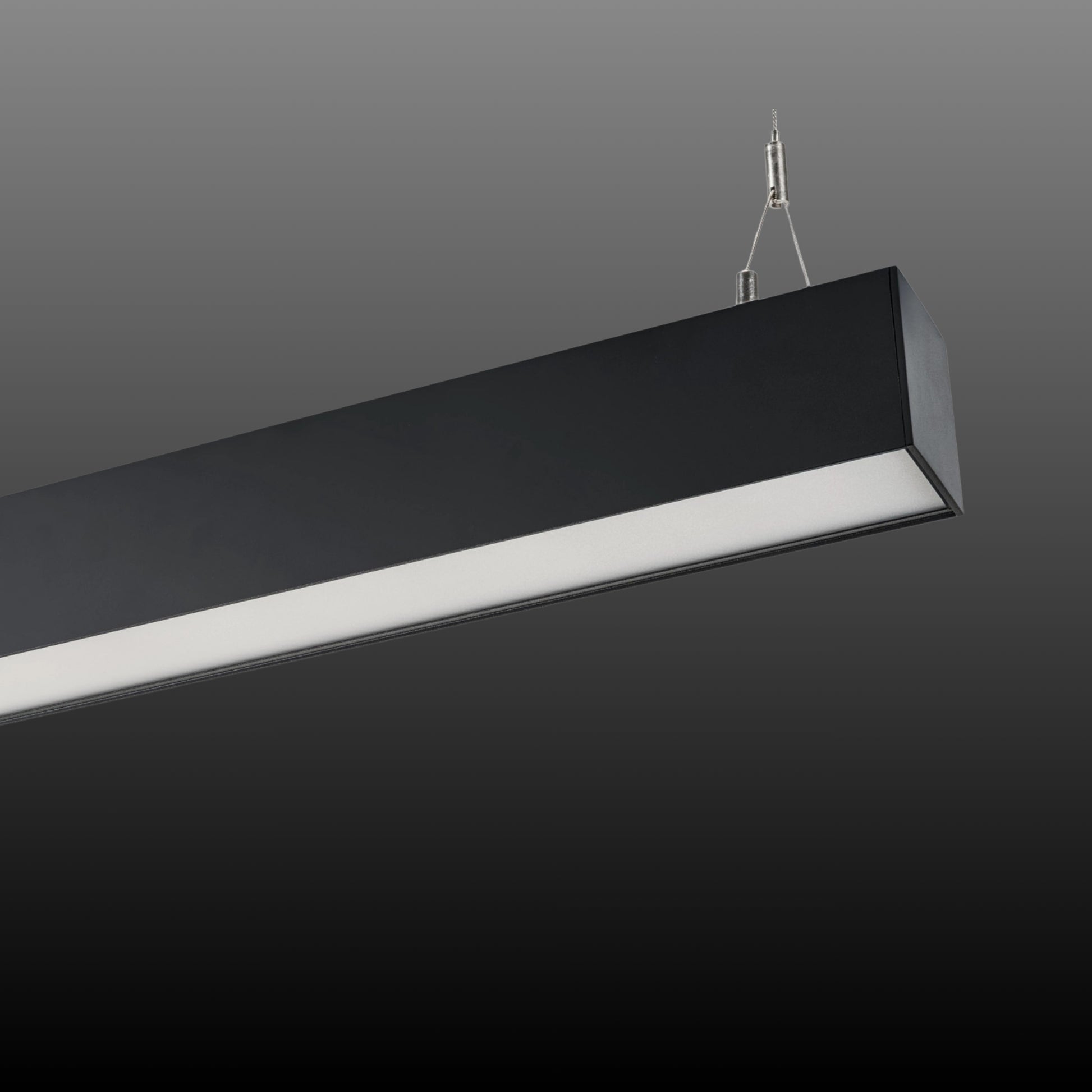

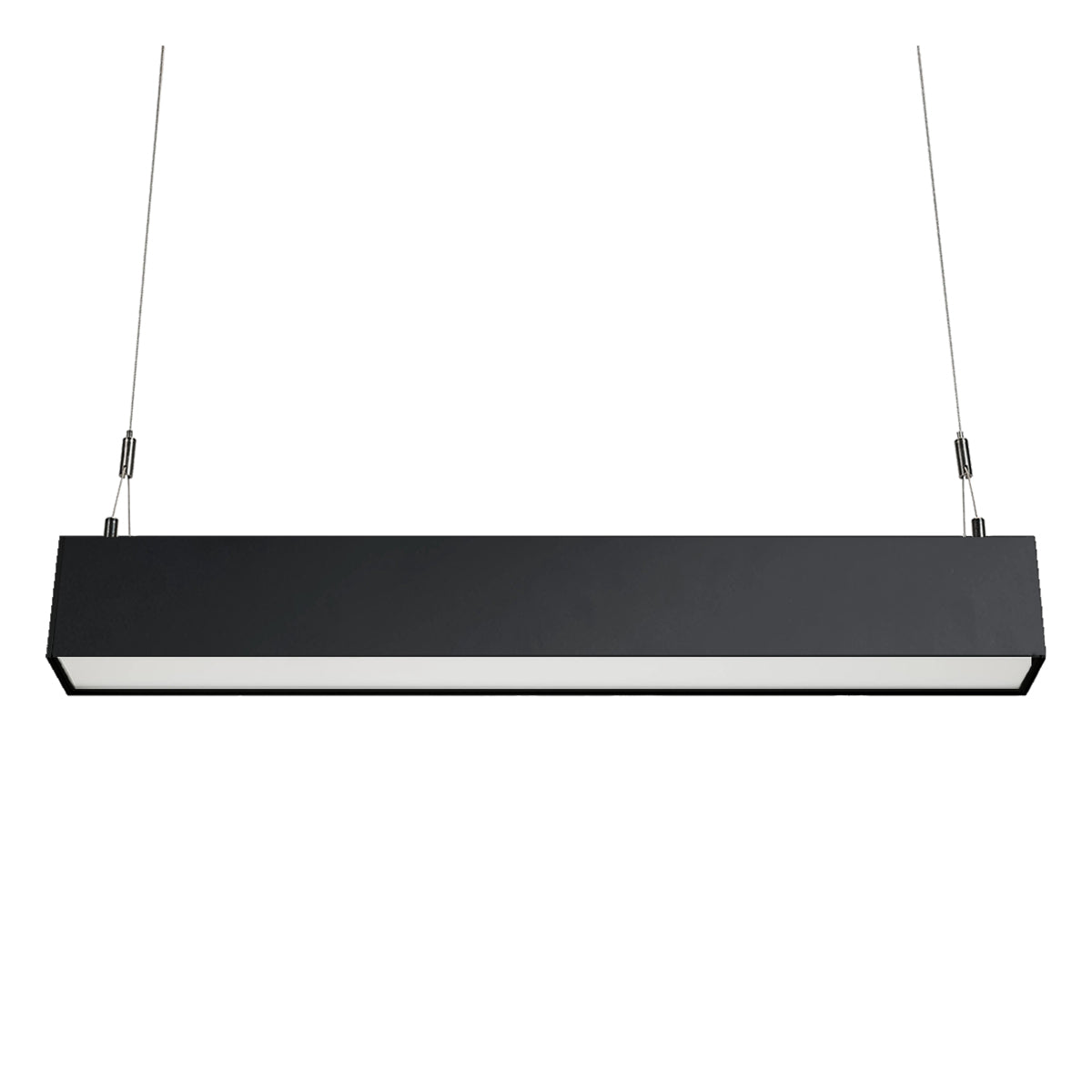

Keystone LINTA Linear Architectural Pendant Light — 20W Selectable Configuration

The Keystone KT-LALED20PS-2A-8CSF-VDIM-B is a linear architectural pendant light designed for versatile indoor applications. With a selectable wattage of 20W and a lumen output of 2600 lumens, this fixture operates on 120-277V input. It is ideal for office, education, healthcare, hospitality, and retail settings, offering a damp rating for reliable performance in various environments.

Key Features

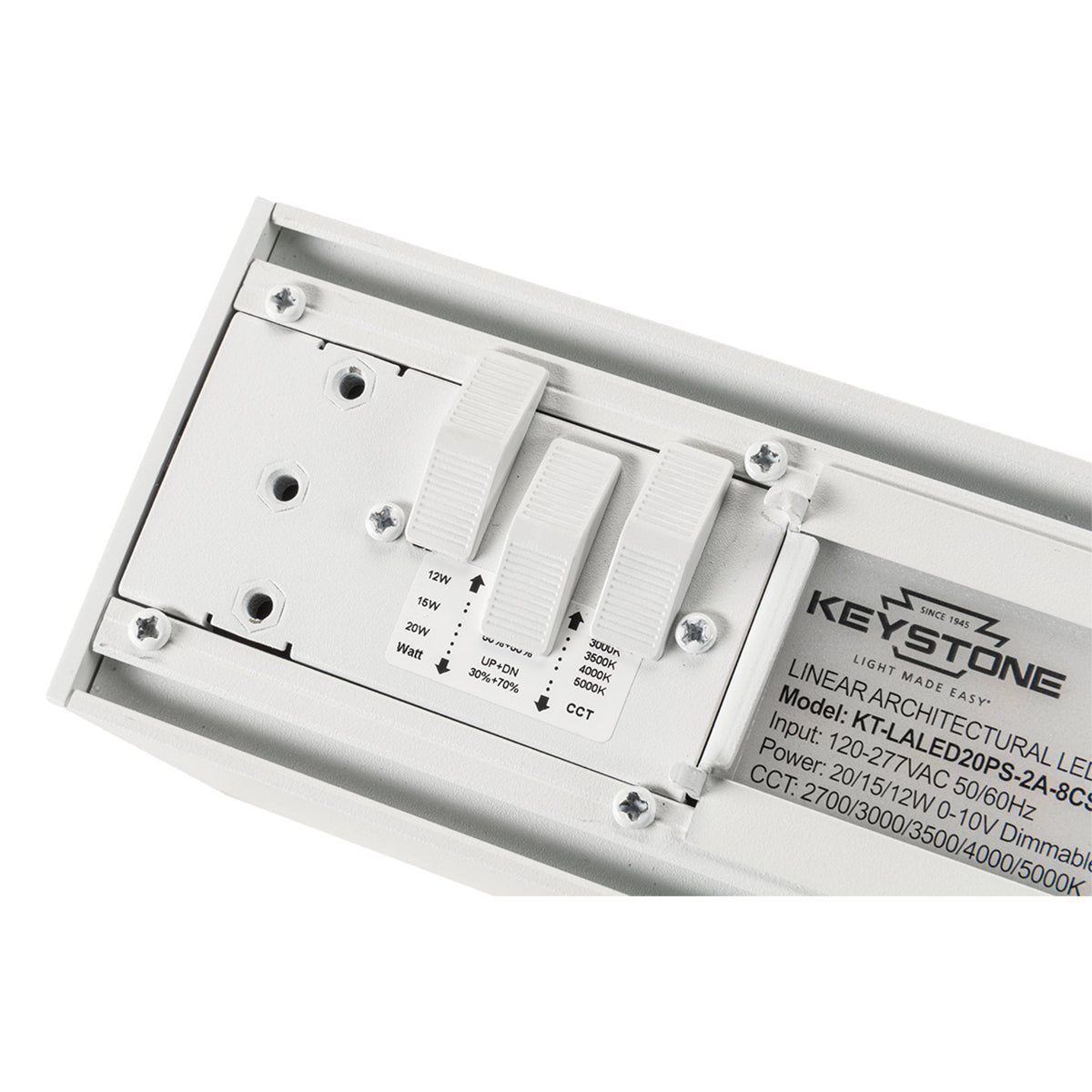

• Selectable Wattage: Choose between 20W, 15W, and 12W settings for tailored energy use.
• Color Temperature: Offers selectable CCT options including 2700K, 3000K, 3500K, 4000K, and 5000K.
• Dimming Capability: Equipped with a 0-10V dimming driver for adjustable light levels.
• Construction: Features an extruded aluminum housing for durability and a polycarbonate lens for uniform light distribution.
• Mounting Options: Includes a standard 15' aircraft cable kit for suspension mounting, with additional mounting accessories available separately.
• Linkability: Designed for modular linking to create continuous rows of illumination.
• Lighting Modes: Offers direct and direct/indirect lighting modes for flexible illumination.
• Efficiency: Delivers up to 130 lm/W for energy savings.
• Durability: Rated for over 100,000 hours of operation at 25°C ambient temperature.
• Compliance: Meets FCC Part 15, Part B, Class A standards for emissions.

Typical Applications

• Offices
• Educational Facilities
• Healthcare Environments
• Hospitality Venues
• Retail Spaces

Performance & Light Output

This fixture provides a maximum of 2600 lumens with an efficacy of 130 lm/W. It supports multiple CCT settings and offers a CRI greater than 80 for accurate color rendering. The fixture's L70 rating exceeds 100,000 hours, ensuring long-lasting performance.

Electrical & Controls

Operating on 120-277V, the fixture includes a 0-10V dimming driver with dim-to-off capability and a 12V AUX power tap. It supports optional Smartloop wireless occupancy sensors for enhanced control.

Construction & Durability

The fixture is constructed with an extruded aluminum housing and a diffused polycarbonate lens. It is UL certified for dry or damp locations and operates within a temperature range of -40°C to 50°C.

Installation & Mounting

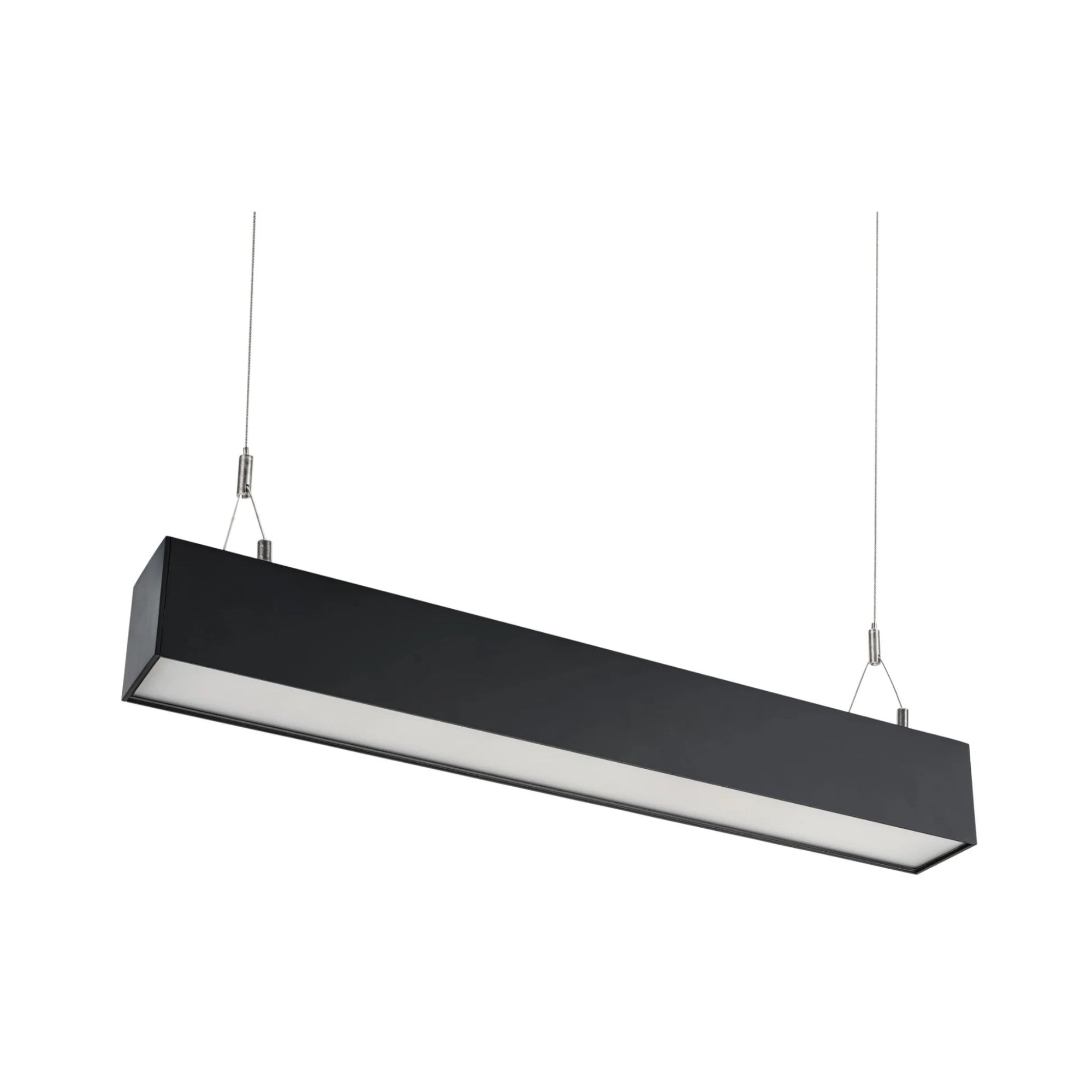

Installation is facilitated by a 15' aircraft cable kit for suspension mounting. Additional mounting accessories, such as recessed, wall, and surface kits, are available separately.

What's Included

• Fixture Body
• Standard Aircraft Cable Hanging Kit
• Fixture Linking Bracket
