Keystone 2FT LED Linear High Bay 30,600 Lumens 135/175/215W 4000K/5000K 120–277V Frosted

Keystone KT-HBLED215PS-2FB-8CSD-VDIM-P (FPM-04) 2FT Linear LED High Bay — 135/175/215W, 120–277V

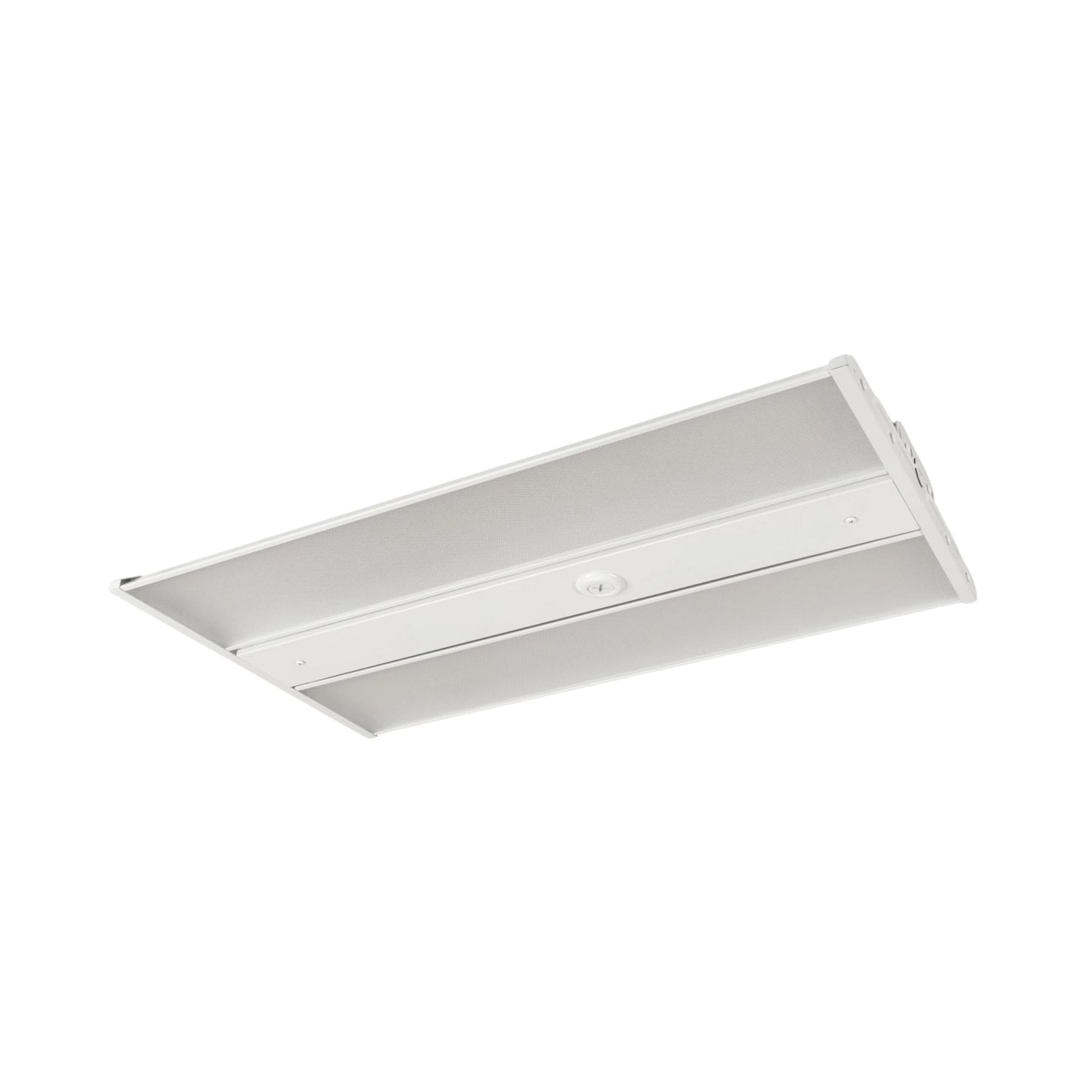

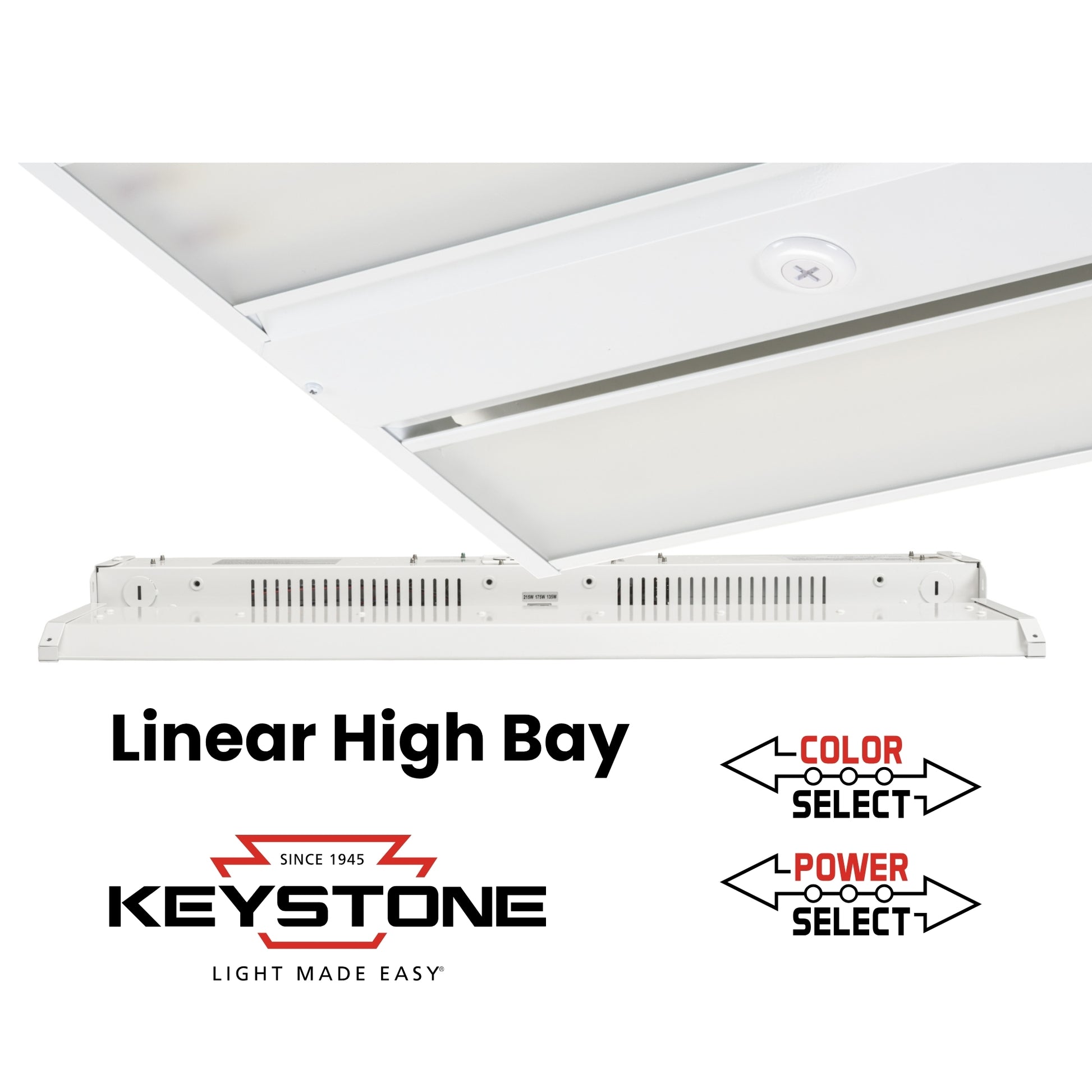

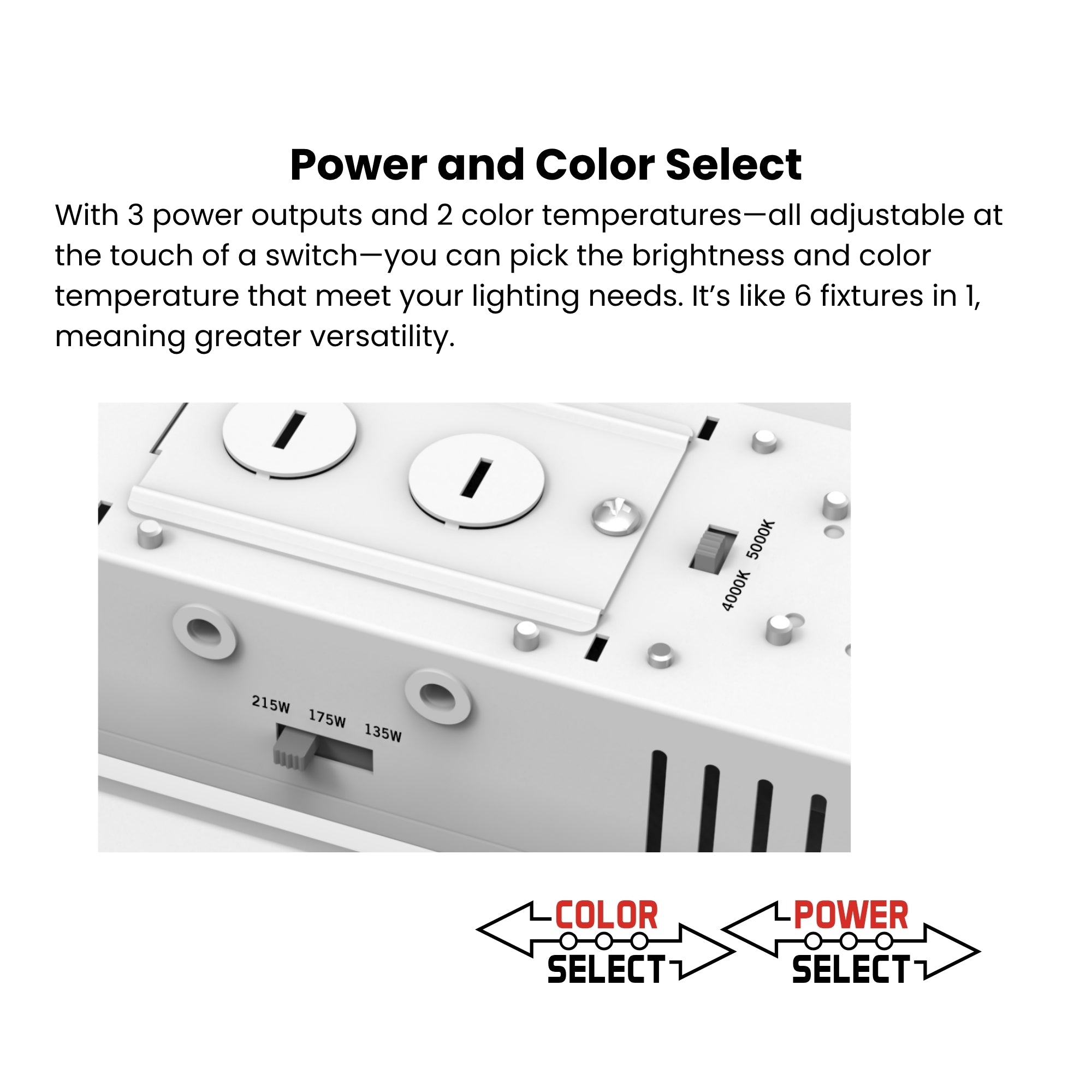

The Keystone KT-HBLED215PS-2FB-8CSD-VDIM-P is a 2FT linear LED high bay delivering up to ~30,600 lumens with selectable 135W / 175W / 215W output and selectable 4000K or 5000K color temperature. Operating on a universal 120–277V platform, this fixture features Keystone’s Power Select and Color Select technology with a smooth frosted lens for even illumination. It is UL 1598 Listed for damp locations, DLC Premium listed, and covered by a 10-year limited warranty.

Key Features:

• Easy Code: FPM-04
• Selectable Wattage: 135W / 175W / 215W
• Selectable CCT: 4000K / 5000K
• Delivered Lumens: ~20,900 / ~26,000 / ~30,600
• Efficacy: ~139–155 lm/W
• Voltage: 120–277V
• Dimming: 0–10V dim-to-off
• CRI: >80
• Power Factor: >0.95
• THD: <20%
• Lifetime: >50,000 hours (L70)
• Lens: Frosted lens for glare control

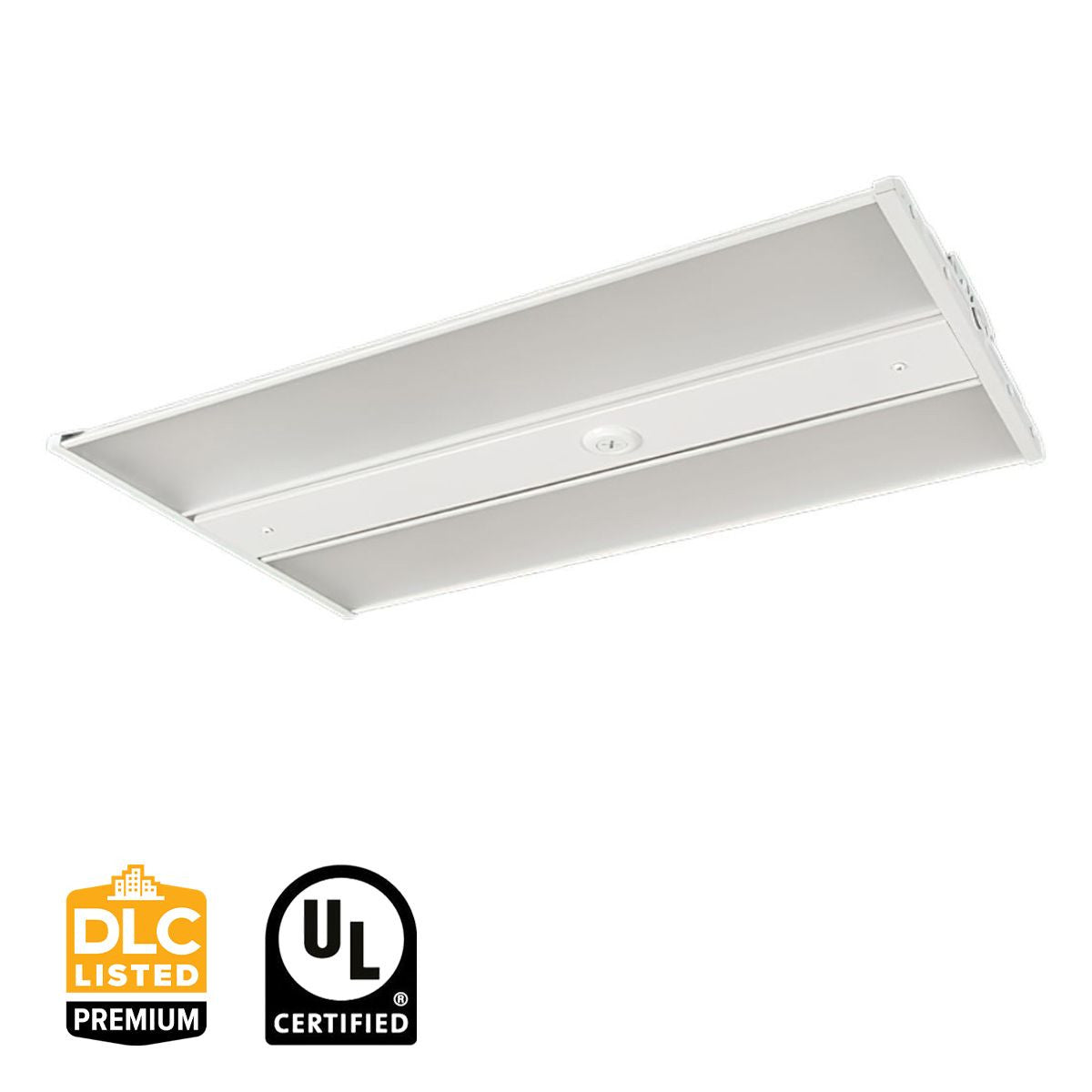

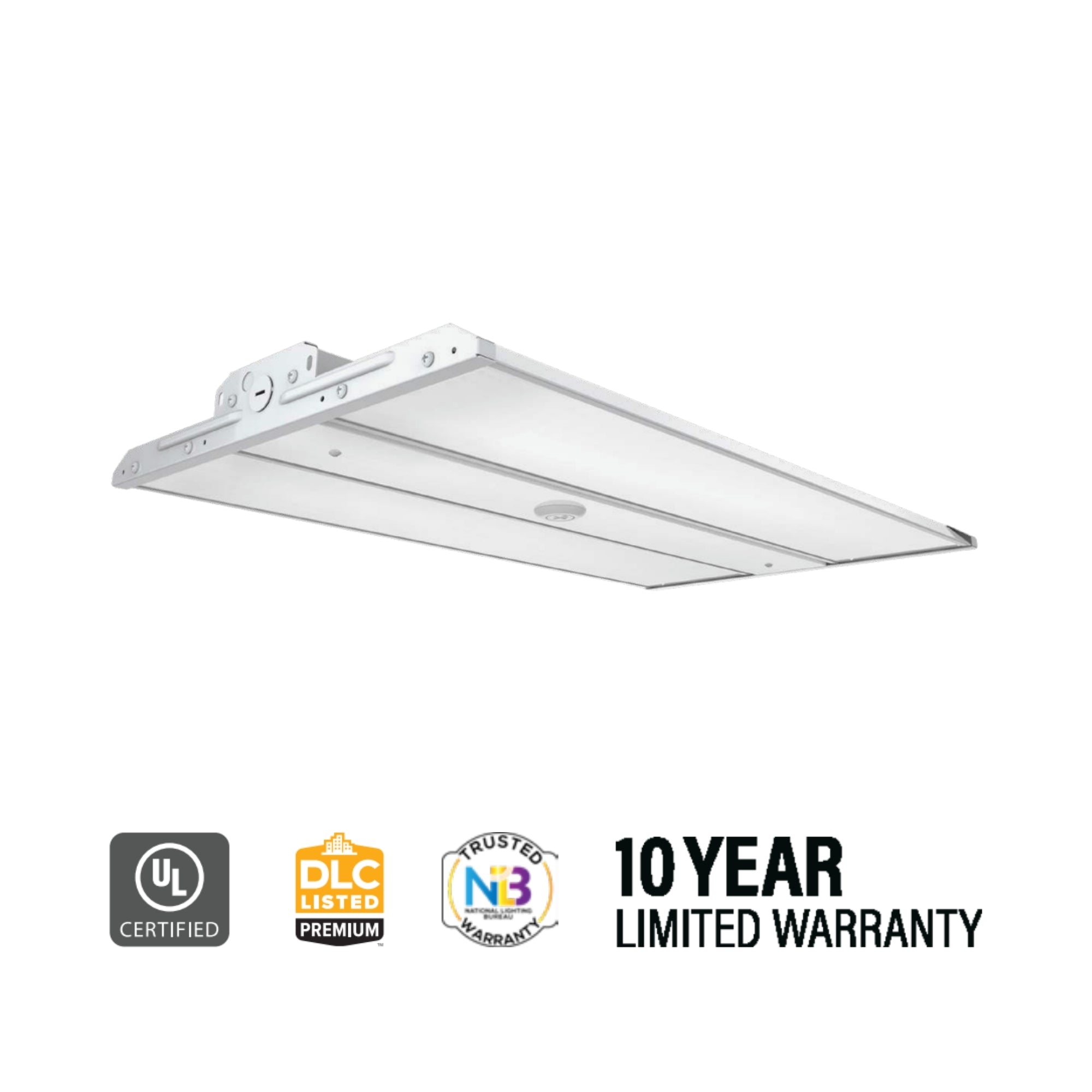

• Certifications: UL 1598, DLC Premium
• Location Rating: Damp locations
• Operating Temp: –40°F to 122°F (–40°C to 50°C)

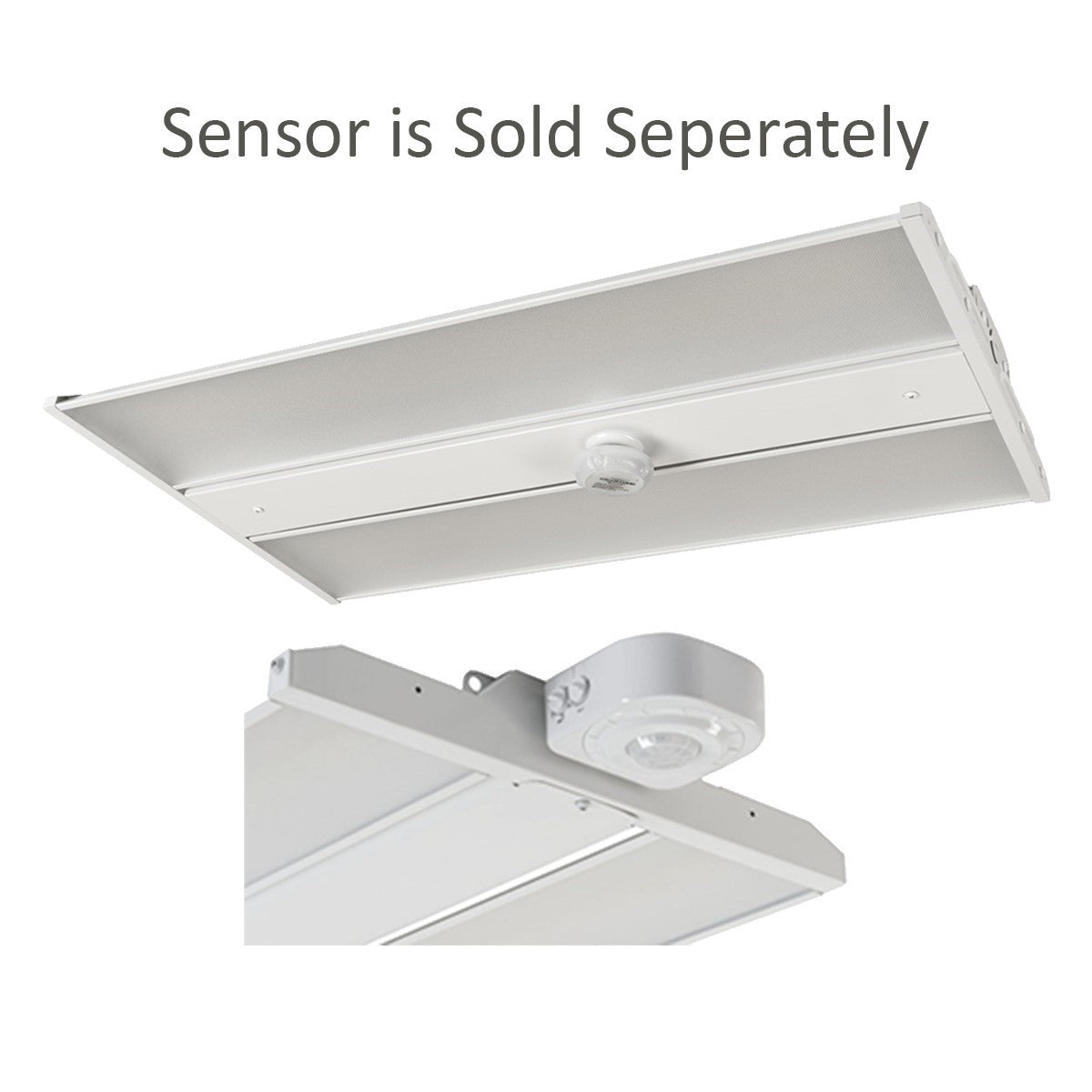

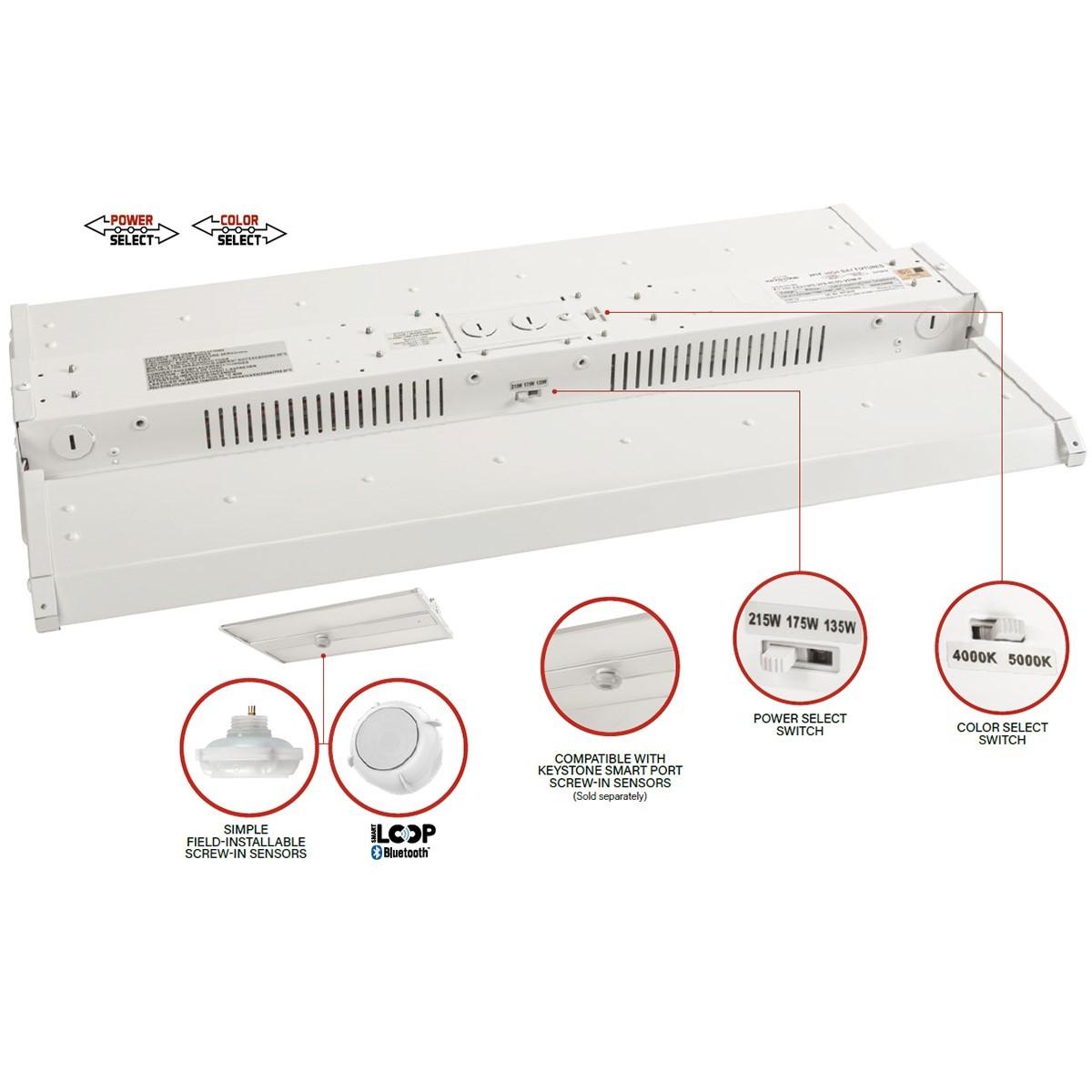

• Sensor Ready: Built-in sensor port, no additional wiring required
• Warranty: 10-Year Limited Warranty

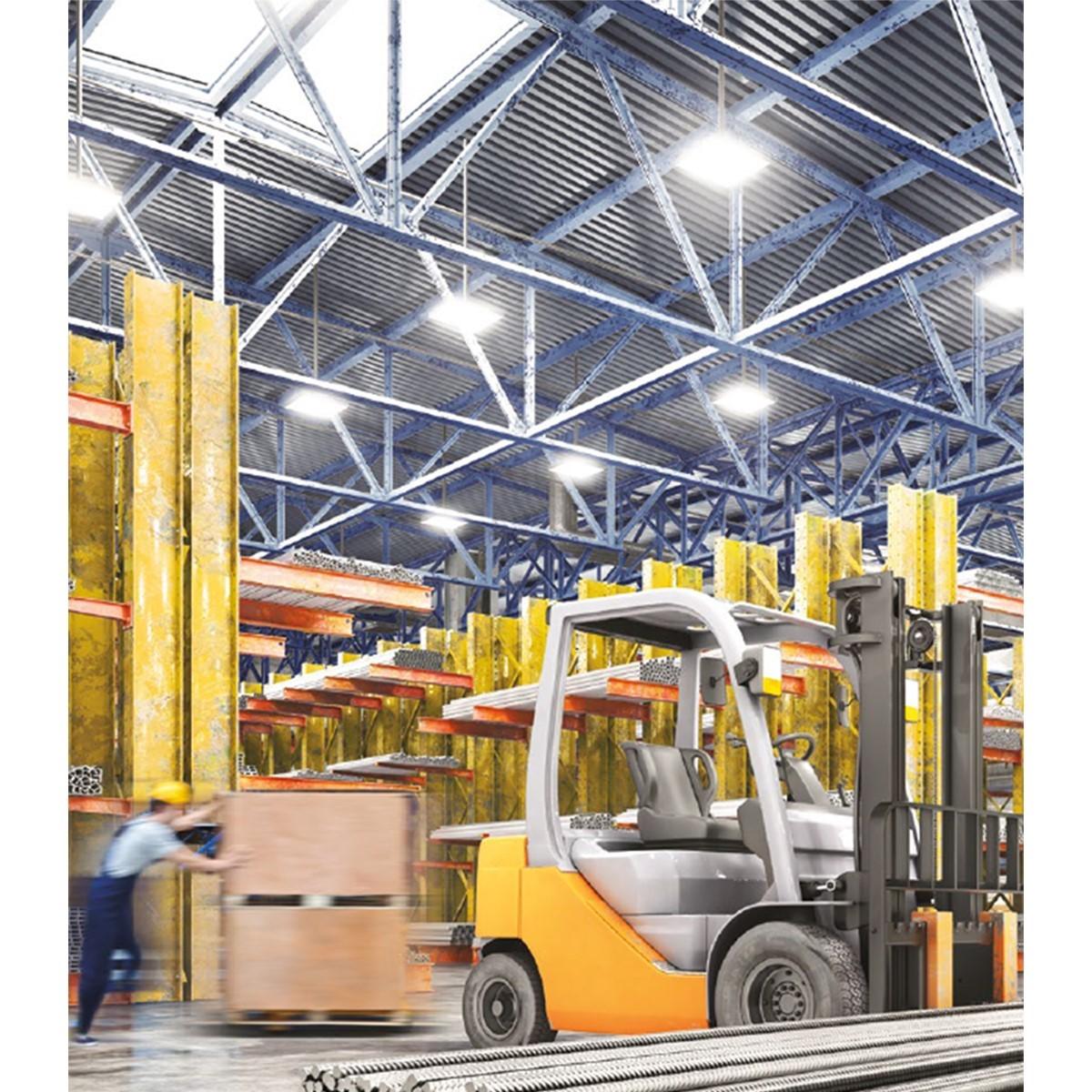

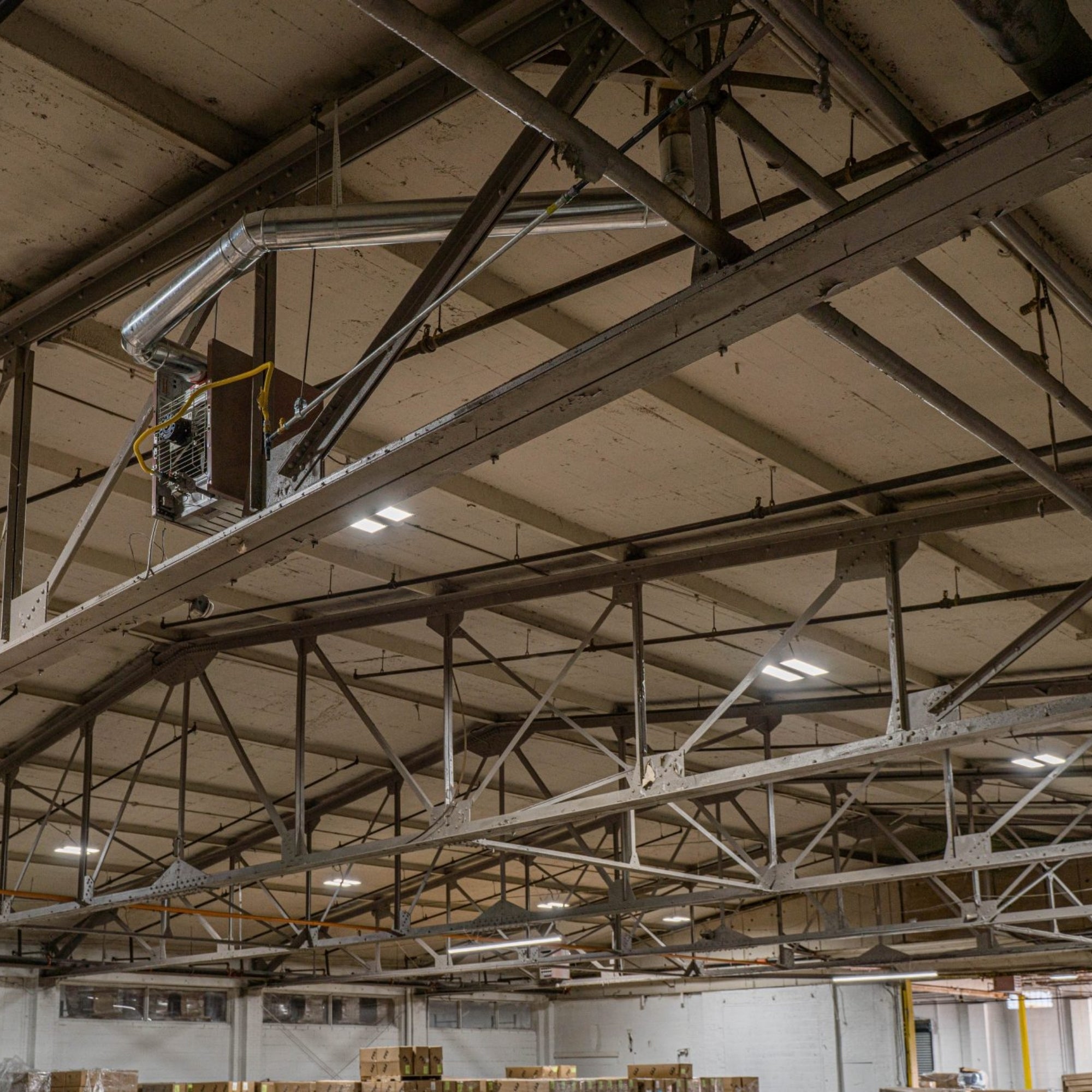

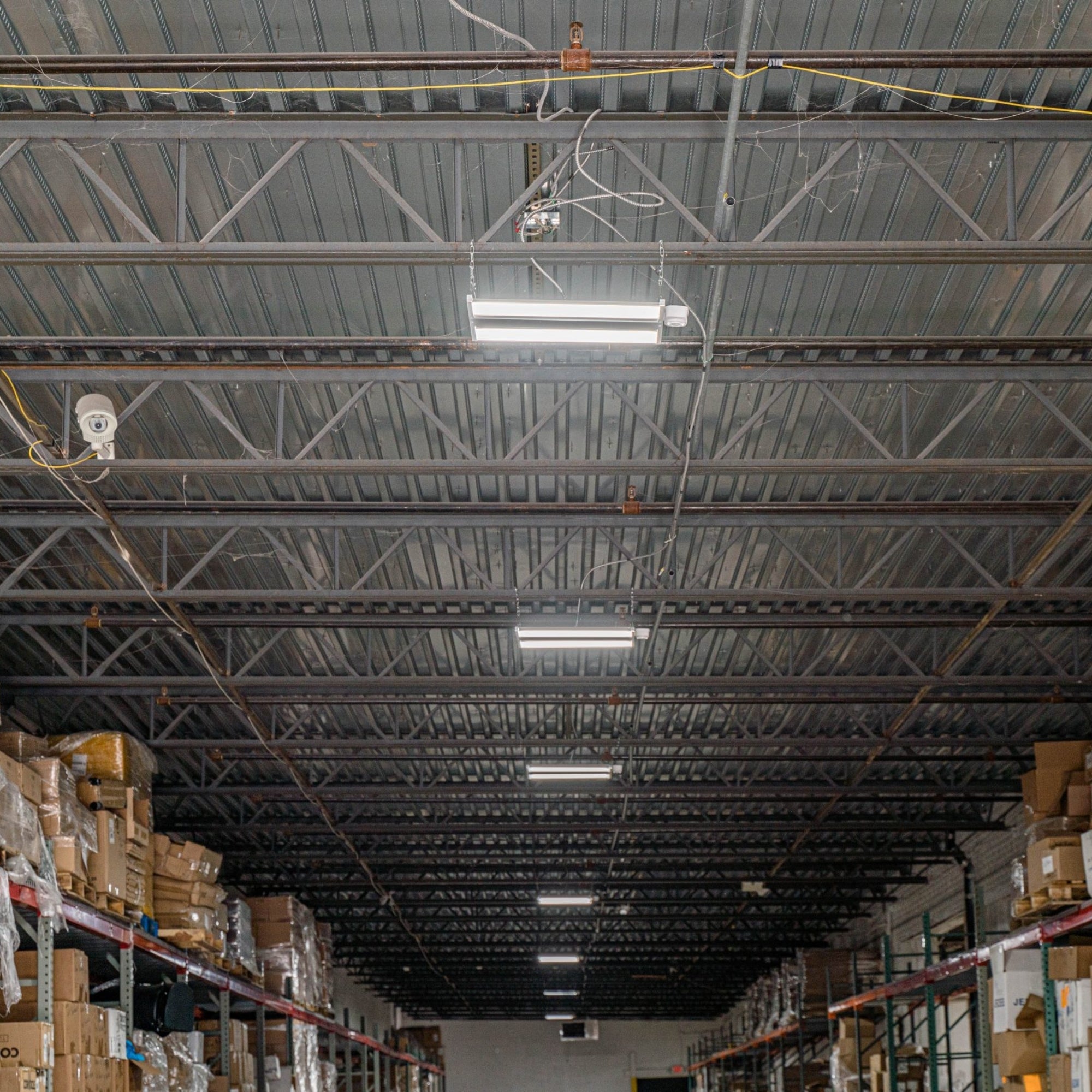

Typical Applications:

• Warehouses
• Manufacturing facilities
• Distribution centers
• Retail stockrooms
• Gymnasiums

Performance & Light Output:
Produces approximately 20,800–20,900 lumens at 135W, 25,900–26,000 lumens at 175W, and ~30,500–30,600 lumens at 215W depending on CCT selection. Efficacy ranges ~139–155 lm/W.

Electrical & Controls:

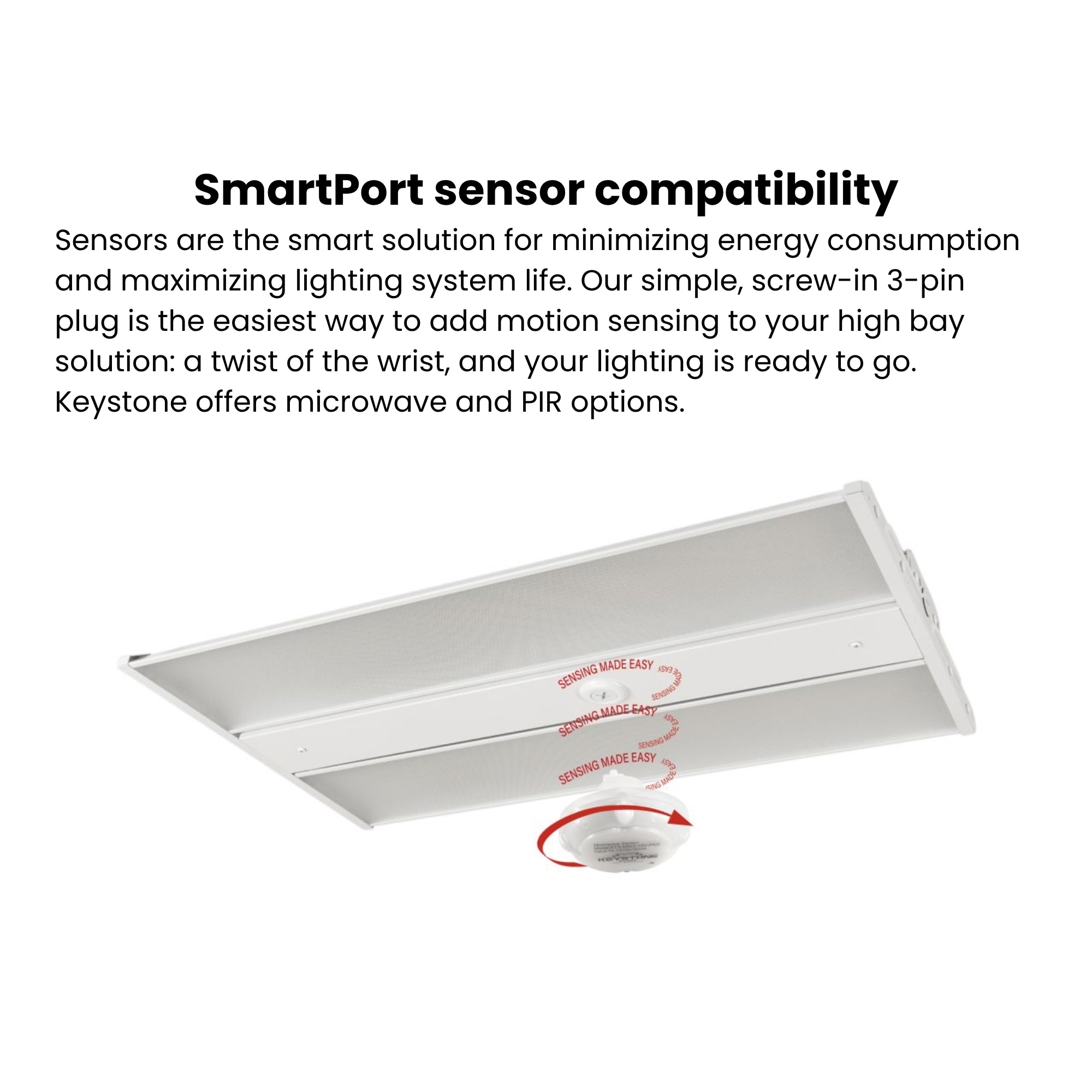

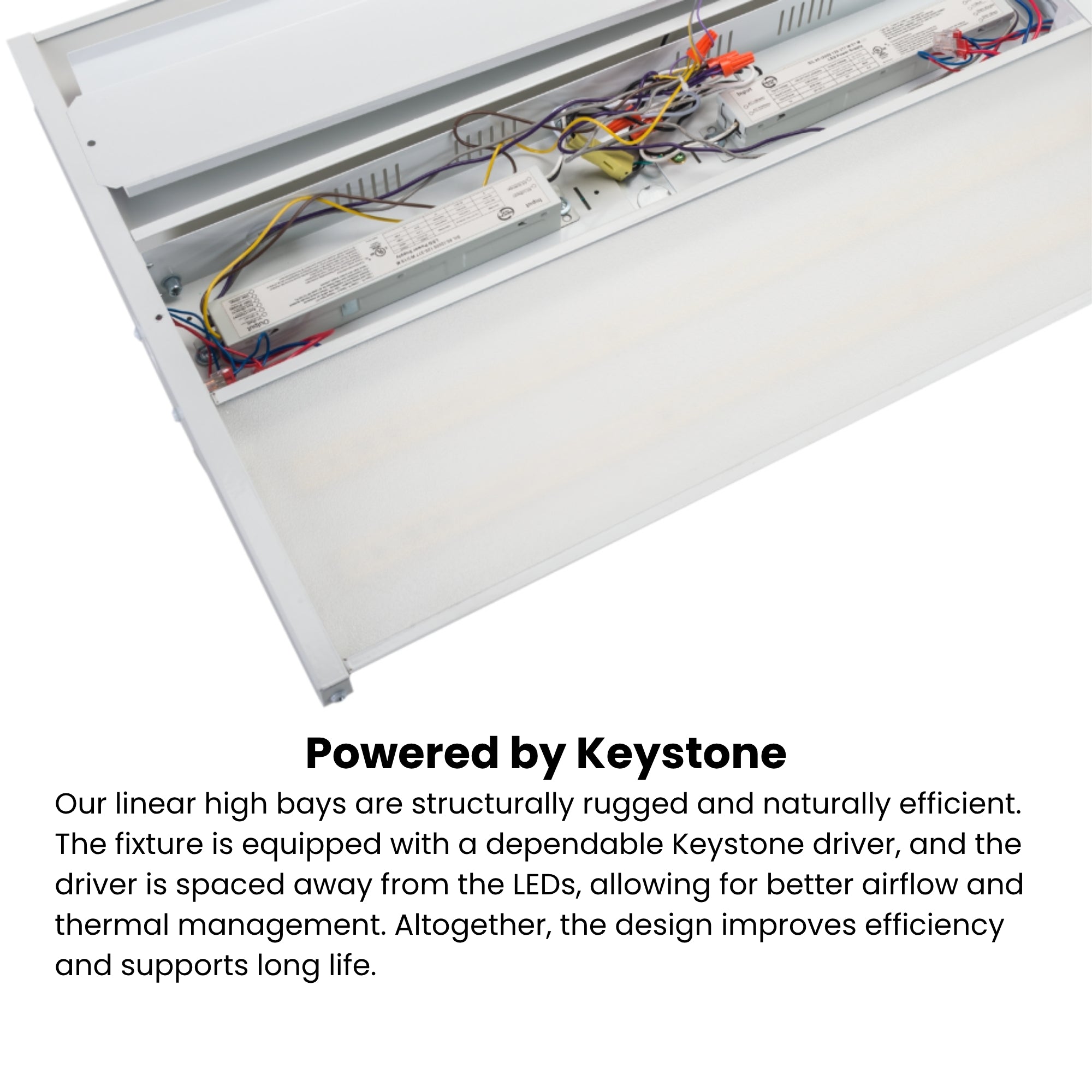

Operates on 120–277V at 50/60Hz with Keystone 0–10V dimming driver and dim-to-off capability. Built-in sensor port allows easy installation of Keystone Smart Port sensors without additional wiring.

Construction & Durability:
Steel housing with frosted diffuser for even light distribution. UL 1598 Listed for damp locations and DLC Premium listed for rebate eligibility. L70 rated life exceeds 50,000 hours. Backed by a 10-year limited warranty.

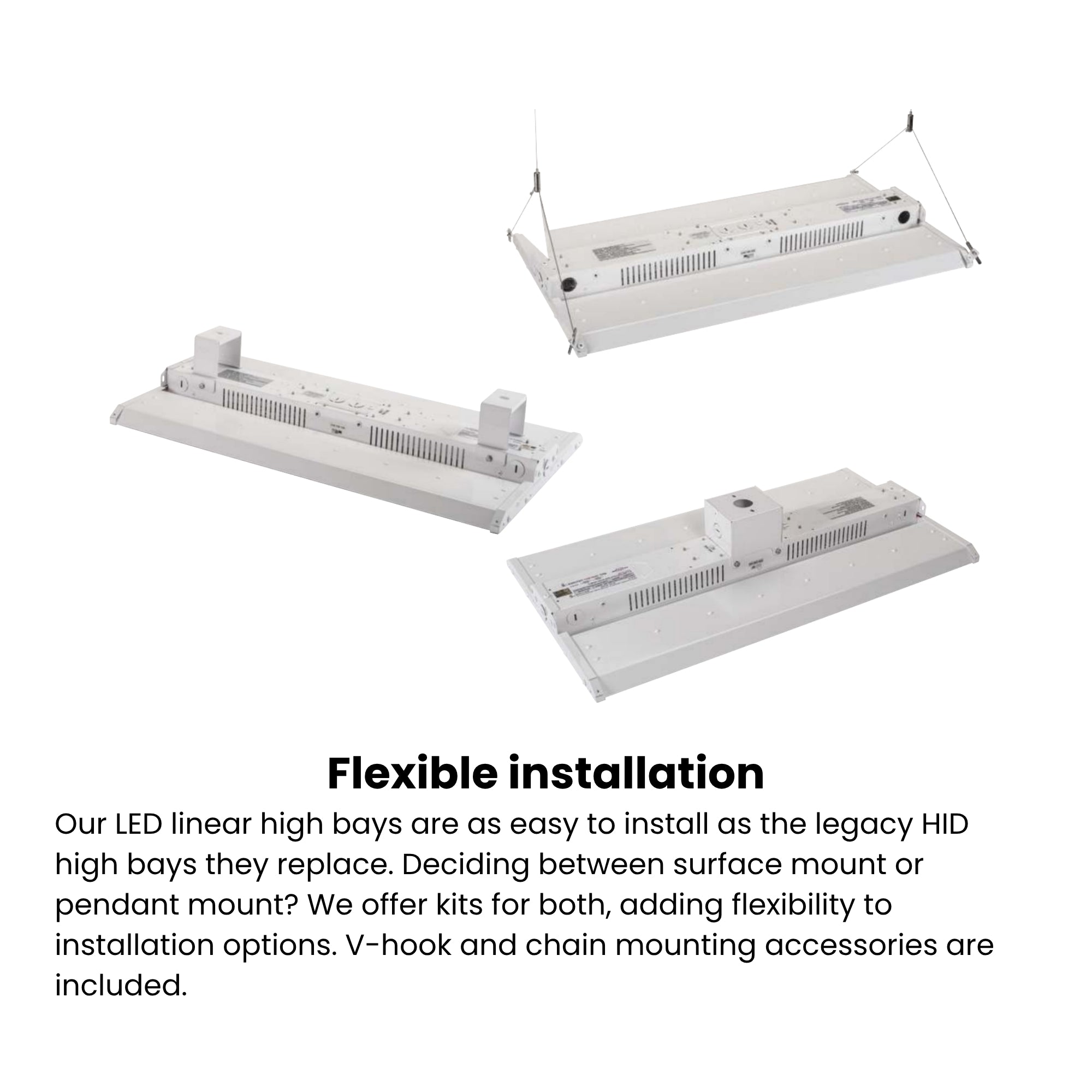

Installation & Mounting:

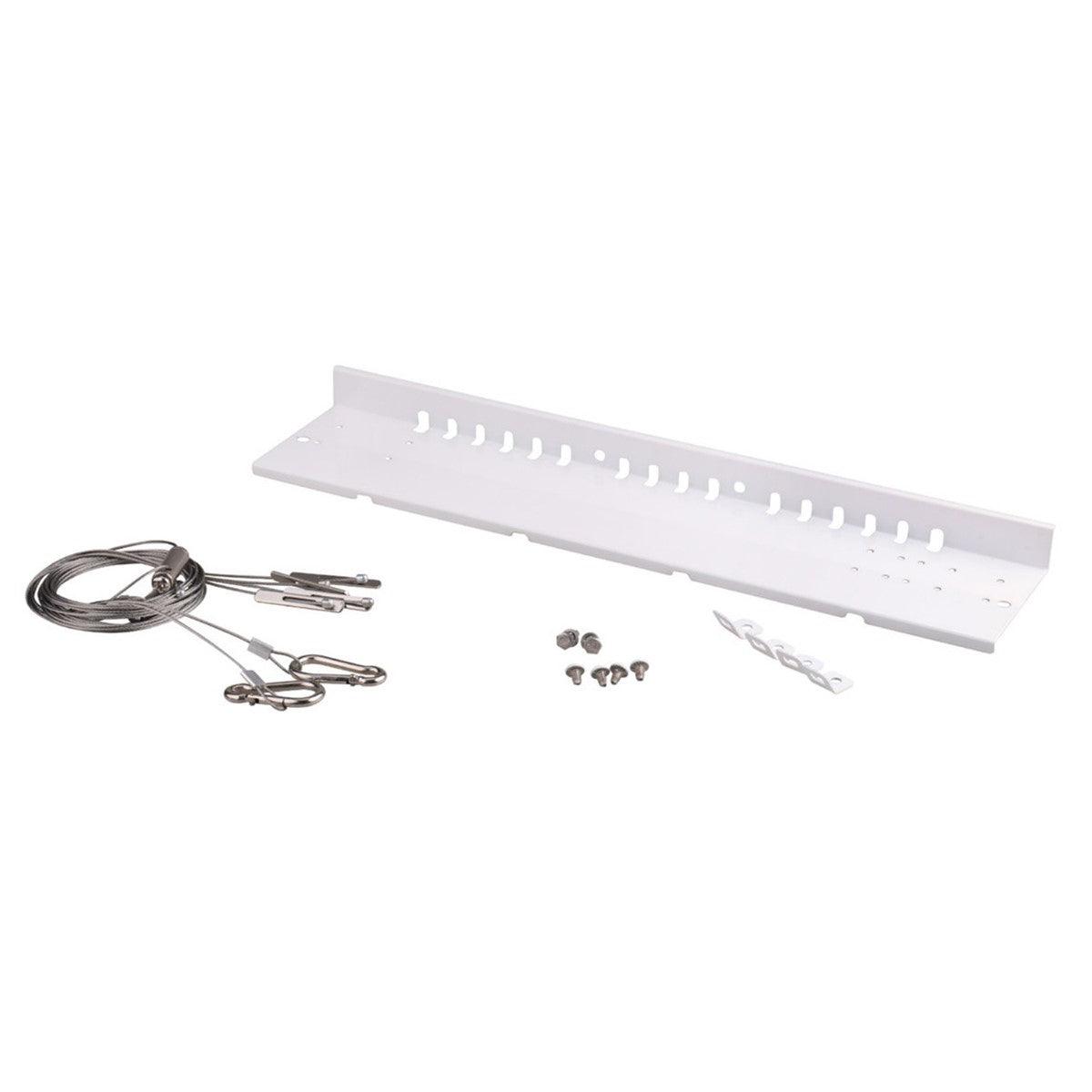

Includes V-hook and chain mounting hardware. Optional mounting accessories available for pendant, surface, and cable mount solutions (sold separately).

Included:
Linear high bay fixture with frosted lens, V-hooks, and chain mounting hardware.
