Keystone 2FT LED Linear High Bay 15,300 Lumens 65/90/105W 4000K/5000K 120–277V Frosted

Keystone KT-HBLED105PS-2FB-8CSD-VDIM-P (WGG-22) 2FT Linear LED High Bay — 65/90/105W, 120–277V

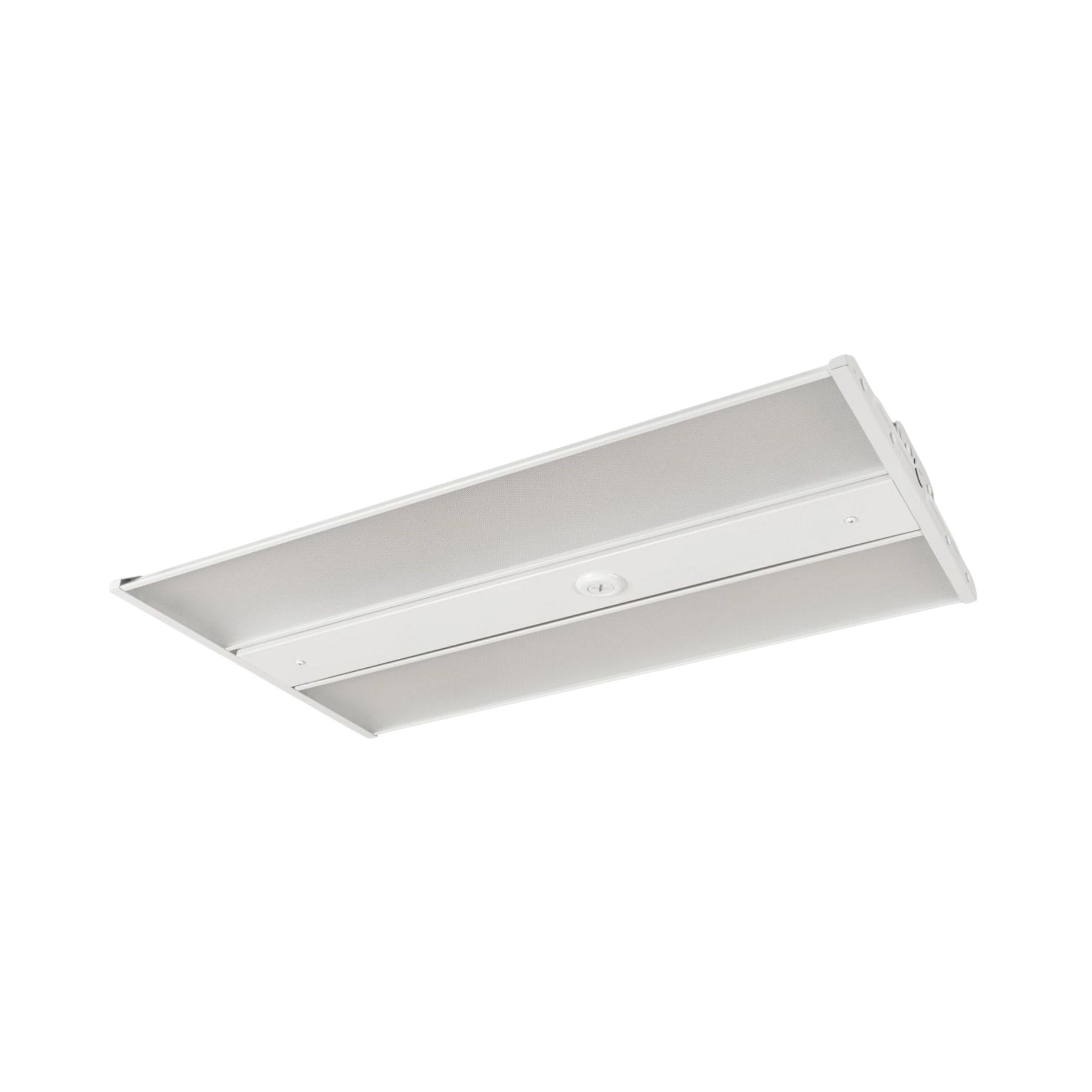

The Keystone KT-HBLED105PS-2FB-8CSD-VDIM-P is a 2FT linear LED high bay delivering up to approximately 15,300 lumens with selectable 65W, 90W, or 105W output and selectable 4000K or 5000K color temperature. Operating on 120–277V, this fixture features Keystone Power Select and Color Select technology with a smooth frosted lens for even illumination. It is UL Listed for damp locations, DLC Premium listed, and backed by a 10-year limited warranty.

Key Features:

• Easy Code: WGG-22
• Selectable Wattage: 65W / 90W / 105W
• Selectable CCT: 4000K / 5000K
• Delivered Lumens (5000K): ~10,200 / ~13,500 / ~15,300
• Efficacy: ~150–157 lm/W
• Voltage: 120–277V
• Dimming: 0–10V dim-to-off
• CRI: >80
• Power Factor: >0.95
• THD: <20%
• Lifetime: L70 >100,000 hours at 25 °C ambient
• Lens: Frosted diffuser for balanced illumination

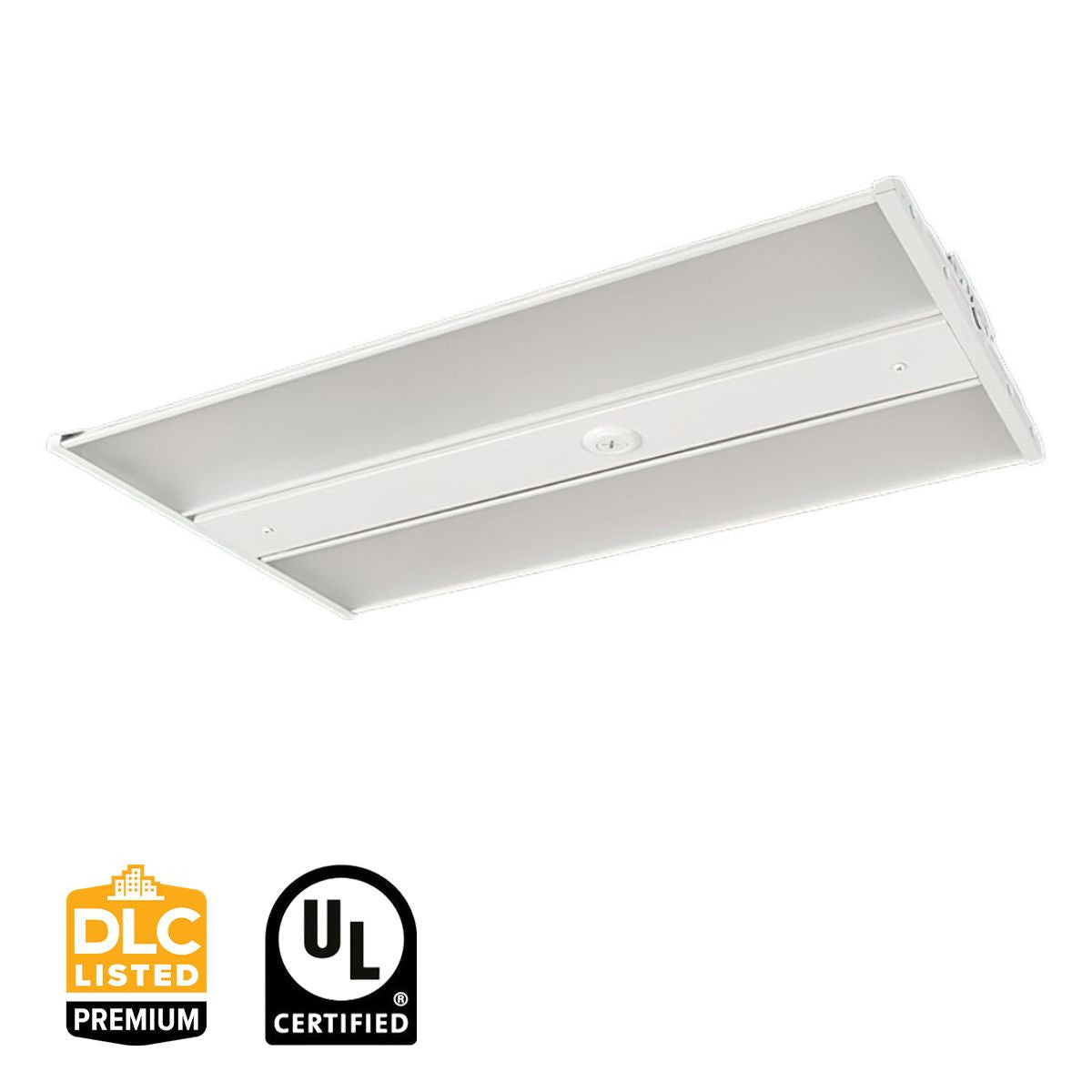

• Certifications: UL 1598, DLC Premium Listed
• Location Rating: Damp locations
• Operating Temperature: –40 °F to +122 °F (–40 °C to +50 °C)

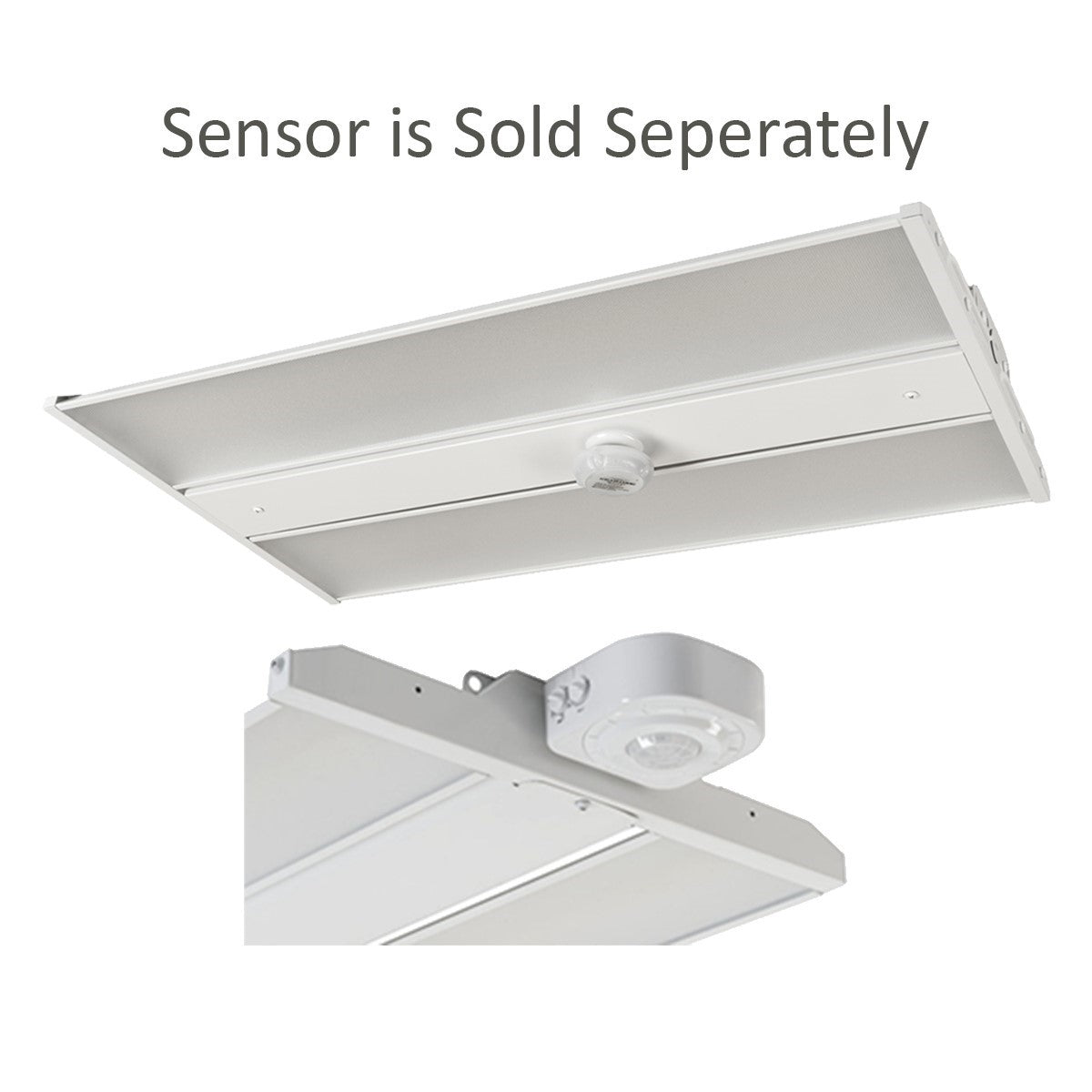

• Sensor Ready: Built-in port for Keystone Smart Port sensors
• Warranty: 10-Year Limited Warranty

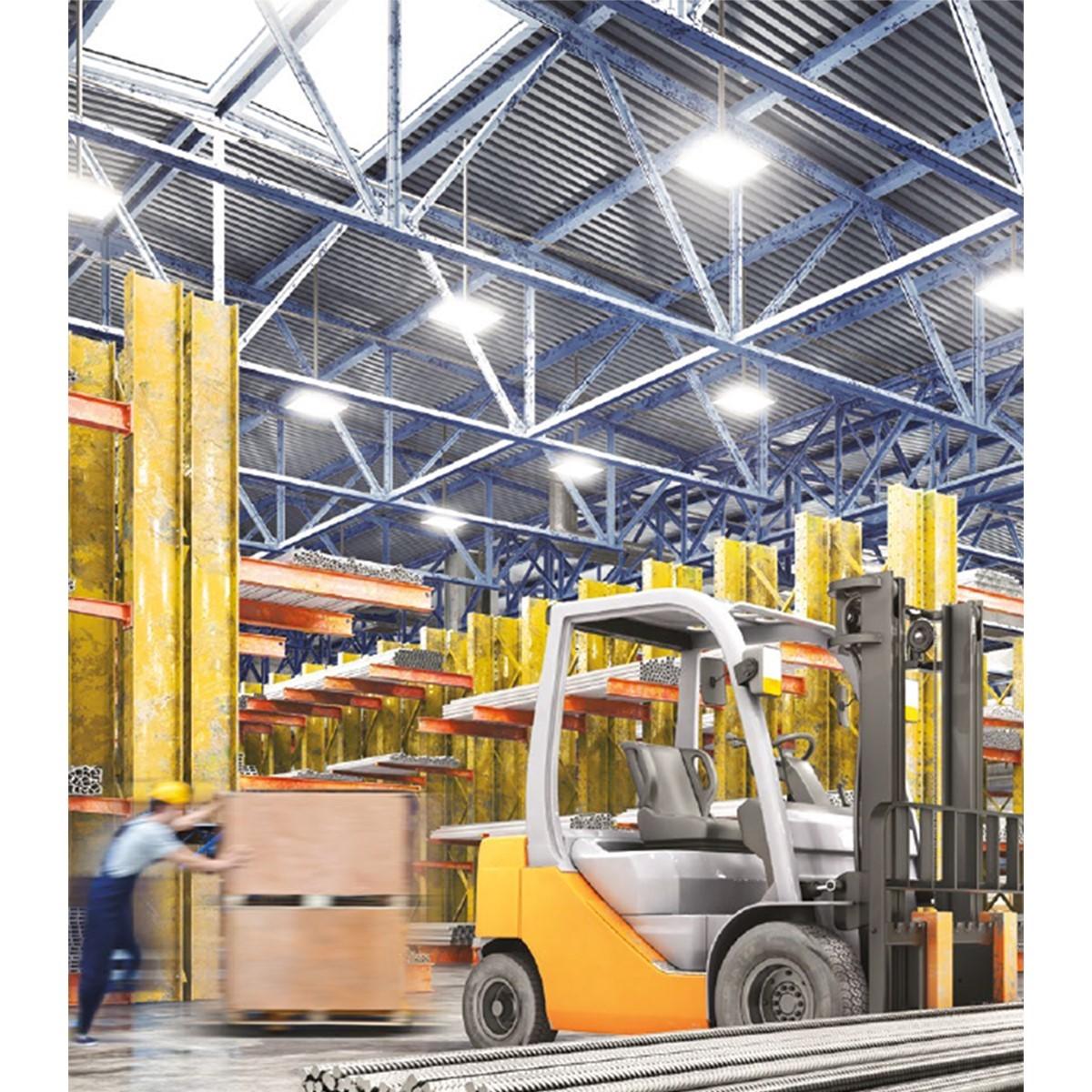

Typical Applications:

• Warehouses
• Manufacturing facilities
• Distribution centers
• Retail stockrooms
• Workshop environments

Performance & Light Output:
Emits approximately 10,100–10,200 lumens at 65W, 13,400–13,500 lumens at 90W, and 15,200–15,300 lumens at 105W (depending on CCT). Efficacy ranges from approximately 150 to 157 lm/W.

Electrical & Controls:
Operates on 120–277V at 50/60 Hz with a Keystone 0–10V dimming driver featuring dim-to-off. Power factor exceeds 0.95 and THD is below 20 %. Built-in Smart Port allows quick installation of compatible Keystone sensors without additional wiring.

Construction & Durability:
Steel housing with a frosted lens to minimize glare. UL 1598 Listed for damp locations and DLC Premium listed for rebate eligibility. LED chip lifetime exceeds L70 >100,000 hours, and the fixture is backed by a 10-year limited warranty.

Installation & Mounting:
Includes V-hooks and chain mounting hardware. Compatible with Keystone mounting accessories such as pendant kits, surface mount kits, cable mounting kits, and optional wire guards (sold separately).

Included:
Linear high bay fixture with frosted lens, V-hooks, and chain mounting hardware.
