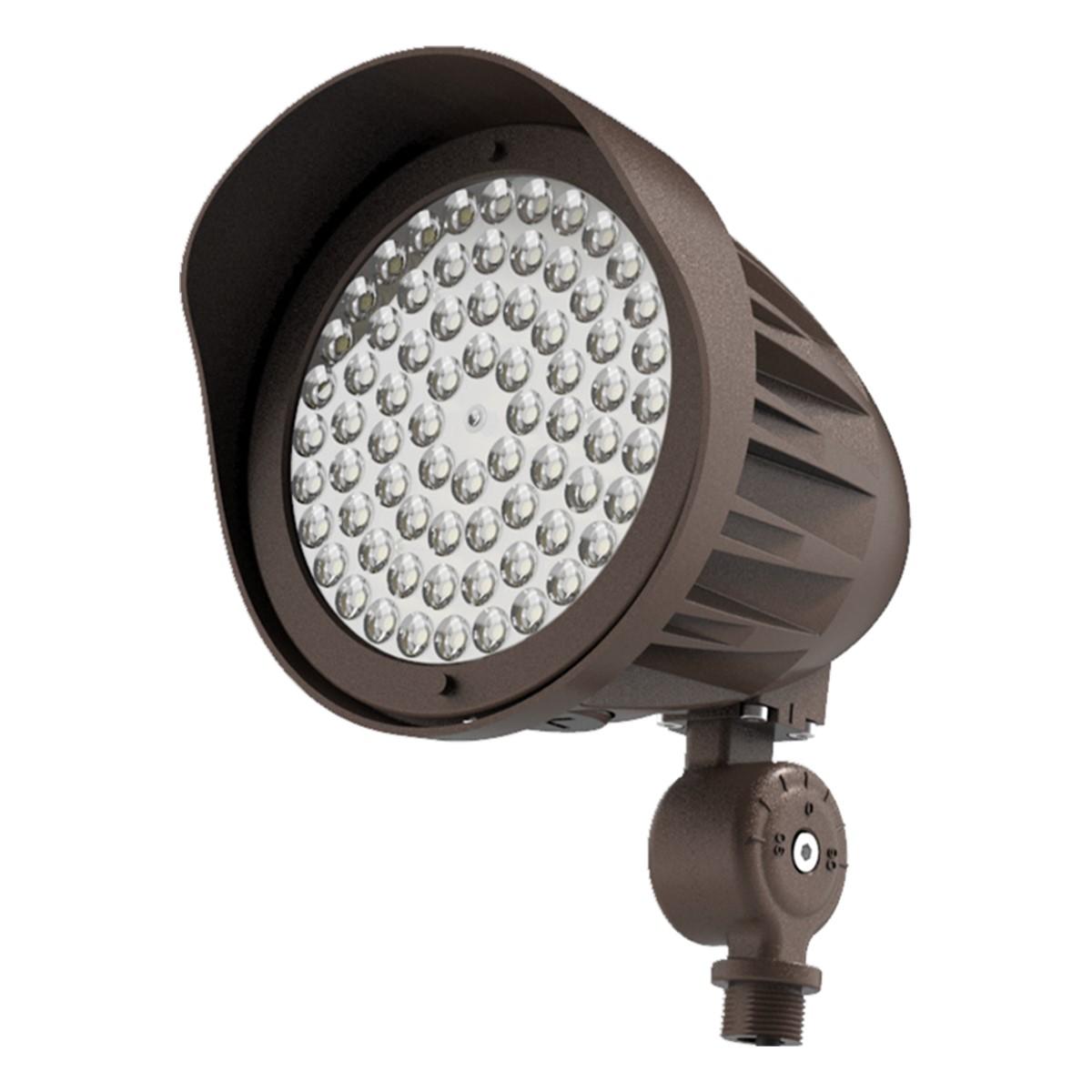

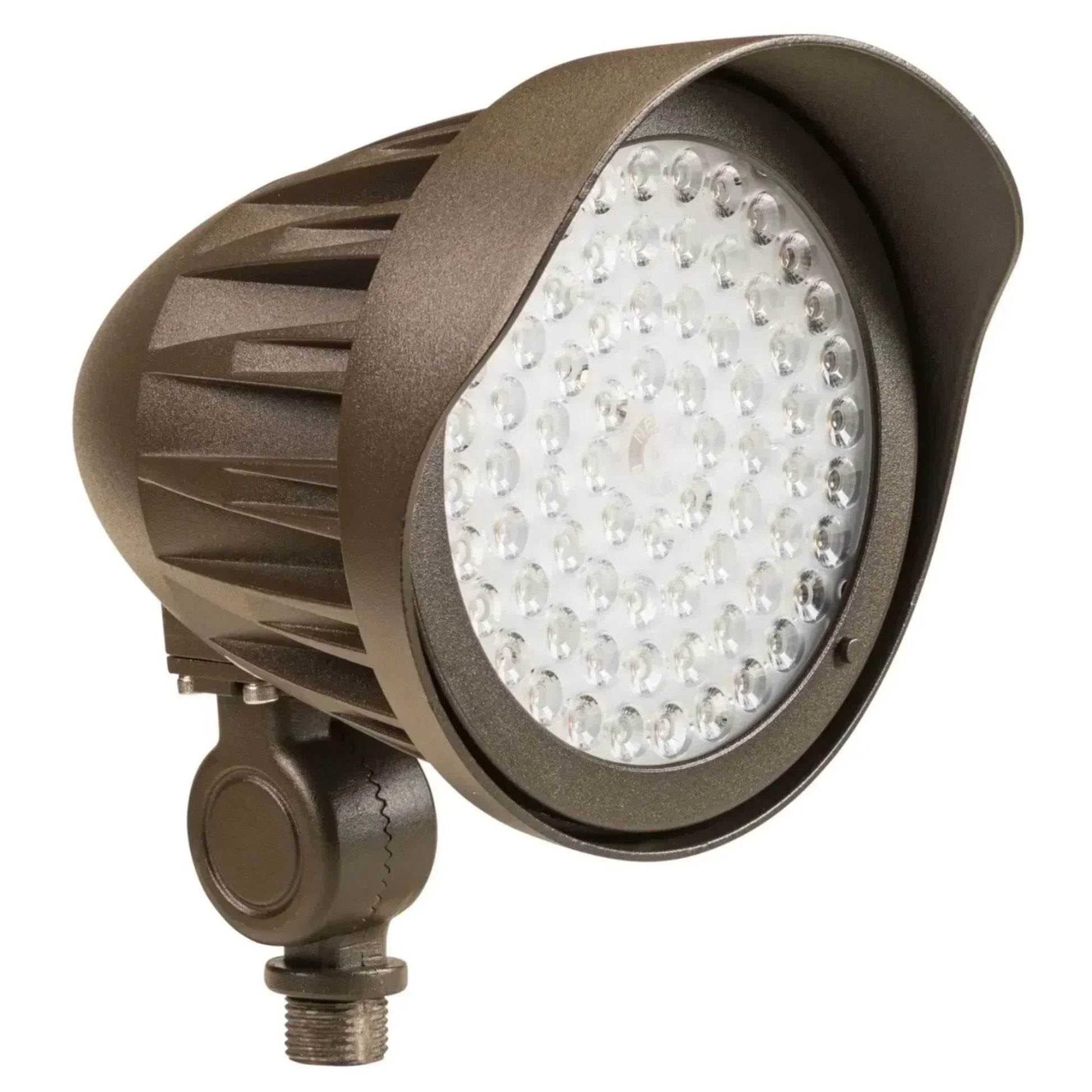

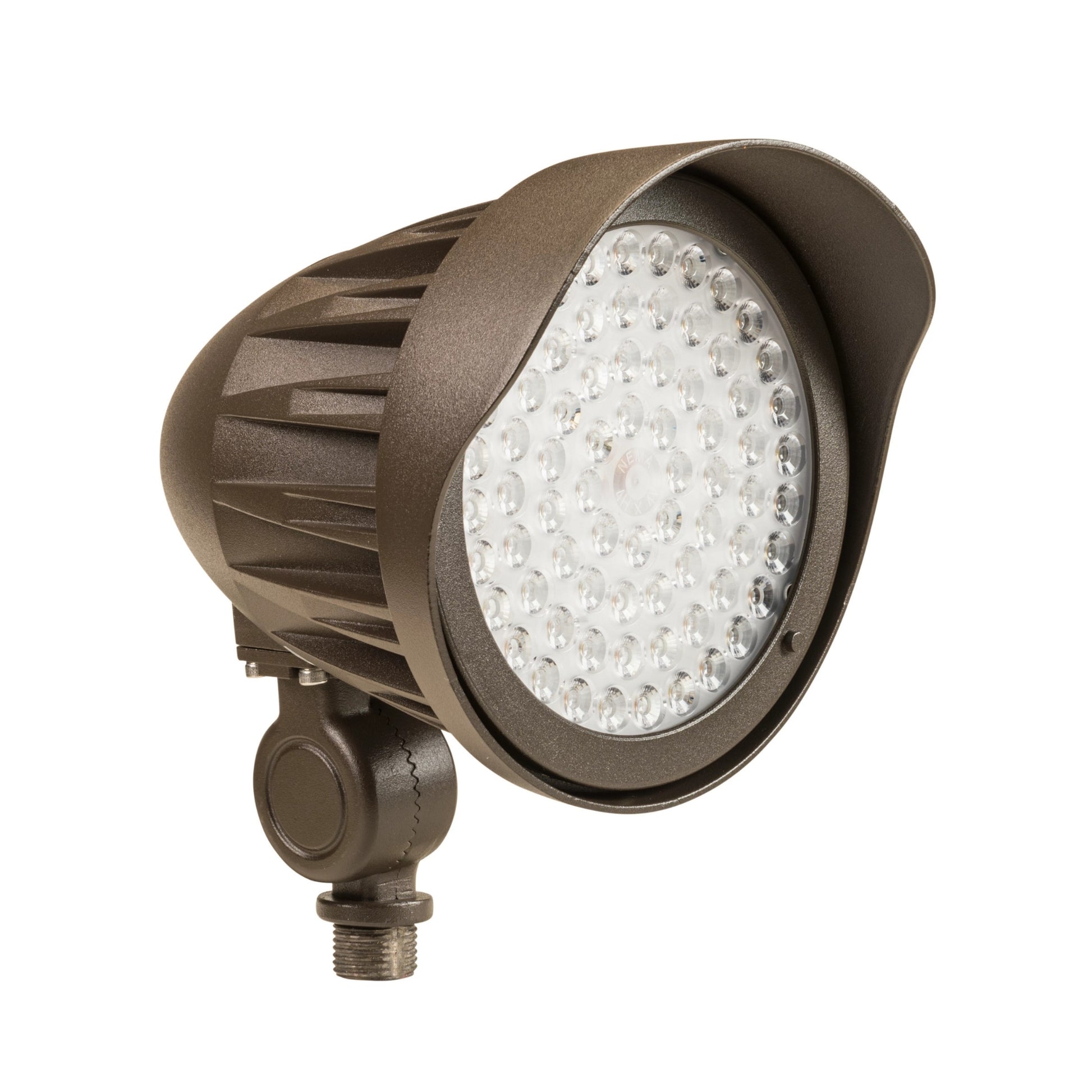

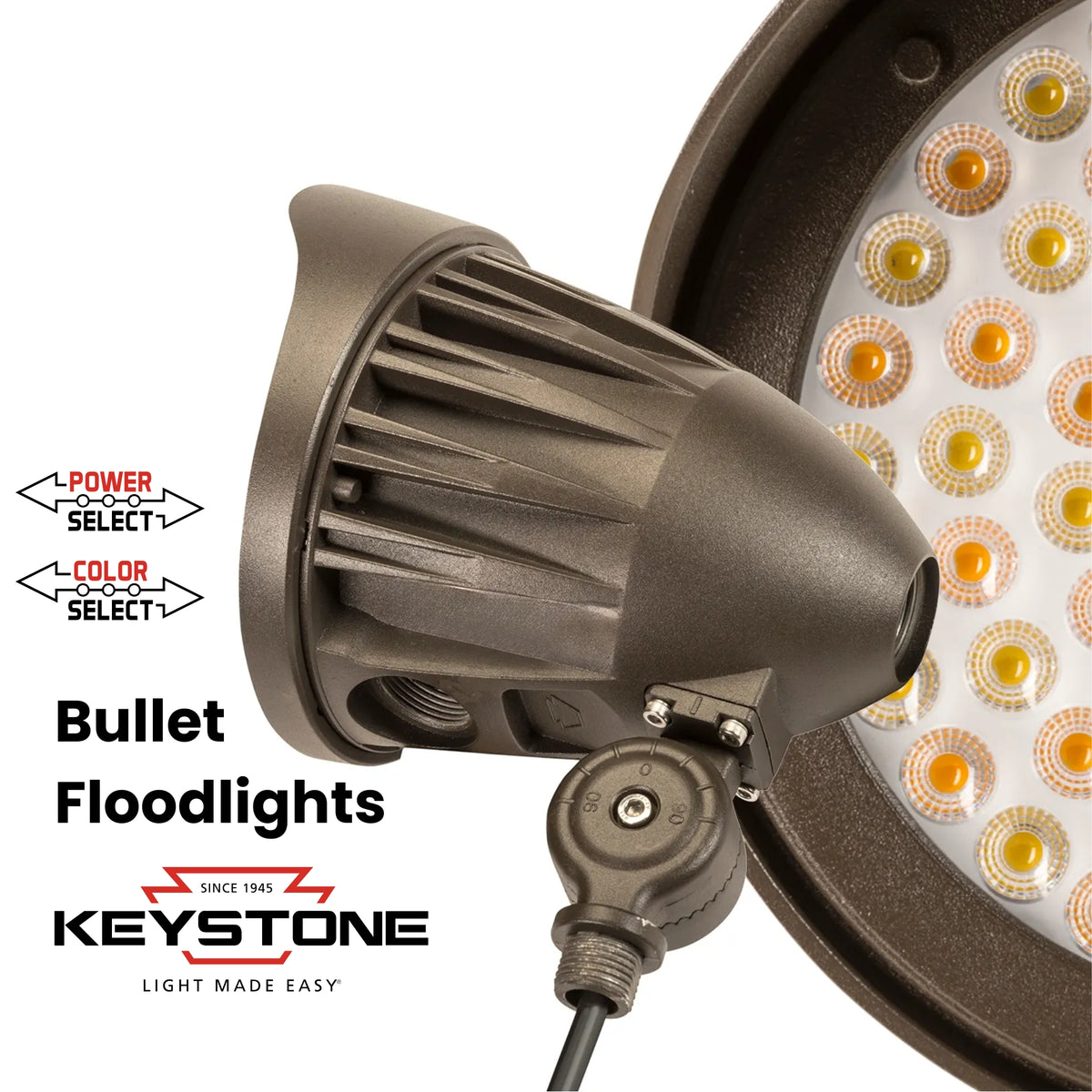

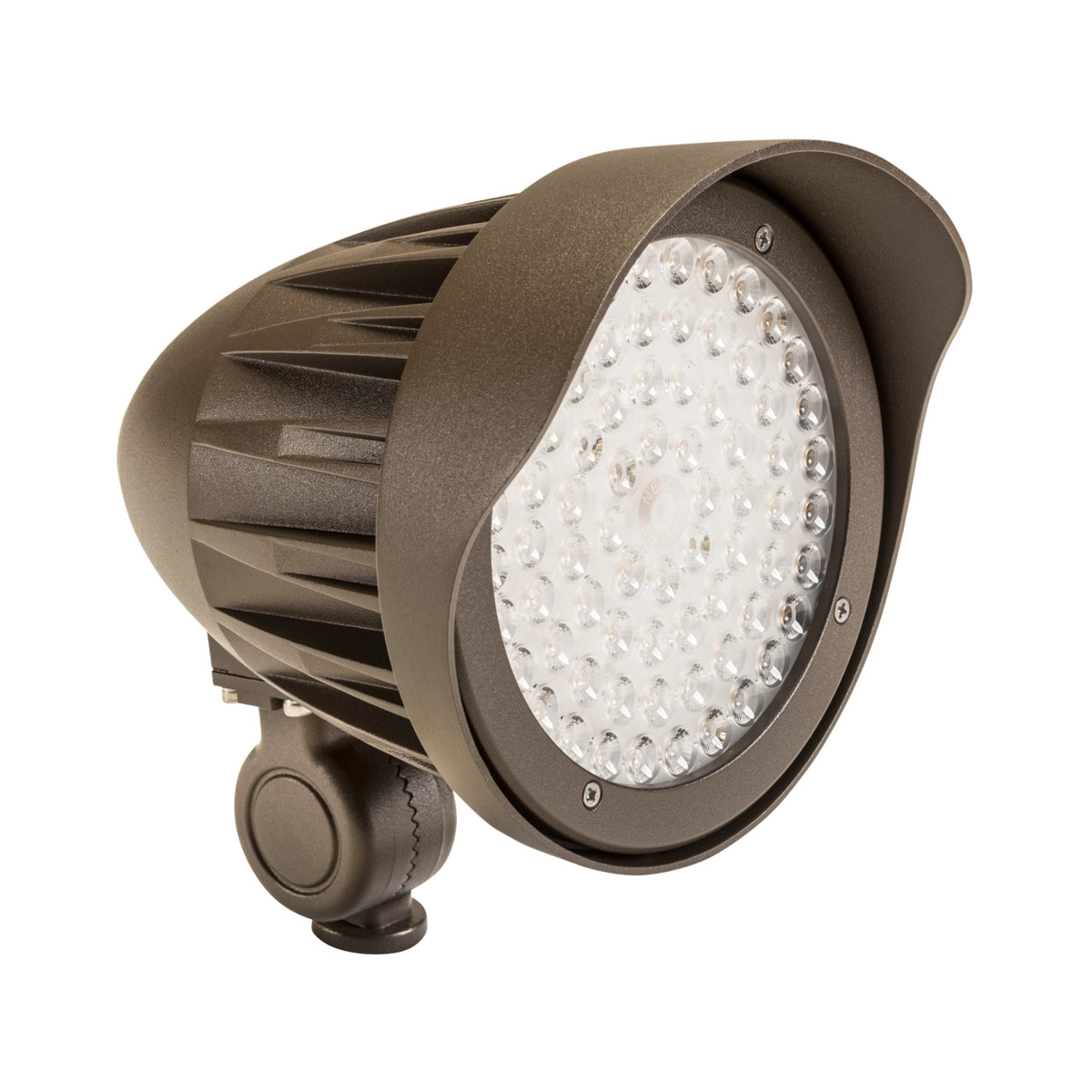

Keystone KT-FLED25PS-C1E-UNV-8CSB-VDIM /G2 XFit Bullet Floodlight — 25W, Selectable CCT & Power, Knuckle Mount, Photocell, 120-277V, Bronze

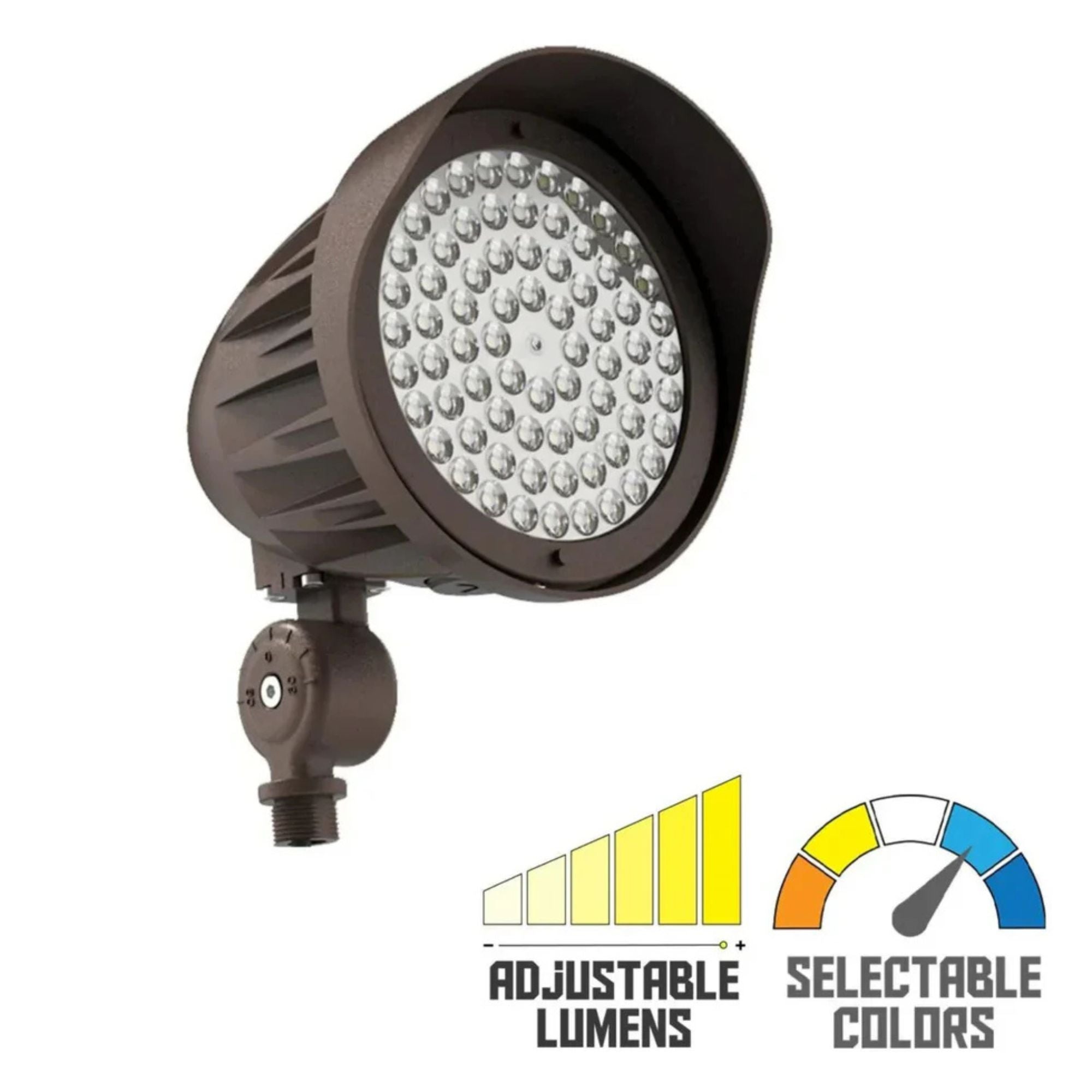

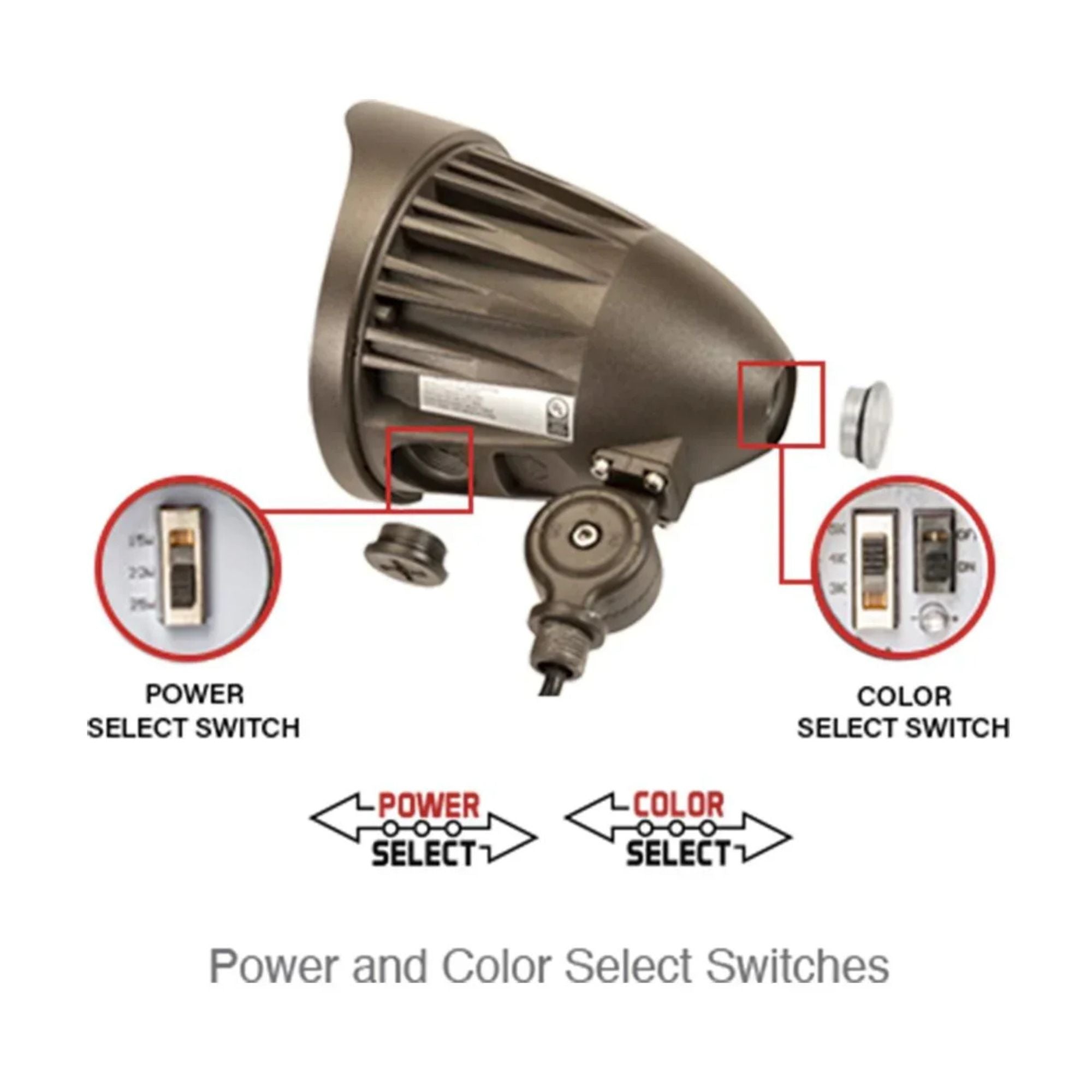

The Keystone KT-FLED25PS-C1E-UNV-8CSB-VDIM /G2 is a high-performance, dual-selectable LED bullet flood light designed to deliver exceptionally focused illumination with incredible on-site versatility. This powerful luminaire produces up to 3,292 lumens and allows installers to easily toggle between three wattage levels (25W, 20W, 15W) and three color temperatures (3000K, 4000K, 5000K) directly in the field using Keystone's Power Select and Color Select technology. It features an innovative twist on/off lens cap that allows you to easily swap between the pre-installed NEMA 4H x 4V optics and the included NEMA 3H x 3V optics, providing either a focused spot or a wider flood to perfectly suit landscape, facade, accent, and flagpole lighting. Operating on a versatile 120-277V driver, this model comes fully equipped with a built-in photocell with a dedicated on/off switch for automated dusk-to-dawn energy savings. Built for longevity, it is housed in a rugged die-cast aluminum body and earns an IP65 rating for superior durability against the elements. With a DLC 5.1 listing and standard 0-10V dimming, it is the perfect smart solution for professional-grade exterior accent lighting.

Key Features

• Wattage: Field adjustable to 25W, 20W, or 15W.
• Selectable CCT: Field adjustable between 3000K (Warm White), 4000K (Cool White), and 5000K (Daylight).
• Dimming: Integrated 0-10V dimming capabilities.

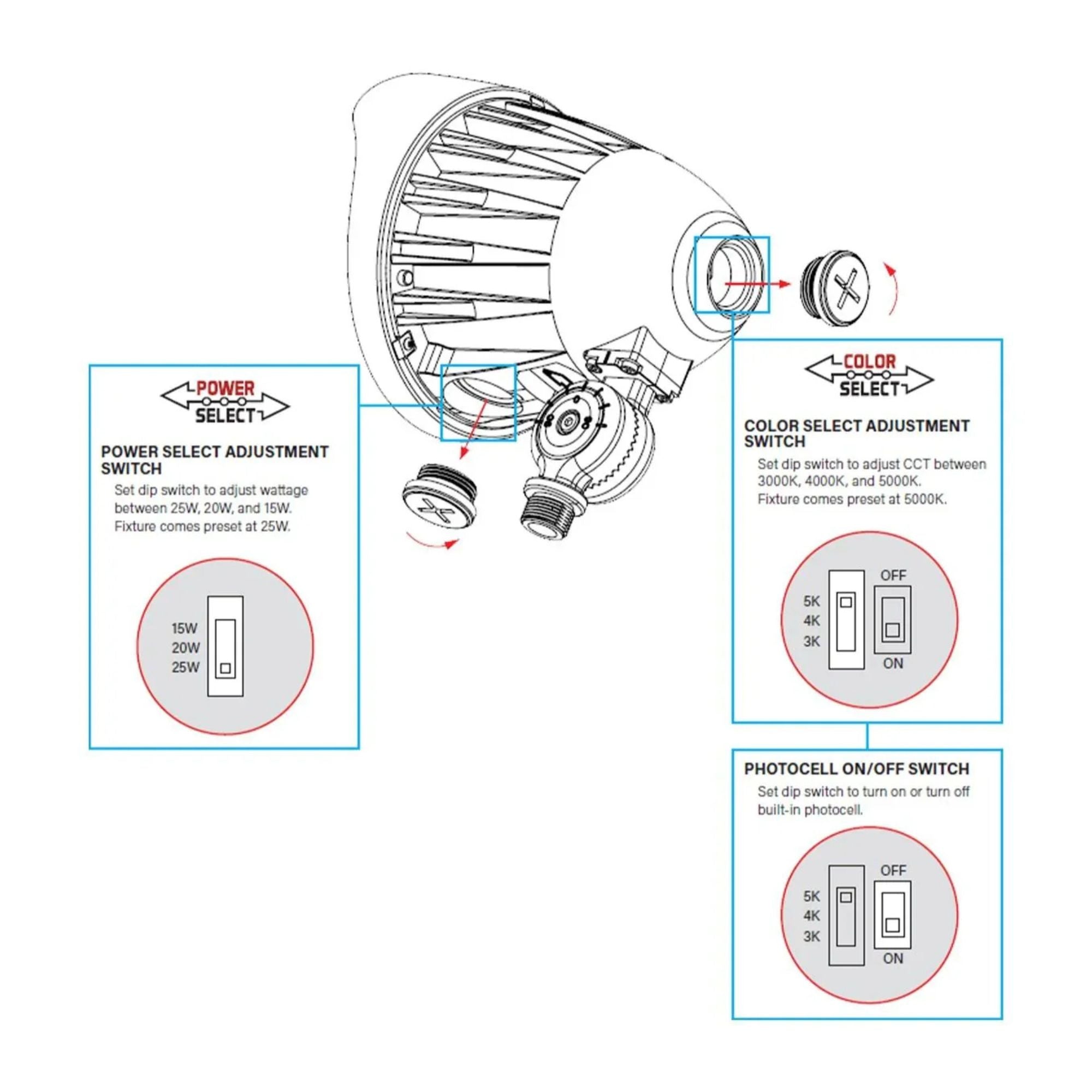

• Photocell: Integrated photocell included with a manual on/off dip switch.

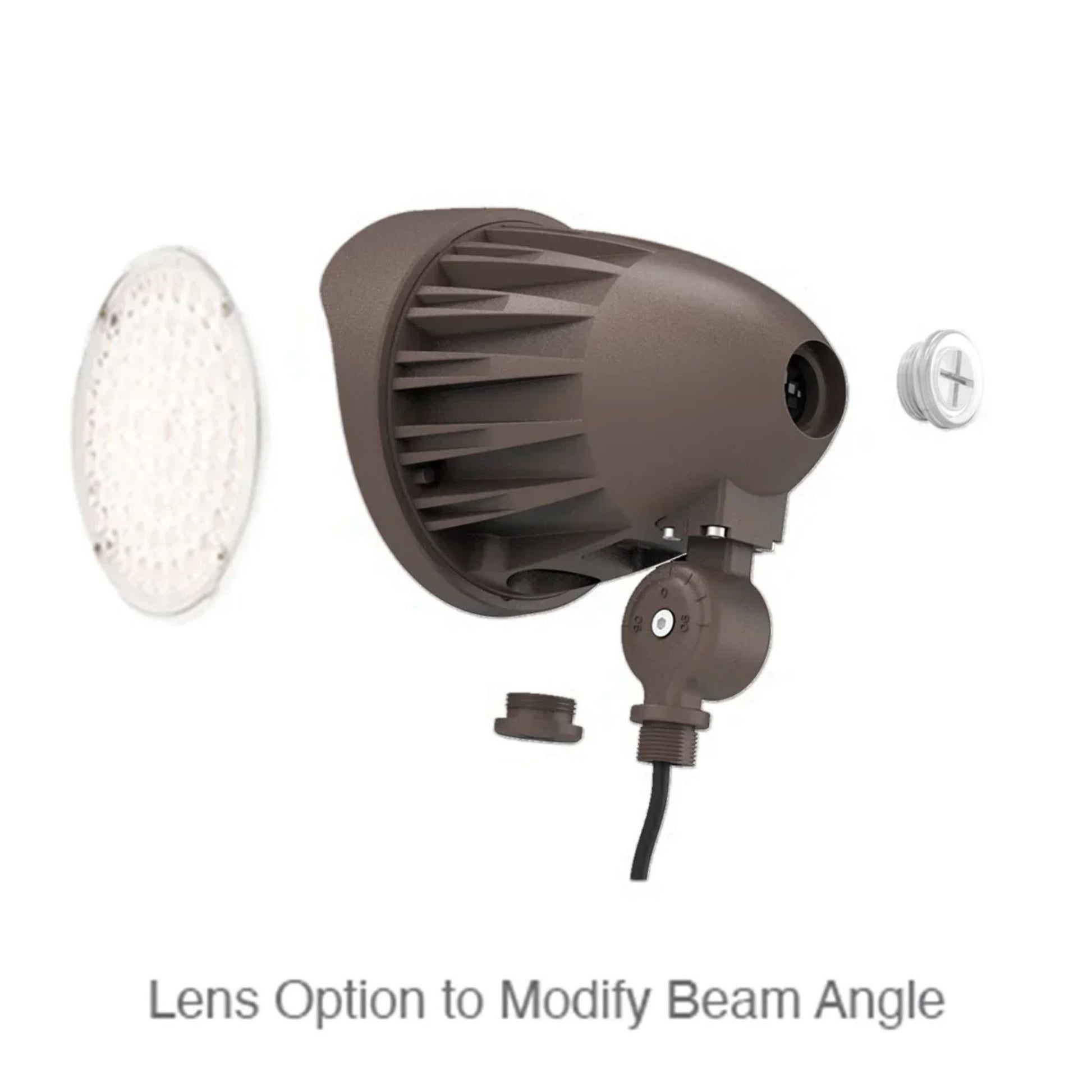

• Optics: NEMA 4H x 4V lens pre-installed; alternate NEMA 3H x 3V lens included in the box.
• Mounting Type: Knuckle mount (fits 1/2" base).
• Delivered Lumens: Up to 3,292 lumens at the highest 25W setting (at 4000K).

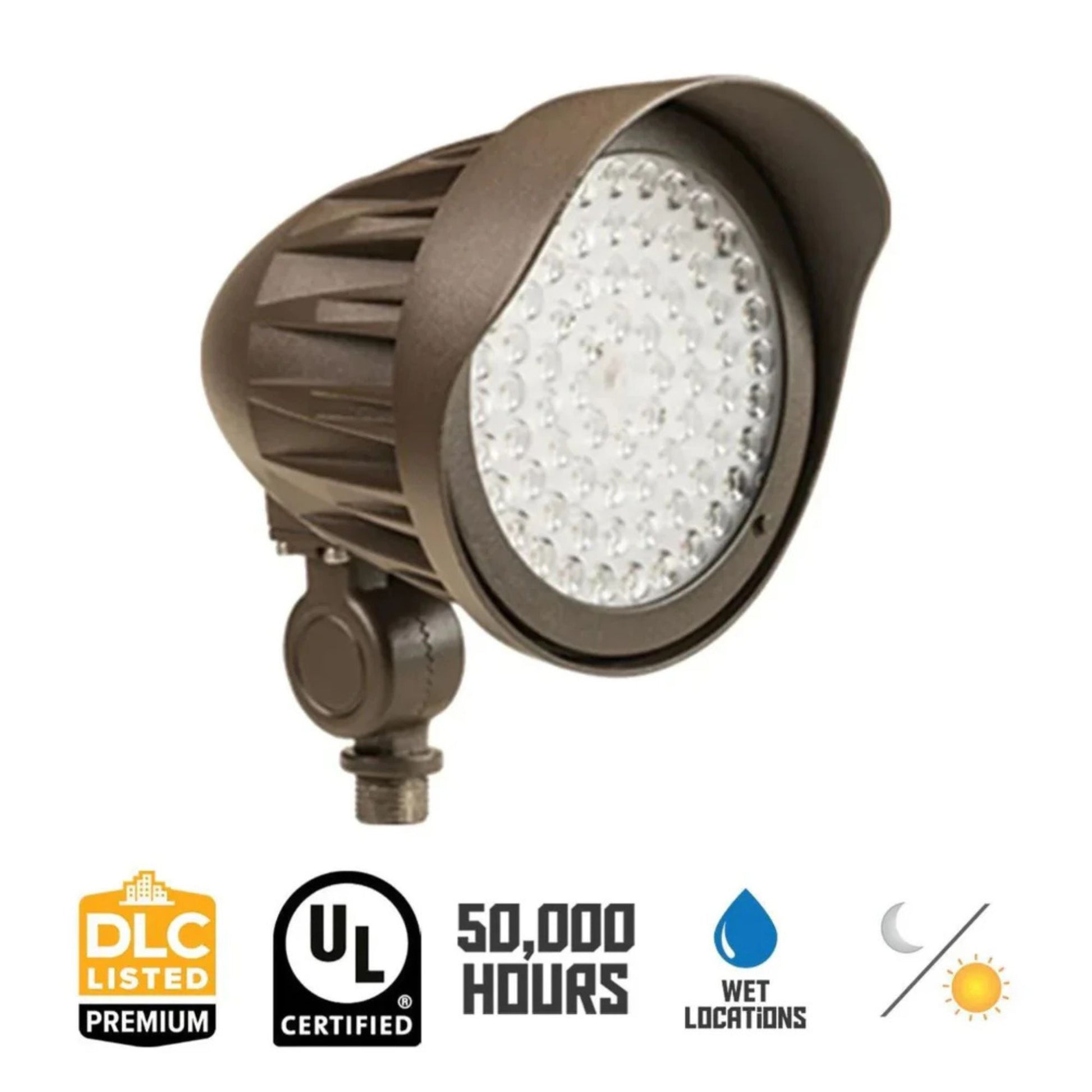

• Environmental Ratings: IP65 rated for dust and water; UL Listed.
• Rated Life: L70 > 50,000 hours.

Typical Applications

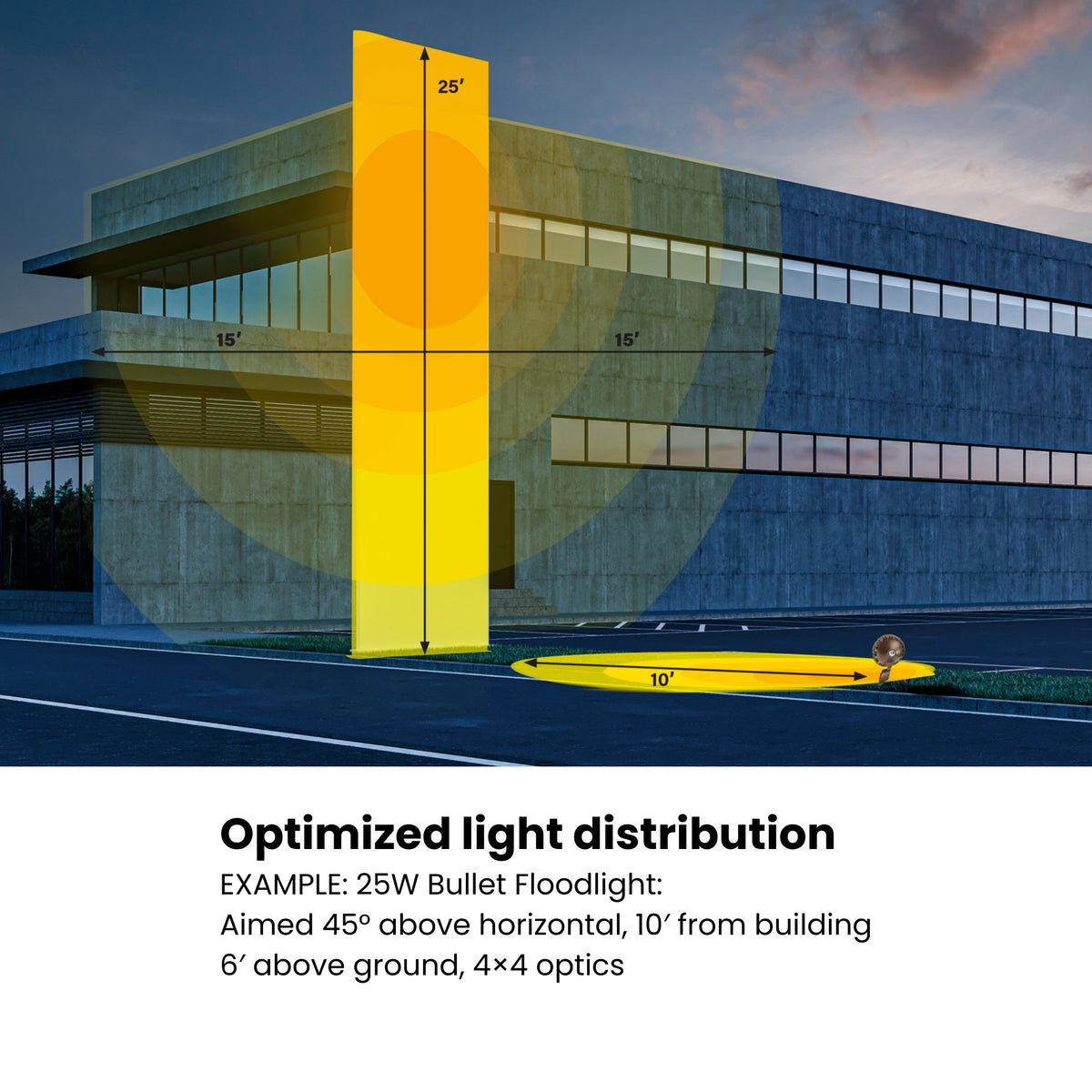

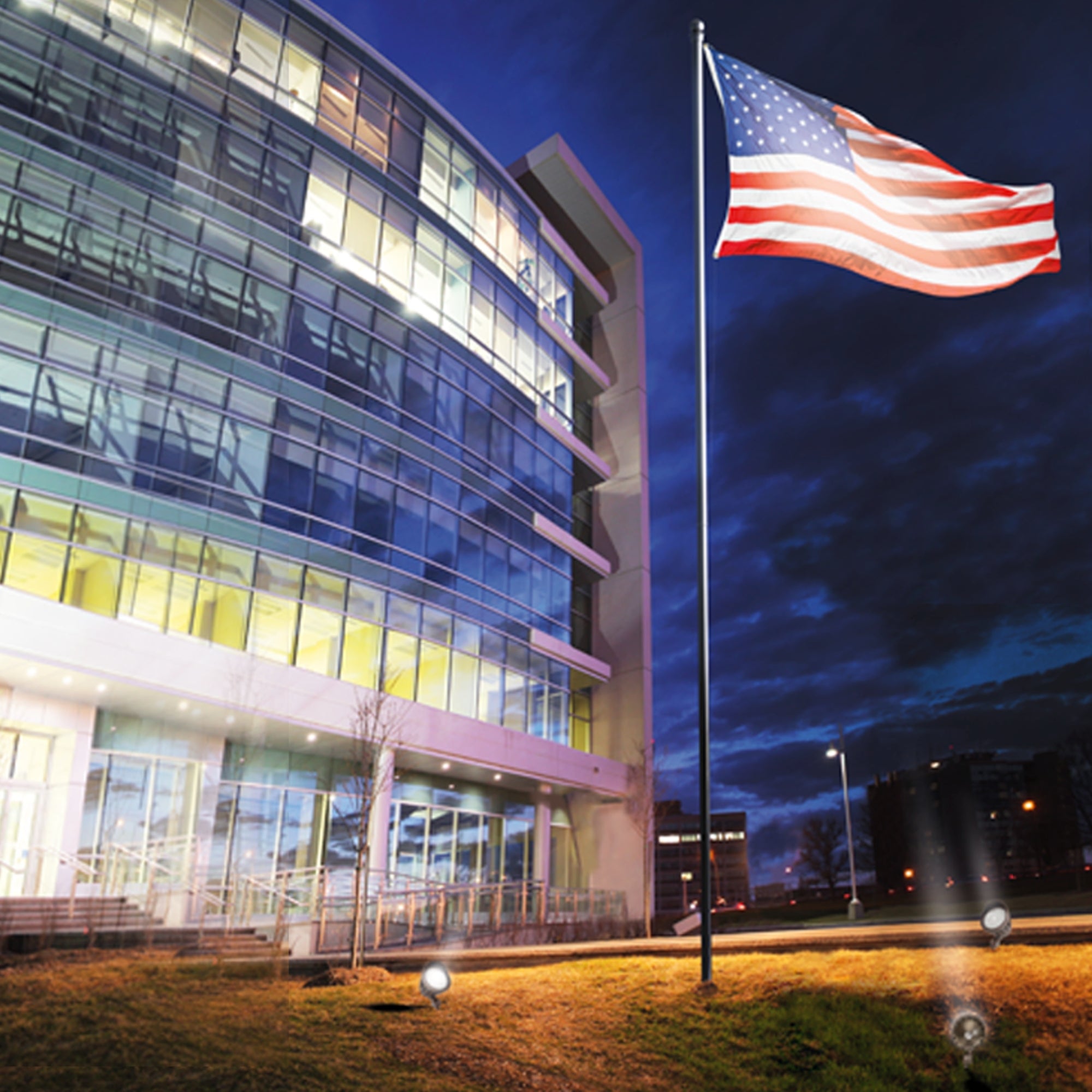

• Flagpole and monument spotlighting
• Landscape, patio, and yard lighting
• Building perimeters and facade illumination
• General exterior accent and security lighting

Performance & Light Output

The Keystone KT-FLED25PS-C1E-UNV-8CSB-VDIM /G2 provides high-intensity, uniform light with a maximum output of 3,292 lumens and an exceptional efficacy of up to 133 lm/W (at 15W/4000K). Its advanced optical design allows for precise beam control via the interchangeable lenses, ensuring excellent color consistency (80 CRI). With long-life LEDs rated for over 50,000 hours, this fixture significantly reduces maintenance and energy costs over time.

Electrical & Controls

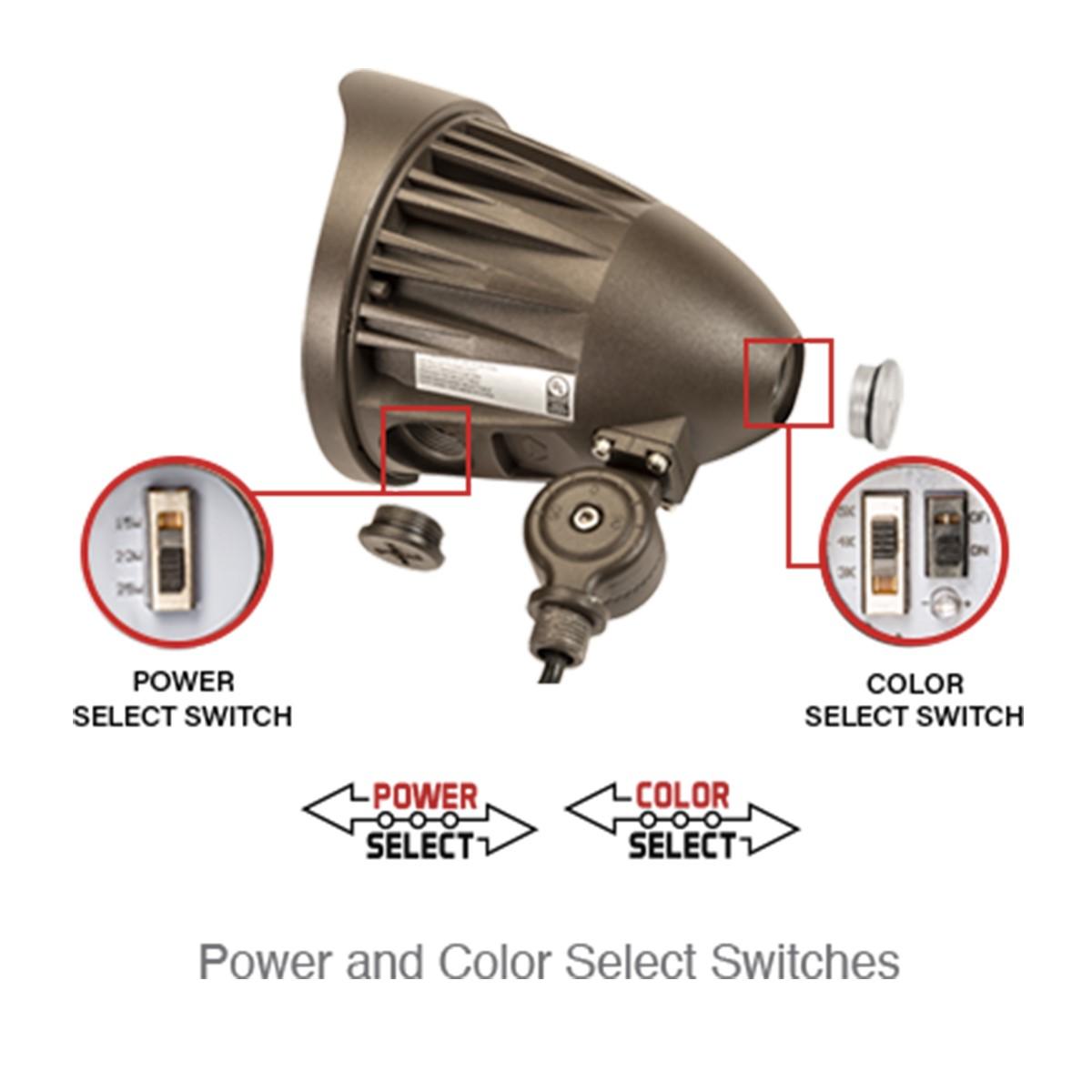

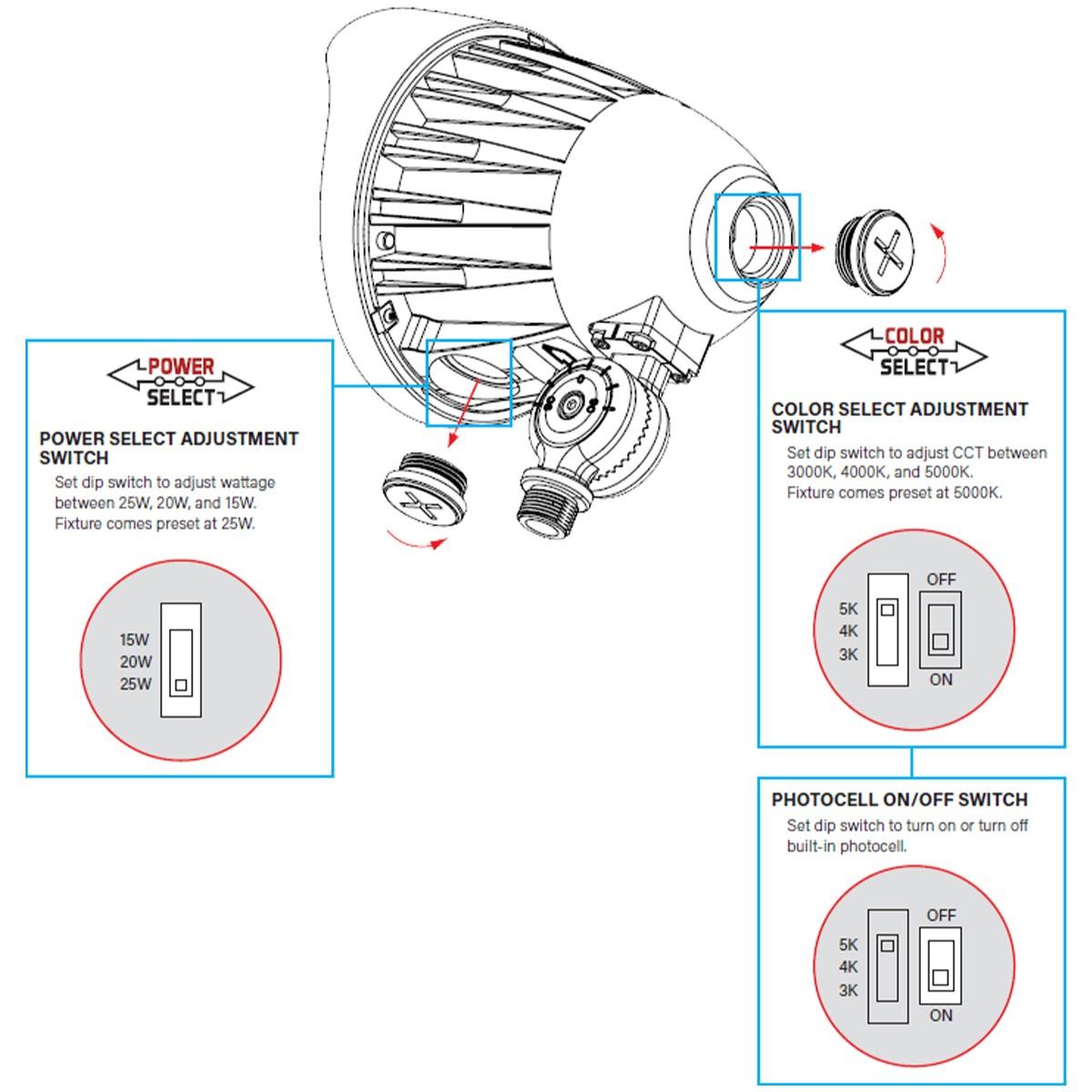

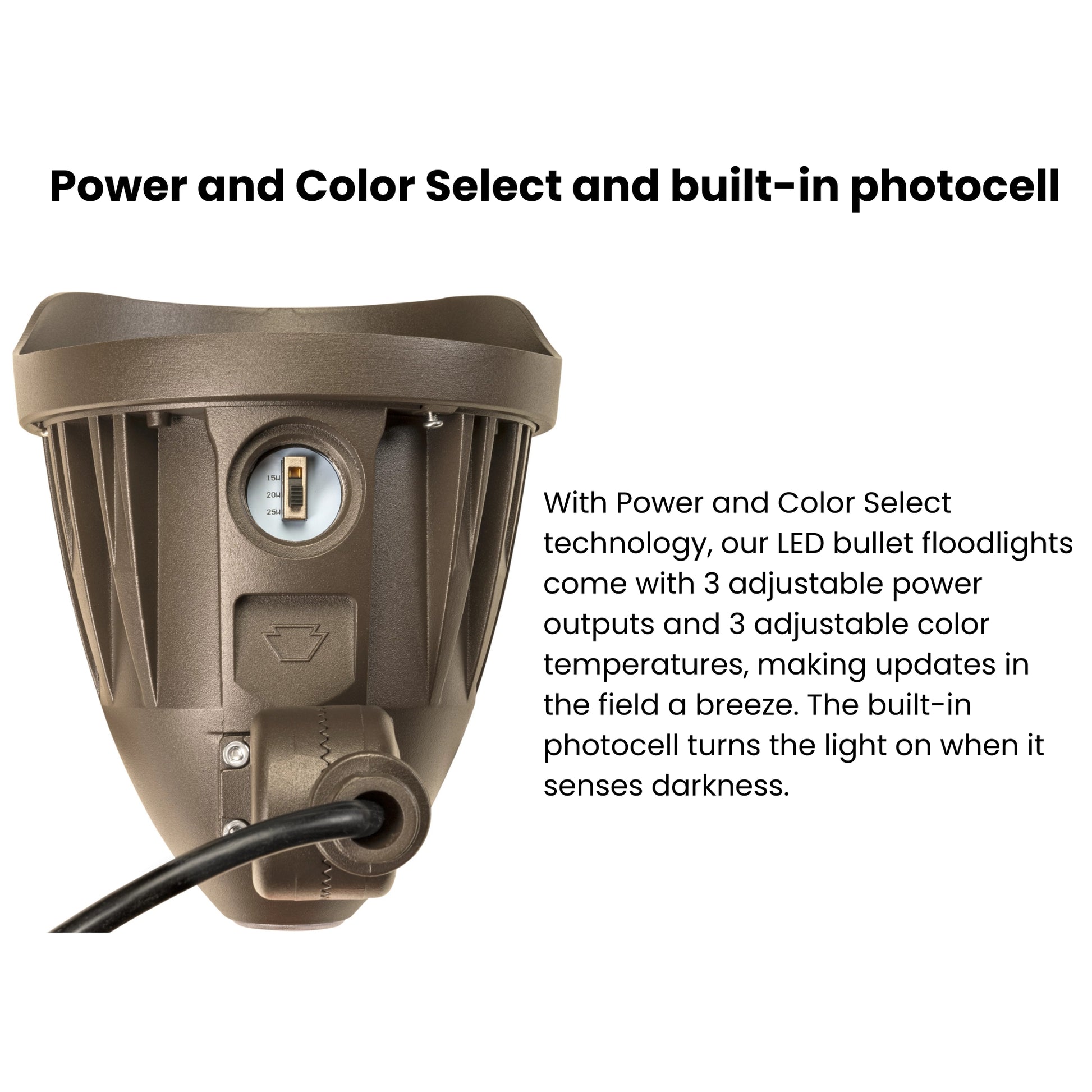

Operating efficiently on a 120-277V AC input, this fixture features a built-in photocell that can be toggled on or off via a convenient dip switch, allowing precise control over automated daylight operation. It also supports standard 0-10V dimming for seamless integration with energy management and lighting control systems.

Construction & Durability

The fixture features a rugged die-cast aluminum housing finished in a sleek, modern bronze. Its IP65 design incorporates a twist on/off lens cap that seals the optics from the elements, safely operating in extreme ambient temperatures ranging from -40°F (-40°C) up to 113°F (45°C).

Installation & Mounting

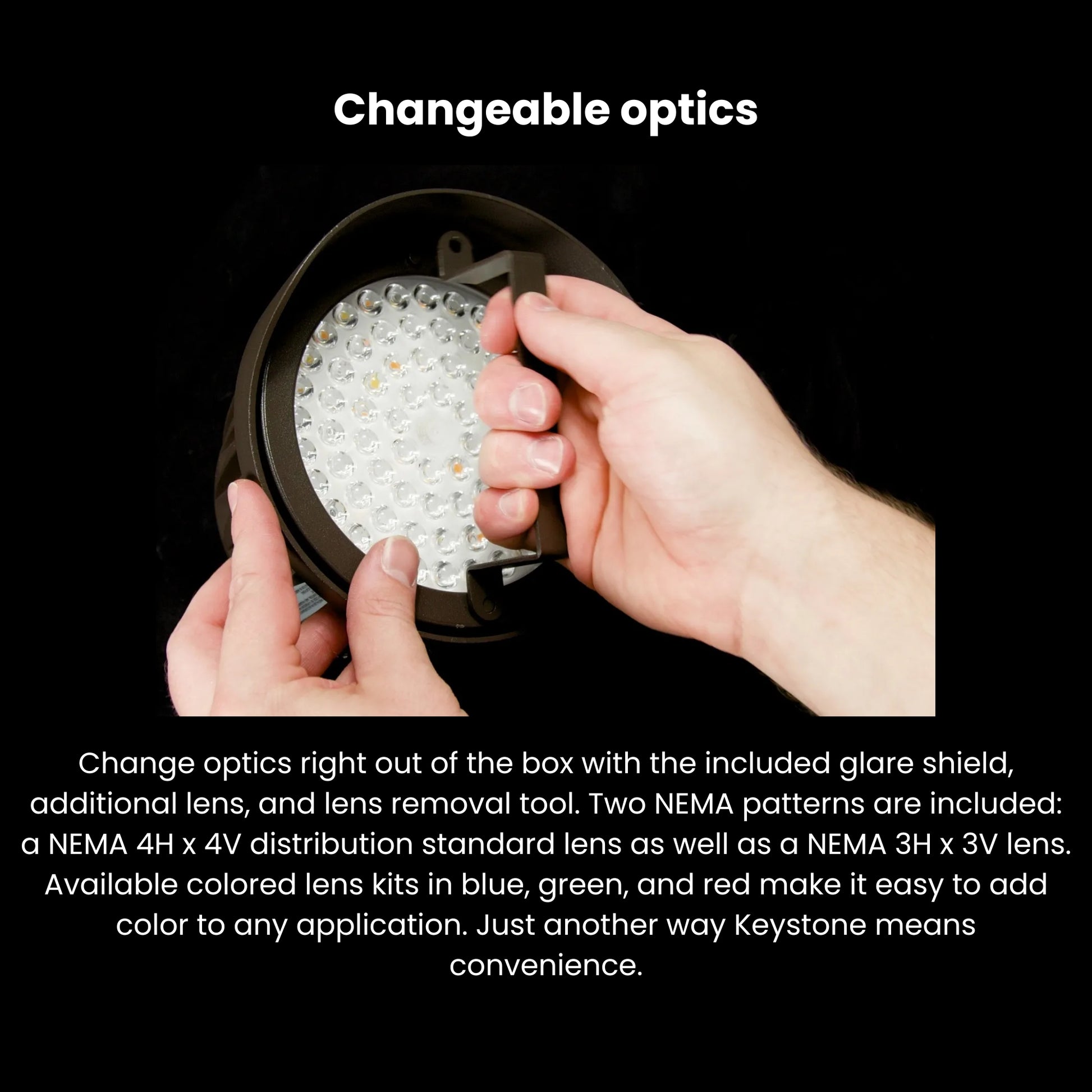

This model provides excellent installation flexibility, designed with a standard knuckle mount that fits any 1/2" base, making it easy to secure to standard junction boxes or ground stakes. The interchangeable optics can be swapped out quickly in the field using the twist-off cap before installation.

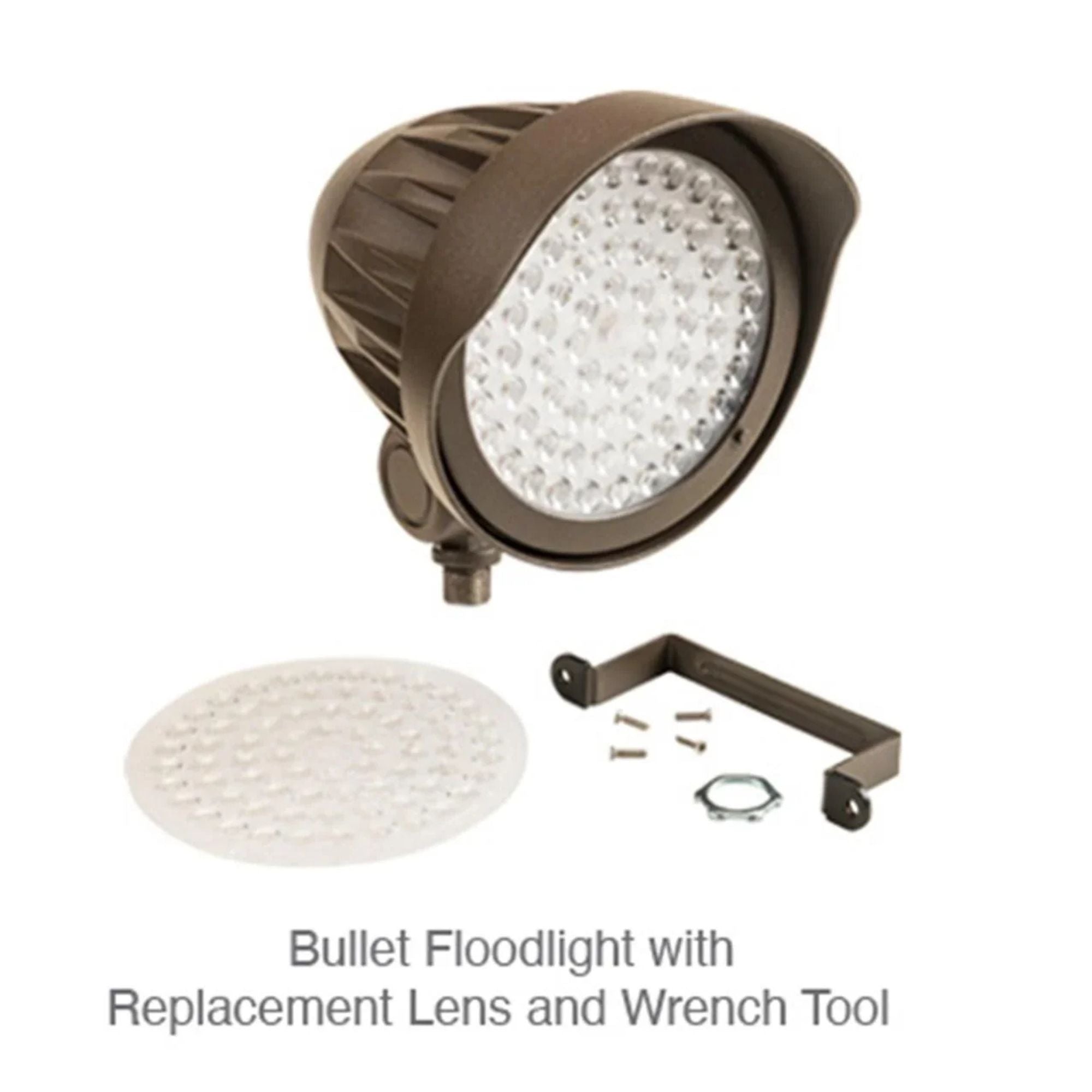

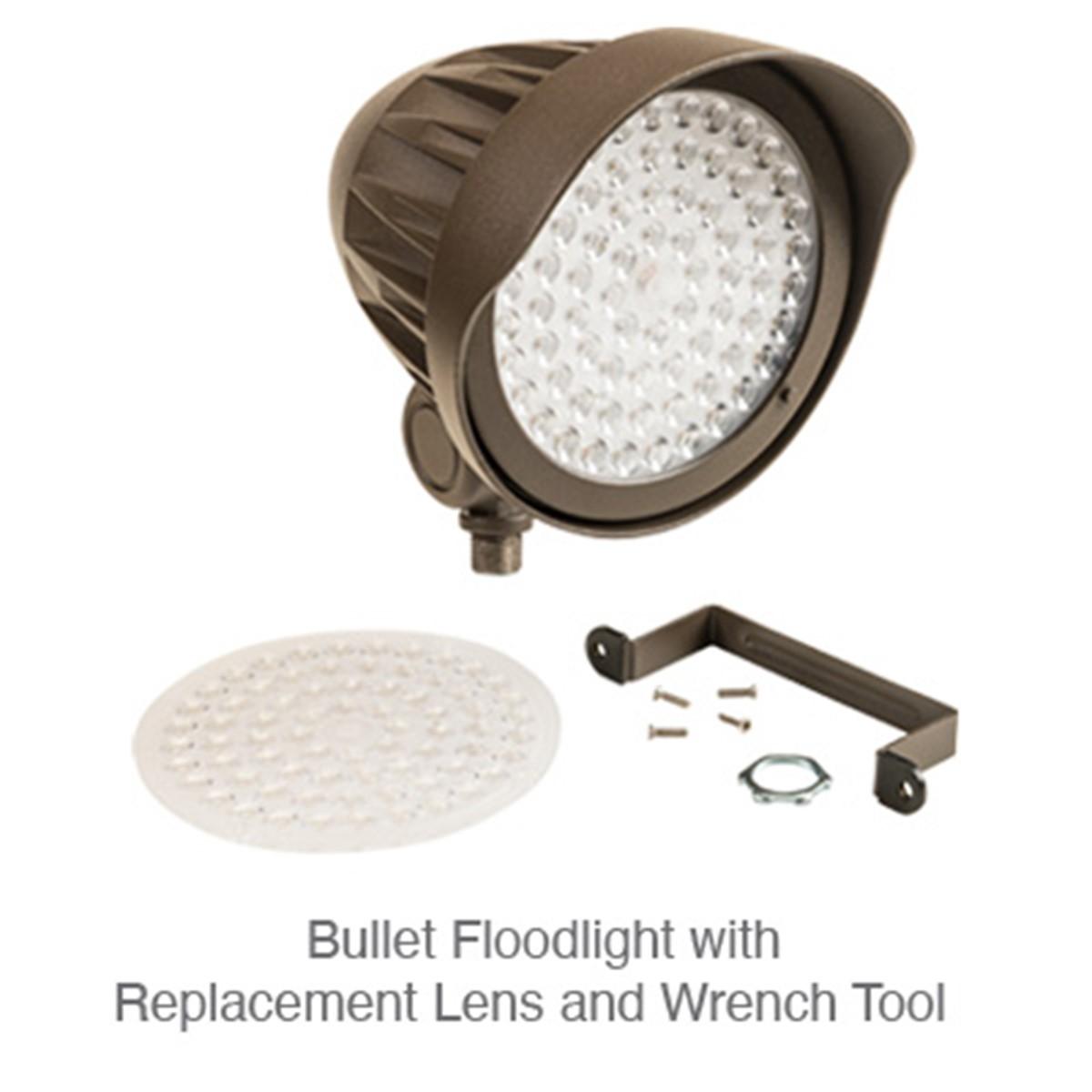

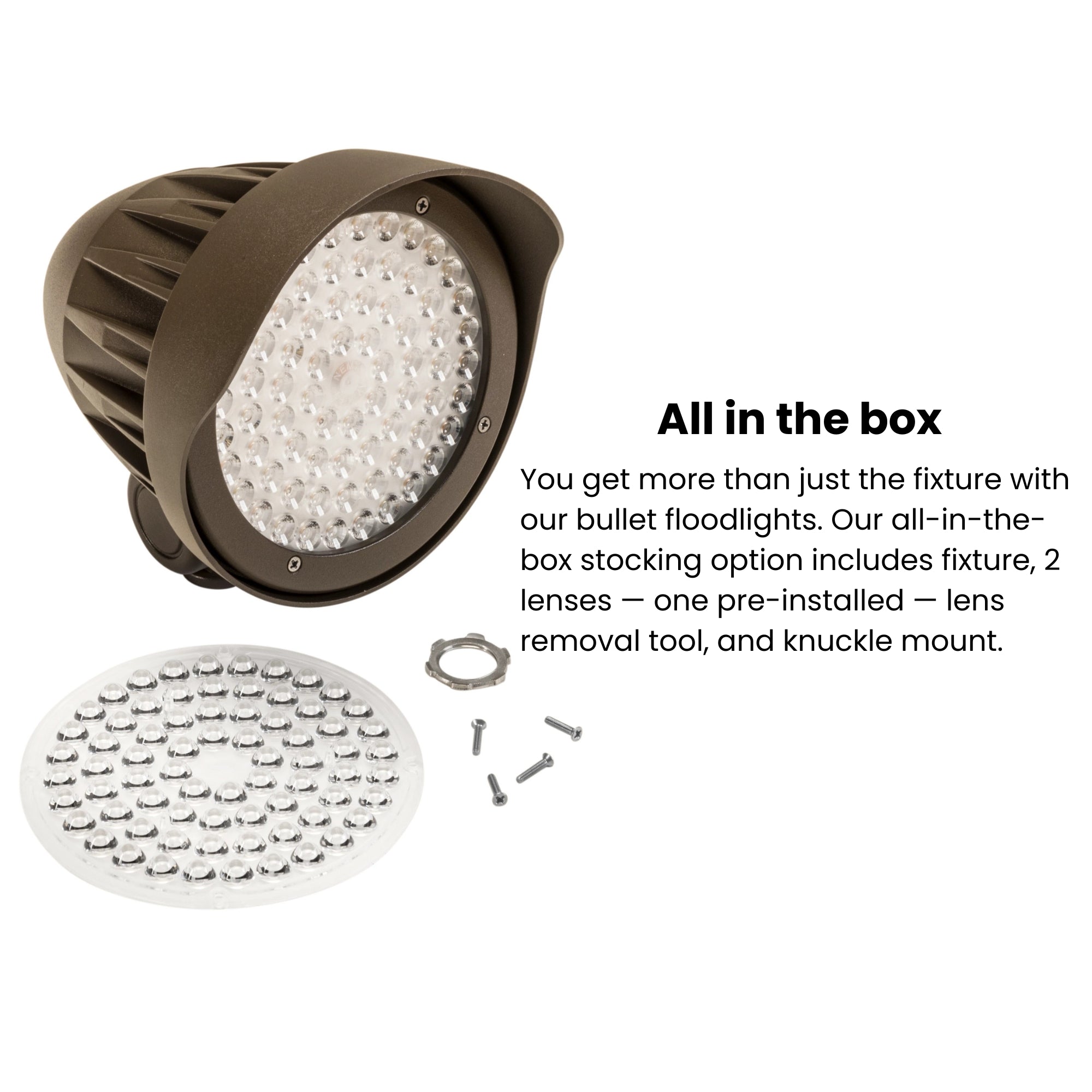

What's Included

• Keystone KT-FLED25PS-C1E-UNV-8CSB-VDIM /G2 LED Bullet Floodlight (Bronze)
• Integrated Knuckle Mount
• NEMA 4H x 4V Lens (Pre-installed)
• NEMA 3H x 3V Lens (Included in box)
• Built-in Photocell
