Keystone KT-EX-TP2-WH3RL-SD Red LED Exit Sign 90-Min Backup 120-277V Surface Mount White

Vendor: Keystone Technologies

SKU: KT-EX-TP2-WH3RL-SD

Wet RatedSave 16%
$104.99
$104.99 $125.92
Shipping calculated at checkout.

Available in stock (200)

Must be ordered in quantities of .

About this item
  • Battery Backup: Provides 90 minutes of emergency power for reliable exit visibility.
  • Illumination: Features red LED lettering for clear visibility in emergency situations.
  • Input Voltage: Operates on a versatile 120-277V input, suitable for various installations.
  • Mounting: Offers flexible surface mounting options including top, side, and back.
  • Safety Certifications: UL Certified for wet locations, ensuring durability and compliance.
View More Details
Payment & Security
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • USDC
  • Visa

We process payments securely and do not store credit card information.

Description

Keystone KT-EX-TP2-WH3RL-SD Exit Sign — 90-Minute Battery Backup, 120-277V Input

The Keystone KT-EX-TP2-WH3RL-SD is a robust LED exit sign designed for wet locations. It features red lettering and provides 90 minutes of emergency power. With a 120-277V input, this exit sign is versatile for various applications and complies with UL 924 standards.

Key Features

  • Red LED Lettering: Ensures high visibility in emergency situations.

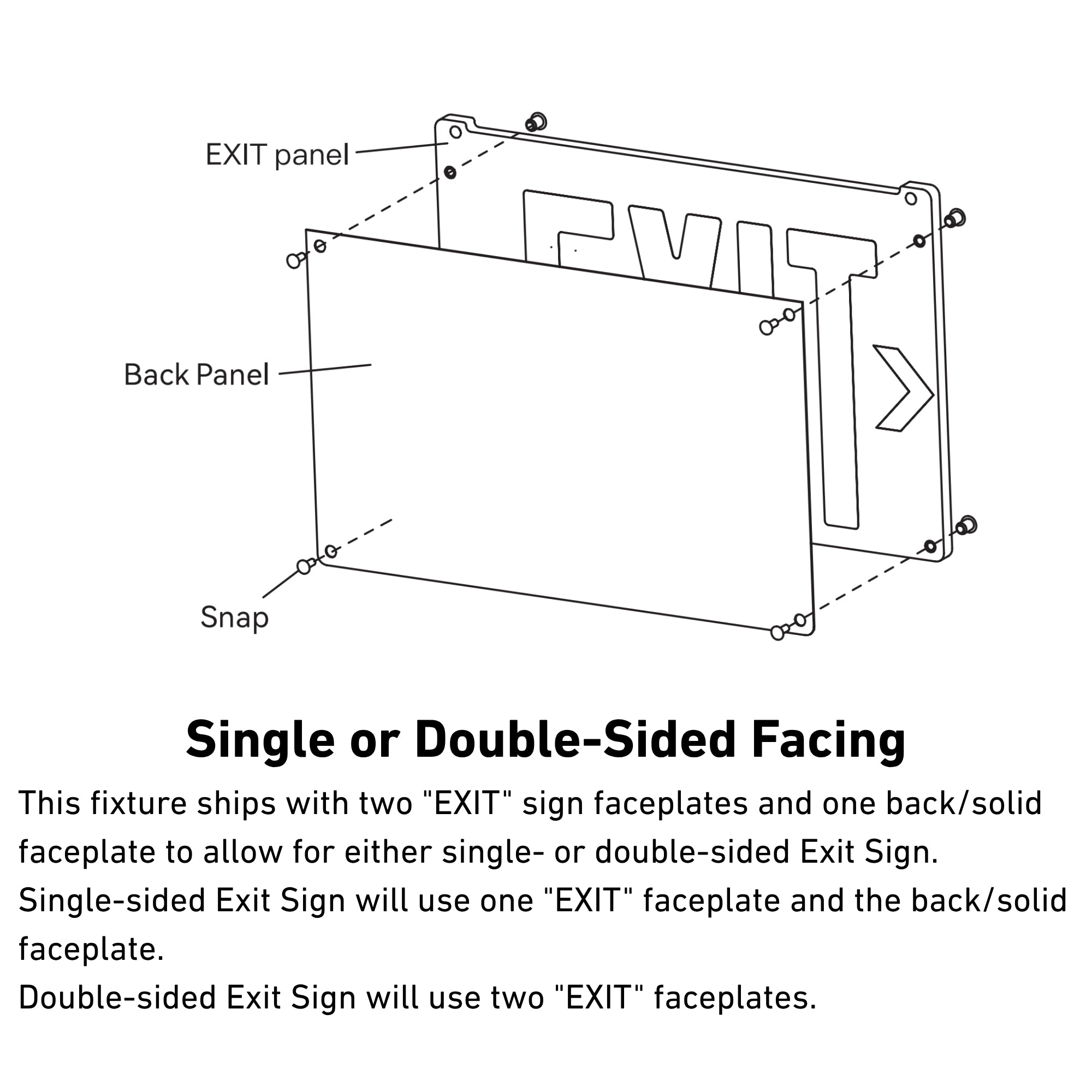

  • Dual Face Capability: Includes single and double faceplates for flexible installation.

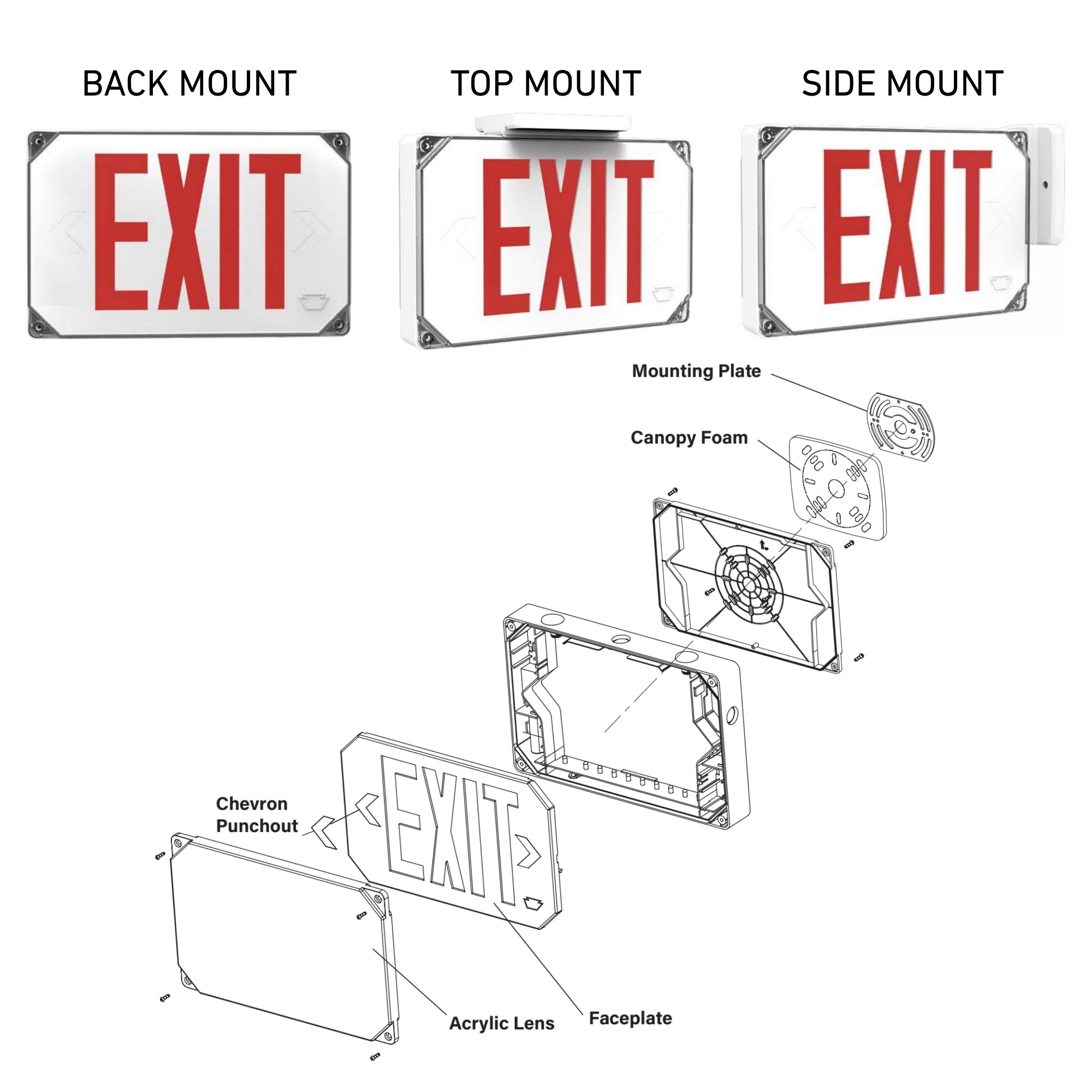

  • Surface Mounting: Supports top, side, and back mounting configurations.
  • Integrated Test Switch: Features a built-in test switch and charge indicator for easy maintenance.
  • Thermoplastic Housing: Constructed from durable thermoplastic with a UL 94 5VA flame rating.
  • Nickel-Metal Hydride Battery: Equipped with a 500mAh NiMH battery for reliable backup power.
  • Recharge Time: Fully recharges in 24 hours, ensuring readiness for emergencies.
  • Wet Location Rated: Suitable for installation in wet environments.

Performance & Illumination

This exit sign features red LED lettering with a diffuser for enhanced visibility. It is designed to provide clear and consistent illumination during emergencies.

Electrical & Battery

Operating on 120-277V, the unit includes a 500mAh NiMH battery, which recharges in 24 hours. It features an integrated test switch for routine checks.

Physical & Installation Details

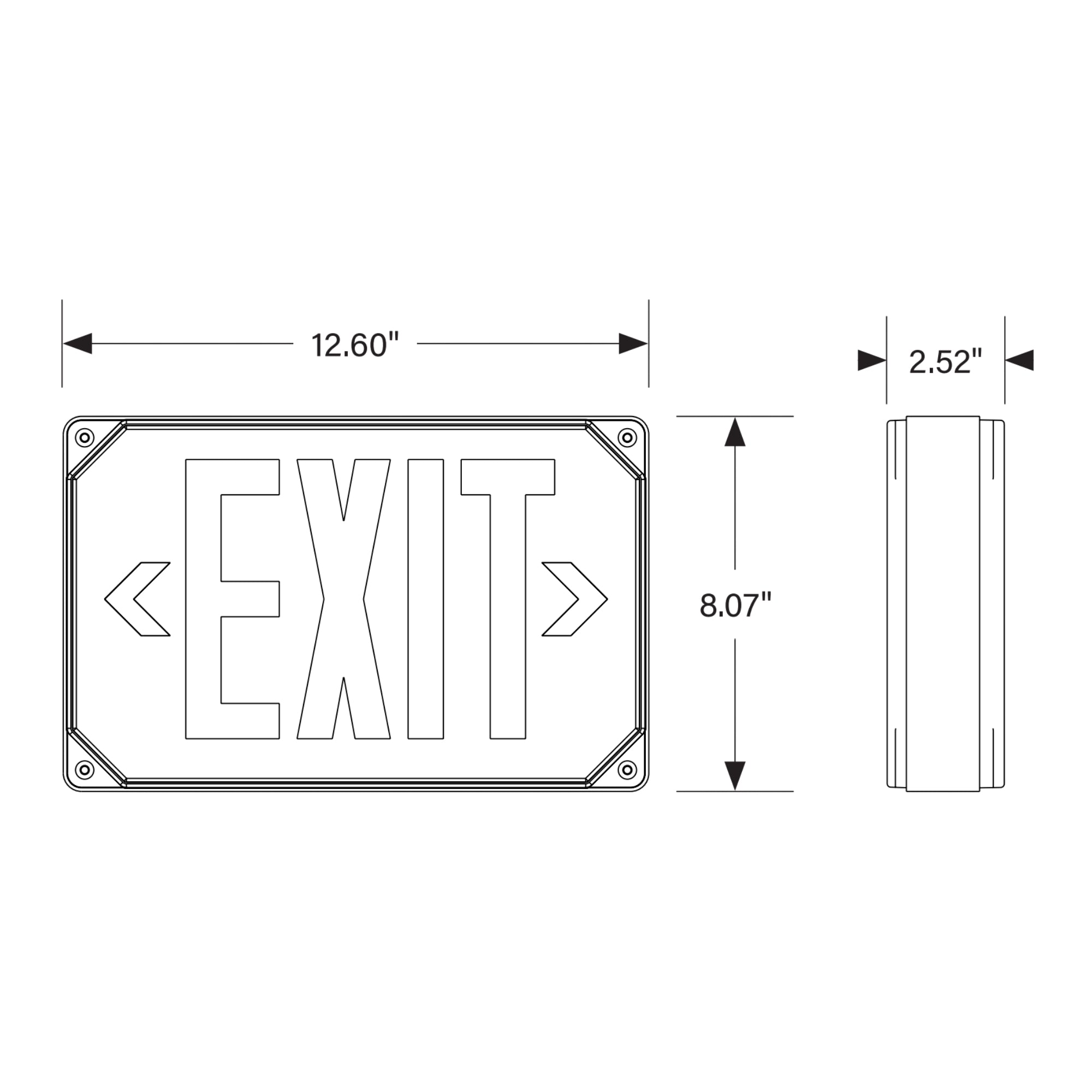

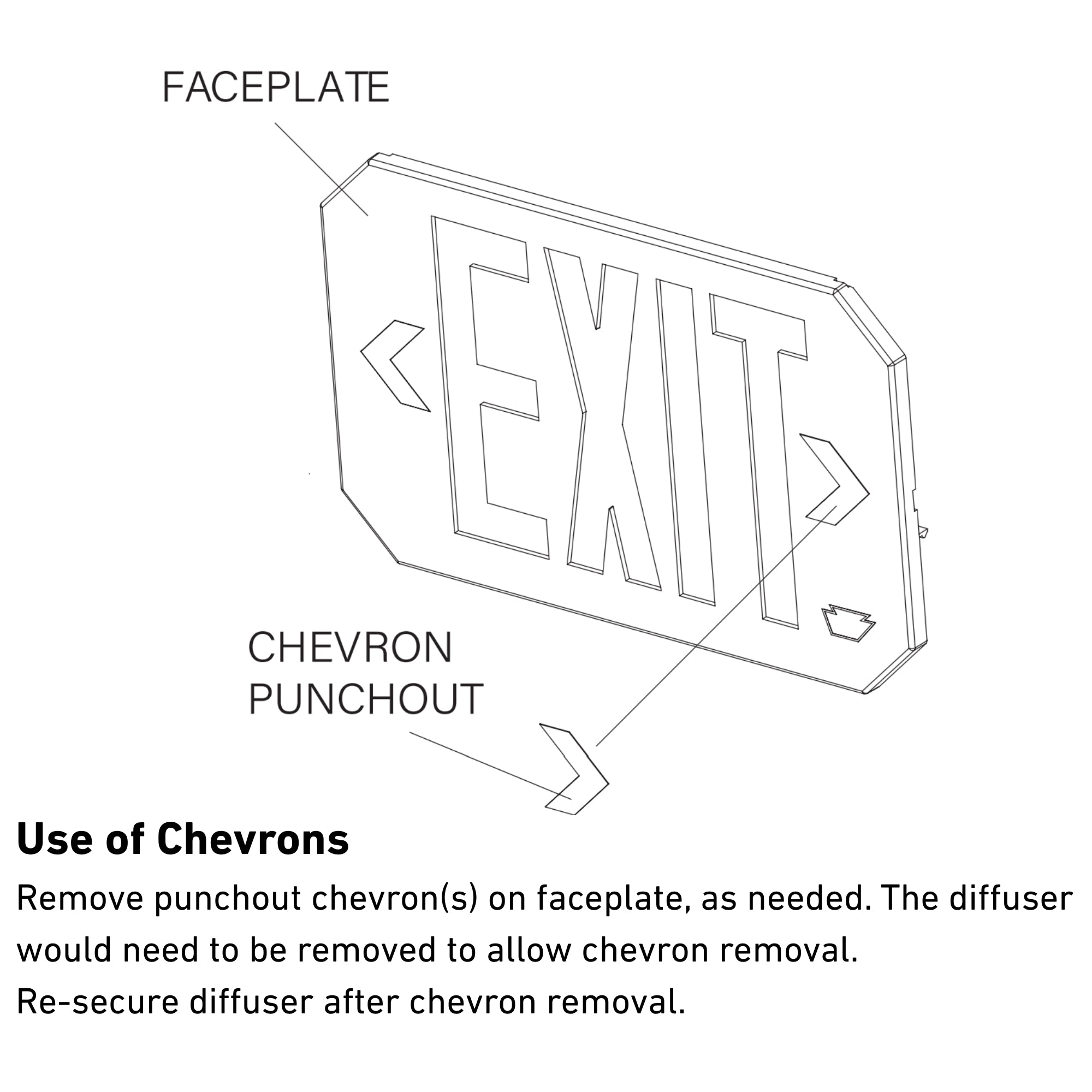

The fixture is made from thermoplastic and includes field-adjustable chevrons. It measures 12.60 in length, 8.07 in height, and 2.52 in width, and supports universal J-box mounting.

Compliance & Safety

UL 924 certified for wet locations, this exit sign operates in temperatures from 0°C to 40°C and features a UL 94 5VA flame rating.

What's Included

  • Single and double faceplates
  • Back/solid faceplate
  • Mounting hardware

Specifications

Dimensions

Length/Depth
12.6 in
Width/Diameter
2.52 in
Height
8.07 in
Weight
4.6 lb

Documents

Style & Materials

Material
Thermoplastic
Mounting Type
Surface mount

Electrical Information

Voltage
120-277V
Total Wattage
3W

Item Details

MPN
KT-EX-TP2-WH3RL-SD
Brand
Keystone Technologies
Catalog Number
MRB-38
Family
Keystone Smart Safe Exit Sign
UPC
843654165028

Warranty & Certifications

Product Warranty
5 Years
Product Rating
IP65 Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

How long does the battery backup last for the KT-EX-TP2-WH3RL-SD?
The battery backup provides 90 minutes of emergency power. This ensures visibility during power outages.

Is the KT-EX-TP2-WH3RL-SD exit sign suitable for wet locations?
Yes, it is UL certified for wet locations. This makes it ideal for outdoor or damp environments.

What mounting options are available for this exit sign?
The KT-EX-TP2-WH3RL-SD supports top, side, and back surface mounting. This offers flexibility in installation.

Does the KT-EX-TP2-WH3RL-SD exit sign have a test switch?
Yes, it features an integrated test switch. This allows for easy maintenance and routine checks.

What is the input voltage range for the KT-EX-TP2-WH3RL-SD?
The exit sign operates on a 120-277V input. This makes it compatible with a wide range of electrical systems.
