Keystone LED Exit Sign, Red Letters, White, NYC Compliant, Single/Double Face, 90-Min Battery Backup, 120-277V (KT-EX-STNY1-WH3RL-SU)
Keystone LED Exit Sign, Red Letters, White, NYC Compliant, Single/Double Face, 90-Min Battery Backup, 120-277V (KT-EX-STNY1-WH3RL-SU)
Available in stock (100)
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- NYC Code Compliant: Meets New York City building code requirements for exit signs
- Red LED Lettering: Bright, energy-efficient LED illumination for exit sign visibility
- 90+ Min Battery Backup: UL924 listed, Nickel-Cadmium 600mAh battery meets NEC/IBC requirements
- Single/Double Facing: Configurable with removable chevrons and faceplates, back/side/top mounting
- 20-Gauge Steel Housing: Durable 14.49" x 10.47" x 2.36" white steel construction, Title 20 compliant, Keystone quality with 5-year warranty
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description

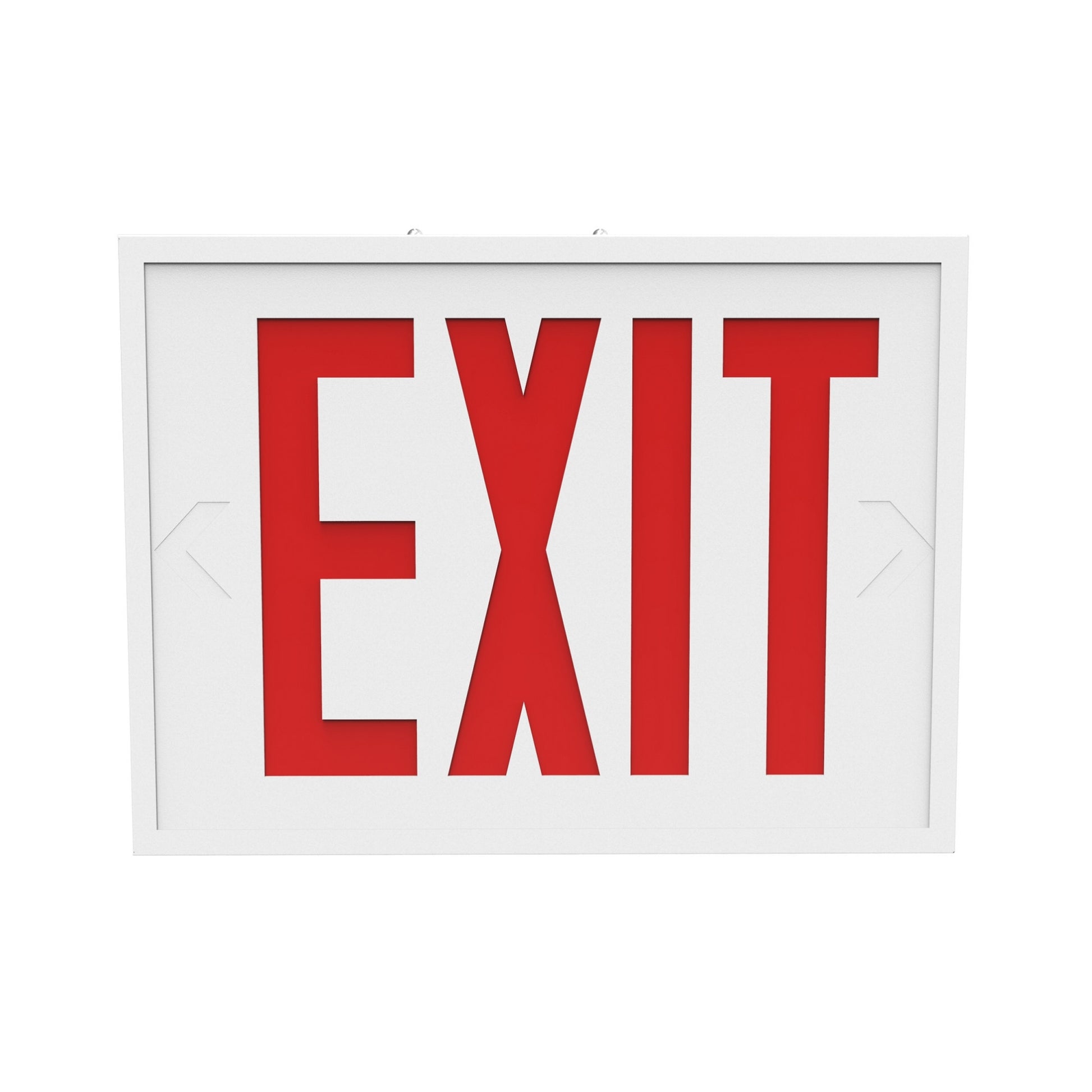

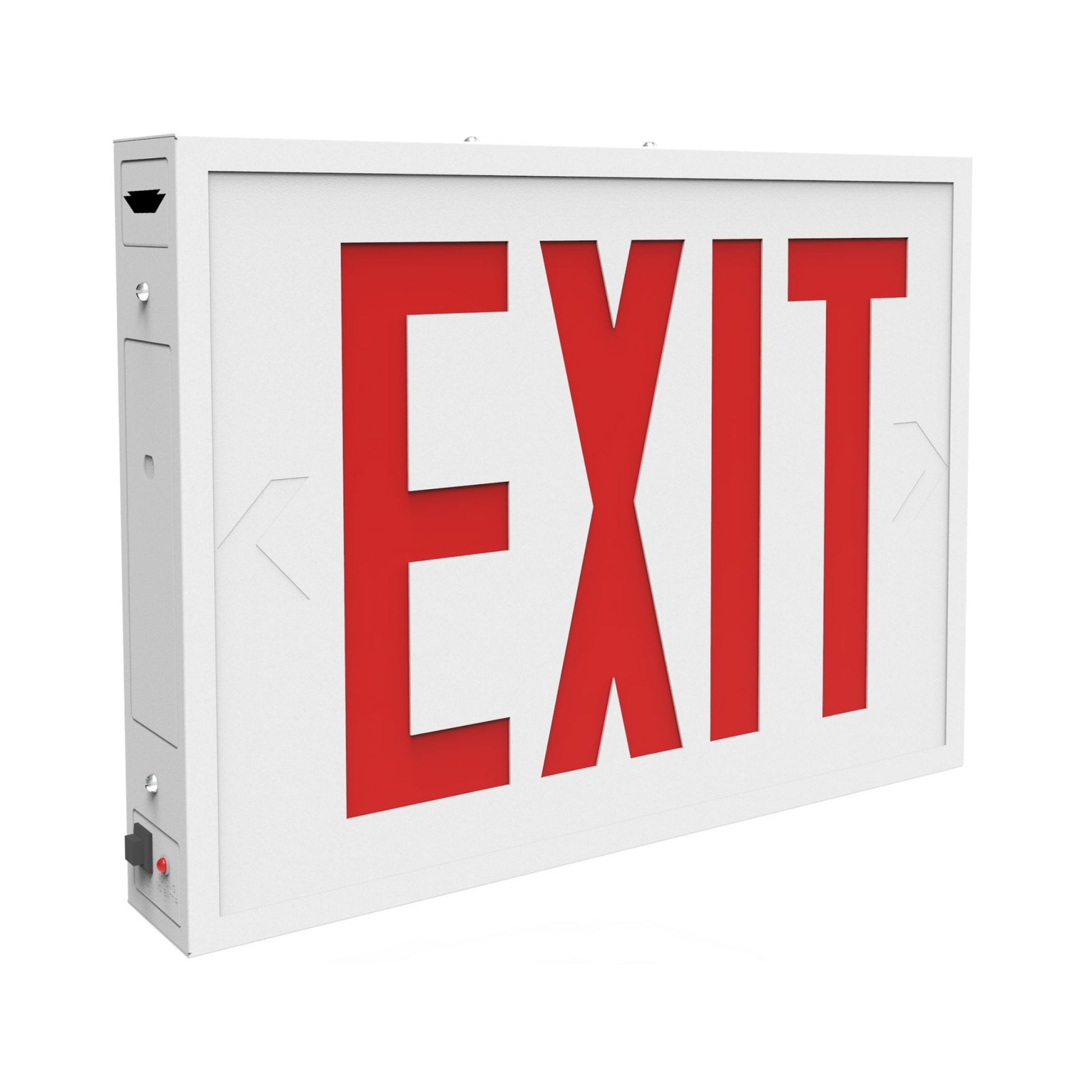

Keystone KT-EX-STNY1-WH3RL-SU LED Exit Sign - NYC Code Compliant
The Keystone KT-EX-STNY1-WH3RL-SU is a Keystone Technologies LED exit sign designed for code-compliant emergency egress marking meeting New York City building codes. This code-compliant exit sign features red LED lettering with single or double facing configurations, 90+ minute battery backup, and universal 120-277V voltage. The 20-gauge steel housing with white finish and faceplates provides durability while the energy-efficient LED technology ensures reliable exit sign illumination for commercial buildings, multi-family residential, and institutional facilities requiring UL924-listed exit signage with NYC code compliance.
Keystone KT-EX-STNY1-WH3RL-SU Features
- NYC Code Compliant: Meets New York City building code requirements for exit signs
- Red LED Lettering: Bright, energy-efficient LED illumination for exit sign visibility
- Single or Double Facing: Configurable for wall mount (single face) or ceiling mount (double face) with removable chevrons and faceplates
- 90+ Minute Battery Backup: Meets NEC and IBC emergency duration requirements with Nickel-Cadmium 600mAh battery
- 20-Gauge Steel Housing: Durable white steel housing (14.49" W x 10.47" H x 2.36" D) with faceplates for long-lasting performance
- Universal Voltage: 120-277V AC operation for flexible installation in commercial applications

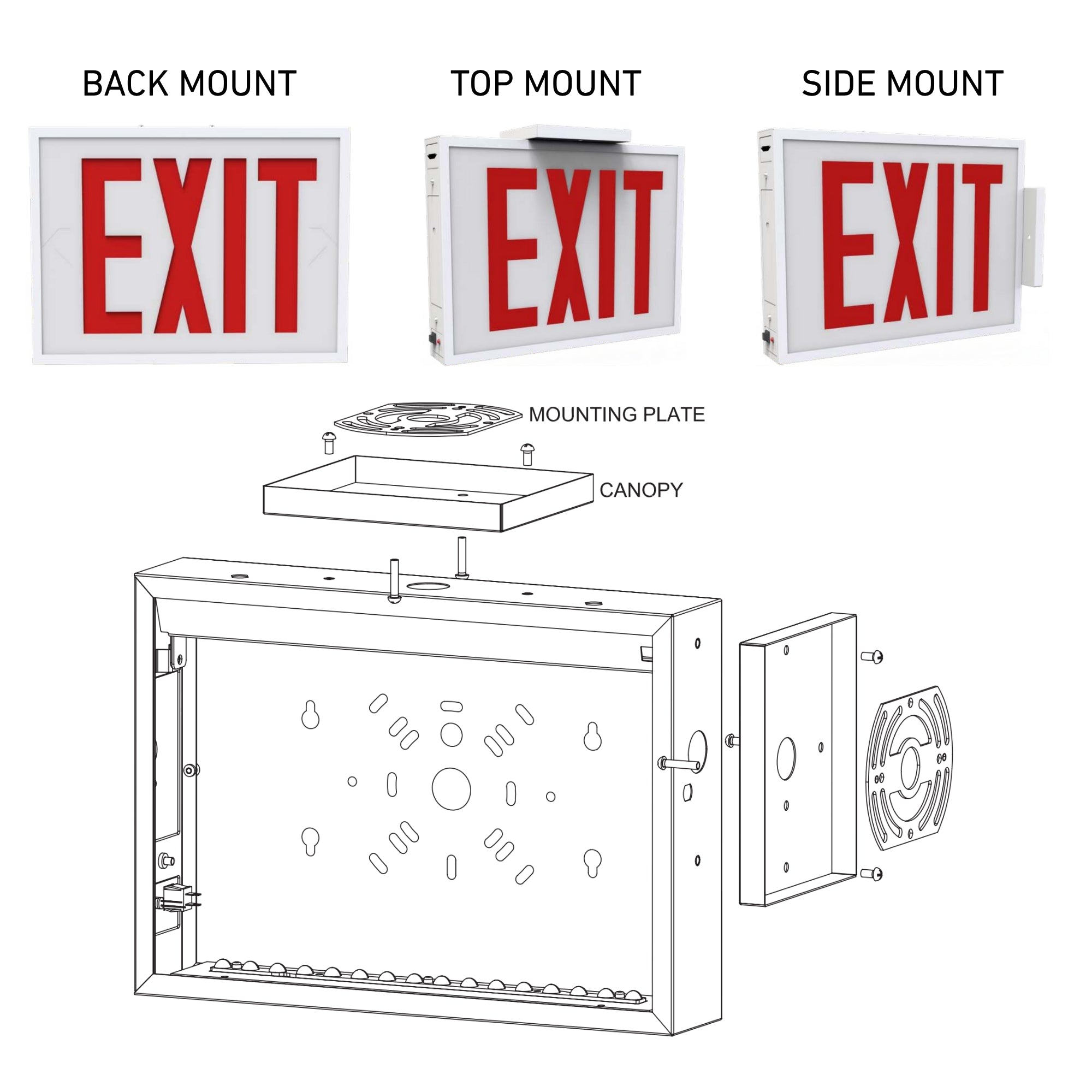

- Adjustable Mounting: Surface mount with back, side, or top mounting options
- Integrated Test Switch: Built-in test switch and charge indicator for easy code compliance verification
- UL924 Listed: Certified for emergency exit sign applications and code compliance
Keystone KT-EX-STNY1-WH3RL-SU Specifications
- Brand: Keystone Technologies
- Model Number: KT-EX-STNY1-WH3RL-SU
- UPC: 843654165035
- Product Type: LED Exit Sign - NYC Code Compliant
- Exit Sign: Red LED lettering, single or double facing
- Housing: 20-gauge steel with faceplates, white

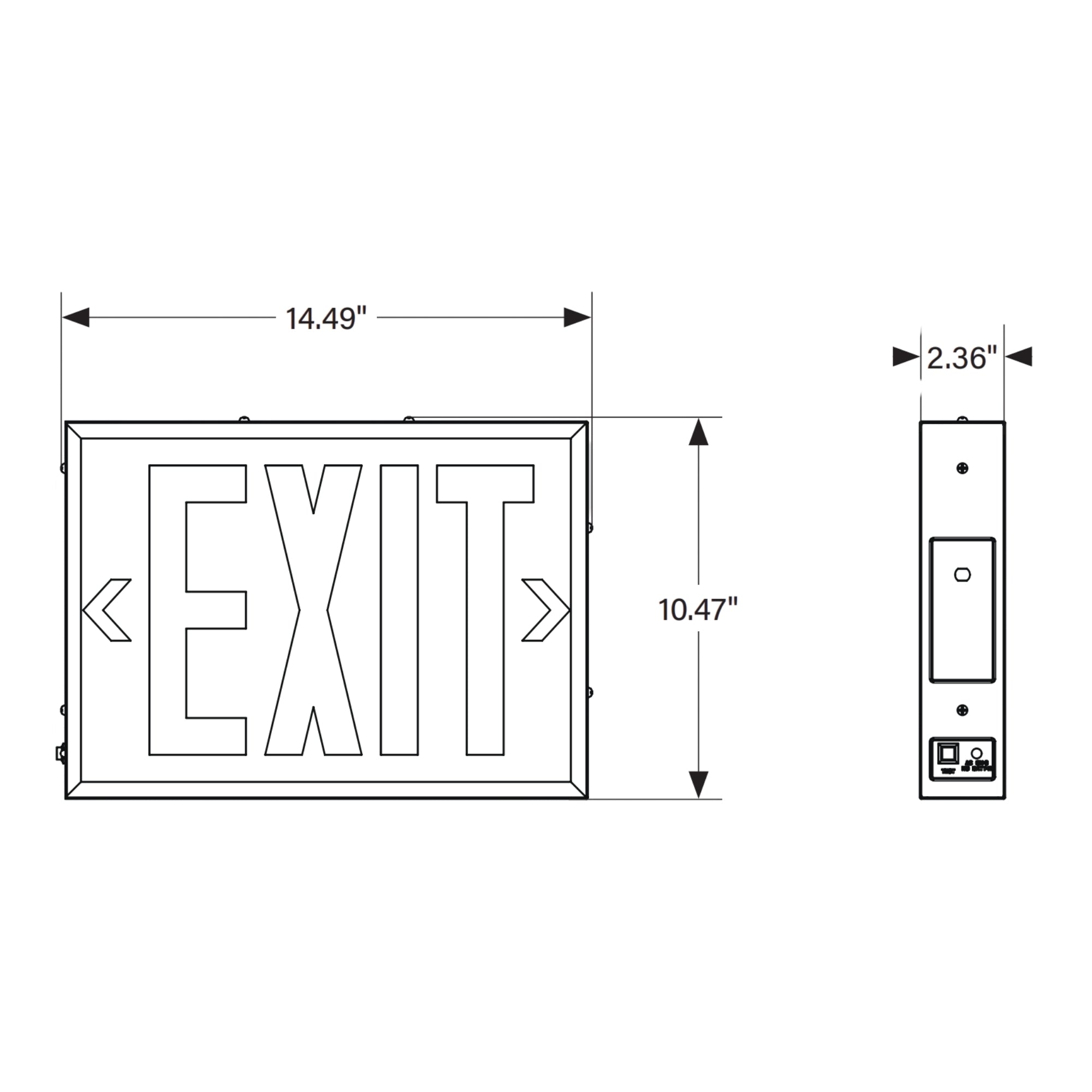

- Dimensions: 14.49" W x 10.47" H x 2.36" D
- Weight: 6.5 lbs
- Battery: Nickel-Cadmium 600mAh
- Battery Backup Time: 90+ minutes
- Recharge Time: 24 hours
- Input Voltage: 120-277V AC, 50/60Hz
- Input Power: 3.2W
- Mounting: Surface mount - back, side, or top
- Operating Temperature: 0°C/32°F to 40°C/104°F
- Certifications: cULus, UL924 Listed, NYC code compliant, Title 20 compliant, damp location rated, RoHS compliant
- Warranty: 5 Years
Keystone KT-EX-STNY1-WH3RL-SU Applications
- New York City commercial buildings and high-rises
- Educational and healthcare facilities in NYC
- Hospitality and retail stores requiring code compliance
- Multi-family residential buildings
- Industrial facilities, stairwells, and exit pathways
Installation & Operation
Surface mounts with back, side, or top mounting configurations. Connect to 120-277V AC power and configure for single or double facing based on mounting location using removable chevrons and faceplates. Unit automatically charges battery. During power loss, battery backup activates for 90+ minutes of emergency exit sign illumination. Integrated test switch and charge indicator for easy code compliance verification.
NYC Code Compliance & Field-Adjustable Features

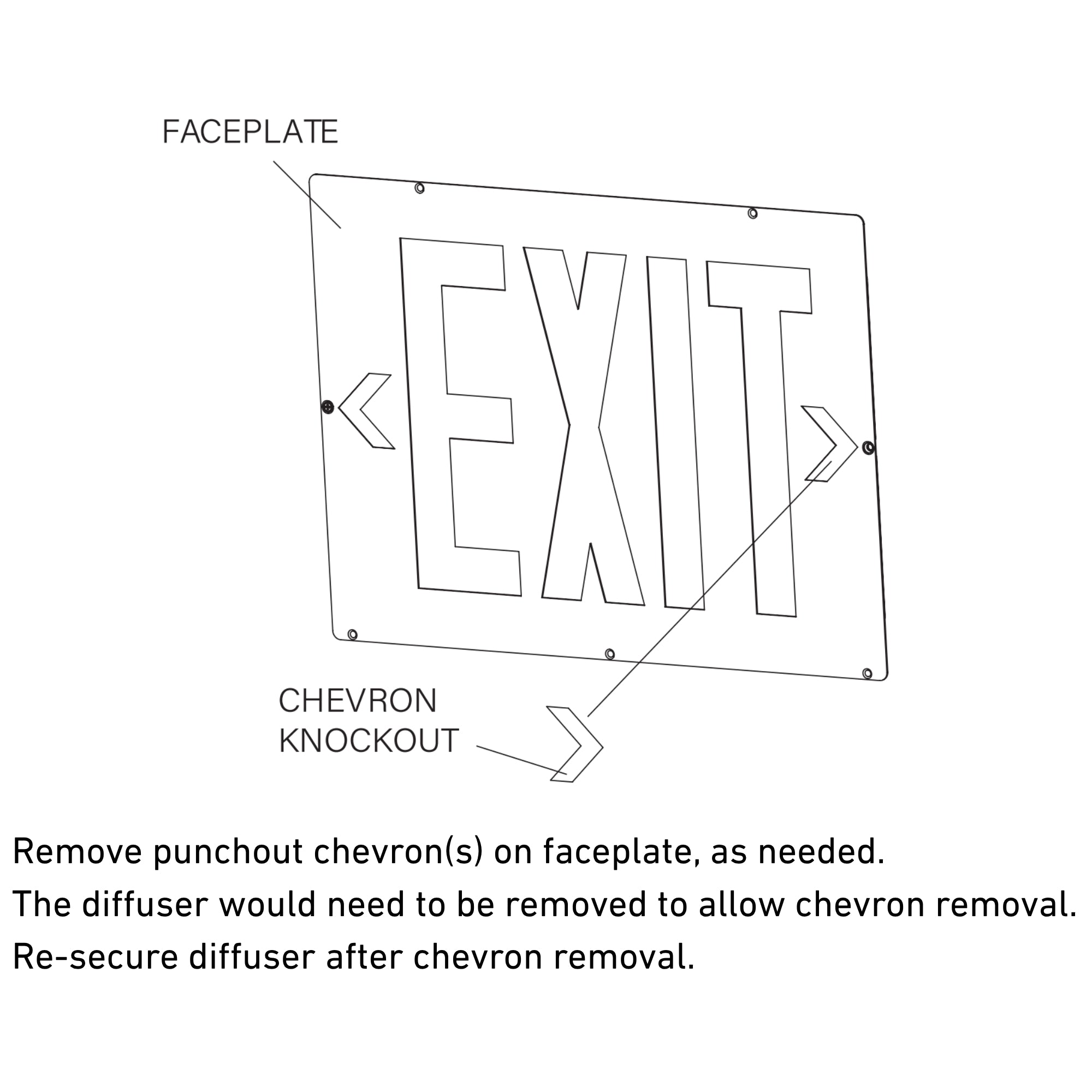

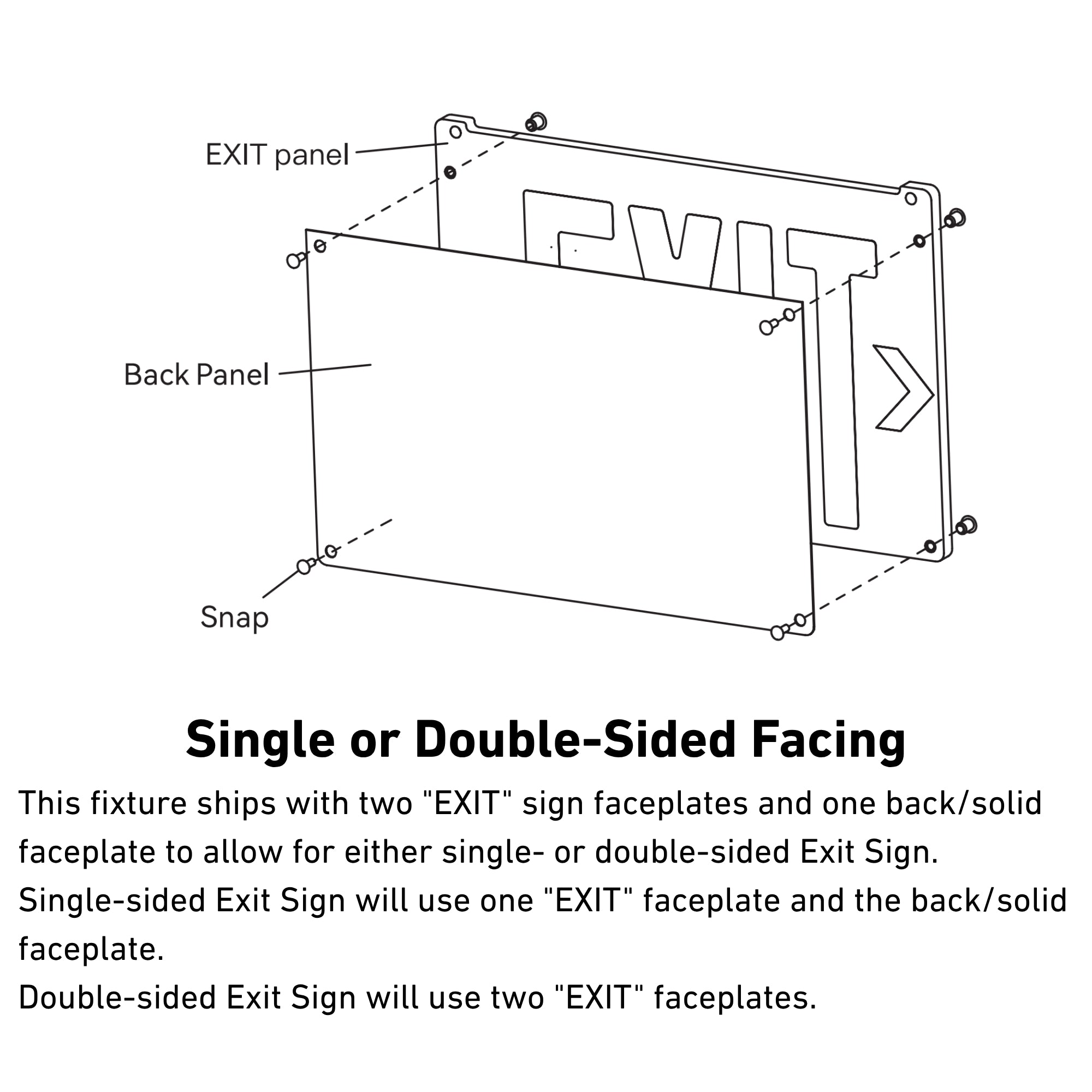

The KT-EX-STNY1-WH3RL-SU is specifically designed to meet New York City building code requirements for exit signs. The fixture ships with removable chevrons, single (front only) or double (front and back) faceplates, and three mounting options (top, side, or back) for maximum installation flexibility. The 20-gauge steel housing with faceplates provides durability for commercial installations while maintaining code-compliant performance. Title 20 compliant construction ensures energy efficiency.
Why Choose Keystone Exit Signs
Keystone Technologies delivers code-compliant exit signage solutions engineered for reliability and ease of installation. The KT-EX-STNY1-WH3RL-SU combines energy-efficient LED design with 90+ minute battery backup, NYC code compliance, and flexible mounting options. With cULus and UL924 listing, universal 120-277V voltage, and adjustable mounting (back, side, or top), this exit sign delivers professional-grade performance for demanding code requirements. With Keystone's 5-year warranty and reputation for quality, the KT-EX-STNY1-WH3RL-SU delivers long-term reliability and value.
Why Buy From Us: As an authorized Keystone dealer, we guarantee 100% genuine products with full manufacturer warranty, expert technical support, and fast shipping.
Specifications
Specifications
Dimensions
Documents
Style & Materials
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
Should I buy red or green exit signs?
Should I buy red or green exit signs?
There is no single national rule; it depends on your local fire code. While red is the traditional color in most of the United States, many states and cities (like parts of the West Coast) mandate green because it is associated with "go" and safety. You must check with your local fire marshal before purchasing.
What is the difference between AC-only and battery backup exit signs?
What is the difference between AC-only and battery backup exit signs?
A battery backup exit sign (the most common type) has an internal battery that powers the sign for 90 minutes when the building loses electricity. An AC-only exit sign does not have a battery; it is designed for buildings that have a central emergency generator that kicks in during an outage.
What is an "Edge-Lit" exit sign?
What is an "Edge-Lit" exit sign?
An edge-lit exit sign is a premium, architectural fixture where the lettering is etched onto a clear acrylic panel and illuminated from the top or side. They look much sleeker than standard plastic box signs and are popular in hotels, offices, and lobbies.
How high should an exit sign be mounted?
How high should an exit sign be mounted?
According to NFPA 101, exit signs should be mounted so that no point in the exit access corridor is more than 100 feet from the nearest sign. While there is no strict minimum height for the sign itself (other than being visible), it is typically mounted above doors (approx. 80 inches high). Low-level exit signs (mounted near the floor) are sometimes required in addition to high signs for smoke visibility.
How long do LED exit signs last?
How long do LED exit signs last?
LED exit signs are extremely durable. The LED strips inside can last for 10 years or more without needing replacement. However, the backup battery typically lasts 3 to 5 years and will need to be replaced to ensure the sign passes its annual 90-minute test.
