Keystone KT-EX-STCH1 Exit Sign Red Letters 90-Min Backup 120-277V Surface Mount White
Available in stock (200)
About this item
About this item
- Battery Backup: Provides 90 minutes of emergency power to ensure visibility during outages.
- Illumination: Features red LED lettering for clear visibility in emergency situations.
- Input Voltage: Operates on a wide range of 120-277V for versatile installation.
- Mounting: Offers surface mounting options including back, side, and top for flexible installation.
- Safety Certifications: UL certified for damp locations and Chicago Code compliant for reliable performance.
We process payments securely and do not store credit card information.
Description
Description

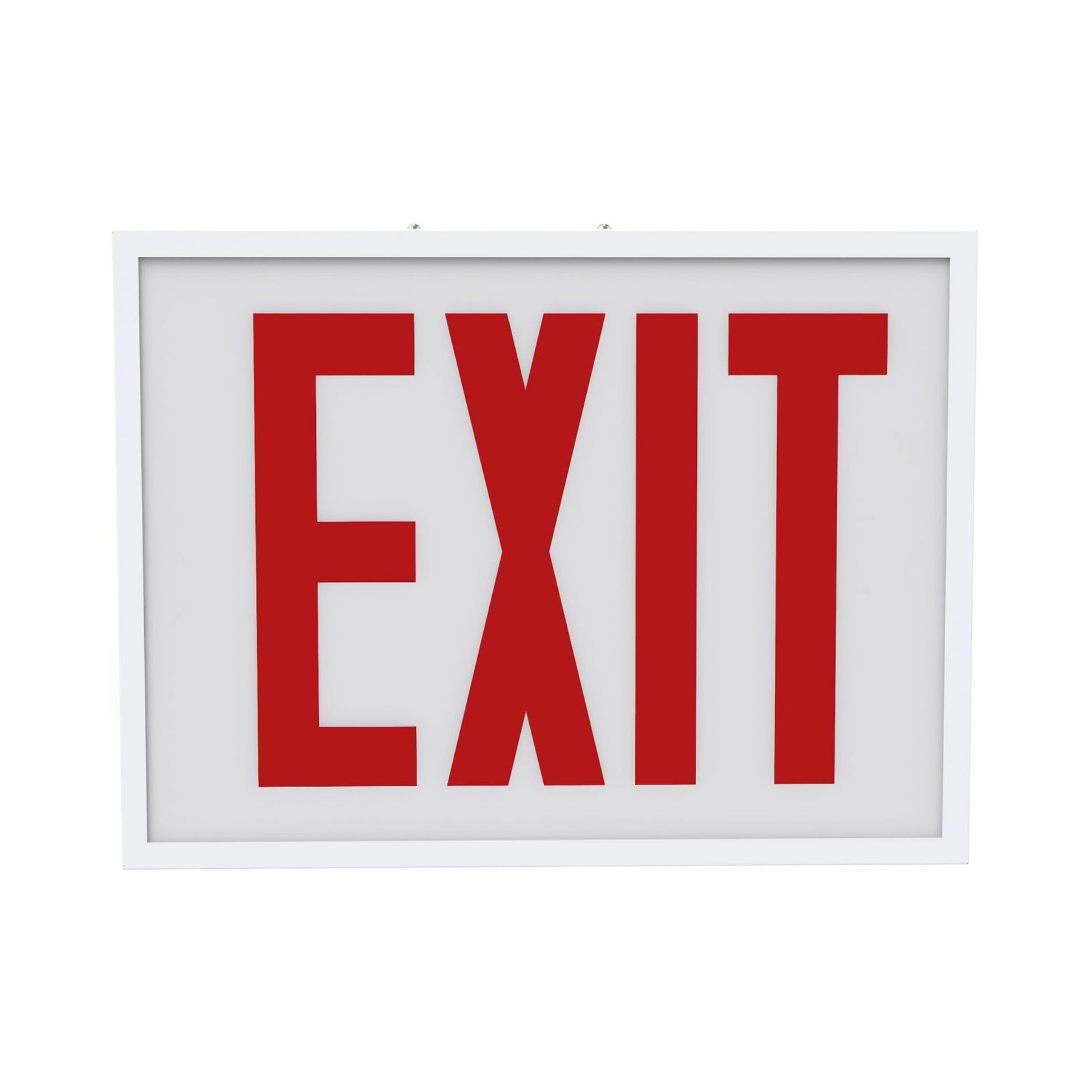

Keystone KT-EX-STCH1 Exit Sign — Emergency Capability with 120-277V Input
The Keystone KT-EX-STCH1-WH1RL-SU is a robust exit sign featuring red lettering and a 90-minute battery backup. Designed for Chicago compliance, this unit operates on 120-277V and is ideal for ensuring safety in commercial environments. Its steel housing and UL certification for damp locations make it a reliable choice for emergency egress lighting.
Key Features
- Red LED Illumination: Provides clear and bright exit indication with red LED lighting.
- Single Face Configuration: Designed for single-facing applications to suit specific installation needs.

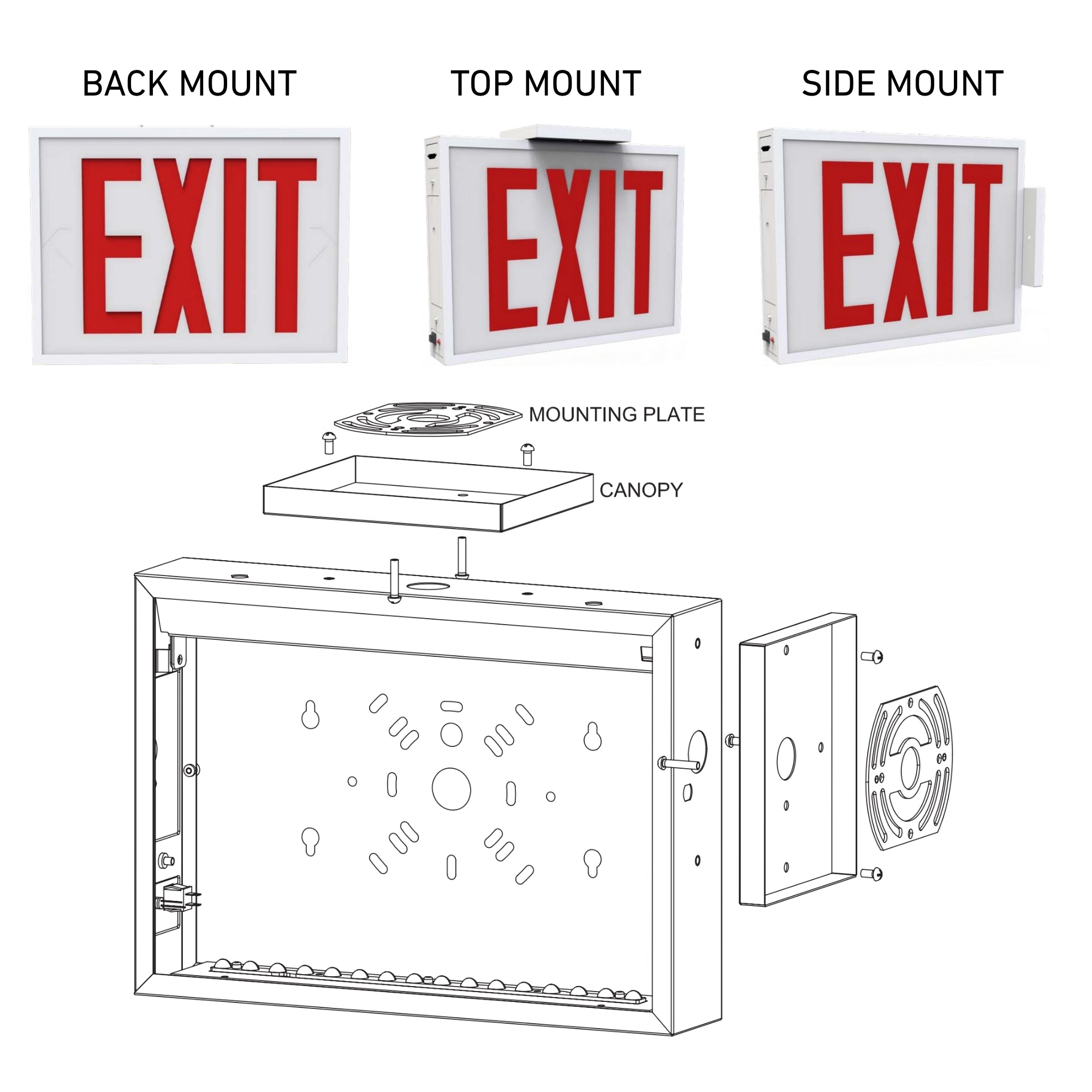

- Surface Mounting Options: Includes back, side, and top mounting capabilities for versatile installation.
- Integrated Battery Backup: Equipped with a nickel-cadmium 600mAh battery for 90 minutes of emergency operation.
- Built-in Test Switch: Features an integrated test switch and charge indicator for easy maintenance.
- Chicago Code Compliance: Meets stringent Chicago safety standards for exit signage.
- Durable Steel Housing: Constructed from 20-gauge steel for enhanced durability and longevity.
- Operating Temperature: Functions effectively in temperatures ranging from 0°C/32°F to 40°C/104°F.
- UL Certified: Certified for use in damp locations, ensuring reliable performance in various environments.
- Universal J-Box Mounting: Compatible with standard junction boxes for straightforward installation.
Performance & Illumination
This exit sign features red LED lettering for high visibility, ensuring clear egress paths during emergencies. The single face design is optimized for specific directional needs.
Electrical & Battery
Operating on 120-277V, the unit includes a nickel-cadmium battery with a 600mAh capacity, providing 90 minutes of backup power. It features a 24-hour recharge time and a built-in test switch for routine checks.
Physical & Installation Details

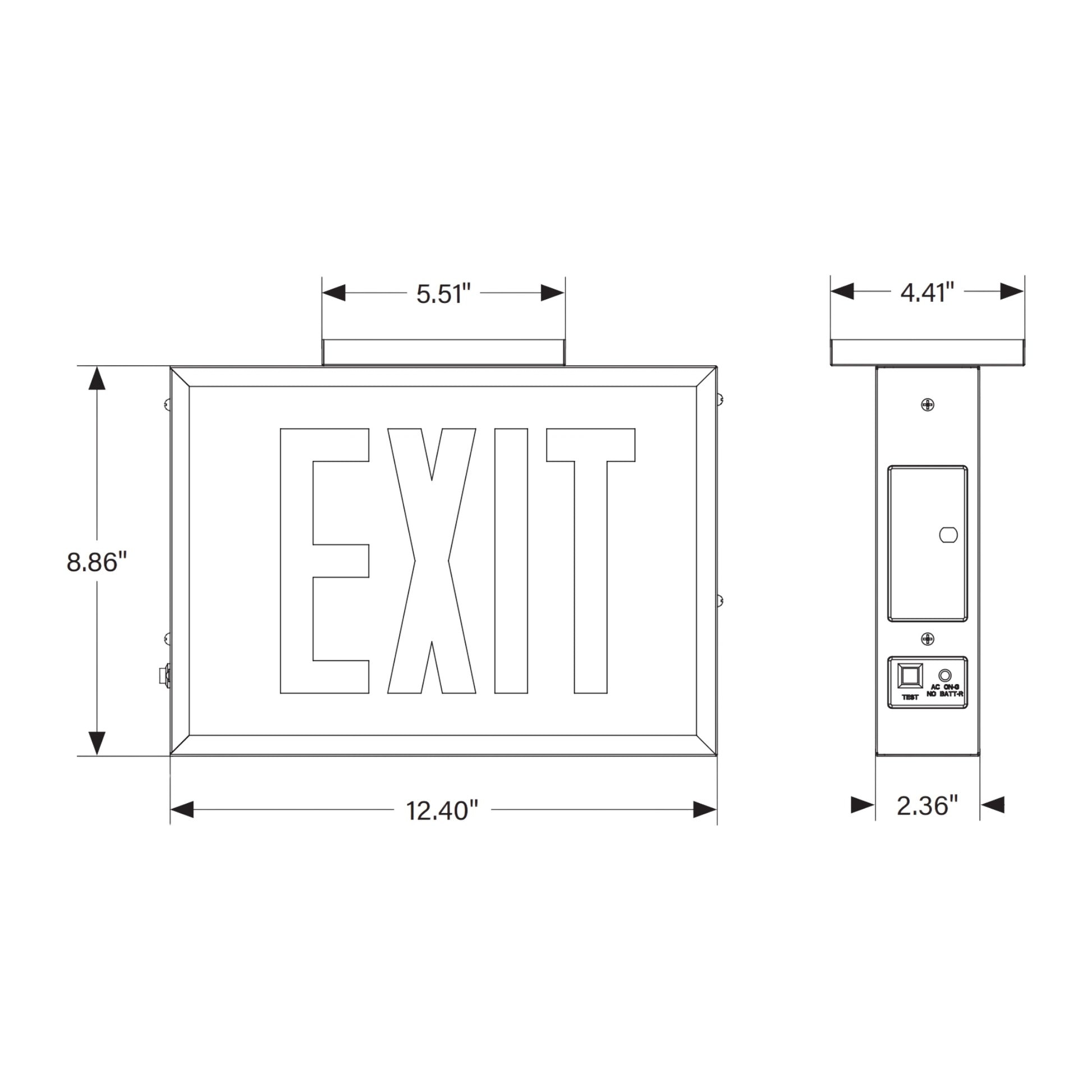

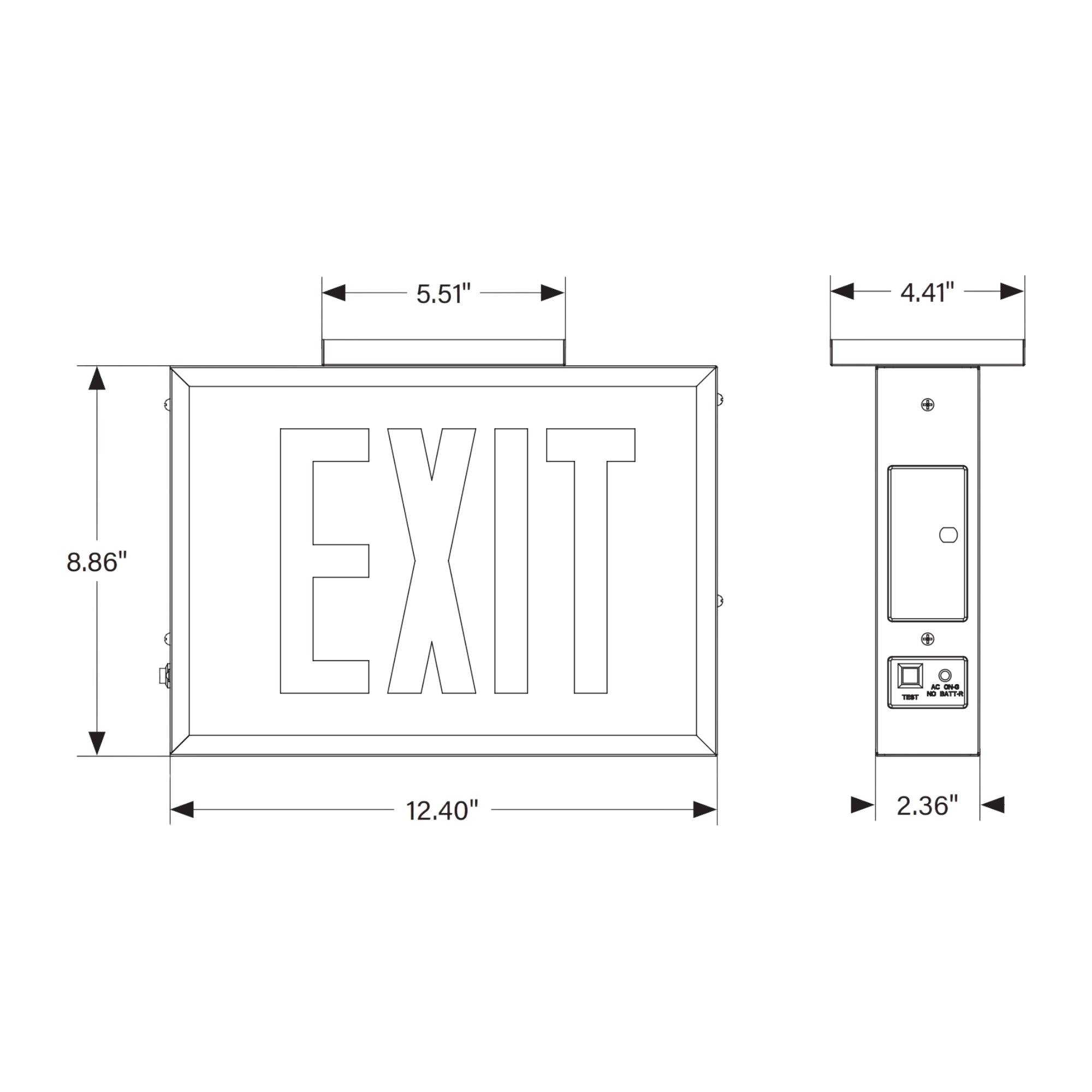

Constructed with a 20-gauge steel housing, the exit sign measures 12.40 inches in length, 2.36 inches in width, and 8.86 inches in height. It supports surface mounting on the back, side, or top.
Compliance & Safety
Certified for damp locations, this exit sign meets UL 924 standards and is Chicago Code compliant, ensuring it adheres to rigorous safety requirements.
What's Included
- Exit Sign Unit
- Integrated Battery
- Mounting Hardware
