Keystone NYC Compliant LED Exit Sign, Red Letters, Single/Double Face, Surface Mount, 90-Minute Battery Backup, 120-277V, White (KT-EX-ELNY2-WH3RL-SD)
Keystone NYC Compliant LED Exit Sign, Red Letters, Single/Double Face, Surface Mount, 90-Minute Battery Backup, 120-277V, White (KT-EX-ELNY2-WH3RL-SD)
Available in stock (100)
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- NYC Code Compliant: Meets New York City Building Code requirements with UL924 listing for emergency exit signage
- Field-Configurable Faceplates: Ships with single or double-sided options and removable chevron punchouts for directional customization
- 90-Minute Battery Backup: Integrated 500mAh NiMH battery with built-in test switch and charge indicator ensures code compliance
- Universal Surface Mounting: Top, side, or back mount capability with J-box pattern fits any installation requirement
- 120/277V Dual Voltage: Universal input voltage with 3W power draw and 5-year warranty for long-term reliability
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description

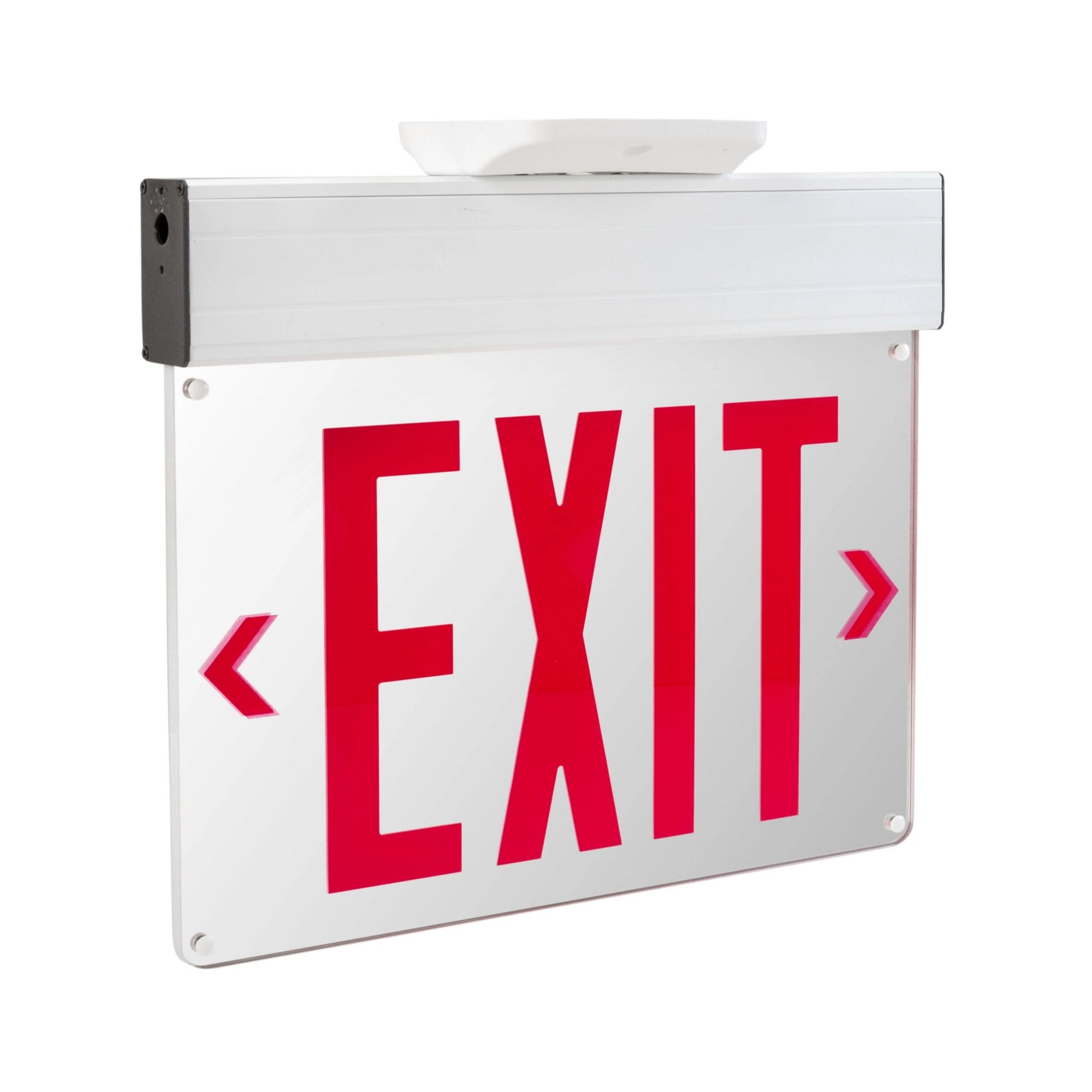

Keystone KT-EX-ELNY2-WH3RL-SD NYC Compliant LED Exit Sign
The Keystone KT-EX-ELNY2-WH3RL-SD is a Keystone Technologies NYC compliant LED exit sign designed for code-compliant emergency egress marking in New York City applications. Ensure life safety compliance with this UL924-listed exit sign featuring single or double-sided configuration, field-adjustable chevrons, and 90-minute battery backup with universal 120/277V voltage. The thermoplastic housing with red LED lettering provides durability and visibility while the surface mount design offers flexible installation for commercial buildings, multi-family residential, and institutional facilities requiring NYC-approved exit signage.
Keystone KT-EX-ELNY2-WH3RL-SD Exit Sign Features
- NYC Code Compliant: Meets New York City Building Code requirements for emergency exit signage
- Single or Double-Sided Configuration: Ships with two "EXIT" faceplates and one solid back panel for flexible installation
- Field-Adjustable Chevrons: Removable punchout chevrons allow directional customization without additional hardware
- 90-Minute Battery Backup: Meets NEC and IBC emergency duration requirements
- Universal Voltage: 120/277V AC operation for flexible installation in commercial applications
- Integrated Test Switch: Built-in test button and charge indicator ensure code compliance
- Red LED Lettering: High-visibility red letters provide clear exit identification
- Thermoplastic Housing: White high-impact housing for long-lasting performance
- Three Mounting Options: Surface mount to top, side, or back with universal J-box pattern
- Energy Efficient: 3W power consumption reduces operating costs
- Easy Installation: Includes all mounting hardware and installation instructions
- UL924 Listed: Certified for emergency exit sign applications and code compliance
Keystone KT-EX-ELNY2-WH3RL-SD Exit Sign Specifications
- Brand: Keystone Technologies
- Model Number: KT-EX-ELNY2-WH3RL-SD
- UPC: 843654165103
- Easy Code: BJF-07
- Product Type: LED Exit Sign
- Letter Color: Red LED
- Housing Material: High-impact thermoplastic
- Housing Color: White

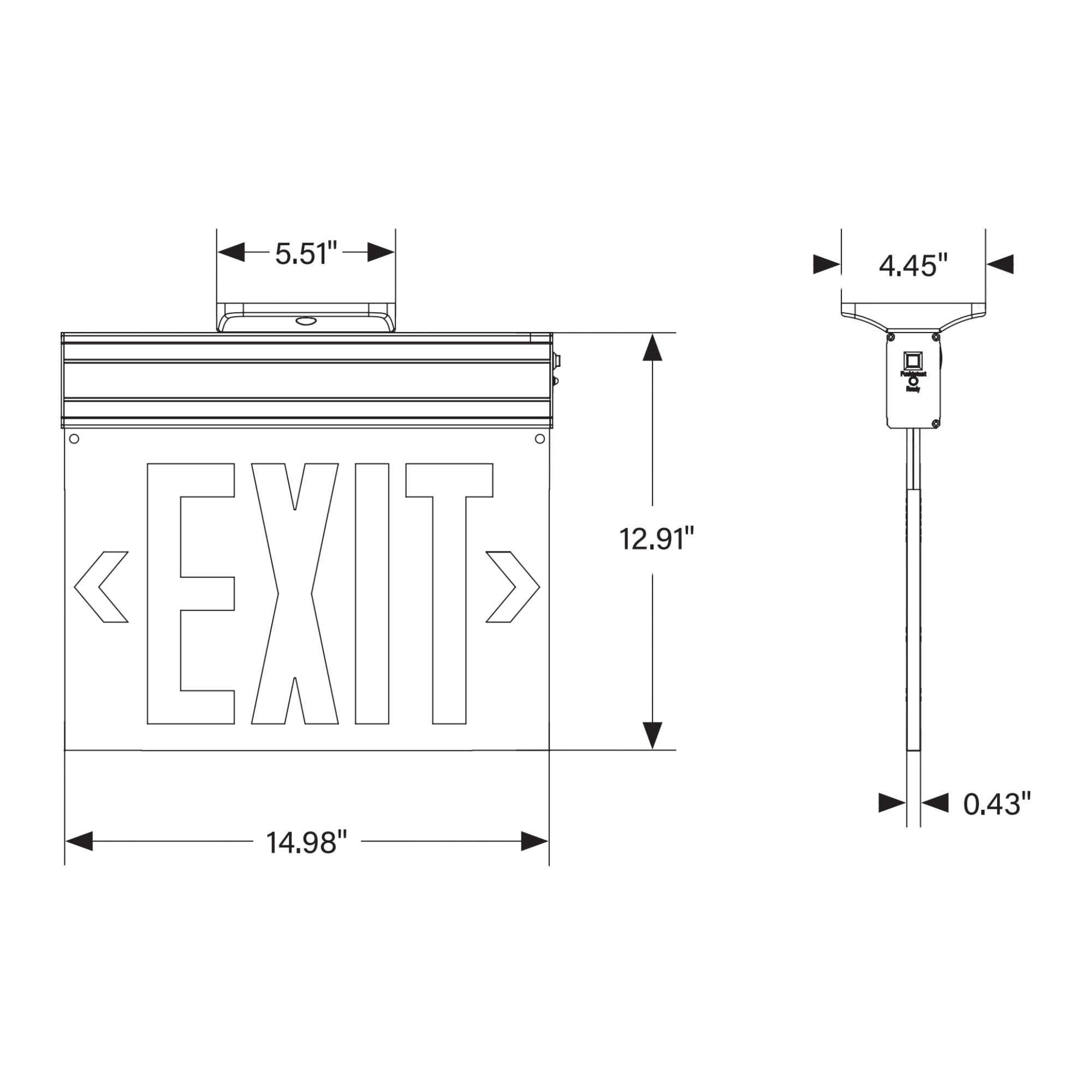

- Dimensions: 14.98" W x 12.91" H x 5.51" D
- Canopy Dimensions: 4.45" W x 0.43" D
- Battery Type: Nickel-Metal Hydride (NiMH)
- Battery Capacity: 500mAh
- Battery Backup Time: 90 minutes minimum
- Recharge Time: 24 hours
- Input Voltage: 120/277V AC, 50/60Hz
- Power Consumption: 3W
- Test Switch: Manual test button with charge indicator included
- Mounting Options: Surface mount (top, side, or back)
- Chevron Arrows: Field-adjustable removable punchouts included
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Flame Rating: UL 94 5VA thermoplastic housing
- Certifications: UL924 Listed, NYC Approved, meets NEC and IBC requirements, RoHS Compliant, Title 20 Compliant
- Warranty: 5 Years
- Weight: 4.9 lbs (fixture)
Keystone Exit Sign Applications
- New York City commercial office buildings and corridors
- NYC multi-family residential buildings and apartments
- Retail stores and shopping centers
- Educational facilities and schools
- Healthcare facilities and medical offices
- Hospitality hotels and guest corridors
- Industrial and warehouse facilities
- Stairwells and exit pathways
- Any NYC application requiring code-compliant exit signage
Installation & Operation
The Keystone KT-EX-ELNY2-WH3RL-SD exit sign offers three surface mounting options for maximum installation versatility. The included mounting hardware and installation instructions make setup quick and easy. Connect to your AC power source (120/277V) and configure the faceplate as single or double-sided based on your application. The unit will automatically charge the battery and display the charge indicator.
During normal operation, the exit sign remains illuminated while the battery charges. When AC power is lost, the battery backup automatically activates, maintaining illumination for 90 minutes. When power is restored, the unit automatically returns to charging mode. The integrated test switch allows for manual testing to verify battery and lamp operation for easy code compliance verification.

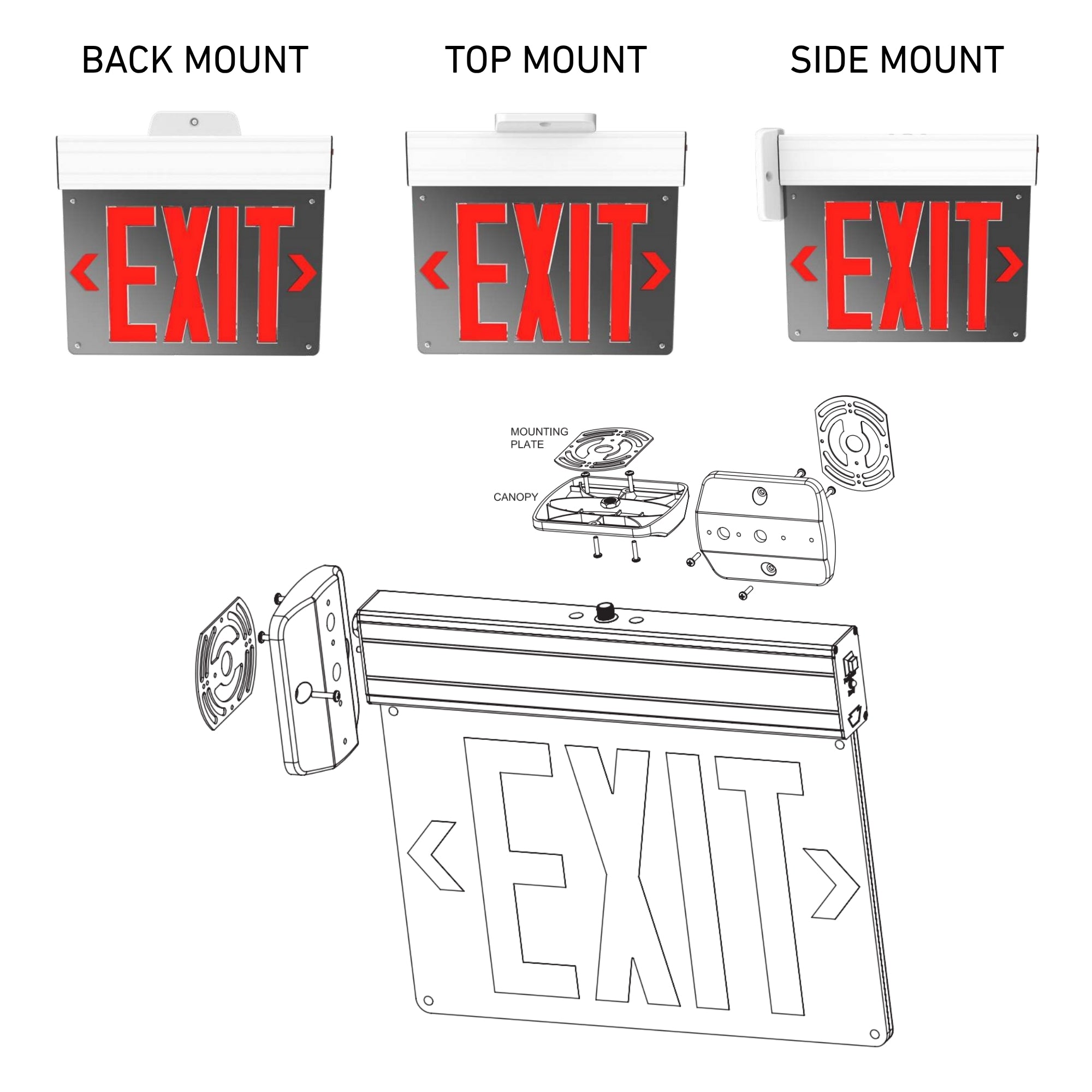

Three Surface Mounting Options
The KT-EX-ELNY2-WH3RL-SD exit sign includes hardware for three mounting configurations, providing flexibility for exit sign installation:
- Top Mount: Standard surface installation with sign mounted to ceiling for maximum visibility in corridors and walkways
- Side Mount: Wall installation for hallway or canopy applications where side mounting is preferred
- Back Mount: Direct wall mount for clean installation in commercial buildings and residential facilities
All mounting hardware is included for every configuration, and the universal J-box mounting pattern ensures compatibility with standard electrical boxes. The surface mount design provides reliable installation for NYC-compliant applications.

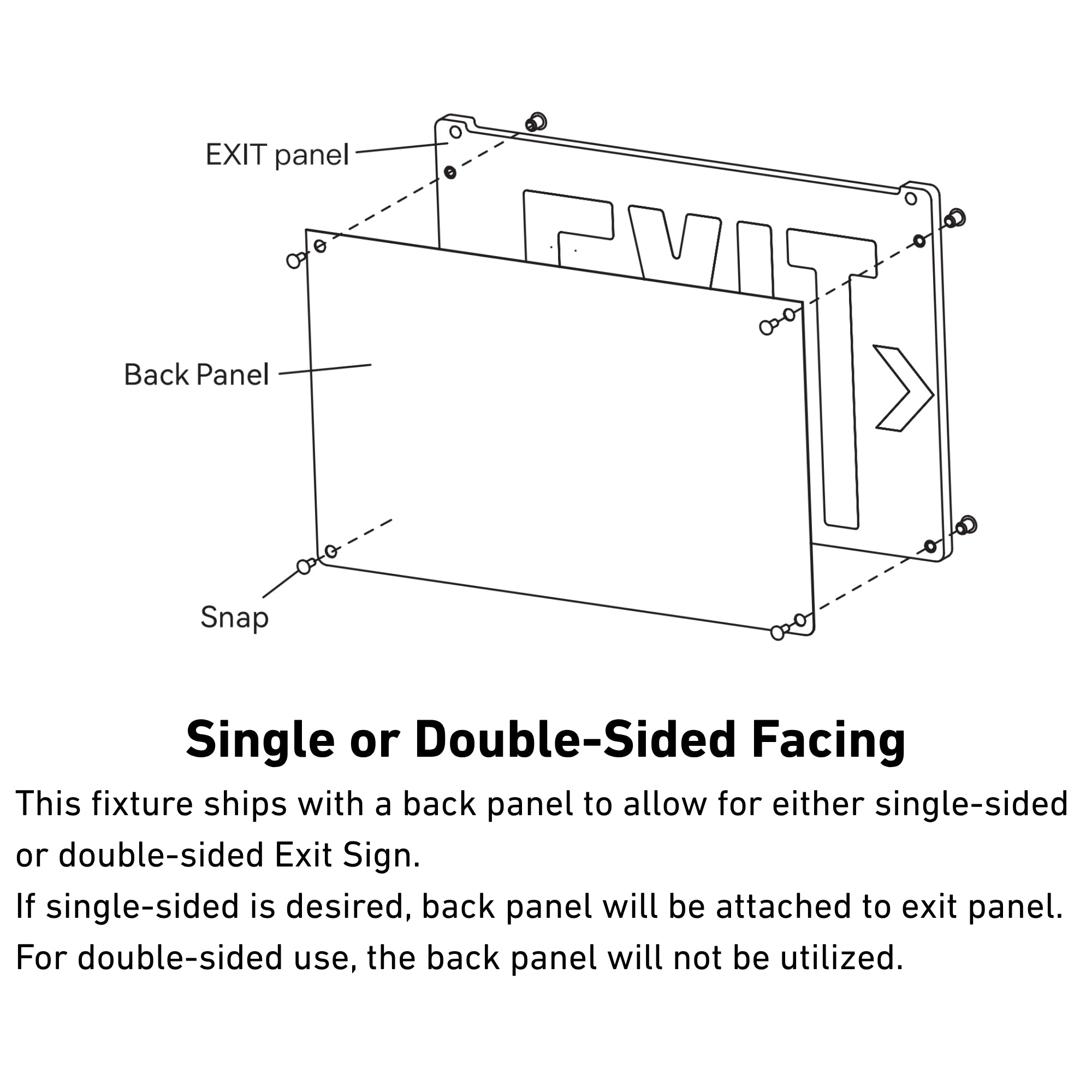

Single or Double-Sided Configuration
The field-configurable faceplate system allows you to install the exit sign as single or double-sided based on your application requirements. The unit ships with two "EXIT" sign faceplates and one solid back panel. For single-sided installation, use one "EXIT" faceplate and the solid back panel. For double-sided installation, use both "EXIT" faceplates. This flexibility reduces inventory complexity and ensures you always have the right configuration for any NYC project.

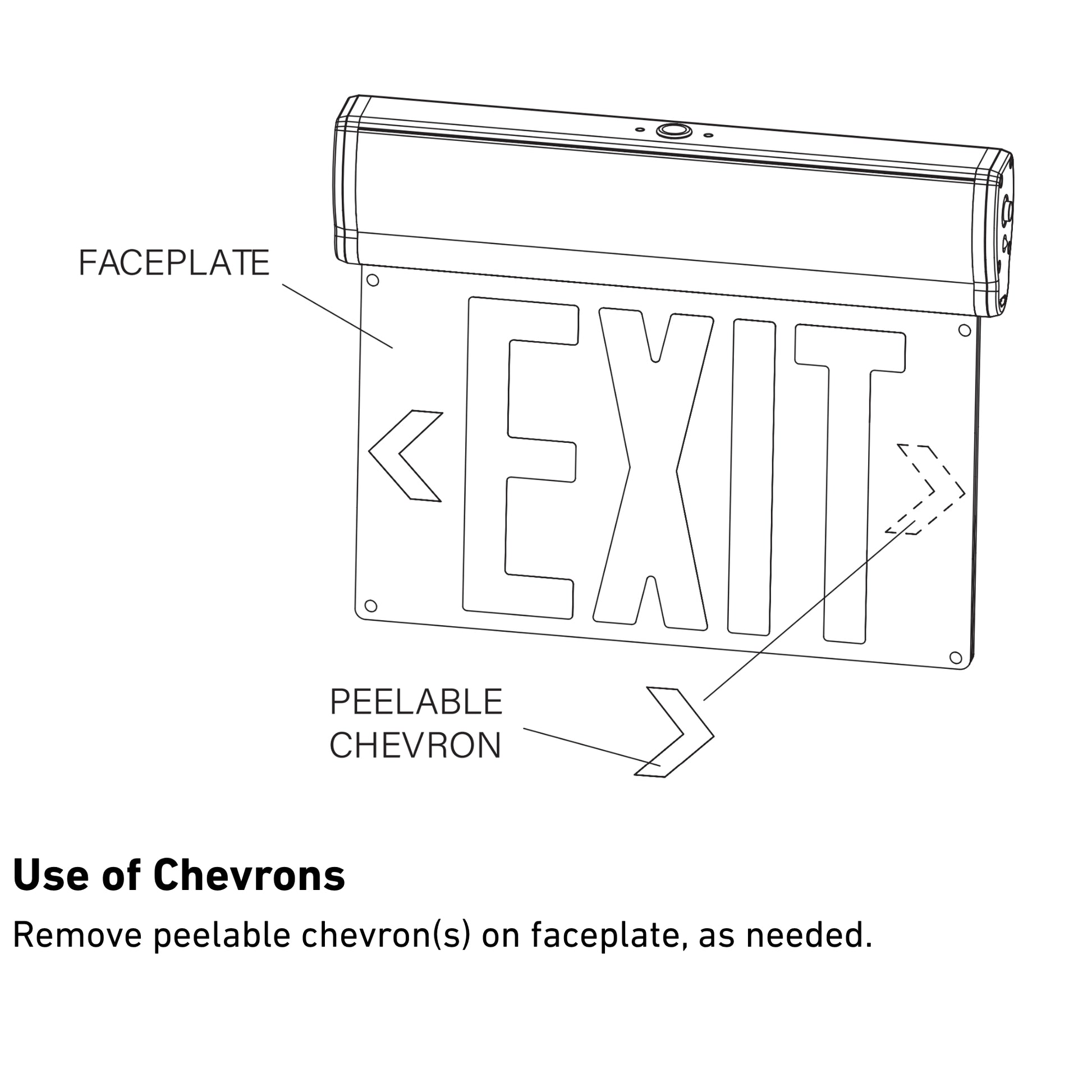

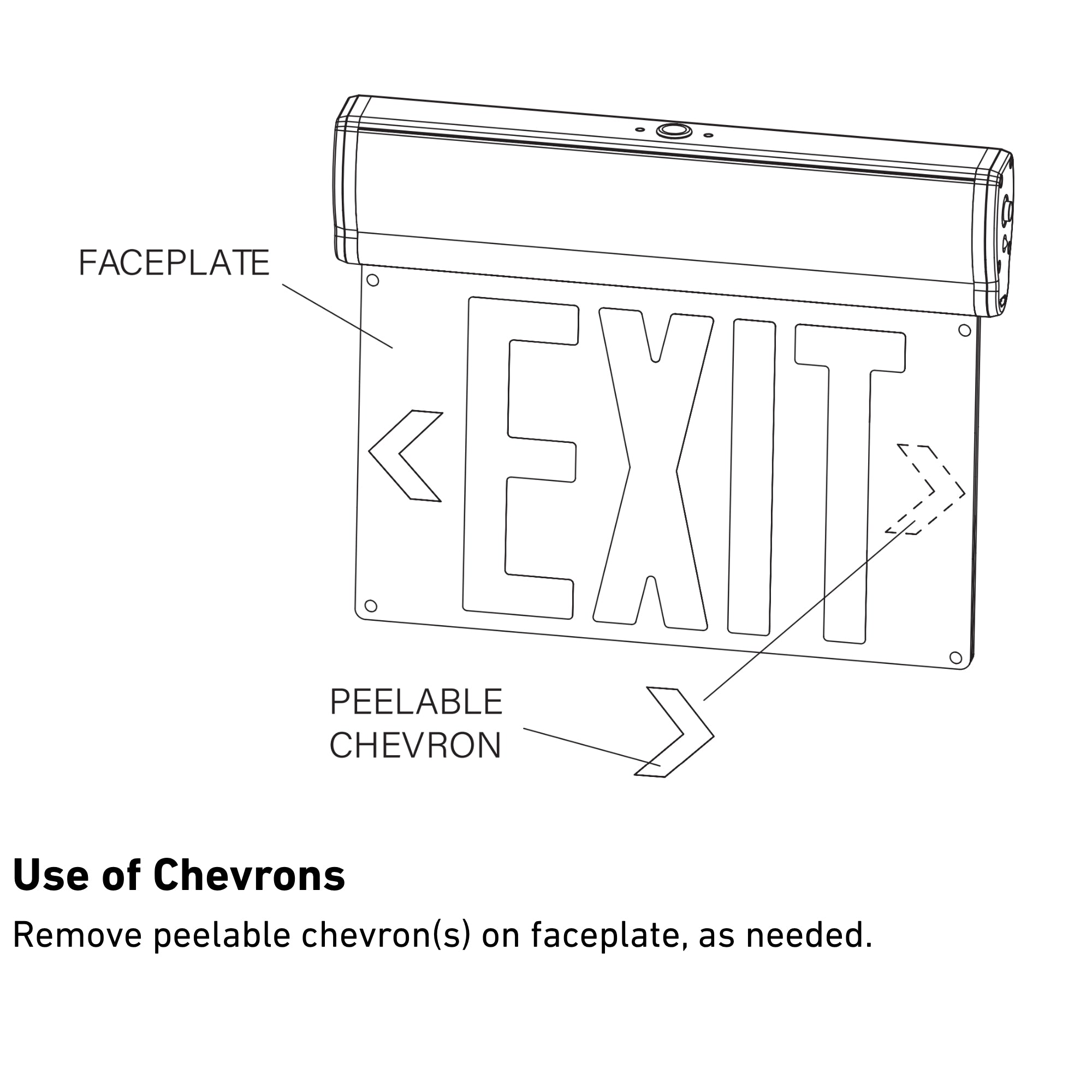

Field-Adjustable Chevrons
The removable punchout chevrons on the faceplate allow you to add directional arrows without additional hardware or accessories. Simply remove the desired chevron punchout to indicate the direction of egress. This field-adjustable feature meets NYC code requirements for directional exit signage and eliminates the need to stock multiple SKUs for different directional configurations.
Code Compliance & Testing
The Keystone KT-EX-ELNY2-WH3RL-SD meets all NEC (National Electrical Code), IBC (International Building Code), and New York City Building Code requirements for emergency exit signage. The built-in test switch allows for manual testing to verify battery and lamp operation, ensuring continuous code compliance. The charge indicator provides clear visual confirmation of battery status, making inspections quick and easy for facility managers and code officials. The NYC approval ensures the unit meets the specific requirements for New York City installations.
Why Choose Keystone Exit Signs
Keystone Technologies is a trusted leader in emergency lighting solutions with decades of experience in commercial and industrial applications. The KT-EX-ELNY2-WH3RL-SD represents reliable NYC-compliant exit sign technology, combining UL924 listing with field-configurable faceplates and adjustable chevrons. The thermoplastic housing ensures durability in demanding environments, while the integrated test switch provides hassle-free code compliance and reduces maintenance costs.
With UL924 listing, NYC approval, 90-minute battery backup, universal 120/277V voltage, and 5-year warranty, the Keystone KT-EX-ELNY2-WH3RL-SD delivers professional-grade exit sign performance for New York City applications. The surface mount design with three mounting options offers installation flexibility for commercial buildings, multi-family residential, and institutional facilities. With Keystone's reputation for quality, the KT-EX-ELNY2-WH3RL-SD exit sign delivers long-term reliability and value in NYC-compliant installations.
Why Buy From Us: As an authorized Keystone dealer, we guarantee 100% genuine products with full manufacturer warranty, expert technical support, and fast shipping.
Specifications
Specifications
Dimensions
Documents
Style & Materials
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
Should I buy red or green exit signs?
Should I buy red or green exit signs?
There is no single national rule; it depends on your local fire code. While red is the traditional color in most of the United States, many states and cities (like parts of the West Coast) mandate green because it is associated with "go" and safety. You must check with your local fire marshal before purchasing.
What is the difference between AC-only and battery backup exit signs?
What is the difference between AC-only and battery backup exit signs?
A battery backup exit sign (the most common type) has an internal battery that powers the sign for 90 minutes when the building loses electricity. An AC-only exit sign does not have a battery; it is designed for buildings that have a central emergency generator that kicks in during an outage.
What is an "Edge-Lit" exit sign?
What is an "Edge-Lit" exit sign?
An edge-lit exit sign is a premium, architectural fixture where the lettering is etched onto a clear acrylic panel and illuminated from the top or side. They look much sleeker than standard plastic box signs and are popular in hotels, offices, and lobbies.
How high should an exit sign be mounted?
How high should an exit sign be mounted?
According to NFPA 101, exit signs should be mounted so that no point in the exit access corridor is more than 100 feet from the nearest sign. While there is no strict minimum height for the sign itself (other than being visible), it is typically mounted above doors (approx. 80 inches high). Low-level exit signs (mounted near the floor) are sometimes required in addition to high signs for smoke visibility.
How long do LED exit signs last?
How long do LED exit signs last?
LED exit signs are extremely durable. The LED strips inside can last for 10 years or more without needing replacement. However, the backup battery typically lasts 3 to 5 years and will need to be replaced to ensure the sign passes its annual 90-minute test.
