Keystone KT-EX-EL2 Exit Sign — 90-Minute Emergency Capability with 120-277V Input

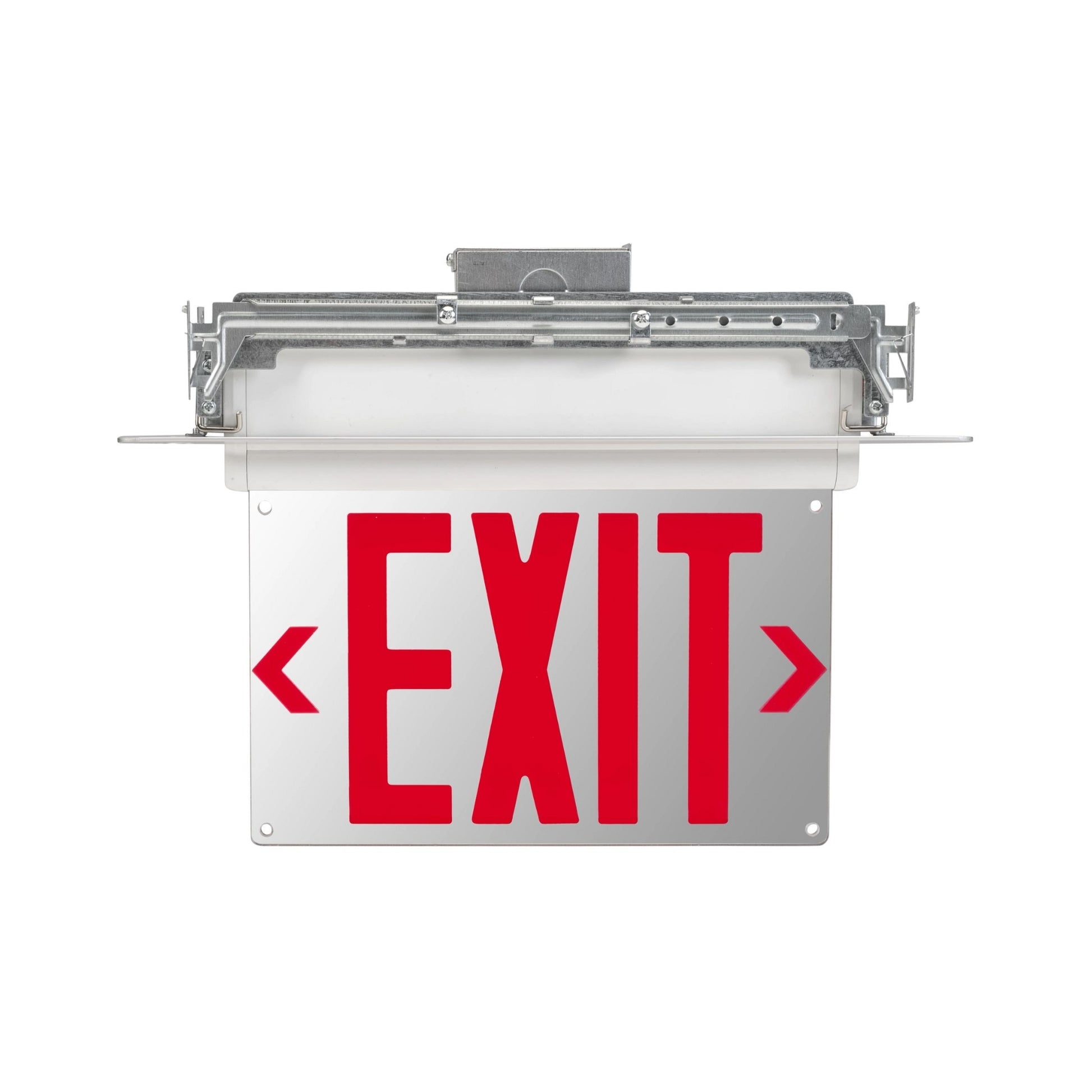

The Keystone KT-EX-EL2-WH3RL-UU is a versatile exit sign featuring red LED lettering and a 90-minute battery backup. Designed for universal mounting, it supports both single and double facing configurations. This exit sign is UL 924 compliant and suitable for damp locations, making it ideal for various commercial applications.

Key Features

• LED Color Options: Available with red or green LED lettering for clear exit indication.

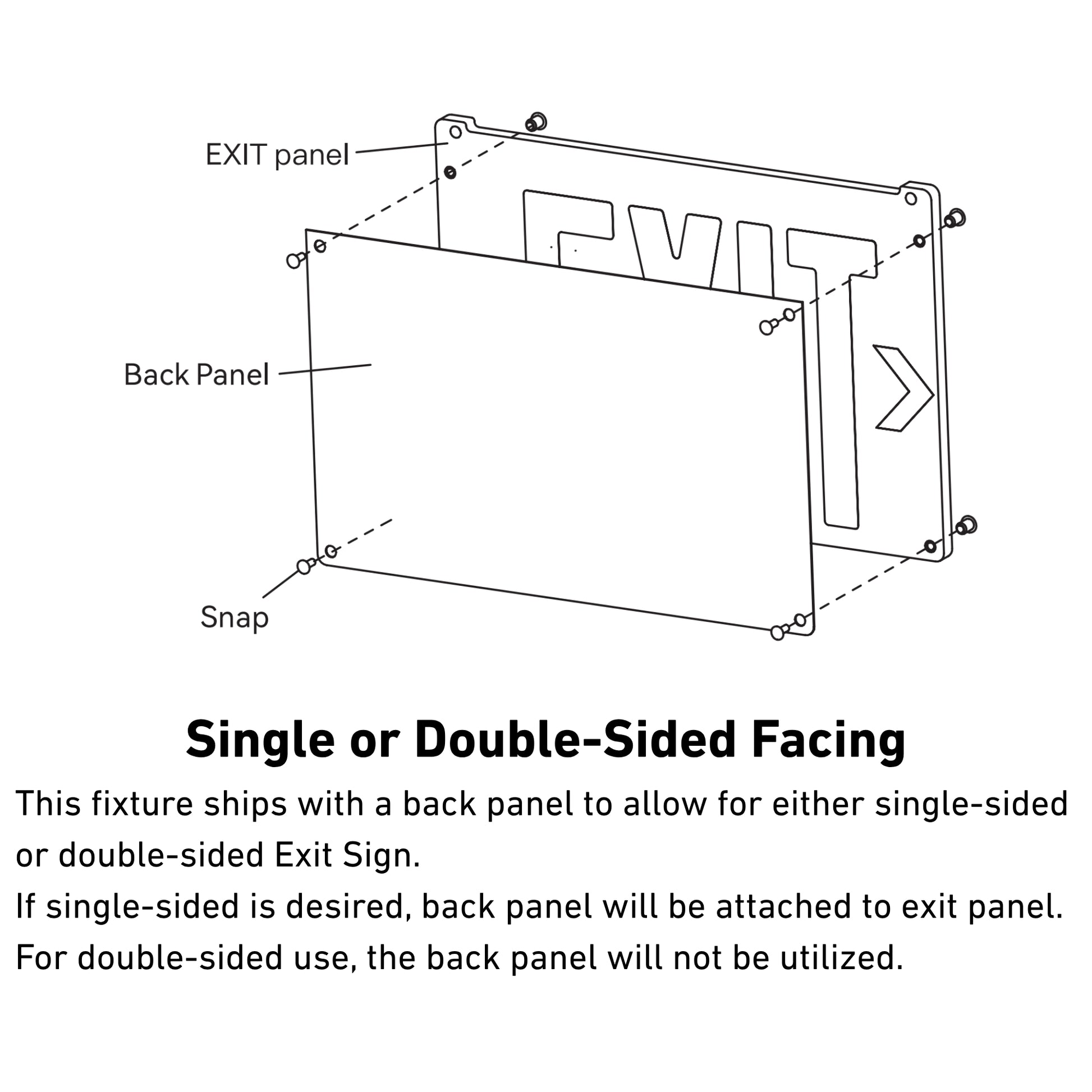

• Facing Configurations: Includes both single and double facing options for flexible installation.

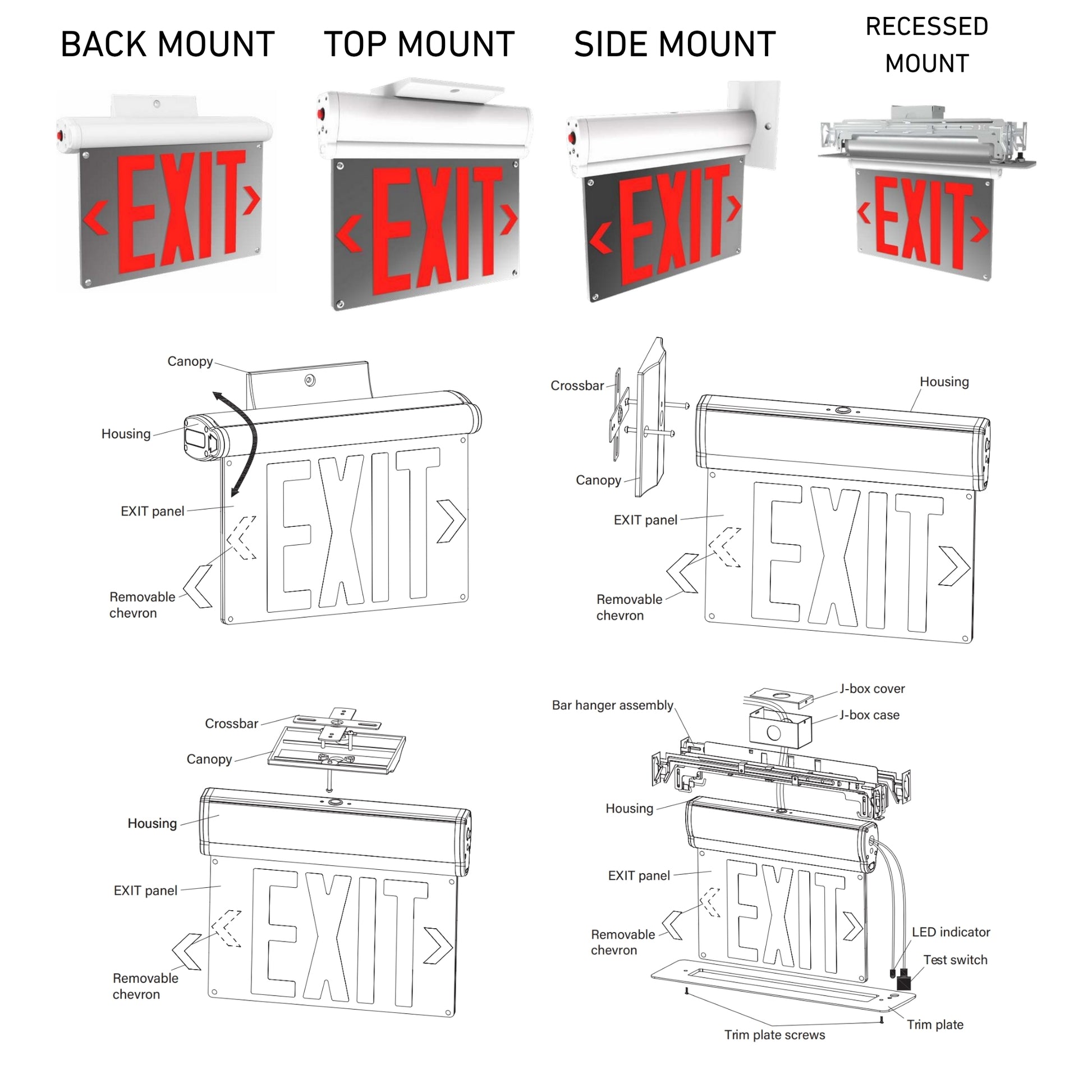

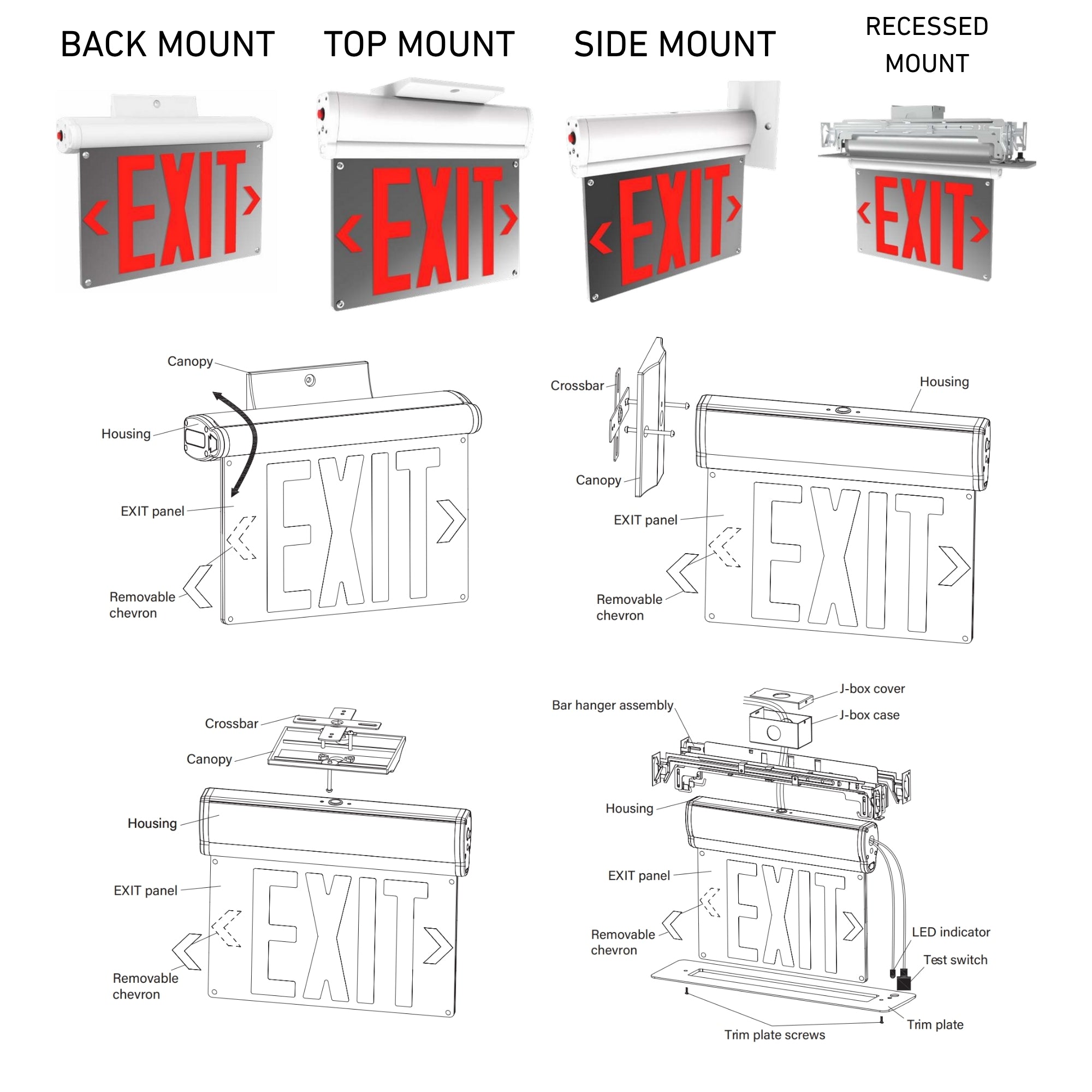

• Universal Mounting: Supports recessed and surface mounting on top, side, or back for versatile placement.
• Battery Type: Integrated NiMH battery with 500mAh capacity ensures reliable backup power.
• Emergency Duration: Provides 90 minutes of emergency illumination during power outages.
• Test Switch: Built-in test switch and charge indicator for easy maintenance and monitoring.
• Housing Material: Constructed from durable thermoplastic with a UL 94 5VA flame rating.
• Operating Temperature: Functions effectively in temperatures ranging from 0°C/32°F to 40°C/104°F.
• Recharge Time: Fully recharges in 24 hours to ensure readiness for the next emergency.
• Safety Compliance: UL certified for damp locations, ensuring safe operation in various environments.

Performance & Illumination

This exit sign features red LED lettering for high visibility and clear guidance during emergencies. The acrylic exit panel with mirrored backing enhances illumination, ensuring compliance with safety standards.

Electrical & Battery

Operates on 120-277V input voltage, accommodating a wide range of electrical systems. The integrated NiMH battery provides 90 minutes of backup power and recharges in 24 hours. Includes a test switch for routine maintenance.

Physical & Installation Details

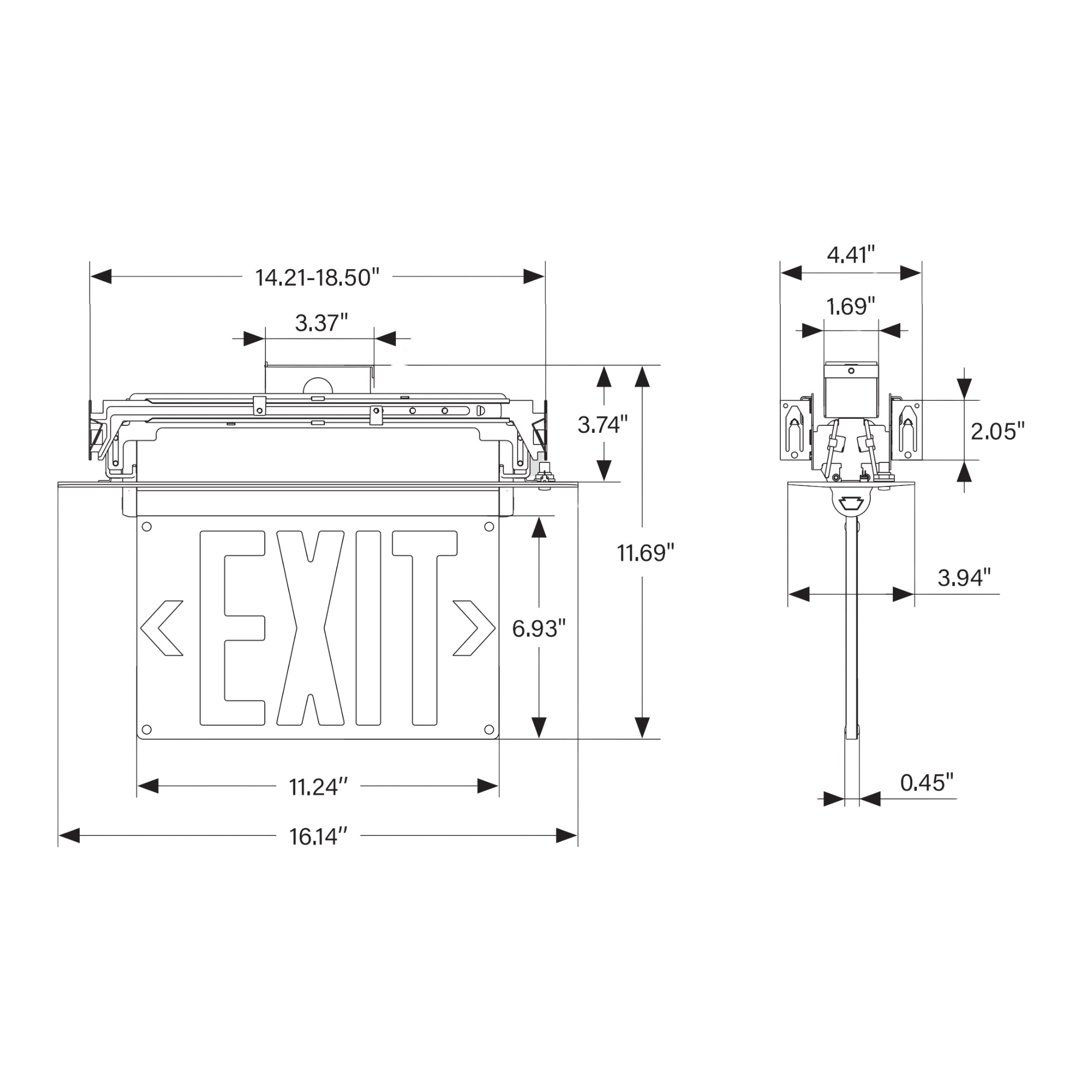

Constructed from durable thermoplastic, this exit sign includes a universal mounting bracket for recessed and surface installations. It supports both single and double facing configurations, providing flexibility in placement.

Compliance & Safety

UL 924 certified for damp locations, this exit sign meets stringent safety standards. It operates effectively in temperatures from 0°C/32°F to 40°C/104°F, ensuring reliable performance in various environments.

What's Included

• Exit Sign with Red LED Lettering
• Universal Mounting Bracket
• Integrated Test Switch
