Keystone KT-EX-EL1 Exit Sign Red Letters Battery Backup 90-Min 120-277V Surface Mount White

Vendor: Keystone Technologies

SKU: KT-EX-EL1-WH3RL-SU

Keystone Technologies logo
$69.95 $82.75
Shipping calculated at checkout.
Letter Color: Red
Mounting Type: Surface

Available in stock (100)

Must be ordered in quantities of .

About this item
  • Battery Backup: Provides 90 minutes of emergency power to ensure visibility during outages.
  • Illumination: Red LED lettering offers clear visibility in emergency situations.
  • Input Voltage: Operates on a wide range of 120-277V for versatile installation.
  • Mounting Options: Surface mountable with top, side, or back configurations for flexible placement.
  • Safety Certifications: UL certified for damp locations, ensuring reliable performance in various environments.
View More Details
Payment & Security
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • USDC
  • Visa

We process payments securely and do not store credit card information.

Description

Keystone KT-EX-EL1 Exit Sign — 90-Minute Battery Backup, 120-277V Input

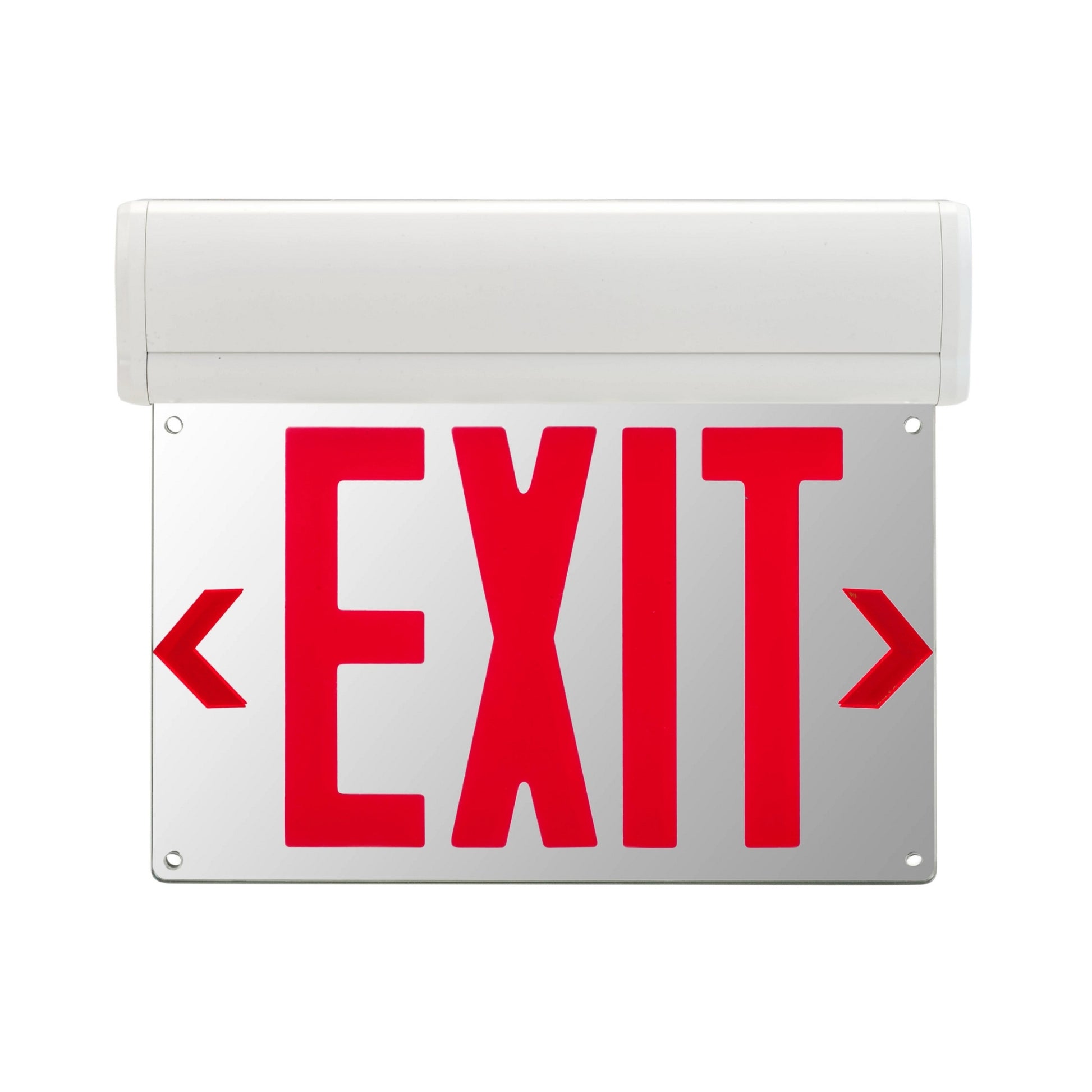

The Keystone KT-EX-EL1-WH3RL-SU is a versatile exit sign featuring red LED lettering and a 90-minute battery backup. Designed for safety and compliance, this exit sign operates on 120-277V input, making it suitable for various applications. Its thermoplastic housing and UL 924 compliance ensure durability and reliability in emergency situations.

Key Features

  • Red LED Lettering: Provides clear and visible exit indication in emergencies.
  • Battery Backup: Integrated NiMH battery offers 90 minutes of power during outages.
  • Input Voltage: Compatible with 120-277V systems for broad installation options.

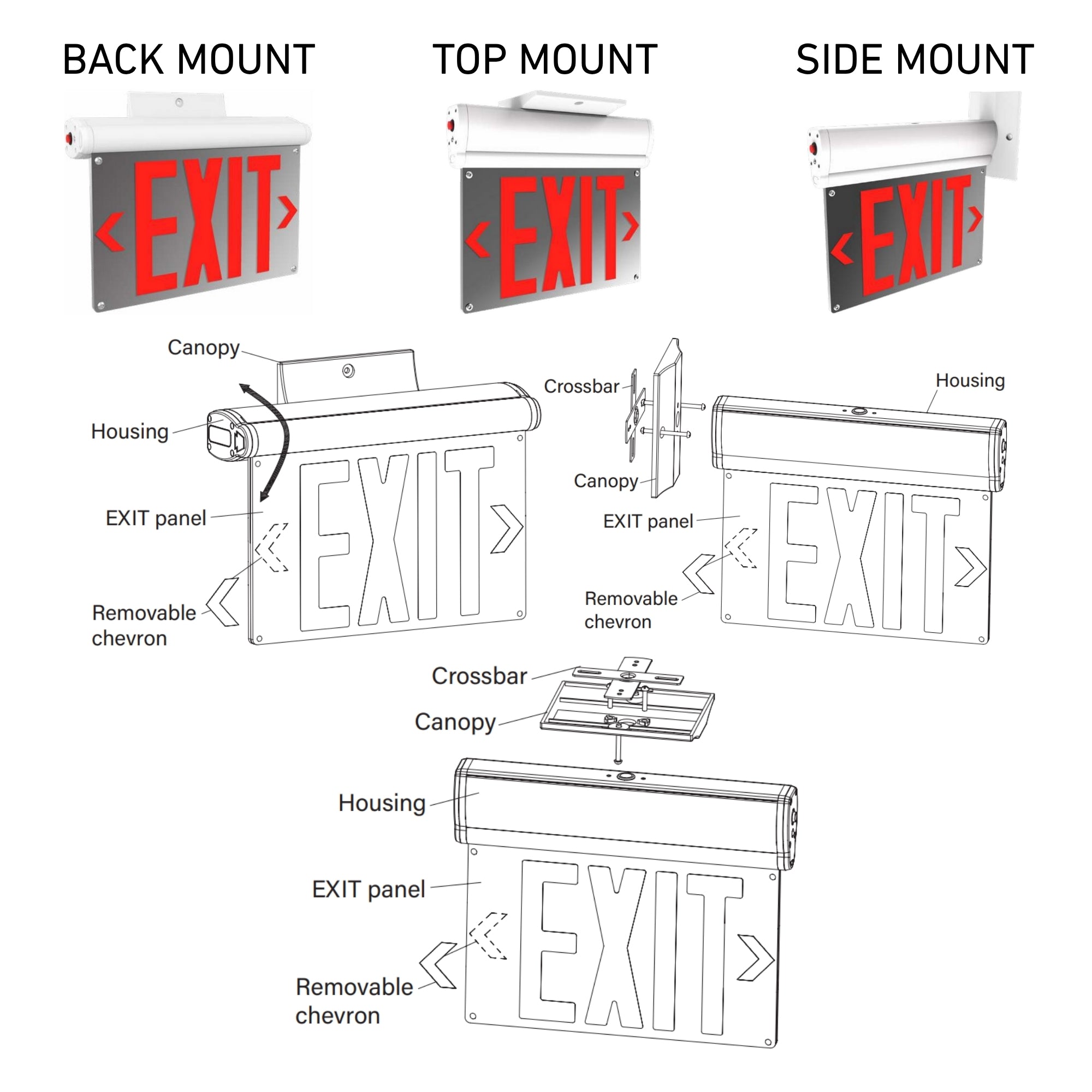

  • Mounting Versatility: Supports top, side, and back surface mounting for adaptable installation.
  • Thermoplastic Housing: Durable construction with UL 94 5VA flame rating for enhanced safety.

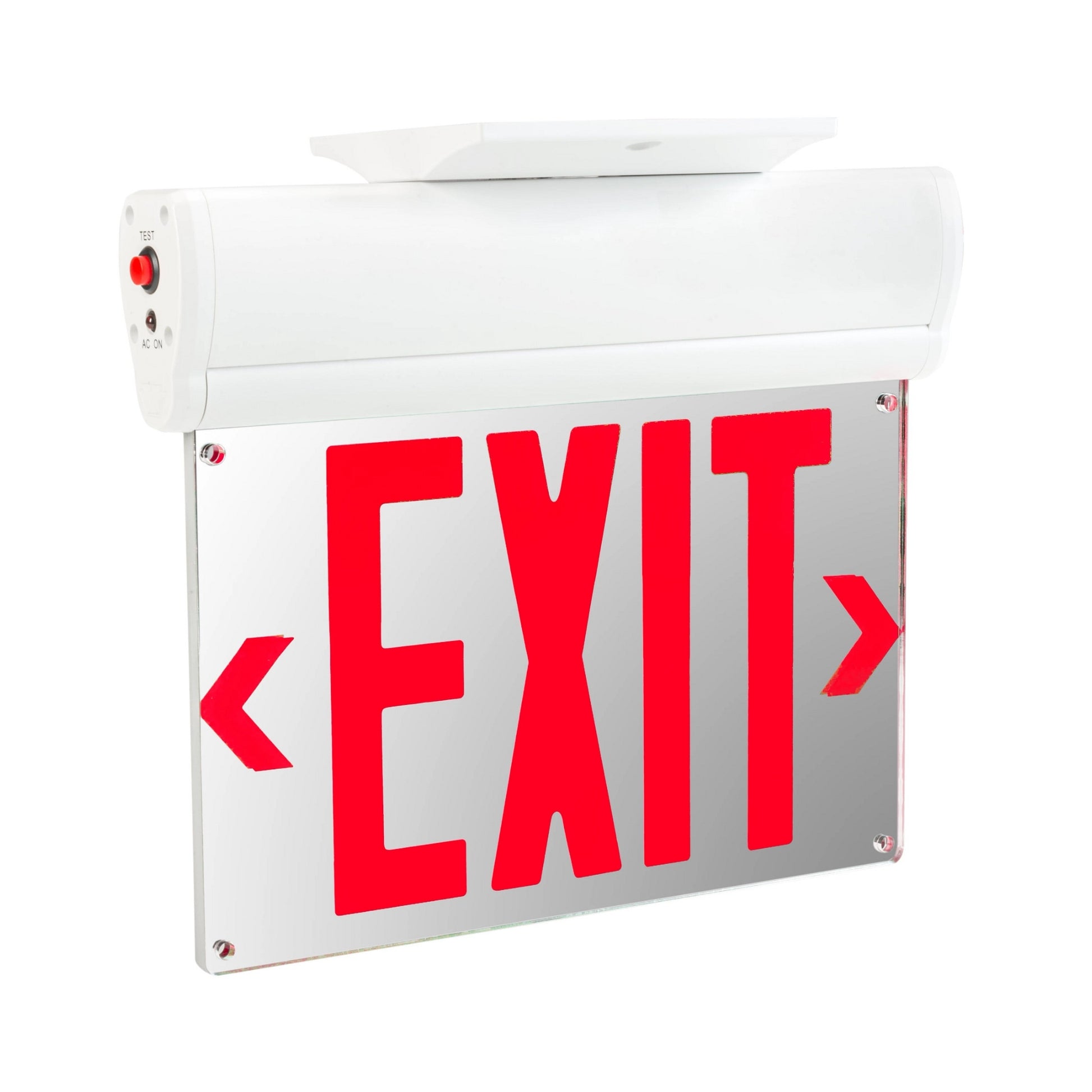

  • Test Switch: Built-in test switch and charge indicator for easy maintenance.
  • Operating Temperature: Functions effectively in temperatures from 0°C/32°F to 40°C/104°F.
  • UL Certified: Meets UL standards for damp locations, ensuring reliable performance.
  • Mirrored Backing: Acrylic exit panel with mirrored backing for enhanced visibility.
  • Recharge Time: Fully recharges in 24 hours for consistent readiness.

Performance & Illumination

The exit sign features red LED lettering for clear visibility. The mirrored backing enhances the sign's visibility, ensuring it is easily seen in emergency situations.

Electrical & Battery

Designed to operate on 120-277V, this exit sign includes a NiMH battery that provides 90 minutes of backup power. It features a built-in test switch and charge indicator for easy maintenance.

Physical & Installation Details

The thermoplastic housing is durable and flame-rated, with dimensions of 11.61' x 7.17' x 1.81'. It includes a universal J-box mounting pattern and supports top, side, and back mounting options.

Compliance & Safety

UL certified for damp locations, this exit sign operates in temperatures from 0°C/32°F to 40°C/104°F. It meets UL 924 standards, ensuring compliance with safety regulations.

What's Included

  • Exit Sign with Red LED Lettering
  • Universal Mounting Canopy
  • Installation Hardware

Specifications

Dimensions

Length/Depth
11.61 in
Width/Diameter
1.81 in
Height
7.17 in
Weight
2.3 lb

Documents

Style & Materials

Material
Thermoplastic
Mounting Type
Surface mount

Electrical Information

Voltage
120-277V
Total Wattage
2W

Item Details

MPN
KT-EX-EL1-WH3RL-SU
Brand
Keystone Technologies
Catalog Number
STO-03
Family
Keystone Smart Safe Exit Sign
UPC
843654165059

Warranty & Certifications

Product Warranty
5 Years
Product Rating
Damp Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

What is the battery backup duration for the Keystone KT-EX-EL1-WH3RL-SU?
The Keystone KT-EX-EL1-WH3RL-SU provides 90 minutes of battery backup. This ensures visibility during power outages.

Can the Keystone KT-EX-EL1-WH3RL-SU be mounted in different orientations?
Yes, it supports top, side, and back surface mounting. This allows for flexible installation options.

What input voltage does the Keystone KT-EX-EL1-WH3RL-SU support?
It operates on a wide range of 120-277V. This makes it suitable for various electrical systems.

Is the Keystone KT-EX-EL1-WH3RL-SU suitable for damp locations?
Yes, it is UL certified for damp locations. This ensures reliable performance in various environments.

Does the Keystone KT-EX-EL1-WH3RL-SU have a test switch?
Yes, it includes a built-in test switch and charge indicator. This facilitates easy maintenance and testing.
