5W LED Emergency Driver, 20-60V DC Output, 2 Pieces
Available in stock (200)
About this item
About this item
- Output Voltage: Provides a reliable 20-60V DC output for consistent emergency lighting performance.
- Dimming: This model is non-dimmable, ensuring straightforward operation during emergencies.
- Input Voltage: Operates efficiently across a wide range of 120-277V AC input, suitable for various installations.
- Enclosure: Features a robust metal enclosure, ensuring durability and protection in damp locations.
- Battery Backup: Includes a high-temperature, maintenance-free LiFePO4 battery for 90 minutes of emergency operation.
We process payments securely and do not store credit card information.
Description
Description

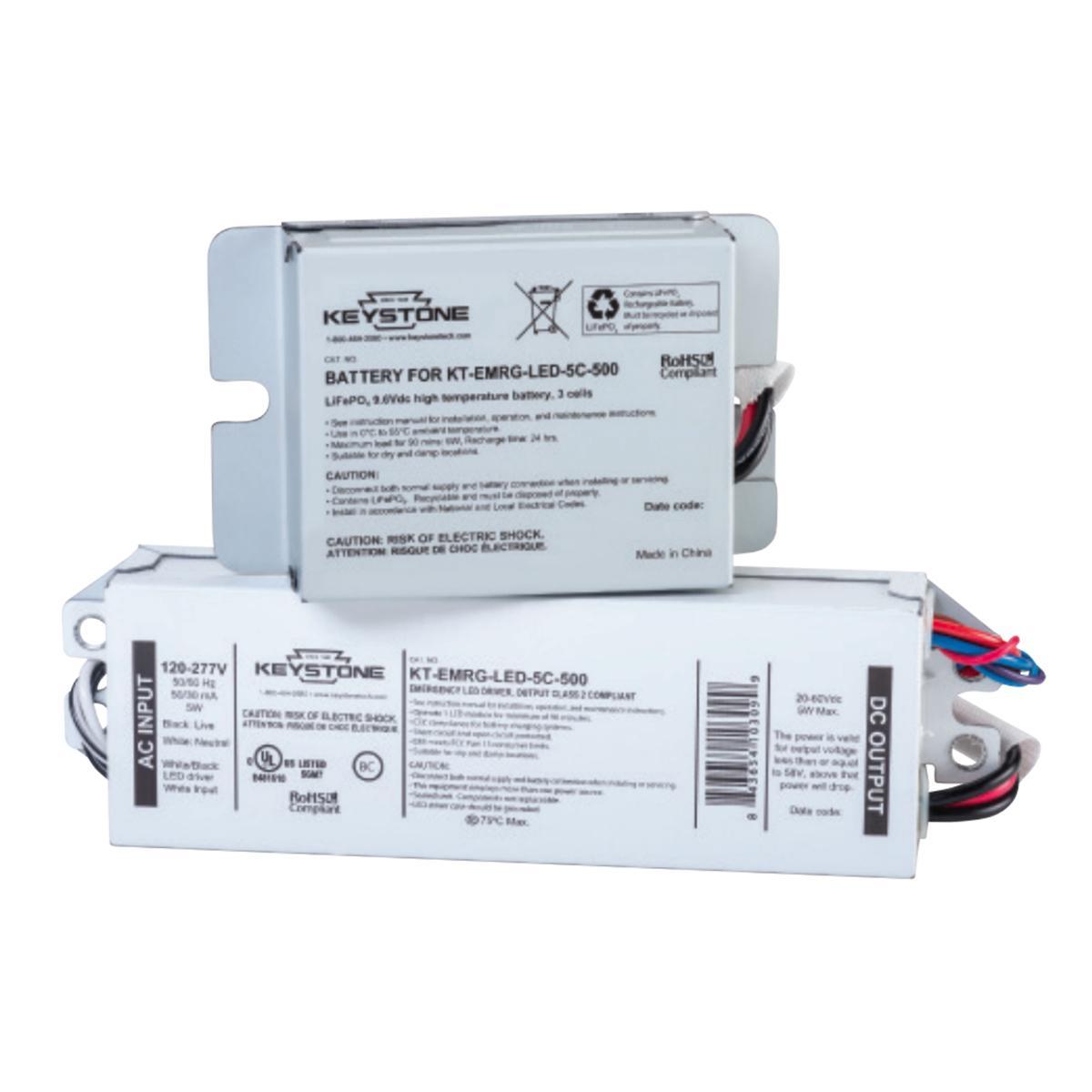

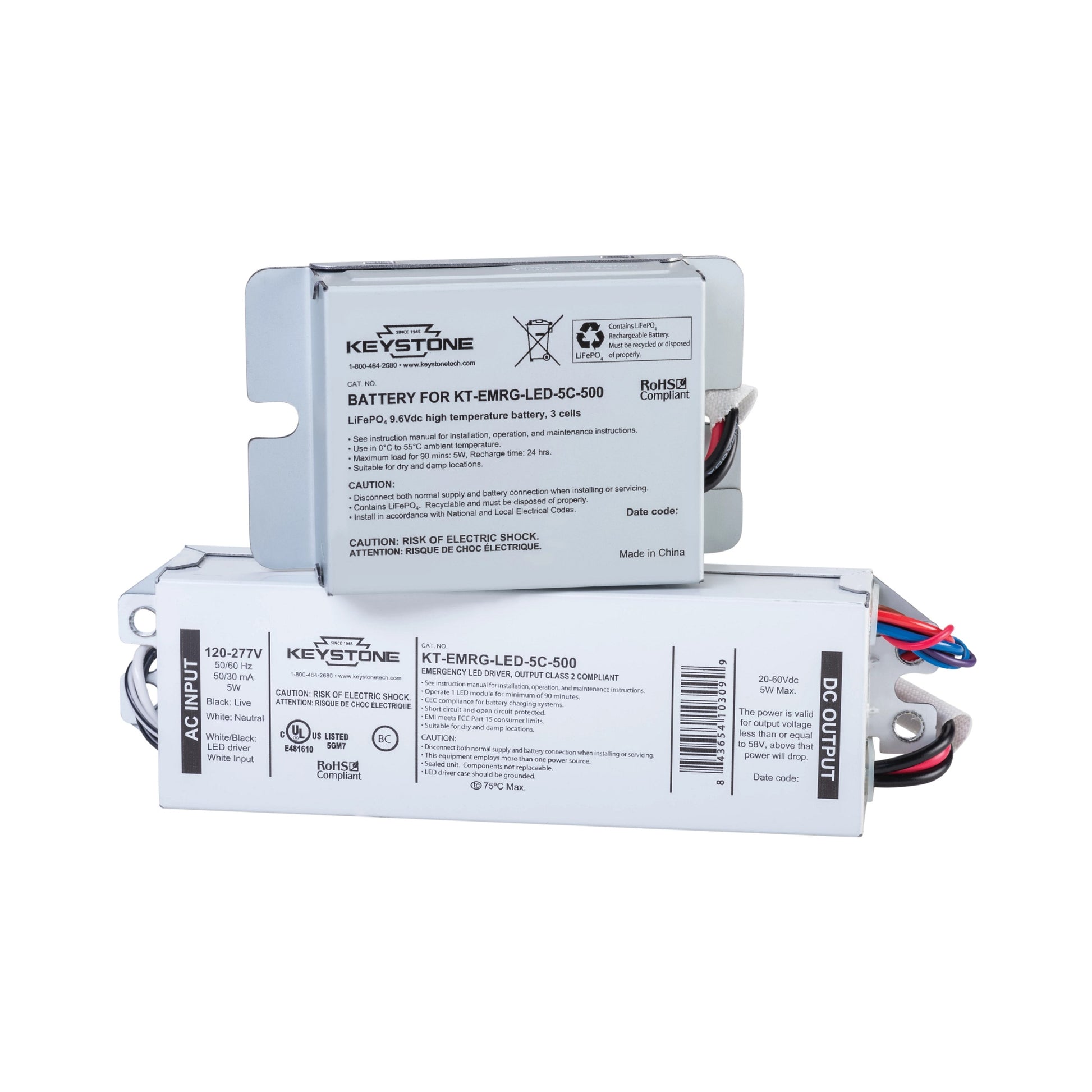

Keystone Technologies KT-EMRG-LED-5C-500 5W LED Driver — 20-60V DC
The Keystone Technologies KT-EMRG-LED-5C-500 is a reliable LED Emergency Driver designed to provide consistent 20-60V DC output during power outages. With a 5W power rating, this driver is ideal for maintaining essential lighting in emergency situations. It operates on a wide 120-277V AC input range, making it versatile for various applications. The driver features a high-temperature, maintenance-free LiFePO4 battery, ensuring 90 minutes of emergency operation. Its metal enclosure is rated for damp locations, providing durability and protection.
Key Features
- Power Output: Delivers a constant 5W output for reliable emergency lighting.
- Input Voltage: Compatible with 120-277V AC, accommodating diverse electrical systems.
- Output Voltage: Provides 20-60V DC, suitable for a range of LED modules.
- Dimming: Non-dimmable design ensures consistent performance during emergencies.
- Dimensions: Compact size of 6.46 in. L x 1.89 in. W x 1.14 in. H for easy installation.
- Enclosure Type: Durable metal construction with IP20 rating for damp locations.
- Battery: High-temperature LiFePO4 battery supports 90 minutes of operation.
- Certifications: UL 924 and CEC Title 20 compliant for safety and efficiency.
- Protection: Features over-voltage, over-current, short circuit, and over-temperature protection.
Physical Design & Installation
The driver is housed in a sturdy metal enclosure, suitable for damp locations, ensuring long-lasting performance and protection.
Dimming & Controls
This model is non-dimmable, simplifying its use in emergency lighting applications without the need for additional controls.
Performance & Build
Equipped with comprehensive protection features, including over-voltage, over-current, short circuit, and over-temperature safeguards, ensuring reliable operation.
Typical Applications
- Commercial emergency lighting systems
- Office building backup lighting
- Industrial safety lighting
- Public facility emergency illumination
