20W LED Emergency Driver, 20-60V DC Output, Dual Flex
Available in stock (200)
About this item
About this item
- Output Voltage: Provides a stable 20-60V DC output, ensuring consistent emergency lighting performance.
- Dimming: This driver is non-dimmable, simplifying installation and operation for emergency applications.
- Input Voltage: Operates efficiently within a wide 120-277V AC input range, accommodating various installation environments.
- Enclosure: Features a robust metal enclosure designed for durability in damp locations.
- Battery Backup: Includes a high-temperature, maintenance-free LiFePO4 battery for reliable 90-minute emergency operation.
We process payments securely and do not store credit card information.
Description
Description

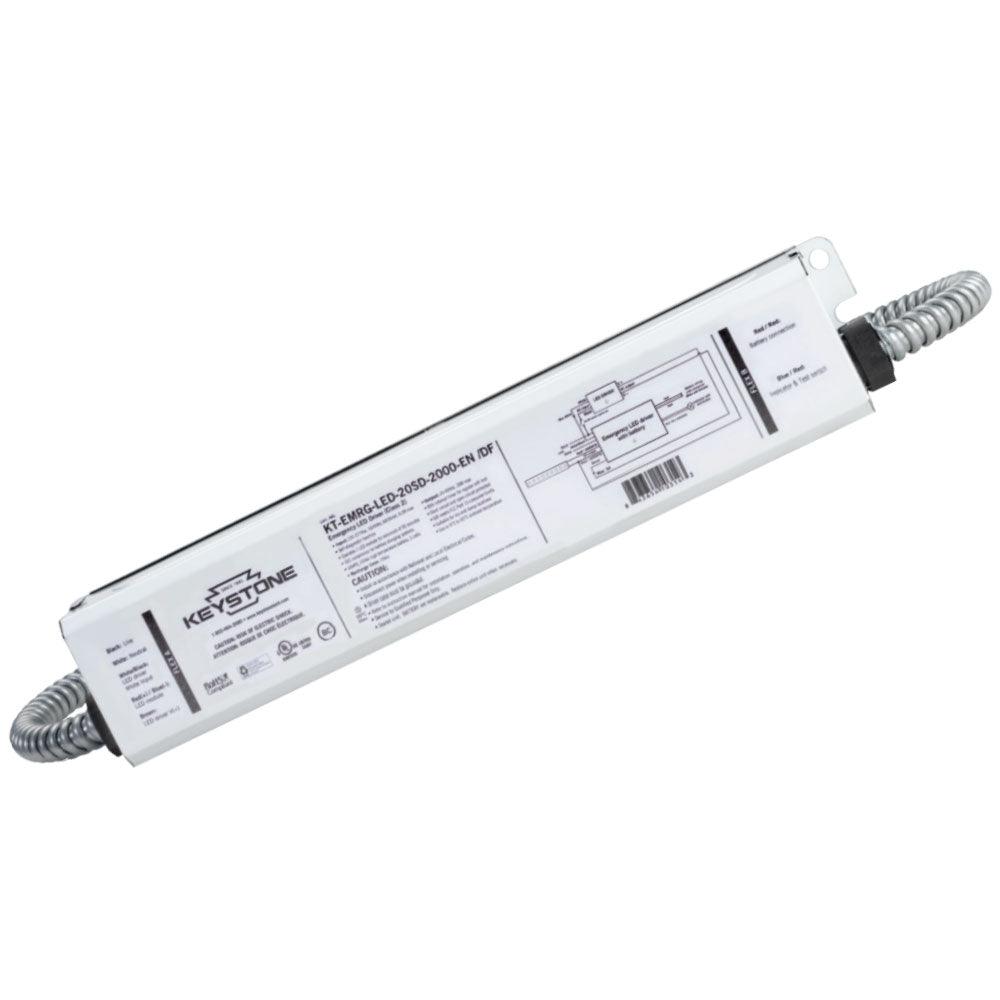

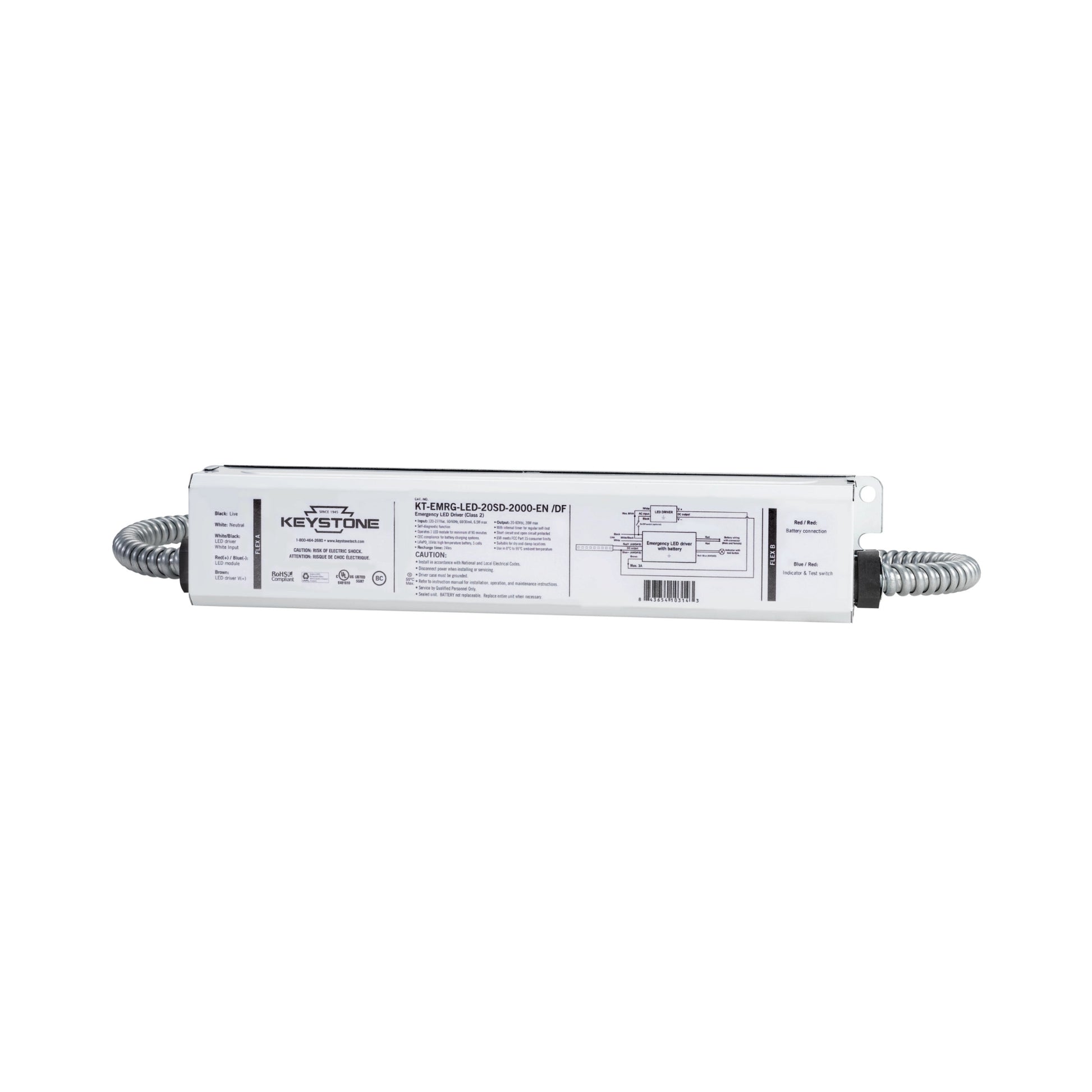

Keystone Technologies KT-EMRG-LED-20SD-2000-EN 20W Emergency Driver — 20-60V DC
The Keystone Technologies KT-EMRG-LED-20SD-2000-EN is a robust 20W Emergency Driver designed to provide reliable emergency lighting with a 20-60V DC output. This driver operates within a wide 120-277V AC input range, making it suitable for various commercial and industrial applications. It features a Constant Power output, ensuring consistent performance during power outages. The unit is housed in a durable metal enclosure, rated for damp locations, and includes a high-temperature, maintenance-free LiFePO4 battery for 90-minute emergency operation.
Key Features
- Power Output: Delivers a constant 20W output for reliable emergency lighting.
- Input Voltage: Compatible with 120-277V AC, accommodating diverse installation needs.
- Output Voltage: Provides a 20-60V DC output, suitable for various LED modules.
- Battery Type: Equipped with a high-temperature, maintenance-free LiFePO4 battery.
- Emergency Duration: Supports 90 minutes of emergency operation.
- Enclosure Dimensions: Measures 12.50 in. L x 2.40 in. W x 2.40 in. H, fitting seamlessly into existing setups.
- Enclosure Type: Durable metal construction, suitable for damp locations.

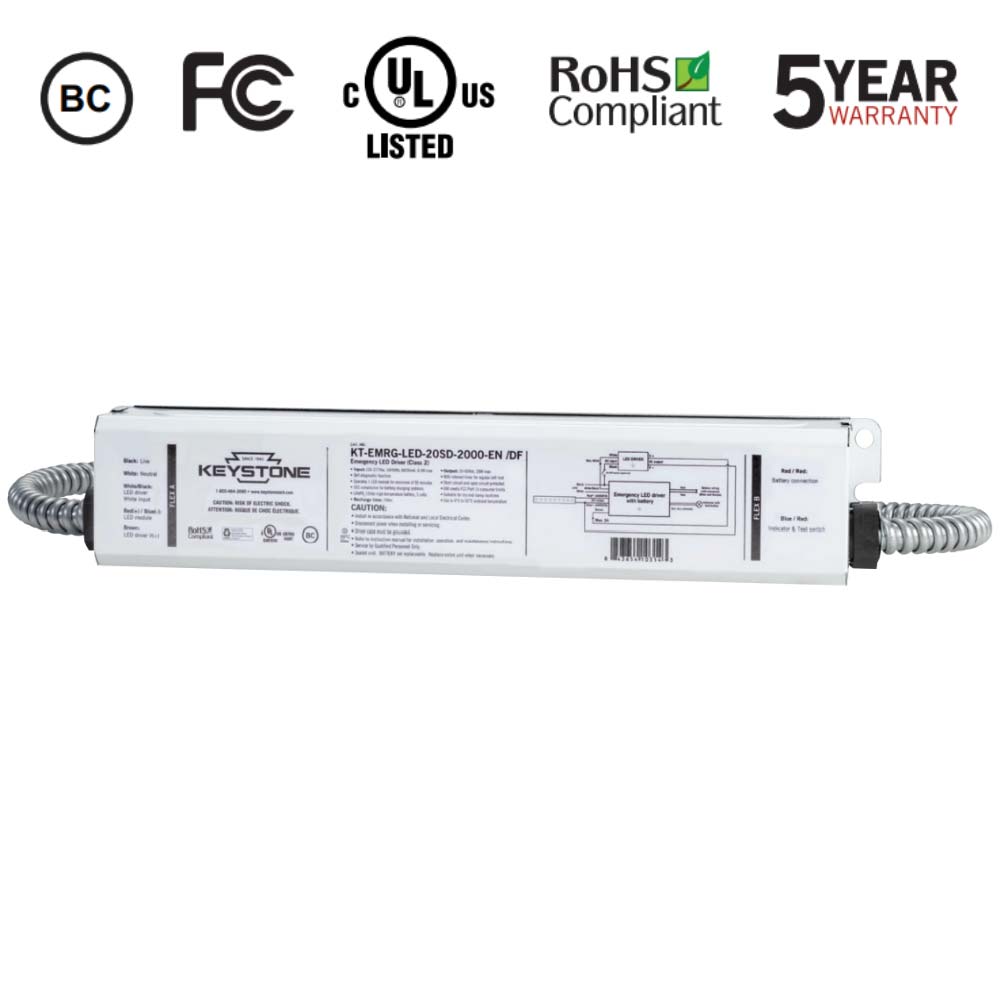

- Certifications: UL 924 listed and complies with CEC Title 20 Efficiency Standards.
- Protection Features: Includes over-voltage, over-current, and short-circuit protection for enhanced safety.
- IP Rating: IP20 rated, ensuring protection against solid objects larger than 12mm.

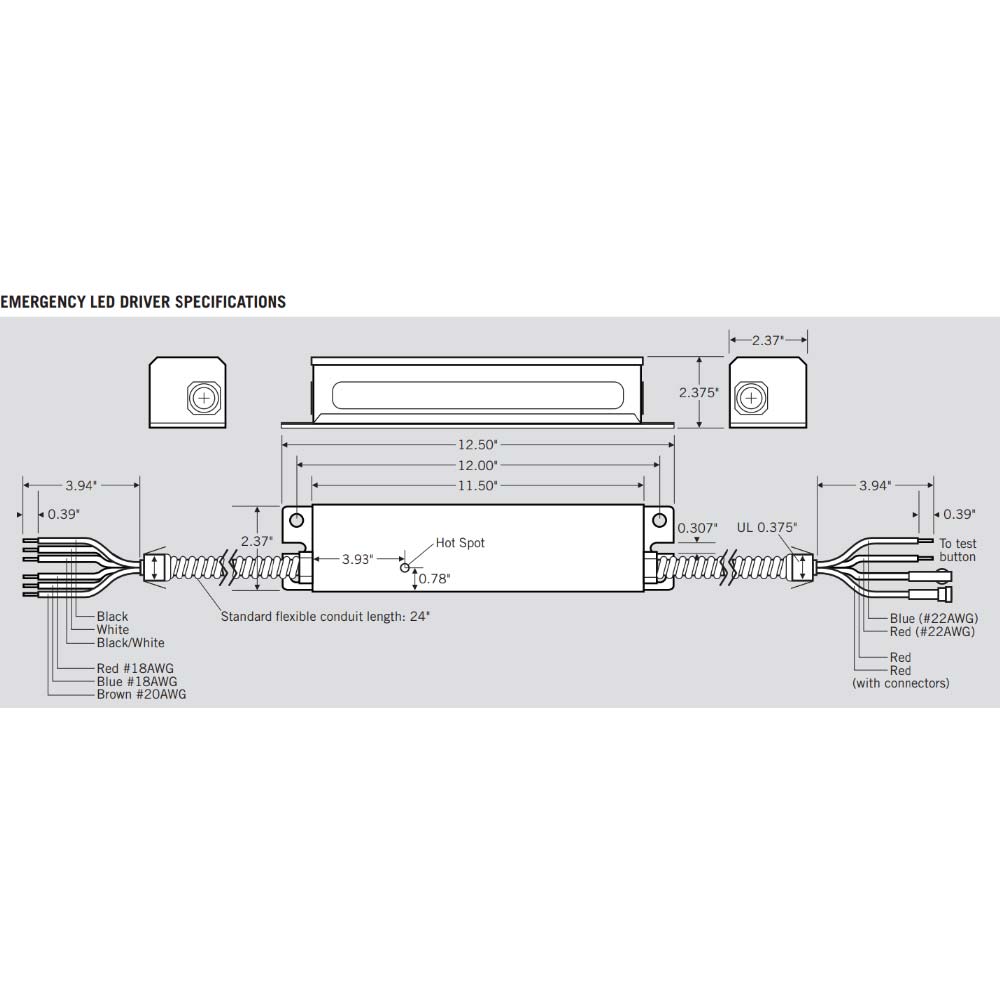

Physical Design & Installation
The driver features a robust metal enclosure with dimensions of 12.50 in. L x 2.40 in. W x 2.40 in. H, designed for easy integration into existing lighting systems. It is suitable for damp locations, ensuring versatility in installation environments.
Dimming & Controls
This emergency driver is non-dimmable, simplifying installation and ensuring consistent performance during emergency operation. It operates efficiently within a 120-277V AC input range.
Performance & Build
Equipped with over-voltage, over-current, and short-circuit protection, this driver ensures reliable performance and safety. It is Class 2 compliant and IP20 rated, suitable for dry and damp locations.
Typical Applications
- Commercial buildings
- Industrial facilities
- Emergency lighting systems
- Retrofit projects
Specifications
Specifications
Dimensions
Documents
Style & Materials
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Is the KT-EMRG-LED-20SD-2000-EN dimmable?
Is the KT-EMRG-LED-20SD-2000-EN dimmable?
What is the input voltage range for this emergency driver?
What is the input voltage range for this emergency driver?
Does the KT-EMRG-LED-20SD-2000-EN include a junction box?
Does the KT-EMRG-LED-20SD-2000-EN include a junction box?
What is the IP rating of this emergency driver?
What is the IP rating of this emergency driver?
What is the minimum load requirement for this driver?
What is the minimum load requirement for this driver?
