12W LED Emergency Driver, 20-60V DC Output
Available in stock (200)
About this item
About this item
- Output Voltage: Delivers a reliable 20-60V DC output for consistent emergency lighting performance.
- Dimming: This model is non-dimmable, ensuring constant wattage output during emergency operation.
- Input Voltage: Compatible with a wide range of 120-277V AC inputs, making it versatile for various installations.
- Enclosure: Features a robust metal enclosure for durability and protection in dry-rated environments.
- Battery Backup: Includes a high-temperature, maintenance-free LiFePO4 battery for 90 minutes of emergency operation.
We process payments securely and do not store credit card information.
Description
Description

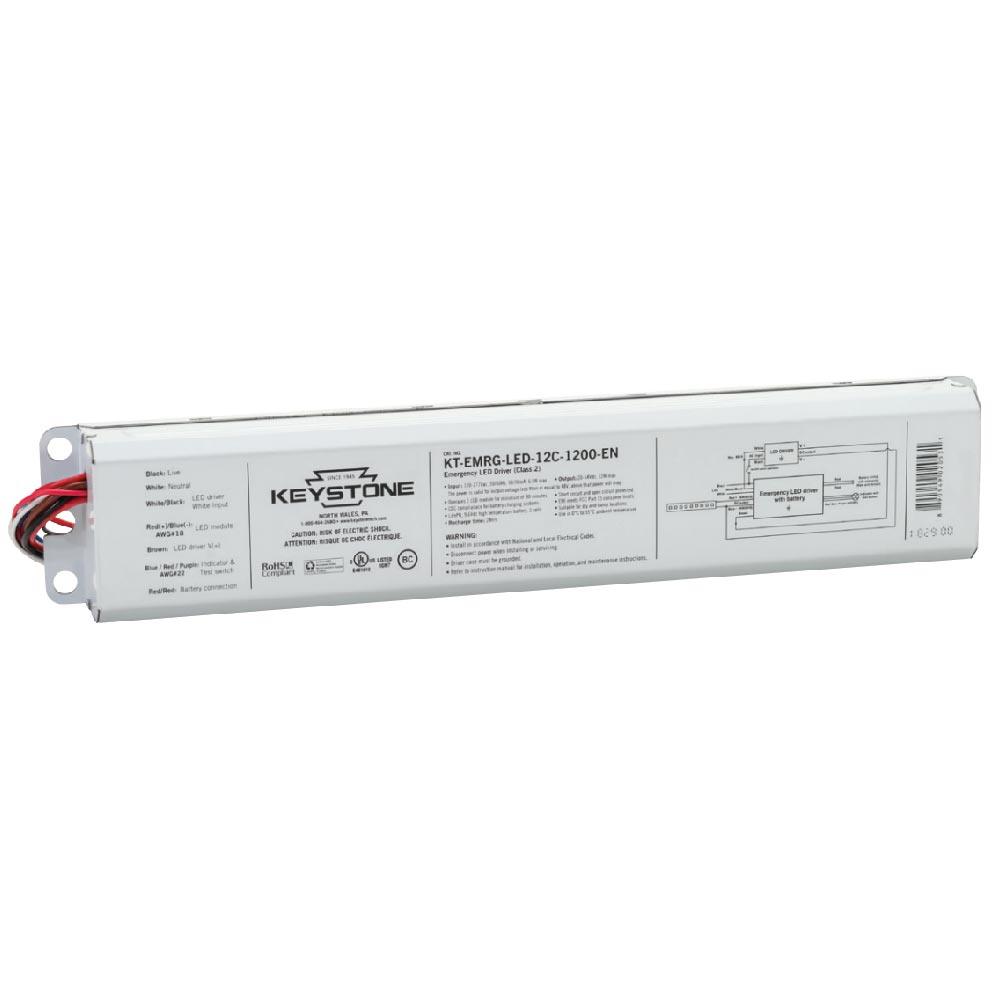

Keystone Emergency KT-EMRG-LED-12C-1200-EN 12W LED Driver — 20-60V DC
The Keystone KT-EMRG-LED-12C-1200-EN is a 12W LED Emergency Driver designed to provide reliable backup power to LED fixtures during power outages. With an input voltage range of 120-277V AC and an output voltage of 20-60V DC, this driver ensures consistent performance in emergency situations. It features a constant wattage design and is housed in a durable metal enclosure, making it ideal for dry-rated environments. The integrated LiFePO4 battery provides up to 90 minutes of emergency operation, ensuring safety and compliance with UL 924 standards.
Key Features
- Power Output: Provides a constant 12W output for reliable emergency lighting.
- Input Voltage: Operates on a wide range of 120-277V AC, accommodating various electrical systems.
- Output Voltage: Supplies 20-60V DC, suitable for a range of LED fixtures.
- Battery Type: Equipped with a high-temperature, maintenance-free LiFePO4 battery for extended life.
- Emergency Operation: Delivers 90 minutes of backup power during outages.
- Enclosure Dimensions: Compact design measuring 12.50 in. L x 2.29 in. W x 1.29 in. H.
- Enclosure Type: Durable metal construction for dry-rated installations.
- Certifications: UL 924 listed and complies with CEC Title 20 efficiency standards.
- Protection: Features over-voltage, over-current, and short circuit protection with auto-recovery.
Physical Design & Installation
The driver is housed in a robust metal enclosure, designed for dry-rated environments, ensuring durability and protection. It includes standard side exit wire leads for straightforward installation.
Dimming & Controls
This model is non-dimmable, providing a constant wattage output during emergency operation. It does not require a minimum load, simplifying installation and compatibility with various LED fixtures.
Performance & Build
Engineered with protection features such as over-voltage, over-current, and short circuit protection, this driver ensures reliable performance and safety. It is UL 924 listed, ensuring compliance with emergency lighting standards.
Typical Applications
- Commercial buildings
- Office spaces
- Retail environments
- Educational facilities
Specifications
Specifications
Dimensions
Documents
Style & Materials
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Is the KT-EMRG-LED-12C-1200-EN dimmable?
Is the KT-EMRG-LED-12C-1200-EN dimmable?
What is the input voltage range for this emergency driver?
What is the input voltage range for this emergency driver?
Does this driver include an integrated junction box?
Does this driver include an integrated junction box?
What is the emergency operation time for this driver?
What is the emergency operation time for this driver?
What type of battery does this emergency driver use?
What type of battery does this emergency driver use?
