12W LED Emergency Driver, 20-60V DC Output, 2 Pieces
In stock
About this item
About this item
- Output Voltage: Delivers a consistent 20-60V DC output for reliable emergency lighting.
- Dimming: This model is non-dimmable, ensuring constant power output during emergencies.
- Input Voltage: Compatible with a wide range of 120-277V AC inputs, making it versatile for various installations.
- Enclosure: Constructed with durable metal, suitable for damp locations with an IP20 rating.
- Emergency Power: Provides 90 minutes of emergency operation with a high-temperature LiFePO4 battery.
We process payments securely and do not store credit card information.
Description
Description

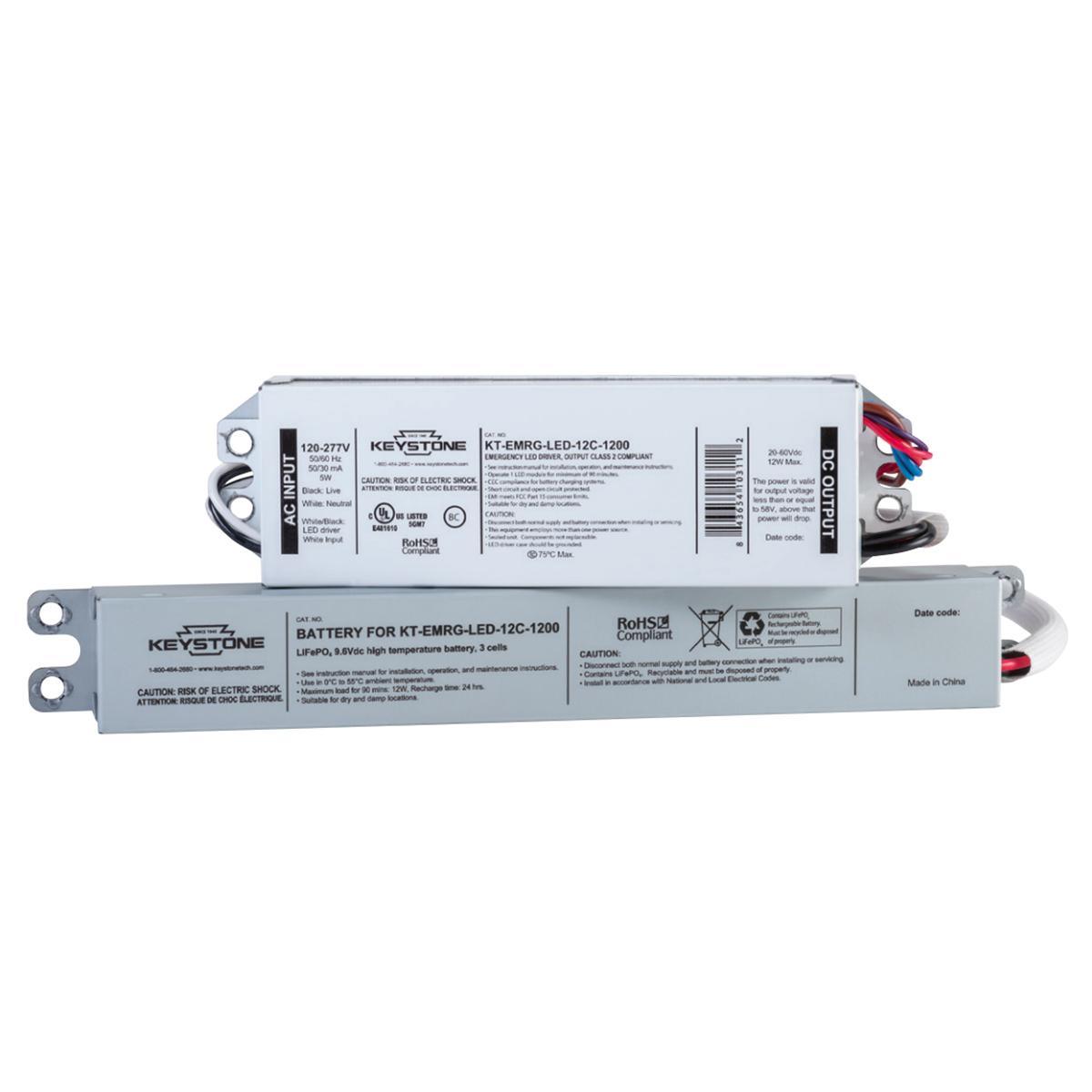

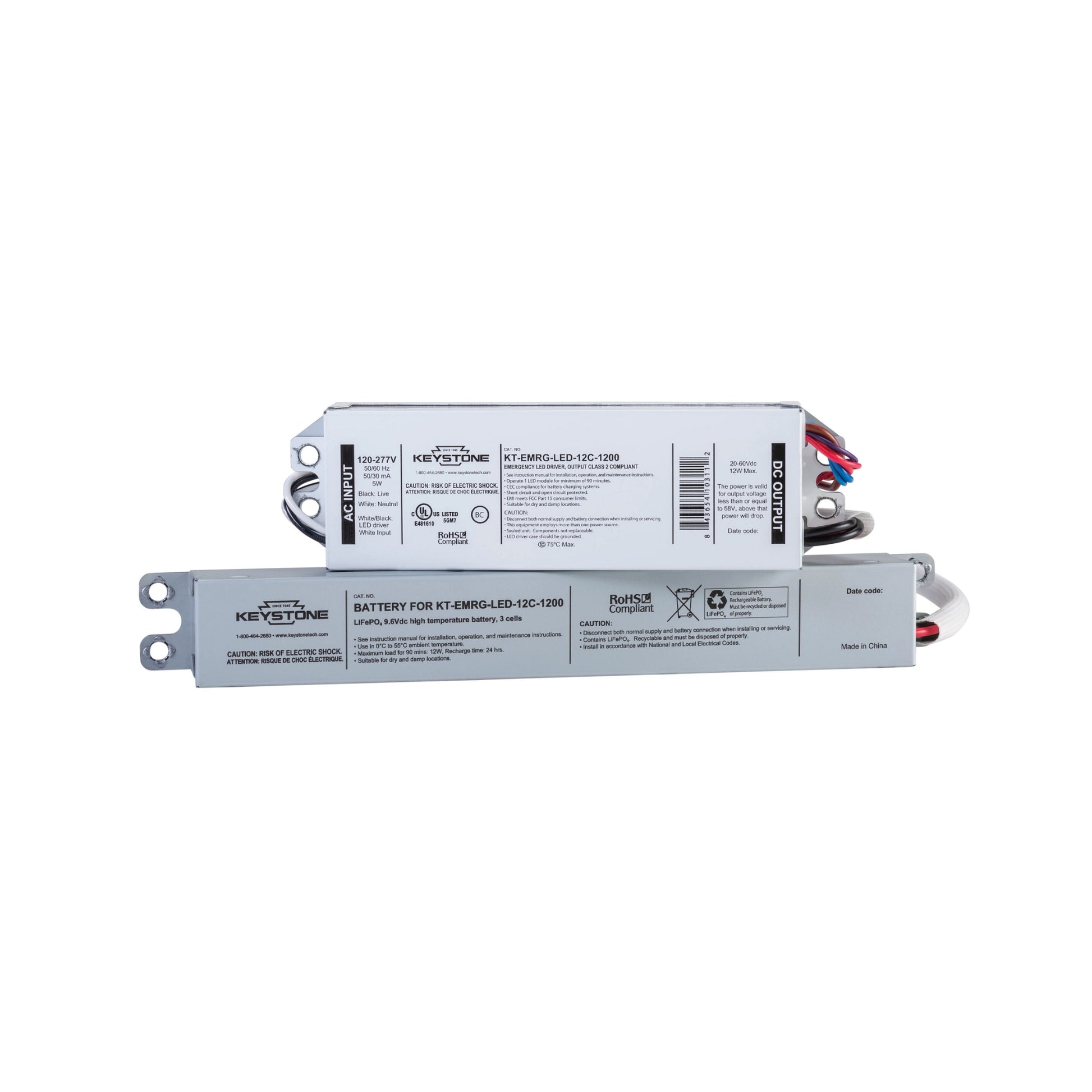

Keystone Technologies Emergency KT-EMRG-LED-12C-1200 12W LED Driver — 20-60V DC
Experience reliable emergency lighting with the Keystone Technologies KT-EMRG-LED-12C-1200, a 12W Emergency LED Driver designed for optimal performance. This driver supports an input range of 120-277V and delivers a consistent 20-60V DC output, ensuring your lighting remains operational during power outages. Featuring a Constant Power design, it is ideal for maintaining illumination in critical areas. The unit is housed in a robust metal enclosure, rated for damp locations with an IP20 classification.
Key Features
- Power Output: Maintains a constant 12W output for reliable emergency lighting.
- Input Voltage: Operates within a 120-277V AC range, accommodating various electrical systems.
- Output Voltage: Provides a stable 20-60V DC output, suitable for a range of LED fixtures.
- Battery: Equipped with a high-temperature, maintenance-free LiFePO4 battery for extended life.
- Dimensions: Compact design measuring 6.46 in. L x 1.89 in. W x 1.14 in. H for easy integration.
- Enclosure Type: Durable metal construction with IP20 rating for damp locations.
- Certifications: UL 924 listed and complies with CEC Title 20 Efficiency Standards.
- Protection: Features over-voltage, over-current, short circuit, and over-temperature protection.
- Recharge Time: Fully recharges in 24 hours, ensuring readiness for the next emergency.
Physical Design & Installation
The driver is encased in a robust metal enclosure, designed for easy installation in various settings. Its compact size allows for seamless integration into existing systems.
Dimming & Controls
This model is non-dimmable, providing a constant power output during emergencies. It supports a wide input voltage range of 120-277V AC.
Performance & Build
Engineered with multiple protection features, including over-voltage, over-current, short circuit, and over-temperature safeguards, ensuring reliable operation. It is UL 924 listed and IP20 rated for damp locations.
Typical Applications
- Commercial buildings
- Healthcare facilities
- Educational institutions
- Industrial sites
Specifications
Specifications
Dimensions
Documents
Style & Materials
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Is the KT-EMRG-LED-12C-1200 dimmable?
Is the KT-EMRG-LED-12C-1200 dimmable?
What is the input voltage range for this emergency LED driver?
What is the input voltage range for this emergency LED driver?
Does this driver include an integrated junction box?
Does this driver include an integrated junction box?
What is the IP rating of the KT-EMRG-LED-12C-1200?
What is the IP rating of the KT-EMRG-LED-12C-1200?
What is the minimum load requirement for this driver?
What is the minimum load requirement for this driver?
