12W LED Emergency Driver, 40-100V DC Output, Dual Flex
Available in stock (200)
About this item
About this item
- Output Voltage: Provides a reliable 40-100V DC output for emergency lighting applications.
- Dimming: This driver is non-dimmable, ensuring consistent emergency operation.
- Input Voltage: Compatible with a wide range of 120-277V AC input, making it versatile for various installations.
- Enclosure: Features a robust metal housing with dual-flex conduit for easy integration.
- Battery Backup: Delivers 12W of power for up to 90 minutes during power outages.
We process payments securely and do not store credit card information.
Description
Description

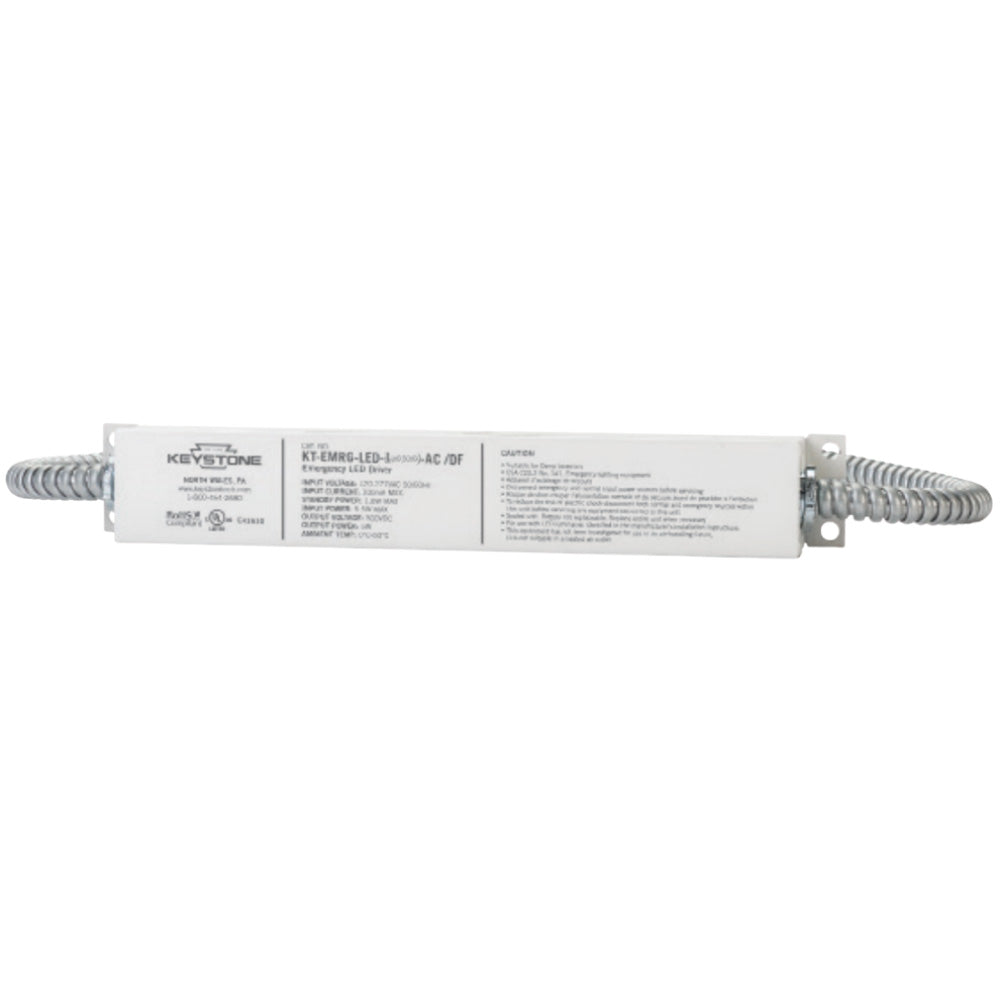

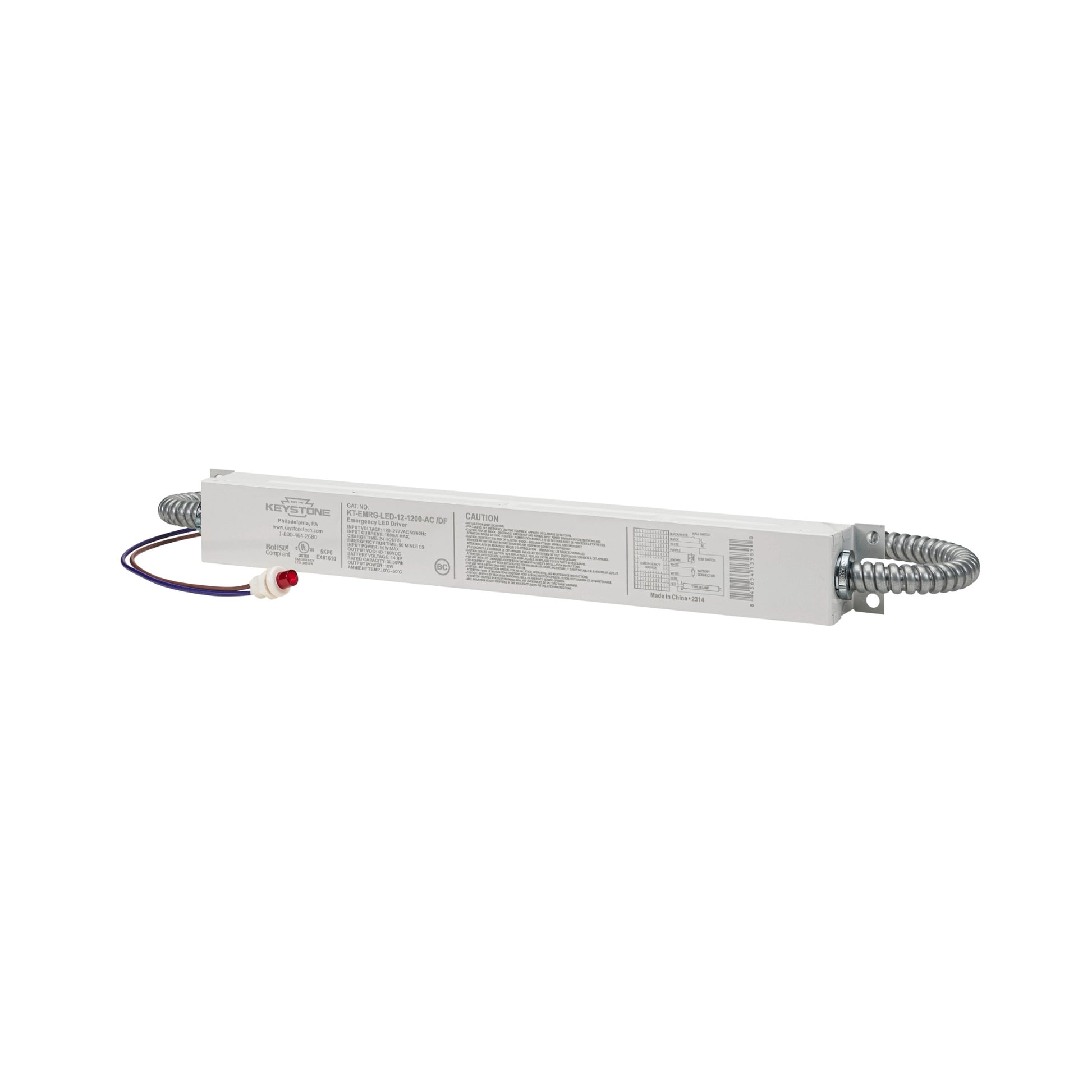

Keystone Technologies KT-EMRG-LED-12-1200-AC-DF 12W Emergency Driver — 40-100V DC
The Keystone Technologies KT-EMRG-LED-12-1200-AC-DF is a 12W Emergency Driver designed to provide reliable power to LED fixtures during power outages. With an output voltage range of 40-100V DC, this driver ensures consistent illumination in emergency situations. It operates on a wide input voltage range of 120-277V AC, making it suitable for various applications. This driver is optimized for constant wattage output and is housed in a durable metal enclosure.
Key Features
- Power Output: Provides a maximum output power of 12W, ensuring sufficient illumination during emergencies.
- Input Voltage: Operates efficiently within a 120-277V AC input range.
- Output Voltage: Delivers a stable 40-100V DC output for LED loads.
- Dimming: Non-dimmable design for consistent emergency lighting performance.
- Dimensions: Compact design measuring 14.88 in. L x 1.73 in. W x 1.42 in. H for easy installation.
- Enclosure Type: Sturdy metal housing with dual-flex conduit for secure and flexible installation.
- IP Rating: Suitable for indoor use with standard protection.
- Class 2: Complies with Class 2 power supply standards for safety.
- Certifications: UL listed and meets UL 924 requirements for emergency lighting.
Physical Design & Installation
The driver features a one-piece metal housing with dual-flex conduit, allowing for easy installation into 1/2 inch knockouts.
Dimming & Controls
This driver is non-dimmable, designed to provide a constant output during emergency mode without the need for dimming controls.
Performance & Build
Includes short circuit, over-voltage, and thermal protection features, ensuring reliable operation. Complies with Class 2 and UL 924 standards.
Typical Applications
- Commercial emergency lighting
- Office buildings
- Retail spaces
- Industrial facilities
Specifications
Specifications
Dimensions
Documents
Style & Materials
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Is the KT-EMRG-LED-12-1200-AC-DF dimmable?
Is the KT-EMRG-LED-12-1200-AC-DF dimmable?
What input voltage does the KT-EMRG-LED-12-1200-AC-DF support?
What input voltage does the KT-EMRG-LED-12-1200-AC-DF support?
Does the KT-EMRG-LED-12-1200-AC-DF include an integrated junction box?
Does the KT-EMRG-LED-12-1200-AC-DF include an integrated junction box?
What is the output voltage range of the KT-EMRG-LED-12-1200-AC-DF?
What is the output voltage range of the KT-EMRG-LED-12-1200-AC-DF?
What is the IP rating of the KT-EMRG-LED-12-1200-AC-DF?
What is the IP rating of the KT-EMRG-LED-12-1200-AC-DF?
