Keystone Technologies KT-EMRG-LED-12-1200-AC 12W Emergency Driver — 40-300V DC

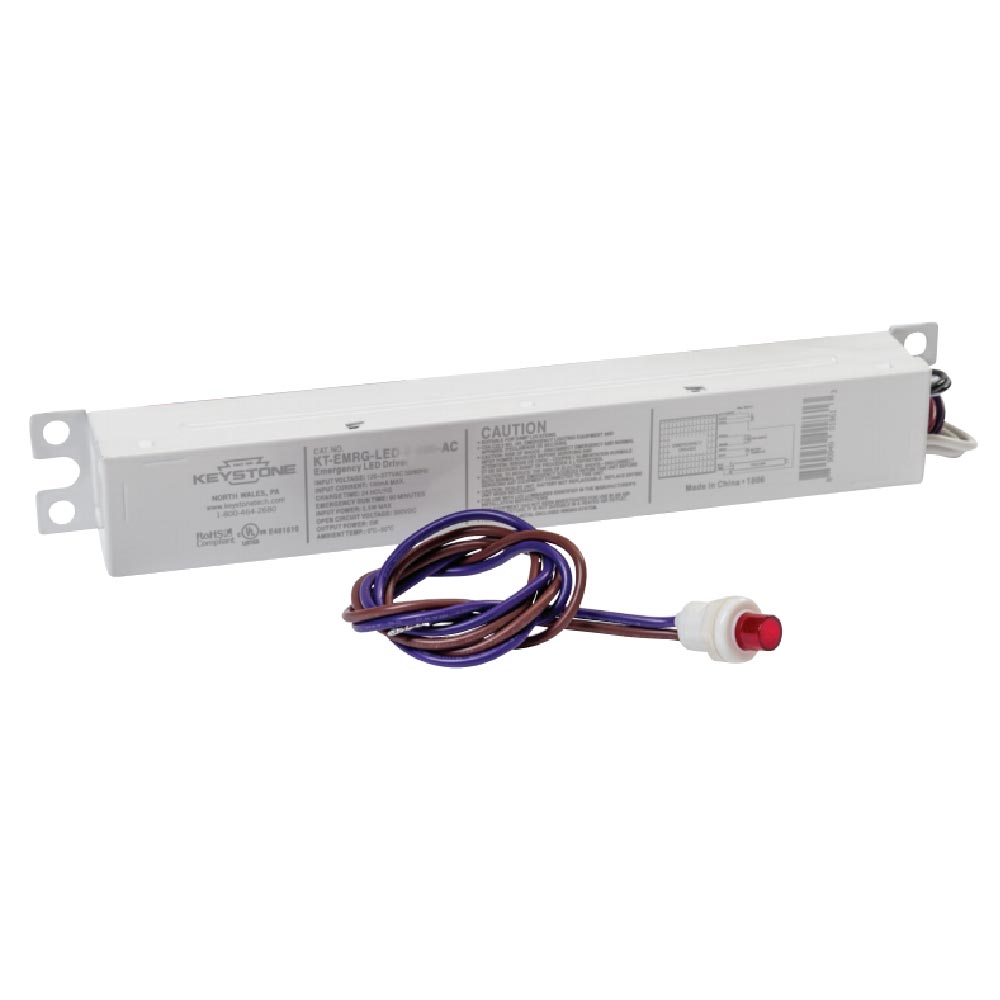

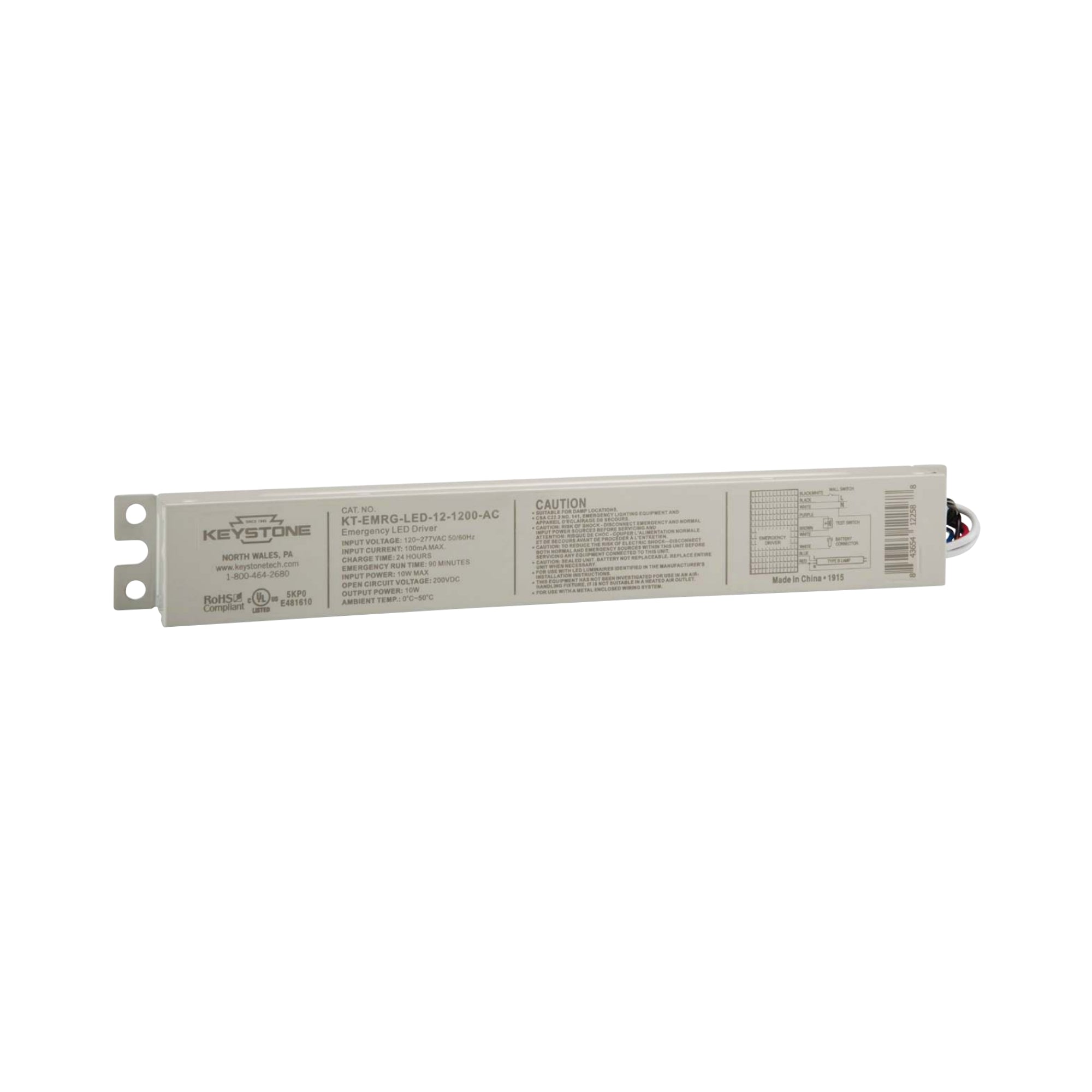

The Keystone Technologies KT-EMRG-LED-12-1200-AC is a 12W Emergency Driver designed to provide reliable emergency lighting with an output voltage of 40-300V DC. This constant wattage driver is ideal for maintaining illumination during power outages, ensuring safety and compliance. With an input voltage range of 120-277V AC, it is compatible with a wide variety of installations. The driver features a robust metal enclosure, making it suitable for dry-rated environments.

Key Features

• Power Output: Delivers a maximum of 12W to support emergency lighting needs.
• Input Voltage: Compatible with 120-277V AC for flexible installation options.
• Output Voltage: Provides 40-300V DC to ensure consistent performance.
• Dimming: Non-dimmable design for stable emergency operation.

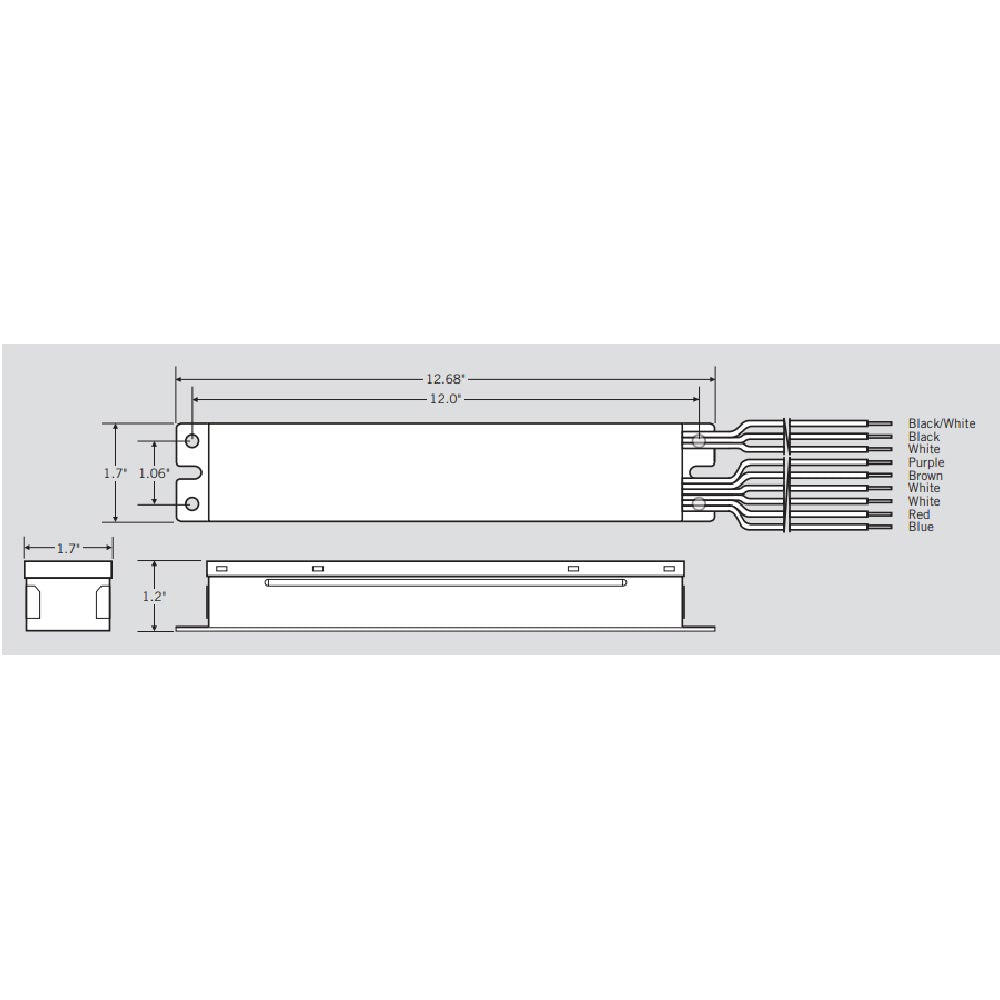

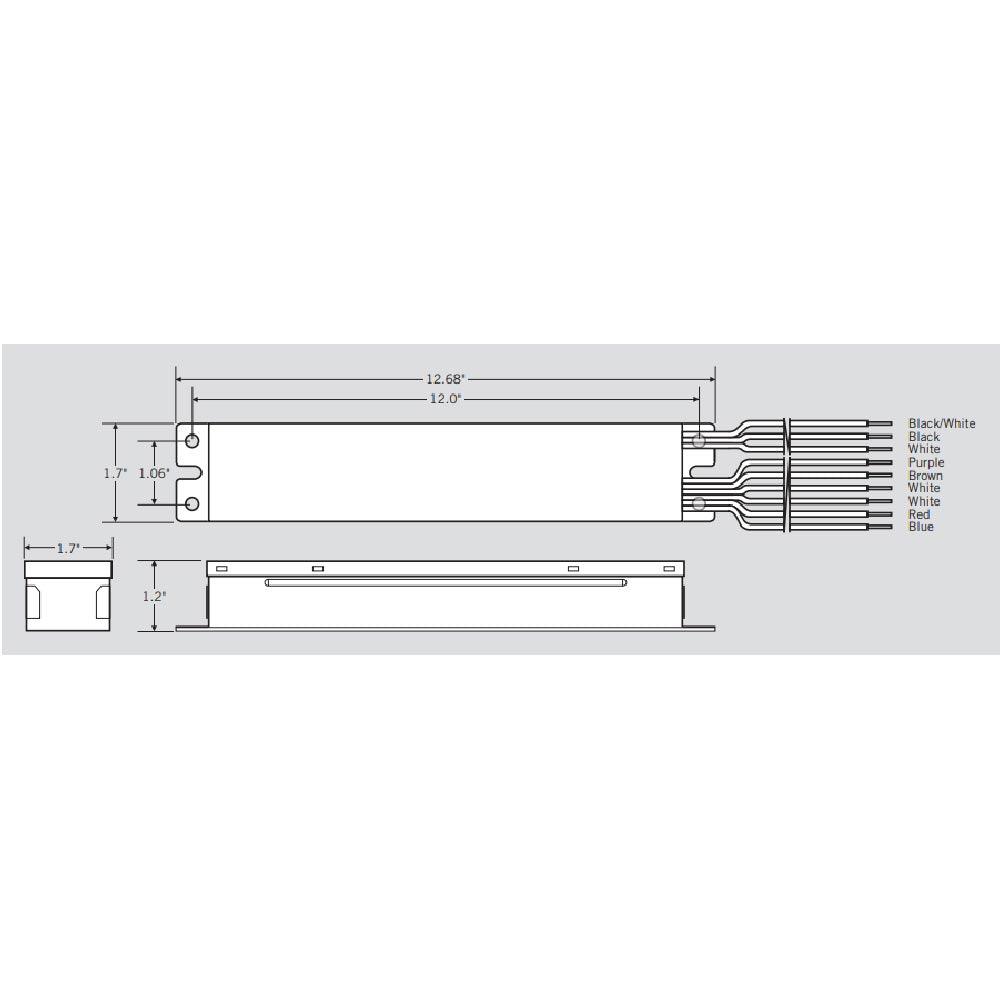

• Dimensions: Measures 12.68 in. L x 1.70 in. W x 1.20 in. H for compact installation.
• Enclosure Type: Metal housing for durability and protection.
• IP Rating: Suitable for dry locations, ensuring compliance with safety standards.
• Class 2: Complies with Class 2 requirements for safe operation.
• Certifications: UL listed and complies with CEC Title 20 efficiency standards.

Physical Design & Installation

The driver features a sturdy metal enclosure, providing protection and longevity. It is designed for easy installation in dry-rated environments.

Dimming & Controls

This emergency driver is non-dimmable, ensuring consistent performance during emergency situations. It operates within an input range of 120-277V AC and outputs 40-300V DC.

Performance & Build

Equipped with short circuit, over-voltage, and thermal protection, this driver ensures reliable operation. It meets Class 2 compliance and is UL listed for safety.

Typical Applications

• Commercial buildings
• Industrial facilities
• Educational institutions
• Healthcare environments
