Keystone LED Emergency Light, Dual Square Heads, Remote Capable, 200 Lumens, 90-Min Battery Backup, 120-277V, 2W, Surface Mount, Black (KT-EM-TP1-BLWL-SU-RC)
Keystone LED Emergency Light, Dual Square Heads, Remote Capable, 200 Lumens, 90-Min Battery Backup, 120-277V, 2W, Surface Mount, Black (KT-EM-TP1-BLWL-SU-RC)
Available in stock (100)
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Remote Capable: Powers additional remote heads for expanded emergency coverage
- Dual Square Lamp Heads: Adjustable heads provide 200 lumens of 6500K emergency illumination
- 90-Min Battery Backup: UL924 listed, Nickel-Cadmium 2000mAh battery meets NEC/IBC requirements
- Thermoplastic Housing: Durable 10.06" x 3.60" x 1.74" black housing with UL 94 5VA flame rating
- Energy Efficient: Only 2W consumption, 120-277V, Keystone quality with 5-year warranty
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description

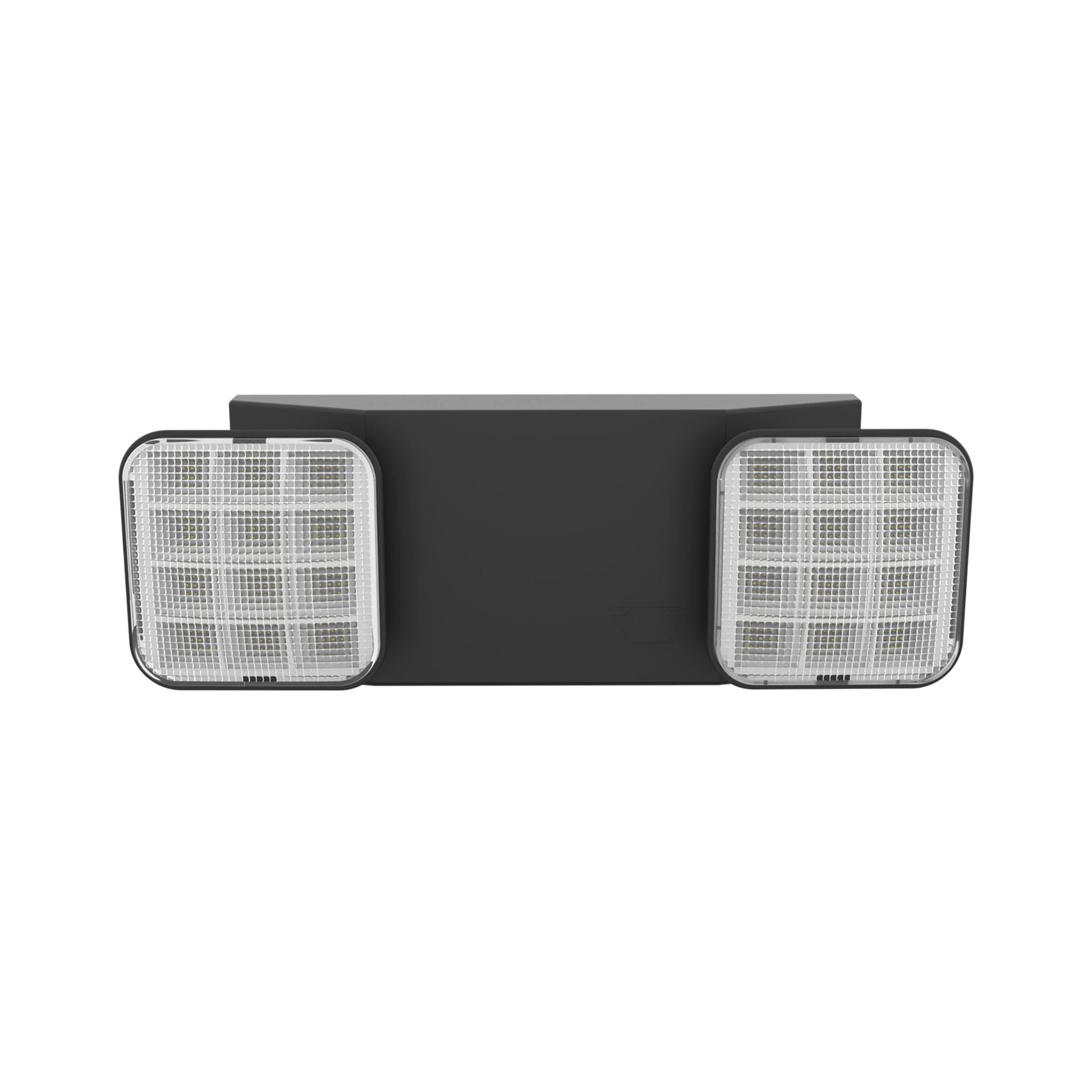

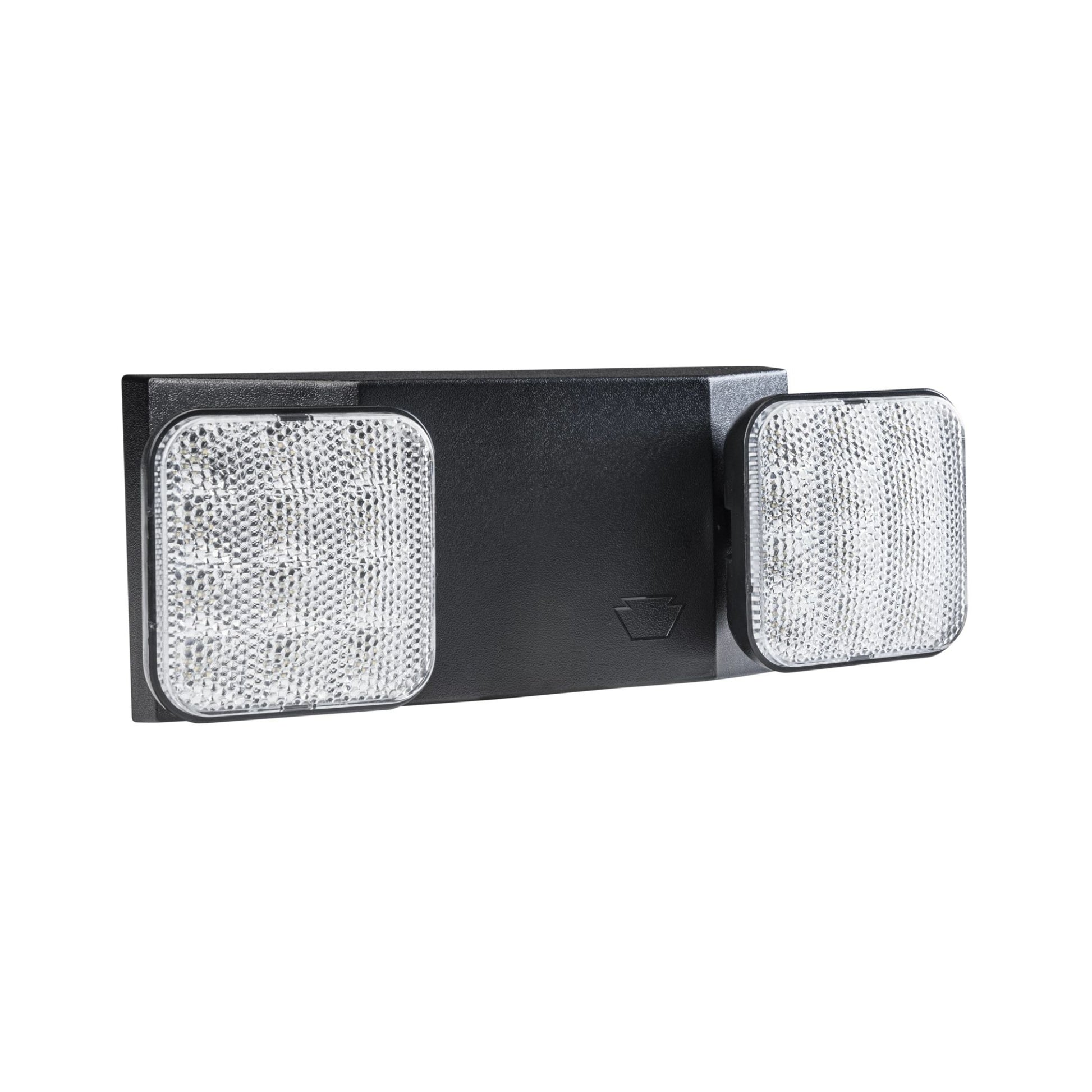

Keystone KT-EM-TP1-BLWL-SU-RC LED Emergency Light - Remote Capable
The Keystone KT-EM-TP1-BLWL-SU-RC is a Keystone Technologies LED emergency light with remote capability designed for code-compliant emergency egress illumination. This versatile emergency lighting solution features dual adjustable square lamp heads delivering 200 lumens, remote head capability, 90-minute battery backup, and universal 120-277V voltage. The thermoplastic housing with black finish provides durability while the energy-efficient LED technology ensures reliable emergency illumination for commercial buildings, multi-family residential, and institutional facilities requiring UL924-listed emergency lighting with expandable coverage.
Keystone KT-EM-TP1-BLWL-SU-RC Features
- Dual Square Lamp Heads: Two adjustable square heads rotate and pivot for optimal emergency light coverage
- 200 Lumens Output: Bright, energy-efficient 6500K white LED illumination provides adequate egress path visibility
- Remote Capable: Powers additional remote emergency light heads for expanded coverage beyond the unit
- 90-Minute Battery Backup: Meets NEC and IBC emergency duration requirements with Nickel-Cadmium 2000mAh battery
- Thermoplastic Housing: Durable black housing (10.06" W x 3.60" H x 1.74" D) with UL 94 5VA flame rating
- Universal Voltage: 120-277V AC operation for flexible installation in commercial applications
- Energy-Efficient LED: 2W input power with 6500K color temperature
- Surface Mounting: Easy installation with back mount configuration
- UL924 Listed: Certified for emergency lighting applications and code compliance
Keystone KT-EM-TP1-BLWL-SU-RC Specifications
- Brand: Keystone Technologies
- Model Number: KT-EM-TP1-BLWL-SU-RC
- UPC: 843654169158
- Product Type: LED Emergency Light - Remote Capable
- Lamp Head Type: Square, 2 adjustable heads (integrated)
- Light Output: 200 lumens total
- Remote Capability: Yes - powers additional remote heads (sold separately)
- Housing: Thermoplastic (UL 94 5VA flame rating), black
- Dimensions: 10.06" W x 3.60" H x 1.74" D
- Weight: 1.4 lbs
- Battery: Nickel-Cadmium 2000mAh
- Battery Backup Time: 90 minutes minimum
- Recharge Time: 24 hours
- Input Voltage: 120-277V AC, 50/60Hz
- Input Power: 2W
- Color Temperature: 6500K
- Mounting: Surface mount, back mount
- Operating Temperature: 0°C/32°F to 40°C/104°F
- Certifications: cULus, UL924 Listed, damp location rated
- Warranty: 5 Years
Keystone KT-EM-TP1-BLWL-SU-RC Applications
- Commercial office buildings and corridors
- Retail stores and shopping centers
- Educational and healthcare facilities
- Hospitality and multi-family residential
- Industrial facilities, stairwells, and exit pathways
- Large open areas requiring remote head capability

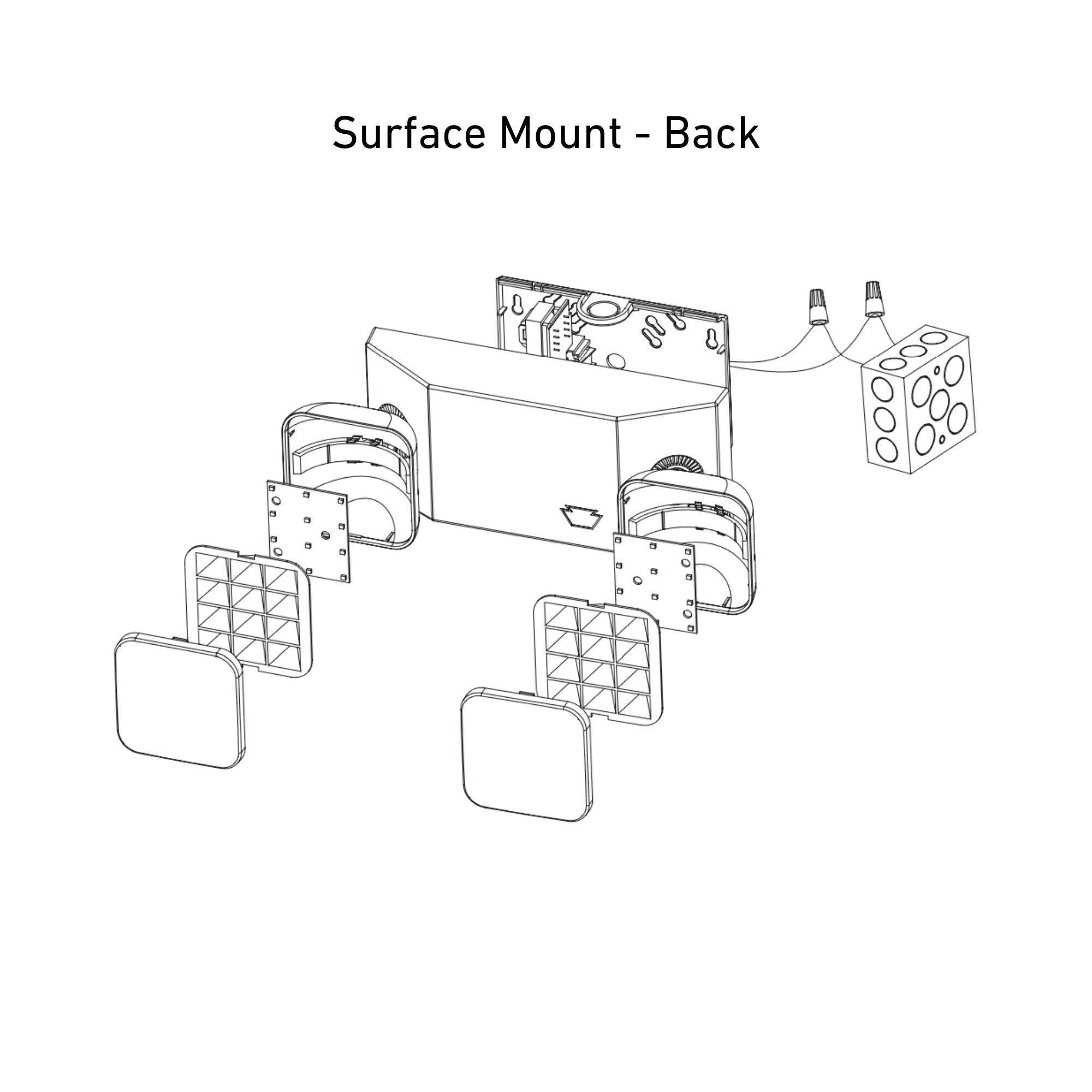

Installation & Operation
Surface mounts with back mount configuration. Connect to 120-277V AC power and adjust dual square lamp heads for optimal coverage. Optional remote emergency light heads (sold separately) can be connected to expand coverage. Unit automatically charges battery. During power loss, battery backup activates for 90 minutes of emergency illumination for both integrated and remote heads.
Remote Capability
The KT-EM-TP1-BLWL-SU-RC powers additional emergency light heads (sold separately) from the unit's battery backup system. This feature is ideal for large corridors, open areas, or locations where additional emergency illumination is required beyond the coverage provided by the integrated dual lamp heads. Remote capability reduces the need for multiple standalone emergency lights, simplifying installation and reducing overall system costs while maintaining code compliance.
Why Choose Keystone Emergency Lights
Keystone Technologies delivers code-compliant emergency lighting solutions engineered for reliability and ease of installation. The KT-EM-TP1-BLWL-SU-RC combines energy-efficient LED design with 90-minute battery backup, remote capability, and dual adjustable square lamp heads. With cULus and UL924 listing, universal 120-277V voltage, remote head capability, and flexible mounting options, this emergency light delivers professional-grade performance with maximum flexibility. With Keystone's 5-year warranty and reputation for quality, the KT-EM-TP1-BLWL-SU-RC delivers long-term reliability and value.
Why Buy From Us: As an authorized Keystone dealer, we guarantee 100% genuine products with full manufacturer warranty, expert technical support, and fast shipping.
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
Where are emergency lights required?
Where are emergency lights required?
Emergency lighting is required along the "path of egress." This includes hallways, stairwells, corridors, and any room with an occupancy load of more than 50 people. The goal is to ensure that anyone in the building can see clearly enough to walk to the nearest exit.
How often do I need to test them?
How often do I need to test them?
Fire codes (NFPA 101) require a monthly 30-second test and an annual 90-minute test. All our units come with a "push-to-test" button to make the monthly check easy.
What is a "bug eye" light?
What is a "bug eye" light?
"Bug eye" is a nickname for the standard emergency light fixture that has a rectangular box (the battery housing) and two round, adjustable lamp heads on top or on the sides, which resemble the eyes of a bug or frog. They are the most popular type of emergency egress lighting due to their low cost and high effectiveness.
Can I use these outdoors?
Can I use these outdoors?
Only if the specific model is rated for "Wet Locations" or "Outdoor Use." Standard thermoplastic bug eye lights are typically for indoor use (Damp Location) only. If you install an indoor unit outside, moisture will corrode the battery.
Do these lights stay on all the time?
Do these lights stay on all the time?
No. These are "non-maintained" fixtures, meaning they are normally off. They only turn on when they detect that the building's main power has been lost.
