Keystone KT-EC-TP3-WH3RW-SD Red Exit Combo 90-Min Backup 120/277V Surface Mount White

Vendor: Keystone Technologies

SKU: KT-EC-TP3-WH3RW-SD

Wet RatedSave 14%
$124.92
$124.92 $146.36
Shipping calculated at checkout.

Available in stock (199)

Must be ordered in quantities of .

About this item
  • Battery Backup: Provides 90 minutes of emergency power for reliable safety during outages.
  • Illumination: Features red LED lettering for clear visibility in emergency situations.
  • Input Voltage: Operates on dual voltage of 120V and 277V for versatile installation options.
  • Mounting: Offers surface mounting with back and side options for flexible installation.
  • Safety Certifications: UL certified for wet locations, ensuring durability in various environments.
View More Details
Payment & Security
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • USDC
  • Visa

We process payments securely and do not store credit card information.

Description

Keystone KT-EC-TP3-WH3RW-SD Exit Combo — 90-Minute Emergency Capability with 120/277V Input

The Keystone KT-EC-TP3-WH3RW-SD is a versatile exit combo unit featuring red LED lettering and a 90-minute battery backup. Designed for wet locations, this unit is UL 924 compliant and operates on 120/277V input. Ideal for ensuring safety in emergency situations.

Key Features

  • Red LED Lettering: Provides clear and visible exit indication with integrated red LEDs.

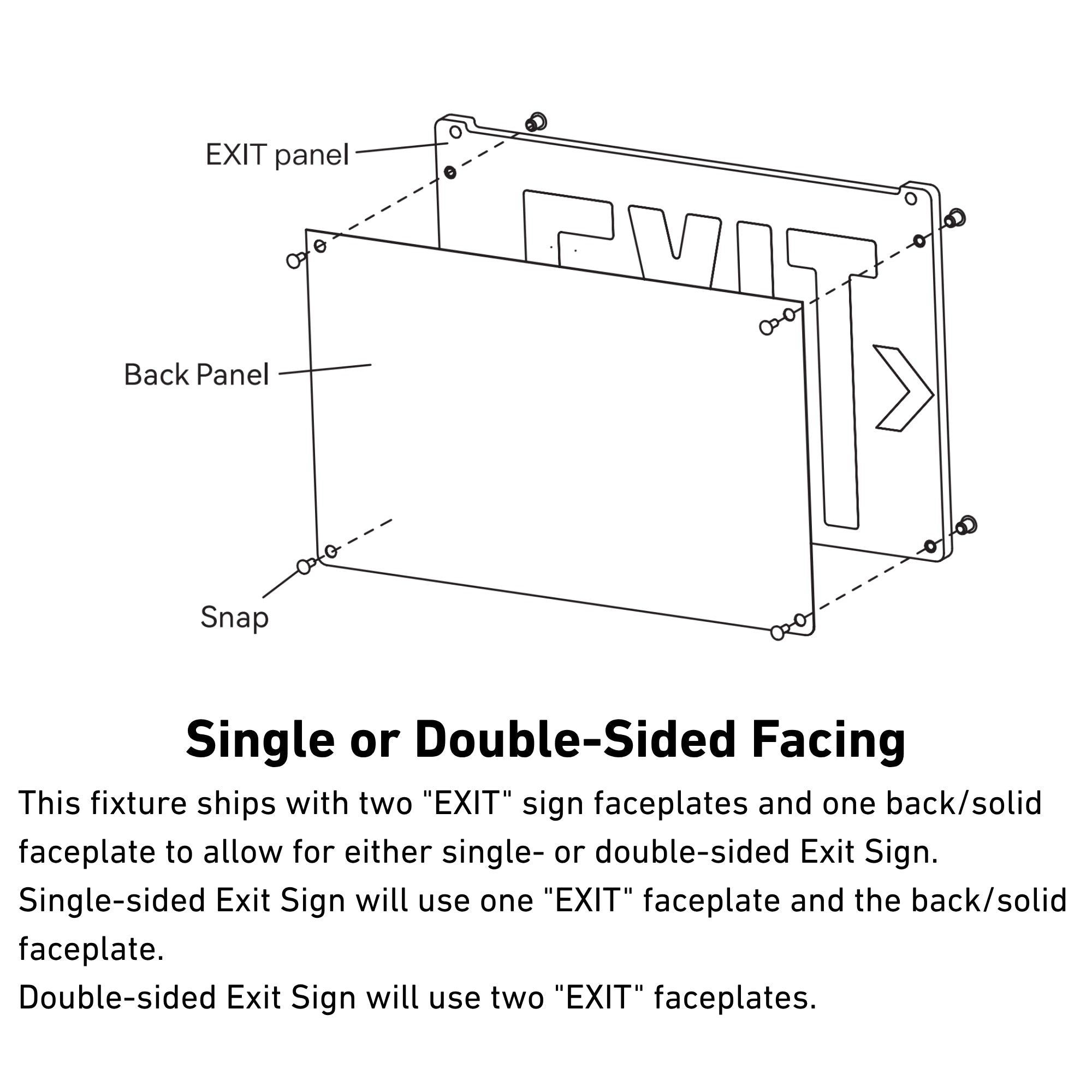

  • Dual Face Configurations: Includes both single and double faceplates for adaptable installation.

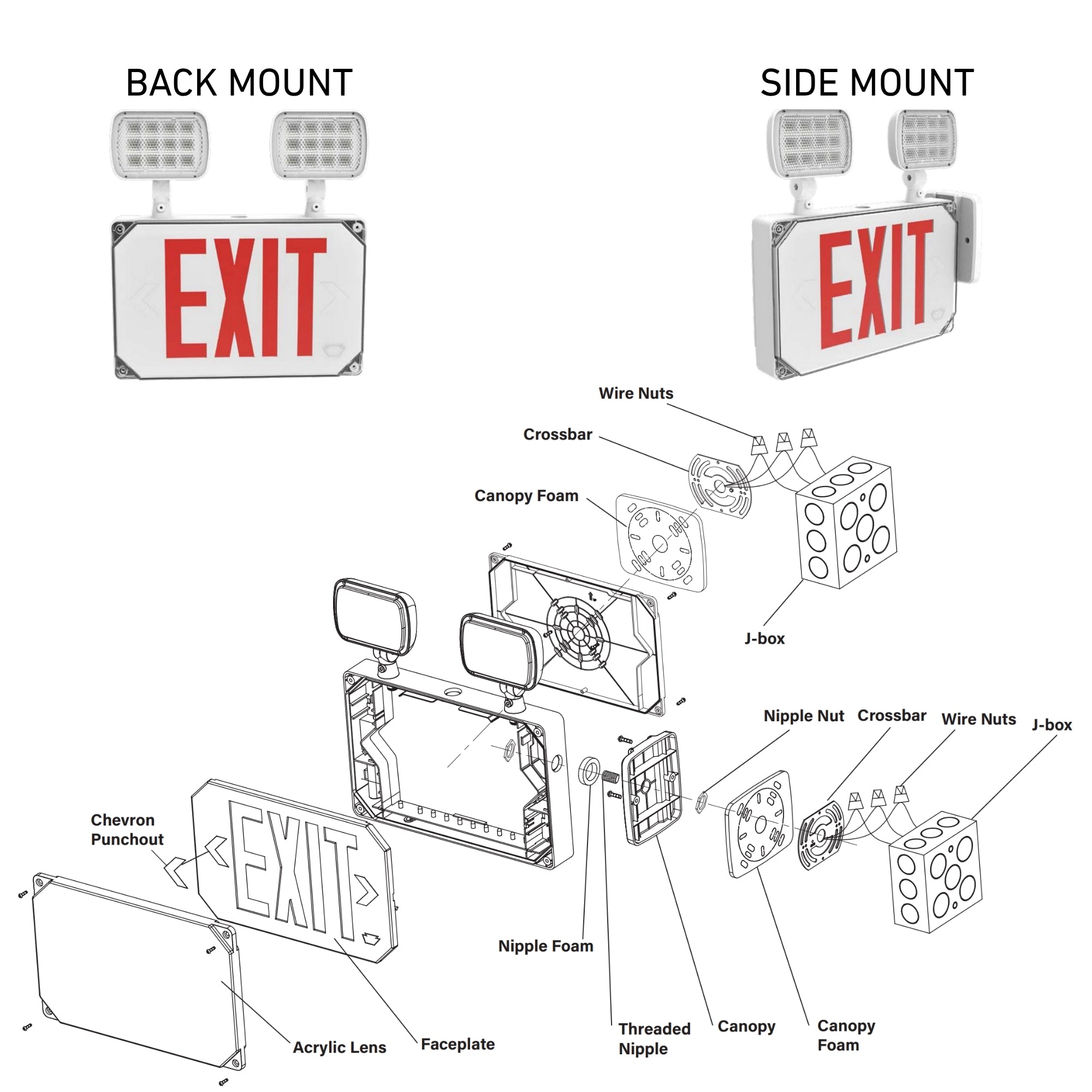

  • Surface Mounting: Supports side and back mounting options for ease of installation.
  • Battery Type: Integrated Nickel-Metal Hydride battery with 1200mAh capacity.
  • Recharge Time: Fully recharges in 24 hours, ensuring readiness for the next emergency.
  • Test Switch: Built-in test switch and charge indicator for easy maintenance checks.
  • Thermoplastic Housing: Durable construction with UL 94 5VA flame rating for enhanced safety.
  • Operating Temperature: Functions effectively in temperatures ranging from 0°C/32°F to 40°C/104°F.

Performance & Illumination

This exit combo delivers 300 lumens of 6500K white light, ensuring high visibility. The red LED lettering is designed for optimal clarity in emergency situations.

Electrical & Battery

Operating on 120/277V, the unit features a Nickel-Metal Hydride battery that recharges in 24 hours. It includes a test switch for routine maintenance and is not remote capable.

Physical & Installation Details

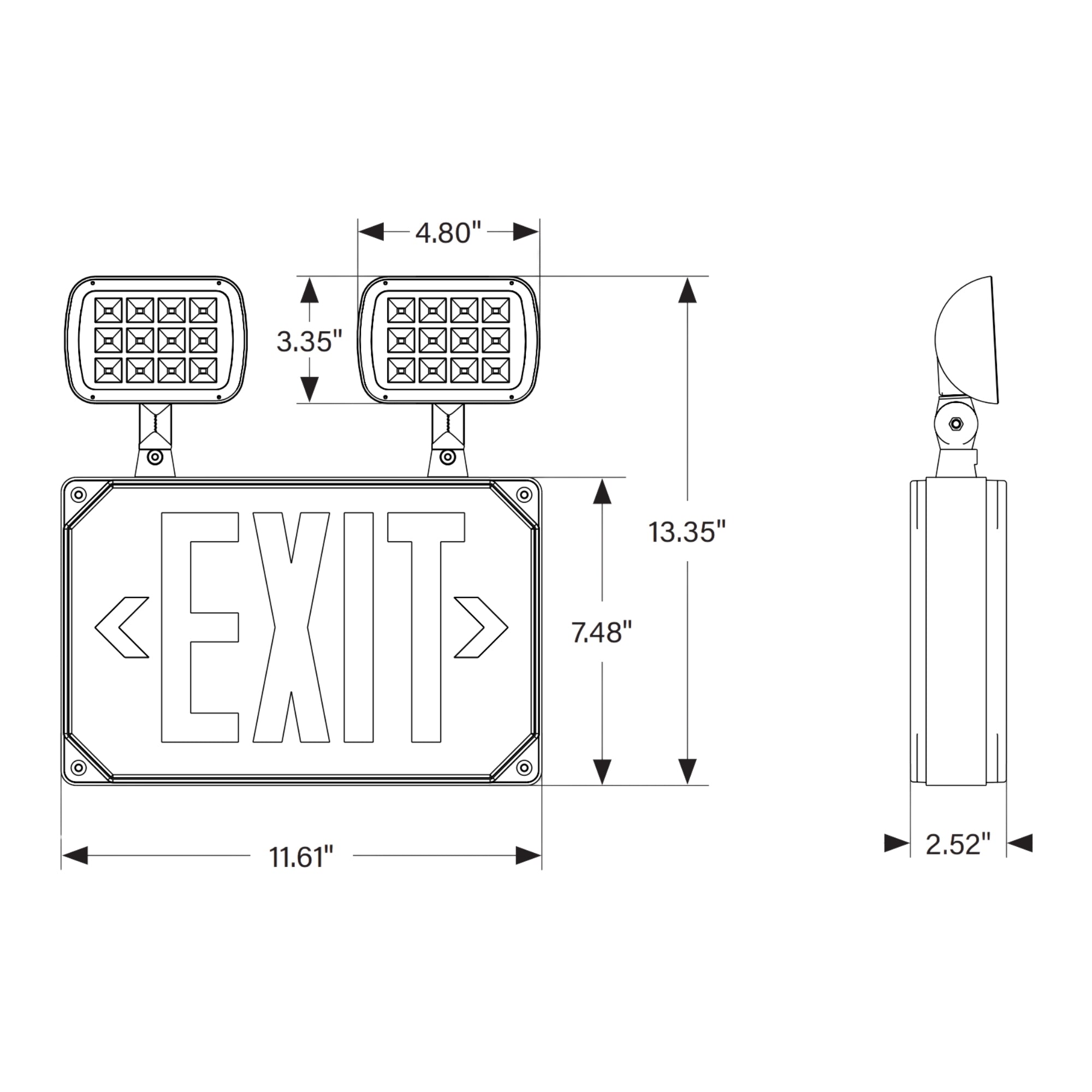

Constructed from thermoplastic, the unit measures 11.61 in length, 2.52 in width, and 13.35 in height. It includes universal J-box mounting pattern for easy installation.

Compliance & Safety

UL certified for wet locations, the unit meets UL 924 standards and has a UL 94 5VA flame rating, ensuring safety and compliance in various environments.

What's Included

  • Single and double faceplates
  • Back/solid faceplate
  • Mounting hardware

Specifications

Dimensions

Length/Depth
11.61 in
Width/Diameter
2.52 in
Height
13.35 in
Weight
5.4 lb

Documents

Style & Materials

Material
Thermoplastic
Mounting Type
Surface mount

Characteristics & Features

Delivered Lumens
300

Electrical Information

Voltage
120V, 277V
Total Wattage
4W

Item Details

MPN
KT-EC-TP3-WH3RW-SD
Brand
Keystone Technologies
Catalog Number
TBZ-05
Family
Keystone Smart Safe Exit Combo
UPC
843654165288

Warranty & Certifications

Product Warranty
5 Years
Product Rating
IP65 Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

What is the battery backup duration for the KT-EC-TP3-WH3RW-SD?
The KT-EC-TP3-WH3RW-SD provides 90 minutes of battery backup. This ensures reliable operation during power outages.

Does the KT-EC-TP3-WH3RW-SD support dual voltage?
Yes, it operates on 120V and 277V. This dual voltage capability allows for flexible installation in various settings.

Is the KT-EC-TP3-WH3RW-SD suitable for wet locations?
Yes, it is UL certified for wet locations. This makes it ideal for environments where moisture is present.

Can the KT-EC-TP3-WH3RW-SD be mounted in different orientations?
Yes, it supports surface mounting with back and side options. This flexibility allows for versatile installation.

What type of battery does the KT-EC-TP3-WH3RW-SD use?
It uses a Nickel-Metal Hydride battery with a 1200mAh capacity. This battery type is reliable and efficient for emergency lighting.
