Keystone KT-EC-TP2 Exit Combo Red/Green Letters 90-Min Backup 120-277V Surface Mount White
Available in stock (200)
About this item
About this item
- Battery Backup: Provides 90 minutes of emergency power to ensure visibility during outages.
- Illumination: Features switchable red and green LED lettering for versatile application.
- Input Voltage: Operates on a wide range of 120-277V for flexible installation.
- Mounting: Offers surface mounting options including top, side, and back for easy installation.
- Safety Certifications: UL certified for damp locations, ensuring reliable performance in various environments.
We process payments securely and do not store credit card information.
Description
Description

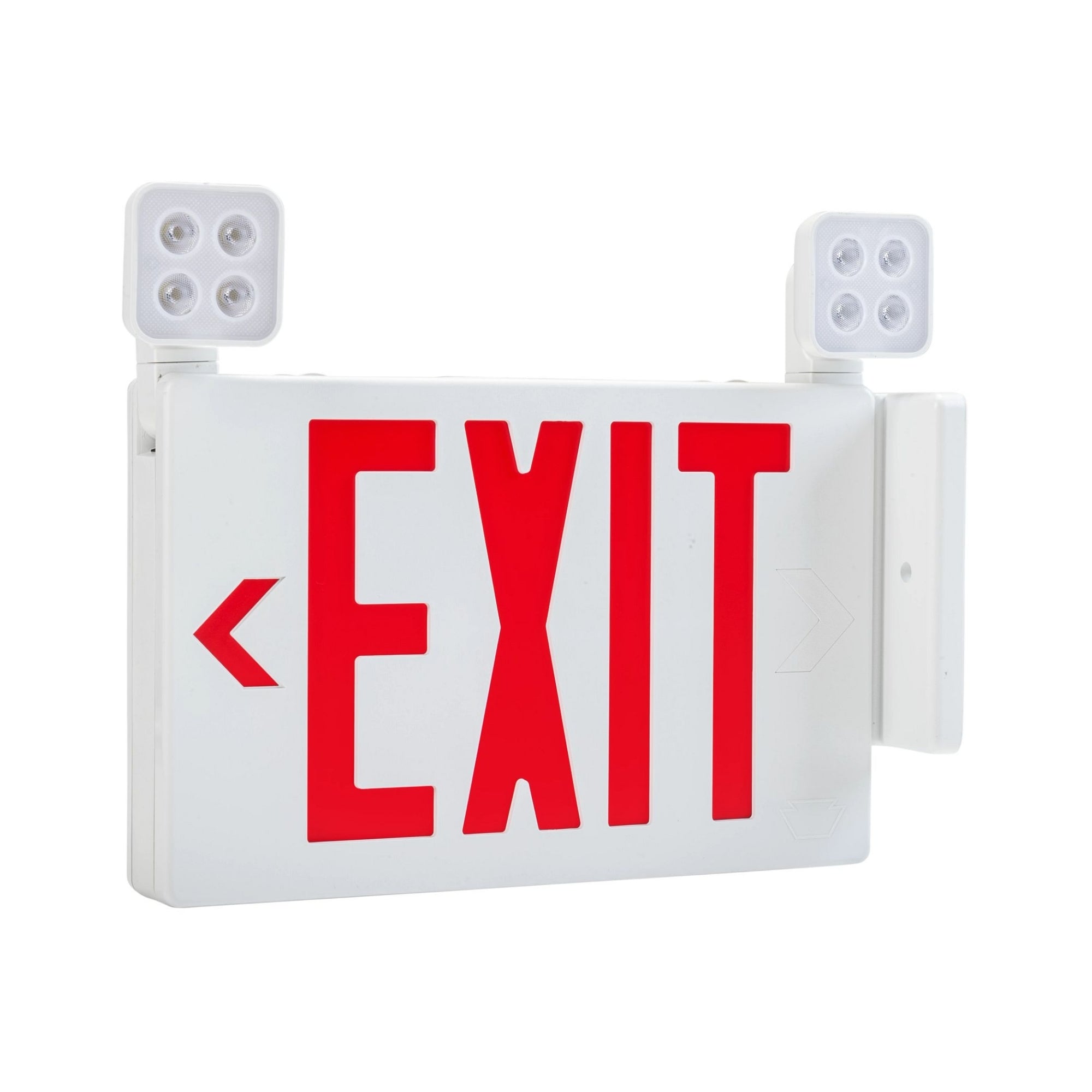

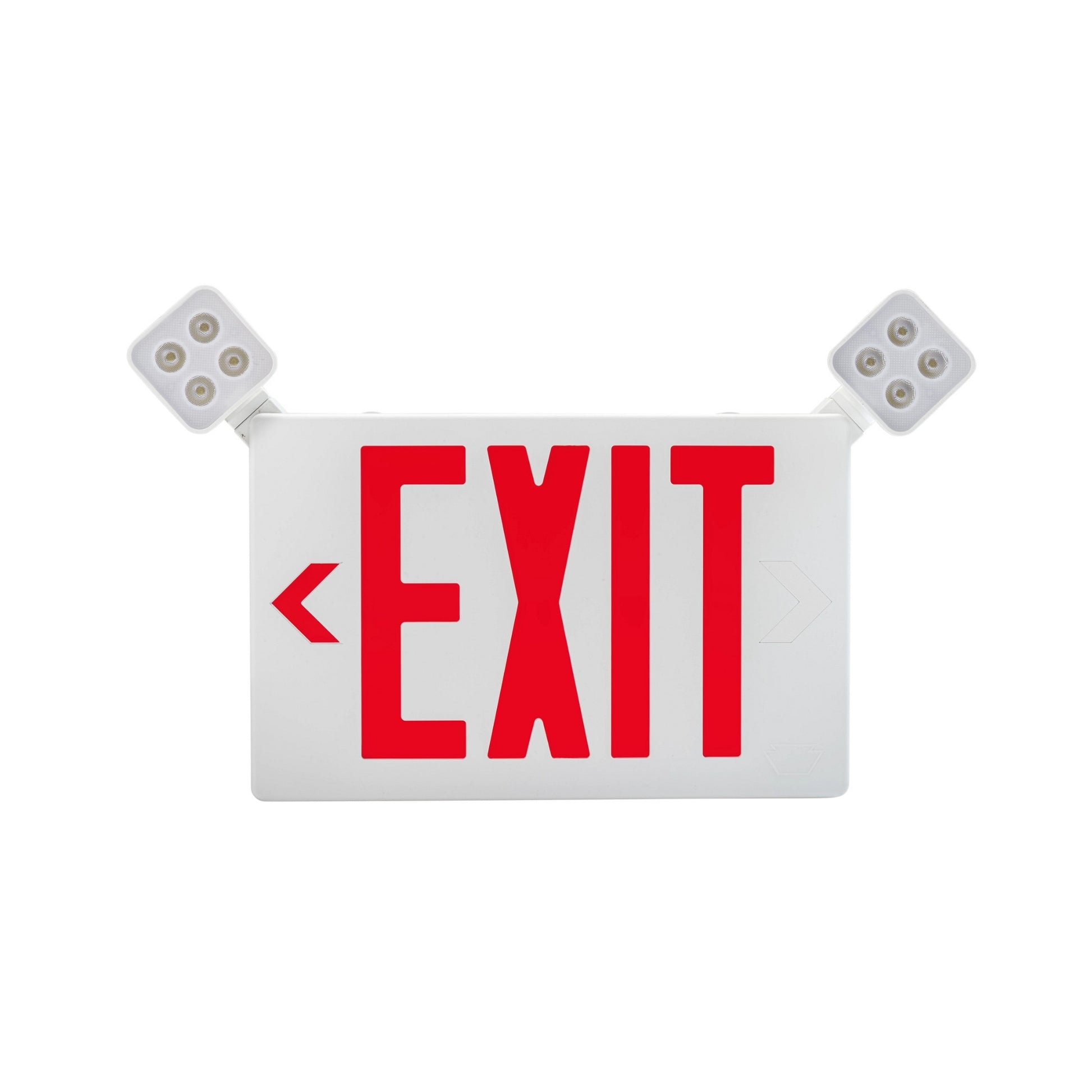

Keystone KT-EC-TP2 Exit Combo — Emergency Capability with 120-277V Input
The Keystone KT-EC-TP2-WH3RGW-SU-RC is a versatile exit combo unit featuring switchable red and green lettering and a 90-minute battery backup. Designed for 120-277V input, this unit is UL 924 compliant and suitable for damp locations, making it ideal for emergency lighting in commercial settings.
Key Features

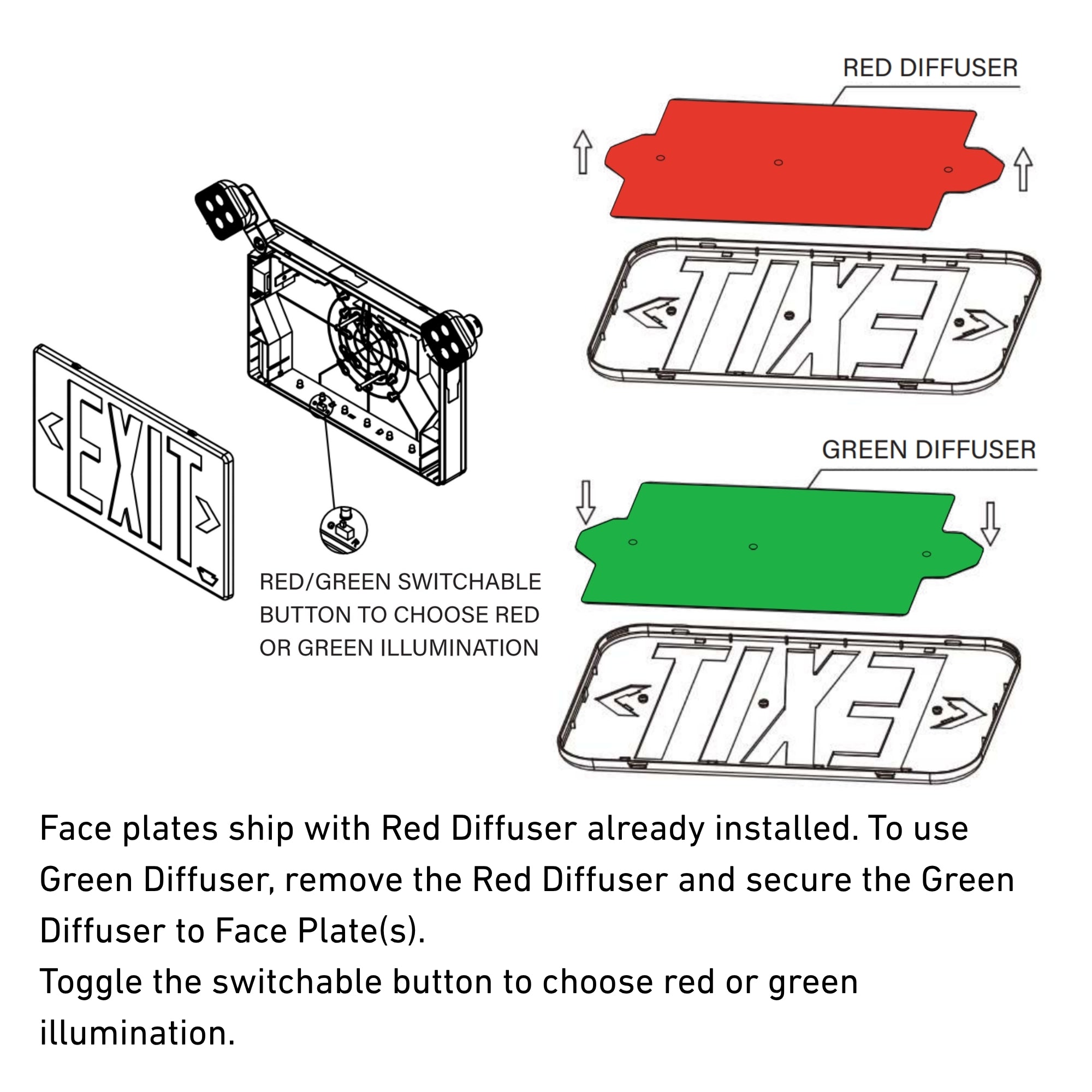

- Switchable Lettering: Easily toggle between red and green LED colors to suit your needs.

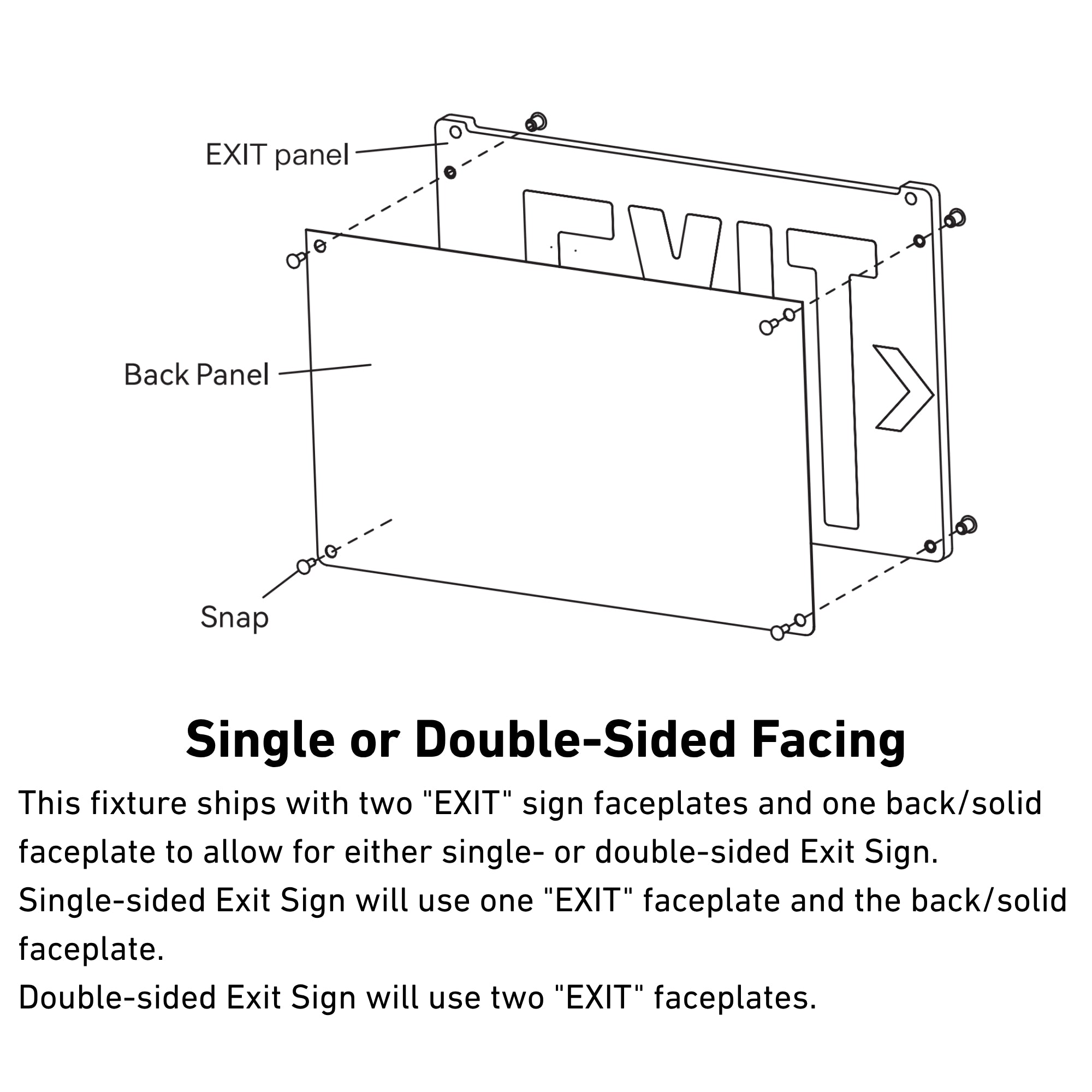

- Dual Facing Options: Includes single and double face configurations for flexible signage.

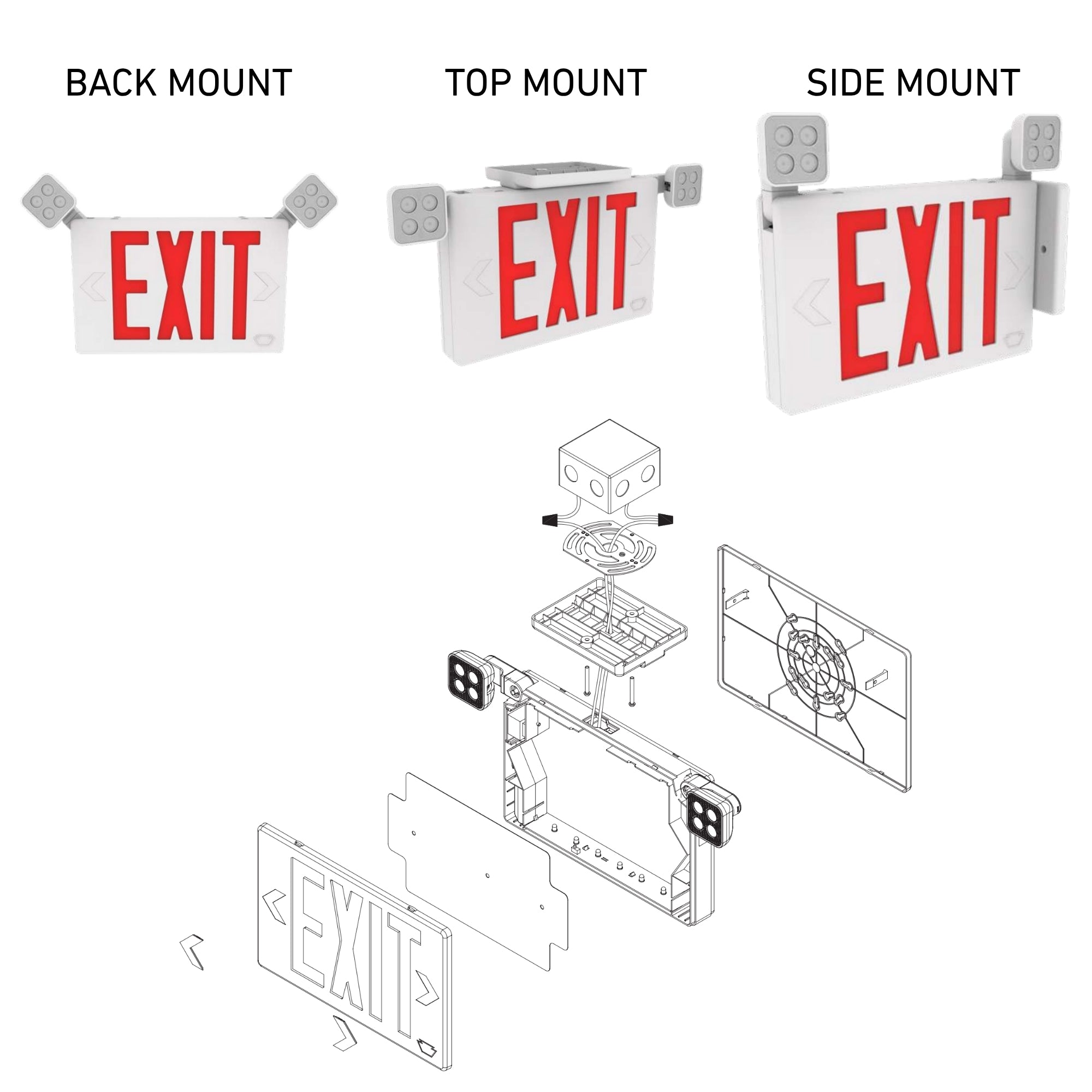

- Surface Mounting: Compatible with top, side, and back mounting for versatile installation.
- Remote Capable: Supports additional remote heads for extended coverage.
- Durable Housing: Constructed with thermoplastic material rated UL 94 5VA for flame resistance.
- Integrated Test Switch: Built-in test switch and charge indicator for easy maintenance.
- Battery Type: Equipped with a 2000mAh NiMH battery for reliable power.
- Recharge Time: Fully recharges in 24 hours, ensuring readiness for the next power outage.
Performance & Illumination
This exit combo provides clear visibility with its 160 lumens output and 6500K white light. The switchable red and green LED letters ensure adaptability to various settings.
Electrical & Battery
Operating on 120-277V, this unit features a NiMH battery with a 24-hour recharge time. It includes a test switch and charge indicator for straightforward operation and maintenance.
Physical & Installation Details

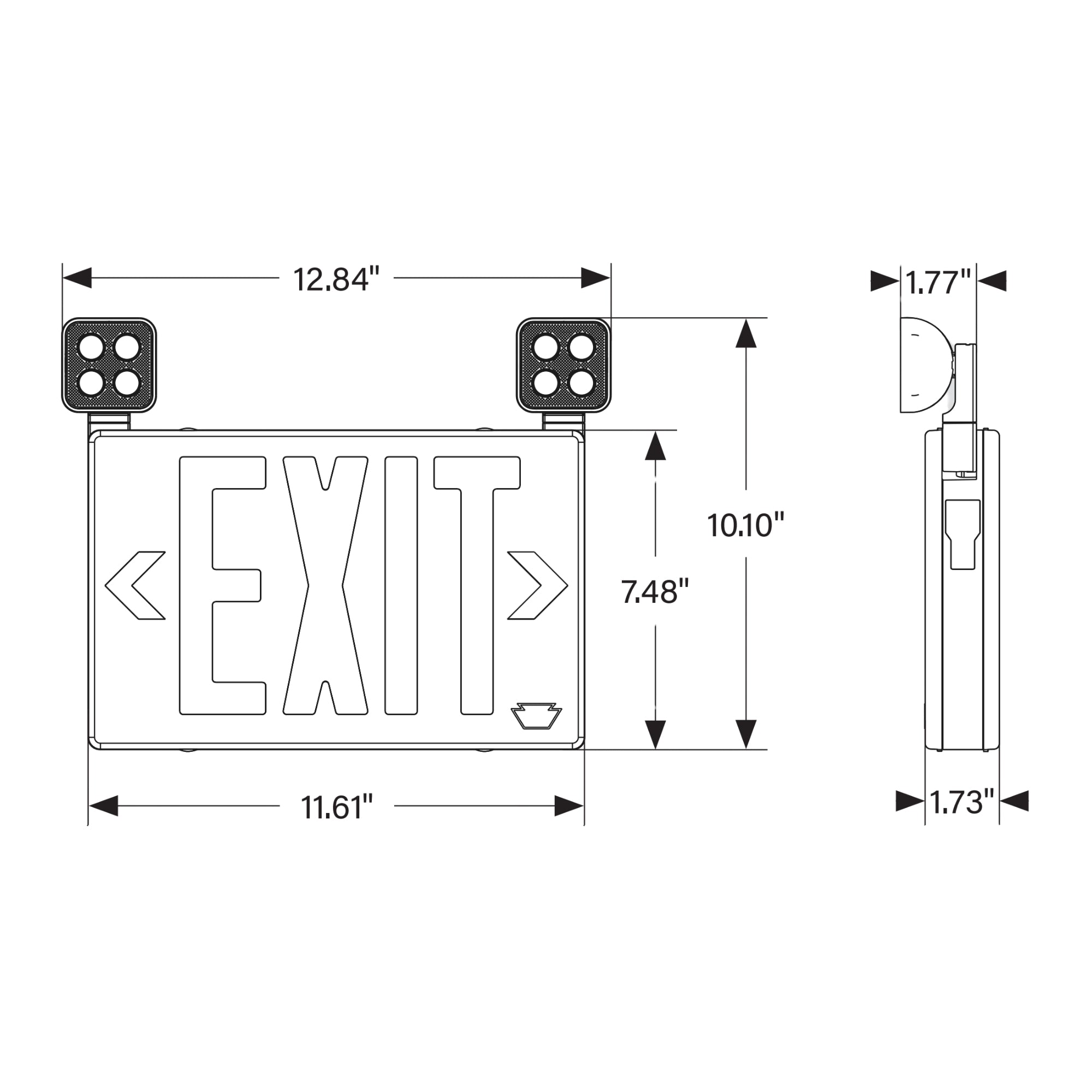

Constructed from durable thermoplastic, the unit measures 12.84 inches in length, 1.77 inches in width, and 10.10 inches in height. It supports universal J-box mounting patterns for easy installation.
Compliance & Safety
UL certified for damp locations, this exit combo is designed to operate in temperatures ranging from 0°C to 40°C, ensuring reliable performance in various environments.
What's Included
- Single and double faceplates
- Back/solid faceplate
- Mounting hardware
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the battery backup duration for the KT-EC-TP2-WH3RGW-SU-RC?
What is the battery backup duration for the KT-EC-TP2-WH3RGW-SU-RC?
Can the letter color be changed on this exit combo unit?
Can the letter color be changed on this exit combo unit?
What mounting options are available for this exit combo?
What mounting options are available for this exit combo?
Is this exit combo unit suitable for damp locations?
Is this exit combo unit suitable for damp locations?
What is the input voltage range for this exit combo?
What is the input voltage range for this exit combo?
